ADC UniDryer UD-50 User manual

UD-50 Parts Manual
1989 thru 1991
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: [phone] / Fax: [phone]
E-mail: [email protected]
ADC Part No. 450097
020191
071797WM/abe

Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVEALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation/operator's manual
included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OFPURCHASE ____________________________ MODELNO. __________________________________________
DISTRIBUTOR’S NAME ___________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your distributor or the ADC factory. When ordering replacement parts from the
factory, you can FAX your order toADC at [phone] or telephone your orders directly to the ADCParts Departmentat
[phone]. Please specify the dryermodelnumber andserialnumberin addition to thedescription andpartnumber,so
that your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite from
the various dryer models. Be sure to check descriptions of the parts thoroughly before ordering.
UD-50
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.

Table of Contents
High Security Control Door Assembly ..................................................................................................... 3
Phase 3 OPL Microprocessor Control Panel Assembly ........................................................................... 4
Phase 3 OPL Microprocessor Control Box Assembly ............................................................................. 5
Phase 4 OPL Non-Reversing Control Panel Assembly............................................................................. 6
Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly ..................................................... 7
Phase 4 OPL Reversing Control Panel Assembly ..................................................................................... 8
Phase 4 OPL Reversing Microprocessor Control Box Assembly.............................................................. 9
Phase 4 OPL UniSport®Microprocessor Control Panel Assembly ......................................................... 10
Phase 4 OPL Microprocessor Control Box Assembly ............................................................................11
Dual Timer Control Panel Assembly ................................................................................................ 12, 13
Dual Timer Control Box Assembly ................................................................................................. 14, 15
Main Door Assembly ........................................................................................................................... 16
Front Panel Assembly ........................................................................................................................... 17
Basket (Tumbler)/Support Assemblies............................................................................................. 18, 19
Drop Lint Door Assembly ..................................................................................................................... 20
Lint Trap Assembly ............................................................................................................................... 21
Basket (Tumbler) Bearing Assembly................................................................................................ 22, 23
Idler Bearing Assembly ................................................................................................................... 24, 25
Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly ........................... 26, 27
Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly ................................... 28, 29
Sensor Bracket Assemblies ............................................................................................................. 30, 31
Standard (Non-Hi/Lo) Burner Assembly
for Globar®Ignition Models ONLY......................................................................................... 32, 33
Hi/Lo Computerized Burner Assembly
for Globar®Ignition Models ONLY........................................................................................ 34, 35
Direct Spark Ignition (DSI) Burner Assembly .................................................................................. 36, 37

Sail Switch/Hi-Limit Assemblies
for Globar®and Direct Spark Ignition (DSI) Models ONLY ................................................. 38, 39
Replacement Coils for 3/8” Non-Hi/Lo Gas Valve
for Globar®and Direct Spark Ignition (DSI) Models ONLY ....................................................... 40
Replacement Coils for 3/8” Hi/Lo Gas Valve
for Globar®Ignition Models ONLY............................................................................................... 41
Electric Oven Assembly .................................................................................................................. 42, 43
Electric Oven Component Application Chart ......................................................................................... 44
Steam Coil/Valve Assembly................................................................................................................... 45
Microprocessor Reversing Control Assembly
Telemecanique ................................................................................................................................ 46
Dual Timer Reversing Control Assembly
Telemecanique ................................................................................................................................ 47
Microprocessor Reversing Control Assembly
Struthers-Dunn................................................................................................................................ 48
Dual Timer Reversing Control Assembly
Struthers-Dunn................................................................................................................................ 49
3-Phase (3ø) Motor, Electric Relay Panel Assembly
Telemecanique ................................................................................................................................ 50
3-Phase (3ø) Motor, Electric Relay Panel Assembly
Furnas.............................................................................................................................................. 51
Control/Heat Step Down Transformer
for Globar®and High Pressure Motorized Steam Valve Models ONLY............................... 52
Outer Top/Back Guard Assembly ......................................................................................................... 53
Heat Reclaimer Assembly ..................................................................................................................... 54
Arc Suppressor (A.S.) Relay Board Listing ........................................................................................... 55
Globar®Burner Assembly Specifications ............................................................................................... 56
Direct Spark Ignition (DSI) Burner Assembly Specifications .................................................................. 57
Additional Parts Available ..................................................................................................................... 58

3
Telephone: [phone]
Fax: [phone]

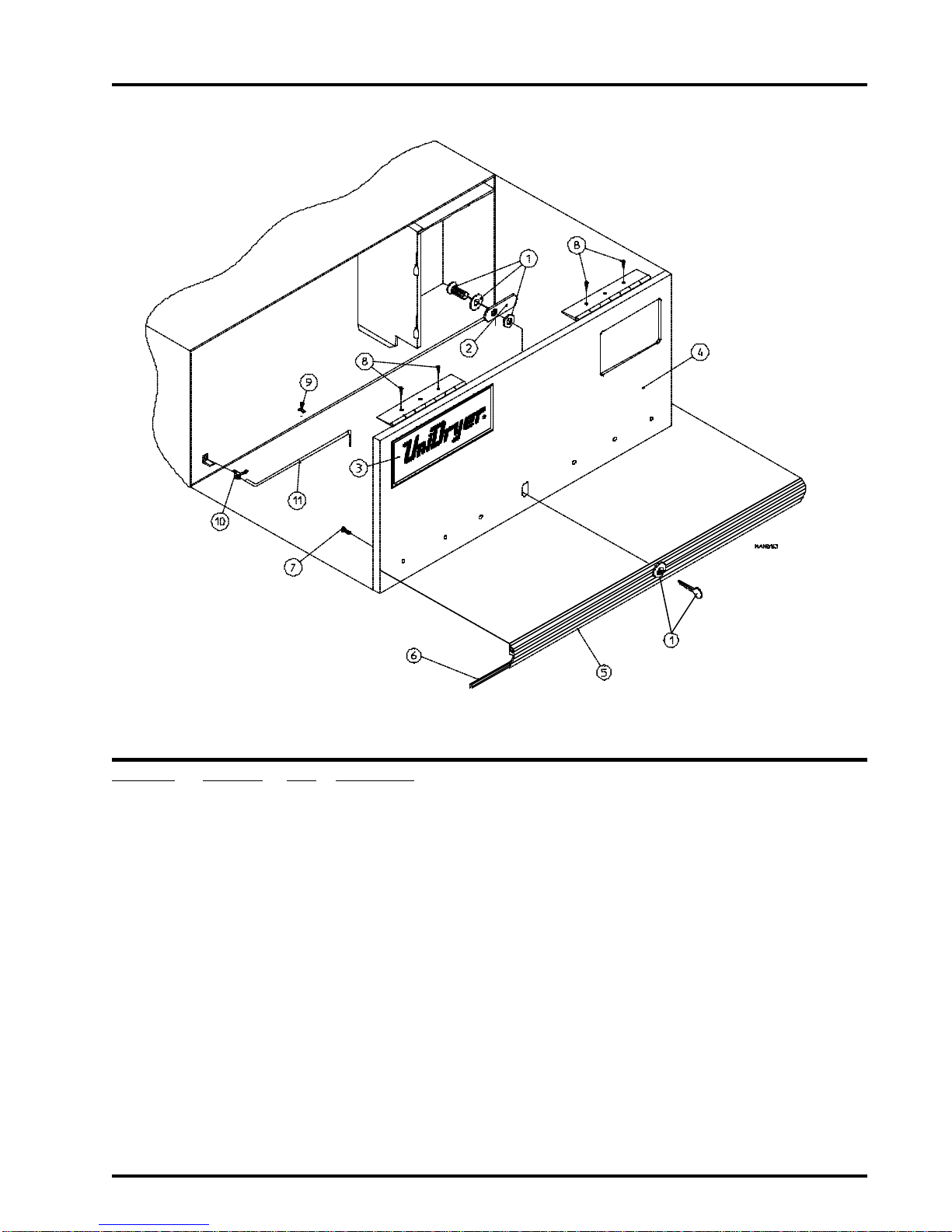

High Security Control Door Assembly
Illus. No. Part No. Qty. Description
1160017 1Special Dummy Lock ONLY
2160016 1Lock Cam ONLY
3112312 1UniDryer®Logo ONLY
112337 1UniSport® Logo ONLY
870011 1Logo Double Tape Kit
4800021* 1High Security Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
800142 1High Security Stainless Steel Control Door Assembly Less Lock
(includes illus. nos. 4 through 7)
5180202 1Top Trim Strip with Lock Hole
6102307 3Trim Bumper Gasket (sold by the foot)
7150201 6#10-32 x 1/4” Phillips Round Head Machine Screw
8150309 4#10-16 x 1/2” Hex Head TEK Crimptite Screw
9102600 1Control Door Rod Support Catch
10 102601 1Control Door Rod Retainer Clip
11 102502 1Control Door Support Rod
*Specify color when ordering.

4
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781

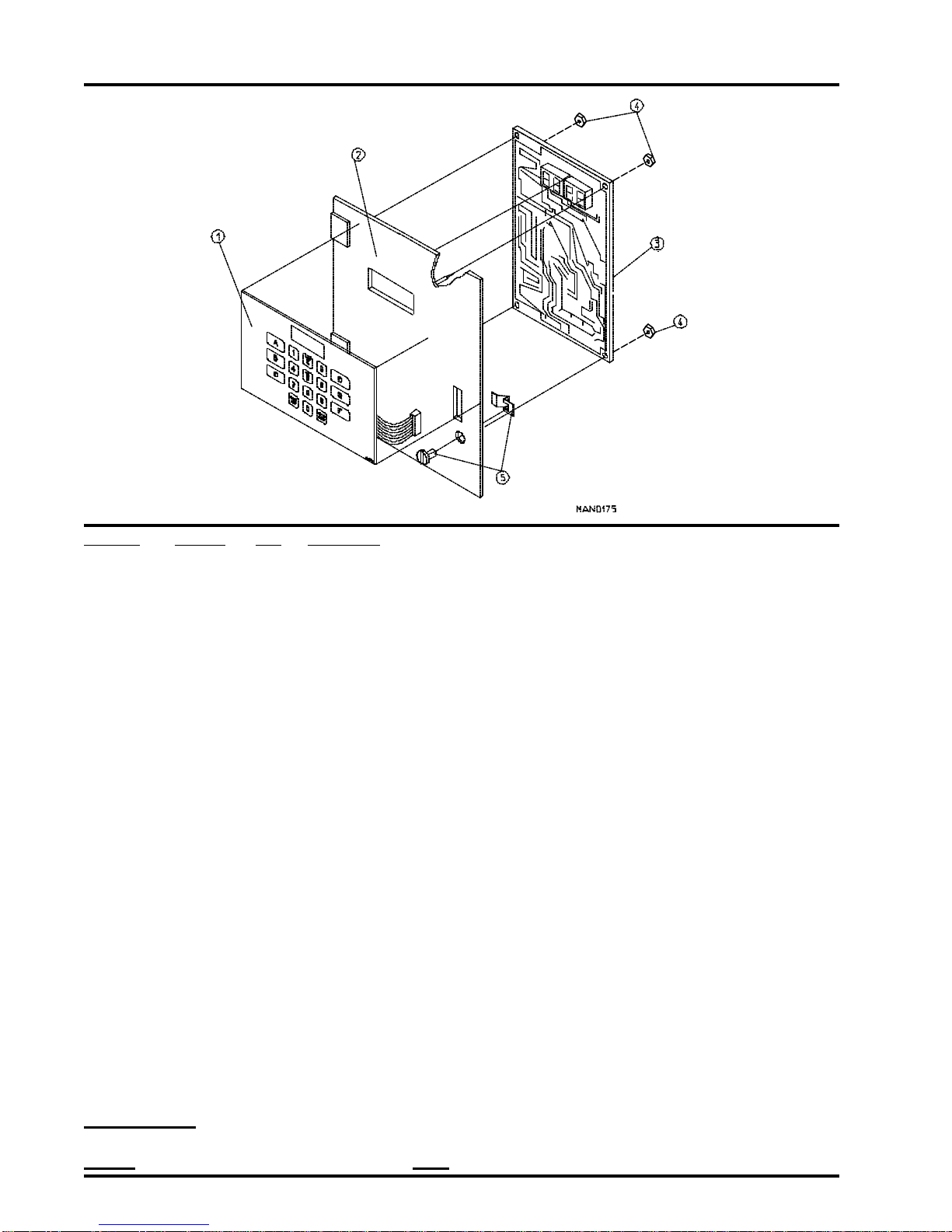

Phase 3 OPL Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1112535 1OPL English Keyboard Label Assembly
112276 1OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1OPL Stick-on Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 13-Language OPL Stick-on Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 15-Language OPL Stick-on Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2800057 1Microprocessor Control Panel ONLY
800164 1Microprocessor Control Panel ONLY with Battery Bracket
800161 1Phase 3 OPL Non-Reversing Microprocessor Control Panel Assembly Complete
(includes illus. nos. 1 through 5)
800163 1Phase 3 OPL Non-Reversing Microprocessor Control Panel Assembly
Complete with Battery Option
(includes illus. nos. 1 through 5)
865088* 1Phase 3 OPL Reversing Microprocessor Control Panel Assembly Complete
865089* 1Phase 3 OPL Reversing Microprocessor Control Panel Assembly Complete
with Battery Option
(includes illus. nos. 1 through 5)
3137092 1Phase 3 OPL Non-Reversing Controller (computer) ONLY
137093 1Phase 3 OPL Non-Reversing Controller (computer) ONLY
with Battery Clip
137094* 1Phase 3 OPL reversing controller (computer) ONLY
137095* 1Phase 3 OPL Reversing Controller (computer) ONLY with Battery Clip
4152001 4#8-32 Hex Nut
5160005 1Spring Turn Latch (2-piece)
* Used on dryer models with reversing option ONLY.
IMPORTANT: Check label on computer chip to verify correct part number for controller (computer).
NOTE: OPL controllers listed are suitable for ALL voltage applications.

5
Telephone: [phone]
Fax: [phone]
Illus. No. Part No. Qty. Description
1137021 13 or 15 Microprocessor Socket ONLY
2137020 115-Pin Microprocessor Connector ONLY
122800 1Microprocessor (female) Pin Extraction Tool
3150315 1#6 x 3/8” Phillips Pan Head “B” Screw
4137022 115-Pin Strain Relief ONLY
5137013 8Nylon Standoff
6-------- 1Arc Suppressor (A.S.) Relay Board
(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)
137061 1Arc Suppressor (A.S.) Board ONLY (without relay)
7131916 1 or 2 P.C.B. (electromechanical) Relay ONLY - 120 Volt
131930 1 or 2 P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
8140150 1Diode Logic Board ONLY
9136052 1 or 2 4-Amp Fuse ONLY
10 150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
11 131030 1Steam Valve Relay - 120 Volt
(for high pressure steam models Only)
131031 1Steam Valve Relay - 208/230 Volt
(for high pressure steam models Only)
12 150002 2#6-32 x 1” Phillips Round Head Machine Screw
13 120709 18-Position Terminal Strip
14 151000 2#6-32 Pal Nut

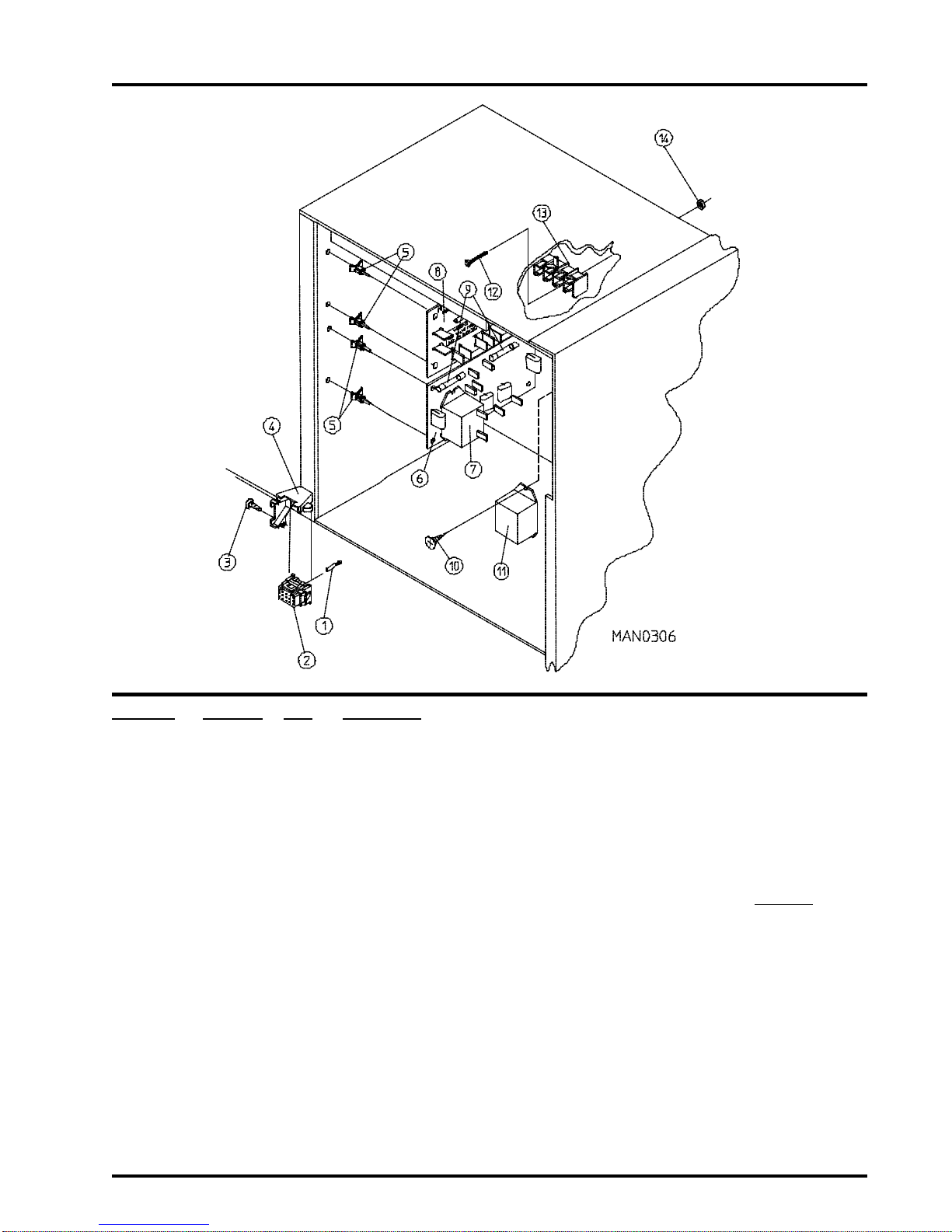

Phase 3 OPL Microprocessor Control Box Assembly

6
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No. Part No. Qty. Description
1112535 1OPL English Keyboard Label Assembly
112276 1OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1OPL Stick-on Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 13-Language OPL Stick-on Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 15-Language OPL Stick-on Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2800057 1Microprocessor Control Panel ONLY
800164 1Microprocessor Control Panel ONLY with Battery Bracket
800171 1Phase 4 OPL Non-Reversing Microprocessor Control
Panel Assembly Complete
(includes illus. nos. 1 through 8)
865095 1Phase 4 OPL Non-Reversing Microprocessor Control Panel Assembly
Complete with Battery Option
(includes illus. nos. 1 through 8)
3137125 1Phase 4 OPL Non-Reversing Controller (computer) ONLY
137126 1Phase 4 OPL Non-Reversing Controller (computer) ONLY
with Battery Clip
4* 306052 1Electrostatic Shield
5150108* 4#8-32 x 1/2” Phillips Pan Head Machine Screw
152001 4#8-32 Hex Nut
6* 153000 4#8 Steel Burr
7* 137011 41/4” Aluminum Standoff
8160005 1Spring Turn Latch (2-piece)
* Used on gas dryer models with the Direct Spark Ignition (DSI) system manufactured prior to March 13, 1989.
IMPORTANT: Check label on computer chip to verify correct part number for controller (computer).

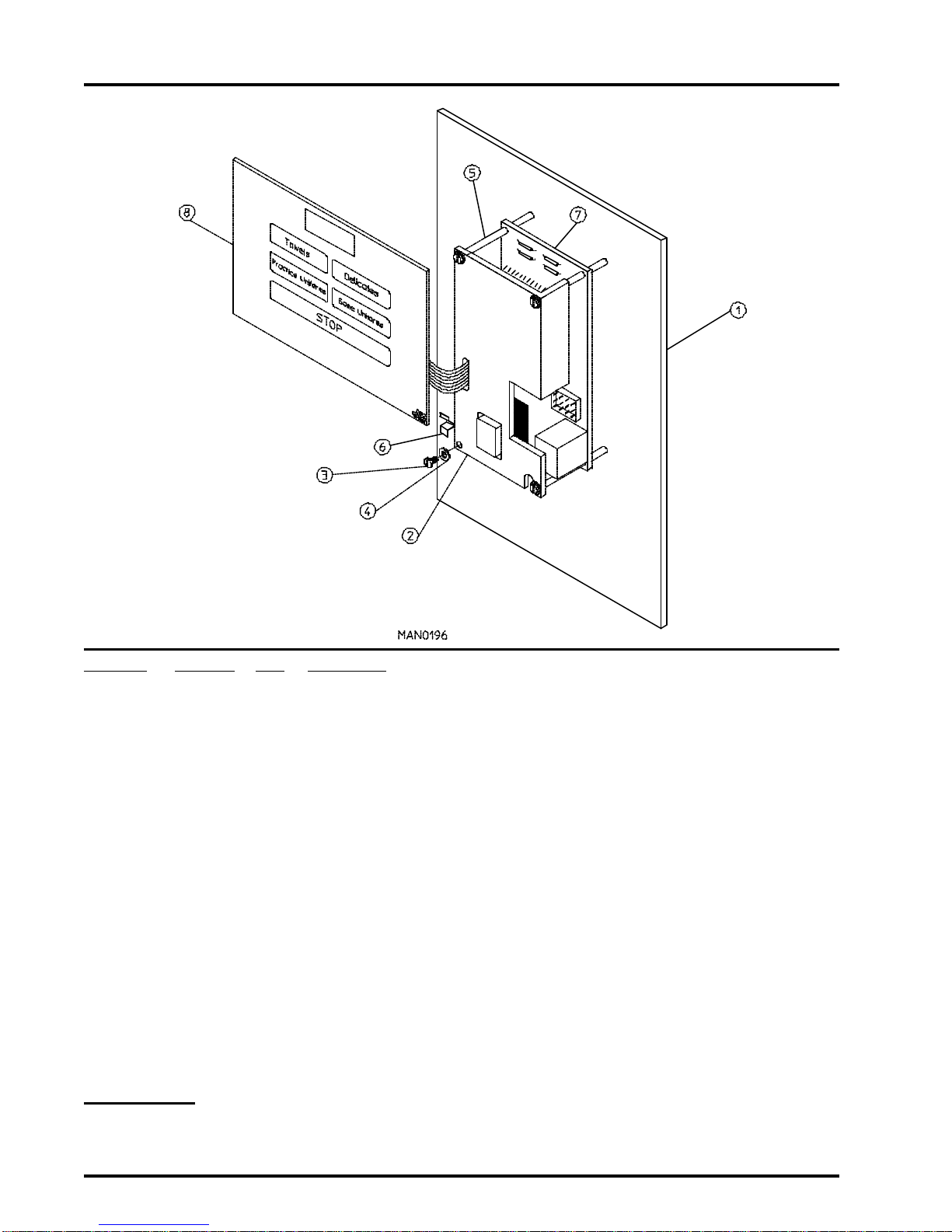

Phase 4 OPL Non-Reversing Control Panel Assembly

7
Telephone: [phone]
Fax: [phone]

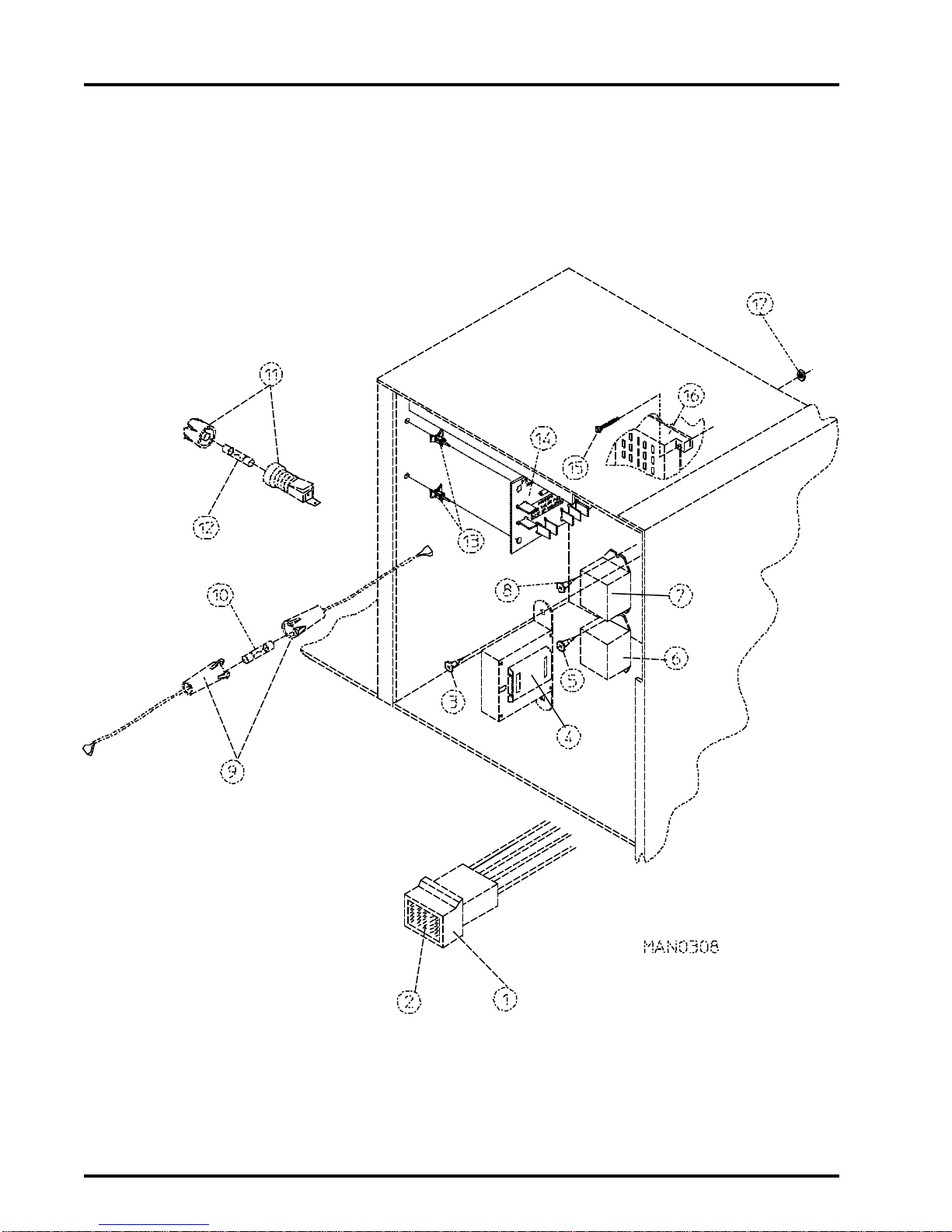

Phase 4 OPL Non-Reversing Microprocessor Control Box Assembly
Illus. No. Part No. Qty. Description
1137021 12 Microprocessor Socket ONLY
2137020 115-Pin Microprocessor Connector ONLY
122800 1Microprocessor (female) Pin Extraction Tool
3150315 1#6 x 3/8” Phillips Pan Head “B” Screw
4137022 115-Pin Strain Relief ONLY
5137013 4Nylon Standoff
6--------- 1Arc Suppressor (A.S.) Relay Board
(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)
137061 1Arc Suppressor (A.S.) Board ONLY (without relay)
7136052 1 or 2 4-Amp Fuse ONLY
8131916 1P.C.B. (electromechanical) Relay ONLY - 120 Volt
131930 1P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9150300 2#10-16 x 1/2” Hex Washer TEK Screw
10 141403 1Direct Spark Ignition (DSI) 24 VAC Transformer
(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
12 131030 1Steam Valve Relay - 120 Volt
(for high pressure steam models Only)
131031 1Steam Valve Relay - 208/230 Volt
(for high pressure steam models Only)
13 150002 2#6-32 x 1” Phillips Round Head Machine Screw
14 120715 130-Position Terminal Block
15 151000 2#6-32 Pal Nut
16 136008 *Fuse Block/Strip ONLY
17 150301 *#8 x 7/16” Self Drilling Screw
18 136057 *1/2-Amp (slo blo) Fuse ONLY
* As required.

8
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781

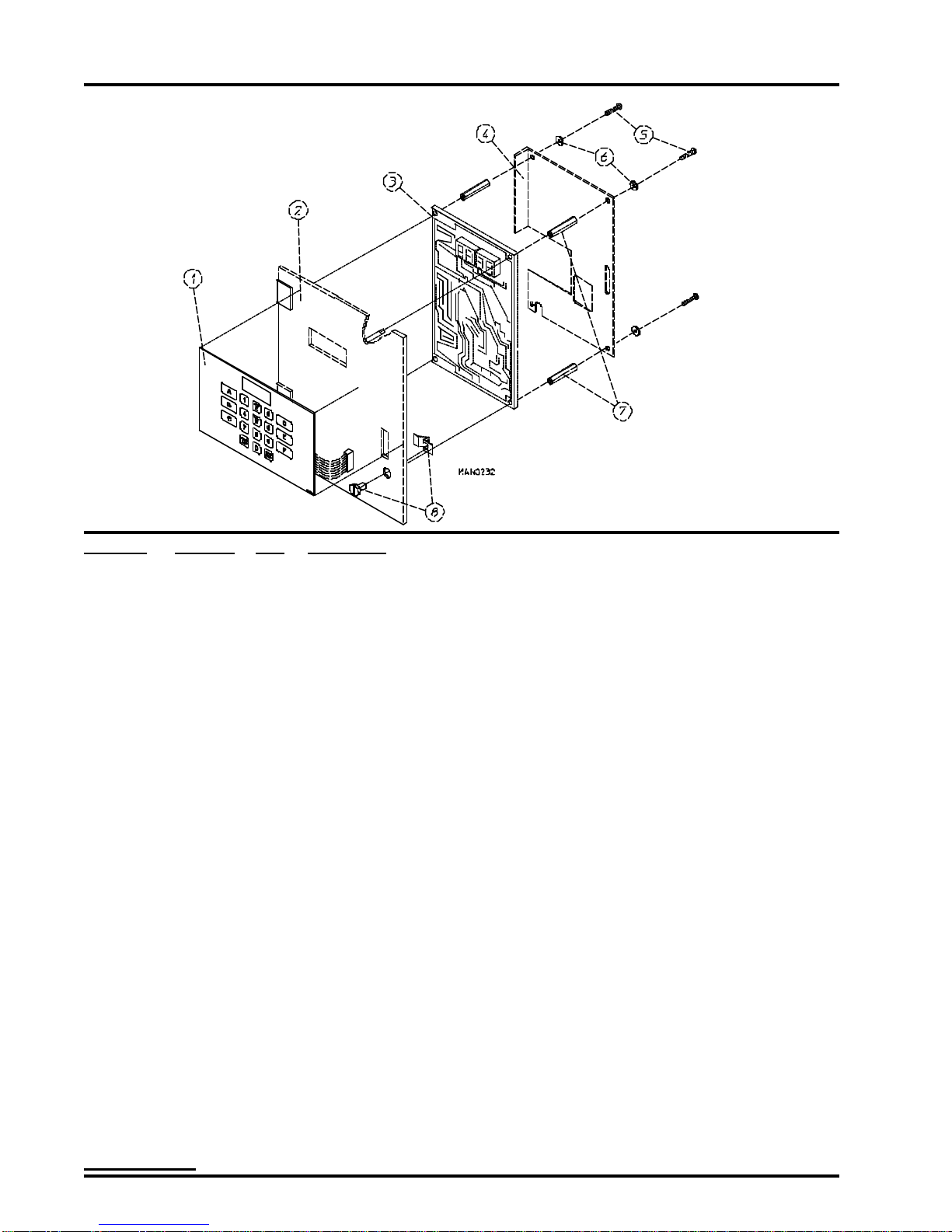

Phase 4 OPL Reversing Control Panel Assembly
Illus. No. Part No. Qty. Description
1112535 1OPL English Keyboard Label Assembly
112276 1OPL Stick-on Labels (English Only) ... Not Illustrated
112275 1OPL Stick-on Labels
(Spanish, Italian, and Hebrew) ... Not Illustrated
112277 13-Language OPL Stick-on Labels
(English, Spanish, and Hebrew) ... Not Illustrated
112278 15-Language OPL Stick-on Labels
(Italian, Dutch, French, German, and Chinese) ... Not Illustrated
2800057 1Microprocessor Control Panel ONLY
800164 1Microprocessor Control Panel ONLY with Battery Bracket
865092 1Phase 4 OPL Reversing Microprocessor Control Panel Assembly Complete
(includes illus. nos. 1 through 8)
865096 1Phase 4 OPL Reversing Microprocessor Control Panel Assembly Complete
with Battery Option
(includes illus. nos. 1 through 8)
3137127 1Phase 4 OPL Reversing Controller (computer) ONLY
137128 1Phase 4 OPL Reversing Controller (computer) ONLY with Battery Clip
4* 306052 1Electrostatic Shield
5150108* 4#8-32 x 1/2” Phillips Pan Head Machine Screw
152001 4#8-32 Hex Nut
6* 153000 4#8 Steel Burr
7* 137011 41/4” Aluminum Standoff
8160005 1Spring Turn Latch (2-piece)
* Used on gas dryer models with the Direct Spark Ignition (DSI) system manufactured prior to March 13, 1989.
IMPORTANT: Check label on computer chip to verify correct part number for controller (computer).

9
Telephone: [phone]
Fax: [phone]

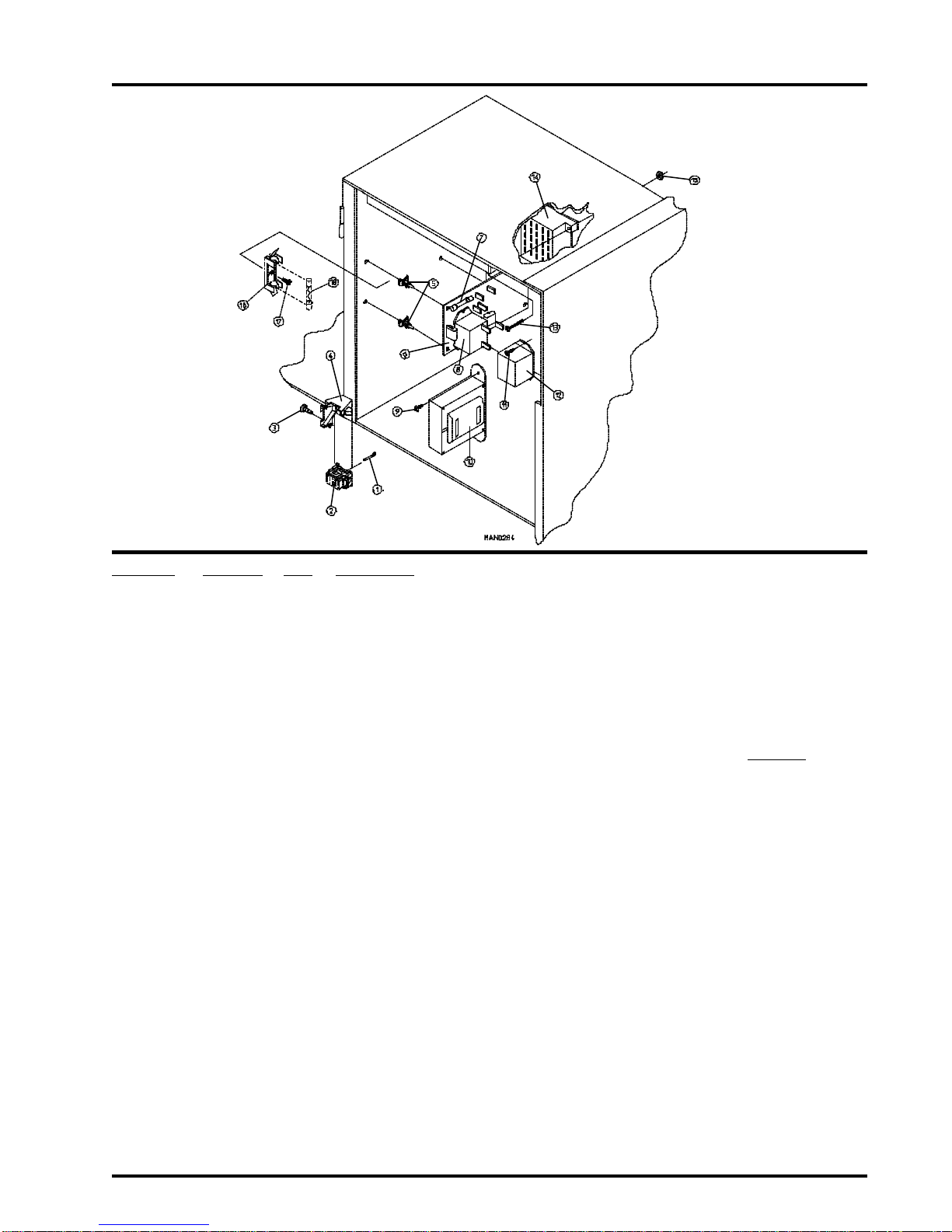

Phase 4 OPL Reversing Microprocessor Control Box Assembly
Illus. No. Part No. Qty. Description
1137021 14 Microprocessor Socket ONLY
2137020 115-Pin Microprocessor Connector ONLY
122800 1Microprocessor (female) Pin Extraction Tool
3150315 1#6 x 3/8” Phillips Pan Head “B” Screw
4137022 115-Pin Strain Relief ONLY
5137013 4Nylon Standoff
6--------- 1Arc Suppressor (A.S.) Relay Board
(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)
137061 1Arc Suppressor (A.S.) Board ONLY (without relay)
7136052 1 or 2 4-Amp Fuse ONLY
8131930 1P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9150300 2#10-16 x 1/2” Hex Washer TEK Screw
10 141403 1Direct Spark Ignition (DSI) 24 VAC Transformer
(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
12 131031 1Steam Valve Relay - 208/230 Volt
(for high pressure steam models Only)
13 150002 2#6-32 x 1” Phillips Round Head Machine Screw
14 120715 130-Position Terminal Block
15 151000 2#6-32 Pal Nut
16 136008 *Fuse Block/Strip ONLY
17 150301 *#8 x 7/16” Self Drilling Screw
18 136057 *1/2-Amp (slo blo) Fuse ONLY
* As required.

10
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Phase 4 OPL UniSport®Microprocessor Control Panel Assembly
Illus. No. Part No. Qty. Description
1800057 1OPL Microprocessor Control Panel ONLY
865106 1Phase 4 OPL UniSport®Direct Spark Ignition (DSI) Non-Reversing Control
Panel Assembly Complete
(includes illus. nos. 1 through 8)
865105 1Phase 4 OPL UniSport®Direct Spark Ignition (DSI) Reversing Control
Panel Assembly Complete
(includes illus. nos. 1 through 8)
2* 306052 1Electrostatic Shield
3150108* 48-32 x 1/2” Pan Head Machine Screw
152001 48-32 Hex Nut
4* 153000 4#8 Steel Burr
5* 137011 48/32” Aluminum Standoff
6160005 1Turn Latch (2-piece)
7137125 1Phase 4 OPL Non-Reversing Controller ONLY
137127 1Phase 4 OPL Reversing Controller ONLY
8112523 1UniSport®OPL Keyboard Label Assembly
* Used on UniSport®dryers manufactured prior to March 13, 1989.
IMPORTANT:When ordering a replacement Phase 4 OPL microprocessor controller (computer) from the
ADCfactory for UniSport®option dryers, please advise the customer service representative
that the replacement microprocessor controller (computer) is to be preprogrammed with the
special UniSport®parameters (programs).

11
Telephone: [phone]
Fax: [phone]
Phase 4 OPL Microprocessor Control Box Assembly
Illus. No. Part No. Qty. Description
1137021 12 or 14 Microprocessor Socket ONLY
2137020 115-Pin Microprocessor Connector ONLY
122800 1Microprocessor (female) Pin Extraction Tool
3150315 1#6 x 3/8” Phillips Pan Head “B” Screw
4137022 115-Pin Strain Relief ONLY
5137013 4Nylon Standoff
6--------- 1Arc Suppressor (A.S.) Relay Board
(refer to Arc Suppressor [A.S.] Relay Board Listing on page 55)
137061 1Arc Suppressor (A.S.) Board ONLY (without relay)
7136052 1 or 2 4-Amp Fuse ONLY
8131916 1P.C.B. (electromechanical) Relay ONLY - 120 Volt
131930 1P.C.B. (electromechanical) Relay ONLY - 208/230 Volt
9150300 1#10-16 x 1/2” Hex Washer TEK Screw
10 141403 1Direct Spark Ignition (DSI) 24 VAC Transformer
(for use on gas models with Direct Spark Ignition [DSI] Only)
11 150002 2#6-32 x 1” Phillips Round Head Machine Screw
12 120715 130-Position Terminal Strip
13 151000 2#6-32 Pal Nut
14 136008 *Fuse Block/Strip ONLY
15 150301 *#8 x 7/16” Self Drilling Screw
16 136057 *1/2-Amp (slo blo) Fuse ONLY
* As required.

12
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Dual Timer Control Panel Assembly

13
Telephone: [phone]
Fax: [phone]
Illus. No. Part No. Qty. Description
1123000 1Red Indicator Light - 120 Volt
123001 1Red Indicator Light - 230 Volt
2122400 1Rocker Heat Selector Switch
3824015 1Dual Timer Control Panel Assembly Complete - 120 Volt
(includes illus. nos. 1 through 21)
824015 1Dual Timer Control Panel Assembly Complete - 230 Volt
(includes illus. nos. 1 through 21)
800051 1Dual Timer Control Panel ONLY
4131812 1Push-to-Start Relay - 120 Volt
131813 1Push-to-Start Relay - 230 Volt
5150207 2#10-24 x 1/2” Phillips Round Head Machine Screw
6154001 2#10-24 Speed Nut
7152000 2#6-32 Hex Nut
8153010 2#6 Star Washer
9120713 118-Position Terminal Block
(for models mfd. as of May 3, 1989)
120708 13-Position Terminal Block
(for models mfd. prior to May 3, 1989)
10 150002 2#6-32 x 1” Phillips Round Head Machine Screw
11 150110 4#8-32 x 1/4” Phillips Round Head Machine Screw
12 150001 2#6-32 x 1/2” Phillips Round Head Machine Screw
13 131030 1Dual Timer Relay - 120 Volt
131031 1Dual Timer Relay - 230 Volt
14 151000 2#6-32 Pal Nut
15 112050 1Dual Timer Label ONLY
16 160005 1Spring Turn Latch (2-piece)
17 124103 2Arrow Timer Knob
18 124020 160-Minute Timer - 120 Volt
124021 160-Minute Timer - 230 Volt
19 124032 115-Minute Timer - 120 Volt
124023 160-Minute Timer - 230 Volt
20 122602 19-Pin Connector ONLY
21 122700 8Pin Terminal ONLY
--- 122801 1Pin/Socket Extraction Tool
Dual Timer Control Panel Assembly

14
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Dual Timer Control Box Assembly

15
Telephone: [phone]
Fax: [phone]
Dual Timer Control Box Assembly
Illus. No. Part No. Qty. Description
1122603 19-Pin Socket Connector ONLY
2122701 9Socket Terminal ONLY
122801 1Pin/Socket Extraction Tool
3150300 2#10-16 x 1/2” Hex Washer TEK Screw
4141403 1Direct Spark Ignition (DSI) 24 VAC Transformer
(for use on gas models with Direct Spark Ignition [DSI] Only)
5150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
6131030 1Steam Valve Relay (High Pressure Steam Only) - 120 Volt
131031 1Steam Valve Relay (High Pressure Steam Only) - 208/230 Volt
7131814 1Motor Control Relay ONLY
(120 Volt controls Only)
8150309 2#10-16 x 1/2” Hex Head TEK Crimptite Screw
9875250 2In-Line Fuse Holder Assembly ONLY
(model application varies)
10* 136052 ** 4-Amp Fuse ONLY
136054 ** 15-Amp (Slo Blo) Fuse ONLY
136056 ** 20-Amp (Slo Blo) Fuse ONLY
11 136002 1 or 2 Panel Mount Fuse Holder Assembly ONLY
(model application varies)
12* 136052 ** 4-Amp Fuse ONLY
136054 ** 15-Amp (slo blo) Fuse ONLY
136056 ** 20-Amp (slo blo) Fuse ONLY
13 137013 4Nylon Standoff
14*** 140150 1Diode Logic Board
15 152002 2#6-32 x 1” Phillips Round Head Machine Screw
16 120715 130-Position Terminal Block
120709 18-Position Terminal Strip
17 151000 2#6-32 Pal Nut
*Check fuse rating for verification.
** As applicable.
*** For use on Globar®dryer models ONLY.

16
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Main Door Assembly
Illus. No. Part No. Qty. Description
1* 800136 1Main Door Assembly Complete
(includes illus. nos. 1 through 12)
800133 1Main Door Assembly Less Accessories
(includes illus. nos. 1, 2, and 3)
800134 1Main Door with Glass and Gasket ONLY
(includes illus. nos. 1, 2, 3, 5, and 6)
2103050 112-1/2” Stainless Steel Main Door Hinge
3150410 4#10-24 x 3/8” Phillips Pan Head Taptite Screw
4152014 41/4-20 Free Spin Wash Nut
5102350 168-1/2” Main Door Gasket
6102210 120-7/16” Door Glass
7150002 26-32 x 1” Phillips Round Head Machine Screw
8102105 2Magnet Holder ONLY
9152013 2#6-32 Hex Nut
10 306802 6Magnet Keeper ONLY
11 102102 4Door Magnet (.215)
12 150410 4#10-24 x 3/8” Phillips Pan Head Taptite Screw
13 800131 2Cast Aluminum Magnet Holder Assembly Complete
(includes illus. nos. 7 through 11)
--- 170730 1Main Door Gasket/Glass Adhesive (10.3 oz. cartridge)
*ALL model dryers manufactured as of June 1, 1989 are built with a lightweight main door assembly.

17
Telephone: [phone]
Fax: [phone]
Front Panel Assembly
Illus. No. Part No. Qty. Description
1800367* 1Right Hand Front Panel Assembly Complete
(includes illus. nos. 1 through 4)
800373* 1Right Hand Insulated Front Panel Assembly Complete
(includes illus. nos. 1 through 4)
800355 1Stainless Steel Right Hand Front Panel Assembly Complete
(includes illus. nos. 1 through 4)
2313903 23-1/2” Stainless Steel Striker Pad
3154200 45/32” Pop Rivet
4121405 1Rubber Grommet
5150309 8#10-16 x 1/2” Hex Head TEK Crimptite Screw
6137003 1Door Switch ONLY
(includes illus. nos. 6, 7, and 8)
7401551 1 or 2 Door Switch Spacer/Washer
8152003 1#3/8-32 x 1/2 x 1/16” Door Switch Nut
9870010 1Door Switch Housing Assembly Complete
(includes illus. nos. 6 through 9)
313209 1Door Switch Housing ONLY
10 150301 2#8-18 x 7/16” Phillips Pan Head TEK Screw
11 150300 1#10-16 x 1/2” Hex Washer TEK Screw
* Specify color when ordering.

18
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Basket (Tumbler)/Support Assemblies
