ADC AD-758DV User manual

AD-758DV
Parts Manual
AmericanDryerCorporation
88Currant Road
FallRiver,MA02720-4781
Telephone: [phone] / Fax: [phone]
E-mail:[e-mail]
www.amdry.com
111600JCARRITA/calbert ADCPartNo.450433

Retain This Manual In ASafe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.
Important
For your convenience, log the following information:
DATE OFPURCHASE ____________________________ MODELNO. __________________________________________
RESELLER’SNAME _______________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your reseller or the ADCfactory. Whenordering replacementparts from the factory,
you can FAX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Pleasespecify the dryermodelnumber andserialnumberinaddition to thedescriptionandpartnumber,so that
your order is processed accurately and promptly.
The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.
“IMPORTANTNOTETOPURCHASER”
Informationmustbeobtainedfromyourlocalgassupplierontheinstructions
tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a
prominentlocationnearthedryer.
AD-758DV
FORYOURSAFETY
Donot store or use gasolineor
otherflammablevaporsand
liquidsinthevicinityofthisor
anyotherappliance.
POURVOTRESÉCURITÉ
Nepasentreposer ni utiliser d’essence
nid’autresvapeursouliquides
inflammablesàproximitédecet
appareiloude tout autreappareil.

Table of Contents
OPLControlDoorAssembly
For Models Mfd. as of July 1, 2002.................................................................................................... 2
CoinControlDoorAssembly
For Models Mfd. as of July 1, 2002.................................................................................................... 3
ControlDoorAssembly
For Models Mfd. prior to July 1, 2002................................................................................................ 4
Phase5OPLMicroprocessor Control PanelAssembly ........................................................................... 5
Phase5Coin Microprocessor Control PanelAssembly ....................................................................... 6, 7
DualTimer“TapTouch”Controls............................................................................................................ 8
CoinandOPLControlBoxAssembly ..................................................................................................... 9
CoinVaultAssembly ............................................................................................................................. 10
FrontPanelAssembly ........................................................................................................................... 11
MainDoor“Steel”Assembly .......................................................................................................... 12, 13
MainDoorSwitchAssembly................................................................................................................. 14
Basket(Tumbler)/SupportAssemblies ................................................................................................... 15
LintDrawer/LintDrawerSwitchAssembly ............................................................................................ 16

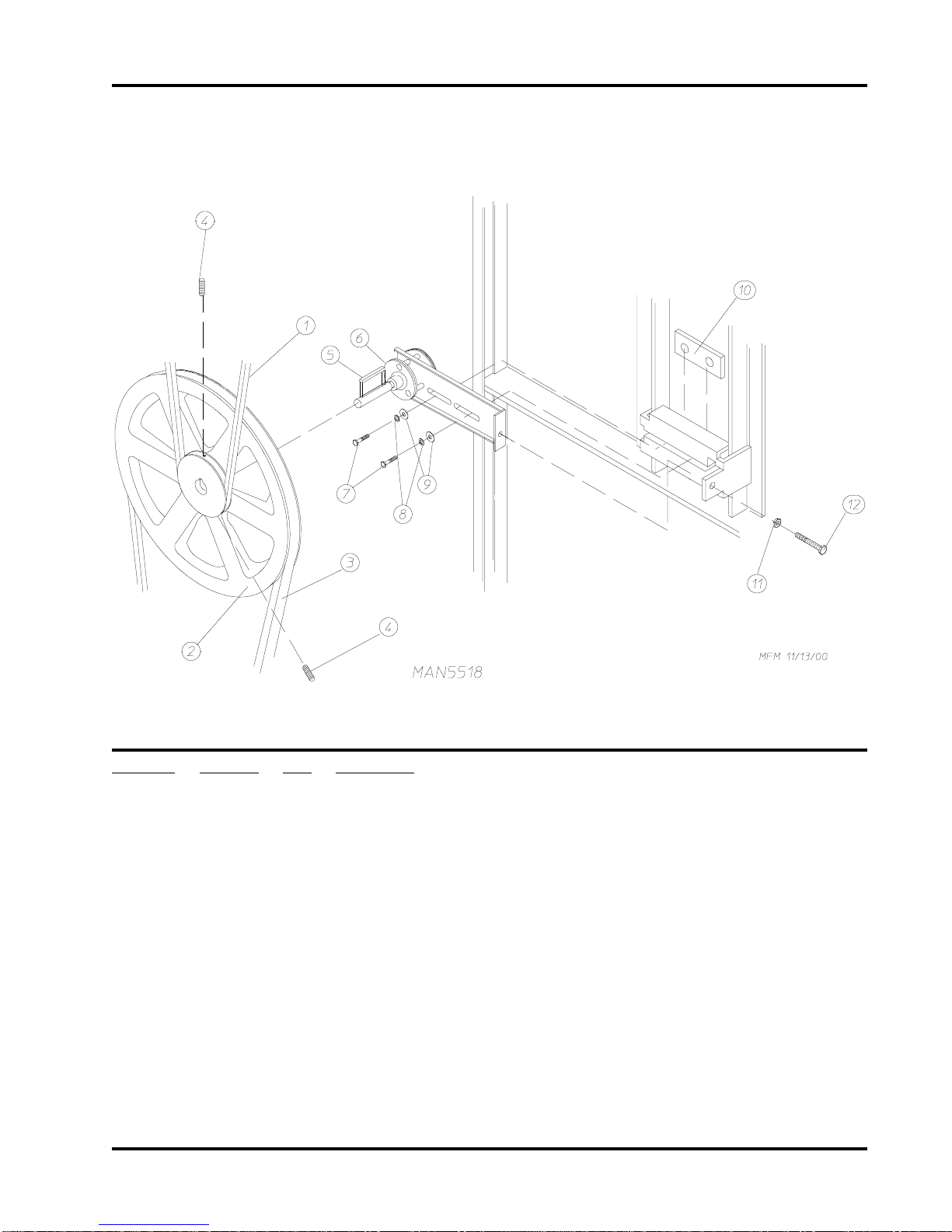

IdlerBearingAssembly ......................................................................................................................... 17
Basket(Tumbler)BearingAssembly ................................................................................................ 18, 19
Non-ReversingMotorMountAssembly .......................................................................................... 20, 21
ReversingT.E.F.C.MotorMountAssembly .................................................................................... 22, 23
SensorBracketAssemblies ............................................................................................................. 24, 25
DirectSparkIgnition(DSI)BurnerAssembly .................................................................................. 26, 27
ElectricOvenAssembly .................................................................................................................. 28, 29
Air-OperatedSteamDamperAssembly .......................................................................................... 30, 31
Single-Phase(1ø)Motor,Electric Relay PanelAssembly ....................................................................... 32
3-Phase(3ø)Motor,ElectricRelayPanelAssembly .............................................................................. 33
460-480VAC3-Phase(3ø) Motor, ElectricRelay PanelAssembly ....................................................... 34
ReversingElectricRelayPanelAssembly ............................................................................................... 35
460-480VACReversingElectricRelayPanelAssembly........................................................................ 36
SailSwitchAssembly ............................................................................................................................ 37
OuterTop/Back GuardAssemblies ....................................................................................................... 38
ElectricOvenComponentApplicationChart ......................................................................................... 39
MicroprocessorCoinAcceptors Listing ................................................................................................ 40
AdditionalPartsAvailable ..................................................................................................................... 41

2
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
OPLControl DoorAssembly
Illus. No. Part No. Qty.Description
1 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
2 883616 1 White Control DoorAssembly
(includes illus. nos. 2 and 3)
883618 1 Ivory Control DoorAssembly
(includes illus. nos. 2 and 3)
883617 1 Coral Blue Control DoorAssembly
(includes illus. nos. 2 and 3)
3 117604 3 Neoprene Sponge Tape (sold by the foot)
4 150317 2 #10-16 x 3/4” TORX + BTN Type 1
5 102603 1 Control Door Rod Support Catch
6 102601 1 Control Door Rod Retainer Clip
7 102502 1 Control Door Support Rod
8 150321 2 #10-32 x 1/2” Phillips Machine Screw
9 154011 2 #10-32 Multi-Thread U-Nut
For Models Mfd. as of July 1, 2002

3
Telephone: [phone] Fax: [phone]

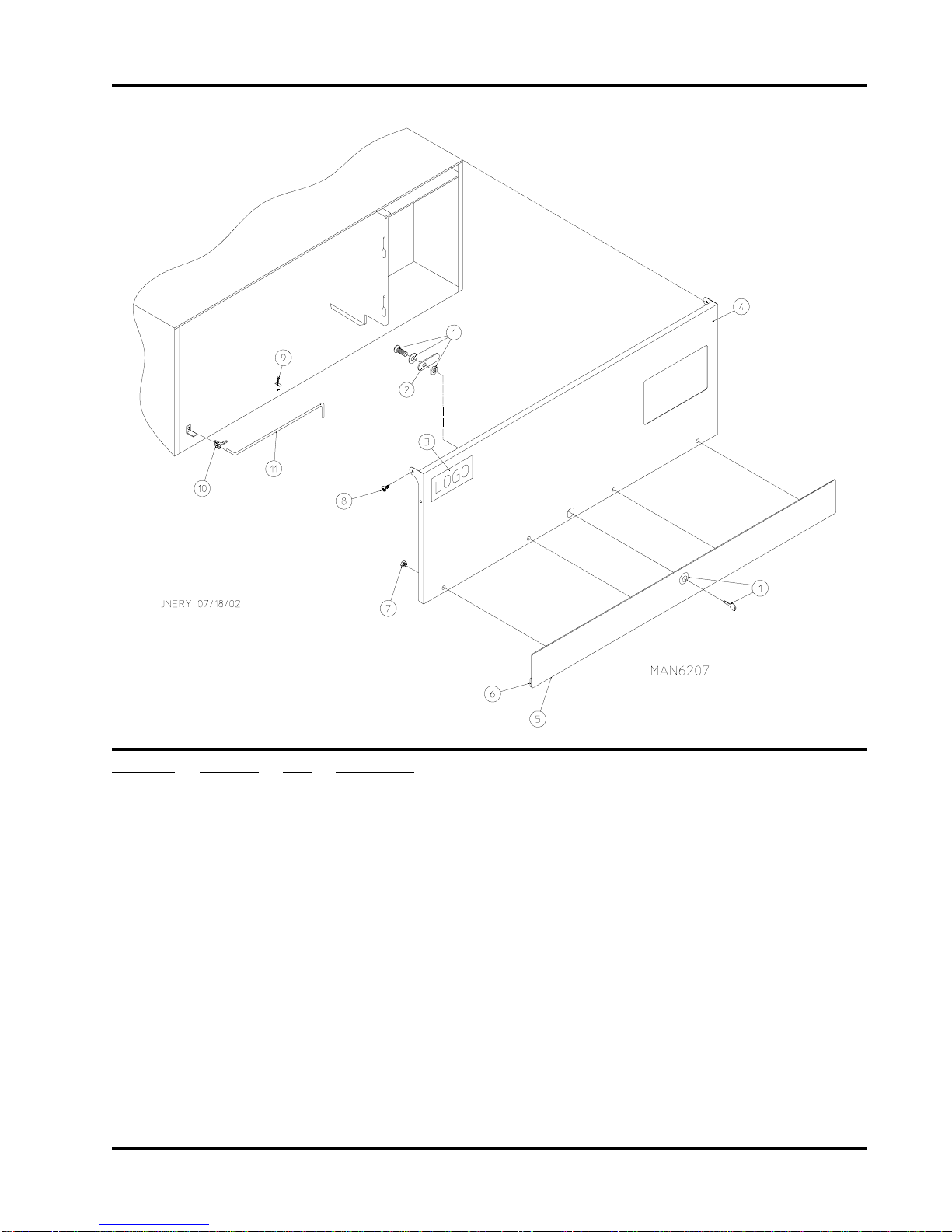

Coin Control Door Assembly
For Models Mfd. as of July 1, 2002
Illus. No. Part No. Qty.Description
1 160015 1 High Security LockAssembly
160104 1 Key ONLY
2 160016 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape
4 883621 1 White Control DoorAssembly with Black Trim
(includes illus. nos. 4 through 7)
883619 1 Ivory Control Door with BlackTrim
(includes illus. nos. 4 through 7)
883620 1 Coral Blue Control Door with Black Trim
(includes illus. nos. 4 through 7)
5 883485 1 Black Trim Strip with Lock Hole
6 117604 6 Neoprene Sponge Tape (sold by the foot)
7 152014 4 1/4-20 with 3/4” Free Spin Wash Nut
8 150317 2 #10-16 x 3/4” TORX + BTN Type 1
9 102603 1 Control Door Rod Support Catch
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod

4
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

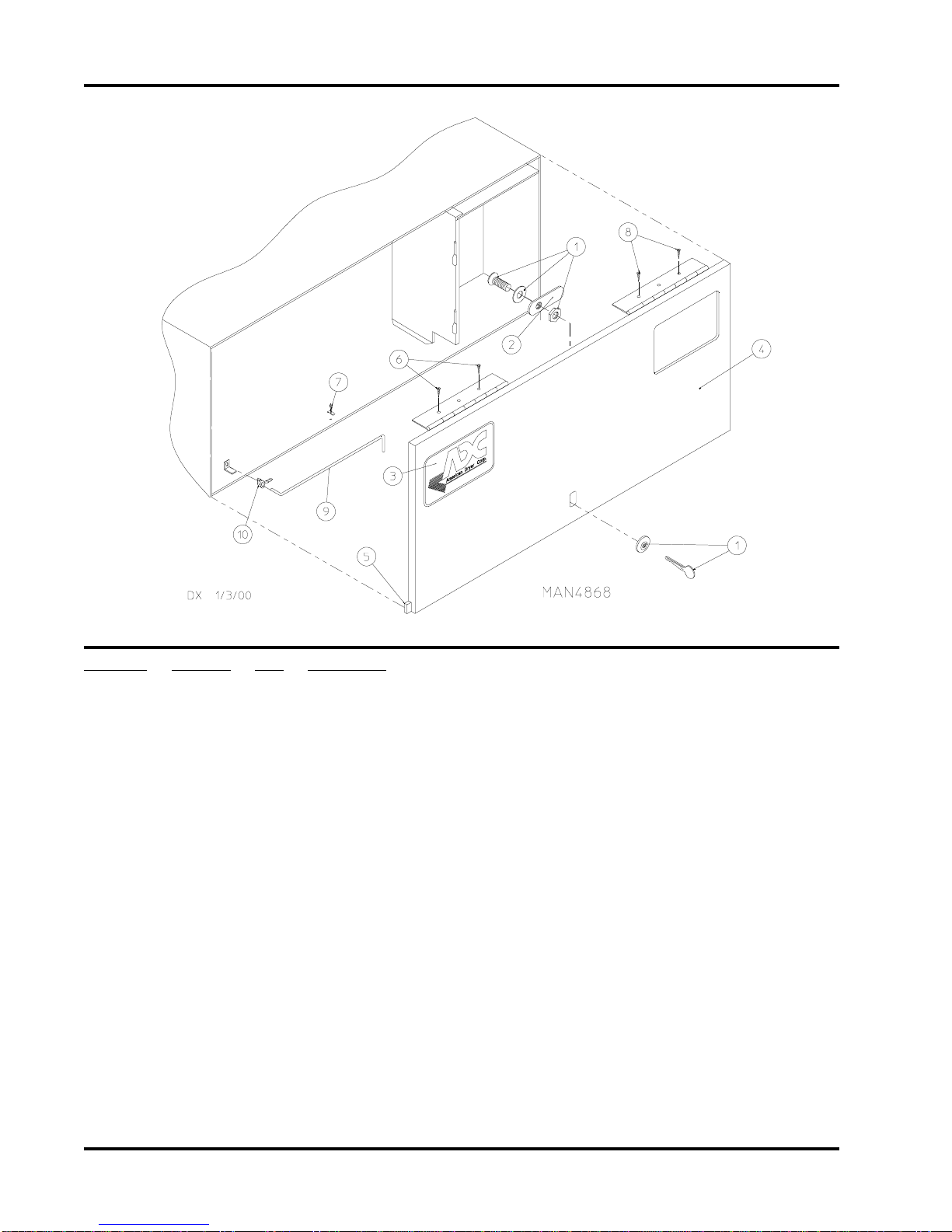

Control Door Assembly
Illus. No. Part No. Qty.Description
1 160015 1 High Security MK-100 LockAssembly with Key
(for coin models Only)
160017 1 Special Dummy Lock ONLY
(for non-coin models Only)
160104 1 MK-100 Key ONLY
2 160052 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape
870011 1 Double Sided Tape Kit
4 882751 1 White High Security Control DoorAssembly Less Lock
(includes illus. nos. 4 and 5)
882752 1 Almond “B” High Security Control DoorAssembly Less Lock
(includes illus. nos. 4 and 5)
882749 1 Coral Blue High Security Control DoorAssembly Less Lock
(includes illus. nos. 4 and 5)
882761 1 Bisque High Security Control DoorAssembly Less Lock
(includes illus. nos. 4 and 5)
5 117603 4 Noise Suppressor Tape (sold by the foot)
6 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 102603 1 Control Door Rod Support Catch
8 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
9 102502 1 Control Door Support Rod
10 102601 1 Control Door Rod Retainer Clip
For Models Mfd. prior to July 1, 2002

5
Telephone: [phone] Fax: [phone]

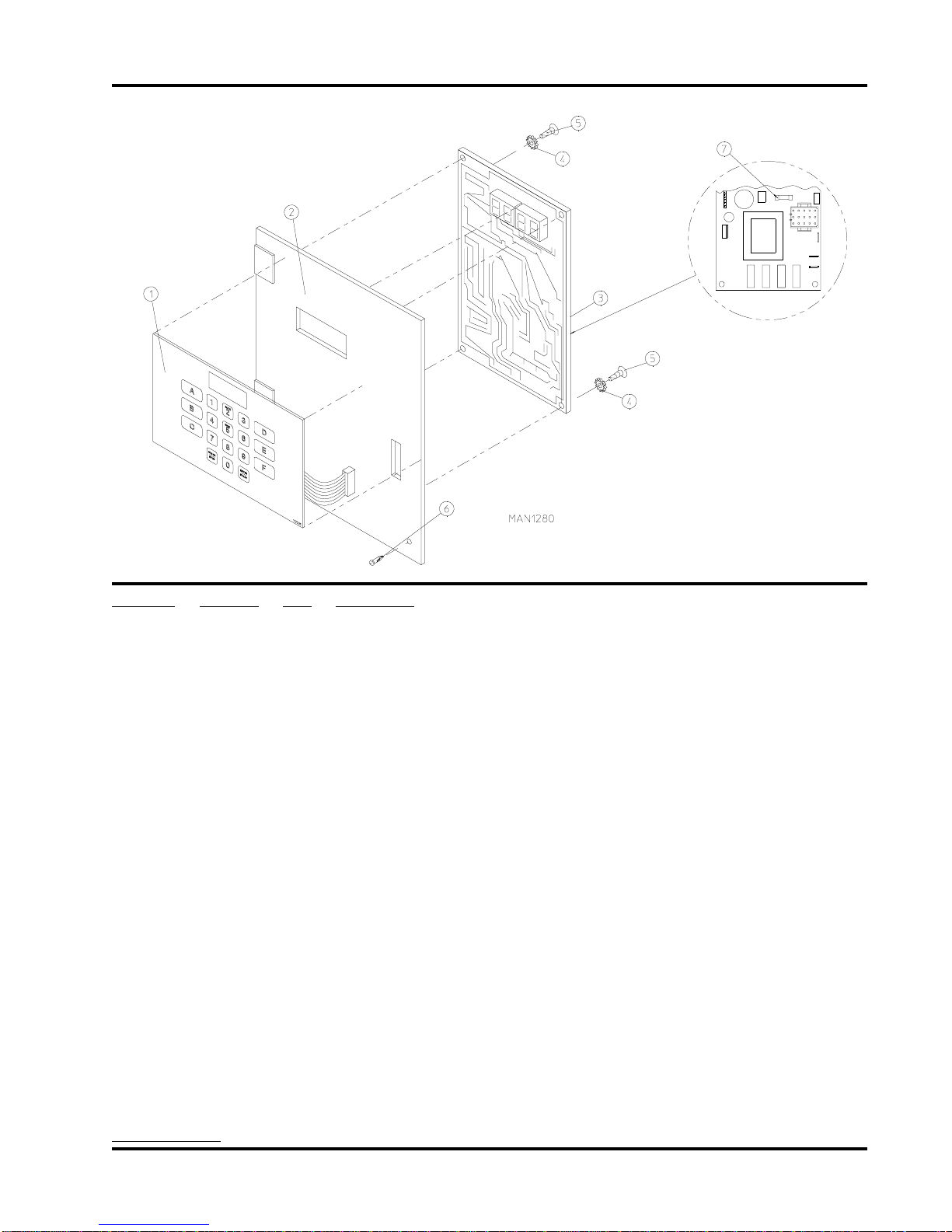

Phase 5 OPL Microprocessor Control Panel Assembly
Illus. No. Part No. Qty.Description
1 112535 1 OPL English Keyboard LabelAssembly
112276 1 OPL Stick-On Labels (English Only)...Not Illustrated
112275 1 3-Language OPL Stick-On Labels...Not Illustrated
(Spanish, Italian, and Hebrew)
112277 1 3-Language OPL Stick-On Labels...Not Illustrated
(English, Spanish, and Hebrew)
112278 1 5-Language OPL Stick-On Labels...Not Illustrated
(Italian, Dutch, French, German, and Chinese)
2 801255 1 Phase 5 Microprocessor Control Panel ONLY
801256 1 Phase 5 Microprocessor Control Panel ONLY with Battery Bracket
801206 1 Phase 5 OPL Non-Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 through 6)
801207 1 Phase 5 OPL Reversing Microprocessor Control Panel Assembly
Complete
(includes illus. nos. 1 through 6)
3 137222 1 Phase 5 OPL Non-Reversing Microprocessor Controller (computer) ONLY
137231 1 Phase 5 OPL Reversing Microprocessor Controller (computer) ONLY
824998 1 Phase 5 Battery Clip
4 153010 2 #6 Star Washer
5 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
6 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Check label oncomputerchiptoverify correct part numberforcontroller(computer).

6
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Phase 5 Coin Microprocessor Control Panel Assembly

7
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 112526 1 Coin Keyboard LabelAssembly
2 883537 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883538 1 Phase 5 Coin Control PanelAssembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)
883582 1 Phase 5 Coin Control PanelAssembly with Battery Option
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883581 1 Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)
883539 1 Coin Control Panel ONLY
(for models mfd. as of June 25, 2002)
883540 1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. as of June 25, 2002)
883580 1 Coin Control Panel ONLY
(for models mfd. prior to June 25, 2002)
883579 1 Coin Control Panel ONLY with Battery Bracket
(for models mfd. prior to June 25, 2002)
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller ONLY
824998 1 Phase 5 Battery Clip
5 153010 2 #6 Star Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 --------- 1 Microprocessor Coin Acceptor
(refer to Microprocessor Coin Acceptors Listing on page 40)
8 -------- 1 Optic Switch ONLY
(refer to Microprocessor Coin Acceptors Listing on page 40)
9 137023 1 Optic Switch Connector ONLY
10 137021 3 Microprocessor Socket ONLY
880772 1 Single Coin Optical Switch Harness
122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse
IMPORTANT: Checklabelon computer chiptoverify correct partnumberofcontroller (computer).
Phase 5 Coin Microprocessor Control Panel Assembly

8
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Dual Timer “Tap Touch” Controls
Illus. No. Part No. Qty.Description
1 124030 1 15 Minute Timer - 24 VAC
2 124025 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Light - 24 VAC
4 122301 1 “Tap Touch” Switch
5 131932 3 Relay SPST 24v
6 120730 1 30-Position Terminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual Timer Panel Complete
(includes illus. nos. 1 through 15)
850392 - Dual Timer Panel ONLY
9 153010 2 #6 Star Washer
10 152000 3 #6-32 Hex Nut
11 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touch Knob with Red Pointer
15 124105 1 Pure Touch Knob with Blue Pointer

9
Telephone: [phone] Fax: [phone]
Coin and OPL Control Box Assembly
Illus. No. Part No. Qty.Description
1 132002 1 Transformer
(for mechanical steam damper models - 208 VAC and higher Only)
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 131931 1 Steam Valve Relay - 24 VAC
(for mechanical steam damper models Only)
5 137035 1 Capacitor
(for mechanical steam damper models Only)
6 323583 1 Capacitor Bracket
(for mechanical steam damper models Only)
7 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
8 122641 1 15-Pin Microprocessor Controller (computer) Connector
9 122706 * Socket Terminal ONLY
--- 122801 1 Pin/Socket ExtractionTool
10 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
11 132198 1 ReversingTimer 24v (for reversing dual timer models Only)
* As required.

10
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

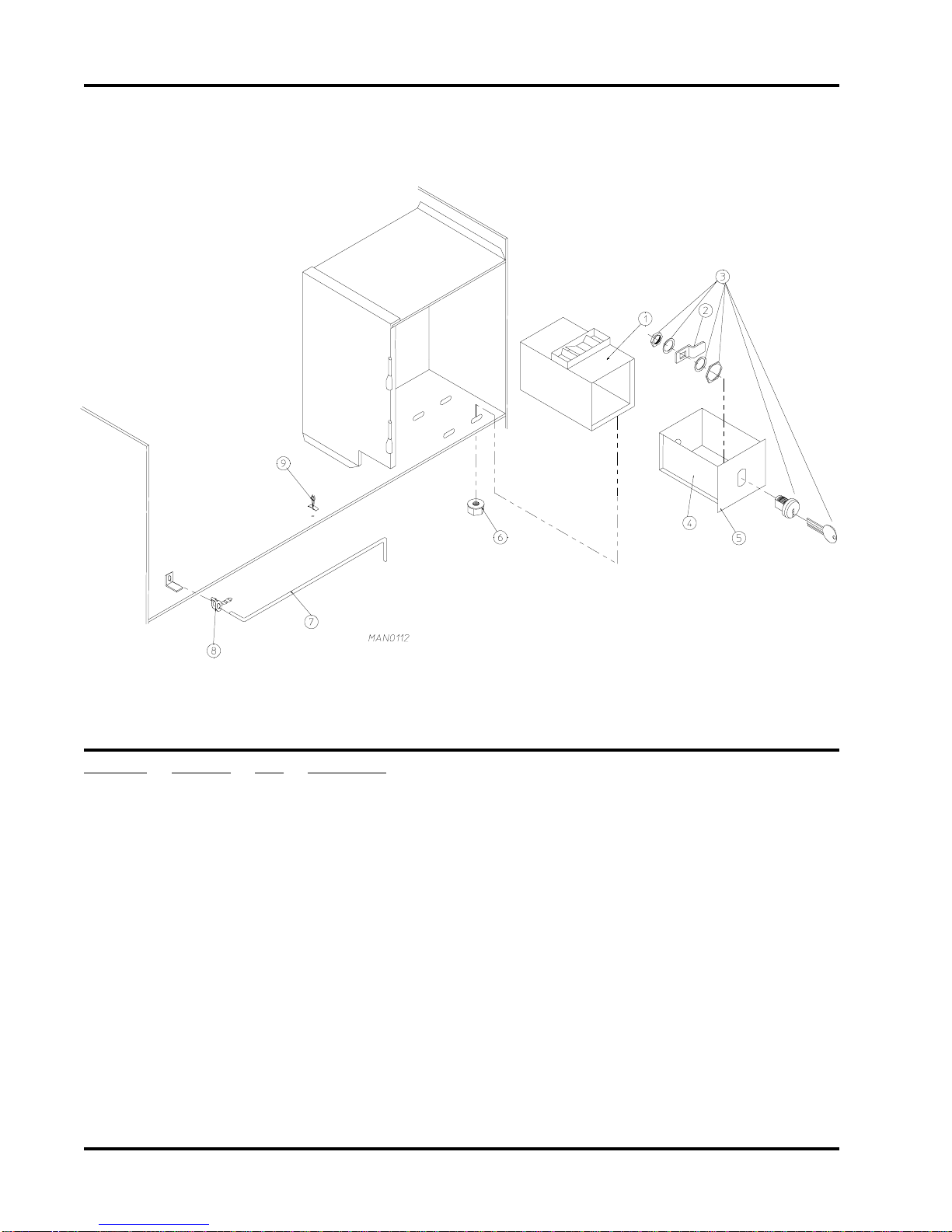

Illus. No. Part No. Qty.Description
1 802112 1 Microprocessor Coin VaultAssembly Complete
(includes illus. nos. 1 through 6)
802117 1 Microprocessor Coin Vault ONLY
2 160028 1 Cam for 1/4 Turn Lock ONLY
3 875061 1 1/4 Turn Lock with Key and Cam
160105* 1 1/4 Turn Mer-Pel Key ONLY
4 802020 1 1/4 Turn Coin BoxAssembly
(includes illus. nos. 2 through 5)
802019 1 1/4 Turn Coin Box ONLY without Faceplate
125915 1 High Security (Greenwald) Coin Box ONLY with Key
5 802018 1 1/4 Turn Coin Box Faceplate ONLY
6 152014 4 1/4-20 with 3/4” Free Spin Wash Nut
7 102502 1 Control Door Support Rod
8 102601 1 Control Door Rod Retainer Clip
9 102603 1 Control Door Rod Support Catch
* Specify key number when ordering.
Coin Vault Assembly

11
Telephone: [phone] Fax: [phone]
Front Panel Assembly
Illus. No. Part No. Qty.Description
1 882905 1 White Front PanelAssembly
(includes illus. nos. 1, 5, and 6)
882901 1 Coral Blue Front PanelAssembly
(includes illus. nos. 1, 5, and 6)
882902 1 Ivory Front PanelAssembly
(includes illus. nos. 1, 5, and 6)
2 150313 11 #10-16 x 1/2” TORX Plus BTN Type 1
150318 1 25 IP TORX Plus Bit 1/4 Hex (for removal of TORX head screw)
3 -------- 1 Main Door Hinge
(refer to Main Door “Steel” Assembly on page 12 and page 13)
4 -------- 1 Lint Drawer Switch
(refer to Lint Drawer/Lint Drawer Switch Assembly on page 16)
5 881987 1 Friction Door Latch
(includes illus. nos. 5 and 6)
6 154215 2 5/32” Pop Rivet

12
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

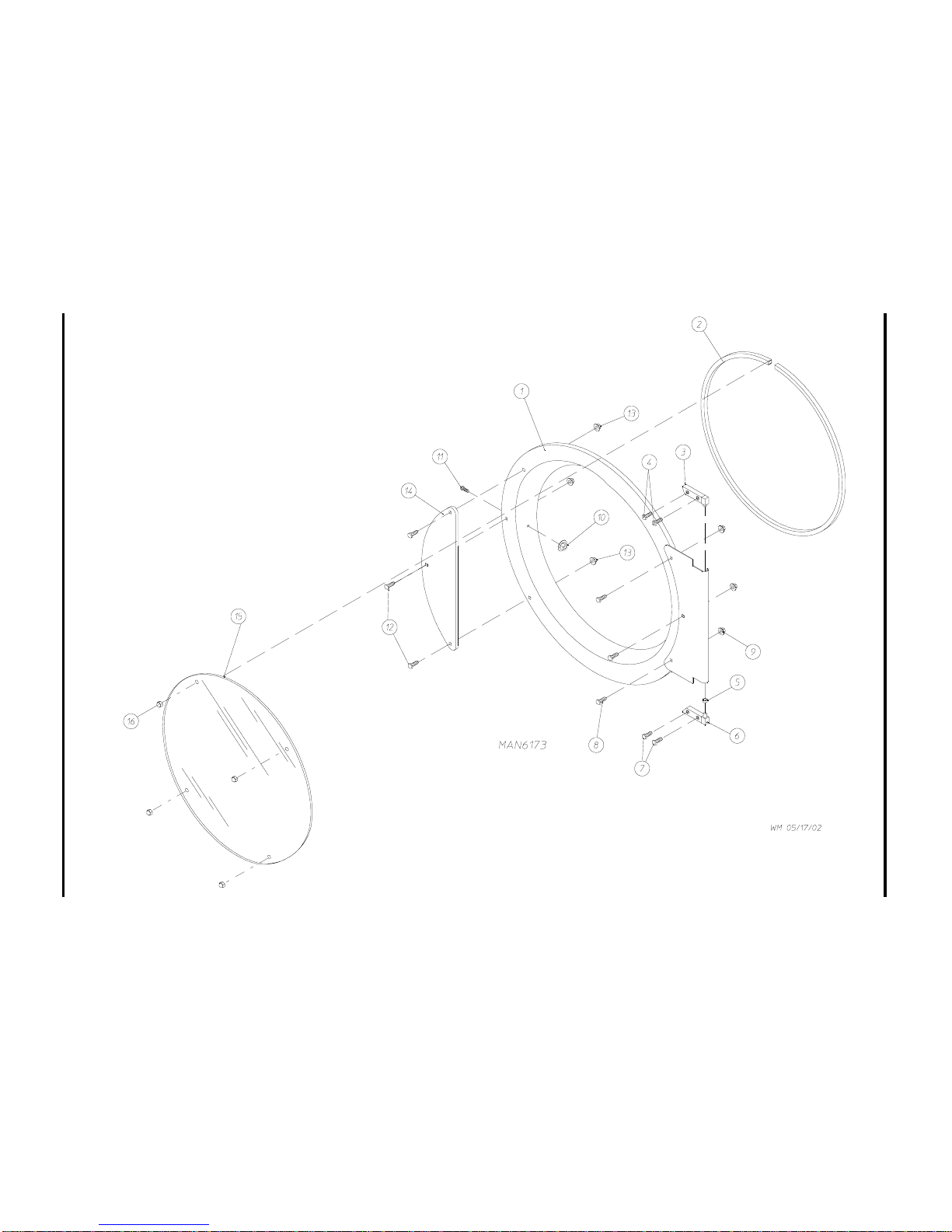

Main Door “Steel”Assembly

13
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 881150 1 Black Main DoorAssembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
2 102354 1 Door Gasket
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
3 881152 1 Black Top Hinge BlockAssembly
(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 881151 1 Black Bottom Hinge BlockAssembly
(includes illus. nos. 5 through 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/4-20 with 3/4” Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/4-20 with 3/4” Free Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
15 102211 1 20-7/16” Door Glass
(for models mfd. prior to February 8, 2001 and as of March 13, 2001)
102218 1 20-7/16” Door Glass with Notch and Four (4) Holes
(for models mfd. between February 8, 2001 and March 13, 2001)
170731 1 Black Glass Adhesive (10.3 oz. cartridge)
16 151013 4 #10-32 Black NylonAcorn Nut
(for models mfd. between February 8, 2001 and March 13, 2001)
Main Door “Steel”Assembly

14
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781
Main Door Switch Assembly
Illus. No. Part No. Qty.Description
1 150006 2 #6-32 x 7/8” Phillips Pan Head Machine Screw
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 Star Washer
4 137005 1 Door Switch
5 122636 2 FlagTerminal
6 881211 1 Black Main Door Switch Housing ONLY
881153 1 Black Main Door Switch Housing Complete
(includes illus. nos. 1 through 4 and 6)
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

15
Telephone: [phone] Fax: [phone]

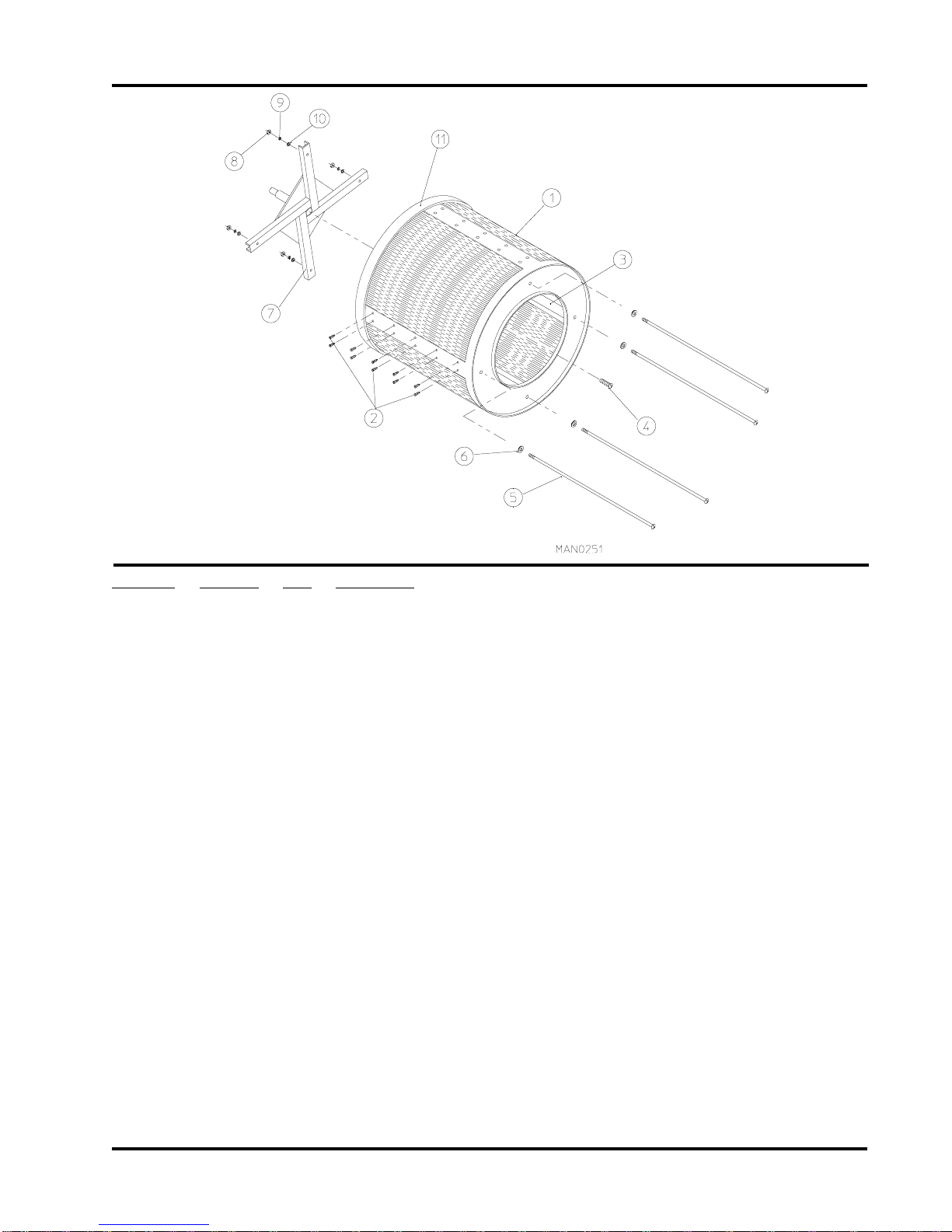

Basket (Tumbler)/SupportAssemblies
Illus. No. Part No. Qty.Description
1* 800708 1 Basket (tumbler) ONLY without Felt Collar
800857 1 Stainless Steel Basket (tumbler) ONLY without Felt Collar
800816 1 Basket (tumbler) and SupportAssembly Complete
(includes illus. nos. 1 through 10)
800873 1 Stainless Steel Basket (tumbler) and SupportAssembly Complete
(includes illus. nos. 1 through 10)
2 150413 40 #10-16 x 1/2” TORX Head Crimptite Screw
150429 1 TORX Hand Driver
(for removal of TORX head screw)
3 301308 4 Basket (tumbler) Rib ONLY
301408 4 Stainless Steel Basket (tumbler) Rib ONLY
4 150500 1 5/16-18 x 3/4” Socket Button Head Screw
5 100905 4 3/8-16 x 37” Tie Rod
6 153004 4 3/8” Flat Washer
7 800613 1 Basket (tumbler) Support ONLY
100724 1 1/4” x 1/4” x 1-1/4” Basket (tumbler) Support Key
(for models mfd. as of July 1, 2001)
100713 1 1/4” x 1/4” x 7/8” Basket (tumbler) Support Key
(for models mfd. prior to July 1, 2001)
8 152005 4 3/8-16 Hex Nut
9 153005 4 3/8” Lock Washer
10 153004 4 3/8” Flat Washer
11 116000 1 Felt Collar ONLY
--- 401010 1 #847Adhesive for Felt Collar
* Felt collar is not included and must be ordered separately.

16
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

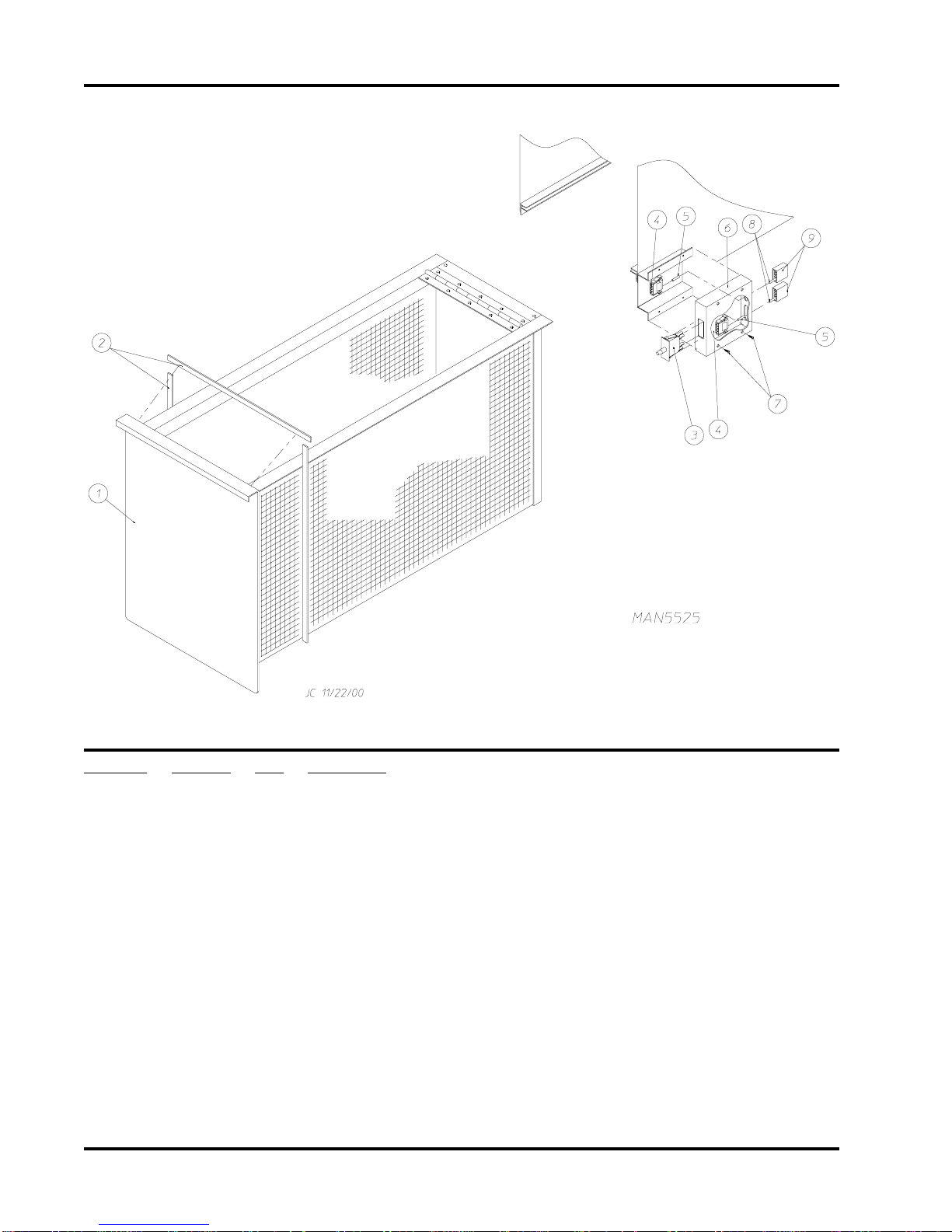

Illus. No. Part No. Qty.Description
1 882871 1 Lint Drawer Assembly (white)
(includes illus. nos. 1 and 2)
882920 1 Lint Drawer Assembly (coral blue)
(includes illus. nos. 1 and 2)
882919 1 Lint DrawerAssembly (ivory)
(includes illus. nos. 1 and 2)
2 117605 5 Gasket (sold by the foot)
3 122116 1 Lint Drawer Switch
4 122605 2 4-Pin Socket Connector ONLY
5 122701 4 Socket Terminal ONLY
122801 1 Pin/Socket ExtractionTool
6 818087 1 Lint Drawer Switch Box Assembly
(includes illus. nos. 4 and 6)
304136 1 Lint Drawer Switch Box Cover
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
8 122700 4 Pin Terminal ONLY
9 122604 2 4-Pin Connector ONLY
Lint Drawer/Lint Drawer Switch Assembly

17
Telephone: [phone] Fax: [phone]
Illus. No. Part No. Qty.Description
1 100108 1 5L-680 V-Belt (basket [tumbler] to idler)
For Both Reversing and Non-Reversing Models
2 101140 1 14” x 3” Compound Pulley
3 100194 1 4L-720 V-Belt (idler to motor)
For Non-Reversing Models ONLY
100109 1 4L-650 V-Belt (idler to motor)
For Reversing Models ONLY
4 154301 2 5/16-18 x 1” Allen Setscrew
5 100705 1 3/16” x 3/16” x 1-3/8” Key
6 882576 1 Idler BearingAssembly Complete
(includes illus. nos. 5 through 12)
7 150617 2 3/8-16 x 1” Hex Head Machine Bolt
8 153005 2 3/8” Lock Washer
9 153004 2 3/8” Flat Washer
10 801009 1 Idler Square Washer
11 152004 1 5/16-18 Hex Nut
12 150509 1 5/16-18 x 3” Hex Head Machine Bolt
IdlerBearingAssembly

18
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

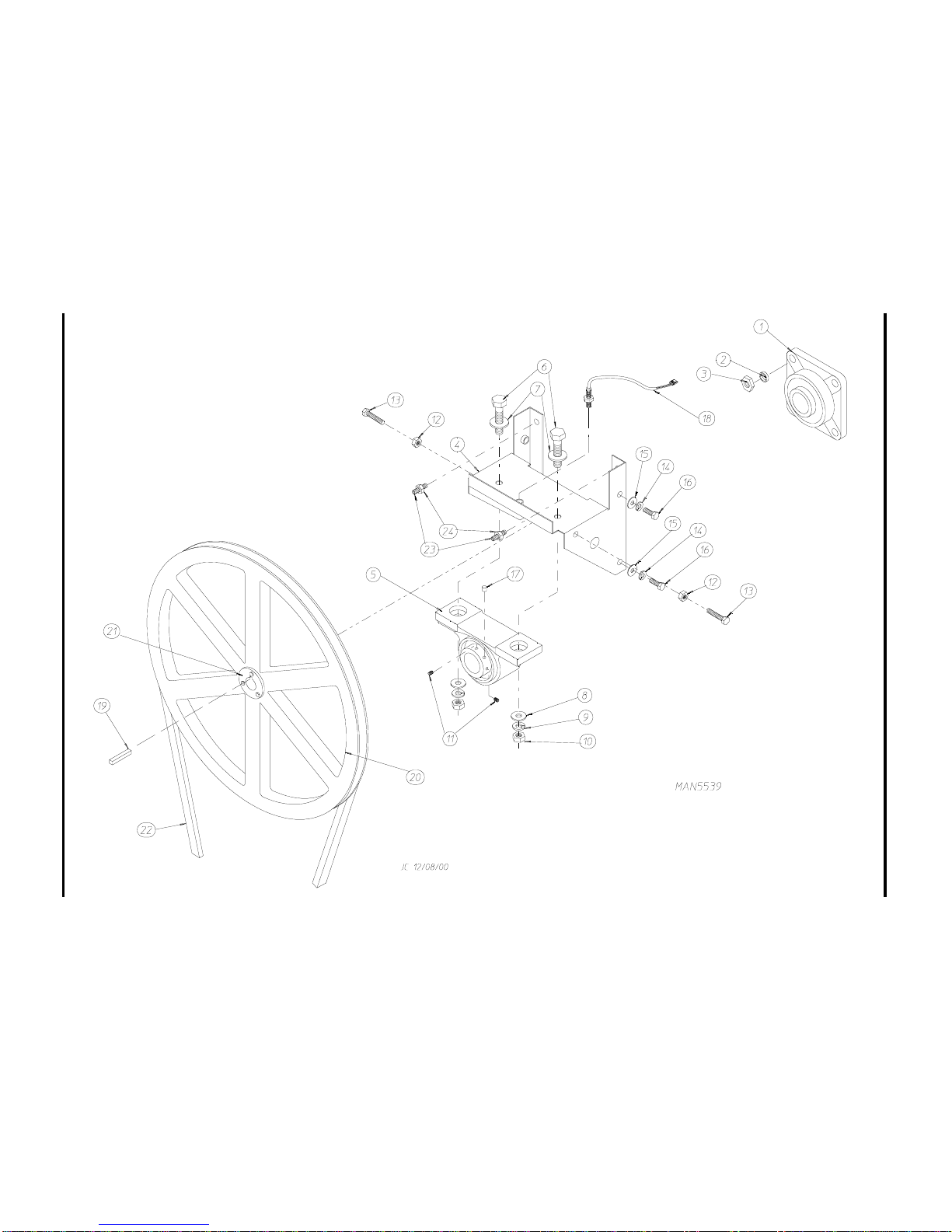

Basket (Tumbler) Bearing Assembly
