ADC HiGain H2TU-R-402 Original operating instructions

THE H2TU-R-402 LIST 7F
The H2TU-R-402 List 7F (H2TU-R) functions as the remote end of a repeaterless T1
transmission system when connected to a HiGain®, Wideband System 3190, or
Soneplex®HDSL2 line unit (H2TU-C). Setting new standards for interoperability and
efficiency, HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned
copper pair over the full Carrier Service Area (CSA) range.
FEATURES
SPECIFICATIONS
Front panel: status LEDs, craft port, DS1 bridging
jacks, and LBK pushbutton for test access
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
•Remote provisioning through TL1 FDL
commands
•Loop attenuation and insertion loss reporting
•HDSL2 Tip and Ring reversal indication
•Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power to reduce
crosstalk
•Automatic circuit retrain to ensure quality
service
•Enhanced lightning protection
Operating Temperature -40°F to +149°F (-40°C to + 65°C)
Operating Humidity 5% to 95% non-condensing
Line Power Consumption 2.7 Watts
Electrical Protection Secondary surge and power cross-protection on
all DS1 and HDSL2 ports
Mounting Any 400 or 200 mechanics shelf
HDSL2 Line Rate 1.552 Mbps Overlapped Pulse amplitude
modulated Transmission with Interlocking
Spectra (OPTIS)
HDSL2 Output +16.5 dBm ±0.5 dBm, 135Ω
DS1 Pulse Output 0 dB, -7.5 dB, -15.0 dB
DS1 Receiver Sensitivity 36 dB at 100Ω
Maximum Insertion Loss 35 dB at 196 KHz
Maximum Loop Attenuation 28 dB
DS1 Line Rate 1.544 Mbps ±200 bps
DS1 Line Format Alternate Mark Inversion (AMI) or Bipolar with
8-Zero Substitution (B8ZS)
DS1 Frame Format Extended SuperFrame (ESF), SuperFrame (SF),
or Unframed (UNFR)
INSTALLATION
1Align the H2TU-R with the enclosure slot guides and slide the unit in until it
touches the backplane card-edge connector.
2Place your thumbs on the H2TU-R front panel and push the unit into the
card-edge connector.
Continued
Wear an antistatic wrist strap when installing the H2TU-R.
Avoid touching components on the circuit board.
Remote enclosure
H2TU-R-402
H0260-A
!
H2TU-R-402 LIST 7F REMOTE UNIT
QUICK INSTALLATION
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Limited Warranty
Product warranty is determined by your service agreement. Contact your sales representative or Customer
Service for details.
Modifications
Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems,
Inc. voids the user's warranty.
All wiring external to the products should follow the provisions of the current edition of the National
Electrical Code.
Standards Compliance
This equipment has been tested and verified to comply with the applicable sections of the following safety
standards:
❑GR 63-CORE - Network Equipment-Building System (NEBS) Requirements
❑GR 1089-CORE - Electromagnetic Compatibility and Electrical Safety
❑Binational standard, UL-60950/CSA C22.2 No. 60950-00 Third Edition: Safety of Information
Technology Equipment.
Trademark Information
ADC, HiGain, and Soneplex are registered trademarks of ADC Telecommunications, Inc. Other product
names mentioned in this installation guide are used for identification purposes only and may be trademarks
or registered trademarks of their respective companies.
Copyright Information
© 2003 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company
private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in
whole or in part without the written consent of ADC.
ADC DSL Systems, Inc.
14402 Franklin Avenue
Tustin, CA 92780-7013
Tel: 714.832.9922
Fax: 714.832.9924
Technical Assistance
Tel: 800.366.3891 x73223
Tel: 952.917.3223
Fax: 952.917.3244
Email: wsd.support@adc.com
´,VN¶9`¨
Product Catalog: H2TU-R-402-L7F
CLEI: VAR1PERA
Document: LTPH-QI-1203-01
1254469
HIGAIN
April 15, 2003

THE H2TU-R-402 LIST 7F
The H2TU-R-402 List 7F (H2TU-R) functions as the remote end of a repeaterless T1
transmission system when connected to a HiGain®, Wideband System 3190, or
Soneplex®HDSL2 line unit (H2TU-C). Setting new standards for interoperability and
efficiency, HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned
copper pair over the full Carrier Service Area (CSA) range.
FEATURES
SPECIFICATIONS
Front panel: status LEDs, craft port, DS1 bridging
jacks, and LBK pushbutton for test access
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
•Remote provisioning through TL1 FDL
commands
•Loop attenuation and insertion loss reporting
•HDSL2 Tip and Ring reversal indication
•Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power to reduce
crosstalk
•Automatic circuit retrain to ensure quality
service
•Enhanced lightning protection
Operating Temperature -40°F to +149°F (-40°C to + 65°C)
Operating Humidity 5% to 95% non-condensing
Line Power Consumption 2.7 Watts
Electrical Protection Secondary surge and power cross-protection on
all DS1 and HDSL2 ports
Mounting Any 400 or 200 mechanics shelf
HDSL2 Line Rate 1.552 Mbps Overlapped Pulse amplitude
modulated Transmission with Interlocking
Spectra (OPTIS)
HDSL2 Output +16.5 dBm ±0.5 dBm, 135Ω
DS1 Pulse Output 0 dB, -7.5 dB, -15.0 dB
DS1 Receiver Sensitivity 36 dB at 100Ω
Maximum Insertion Loss 35 dB at 196 KHz
Maximum Loop Attenuation 28 dB
DS1 Line Rate 1.544 Mbps ±200 bps
DS1 Line Format Alternate Mark Inversion (AMI) or Bipolar with
8-Zero Substitution (B8ZS)
DS1 Frame Format Extended SuperFrame (ESF), SuperFrame (SF),
or Unframed (UNFR)
INSTALLATION
1Align the H2TU-R with the enclosure slot guides and slide the unit in until it
touches the backplane card-edge connector.
2Place your thumbs on the H2TU-R front panel and push the unit into the
card-edge connector.
Continued
Wear an antistatic wrist strap when installing the H2TU-R.
Avoid touching components on the circuit board.
Remote enclosure
H2TU-R-402
H0260-A
!
H2TU-R-402 LIST 7F REMOTE UNIT
QUICK INSTALLATION
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Limited Warranty
Product warranty is determined by your service agreement. Contact your sales representative or Customer
Service for details.
Modifications
Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems,
Inc. voids the user's warranty.
All wiring external to the products should follow the provisions of the current edition of the National
Electrical Code.
Standards Compliance
This equipment has been tested and verified to comply with the applicable sections of the following safety
standards:
❑GR 63-CORE - Network Equipment-Building System (NEBS) Requirements
❑GR 1089-CORE - Electromagnetic Compatibility and Electrical Safety
❑Binational standard, UL-60950/CSA C22.2 No. 60950-00 Third Edition: Safety of Information
Technology Equipment.
Trademark Information
ADC, HiGain, and Soneplex are registered trademarks of ADC Telecommunications, Inc. Other product
names mentioned in this installation guide are used for identification purposes only and may be trademarks
or registered trademarks of their respective companies.
Copyright Information
© 2003 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company
private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in
whole or in part without the written consent of ADC.
ADC DSL Systems, Inc.
14402 Franklin Avenue
Tustin, CA 92780-7013
Tel: 714.832.9922
Fax: 714.832.9924
Technical Assistance
Tel: 800.366.3891 x73223
Tel: 952.917.3223
Fax: 952.917.3244
Email: wsd.support@adc.com
´,VN¶9`¨
Product Catalog: H2TU-R-402-L7F
CLEI: VAR1PERA
Document: LTPH-QI-1203-01
1254469
HIGAIN
April 15, 2003

THE H2TU-R-402 LIST 7F
The H2TU-R-402 List 7F (H2TU-R) functions as the remote end of a repeaterless T1
transmission system when connected to a HiGain®, Wideband System 3190, or
Soneplex®HDSL2 line unit (H2TU-C). Setting new standards for interoperability and
efficiency, HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned
copper pair over the full Carrier Service Area (CSA) range.
FEATURES
SPECIFICATIONS
Front panel: status LEDs, craft port, DS1 bridging
jacks, and LBK pushbutton for test access
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
•Remote provisioning through TL1 FDL
commands
•Loop attenuation and insertion loss reporting
•HDSL2 Tip and Ring reversal indication
•Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power to reduce
crosstalk
•Automatic circuit retrain to ensure quality
service
•Enhanced lightning protection
Operating Temperature -40°F to +149°F (-40°C to + 65°C)
Operating Humidity 5% to 95% non-condensing
Line Power Consumption 2.7 Watts
Electrical Protection Secondary surge and power cross-protection on
all DS1 and HDSL2 ports
Mounting Any 400 or 200 mechanics shelf
HDSL2 Line Rate 1.552 Mbps Overlapped Pulse amplitude
modulated Transmission with Interlocking
Spectra (OPTIS)
HDSL2 Output +16.5 dBm ±0.5 dBm, 135Ω
DS1 Pulse Output 0 dB, -7.5 dB, -15.0 dB
DS1 Receiver Sensitivity 36 dB at 100Ω
Maximum Insertion Loss 35 dB at 196 KHz
Maximum Loop Attenuation 28 dB
DS1 Line Rate 1.544 Mbps ±200 bps
DS1 Line Format Alternate Mark Inversion (AMI) or Bipolar with
8-Zero Substitution (B8ZS)
DS1 Frame Format Extended SuperFrame (ESF), SuperFrame (SF),
or Unframed (UNFR)
INSTALLATION
1Align the H2TU-R with the enclosure slot guides and slide the unit in until it
touches the backplane card-edge connector.
2Place your thumbs on the H2TU-R front panel and push the unit into the
card-edge connector.
Continued
Wear an antistatic wrist strap when installing the H2TU-R.
Avoid touching components on the circuit board.
Remote enclosure
H2TU-R-402
H0260-A
!
H2TU-R-402 LIST 7F REMOTE UNIT
QUICK INSTALLATION
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Limited Warranty
Product warranty is determined by your service agreement. Contact your sales representative or Customer
Service for details.
Modifications
Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems,
Inc. voids the user's warranty.
All wiring external to the products should follow the provisions of the current edition of the National
Electrical Code.
Standards Compliance
This equipment has been tested and verified to comply with the applicable sections of the following safety
standards:
❑GR 63-CORE - Network Equipment-Building System (NEBS) Requirements
❑GR 1089-CORE - Electromagnetic Compatibility and Electrical Safety
❑Binational standard, UL-60950/CSA C22.2 No. 60950-00 Third Edition: Safety of Information
Technology Equipment.
Trademark Information
ADC, HiGain, and Soneplex are registered trademarks of ADC Telecommunications, Inc. Other product
names mentioned in this installation guide are used for identification purposes only and may be trademarks
or registered trademarks of their respective companies.
Copyright Information
© 2003 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company
private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in
whole or in part without the written consent of ADC.
ADC DSL Systems, Inc.
14402 Franklin Avenue
Tustin, CA 92780-7013
Tel: 714.832.9922
Fax: 714.832.9924
Technical Assistance
Tel: 800.366.3891 x73223
Tel: 952.917.3223
Fax: 952.917.3244
Email: wsd.support@adc.com
´,VN¶9`¨
Product Catalog: H2TU-R-402-L7F
CLEI: VAR1PERA
Document: LTPH-QI-1203-01
1254469
HIGAIN
April 15, 2003

VERIFICATION
Once installed, verify that the H2TU-R is operating properly by monitoring the Status
LEDs on the front panel.
LOGGING ON TO THE MAIN MENU
The H2TU-R supports local and remote logon through a maintenance terminal (ASCII
terminal or a PC running terminal emulation software) connected to the craft port on the
H2TU-R front panel.
Logging on creates menus and screens for the H2TU-R that are replications of those viewed
at the H2TU-C. Once logged on, you can view system settings and inventory, initiate
loopbacks, monitor performance, and configure the circuit.
To log on using a maintenance terminal:
1Press + to refresh the Logon screen, if necessary.
2Press the first letter of the desired menu. Use to cycle through menu
selections, then press to change a setting or to display a menu.
LOOPBACK TESTING
Initiate loopback testing from the maintenance menus, H2TU-R front-panel pushbutton,
H2TU-C front-panel pushbuttons, or with inband codes sent by a test set (see table below).
For more information about loopback testing, refer to the H2TU-C line unit user manual.
Table 1. Status LED Descriptions
LED and Status Function
STAT
OFF No power is applied to the H2TU-R.
Solid green Normal operation: the HDSL2 span is synchronized.
Flashing green once per second HDSL2 loop synchronization attempt.
LOSW
OFF Normal operation: connected HDSL2 span is synchronized.
Solid red HDSL2 loop has lost synchronization.
LLOS
OFF Normal operation: DSX-1 signal present at the H2TU-C.
Solid red DSX-1 signal has lost synchronization.
RLOS
OFF Normal operation: DS1 signal present at the H2TU-R.
Solid red DS1 signal has lost synchronization.
HBER
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R has no HBER alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the HBER threshold.
MARG
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R is synchronized without MARG alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the MARG threshold.
B8ZS
OFF System provisioned for AMI.
Solid green System provisioned for B8ZS.
LBK
Solid yellow Loopback activated at the H2TU-R
Monitor Performance Event Log Config Inventory Report Rlogon Help
+------------------------------------------------+
||
| ADC DSL Systems, Inc. |
| HiGain HDSL2 |
||
| Voice: 800.366.3891 ext 73223 |
| Fax : 952.917.3244 |
||
+------------------------------------------------+
ID: xxxx--xxxx--xxxx--xxxx 04/15/2003 06:38:12 H2TU-C System: OK
Type the first letter To view:
onitor A graphical representation of circuit activity and devices.
erformance Performance history statistics (current, 25-hour, 48-hour, 31-day, and blockage
indicator) at DS1 and HDSL/HDSL2 interfaces. Also, displays alarm status and count.
vent log Sectionalized Event History for alarms and errors at all four legs of the DS1 signal at
the H2TU-R.
onfig Configuration options (standard, ADC, signal generation, date and time,
master clear, factory defaults).
nventory Product information, circuit and unit identifications.
logon Maintenance terminal screens at the H2TU-C.
elp Glossary, screen navigation keys, ADC contact information.
Rep rt Downloading status and performance monitoring data to file.
For more information about the HDSL2 line unit maintenance
screens, refer to the H2TU-C line unit user manual. Copies of ADC line
unit user manuals can be downloaded from the ADC website at
www.adc.com. To order a hard copy, please contact your sales
representative.

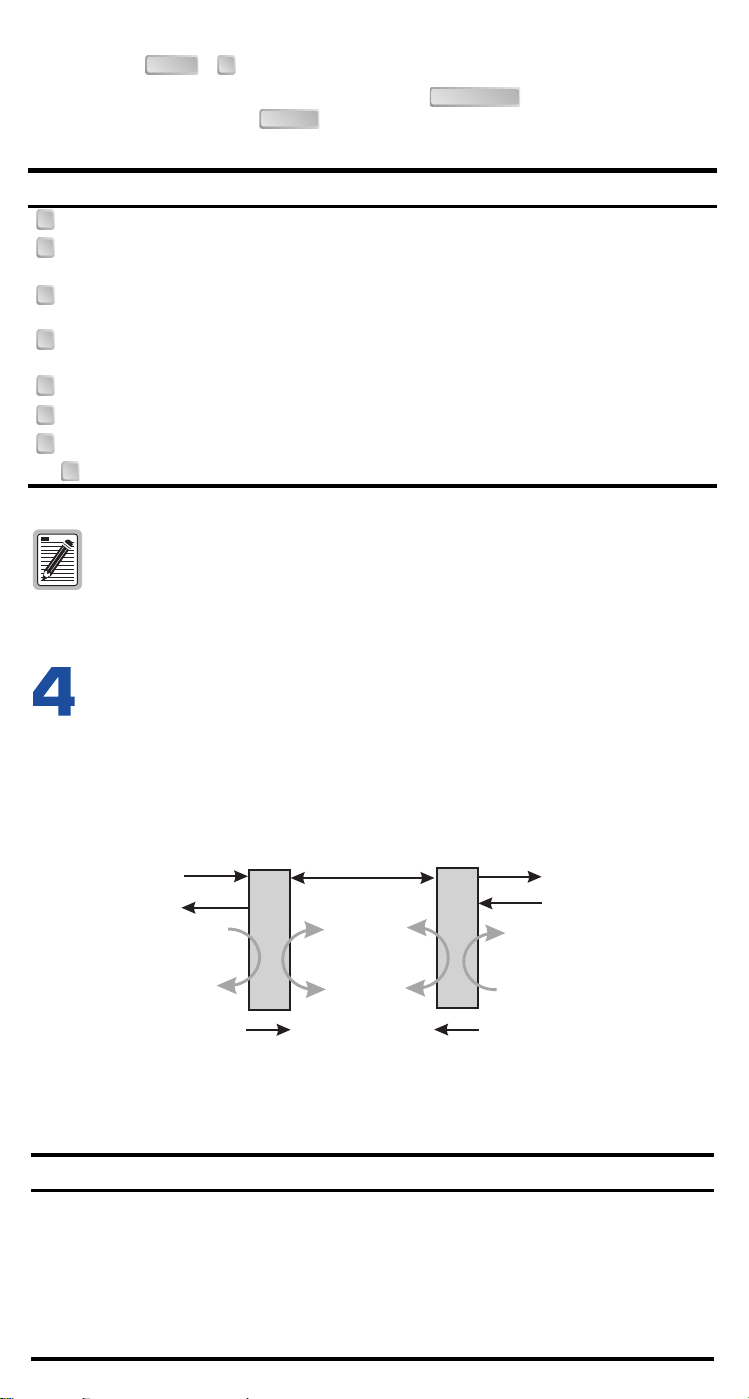

Loopback Commands
Loopback Inband Code Description
NLOC 1111000 DSX-1 signal is looped back to the network at the H2TU-C.
NREM 1110000 DSX-1 signal is looped back to the network at the H2TU-R.
SMJK 11000 DSX-1 signal is looped back to the network at the H2TU-R SmartJack module.
CREM 1111110 DS1 signal from customer is looped back to the customer at the H2TU-C.
CLOC 1111100 DS1 signal from customer is looped back to the customer at the H2TU-R.
Loopdown 11100 Deactivates any of the above loopbacks.
CTRL R
SPACEBAR
ENTER
M
P
E
C
I
R
H
O
Network
H2TU-C H2TU-R
TLOS*
NLOC CREM CLOC
NREM
SMJK
* When enabled, TLOS is an automatic loopback
that occurs with an LOS at the remote DS1 input.
Toward Customer
Toward Network
Customer
Premises
DS1
DSX-1
H0025-B
HDSL2
27
25
23
21
19
17
15
13
11
9
7
3
5
1
Tip
Ring
Factoryuseonly
Factoryuseonly
Factoryuseonly
Ring1
DS1XMT
Tip1
ChassisGround*
28
26
24
22
20
18
16
14
12
10
8
4
6
2
55
53
51
49
47
45
43
41
39
37
35
32 31
56
54
52
50
48
46
44
42
40
38
36
34
30
33
29
Active pins are highlighted in black.
* Chassis Ground may be tied to Earth Ground according
to local practice.
DS1RCV
Card-Edge Connector
Tip
Ring
HDSL2
Span
RS-232
DCE
LLOS
R
U
LOSW
STAT
RLOS
MARG
HBER
B8ZS
LBK
RCV
2
L
S
D
H
2
0
4
T
2
H
.
L
Status LED
LOSW LED
LLOS LED
RLOS LED
HBER LED
Margin alarm LED
Line code LED
Loopback LED
CLEI/ECI bar code label
Craft port provisioning
To access all system maintenance, provisioning,
and performance screens, connect a standard
9-pin terminal cable between the serial port on a
PC and the H2TU-R craft port.
Loopback control pushbutton
Press the pushbutton for 5 seconds to activate a dual loopback
towards the network and the customer (NREM and CLOC).
The unit can be looped down by pressing the
LPBK control pushbutton again for 5 seconds or
inband messages sent through the maintenance terminal.
Any existing loopback is terminated before these loopbacks
are activated. loopdown
Extraction handle
Use to remove the
H2TU-R-402 from
its slot.
DS1 input (XMT) and output (RCV) bridging (BRG) jacks
Provides non-intrusive bridging jack access to the DS1 signal
received by (RCV) and transmitted from (XMT) the Customer
Premises Equipment (CPE). Allows testing of the HDSL2 system.
9600 baud
8 data bits
No parity
1 stop bit
Hardware flow control:OFF
Terminal emulation:VT100
MaintenanceTerminal Modem Settings
List number
Indicates the list number of the H2TU-R-402.
D
S
1BRG
XMT
HiGain
HDSL2
APSPAPSP
APS
H0263-B

VERIFICATION
Once installed, verify that the H2TU-R is operating properly by monitoring the Status
LEDs on the front panel.
LOGGING ON TO THE MAIN MENU
The H2TU-R supports local and remote logon through a maintenance terminal (ASCII
terminal or a PC running terminal emulation software) connected to the craft port on the
H2TU-R front panel.
Logging on creates menus and screens for the H2TU-R that are replications of those viewed
at the H2TU-C. Once logged on, you can view system settings and inventory, initiate
loopbacks, monitor performance, and configure the circuit.
To log on using a maintenance terminal:
1Press + to refresh the Logon screen, if necessary.
2Press the first letter of the desired menu. Use to cycle through menu
selections, then press to change a setting or to display a menu.
LOOPBACK TESTING
Initiate loopback testing from the maintenance menus, H2TU-R front-panel pushbutton,
H2TU-C front-panel pushbuttons, or with inband codes sent by a test set (see table below).
For more information about loopback testing, refer to the H2TU-C line unit user manual.
Table 1. Status LED Descriptions
LED and Status Function
STAT
OFF No power is applied to the H2TU-R.
Solid green Normal operation: the HDSL2 span is synchronized.
Flashing green once per second HDSL2 loop synchronization attempt.
LOSW
OFF Normal operation: connected HDSL2 span is synchronized.
Solid red HDSL2 loop has lost synchronization.
LLOS
OFF Normal operation: DSX-1 signal present at the H2TU-C.
Solid red DSX-1 signal has lost synchronization.
RLOS
OFF Normal operation: DS1 signal present at the H2TU-R.
Solid red DS1 signal has lost synchronization.
HBER
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R has no HBER alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the HBER threshold.
MARG
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R is synchronized without MARG alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the MARG threshold.
B8ZS
OFF System provisioned for AMI.
Solid green System provisioned for B8ZS.
LBK
Solid yellow Loopback activated at the H2TU-R
Monitor Performance Event Log Config Inventory Report Rlogon Help
+------------------------------------------------+
||
| ADC DSL Systems, Inc. |
| HiGain HDSL2 |
||
| Voice: 800.366.3891 ext 73223 |
| Fax : 952.917.3244 |
||
+------------------------------------------------+
ID: xxxx--xxxx--xxxx--xxxx 04/15/2003 06:38:12 H2TU-C System: OK
Type the first letter To view:
onitor A graphical representation of circuit activity and devices.
erformance Performance history statistics (current, 25-hour, 48-hour, 31-day, and blockage
indicator) at DS1 and HDSL/HDSL2 interfaces. Also, displays alarm status and count.
vent log Sectionalized Event History for alarms and errors at all four legs of the DS1 signal at
the H2TU-R.
onfig Configuration options (standard, ADC, signal generation, date and time,
master clear, factory defaults).
nventory Product information, circuit and unit identifications.
logon Maintenance terminal screens at the H2TU-C.
elp Glossary, screen navigation keys, ADC contact information.
Rep rt Downloading status and performance monitoring data to file.
For more information about the HDSL2 line unit maintenance
screens, refer to the H2TU-C line unit user manual. Copies of ADC line
unit user manuals can be downloaded from the ADC website at
www.adc.com. To order a hard copy, please contact your sales
representative.
Loopback Commands
Loopback Inband Code Description
NLOC 1111000 DSX-1 signal is looped back to the network at the H2TU-C.
NREM 1110000 DSX-1 signal is looped back to the network at the H2TU-R.
SMJK 11000 DSX-1 signal is looped back to the network at the H2TU-R SmartJack module.
CREM 1111110 DS1 signal from customer is looped back to the customer at the H2TU-C.
CLOC 1111100 DS1 signal from customer is looped back to the customer at the H2TU-R.
Loopdown 11100 Deactivates any of the above loopbacks.
CTRL R
SPACEBAR
ENTER
M
P
E
C
I
R
H
O
Network
H2TU-C H2TU-R
TLOS*
NLOC CREM CLOC
NREM
SMJK
* When enabled, TLOS is an automatic loopback
that occurs with an LOS at the remote DS1 input.
Toward Customer
Toward Network
Customer
Premises
DS1
DSX-1
H0025-B
HDSL2
27
25
23
21
19
17
15
13
11
9
7
3
5
1
Tip
Ring
Factoryuseonly
Factoryuseonly
Factoryuseonly
Ring1
DS1XMT
Tip1
ChassisGround*
28
26
24
22
20
18
16
14
12
10
8
4
6
2
55
53
51
49
47
45
43
41
39
37
35
32 31
56
54
52
50
48
46
44
42
40
38
36
34
30
33
29
Active pins are highlighted in black.
* Chassis Ground may be tied to Earth Ground according
to local practice.
DS1RCV
Card-Edge Connector
Tip
Ring
HDSL2
Span
RS-232
DCE
LLOS
R
U
LOSW
STAT
RLOS
MARG
HBER
B8ZS
LBK
RCV
2
L
S
D
H
2
0
4
T
2
H
.
L
Status LED
LOSW LED
LLOS LED
RLOS LED
HBER LED
Margin alarm LED
Line code LED
Loopback LED
CLEI/ECI bar code label
Craft port provisioning
To access all system maintenance, provisioning,
and performance screens, connect a standard
9-pin terminal cable between the serial port on a
PC and the H2TU-R craft port.
Loopback control pushbutton
Press the pushbutton for 5 seconds to activate a dual loopback
towards the network and the customer (NREM and CLOC).
The unit can be looped down by pressing the
LPBK control pushbutton again for 5 seconds or
inband messages sent through the maintenance terminal.
Any existing loopback is terminated before these loopbacks
are activated. loopdown
Extraction handle
Use to remove the
H2TU-R-402 from
its slot.
DS1 input (XMT) and output (RCV) bridging (BRG) jacks
Provides non-intrusive bridging jack access to the DS1 signal
received by (RCV) and transmitted from (XMT) the Customer
Premises Equipment (CPE). Allows testing of the HDSL2 system.
9600 baud
8 data bits
No parity
1 stop bit
Hardware flow control:OFF
Terminal emulation:VT100
MaintenanceTerminal Modem Settings
List number
Indicates the list number of the H2TU-R-402.
D
S
1BRG
XMT
HiGain
HDSL2
APSPAPSP
APS
H0263-B

VERIFICATION
Once installed, verify that the H2TU-R is operating properly by monitoring the Status
LEDs on the front panel.
LOGGING ON TO THE MAIN MENU
The H2TU-R supports local and remote logon through a maintenance terminal (ASCII
terminal or a PC running terminal emulation software) connected to the craft port on the
H2TU-R front panel.
Logging on creates menus and screens for the H2TU-R that are replications of those viewed
at the H2TU-C. Once logged on, you can view system settings and inventory, initiate
loopbacks, monitor performance, and configure the circuit.
To log on using a maintenance terminal:
1Press + to refresh the Logon screen, if necessary.
2Press the first letter of the desired menu. Use to cycle through menu
selections, then press to change a setting or to display a menu.
LOOPBACK TESTING
Initiate loopback testing from the maintenance menus, H2TU-R front-panel pushbutton,
H2TU-C front-panel pushbuttons, or with inband codes sent by a test set (see table below).
For more information about loopback testing, refer to the H2TU-C line unit user manual.
Table 1. Status LED Descriptions
LED and Status Function
STAT
OFF No power is applied to the H2TU-R.
Solid green Normal operation: the HDSL2 span is synchronized.
Flashing green once per second HDSL2 loop synchronization attempt.
LOSW
OFF Normal operation: connected HDSL2 span is synchronized.
Solid red HDSL2 loop has lost synchronization.
LLOS
OFF Normal operation: DSX-1 signal present at the H2TU-C.
Solid red DSX-1 signal has lost synchronization.
RLOS
OFF Normal operation: DS1 signal present at the H2TU-R.
Solid red DS1 signal has lost synchronization.
HBER
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R has no HBER alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the HBER threshold.
MARG
OFF HDSL2 span is not synchronized.
Solid green HDSL2 span connected to the H2TU-R is synchronized without MARG alarm.
Solid red HDSL2 span connected to the H2TU-R has crossed the MARG threshold.
B8ZS
OFF System provisioned for AMI.
Solid green System provisioned for B8ZS.
LBK
Solid yellow Loopback activated at the H2TU-R
Monitor Performance Event Log Config Inventory Report Rlogon Help
+------------------------------------------------+
||
| ADC DSL Systems, Inc. |
| HiGain HDSL2 |
||
| Voice: 800.366.3891 ext 73223 |
| Fax : 952.917.3244 |
||
+------------------------------------------------+
ID: xxxx--xxxx--xxxx--xxxx 04/15/2003 06:38:12 H2TU-C System: OK
Type the first letter To view:
onitor A graphical representation of circuit activity and devices.
erformance Performance history statistics (current, 25-hour, 48-hour, 31-day, and blockage
indicator) at DS1 and HDSL/HDSL2 interfaces. Also, displays alarm status and count.
vent log Sectionalized Event History for alarms and errors at all four legs of the DS1 signal at
the H2TU-R.
onfig Configuration options (standard, ADC, signal generation, date and time,
master clear, factory defaults).
nventory Product information, circuit and unit identifications.
logon Maintenance terminal screens at the H2TU-C.
elp Glossary, screen navigation keys, ADC contact information.
Rep rt Downloading status and performance monitoring data to file.
For more information about the HDSL2 line unit maintenance
screens, refer to the H2TU-C line unit user manual. Copies of ADC line
unit user manuals can be downloaded from the ADC website at
www.adc.com. To order a hard copy, please contact your sales
representative.
Loopback Commands
Loopback Inband Code Description
NLOC 1111000 DSX-1 signal is looped back to the network at the H2TU-C.
NREM 1110000 DSX-1 signal is looped back to the network at the H2TU-R.
SMJK 11000 DSX-1 signal is looped back to the network at the H2TU-R SmartJack module.
CREM 1111110 DS1 signal from customer is looped back to the customer at the H2TU-C.
CLOC 1111100 DS1 signal from customer is looped back to the customer at the H2TU-R.
Loopdown 11100 Deactivates any of the above loopbacks.
CTRL R
SPACEBAR
ENTER
M
P
E
C
I
R
H
O
Network
H2TU-C H2TU-R
TLOS*
NLOC CREM CLOC
NREM
SMJK
* When enabled, TLOS is an automatic loopback
that occurs with an LOS at the remote DS1 input.
Toward Customer
Toward Network
Customer
Premises
DS1
DSX-1
H0025-B
HDSL2
27
25
23
21
19
17
15
13
11
9
7
3
5
1
Tip
Ring
Factoryuseonly
Factoryuseonly
Factoryuseonly
Ring1
DS1XMT
Tip1
ChassisGround*
28
26
24
22
20
18
16
14
12
10
8
4
6
2
55
53
51
49
47
45
43
41
39
37
35
32 31
56
54
52
50
48
46
44
42
40
38
36
34
30
33
29
Active pins are highlighted in black.
* Chassis Ground may be tied to Earth Ground according
to local practice.
DS1RCV
Card-Edge Connector
Tip
Ring
HDSL2
Span
RS-232
DCE
LLOS
R
U
LOSW
STAT
RLOS
MARG
HBER
B8ZS
LBK
RCV
2
L
S
D
H
2
0
4
T
2
H
.
L
Status LED
LOSW LED
LLOS LED
RLOS LED
HBER LED
Margin alarm LED
Line code LED
Loopback LED
CLEI/ECI bar code label
Craft port provisioning
To access all system maintenance, provisioning,
and performance screens, connect a standard
9-pin terminal cable between the serial port on a
PC and the H2TU-R craft port.
Loopback control pushbutton
Press the pushbutton for 5 seconds to activate a dual loopback
towards the network and the customer (NREM and CLOC).
The unit can be looped down by pressing the
LPBK control pushbutton again for 5 seconds or
inband messages sent through the maintenance terminal.
Any existing loopback is terminated before these loopbacks
are activated. loopdown
Extraction handle
Use to remove the
H2TU-R-402 from
its slot.
DS1 input (XMT) and output (RCV) bridging (BRG) jacks
Provides non-intrusive bridging jack access to the DS1 signal
received by (RCV) and transmitted from (XMT) the Customer
Premises Equipment (CPE). Allows testing of the HDSL2 system.
9600 baud
8 data bits
No parity
1 stop bit
Hardware flow control:OFF
Terminal emulation:VT100
MaintenanceTerminal Modem Settings
List number
Indicates the list number of the H2TU-R-402.
D
S
1BRG
XMT
HiGain
HDSL2
APSPAPSP
APS
H0263-B

THE H2TU-R-402 LIST 7F
The H2TU-R-402 List 7F (H2TU-R) functions as the remote end of a repeaterless T1
transmission system when connected to a HiGain®, Wideband System 3190, or
Soneplex®HDSL2 line unit (H2TU-C). Setting new standards for interoperability and
efficiency, HDSL2 modules transmit 1.544 Mbps T1 payload on one unconditioned
copper pair over the full Carrier Service Area (CSA) range.
FEATURES
SPECIFICATIONS
Front panel: status LEDs, craft port, DS1 bridging
jacks, and LBK pushbutton for test access
Maintenance screens for inventory, provisioning,
performance monitoring, and troubleshooting,
including:
•Remote provisioning through TL1 FDL
commands
•Loop attenuation and insertion loss reporting
•HDSL2 Tip and Ring reversal indication
•Power Back Off (PBON and PBOC) for
configuring HDSL2 transmit power to reduce
crosstalk
•Automatic circuit retrain to ensure quality
service
•Enhanced lightning protection
Operating Temperature -40°F to +149°F (-40°C to + 65°C)
Operating Humidity 5% to 95% non-condensing
Line Power Consumption 2.7 Watts
Electrical Protection Secondary surge and power cross-protection on
all DS1 and HDSL2 ports
Mounting Any 400 or 200 mechanics shelf
HDSL2 Line Rate 1.552 Mbps Overlapped Pulse amplitude
modulated Transmission with Interlocking
Spectra (OPTIS)
HDSL2 Output +16.5 dBm ±0.5 dBm, 135Ω
DS1 Pulse Output 0 dB, -7.5 dB, -15.0 dB
DS1 Receiver Sensitivity 36 dB at 100Ω
Maximum Insertion Loss 35 dB at 196 KHz
Maximum Loop Attenuation 28 dB
DS1 Line Rate 1.544 Mbps ±200 bps
DS1 Line Format Alternate Mark Inversion (AMI) or Bipolar with
8-Zero Substitution (B8ZS)
DS1 Frame Format Extended SuperFrame (ESF), SuperFrame (SF),
or Unframed (UNFR)
INSTALLATION
1Align the H2TU-R with the enclosure slot guides and slide the unit in until it
touches the backplane card-edge connector.
2Place your thumbs on the H2TU-R front panel and push the unit into the
card-edge connector.
Continued
Wear an antistatic wrist strap when installing the H2TU-R.
Avoid touching components on the circuit board.
Remote enclosure
H2TU-R-402
H0260-A
!
H2TU-R-402 LIST 7F REMOTE UNIT
QUICK INSTALLATION
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Limited Warranty
Product warranty is determined by your service agreement. Contact your sales representative or Customer
Service for details.
Modifications
Any changes or modifications made to this device that are not expressly approved by ADC DSL Systems,
Inc. voids the user's warranty.
All wiring external to the products should follow the provisions of the current edition of the National
Electrical Code.
Standards Compliance
This equipment has been tested and verified to comply with the applicable sections of the following safety
standards:
❑GR 63-CORE - Network Equipment-Building System (NEBS) Requirements
❑GR 1089-CORE - Electromagnetic Compatibility and Electrical Safety
❑Binational standard, UL-60950/CSA C22.2 No. 60950-00 Third Edition: Safety of Information
Technology Equipment.
Trademark Information
ADC, HiGain, and Soneplex are registered trademarks of ADC Telecommunications, Inc. Other product
names mentioned in this installation guide are used for identification purposes only and may be trademarks
or registered trademarks of their respective companies.
Copyright Information
© 2003 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company
private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in
whole or in part without the written consent of ADC.
ADC DSL Systems, Inc.
14402 Franklin Avenue
Tustin, CA 92780-7013
Tel: 714.832.9922
Fax: 714.832.9924
Technical Assistance
Tel: 800.366.3891 x73223
Tel: 952.917.3223
Fax: 952.917.3244
Email: [email protected]m
´,VN¶9`¨
Product Catalog: H2TU-R-402-L7F
CLEI: VAR1PERA
Document: LTPH-QI-1203-01
1254469
HIGAIN
April 15, 2003
Table of contents
Other ADC Industrial Equipment manuals
Popular Industrial Equipment manuals by other brands

Siemens
Siemens SIRIUS ACT 3SU180-N Series Original operating instructions

Mecc Alte spa
Mecc Alte spa BTA3 Series Operating and maintenance instructions

Siemens
Siemens SINUMERIK 840D sl manual

Biocontrol
Biocontrol topcat Instructions for use

Colop
Colop T-150 WH user manual

Pfeifer
Pfeifer ECODUR 136879 Original operating manual

Tsubaki
Tsubaki TKRB14H10 instruction manual

Elecro Engineering
Elecro Engineering G2 Installation & operating manual

Ecolab
Ecolab Chameleon PLUS BW3 Service manual

MARCOLIN
MARCOLIN Ecotype installation manual

Ametek Land
Ametek Land NIR-B installation guide

Klimawent
Klimawent UES-N Use and maintenance manual
