ADENDORFF 100 User manual

ELECTRIC CHAIN HOIST
1
Contents
■Preface ------------------------------------------------------------------------3
■Safety Attentions --------------------------------------------------------4
Chapter 1 Operation Method ---------------------------------------4
Chapter 2 Regular Inspection --------------------------------------6
Chapter 3 Problems and Solutions-------------------------------14

ELECTRIC CHAIN HOIST
2
■Disclaimers
●We do not undertake any responsibility for the damages caused by fire,earthquake,lightning or other natural disasters,acts
of third parties,accidents,the user's intent,negligence or misuse,or other damages from the conditions beyond the useage
environments.
●We do not undertake any responsibility for the collateral damages caused by using this product or cannot put into use, such
as the loss of business interests, business interruption, damage to lifting loads, etc.).
●We do not undertake any responsibility for the damages caused by non-compliance with the contents of the operating
manuals or beyond the specified scope.
●Not involved with the company due to a mechanical malfunction caused by the combination of such damages arise, the
Company does not undertake any responsibility.
■Use restrictions
●Do not move for the transportation of persons,as this product is not designed and produced as a manned transport
products.
●Please do not use outside of the designing occasion, the products is designed under the purposes of load up and down,
horizontal loading and unloading in normal use environment.
●Do not use this product as parts of a non-mechanical devices with moving loads.
■Operation and use
●Pls read carefully of this operating manual and other user manuals,understand the whole contents before you operation
and use our products.
●Pls wear protective clothing and appliance before operator operation and use our products.
■Safety precautions
●Operate any kind of lifting equipment may have caused the potential risk of loss of personnel or property.
●Dangerous substantial increase in the chance of the operators don’t follow the correct operation mode and precautions.
So as to ensure safe operation, before you start to use our product, each operator should be fully familiar with the
description of the contents of all manuals and precautions.
When there appears warning symbles like the beside ones show in
this frame in the manuals contents,and these contents have been
bordered, it means these text are very important safety
instructions or precautions.The operators have to be sure to
fully comply with the instructions, otherwise it is likely
to endanger you or other people's lives and property.
Therefore, pls read carefully of our operation manuals and
precautions before you use our electric chain hoists.

ELECTRIC CHAIN HOIST
3
■Preface
The contents covered in this manual can help you with correct installation,operation and maintenance
of our electric chain hoists and let your hoists operated in the best safety, efficiency and economy.
Pls thoroughly study on our manual contents,correct process,operation modes and preventative
maintenance before you use our hoists, you will get practical and reliable services.
In order to provide you with the necessary replacement parts in a fastest time,pls kindly supply us with
the bellowing information when you get in touch with us:
（1）Model type
（2）Product serial Number
（3）Name of parts which need to be replaced（It is better to enclose with explains）
You will find out that electric chain hoists will offer you with many years various and satisfied services.
Whenever you have any doubts, pls do not hesitate to contact with us：
（Dealer’s stamp）

ELECTRIC CHAIN HOIST
4
■Safety attentions
Chapter 1 Operational methods
1．Main specification
1.1 Specification chart
Suitable for all kinds of our electric chain hoists
1-1
Item
Specs
Operating temperature range（℃）
-20 to +40
Operating humidity range（%）
85 or below
Protection class
Hoist
IP54
Button switch
IP54
Power
3 phases，200～600V，50/60HZ
Noise level（dB）
Single speed hoist
81
Double speed hoist
81
Chain specs
Working load limit
Diameter（mm）
Chain pitch（mm）
0.3, 0.5
￠6.3
19
1t, 2t, 3t
￠7.1
21
1.5t ,2t
￠10.0
30
2.5t，3t，5t,7.5t,10t,15t,25t
￠11.2
34
Remarks：（1）When the operating temperature and humidity is beyond the above table, pls get in touch with
agency for more details.
（2）Expected usage：our hoists are designed to lift up and down under the common atmospheric
and working conditions.
（3）The noise level is measured under the normal level of one meter from the hoist working
place where the hoists is proceeding with standard operation.

ELECTRIC CHAIN HOIST
5
1.2 Mechanical level and service life
The guarantee of the service life and safety for electric chain hoists is based on the operator strictly follows
bellowing operation levels.
Our electric chain hoists are designed to be 1Am level in FEM standards（FEM 9.511）
The average of the daily operation hours and total operation hours is calculated by load distribution.
Load level
Definition
Cubic value
Average daily operation hours(hours)
1
(light)
The mechanism and parts are
frequently under light load, and
there is no max.load unless
exceptional conditions.
K≦0.50
≦2
2-4
4-8
8-1
6
≦1
6
>16
2
(medium)
The mechanism and parts are
frequently under light load, but
also under max. load with low
frequency.
0.50<k≦0.63
≦1
1-2
2-4
4-8
8-1
6
≦1
6
3
(heavy)
The mechanism and parts are
frequently under medium and
heavy load.
0.63<k≦0.80
≦0.5
0.5-1
1-2
2-4
4-8
8-1
6
4
(overweig
ht)
The mechanism and parts are
frequently under max. or almost
reach to max. load.
0.80<k≦1.00
≦0.25
0.25-0.5
0.5-1
1-2
2-4
4-8
1Bm
1Am
2m
3m
4m
5m
Basis of selecting motors for lifting equipments
Group
Intermittent Service
Short-Time service
F.E.M
ISO
Cycles/h
Starts/h
(ED%)
Operation period min
1 DM
M1
15
90
15
7.5
1 CM
M2
20
120
20
7.5
1 BM
M3
25
250
25
15
1 AM
M4
30
180
30
15
2 M
M5
40
240
40
30
3 M
M6
50
300
50
30
4 M
M7
60
360
60
60
5 M
M8
60
360
60
>60

ELECTRIC CHAIN HOIST
6
Chapter 2 Regular Inspection
2. Periodic inspection
2.1 Daily inspection on electric chain hoists
Items
Inspection ways
Standards
Resolutions to
deviations
Marks such as
nameplates、labels
etc.
·Visual check
·
No peeling and clear marks.
Proceed with
cleaning, repairing
and replacing.
Pls mark the serial
number for replacing.
The deformation or
damage of body parts
· Visual check
· No remarkable deformation, damage, defect
and chap.
Replace the parts
which are
deformation, damage,
defect and chap
Bolts,nuts and
cutters ’loosing or
falling
off
· Visual and using tools
check
· Practical and reliable installation.
Even an tiny bolt, when it is loosing
it will cause the whole equipment
falling down.
Therefore pls make sure the
precise installations.
Otherwise it will lead to death or
serious injury etc.
Precise installation

ELECTRIC CHAIN HOIST
7
`
Items
Inspection ways
Standards
Resolutions to
deviations
Extend of pitch
·Check by chain measurement
tool
Attrition of
chain
diameters
·Check by chain
measurement tool
deformation ,
damage, wind
· Visual check
damage chap
Confirm the chain if or not stick
to the welding spatters by visual.
· No deep cut.
· No deformation.
· No welding spatters.
· No wind.
· No chap.
Replace load chains
Rust and
corrosion
· Visual check
· No remarkable rust and corrosion.
Replace load chains
Distortion
· Visual check
·No distortion due to bottom block roll over of
double chain models.
Correct distortion
Oil supply
· Visual check
· Adequate supply of oil.
Oiling

ELECTRIC CHAIN HOIST
8
Items
Inspection ways
Standards
Resolutions to
deviations
Limit switch
Check by pushing button
· Keep operating until upper and lower limit
where motor shutdown automaticly.
Replace limit switch,
Disassemble and clean
the limit lever
Movement
confirmation
· Check by pushing button
· Load chain can roll up easily.
· Move towards the same direction to the
button’s.
· Motor shutdown immediately when stop
operating.
· All movements shutdown when push the
E-stop button.
· Push any other buttons can’t cause any
moves when pushing the E-stop button.
· All movements back to normal operation
when relieve the E-STOP button.
Brake
· Check by pushing button
· Brake quickly works and bottom hook stop
movements immediately when the operation
is stoped.
( The amount of movement of the load chain is
within 2 to 3 rings)
Chain spring
· Check by visual and
measure dimensions
Chain
Spring length
Standard
Limits
Φ6.3
145
140
Φ7.1
145
140
Φ10.0
135
129
Φ11.2
160
152
Replace chain spring

ELECTRIC CHAIN HOIST
9
Items
Inspection ways
Standards
Resolutions to
deviations
The attrition and
opening of the
hook
· Check by visual and vernier
caliper
· No remarkable open.
· No remarkable attrition.
load
a
b
c
d
e
g
0.3 0.5
27
18
25
17
35
28
1
34
24
30
24
42
32
2
46
29
39
30
49
40
3
56
35
49
34
59
48
5
67
43
57
44
60
48
7.5 10
82
55
80
48
85
80
15
110
78
120
80
120
90
20 25
142
95
155
98
150
115
Deformation,
damage and
corrosion
· Visual check
· No remarkable deformation, harmful damage
and corrosion.
Replace hook
Hook safety
block
· Check by visual and fold
and unfold actions
· can exactly fold inside of the hook
· No deformation and work flexiblely
Dangerous
··Don’t use the hook which safety block is
loosing.
Otherwise it will lead to death or serious
injury accidents.
Replace hook safety
block
Hook
movements
（rotate）
· Check by visual and rotate
by hands
· No remarkable interspace between bottom
supporting and top.
· equal at right and left.
· easy to rotate 360°.
Replace hook

ELECTRIC CHAIN HOIST
10

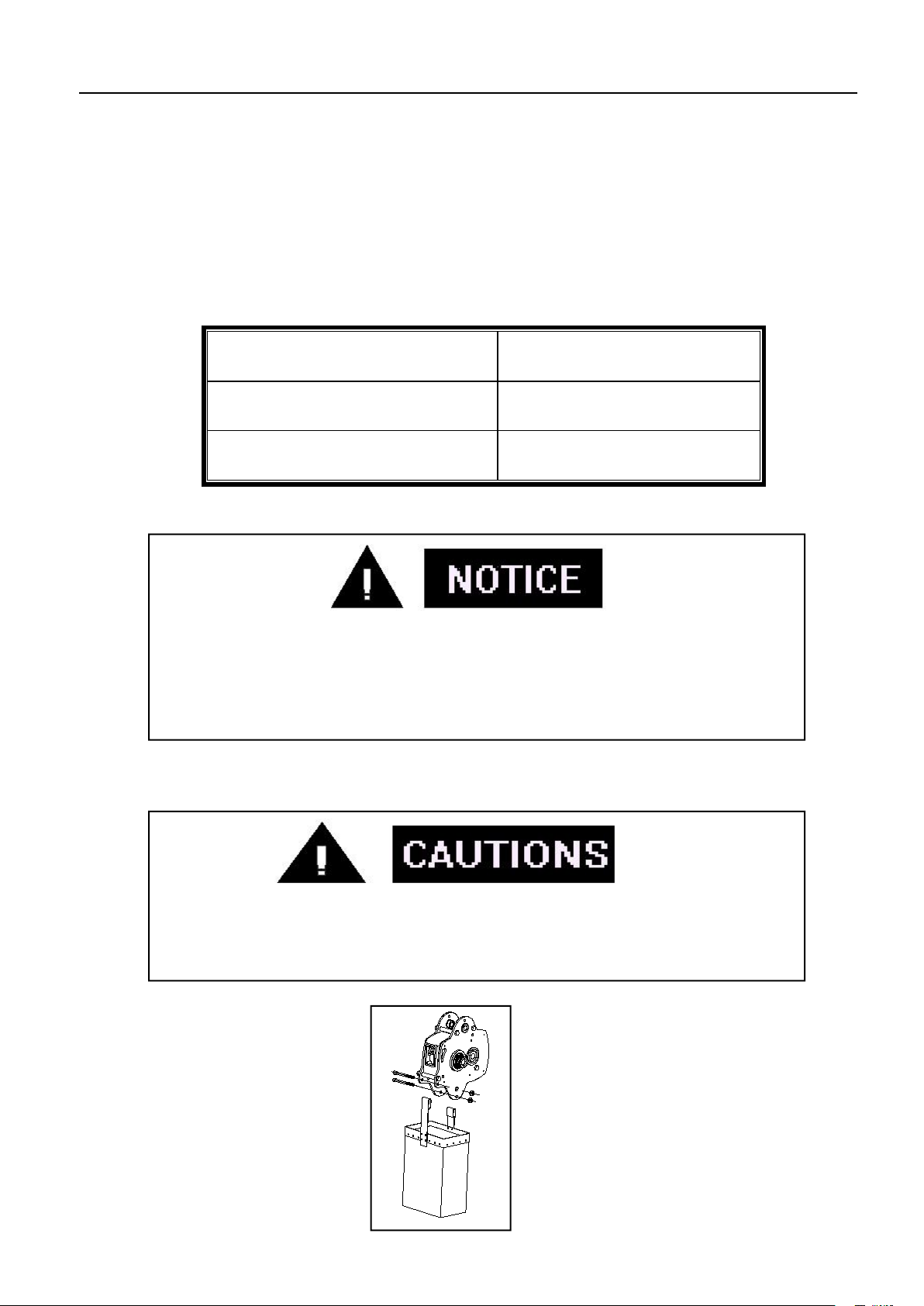

2.2 Unpacking
After unpacking,pls careful check over the appearance of the cable, gear box and motor
shell.
Check the quantity of the bellowing items as well.
Every set of our hoist should including the bellowing standard spare parts：
1．Chain bag（box）
1pcs
2．Control cable
1mtrs
3．Button switch
1pcs
2.3 Supply voltage
If the supply voltage exceeds ± 10% compare to the standard
voltage, operation may cause damage to the motor under this
abnormal voltage. Thus operator have to confirm whether the
power supply voltage within the operating range of the standard
firstly before operating the hoists.
2.4 Installations
Strictly prohibited connecting to the power before
the completion of the installation process.
（1）Chain bag assembly

ELECTRIC CHAIN HOIST
11

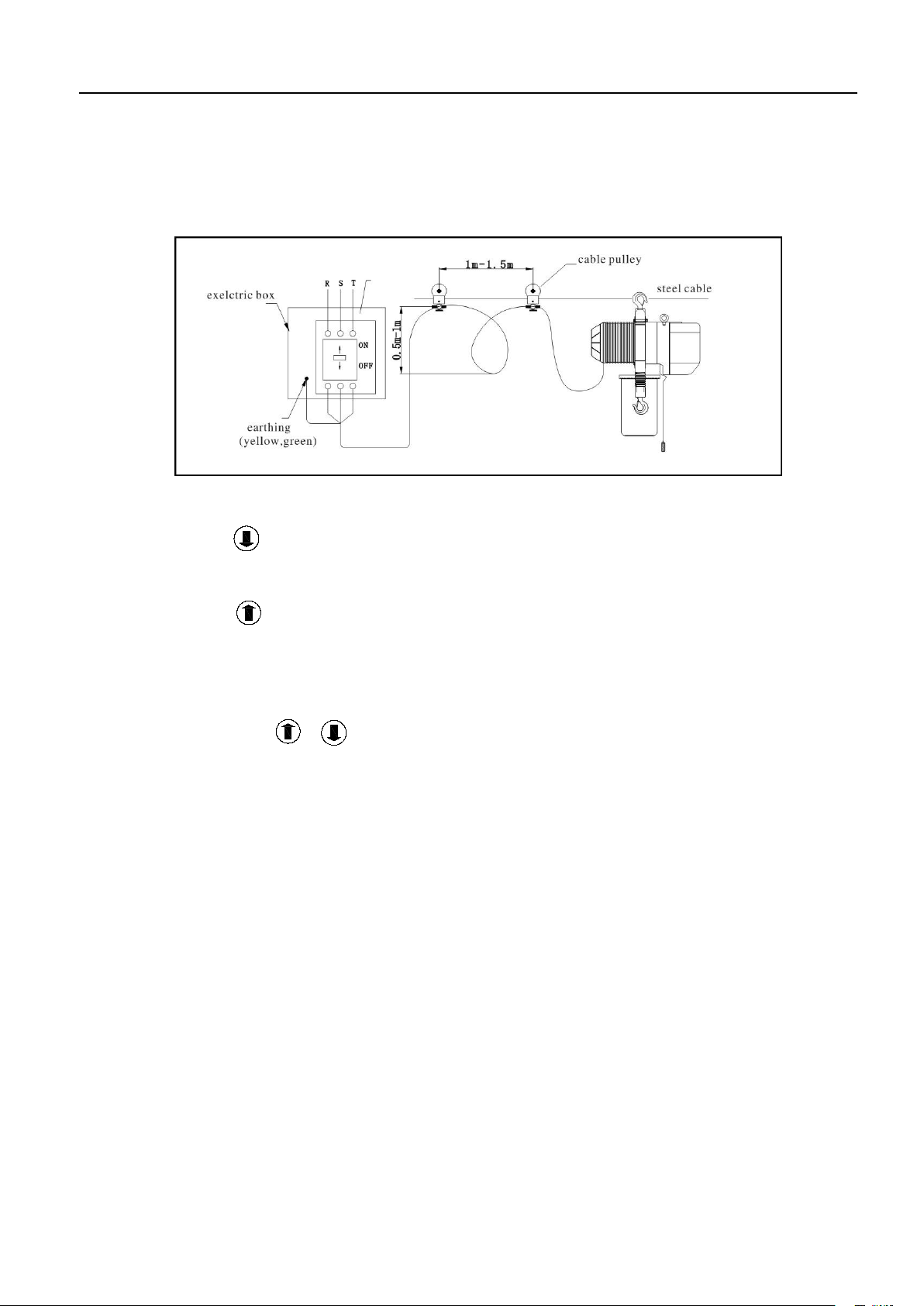

（2）Switch on the power supply to the hoist and operate the push button（operated by
professional）.
（3）Operation test
（a）Press the button indeed，let the hook down untill the limit spring touches the limit switch,the
motor will stop automatically.
（b）Press the button indeed untill the chain is collected into the chain bag completely, and the
motor stops.
c）Test the function of the emergency stop switch (if the optional emergency stop switch is
purchased)Press or button, meanwhile press the emergency stop switch. Check if the hoist
stop running immediately or not after press the emergency stop switch, and make sure the hoist
can not be started again when press this button. Rotate the emergency stop switch clockwise,
make the emergency switch back to the original place. When it bounces back, the hoist can be
started again. If any of tests above is failed, please check the distribution circuit and the automatic
locking of the emergency switch.
（d）Check the lubricating condition of load chain ( the load chain has been lubricated before delivery,
but could be dried when delivery). Any lubricant you have can be used to lubricate the chain. We
suggest that infunde a little of lubricant into the chain bag to protect the load chain.
（e）Check the direction of the chain eyes. All welding points should be of the same direction. The hoist
can not be operated properly and utterly unless all welding chain eyes are in the same line.

ELECTRIC CHAIN HOIST
12

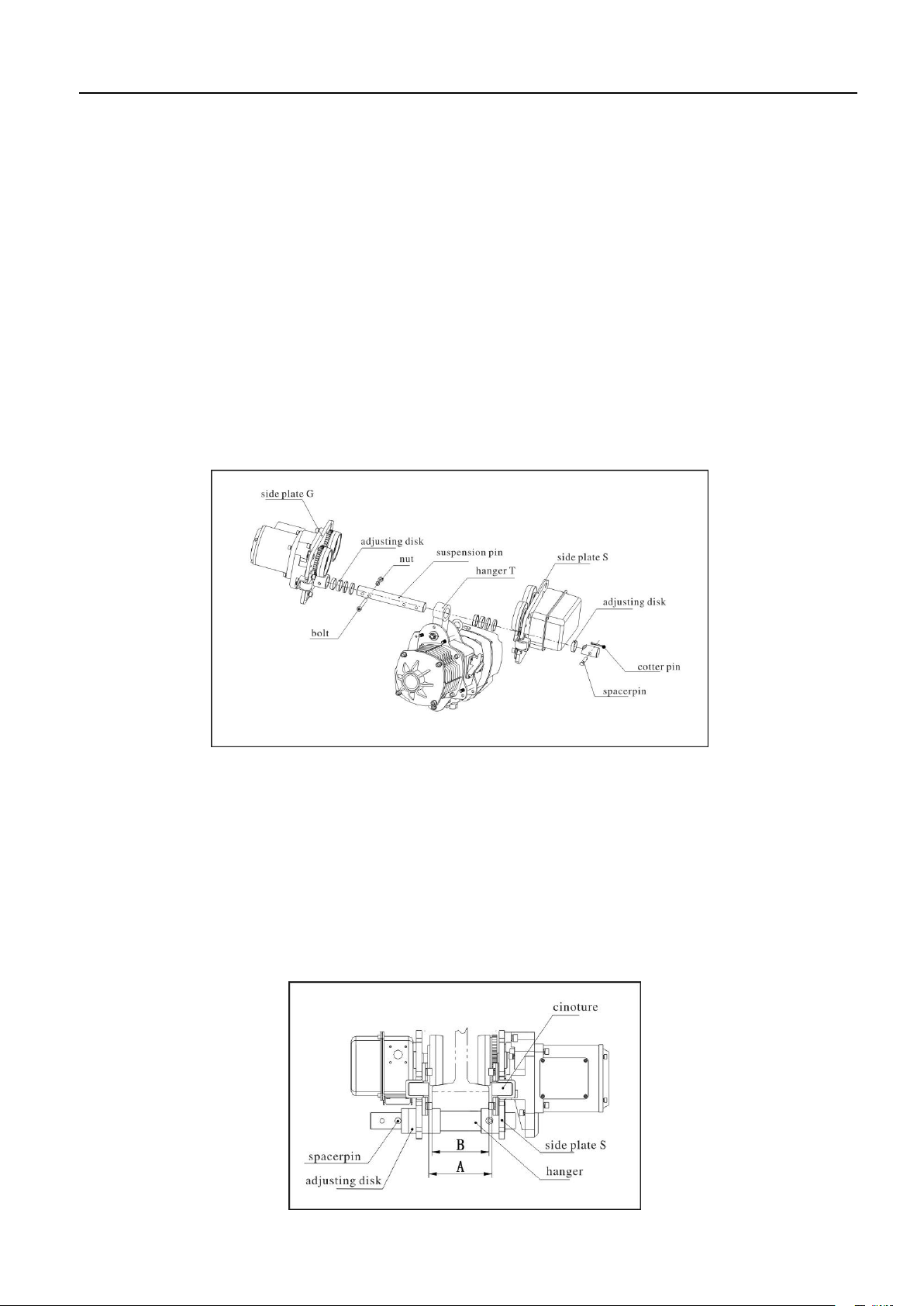

2.5 Installation of the trolley
（1）Install the trolley
1）Insert the suspension pin into the lateral plate G and lock it with suspension pin bolts and nuts.
2）Install the suspension pin with adjusting disk.
3）Install the suspension pin into the hanger T. The nameplates of hoist and trolley should be in the same
direction.
4）Install more gaskets into the suspension pin before insert it into the lateral plate S.
5）Install the outside adjusting disk and spacerpin into the suspension pin, and insert the cotter pin into
the spacerpin. When install the spacerpin, check if the cotter pin can be seen at the left side from the
front of the trolley switch box.
（2）Adjust width of the trolley
Please adjust width of the trolley according to below drawing to get appropriate clearance.
Size A is the dimension when two side plates stretch outside completely.
Size A must be approximate B (the width of rail flange) +4mm.
Please adjust size A by increasing or decreasing adjusting disk. Insert the cotter pin into the spacerpin
and bend two branches of cotter pin if the size A is ok.

ELECTRIC CHAIN HOIST
13
The nut must be fixed and strong, insert cotter pin and bend it completely.
（3）Install trolley into the beam.
1）Install the trolley at the end side of the beam and than slip the trolley which has been connected with
hoist already to the appropriate place. This is the most convenient method.
2）If first method is unavailable, please follow drawing 5-9.
a）Unload the brake stopper from hole A on the suspension pin, and insert it into hole B. Insert cotter
pin again and bend it completely.
b）Pull the side plate S and G outside then lift the trolley untill the orbit wheel and orbit surface is in the
same horizontal. Put the orbit wheel of side plate G onto the surface of the orbit.
c）Hold the side plate G and stop it from dropping from the orbit. Push side plate S harder and put its
orbit wheel onto the surface of the girder.
d）Unload the brake stopper from hole B and insert into hole A. Do not forget to bend the cotter pin.
WARNING

ELECTRIC CHAIN HOIST
14
Chapter 3 Problems and Solutions
3. Fault Resolution
3.1 Wiring Diagram
（1）2 directions wiring diagram for single speed---------------------------- 15
（2）4 directions wiring diagram for single speed---------------------------- 16
（3）6 directions wiring diagram for single speed---------------------------- 17
（4）2 directions wiring diagram for double speeds--------------------------18
（5）4 directions wiring diagram for double speeds--------------------------19
（6）6 directions wiring diagram for double speeds--------------------------20
（7）wiring diagram for single phase motor-------------------------------------21
The above mentioned wiring diagrams above are only for reference, user should take
the one inside the electric box as the proper one.

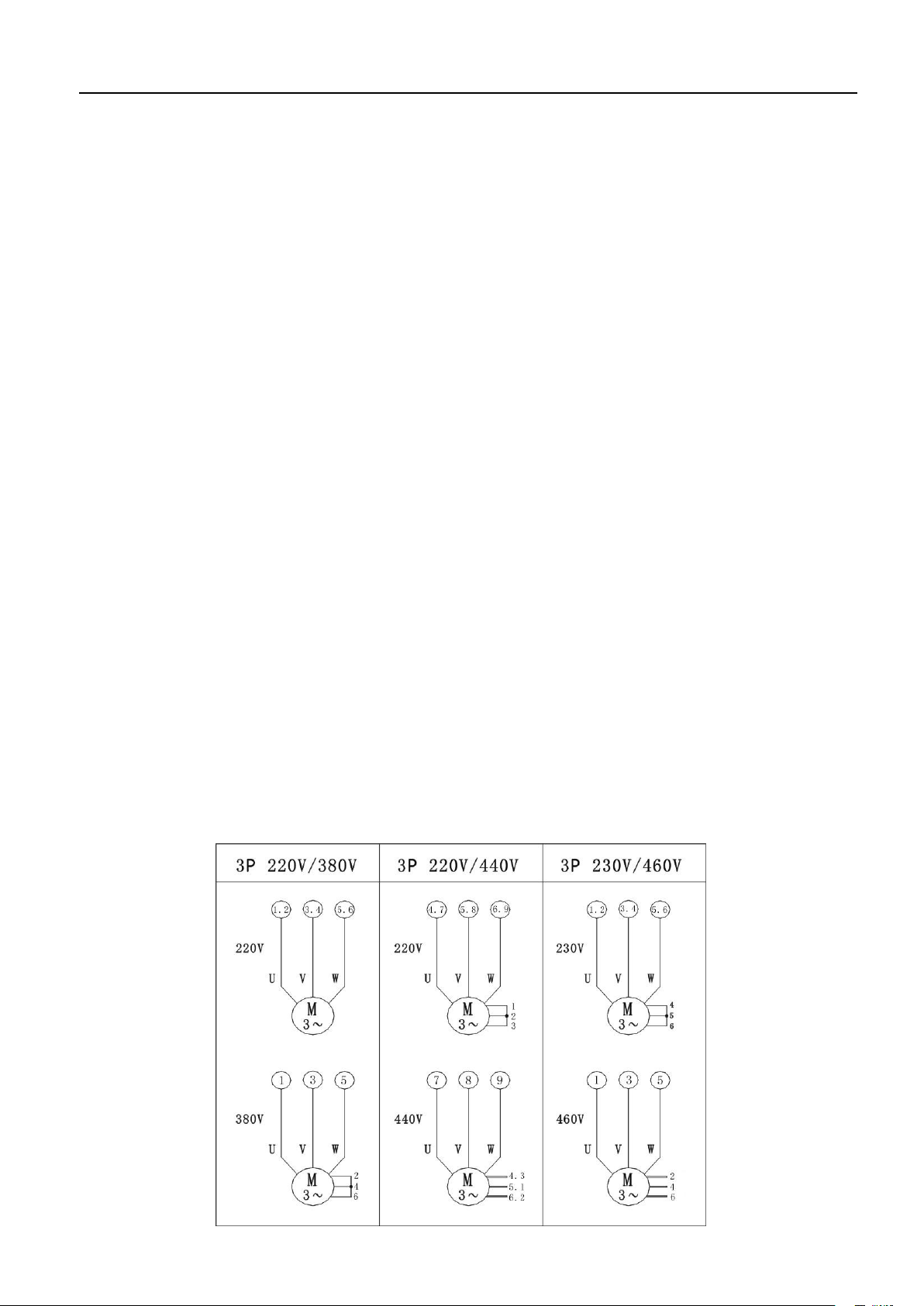

The electric specifications can be made according to the follows:
（a）3 phase
（b）Frequence
（c）Single or double voltage

ELECTRIC CHAIN HOIST
15

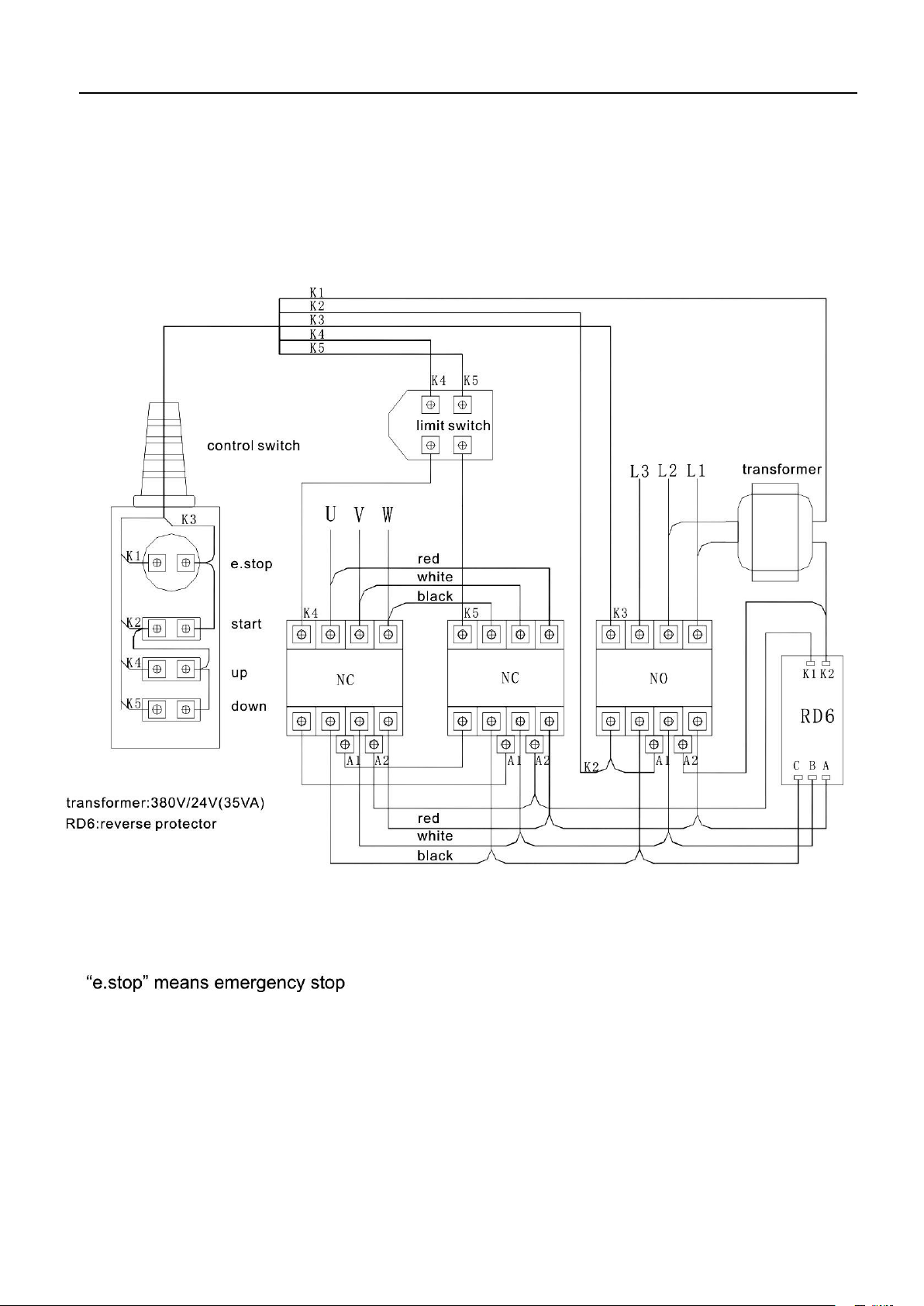

（1）2 directions wiring diagram for single speed

ELECTRIC CHAIN HOIST
16
（2）4 directions wiring diagram for single speed

ELECTRIC CHAIN HOIST
17
（3）6 directions wiring diagram for single speed

ELECTRIC CHAIN HOIST
18
（4）2 directions wiring diagram for double speeds

ELECTRIC CHAIN HOIST
19
（5）4 directions wiring diagram for double speeds

ELECTRIC CHAIN HOIST
20
（6）6 directions wiring diagram for double speeds
