Adeunis RF ARF45 User manual

Wi-Fi b/g Modem
Quick Start Guide

No part of this document may be reproduced or transmitted (in electronic or
paper version, photocopy) without Adeunis RF consent.
This document is subject to change without notice.
All trademarks mentioned in this guide are the property of their respective
owner.
ADEUNIS RF
283, rue Louis Néel
38920 Crolles
France
Phone [phone]
Fax [phone]
Ref. 11-06-V3-ffr

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 1
Table of contents
About this document.........................................................................2
Declaration of conformity .................................................................3
1- Directly over the network.............................................................4
2- Over the serial port.......................................................................6
3- Data transfer ................................................................................8
Specifications....................................................................................9

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 2
About this document
The purpose of this document is to assist the user in configuring the ARF45-
Pro so to have it up and running for data transfer.
Assumption: The ARF45-Pro contains the default factory settings.

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 3
Declaration of conformity
Manufacturer’s name: ADEUNIS R.F.
Manufacturer’s address Parc Technologique PRE ROUX IV
283 rue Louis NEEL
38920 CROLLES - FRANCE
declares that the product if used and installed according to the user guide available on
our web site www.adeunis-rf.com
Product Name: ARF45
Product Number(s): ARF7532A
Product options:
Complies with the RTTE Directive 99/5/EC:
EMC: conformity to the harmonized standard EN 301 489
Safety: conformity to the standard EN 60950-1/2001
Radio: conformity to harmonized standard EN 300-328 covering
essential radio requirements of the RTTE directive.
Exposure to radio frequency signals: Regarding the 1999/519/EC recommendation,
when using the device, keep the product at least 3 cm from your body.
Notes: - Conformity has been evaluated according to the procedure
described in Annex III of the RTTE directive.
- Receiver class (if applicable): 3.
Crolles, November 12th, 2008
VINCENT Hervé / Quality manager
Download of the user guide
Thank you for having chosen the ADEUNIS RF products.
User guides can be uploaded directly on our web site www.adeunis-rf.com
Index Products
Paragraph Modems > WIFI modem
Print version available upon request
9Tel : [phone]
9Email : [e-mail]

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 4
1- Directly over the network
Here are given below the pre-requisites in order to be able to quickly
configure the ARF45-Pro:
- There should be a DHCP server on the network (for instance in the Access
Point)!
&
- The Access Point’s settings must be the same as the ARF45-Pro default
settings!
So the Access point should be configured as followed:
- Security settings: no security
- SSID: Lantronix Initial Infra Network
When the above conditions are fulfilled then here is below the scheme of the
set up:
Upon power up, the connection establishment is automatic (LED on bottom
of ARF45-Pro becomes ON) and the user can access the embedded web
server running on the ARF45-Pro using a web browser (like Firefox or
Internet Explorer):

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 5
1/ Open a web browser.
2/ Enter the IP address of the ARF45-Pro (The IP address has been assigned
by the DHCP server running on the AP. So the address can be retrieved from
the AP based on the MAC address of the ARF45-Pro).
3/ Enter
Admin and PASS to log into the web server.
The following home page should display:

From here you can proceed with an advanced configuration of the device by
accessing the different menu.

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 6
2- Over the serial port
If no DHCP server is present on the network or if the Access Point’s settings
cannot be changed, then the user cannot directly connect to the ARF45-Pro
over the network.
So the user should first connect to the ARF45-Pro through the serial port and
make a few changes to the default configuration in order to be able to
connect to a remote AP.
Below, the set up schematic :
To configure the ARF45-Pro using the serial port, connect a terminal or a PC
running a terminal-emulation program to the device’s serial port.
Configure the terminal for 9600 baud, 8-bit, no parity, 1 stop bit, and no flow
control.
Then:
1. Cycle the ARF45-Pro’s power (power off and back on).
2. While the device is booting press and hold the exclamation point (!)
key.

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 7
Then, when an exclamation point appears on the terminal or PC
screen, type xyz within 5 seconds to display the Command Line
Interface prompt.
From this point, the user is required to navigate onto the CLI (Please refer to
the Command set and User guide for more information) and perform the
following changes :
‐If no DHCP server is present on the network, the user must type
the following commands (each followed by ENTER): enable, then
config, then if 2
1) Disable the DHCP client:
At that point the user must type dhcp disable in order to disable
the dhcp.
2) Enter a static IP address:
At that point the user must type ip address xxx.xxx.xxx.xxx in
order to enter a static IP address.
3) Save the changes: by typing write.
‐If the user cannot change the AP’s settings, then he should modify
the ARF45-Pro’s WLAN settings : this comes down to change the
SSID name and possibly the security settings.
After having performed those changes the ARF45-Pro is up and running. So
the user can connect to the ARF45-Pro web server (refer to 1) for advanced
configuration.
In case the user does not have any Acces Point, then he can connect to the
web server by connecting to the Ad Hoc network created by the ARF45-PRO,
which name is
Lantronix Initial Adhoc Network.

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 8

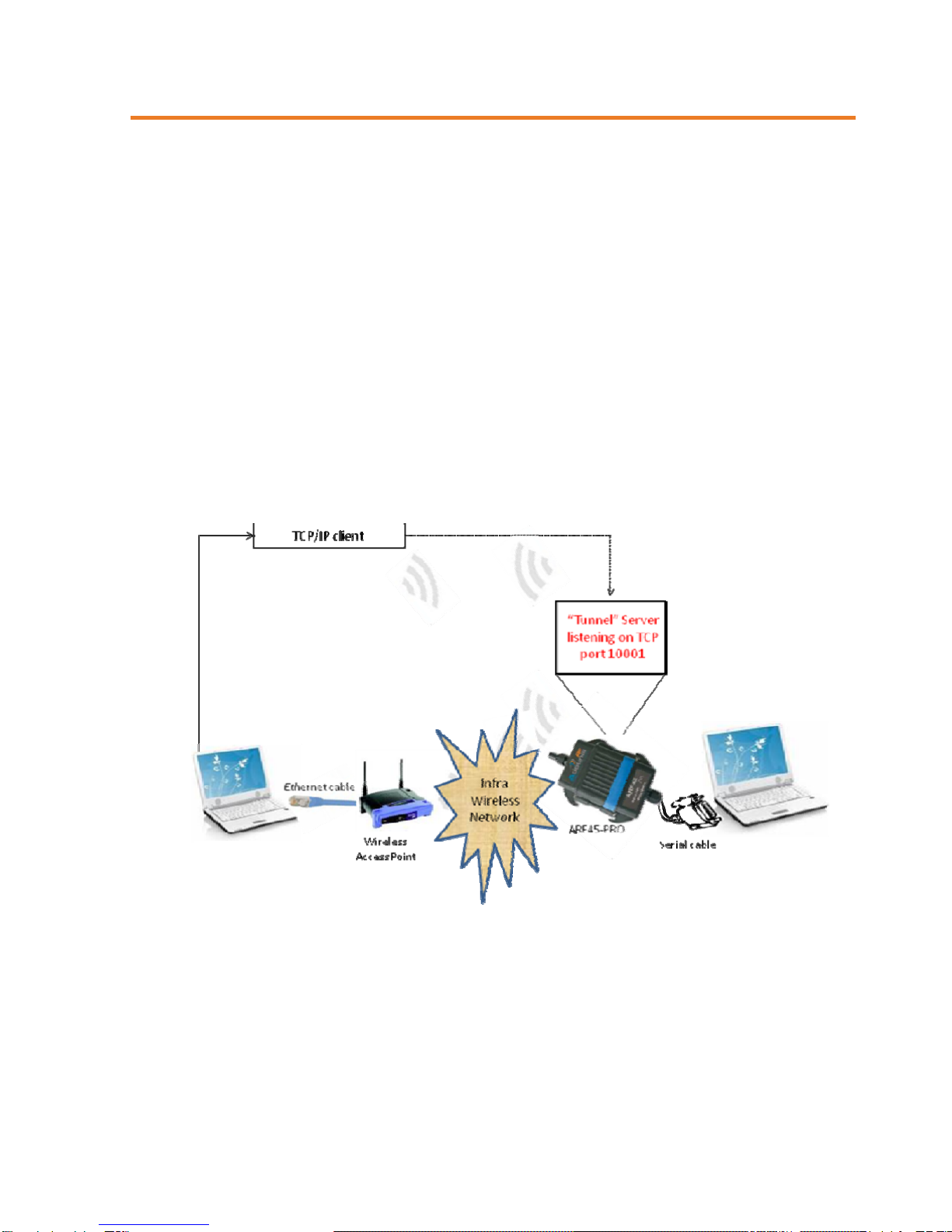

3- Data transfer
Once the connection is established with a remote wireless Access Point, the
user can send and receive data from the ARF45-Pro.
By default the ARF45-Pro behaves like a TCP server listening on a default
port (port number 10001).
So the user should initiate the data transfer by opening a TCP socket from a
TCP client.

A
RF45-PRO Quick Start Guide
Ref. 11-06-V3-ffr
p 9
Specifications
RF
Frequency range : 2.412 – 2.484 GHz
Radiated RF power : + 15 dBm
Sensitivity : - 91 dBm @ 1 Mbps
Range : 200 m in open field
Standards compliance : EN 300-328 – EN301-489
WIFI
Network standard : 802.11b; 802.11g
Security : WEP 64, WEP 128, WPA/WPA2-Personal
(PSK), WPA/WPA2-Enterprise (EAP-TLS,
EAP-TTLS, PEAP, LEAP)
Radio data rate : Up to 54 Mbps
Supported LAN Protocols : TCP-IP, DHCP, BOOTP, ICMP, ARP, UDP,
SMTP, TFTP, ICMP, SNMP, AutoIP
Modem interface
Serial data rate : From 300 bps to 250 Kbps
Serial ports : TxD, RxD.
Flow control : RTS, CTS
Set-up and configuration : Through menus (by serial link or telnet
or web manager)
Mode : Transparent
General information
Power supply : 8 to 36 Volts (integrated regulator)
Electric Power : < 1,2 W
Operating temperature : -30 to +70 °C
Size : 145x100x40 mm
Packaging : IP65 box with integrated antenna
Reference :
ARF7532K : IP65 box version
