ADIROffice ADI626 User manual

USER GUIDE
Mobile, Wood
with 51 Compartments
ADI626
Roll File

AdirOce has a commitment to
deliver quality and stylish oce
furniture and equipment.
We understand starting and maintaining a business is expensive enough.
We can help you make it cost effective and beautiful. Plus, our expert team
makes sure everything you need works as efciently as possible.
Thank you
for your
purchase.

1 Parts and Hardware
3 Assembly Instructions
11 Warranty
12 Disclaimer
Table of Contents

1
Parts and Hardware
Left-Side Panel
Back Panel
Vertical Panel (x9)
Right-Side Panel
Bottom Panel
Front Panel
Horizontal Panel (x4)
1
4
7
5 6
2 3
Parts:

2
Parts and Hardware
Tools Required (But Not Included)
Caster WHeel (x4)
Handle (x2)
Vertical Edge Channel (x9)
• Screwdriver
M3.5 x 10 mm Screw (x16)
Screw Hole Cover (x10)
M4 x 45 mm Screw (x10)
Horizontal Edge
Channel (x4)
A
D
G
E F
B C
Hardware:

3
Assembly Instructions
STEP 1
A. Lay the Bottom Panel (5) on a at, clean surface with the 16 pre-drilled holes facing up.
B. Take the 4 Caster Wheels (A) over the pre-drilled holes, insert the 16 M3.5 x 10 mm
Screws (B) and tighten them using a screwdriver.
A
B
5

4
STEP 2
A. Line up the Left-Side Panel (1), the Front Panel (3), and the Back Panel (4), as pictured.
B. Insert 5 M4 x 45 mm Screws (C) into the pre-drilled holes and tighten them with a
screwdriver.
Assembly Instructions
C
1
4
3

5
Assembly Instructions

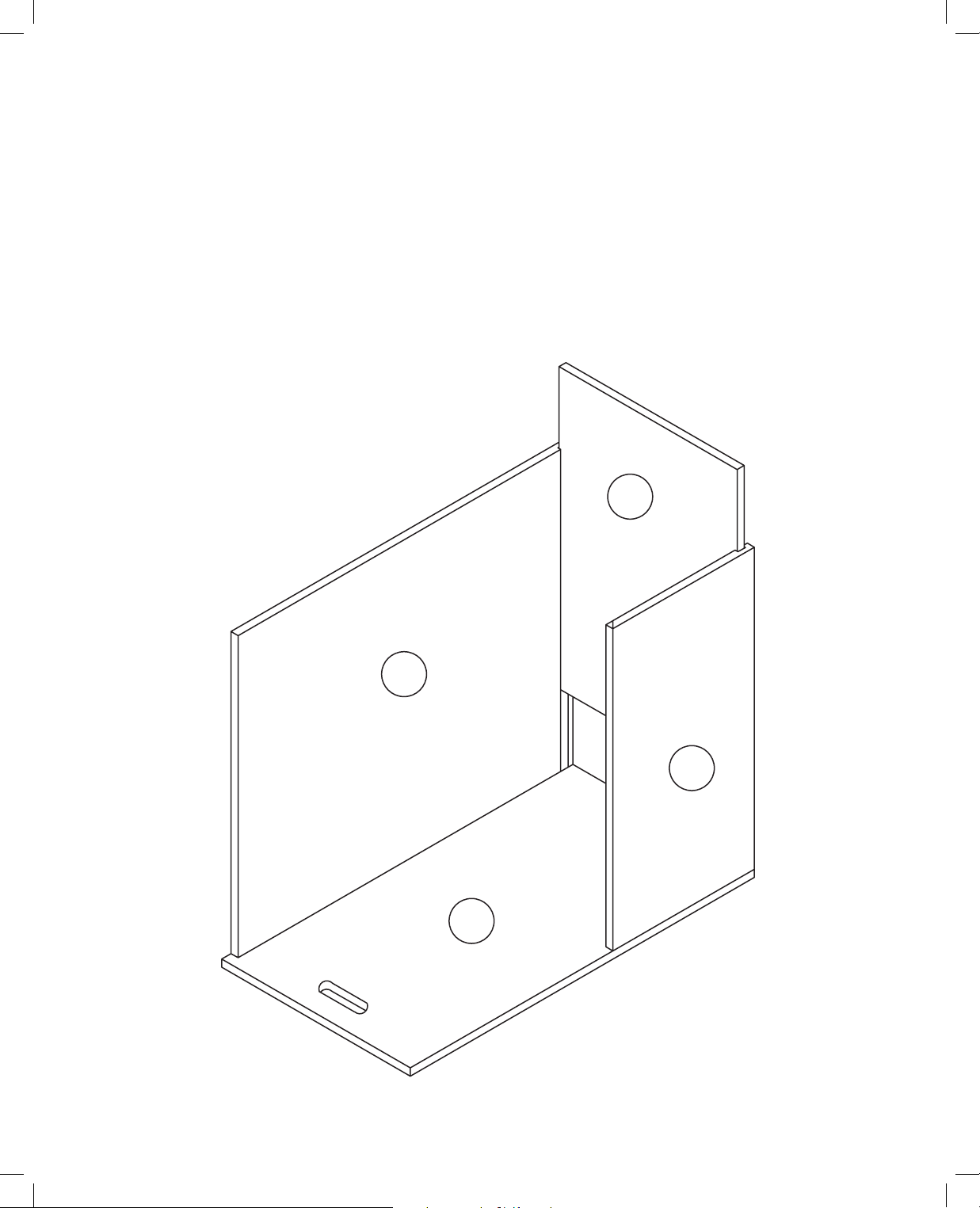

STEP 3
A. Slide the Bottom Panel (5) between the Left-Side Panel (1), the Front Panel (3), and
the Back Panel (4).
5
4
1
3

6
Assembly Instructions
STEP 4
A. Place the Right-Side Panel (2) over the assembled structure, as pictured.
B. Insert 5, M4 x 45 mm Screws (c) into the pre-drilled holes and tighten with a screwdriver.
2
4
1
3
C

7
Assembly Instructions
STEP 5
A. Take the 4 Horizontal Panels (6) and have their open slots facing up.
B. Slide all 9 Vertical Panels (7) in the open spaces of the Horizontal Panels (6).
7
6

8
Assembly Instructions
STEP 6
A. Take the 2 Handles (D) and push them into the pre-cut holes on the sides of the
Left-Side Panel (1) and the Right-Side Panel (2) by applying light pressure.
D
D
2
1

9
Assembly Instructions
STEP 7
A. Place the Screw Hole Cover’s (E) into all of the screw holes and apply light pressure.
E

10
Assembly Instructions
STEP 8
A. Take all 4 Horizontal Edge Channel’s (F), lay them
on a at, clean surface.
B. Place all 9 Vertical Edge Channel’s (G) on top and
lightly push them into place, as pictured.
C. Once assembled, place the whole structure
in-between the Left-Side Panel (1) and the
Right-Side Panel (2).
STEP 9
A. Place the assembled edge channel’s on
top of the built structure of the Horizontal
Panels (F) and the Vertical Panels (G).
F
G
7
6

11
Limited Warranty
1. AdirCorp (the company) warrants to the purchaser that the product will be free from
defects in workmanship and materials for a period of three (3) year from the date of
purchase.
2. These warranties are not assignable or transferable to any other person.
3. Any damage to the product as a result of misuse, tampering, abuse, neglect, accident,
improper installation, modification, unauthorized service, destruction, or the alteration of
the serial number or use violates the instructions furnished by the Company will void this
warranty.
4. The sole responsibility of the Company shall be limited to the repair or replacement (in its
sole discretion) of any component of the product which fails to conform to this warranty
at no cost to the purchaser for the period of the warranty.
5. Contact the Company directly to obtain service under this warranty. If it becomes
applicable to send a defective product to the Company, a Return Authorization Number
must first be obtained from the company. To obtain service under this warranty, purchaser
must provide the Company with the following items (a) proof of purchase, (b) police or fire
department report, (c) photographs of damaged sad, and (d) written testimonial.
6. Products shipped without prior Return Authorization and Return Authorization Number may
not be accepted, and the Company will not be responsible for their disposition and/or cost
of return to the owner.
7. The Company will not assume any responsibility for any loss or damage incurred in
shipping. All return authorized products should include a copy of the original invoice in
order that this warranty may be Honored.
8. This warranty is not an insurance policy. The Company is not responsible for any manner
of damage to or theft of the Purchaser’s product or its contents.
9. We recommend that the product being returned is accompanied by the sales receipt with
all relevant information regarding the purchase of the item and is returned to the Company
within ten (10) days of the claim date of purchase to validate this warranty.
10. Any implied warranties that the purchaser may have are limited to the duration of the
warranties described above. There are no further warranties that extend or apply beyond
the face hereof, and the company expressly disclaims and excludes any and all warranties
of merchantability or fitness for a particular purpose. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
11. Repair or replacement shall be the sole remedy for the purchaser under this warranty.
The company shall not be liable for any direct, indirect, incidental or consequential
damages, losses or expense arising from the use or misuse of the product. Some states
do not allow the exclusion or limitations of incidental or consequential damages, so the
limitation may not apply to you.
12. This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
