Kodak X-Omat 270 RA PROCESSOR User manual

HEALTH IMAGING
© Eastman Kodak Company
Publication No. SM3058-3
May 1996
Supersedes SM3058-3
3/94
SERVICE MANUAL
for the Kodak X-Omat 270 RA PROCESSOR
in a
Kodak X-Omat MULTILOADER 300
H104_0192DA

2May 1996 – SM3058-3
PLEASE NOTE The information contained herein is based on the experience and knowledge relating to the
subject matter gained by Eastman Kodak Company prior to publication.
No patent license is granted by this information.
Eastman Kodak Company reserves the right to change this information without notice, and
makes no warranty, express or implied, with respect to this information. Kodak shall not be
liable for any loss or damage, including consequential or special damages, resulting from any
use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.
This equipment includes parts and assemblies sensitive to damage from electrostatic
discharge. Use caution to prevent damage during all service procedures.
Important
Use qualified personnel to service the PROCESSOR.
Warning
To avoid hazardous conditions, keep floors and floor coverings around your Kodak X-Omat PROCESSOR and
associated drains clean and dry at all times. Any accumulation of fluids from mixing tanks, drain lines, etc, should
be cleaned up immediately. In the event of an accumulation of liquid due to backup, overflow, or other malfunctions
of the drain associated with your X-Omat PROCESSOR, call a plumber or other contractor to correct any problem
with the drain. Kodak accepts no responsibility or liability whatsoever for the serviceability of any drain connected
to or associated with a Kodak X-Omat PROCESSOR. Such drains are the sole responsibility of the customer.

SM3058-3 – May 1996 3
Description Page
Table of Contents
Service Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preventive Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Processor Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Identifying and Removing the COVERS and PANELS . . . . . . . . . . . . . . . . . . . 5
De-energizing and Energizing the PROCESSOR . . . . . . . . . . . . . . . . . . . . . . . 6
Removing the RACKS with Solutions in the TANKS . . . . . . . . . . . . . . . . . . . . 6
Draining and Filling the TANKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ROLLER TRANSPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the Squareness of the RACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MAIN DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Removing the DRIVE SHAFT, DRIVE CHAIN, DRIVE MOTOR,
WORM GEARS, and DRIVE SHAFT BEARINGS . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting the Tension on the DRIVE CHAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DRYER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Removing the DRYER OVER-TEMPERATURE THERMOSTAT
or the DRYER THERMISTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Removing the DRYER HEATER HR3, DRYER BLOWER, or
AIRFLOW SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the DEVELOPER or FIXER HEATER and THERMISTOR. . . . . . . . . . 15
Removing the DEVELOPER COOLING SOLENOID L2. . . . . . . . . . . . . . . . . . . . . 16
Removing the WATER SOLENOID VALVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Removing the POPPET VALVES from the REPLENISHMENT PUMPS . . . . . . . . 17
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Removing the AUTOTRANSFORMER T1 or EMI LINE FILTER . . . . . . . . . . . . 18
Removing the 500 CIRCUIT BOARD, the Microprocessor . . . . . . . . . . . . . . . . . . . 19
Removing a SOLID STATE RELAY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Removing the DRIVE MOTOR CONTROLLER A2 . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing the LEVEL SENSOR HOUSING and the
LEVEL SENSOR PROBES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Removing the QUAD POWER SUPPLY A1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Checking the DETECTOR SWITCHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adjusting the Film DETECTOR SWITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the DETECTOR SWITCHES from Side to Side . . . . . . . . . . . . . . . . . . . . 25
Adjusting the DETECTOR SWITCHES Up and Down. . . . . . . . . . . . . . . . . . . . . . . 26
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Weekly Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Monthly Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3 Month Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Preventive Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Publication History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

SERVICE MANUAL
4May 1996 – SM3058-3
Section 1: Service Overview
Special Tools
Electrostatic Discharge
Overview ESD--electrostatic discharge--is a primary source of:
• product downtime
• lost productivity
• costly repairs
While one cannot feel a static charge of less than 3,500 volts, as few as 30 volts can damage or destroy
essential components in electronic equipment.
Preventive Measures
• Always look for an ESD warning label before doing any procedure involving static-sensitive
components such as CIRCUIT BOARDS. All static-sensitive components are marked with bright
graphic labels, which frequently include instructions. Follow all label instructions.
• Wear a grounding strap when handling static-sensitive components. Always make certain that the
clip remains attached to a properly grounded, unpainted, clean surface.
• Repair static-sensitive components at an ESD-protected work station or use a portable grounding
mat. For help in setting up an ESD-protected work station, contact your Kodak representative.
• When moving static-sensitive components from one area to another, insert and transport the
components in ESD-protective packaging.
Tool No. Description
TL-2431 AIR METER
1The PORTABLE COMPUTER must meet the criteria
listed below:
• be an IBM compatible computer
• have MS-DOS version 3.0 or higher installed on the
HARD DISK
• have a 720 KB 31/2 in. DISK DRIVE
• have a serial communications port configured as
COM 1: See the User Manual for the PORTABLE
COMPUTER
TL-1434 Carpenter’s LEVEL, approximately 30 cm
(12 in.) long
TL-2170 CLAMPS (Order 2)
5B6278 Diagnostics Diskette
TL-4430 EXTRACTION TOOL
TL-3346 GROUNDING KIT
TL-4391 INTERFACE CABLE
TL-2324 LITHIUM BALL and ROLLER
BEARING GREASE
TL-1926 Magnetic Power Warning Sign
------ PORTABLE COMPUTER1
1C8022 SEALANT
TL-2192 THERMAL GREASE

Service Overview
SM3058-3 – May 1996 5
Processor Overview

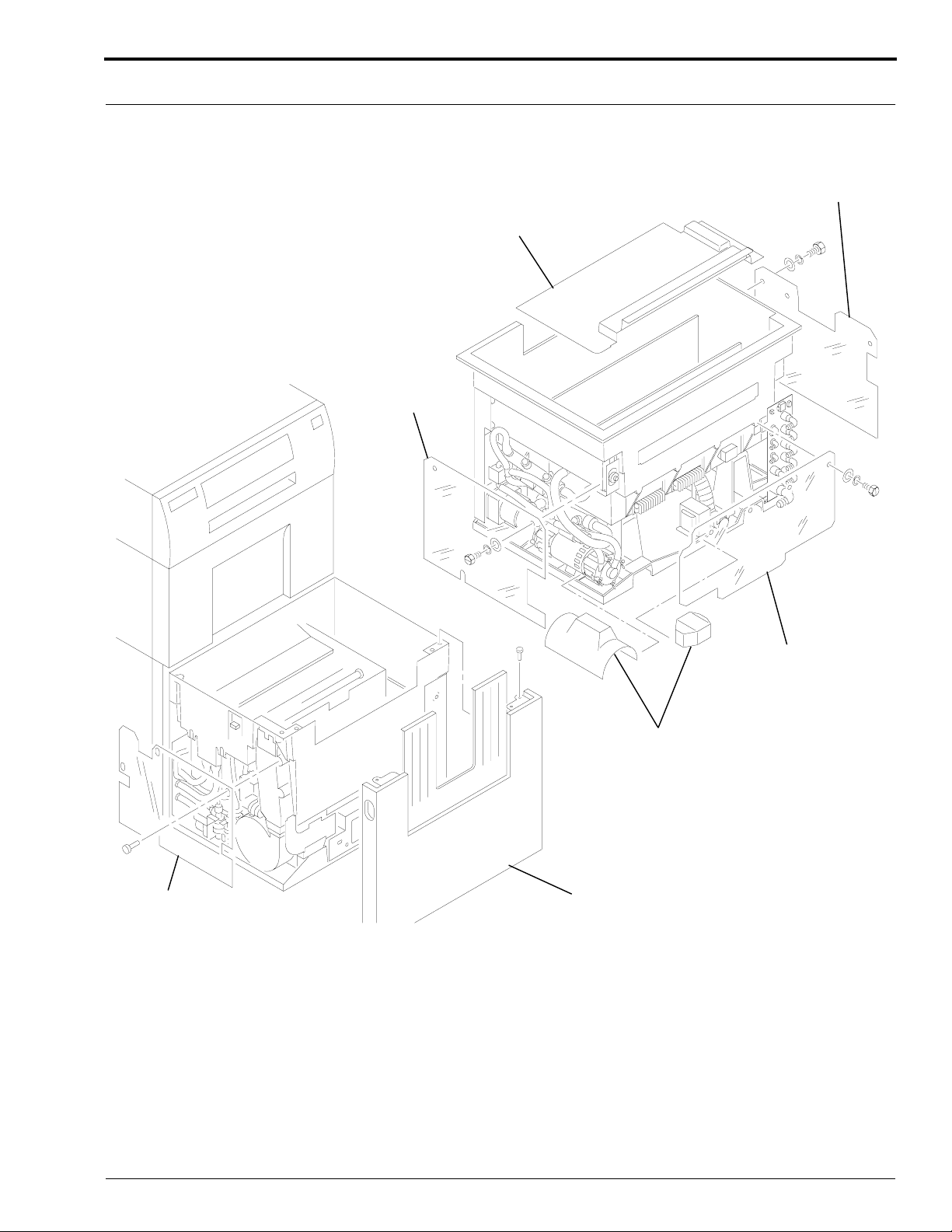

Identifying and Removing the COVERS and PANELS
Before you do most of the procedures in this service manual, you must remove certain PANELS or COVERS from
the PROCESSOR.
H104_0584DA
H104_0584DCB
EXIT PANEL
NON-DRIVE SIDE
SAFETY COVER
SPLASH COVERS
FEED END
SAFETY COVER
NON-DRIVE SIDE SAFETY COVER
WET SECTION COVER
DRIVE SIDE
SAFETY COVER

SERVICE MANUAL
6May 1996 – SM3058-3

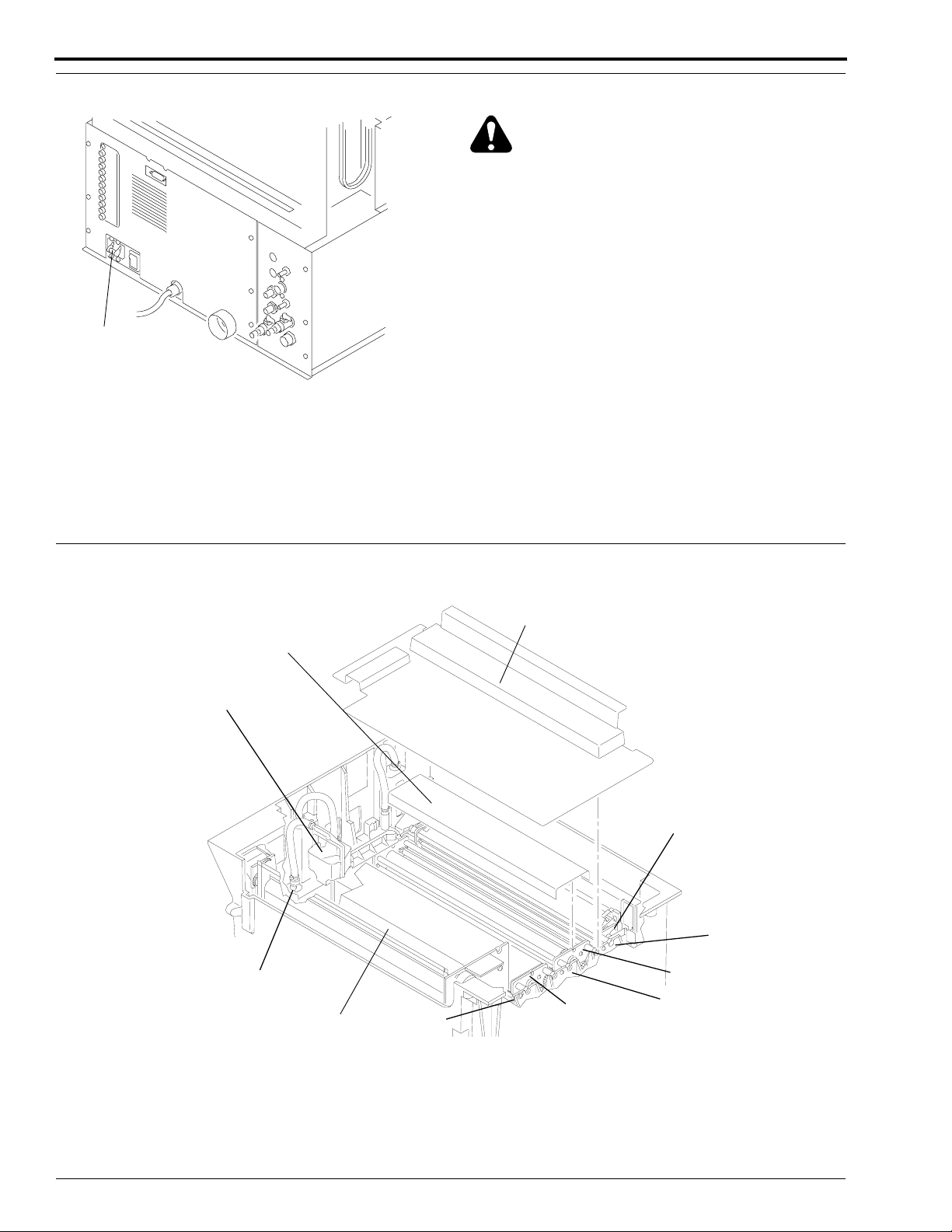

De-energizing and Energizing the PROCESSOR
Warning
Dangerous Voltage. Before you replace electrical
components, move the main wall CIRCUIT
BREAKER to “OFF”. Lock the wall CIRCUIT
BREAKER and attach a MAGNETIC POWER
WARNING SIGN TL-1926 to warn others not to
energize the PROCESSOR while you are performing
service.
For most of the service procedures, the PROCESSOR
must be de-energized. To de-energize the
PROCESSOR, move the CIRCUIT BREAKER CB2
on the bottom left corner on the back of the
MULTILOADERtothe “O” position andthemain wall
CIRCUIT BREAKER to “OFF”.
To energize the PROCESSOR, move the main wall
CIRCUIT BREAKER to “ON” and the CIRCUIT
BREAKER CB2 to the “|” position.
Removing the RACKS with Solutions in the TANKS
H104_0390AC
H104_0390ACA
CB2
BREAKER
CIRCUIT
H104_0586HA
H104_0586HCA
COVERS
2 EVAPORATION
WATER DISCONNECT
COVER
WET SECTION
RACK
CROSSOVER
DEVELOPER
DETECTOR
CROSSOVER
DEVELOPER/FIXER
RACK
FIXER
WASH
WASH
RACK CROSSOVER
FIXER/
DRYER RACK
WATER
RESERVOIR

Service Overview
SM3058-3 – May 1996 7
Caution
When you remove or install the RACKS, use the
techniques listed below:
• Do not allow the fixer solution to contaminate the
developer solution.
• Install the SPLASH GUARD between the
DEVELOPERTANK andthe FIXER TANK when
you remove the DEVELOPER RACK.
• Use DRIP TRAYS under the DEVELOPER and
FIXER RACKS.
• When you remove the RACKS, lift them out of the
PROCESSOR slowly and tilt them so that the
processing solution drains into the Tank
• When you install the RACKS, insert them in the
TANK slowly to prevent the processing solutions
from splashing over the TANK.
Draining and Filling the TANKS
[1] To drain the TANKS, de-energize the
PROCESSOR and open the DEVELOPER and
FIXER DRAIN VALVES.
[2] To fill the TANKS, do the steps below.
(a) Close the DRAIN VALVES and push the
PROCESSOR into the MULTILOADER.
(b) Energize the PROCESSOR.
(c) From the main menu on the DISPLAY
PANEL, select PROC. Then press:
•GO TO SETUP key
• 4-digit access code, 4213
•OPTIONS key
•REPLEN MODE key
•TANK FILL key
Note
See the Operator Guide, Publication Part No. 240990,
for more details on draining and filling the processing
TANKS.
H108_0035AA
SPLASH
GUARD
DRIP
TRAY
H108_0035ACC
H104_0390AC
DEVELOPER DRAIN VALVE
FIXER DRAIN VALVE
H104_0390ACB

SERVICE MANUAL
8May 1996 – SM3058-3
Section 2: ROLLER TRANSPORT
Adjusting the Squareness of the RACKS
[1] Place the RACK on a smooth, flat surface.
[2] Check whether the SIDEPLATES of the RACK
touch the flat surface evenly. If they do not touch
evenly, apply pressure to the assembly.
See the figure at the left for where to apply
pressure to the DEVELOPER and FIXER
RACKS. See the figure below for where to apply
pressure to the WASH RACK.
H104_0137BA
DETECTOR
CROSSOVER DEVELOPER/FIXER or
FIXER/WASH CROSSOVER
GUIDE
SHOE
film
travel
H104_0137BCB
SIDE
PLATE
H150_0138AA
H150_0138ACA
2 SIDEPLATES
H104_0139AA

MAIN DRIVE
SM3058-3 – May 1996 9
Section 3: MAIN DRIVE
Removing the DRIVE SHAFT, DRIVE CHAIN, DRIVE MOTOR,
WORM GEARS, and DRIVE SHAFT BEARINGS
Note
It is not necessary to remove the DRIVE MOTOR to remove the DRIVE SHAFT.
[1] De-energize the PROCESSOR.
[2] Remove:
• DRIVE CHAIN COVER
• DRIVE CHAIN
• DRIVE MOTOR (if desired)
[3] Remove from the FEED END of the DRIVE SHAFT:
• E-RING
• DRIVE SHAFT WASHER (quantity may vary)
[4] For access to the SPROCKET PIN, move the DRIVE SHAFT toward the RECEIVE END of the PROCESSOR.
H104_0412HA
NUT (4)
MOUNTING
SPROCKET
COVER
DRIVE CHAIN CHAIN
DRIVE
CONNECTOR
P/J 22
BRACKET
MOTOR
WASHER
LOCK
WASHER
H104_0412HCB
MOTOR
DRIVE
BOX
GEAR BOLT (4)
MOTOR
DRIVE
CABLE
SHIELD
CONNECTO
R

SERVICE MANUAL
10 May 1996 – SM3058-3
[5] Remove from the DRYER END of the DRIVE
SHAFT the:
• SPROCKET PIN and SPROCKET
• 2 THRUST WASHERS
• THRUST BEARING
• BEARING RETAINER and BEARING
• BEARING MOUNT
• any SHIMS and SHIELD
Important
Observe the quantity of SHIMS removed. When
assembling the DRIVE SHAFT, install the same
quantity of SHIMS.
[6] Remove the DRIVE SHAFT by slowly pulling it
toward the DRYER END of the PROCESSOR.
[7] If necessary, remove any WORM GEARS that
have wear from the DRIVE SHAFT. Use a
PUNCH to remove the ROLL PIN from the
WORM GEAR.
Important
• Check the direction of the WORM GEARS. See
the figure below for correct installation on the
DRIVE SHAFT.
• When you install the DRIVE SHAFT, install a
quantity of DRIVE SHAFT WASHERS until the
DRIVE SHAFT has minimum play from side to
side.
[8] Reverse the above procedure to install a new
DRIVE SHAFT. Install the same quantity of
SHIMS that you removed in Step 5.
[9] Adjust the tension on the DRIVE CHAIN.
H104_0148CA
GEAR (7)
WORM
ROLL PIN
LOCK WASHER (4)
WASHER (4)
SCREW (4)
BEARING
THRUST
BEARING
SPROCKET RETAINER
BEARING
SHIELD
BEARING
MOUNT
SPROCKET
DRYER
END
THRUST
WASHERS
PIN
PUNCH
SHAFT
DRIVE
H104_0148CCB
E-RING
SHIM
SHAFT
DRIVE
WASHER
FEED END
H104_0458BA
WORM GEAR (7)
DRYER END
DRIVE SHAFT
H104_0458BCA
FEED END

MAIN DRIVE
SM3058-3 – May 1996 11
Adjusting the Tension on the DRIVE CHAIN
[1] De-energize the PROCESSOR.
[2] Remove the DRIVE CHAIN COVER.
[3] Loosen the 4 DRIVE MOTOR BOLTS from the
MOTOR BRACKET.
[4] Press down on the DRIVE MOTOR to tighten the
DRIVE CHAIN. Allow 5 mm (1⁄4in.) deflection
of the DRIVE CHAIN at the center of the DRIVE
CHAIN.
[5] Tighten the 4 DRIVE MOTOR BOLTS.
H104_0593CA
DRIVE CHAIN
DRIVE MOTOR
BOLT (4)
DRIVE
MOTOR
SCREW (3)
WASHER (3)
LOCK WASHER (3)
MOTOR
BRACKET
DRIVE
CHAIN
COVER
SPROCKET
H104_0593CCA

SERVICE MANUAL
12 May 1996 – SM3058-3
Section 4: DRYER ASSEMBLY

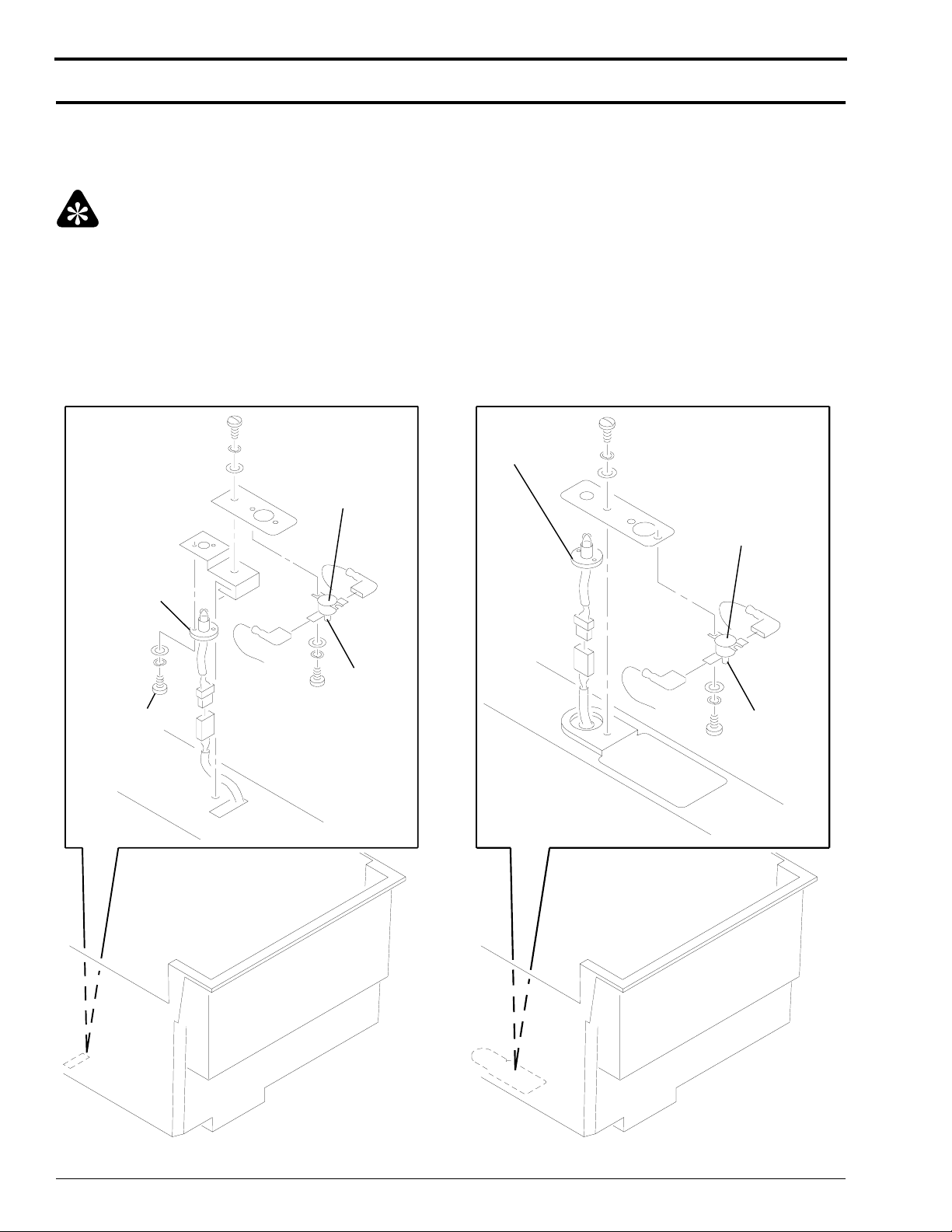

Removing the DRYER OVER-TEMPERATURE THERMOSTAT
or the DRYER THERMISTOR
Important
The DRYER OVER-TEMPERATURE THERMOSTAT does not automatically reset after an over-temperature
condition. To reset the DRYER OVER-TEMPERATURE THERMOSTAT manually, press the RESET BUTTON.
[1] De-energize the PROCESSOR.
[2] See the illustrations below to remove the desired component.
Old Style THERMISTOR BRACKET New Style THERMISTOR BRACKET
H104_0583DA
H104_0583DCB
SCREW (2)
THERMISTOR
DRYER
THERMISTOR
DRYER
BUTTON
RESET
THERMOSTAT
TEMPERATURE
DRYER OVER-
RESET
BUTTON
THERMOSTAT
TEMPERATURE
DRYER OVER-

DRYER ASSEMBLY
SM3058-3 – May 1996 13

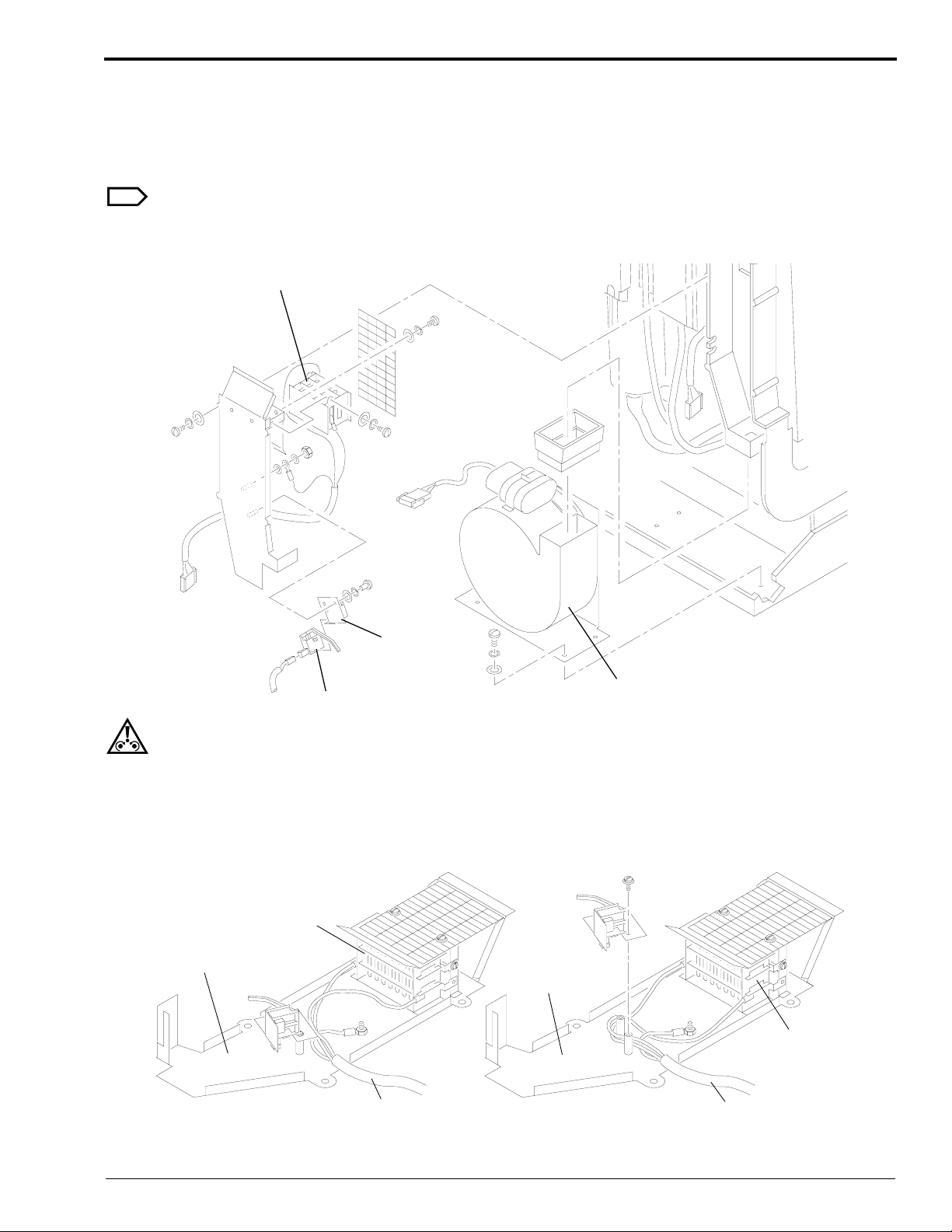

Removing the DRYER HEATER HR3, DRYER BLOWER, or
AIRFLOW SWITCH
[1] De-energize the PROCESSOR.
[2] See the illustration to remove the desired component.
Note
The AIRFLOW SWITCH snaps into the SWITCH BRACKET. It is not necessary to remove the SWITCH
BRACKET.
Caution
• When you install a new DRYER HEATER, check that all wires are in the correct openings in the PLENUM
ASSEMBLY COVER and are not pinched.
• Install the WIRE HARNESS correctly. If the WIRE HARNESS is too close to the DRYER HEATER, the
insulation on the wires may be damaged. See the “CORRECT” figure below on the right.
H104_0582HA
H104_0582HCA
DRYER HEATER
BRACKET
SWITCH
AIRFLOW SWITCH S3 DRYER BLOWER
INCORRECT CORRECT
H104_0387BA
WIRE HARNESS
HEATER
DRYER
COVER
ASSEMBLY
PLENUM
WIRE HARNESS
H104_0387BCB
HEATER
DRYER
ASSEMBLY
COVER
PLENUM

SERVICE MANUAL
14 May 1996 – SM3058-3
Section 5: Plumbing
General Information
Important

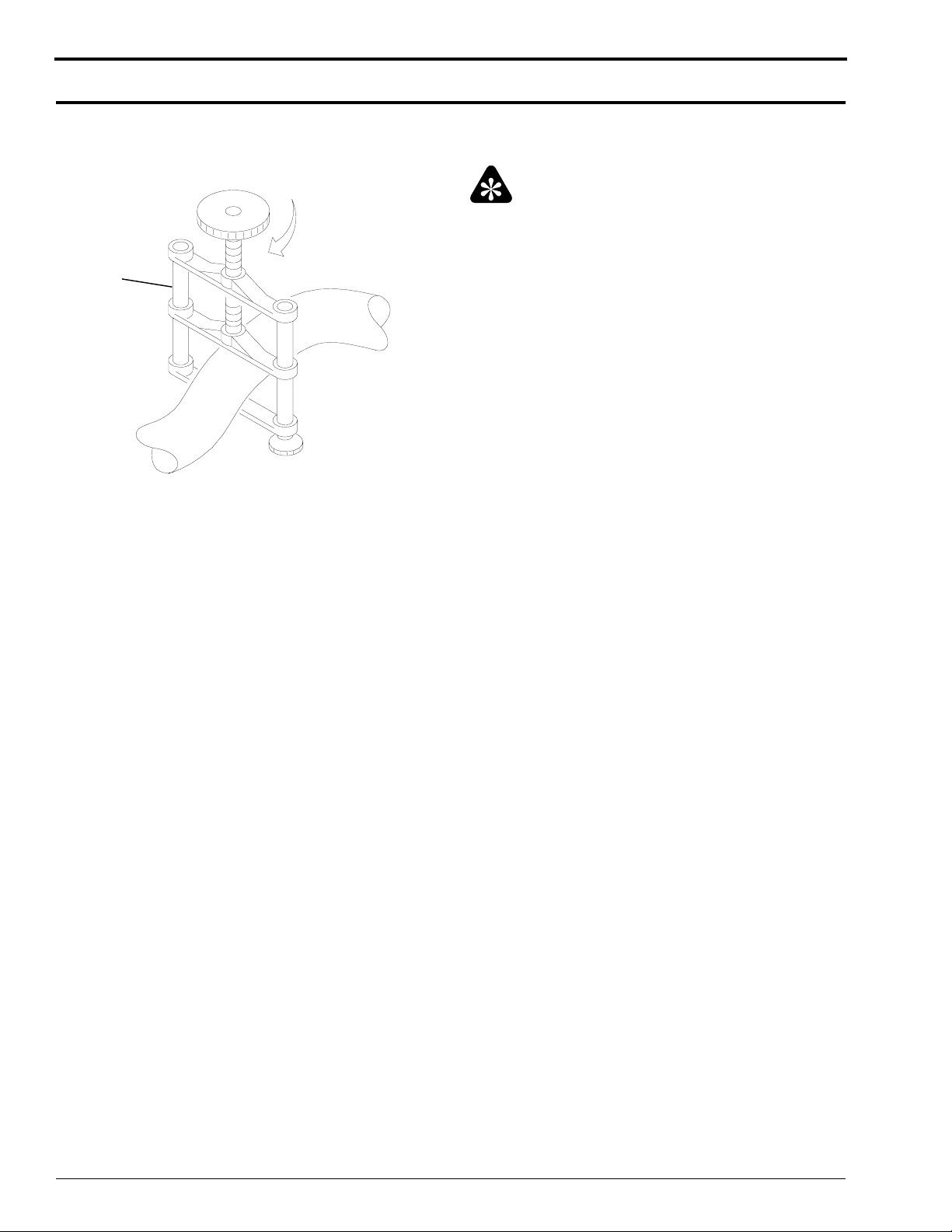

• When you disconnect plumbing connections, use
CLAMPTL-2170 tostop the flow of solution in the
HOSES. If you use CLAMP TL-2170, in most
cases, you will not need to drain the TANK.
• When you remove plumbing components, see this
section, as well as the COMPONENT LOCATOR
manual and the PARTS LIST for illustations that
show the location of parts and show the parts
exploded off the components.
H104_0587AA
TL-2170
CLAMP
H104_0587ACA

Plumbing
SM3058-3 – May 1996 15
Removing the DEVELOPER or FIXER HEATER and THERMISTOR
Important
• When you install the HEATERS or
THERMISTORS, do not overtighten the parts.
• Use only SEALANT TL-3230 when you install the
HEATERS or THERMISTORS into the
THERMOWELL. Other SEALANTS will corrode
the plastic in the THERMOWELL. See the
instructions packed with the SEALANT.
• Itisnotnecessaryto remove the THERMOWELLS
from the PROCESSOR to remove the HEATERS
or THERMISTORS.
• Before you remove the DEVELOPER HEATER or
THERMISTOR,drain the DEVELOPERTANK to
below the recirculation input opening. (The
CLAMP TL-2170 will not work correctly on the
short length of HOSES.)
[1] See the illustration to remove the desired part.
[2] When you install the HEATERS, check that the
internal LOCATOR is positioned correctly inside
the THERMOWELL. See the illustration below.
H104_0581GA
FIXER THERMISTOR
FIXER THERMOWELL
FIXER HEATER
RECIRCULATION INPUT
DEVELOPER THERMISTOR
DEVELOPER HEATER
DEVELOPER THERMOWELL
H104_0581GCB
13.9 0.25 cm
(5.5 0.1 in)
+
-+
-
8.38 0.25 cm
(3.3 0.1 in)
+
-+
-
H104_0592BA
H104_0592BCA
LOCATOR
HEATER

SERVICE MANUAL
16 May 1996 – SM3058-3
Removing the DEVELOPER COOLING SOLENOID L2
[1] See the illustration to remove the SOLENOID.
Caution
When you install the new SOLENOID:
• install the SOLENOID so that the A is at the top and the C is at the bottom.
• apply only SEALANT TL3230 on the FITTINGS.
• do not overtighten the parts.
Removing the WATER SOLENOID VALVE
[1] Remove the BACK ACCESS PANEL and the MULTILOADER BULKHEAD PANEL to gain access to the
VALVE.
[2] See the illustration to remove the VALVE.
A
H104_0579BA
SOLENOID
COOLING
H104_0579BCA
H104_0588BA
H104_0588BCA
WATER SOLENOID
BACK ACESS PANEL
MULTILOADER BULKHEAD PANEL

Plumbing
SM3058-3 – May 1996 17
Removing the POPPET VALVES from the REPLENISHMENT PUMPS
Important
• Observe the direction of the POPPET VALVES and the location of the O-RINGS before you remove them.
• For easier access to the POPPET VALVES, you may want to remove the REPLENISHMENT PUMP.
H104_0167BA
developer
fixer
PUMP
REPLENISHMENT
REPLENISHMENT
PUMP
FITTING (2)
O-RING (2)
VALVE
BODY
H104_0167BCA
POPPET VALVE (2)

SERVICE MANUAL
18 May 1996 – SM3058-3
Section 6: Electrical
Removing the AUTOTRANSFORMER T1 or EMI LINE FILTER
[1] De-energize the PROCESSOR.
[2] For easier access, remove the BACK ACCESS
PANEL and the MULTILOADER BULKHEAD
PANEL.
[3] For more play in the HOSES, place the
MULTILOADER BULKHEAD PANEL inside
the MULTILOADER.
[4] Fully extend the PROCESSOR from the
MULTILOADER.
[5] Remove the FEED END SAFETY COVER.
[6] For easier access to the AUTOTRANSFORMER
and LINE FILTER, push the PROCESSOR back
into the MULTILOADER.
[7] Working from the back of the MULTILOADER,
remove the desired part. Record the position of
the wires for the installation of the new part.
H104_0580CA
EMI LINE FILTER
AUTOTRANSFORMER
H104_0580CCA
H104_0585GC
H104_0585GCA
BACK ACESS PANEL
MULTILOADER
BULKHEAD PANEL

Electrical
SM3058-3 – May 1996 19
Removing the 500 CIRCUIT BOARD, the Microprocessor
Possible damage from electrostatic discharge.
ESD
[1] De-energize the PROCESSOR.
[2] Using EXTRACTION TOOL TL-4430, remove
and transfer the 4 PROMS/EEPROMS U17, U18,
U19, and U20 from the existing 500 CIRCUIT
BOARD:
(a) Move the 4 PROMS/EEPROMS U17, U18,
U19, and U20 to the new 500 CIRCUIT
BOARD.
(b) Place each EEPROM carefully on the
SOCKET.
(c) Check that the keyed corners are aligned.
(d) Press the EEPROM firmly into the
SOCKET.
[3] Check that the EEPROMS are installed in the
correct SOCKETS.
[4] Remove the BATTERY from the existing 500
CIRCUIT BOARD and install the BATTERY on
the new 500 CIRCUIT BOARD.
H104_0500HA
H104_0500HCA
EEPROM
BATTERY
CONNECTOR (9)
BOX
ELECTRICAL
COVER
BOARD
SCREW (8)
500 CIRCUIT
H104_0312ACA
Keyed corner
of PROM
Keyed corner
of SOCKET

SERVICE MANUAL
20 May 1996 – SM3058-3
[5] Check the positions of the SWITCHES and the JUMPERS:
[6] Install the new 500 CIRCUIT BOARD.
Position Installation
S1 Switch All positions off
Jumper E1 Jumper Pins 1 and 2
Jumper E2 Jumper Pins 1 and 2
Jumper E3 None
Jumper E4 None
Jumper E5 None
P506
TP1
AD2 TP3
AD_RUN
AD1
MOTFB
U19U20 P505
CPU
U28
TP29
AS
AD0
R/W-
TP27
XIRQ
E1
E2
GND
RST
E
S2
BT 501
C100
S1
P507
TP7
+5V
DS7
TP9
RST
P508
P504
TP10
MDTDRV
P502
TP23
TP32
TP33
+12V
-12V
PS_GND P501
E5
DS6
K506
DS5
K505 E4
TP16 VPP
DS4
K504
DS3
K503
TP22
TP21
TP20 TP19 TP18 TP17
TP15
TP11 TP14
TP13 TP12 I0PAT
DREF
MSREF
-5
+1
ADIN
ISREF
MDOFST
AGND
+5
+24V
DS2
K502
DS1
K501
500 BD
TP2
1RQ
E3
TP2
AD-REF
TP3
AD+REF
P503
P509
U31
U45
U18 U17
CPU
U28
AD0
R/W-
XIRQ
E1
E2
GND
RST
E
XB1
TP27
H104_0445DA
H104_0445DCA
E3
E5 E4 S1
