Formax FD 402TA1 User manual

FD 402TA1
Tabletop Air Jogger
8/2017OPERATOR MANUAL Rev. 2

1
Introduction
Thank you for purchasing this product.
Please carefully read this Operator Manual before use.
Be sure to read "Safety instructions" before use.
Keep this Operator Manual in a specific place for handy reference
Table of contents
1. Safety Instructions …………………………….........................................................3
2. Precautions Before Use.........................................................................................5
3. Components and Functions...................................................................................6
4. Operation…...........................................................................................................7
5. Troubleshooting.....................................................................................................8
6. Other Matters to Note.............................................................................................8
7. Specifications.........................................................................................................9

2
1. Safety Instructions
To prevent bodily injury or damage to property, please follow these safety instructions.
Safety instructions
Definition of Symbols and Notes
In this manual, the following words and symbols denote possible danger.
Danger
This Symbol stands for immediate danger threatening the life and health of
persons. Disregarding these instructions may cause severe damage to health and
even serious injury.
Caution
This symbol stands for an endangering situation that may occur. Disregarding
these instructions may lead to minor injury or damage to property.
Note
This symbol stands for notes, operational hints, and other useful information.
Danger
Do not place receptacles containing water on
the machine. If water is spilled, it may cause fire
or an electrical shock.
Do not put any foreign object, such as metal or
flammable object inside the machine. It may cause
fire or an electrical shock.
Do not touch any revolving and/or moving part
of the machine with a hand, or reach a hand
into the machine. It may cause a bodily injury.
Do not remove the machine cover, back cover, etc.
This will expose parts with very high voltage that
may cause an electrical shock.
Do not dismantle, remodel, or repair the
machine. It may cause fire, electrical shock, or
bodily injury. If repair is required, contact your
dealer.
Do not use any other voltage than the voltage
specified on the serial plate. Doing so could cause
fire or an electrical shock.
Do not put the machine close to heating
equipment. The machine cover or electric wire
may melt and it may cause fire or an electrical
shock.
Do not use flammable spray inside or near the
machine for cleaning, etc. as gas, which fills the
interior, may ignite and cause a fire or an explosion.

3
Danger
Apply the power supply as specified on the
serial plate, and independently use the wall
outlet with a rated current.
If the outlet is used concurrently with other
equipment, the branched part of the outlet
could overheat and cause fire.
If dust forms on the prongs of the power plug,
wipe the dust off with a dry cloth. It may cause
fire.
Should any foreign substance, such as metal,
water, etc., get inside the machine, be sure to turn
off the power first, and then disconnect the power
plug from the outlet.
If the machine is used as it is, it may cause fire or
an electrical shock. Contact your dealer
immediately.
Do not do anything that may damage the
power cord or power plug. (Do not scratch,
forcibly bend, twist, or pull it, or place heavy
object on it, or bundle it.)
Doing so could cause a fire or an electrical
shock.
When disconnecting the power plug from the outlet,
be sure to grip the plug itself.
Pulling the power cord may damage the cord,
which could cause a fire or an electrical shock.
Do not unplug the power plug with wet hands.
It may cause an electrical shock.
Be sure to turn off the power first and pull the power
plug from the outlet when cleaning the machine.
The machine may be operated by mistake, causing
a bodily injury.
Be sure to connect a ground wire.
If an electric leak occurs, it may cause fire or
an electrical shock.
Caution
When the machine will not be used for several
days, such as during consecutive holidays, etc.,
be sure to unplug the power cord from the outlet
for safety.
Otherwise the insulation may deteriorate, causing
an electrical shock or fire.
Place the machine on a level and stable table or
floor with enough space, otherwise the machine
may fall, which could result in bodily injury.

4
Do not place the machine in a humid place or where
it could get wet.
Doing so could cause the insulation to deteriorate
and cause an electrical shock or fire.
Be sure to remove the power plug from the outlet
when moving the machine, otherwise it may
damage the cord, causing fire or an injury.
2. Precautions before Use
2-1 Power Supply
Danger
Use only a power supply rated to match the serial plate. The jogger should have its own wall
outlet with a rated current. If the outlet is shared with other equipment, the branched part of the
outlet could overheat and cause fire.
Use the designated voltages specified in the serial plate to ensure operations under constantly
stable conditions.
Plug the power cord directly into the wall outlet.
2-2 Environment for Use & Conditions for Storage
·A place not exposed to direct sunlight.
·A place where there is little dust and dirt.
·A place where there is little vibration.
·A place where there are no special chemicals.
2-3 Maintenance
Danger
Be sure to turn off the power first and pull the power plug from the outlet when cleaning the
machine. The machine may be operated by mistake, causing a bodily injury.
In order to maintain proper performance of the product, wipe off dust from time to time with a
wet cloth moistened with water or mild detergent.

5

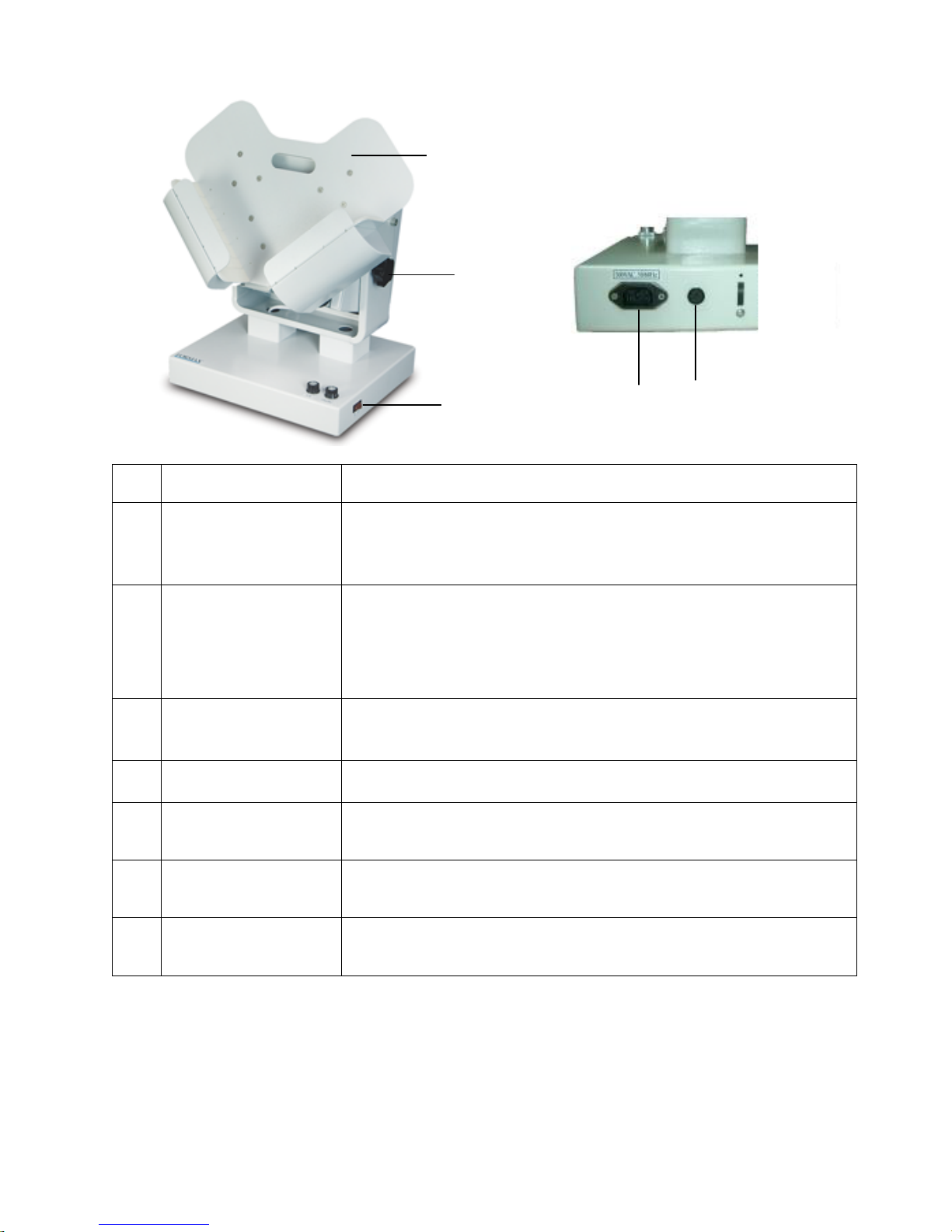

No.
Name
Function
①
Paper tray
Paper tray vibrates to jog paper.
Set the paper to be jogged in the tray holding the stack with its comer
facing down.
②
Tilt adjustment knob
This knob is used for tilting the paper tray.
While supporting the paper tray with one hand, loosen the lever and
adjust the tilting angle of the tray, and fasten the knob when the position
is determined.
③
Jogging switch
When this switch is turned, the paper tray jogs continuously.
④
Air switch
When this switch is turned, the jogger blows air continuously.
⑤
Power switch (ON/OFF)
Turns jogger on or off.
⑥
Power inlet
Power cord attaches here.
⑦
Fuse holder
Turn left to open and turn right to close.
①
②
③
④
⑤⑥⑦

6
4. How to Use
4-1 Paper tray angle adjustment
・Holding the lower center of the paper tray head's front face, loosen the adjustment knob to
adjust the tilting angle. Then tighten it at an appropriate position.
Danger
Do not touch any revolving and/or moving part of the machine or reach a hand into the
machine. It may cause a bodily injury.
·When adjusting the tilting angle, be sure to turn the switch off and hold the lower center of the
paper tray head's front face. Do not hold the part indicated with an arrow in the photo, as it may
cause bodily injury.
·Fasten the adjustment knob tightly so that it may not be loosened while the machine is in use.
.HHSILQJHUVDZD\IURPWKLVDUHD

7
·In general, for thick paper, the tilt angle is adjusted vertically and for thin paper, it is
adjusted horizontally.
4-2 How to jog
·Turn the Jogging switch to begin jogging and the Air switch for air blowing, and touch the
upper part of paper stock to help it jog neatly.
·Make sure that the thickness of paper stock is less than 60mm.
5. Troubleshooting
Trouble
Possible cause
Solution
Paper is not jogging
neatly
The paper size is larger than specification
Jog it by holding with hand gently resting
on top edge of paper.
Paper is irregularly
jogged.
Paper has static electricity
Too much paper loaded
Use the air blower in addition to vibration
function.
Reduce size of paper stack.
No vibration or air
Power switch is set to OFF
Set the power switch to ON
Fuse is blown
Replace the fuse.
·If the fuse is blown again, an abnormality exists in the machine. Contact your dealer.
For thin paper

8
6. Other Matters to Note
Caution
Be sure to remove the power plug from the outlet when moving the machine,
Otherwise it may damage the cord, causing fire or an injury.
·When moving the machine, be sure to hold the body while paying attention to the entire
balance instead of holding the paper tray or the upper part of the stand only.
·Do not apply a strong force, such as pushing or pulling, to the paper tray. Doing so might damage
it.
·Do not place heavy objects on the machine. The object may fall, causing a bodily injury.
7. Specifications
Product name
Tabletop Air Jogger
Model
FD 402TA1
Paper size
5”x 7”Min –11”x 17”Max
Dimensions
21”W x 15”L x 23”H
Weight
60 lbs
Power supply
110V/120V or 220V/240V, 50㎐/60㎐
Power Consumption
110V/120V, 50/60 Hz, recommended 4A dedicated line (110V)
220V/240V, 50/60 Hz, recommended 3A dedicated line (220V)
