ADJ DOTZ PAR 100 User manual

User Manual
DOTZ PAR 100

©2021 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
2
Date Document
Version
Software
Version DMX Channels Notes
09/2020 1.0 1.0 3 / 4 / 5 / 9 Channels Initial Release.
10/25/2021 1.1 1.10 No Change Updated Formatting
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

TABLE OF CONTENTS
3
Introduction 4
General Instruction | Features | Warranty Registration 5
Safety Precautions 6
Setup 7
System Menu 9
Universal DMX Control | Primary-Secondary Configuration 11
Dotz Par RF Remote 12
DMX Traits 13
Color Macro Chart 15
Photometrics 16
Dimmer Curve Chart | Power Cord Daisy Chain 17
Fuse Replacement | Cleaning | Trouble Shooting 18
Limited Warranty (USA Only) 19
Specifications 20

4
Unpacking: Thank you for purchasing the Dotz Par 100 by ADJ Products, LLC. Every Dotz Par 100
has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-
aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your
dealer without rst contacting customer support.
Introduction: The Dotz Par 100 is part of ADJ’s continuing pursuit for creating high quality aordable
intelligent xtures. The Dotz Par 100 is a high performance, DMX intelligent, moving head LED xture.
This xture is a great piece for retail stores, displays, mood, architectural, interior and exterior decora-
tion, and clubs. This unit can be used as a stand alone, or in a Primary/Secondary conguration. The
unit can also be controlled via DMX controller. This xture is suitable for theaters, studios, retail stores,
and other similar locations.
Customer Support: ADJ Products, LLC provides a toll free customer support line to answer any question
s that may arise during set up or initial operation. You may also visit us on the web at www.adj.com for
any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic
Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
To purchase parts online visit http://parts.adj.com.
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
INTRODUCTION

5
GENERAL INSTRUCTIONS
Please read these operating instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regarding the use and maintenance
of this unit. Please keep this manual with the unit for future reference.
FEATURES
• RGB Color Mixing
• Strobing
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• Four DMX Modes: 3 Channel Mode, 4 Channel Mode, 5 Channel Mode, & 9 Channel Mode
• 4 Operating Modes - Sound Active, Auto Run, Built-In Programs, or DMX Control
• Power Cord Daisy Chain Capability (see Power Cord Daisy Chain section of this manual)
WARRANTY REGISTRATION
The Dotz Par 100 carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty
card to validate your purchase and warranty. You may also register your product online at our web site:
www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and
accompanied by a return authorization (R.A.) number. If the unit is under warranty, you must provide
a copy of your proof of purchase invoice. Please contact ADJ Products, LLC customer support for an
R.A. number.

6
SAFETY PRECAUTIONS
• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Be sure that the power outlet that is used matches the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover for any reason. There are no user serviceable parts inside.
• Never operate this unit with its cover removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit from main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point at which they exit from
the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for details.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.

7
SETUP
Power Supply: The ADJ Dotz Par 100 contains an automatic voltage switch, which will automatically
sense the voltage when it is plugged into a power source. With this switch there is no need to worry
about the correct power voltage, and this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable length possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

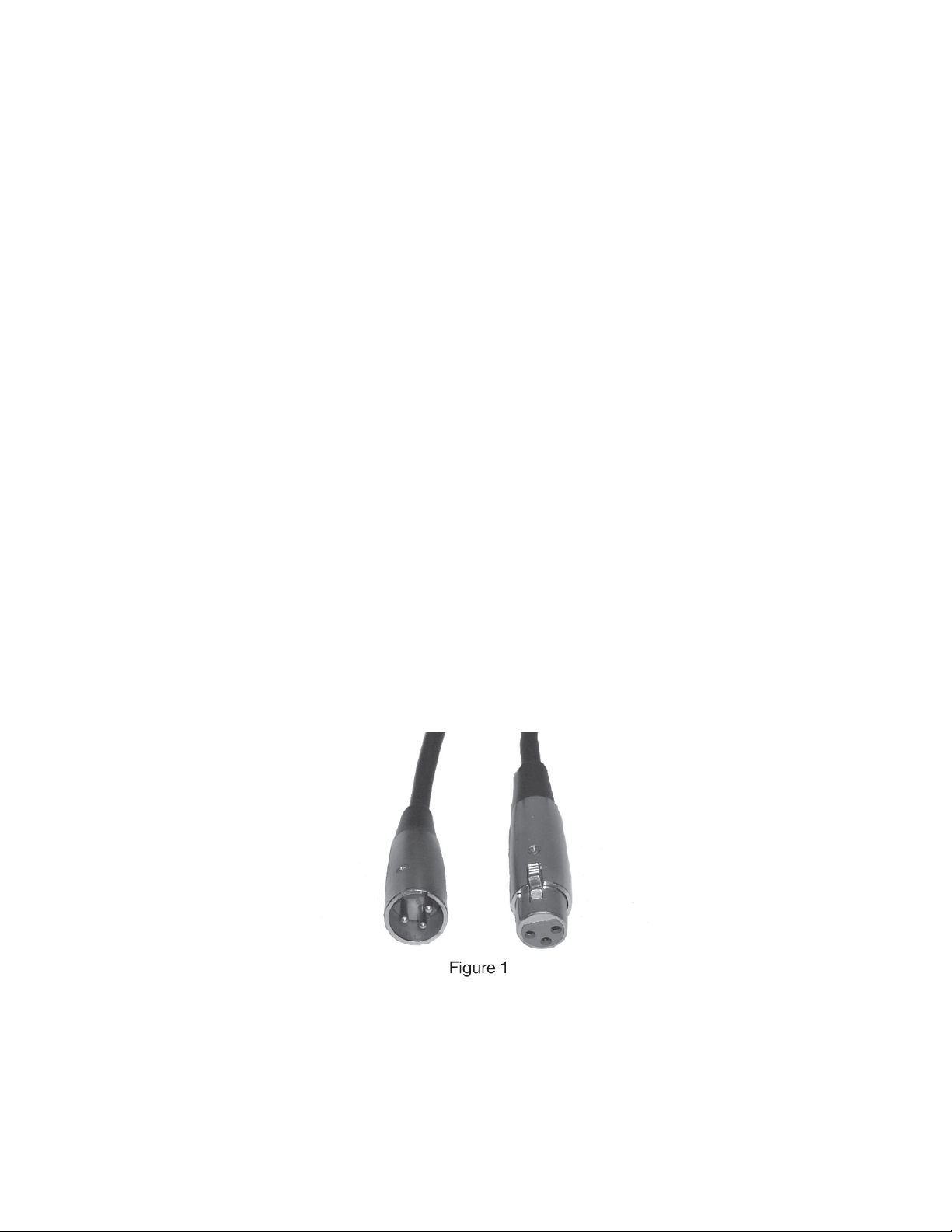

Data Cable (DMX Cable) Requirements (For DMX Operation): The Dotz Par 100 can be controlled
via DMX-512 protocol. The Dotz Par 100 has 4 DMX Channel Modes. The DMX address is set on the
rear panel of the Dotz Par 100. Your unit and your DMX controller require a approved DMX-512 110
Ohm Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables.
If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable
may be purchased at almost all professional sound and lighting stores). Your cables should be made
with a male XLR connector at one end and a female XLR connector at the other. Also remember that
DMX cable must be daisy chained and cannot be split.

8
SETUP

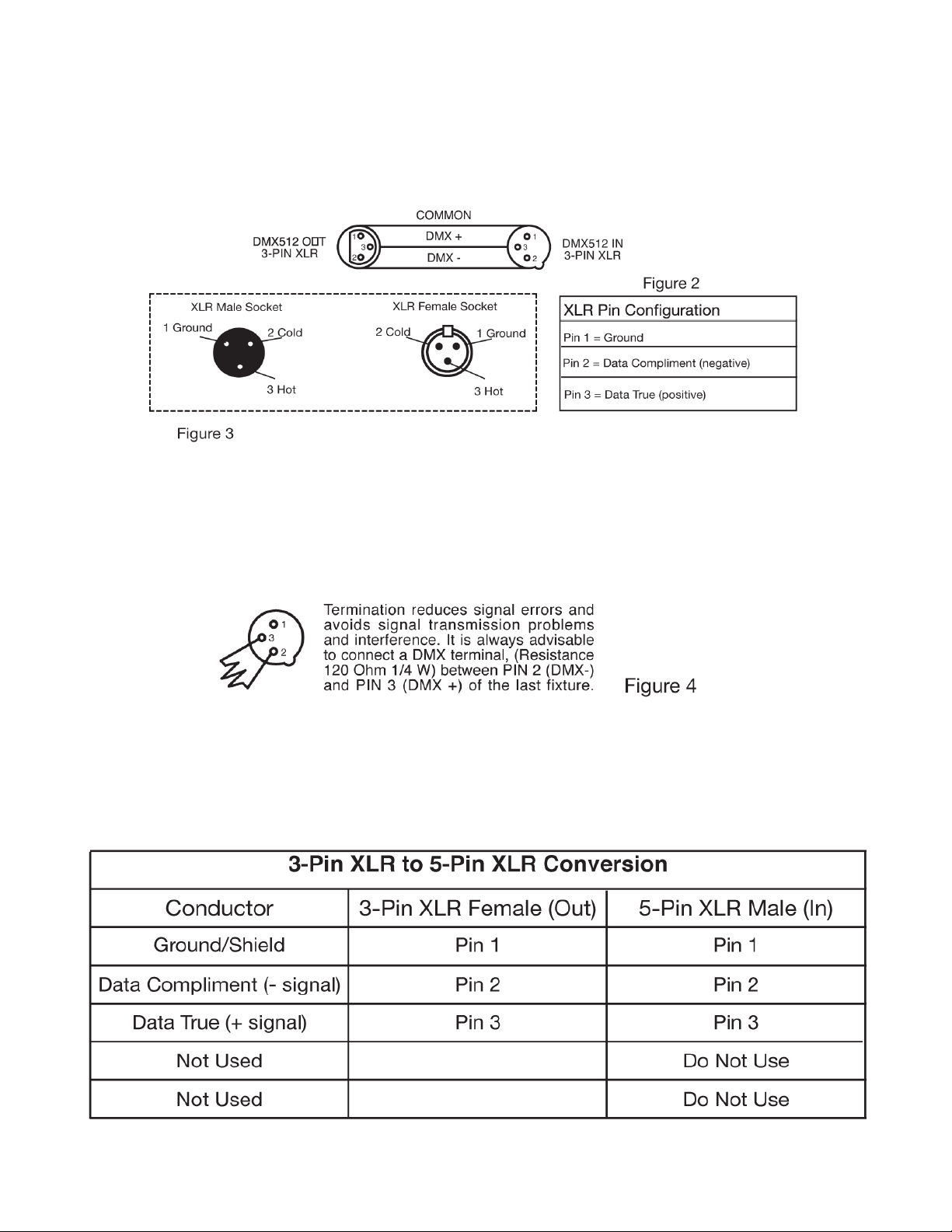

Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come into contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the risk of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin XLR connectors for DATA transmis-
sion in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When insert-
ing standard 5-pin XLR connectors in to a 3-pin line, a cable adaptor must be used. These adaptors
are readily available at most electric stores. The chart below details a proper cable conversion:

9
SYSTEM MENU
Control Panel Lock: The control panel will lock itself after 30 seconds if nothing is pressed. To
unlock the control panel, press the MODE button for 3 seconds.
DMX Mode - Set the DMX Address and DMX Channel Mode.
1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently set address.
2. Use the UP or DOWN buttons to change the DMX address.
3. After setting your DMX address press ENTER. You can now select your desired DMX channel
mode. Use the UP or DOWN buttons to find your desired DMX channel mode, then press ENTER
when you find your desired DMX channel mode.
4. After you press ENTER you can now set your dimmer curve. There are 5 dimmer curve settings.
See Dimmer Curve below for the different curves. Select your desired dimmer curve setting, and
press ENTER.
5. After you press ENTER, you can set your NO DMX setting. This setting defines how the fixture
will behave in the event that the DMX signal is lost or interrupted. Press ENTER when you are fin-
ished to return to the DMX address setting.
Dimmer Curve - This setting will let you select your desired dimmer curve.
1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently selected
address.
2. Press the SET UP button until “dcXX” is displayed, then press ENTER.
3. 1 of 5 dimming curve settings will be displayed: Standard, Stage, TV, Architectural, or Theatre.
Use the UP and DOWN buttons to select your desired dimming curve and press ENTER to con-
firm.
NO DMX - This mode can be used as a precaution mode, and defines how the device will
behave in the event that the DMX signal is lost, interrupted, or power is lost. You can also set
this as the operating mode you would like the unit to return to when power is applied.
1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently selected
address.
2. Press ENTER until one of the following is displayed; “Soun”, “blc”, or “Hold”. Use the UP or
DOWN buttons to choose an operating mode you would like the unit to start up in when power is
applied or the DMX signal is lost.
• Soun (Sound) - If the DMX signal is lost, interrupted, the unit will automatically go into sound
active mode.
• blc (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into stand
by mode.
• Hold - If the DMX signal is lost the fixture will stay in the last DMX setting. If power is applied
and this mode is set, the unit will automatically go into the last DMX set up.
3. Press ENTER to confirm your desired set up.
Secondary Mode - This will let you set your unit as a secondary unit in a primary/secondary
configuration.
1. Press the MODE button until “SEcd” is displayed.
2. Your unit will now follow the Primary.

10
SYSTEM MENU
RGB Dimmer Mode - Select your desired color to remain static or adjust the RGB colors to
create your desired color.
1. Plug the fixture in and press the MODE button until “Manual Dimmer” is displayed, then press
ENTER.
2. When “r.XXX” is displayed you are in Red dimming mode. Press the UP and DOWN buttons to
adjust intensity.
3. When “G.XXX” is displayed you are in Green dimming mode. Press the UP and DOWN buttons to
adjust intensity.
4. When “b.XXX” is displayed you are in Blue dimming mode. Press the UP and DOWN buttons to
adjust intensity.
Color Macro - Select your desired color macro to remain static.
1. Press the MODE button until “C-XX” is displayed. “XX” represents the currently selected macro
number.
2. Use the UP and DOWN button to scroll through the 32 color macros until you find your desired
color.
Built-In Programs - Select your desired Built-In program.
1. Press the MODE button until “P-XX” is displayed. “XX” represents the current selected program
number. Use the UP and DOWN buttons to scroll through 7 different programs.
2. Press ENTER to move through the various adjustments of each program, and use the UP and
DOWN buttons to make adjustments.
Sound Mode - In this mode the unit will run in sound active mode.
1. Press the MODE button until “Sound Mode” is displayed.
2. Use the UP and DOWN buttons to adjust the sound sensitivity. “0” is the least sensitive, and “30”
is the most sensitive.
RF Active - This menu will let you activate the RF remote control.
1. Press the MODE button until “RFXX” is displayed, then press ENTER. “XX” represents the cur-
rently selected setting: either “on” or “off”.
2. Use the UP or DOWN buttons to activate (On) or deactivate (Off) the remote.

UNIVERSAL DMX CONTROL
This function allows you to use a universal DMX-512 controller to control the chases and patterns,
dimmer and strobe. A DMX controller allows you to create unique programs tailored to your indi-
vidual needs. The Dotz Par 100 has 4 DMX channel modes; a 3 Channel Mode, 4 Channel Mode, 5
Channel Mode, & 9 Channel Mode. See the DMX Traits section of this manual for detailed informa-
tion.
• This function will allow you to control each individual fixture’s traits with a standard DMX 512
controller.
• To run your fixture in DMX mode, follow the directions in the Setup section of this manual to set
your DMX address and DMX Channel mode.
• Plug in the fixture via the XLR connections to any standard DMX controller.
• For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
11
PRIMARY-SECONDARY CONFIGURATION
This function will allow you to link up to 16 units together and operate without a controller. The
units will be sound activated. In Primary-Secondary operation one unit will act as the controlling
unit and the others will react to the controlling units programs. Any unit can act as a Primary or as a
Secondary.
1. Using approved DMX data cables, daisy chain your units together via the XLR connectors on the
rear of the units. Remember that the male XLR connector is the input, and the female XLR con-
nector is the output. The first unit in the chain (primary) will use the female XLR connector only,
and the last unit in the chain will use the male XLR connector only. For longter cable runs, we
suggest using a terminator on the last fixture.
2. On the Primary unit, set your desired operating mode.
3. On the secondary units press the MODE button until “SEcd” is displayed.
4. The secondary units will now follow the Primary unit.

12
DOTZ PAR RF REMOTE
The Dotz Par 100 RF remote has many different functions and allows you to control your Dotz Par
100 remotely. The remote can control your system from a distance of up to 25 meters. To use the
remote you must first activate the fixture’s receiver, as directed in the System Menu section of this
manual.
BLACKOUT - Pressing this button will blackout the fixture.
FADE - This button will activate the color fade program.
COLOR - This button will activate the static color mode. Use the “+” and “-” buttons to scroll
through the colors and find your desired color.
PROGRAMS - This button will activate the built-in programs mode. Use the “+” and “-” buttons to
scroll through the 13 programs and find your desired program.
SOUND ACTIVE - This button activates sound active mode.
AUTO RUN - This button will run an automatic program. Use the “+” and “-” buttons to adjust the
speed of the auto run.
“+” and “-” - Use these buttons to adjust the speed of the Auto Run, scroll through the built-in pro-
grams, and scroll through the static colors.

13
DMX TRAITS
CHANNEL DMX VALUES FUNCTION
3CH 4CH 5CH 9CH
000 - 255 Red, 0% to 100%
000 - 255 Green, 0% to 100%
000 - 255 Blue, 0% to 100%
000 - 255 Master Dimmer, 0% to 100%
Color Macros (NOTE: Use of this channel disables the Red,
Green, and Blue channels)
001 - 007 Bastard Amber
008 - 015 Medium Amber
016 - 023 Pale Amber Gold
024 - 031 Gallo Gold
032 - 039 Golden Amber
040 - 047 Light Red
048 - 055 Medium Red
056 - 063 Medium Pink
064 - 071 Broadway Pink
072 - 079 Follies Pink
080 - 087 Light Lavender
088 - 095 Special Lavender
096 - 103 Lavender
104 - 111 Indigo
112 - 119 Hemsley Blue
120 - 127 Tipton Blue
128 - 135 Light Steel Blue
136 - 143 Light Sky Blue
144 - 151 Sky Blue
152 - 159 Brilliant Blue
160 - 167 Light Green Blue
168 - 175 Bright Blue
176 - 183 Primary Blue
184 - 191 Congo Blue
192 - 199 Pale Yellow Green
200 - 207 Moss Green
208 - 215 Primary Green
216 - 223 Double CTB
224 - 231 Full Red
232 - 239 Full Green
CONTINUED ON NEXT PAGE

14
CHANNEL DMX VALUES FUNCTION
3CH 4CH 5CH 9CH
Color Macros (continued) (NOTE: Use of this channel disables
the Red, Green, and Blue channels)
240 - 247 Full Blue
248 - 255 White
Programs
000 O
001 - 020 Color Fade/Change
021 - 040 7 Color Change
041 - 060 7 Color Fade
061 - 080 3 Color Change
081 - 100 3 Color Fade
101 - 120 Sound Active Color Fade
121 - 140 Sound Active Color Change
141 - 255 No Function
Program Speed/Sound Sensitivity
000 - 255 Program Speed, slow to fast (when Programs channel is set be-
tween 001 - 100)
000 - 255 Sound Sensitivity, least to most sensitive (when Programs channel
is set between 101 - 140)
Strobing
000 - 031 LED On
032 - 095 Strobe, slow to fast
096 - 127 LED On
128 - 159 Pulse Strobe, slow to fast
160 - 191 LED On
192 - 223 Random Strobe, slow to fast
224 - 255 LED On
Dimmer Curves
000 - 041 Standard
042 - 084 Stage
085 - 127 TV
128 - 170 Architectural
171 - 213 Theatre
214 - 255 Default to Unit Curve Setting
DMX TRAITS

15
COLOR MACRO CHART
COLOR RED GREEN BLUE
Bastard Amber 255 206 143
Medium Amber 254 177 153
Pale Amber Gold 254 192 138
Gallo Gold 254 165 98
Golden Amber 254 121 0
Light Red 176 17 0
Medium Red 96 0 11
Medium Pink 234 139 171
Broadway Pink 224 5 97
Follies Pink 175 77 173
Light Lavender 119 130 199
Special Lavender 147 164 212
Lavender 88 2 163
Indigo 0 38 86
Hemsley Blue 0 142 208
Tipton Blue 52 148 209
Light Steel Blue 1 134 201
Light Sky Blue 0 145 212
Sky Blue 0 121 192
Brilliant Blue 0 129 184
Light Green Blue 0 83 115
Bright Blue 0 97 166
Primary Blue 1 100 167
Congo Blue 0 40 86
Pale Yellow Green 209 219 182
Moss Green 42 165 85
Primary Green 0 46 35
Double CTB 8 107 222
Full Red 255 0 0
Full Green 0 255 0
Full Blue 0 0 255
White 255 255 255

PHOTOMETRICS
16

17
DIMMER CURVE CHART
POWER CORD DAISY CHAINING
This feature allows the devices to be linked together via the power input and output sockets.
The maximum number of units that can be connected in this manner are as follows:
• 9 fixtures maximum with 120V power.
• 19 fixtures maximum with 230V power.
DO NOT EXCEED THIS MAXIMUM NUMBER.
All fixtures linked in this manner should be of the same make and model type. DO NOT mix and
match fixture model types.

18
FUSE REPLACEMENT
Locate and remove the unit’s power cord. Once the cord has been removed, locate the fuse holder
located inside the power socket. Insert a flat-head screw driver into the power socket and gently pry
out the fuse holder. Remove the bad fuse and replace with a new one. The fuse holder has a built-in
socket for a spare fuse, so be careful not to confuse the spare fuse with active fuse.
CLEANING
Due to fog residue, smoke, and dust, cleaning of the internal and external optical lenses must be
carried out periodically to optimize light output.
Use a soft cloth to wipe down the outside casing. Cleaning frequency depends on the environment
in which the fixture operates (i.e. smoke, fog residue, dust, dew).
TROUBLESHOOTING
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
Check that the DMX cables are connected and wirely correctly (pin 3 is “hot”; on some other DMX
devices, pin 2 may be “hot”). Check that all cables are connected to the correct connectors in the
correct order. The way in which the input and output are connected can affect the operation of the
device.
Unit does not respond to sound:
Quiet or high pitched sounds will not activate the unit.
If problems are not resolved, contact ADJ Products, LLC for service. 1-800-322-6337

19
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of
manufacturing defects in material and workmanship for a prescribed period from the date of purchase
(see specic warranty period on reverse). This warranty shall be valid only if the product is purchased
within the United States of America, including possessions and territories. It is the owner’s responsibility
to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product
back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship-
ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the prod-
uct. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever
for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modied in any manner which ADJ Products, LLC concludes, after inspection, aects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam-
aged because it was not properly maintained as set forth in the product instructions, guidelines and/or
user manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic
checkup. During the period specied above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason
of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion
of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012,
and bear identifying marks to that eect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or tness,
are limited in duration to the warranty period set forth above. And all warranties, whether expressed or
implied, including warranties of merchantability or tness, are limited in duration to the warranty period set
forth above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is ex-
pressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or
damage, direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Eect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
• ADJ DMX Controllers = 2 Year (730 Days)
• American Audio Products = 1 Year (365 Days)

20
SPECIFICATIONS
Voltage: 100V - 240V, 50Hz/60Hz
LEDs: 1 x 100W COB Tri LEDs
Power Draw: 115W
Beam Angle: 25 Degrees
80 Degrees (w/o Lens Cover)
Fuse: 2 Amp (125V)
1 Amp (250V)
Power Cord Daisy Chain: 9 Fixtures Max (120V)
19 Fixtures Max (230V)
Weight: 6.8 Lbs / 3.1 Kgs
Dimensions: 201 x 120 x 201mm (w/o Bracket)
10” (L) x 5” (W) x 11.25” (H)
255 x 130 x 284mm (with Bracket)
Colors: RGB Color Mixing
DMX Channels: 4 DMX Modes: 3-, 4-, 5-, & 9-Channel Mode
Working Position: Any Safe Working Position
Warranty: 2 Year (730 days)
Approvals: CE
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: [phone] / Fax: [phone]
Web: www.adj.com / E-mail: [email protected]
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
Netherlands
[email protected] / www.adj.eu
Tel: [phone] / Fax: [phone]
Auto Sensing Voltage: This fixture contains an automatic voltage switch, which will automatically
sense the voltage when it is plugged into the power source.
Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written notice.
