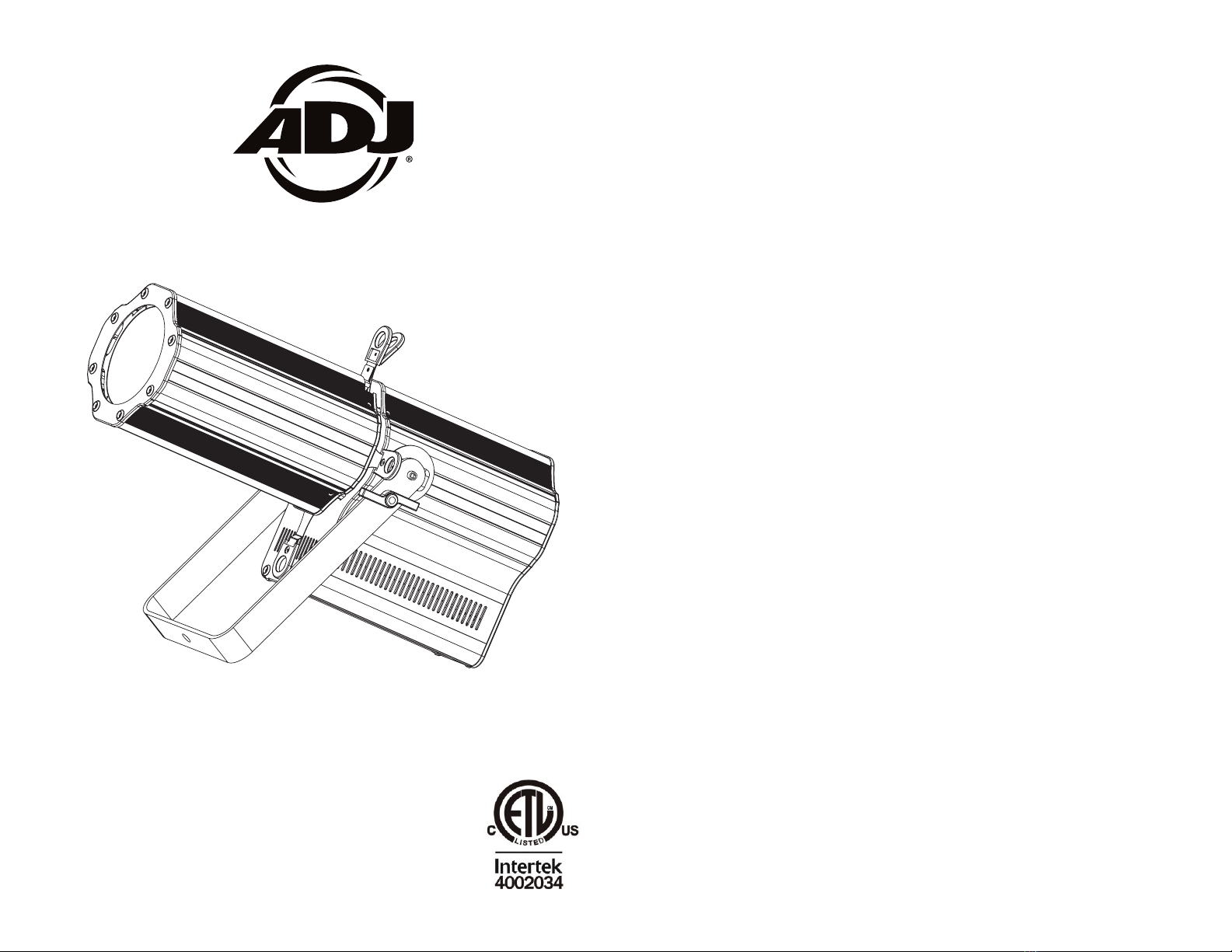

ADJ Encore Profile 1000 WW User manual

©2016 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
User Instructions
Rev. 8/16
EncorE ProfilE 1000 WW

ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 3ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 2
• Three Operating Modes
• Electronic Dimming 0-100%
• 5 Selectable Dimming Curves

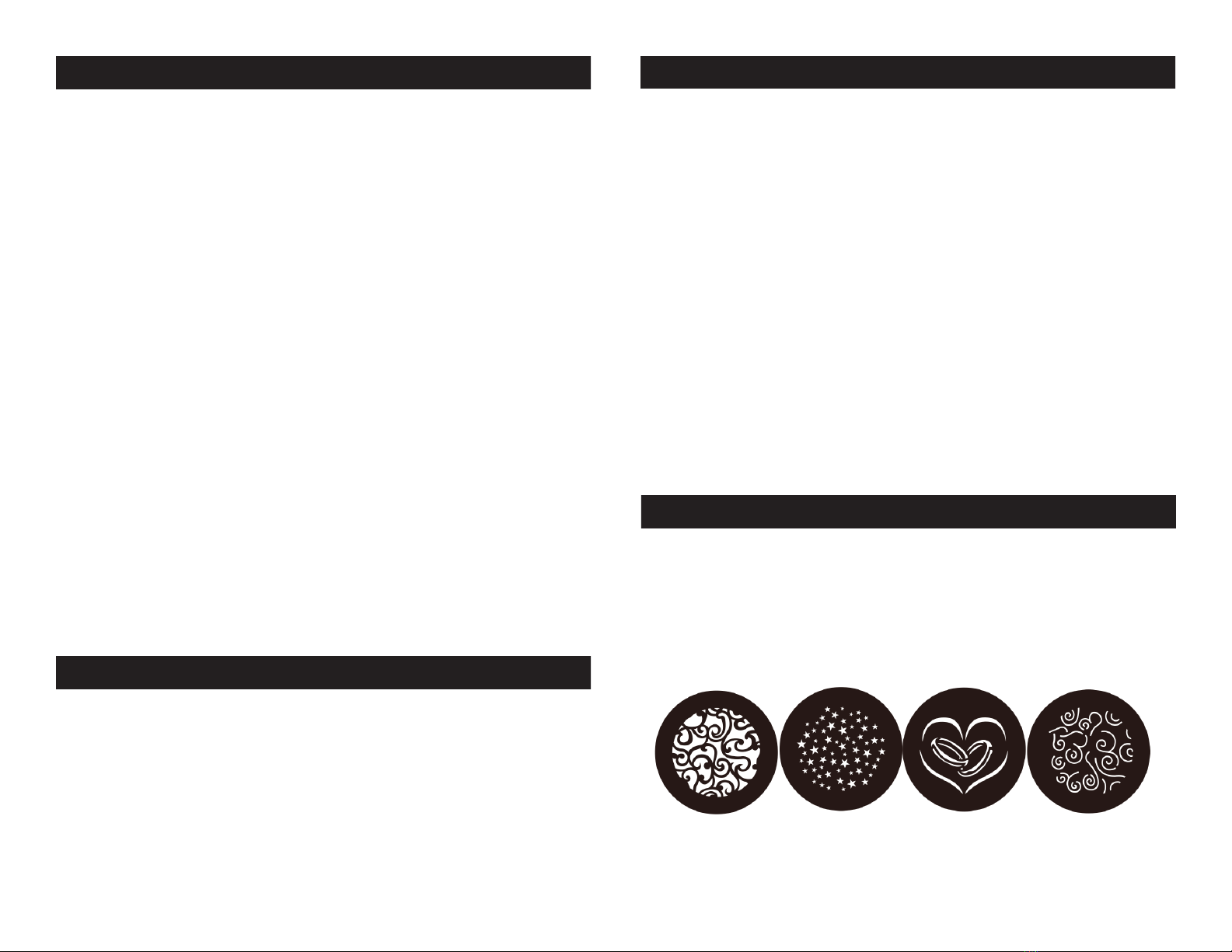

• 4 Included Gobos
• DMX-512 protocol
• 3-Pin & 5-Pin DMX Connections
• 3 DMX Modes: 1 Channel Mode, 2 Channel Mode, & 3 Channel
Mode.
• ADJ LED RC2, ADJ UC IR, (Not Included) & Airstream IR compat-
ible
• Power Cord Daisy Chain (See page 17)
Encore Profile 1000 WW Warranty Registration
Encore Profile 1000 WW Features
The Encore Profile 1000 WW carries a 2 year limited warranty. Please
fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) number. The
R.A. number must be clearly written on the outside of the return pack-
age. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper included in the ship-
ping carton. If the unit is under warranty, you must provide a copy of
your proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our customer support number.
All packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
Encore Profile 1000 WW Installation
Encore Profile 1000 WW Introduction
Unpacking: Thank you for purchasing the Encore Prole 1000 WW
by ADJ Products, LLC. Every Encore Prole 1000 WW has been
thoroughly tested and has been shipped in perfect operating condi-
tion. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, care-
fully inspect your xture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage
has been found or parts are missing, please contact our toll free cus-
tomer support number for further instructions. Do not return this unit to
your dealer without rst contacting customer support.
Introduction: The ADJ Encore Profile 1000 WW is a DMX intelligent,
high powered LED follow spot. This follow spot has three operating
modes: white dimmer mode, fade mode, and DMX control mode. This
xture can be used in a stand alone mode or connected in a Master/
Slave conguration. To optimize the performance of this product,
please read these operating instructions carefully to familiarize yourself
with the basic operations of this unit. These instructions contain impor-
tant safety information regarding the use and maintenance of this unit.
Please keep this manual with the unit, for future reference.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.

Encore Profile 1000 WW Safety Precautions
Power Supply: The ADJ Encore Prole 1000 WW contains a auto-
matic voltage switch, which will auto sense the voltage when it is
plugged into the power source. With this switch there is no need to
worry about the correct power voltage, this unit can be plugged in
anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The Encore Prole 1000 WW can be controlled via DMX-512 protocol.
The Encore Prole 1000 WW has 3 DMX modes, please see pages 7-8
for the dierent modes. The DMX address is set on the back panel of the
Encore Prole 1000 WW. Your unit and your DMX
controller require a standard 3-pin or 5-pin XLR
connector for data input and data output (Figure
1). We recommend Accu-Cable DMX cables.
If you are making your own cables, be sure to
use standard 110-120 Ohm shielded cable (This
cable may be purchased at almost all pro light-
ing stores). Your cables should be made with a
male and female XLR connector on either end of
the cable. Also remember that DMX cable must be daisy chained and
ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 4
Encore Profile 1000 WW DMX Set Up
ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 5
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 17 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.

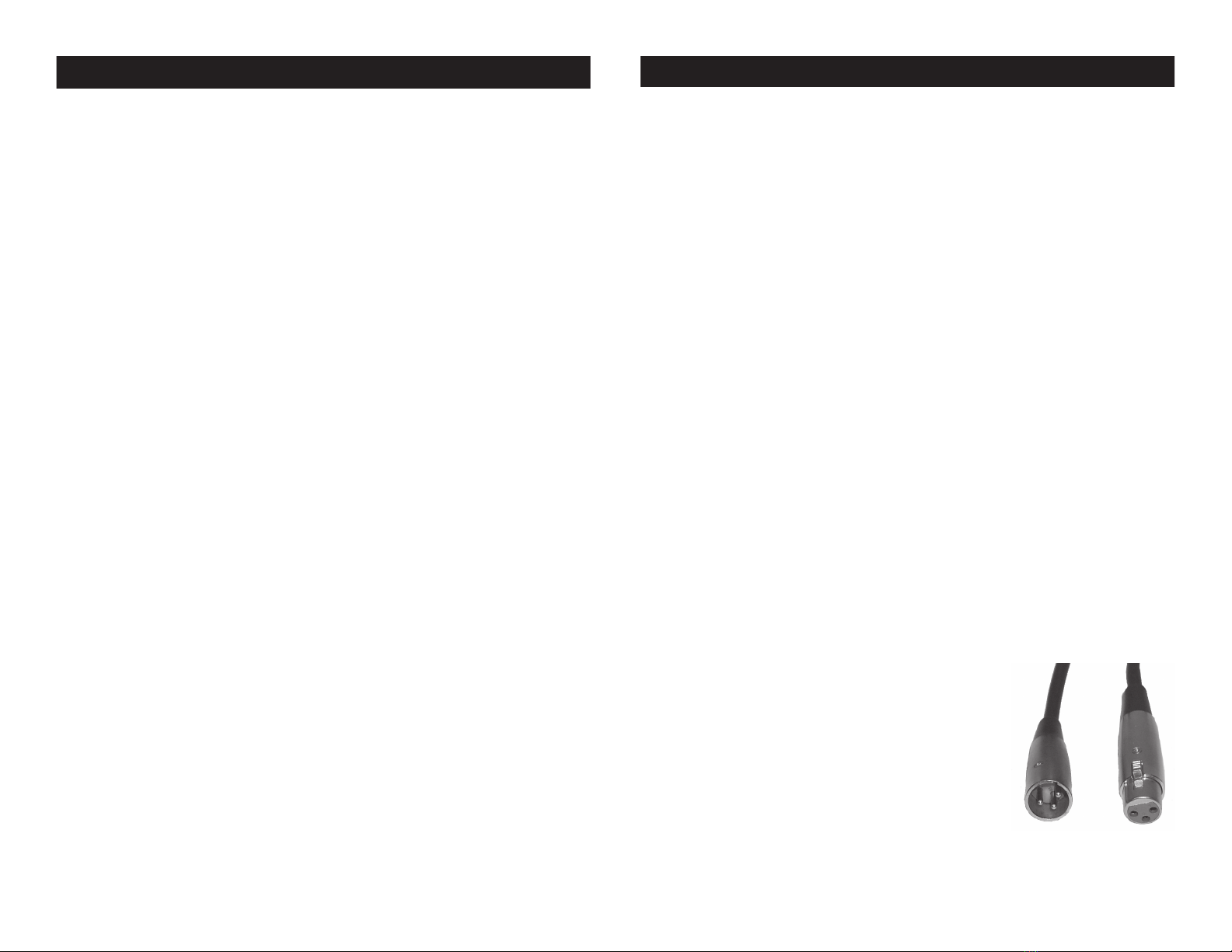

Figure 1

ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 7
Encore Profile 1000 WW Operating Instructions
ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 6
LCD Backlight On/Off:
To set the LCD backlight to turn off after 20 seconds, press the
MODE button until “OTHER” is displayed, press the SET UP button
until “OTHER BLGT:XX” is displayed. “XX” represents the current
state. Press the UP or DOWN buttons to set the backlight to turn
“OFF” after 20 seconds or “ON” to stay on at all times.
Operating Modes:
The Encore Profile 1000 WW has three operating modes:
• Dimmer Mode - Adjust the intensity of the white color.
• Fade Mode - The unit will fade in and out.
• DMX control mode - This function will allow you to control each
individual fixtures traits with a standard DMX 512 controller.
Dimmer Mode:
1. Plug the fixture in and press the MODE button until “MANUAL
WHIT:XXX” is displayed.
2. Press the UP and DOWN buttons to adjust intensity.
3. After you have adjusted the output intensity you can then activate
strobing by pressing the SET UP button to enter strobing.
4. “STRO” will be displayed, this is strobing mode. The strobing can
be adjusted between “00” (strobing off) to “15” (fastest strobing).
DMX Mode:
Operating through a DMX controller gives the user the freedom to
create their own programs tailored to their own individual needs. The
Encore Profile 1000 WW has 3 DMX modes: 1 channel mode, 2 chan-
nel mode, and 3 channel mode. See page 15 for each mode’s DMX
traits.
1. This function will allow you to control each individual fixture’s
traits with a standard DMX 512 controller.
2. To run your fixture in DMX mode press the MODE button until
“DMX MODE ADDR:XXX” is displayed. “XXX” represents the cur
rent displayed DMX address. Use the UP or DOWN buttons to
select your desired DMX address, then press the SETUP button
to select your DMX Channel mode.
3. Use the UP or DOWN buttons to scroll through the DMX Channel
modes. The Channel modes are listed below:
• “CHAN: 01” is 1 Channel DMX Mode.
cannot be split.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
Encore Profile 1000 WW DMX Set Up
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination. When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion

Encore Profile 1000 WW Operating Instructions
• “CHAN: 02” is 2 Channel DMX Mode.
• “CHAN: 03” is 3 Channel DMX Mode.
4. Please see page 15 for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in
the fixture via the XLR connections to any standard DMX control-
ler.
Fade Mode:
1. Plug the fixture in and press the MODE button until “FADE RUN
SPEED:XX” is displayed. “XX” represents a number between
01-16.
2. Use the UP and DOWN buttons to find your desired color fade
mode.
3. Press the SET UP button and “SPEED:XX” will be displayed. Use
the UP and DOWN buttons to adjust the speed of the color
fade.
System Reset:
This will return the fixture to its factory settings.
1. Plug the fixture in and press the MODE button until “OTHER
MODE” is displayed.
2. Press the SET UP button until “SYSRESET” is displayed.
3. Press the UP and DOWN buttons simultaneously to reset or press
the MODE button to exit.
Dimmer Curve:
This is used to set the dimming curve used with DMX mode. See
page 29 for the different dimming curves.
1. Plug the fixture in and press the MODE button until “DMX MODE
ADDR:XXX” is displayed.
2. Press the SET UP button until “DELAY:X” is displayed. “X” repre-
sents the displayed dimmer curve (0-4).
• 0 - Standard
• 1 - Stage
• 2 - TV
• 3 - Architectural
• 4 - Theatre
3. Press the UP or DOWN buttons to scroll through and select
your desired dimming curve.
ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 9ADJ Products, LLC - www.adj.com - Encore Prole 1000 WW User Manual Page 8
Encore Profile 1000 WW Operating Instructions
DMX State:
This mode can be used as a precaution mode, that in case the DMX
signal is lost, the operating mode chosen in the setup is the running
mode the xture will go into when the DMX signal is lost. You can also
set this as the operating mode you would like the unit to return to
when power is applied.
1. Plug the fixture in and press the MODE button until “DMX MODE
ADDR:XXX” is displayed.
2. Press the SET UP button until “DMX MODE NO” is displayed. The
current DMX state will be displayed.
• “BLACK” (Blackout) - If the DMX signal is lost or interrupted,
the unit will automatically go into stand by mode.
• “HOLD” (Last State) - If the DMX signal is lost or interrupted,
the xture will stay in the last DMX set up.
• “AUTO” (Auto Run) - If the DMX signal is lost or interrupted,
the unit will automatically go into Auto Run mode.
3. Press the UP or DOWN buttons to scroll through and select
your desired DMX state.
IR Receiver On/Off:
This function is used to activate and deactivate the infared sensor.
When this function is activated you can control the fixture using the
ADJ LED RC2 (sold separately), ADJ UC IR (sold separately), and
Airstream IR app. Please see pages 12-14 for remote controls and
functions. To control the Encore Profile 1000 WW, plug the included
IR receiver into IR receiver input located on the rear of the controller.
You must aim the remote at the IR sensor and be no more the 30 feet
away.
1. Plug the fixture in and press the MODE button until “OTHER
MODE” is displayed.
2. Press the SET UP button until “IR: XX” is displayed.
3. Press the UP or DOWN buttons to either activate the remote func-
tion (On) or deactivate it (Off).
Gamma:
This feature is predominately used when shooting video. Adjust the
gamma setting to clean up any lines that might be seen on camera.
1. Plug the fixture in and press the MODE button until “GAMMA” is
