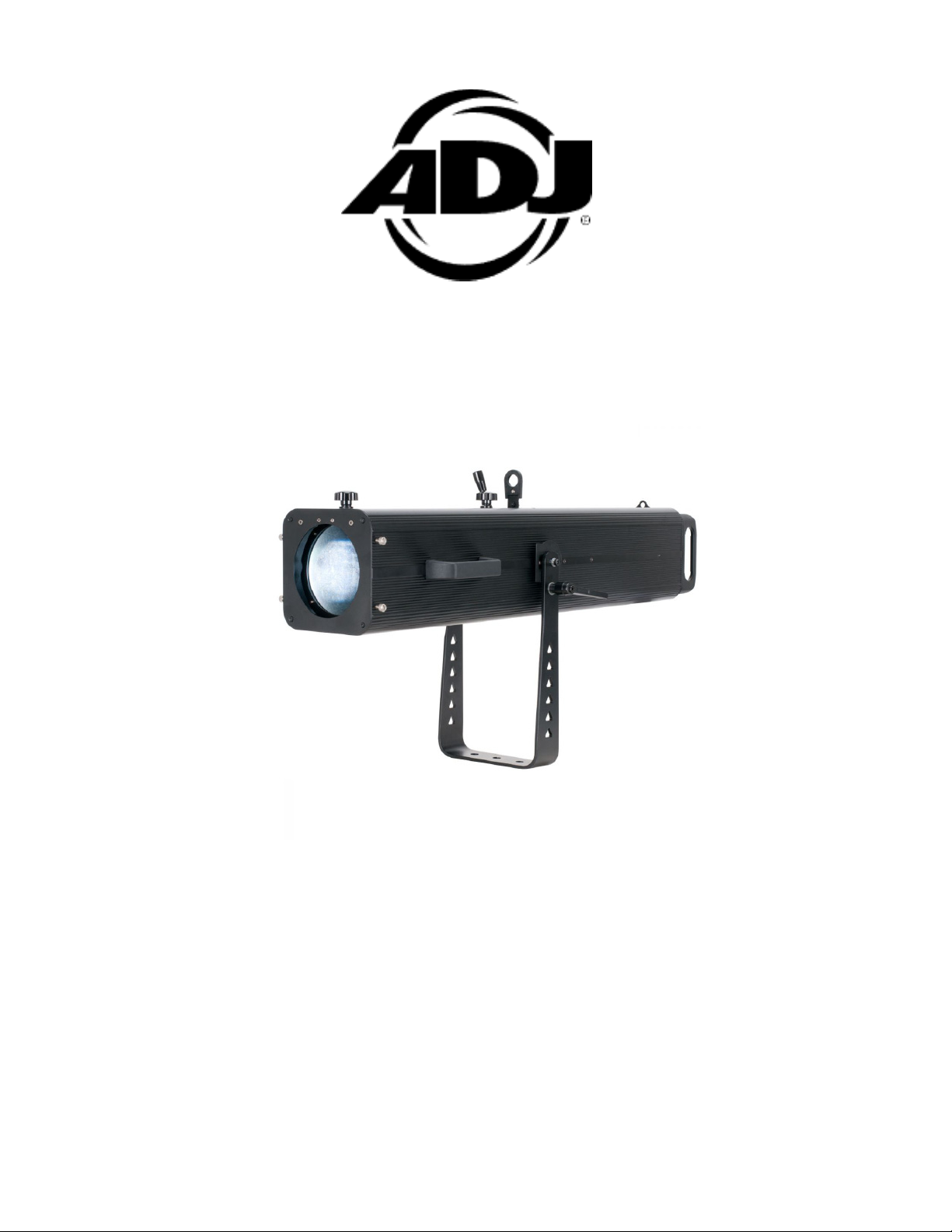

ADJ FS3000LED User manual

User Manual
FS3000LED
US SKU#: FS3000
EU SKU#: 1237000304
UPC#: 818651028256

©2020 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of
their respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.
08/11/20 1.0 1.0 1 / 3 / 6 Channels Initial Release
Date Document
Version
Software
Version > DMX Channel Mode Notes
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 2

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 3
FS3000LED Table of Contents
Introduction 4
Features | Warranty Registration 5
Safety Guidelines 6
Overview 7
Installation 8
Gobo Installation 10
4-slot Boomerang 11
System Menu 12
DMX Traits 15
Manual Mode 21
Dimensional Drawings 22
Specications 23
Limited Warranty (USA Only) 24

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 4
Introduction: Congratulations on your purchase of the ADJ FS3000LED! This device is a powerful
and feature-packed follow spot powered by a 300W white C.O.B. (Chip On Board) LED with a color
temperature of 6000K. The FS3000LED has been designed to perform reliably for years when the
guidelines in this booklet are followed. Please read and understand the instructions in this manual
carefully and thoroughly before attempting to operate this device. These instructions contain impor-
tant information regarding safety during use and maintenance.
Please keep this manual with the device for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
WARNING! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
FS3000LED Introduction

FS3000LED Features
• Beam angle: 12~32-degree manually adjustable
• Color touch screen display with selectable settings
• Manual Dimming Potentiometer
• Manual Zoom
• Manual Focus
• Manual Iris
• Fan cooling
• Hanging Bracket
• Compatible with ADJ UC IR wireless remote
Included Items:
• Power cable with locking IP connector (x1)
• 4-slot Boomerang (x1)
• Wireless remote control (x1)
• “B” size gobo holder (x1)
• Glass gobo (x1)
• Donut (x1)
• Thumb screws (x4)
FS3000LED Warranty Registration
The FS3000LED carries a 2 year limited warranty. Please fill out the enclosed warranty card to vali-
date your purchase. All returned service items,whether under warranty or not, must be freight pre-
paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper included in the shipping carton. If the unit is under
warranty, you must provide a copy of your proof of purchase invoice. You may obtain anR.A. number
by contacting our customer support team. All packages returned to the service department not dis-
playing anR.A. number on the outside of the package will be returned to the shipper.
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 5

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 6
FS3000LED Safety Guidelines
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• Be sure to save the packing carton in the unlikely event the device may have to be returned for
service
• Do not spill water or other liquids into or on to the device
• Be sure that the local power outlet matches the required voltage for the device
• Do not open up the device under any conditions. There are no user serviceable parts inside
• Disconnect the device’s main power when left unused for long periods of time
• Never connect this device to a dimmer pack
• Do not attempt to operate this device if it has been damaged in any way
• Never operate this device with the cover removed
• To reduce the risk of electrical shock or re, do not expose this device to rain or moisture
• Do not attempt to operate this device if the power cord has been frayed or broken. Do not attempt
to remove or break o the ground prong from the electrical cord. This prong is used to reduce the
risk of electrical shock and re in case of an internal short
• Disconnect from main power before making any type of connection
• Never block the ventilation holes. Always be sure to mount this device in an area that will allow
proper ventilation. Allow about 6” (15cm) between this device and a wall
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties
• Always mount this unit in a safe and stable matter
• Please route your power cord out of the way of foot trac. Power cords should be routed so they
are not likely to be walked on, or pinched by items placed upon or against them
• Ambient operating temperature ranges is from 14°F to 113°F (-10°C to 45°C). Do not operate
this device when ambient temperature falls outside of this range!
• Keep ammable materials away from this xture!
• FIXTURE IS DESIGNED FOR INDOOR USE ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE!
• The device should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen on, or liquid has been spilled into, the device.
C. The device has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 7
FS3000LED Overview

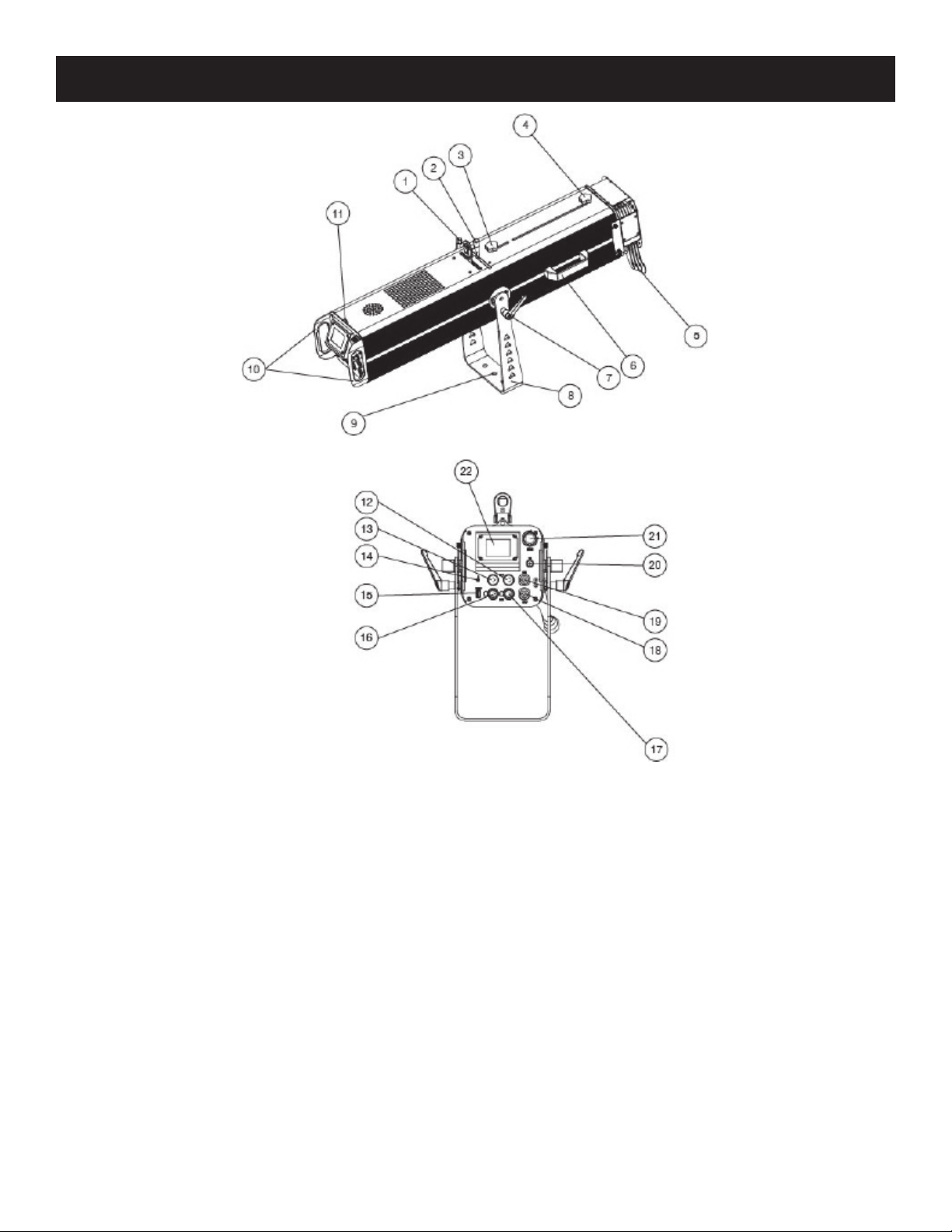

1. Iris Adjustment
2. Gobo Holder
3. Zoom Adjustment
4. Focus Adjustment
5. 4-slot Boomerang
6. Side Handle
7. Bracket Adjustment
8. Mounting Bracket
9. Mounting Clamp Attachment Point
10. Rear Handles
11. Safety Cable Attachment Point
12. 5-pin DMX In
13. 3-pin DMX In
14. IR Signal Receiver
15. Service Port
16. 3-pin DMX Out
17. 5-pin DMX Out
18. Power Out
19. Power In
20. Fuse 250V/3A
21. Intensity Adjustment
22. Display Screen

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 8
FS3000LED Installation
FLAMMABLE MATERIAL WARNING!
Keep drive a minimum of 5.0 feet (1.5m) away from ammable material and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO!
The unit MUST be installed following all local, national, and country commercial electrical and con-
struction codes and regulations.
Before installing or mounting any device, a professional equipment installer MUST be consulted to
determine whether the mounting structure or surface is properly certied to safely support the com-
bined weight of the xture, clamps, cables, and accessories.
Overhead xture installations must always be secured with a secondary safety attachment, such as
an appropriately rated safety cable that meets all local, national, and country codes and regulations.
Ambient operating temperature range is from 14°F to 113°F (-10°C to 45°C). Do not operate this
device when ambient temperature falls outside this range.
This xture should be installed in areas outside walking paths, seating areas, or away from areas
where unauthorized personnel might be able to reach the device by hand.
NEVER stand directly below the xture when rigging, removing, or servicing.
Allow approximately 15 minutes for the xture to cool down before servicing.

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 9
FS3000LED Installation
CLAMP INSTALLATION
This xture features a mounting clamp attachment point, which is located on the mounting yoke,
as well as a safety cable rigging point, located near the display screen (see the illustration below).
When mounting the xture to a truss or any other suspended or overhead installation, be sure to
secure an appropriately rated clamp (not included) to the clamp attachment point and attach a
separate SAFETY CABLE of the appropriate safety rating to the safety cable rigging point.
SAFETY CABLE
ALWAYS ATTACH A SAFETY
CABLE WHENEVER INSTALLING
THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE
THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating working
load limits, understanding the installation material being used, and periodic safety inspection of all
installation material and the xture itself. If you lack these qualications, do not attempt to perform
the installation yourself. Improper installation can result in bodily injury.

FS3000LED Gobo Installation
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 10

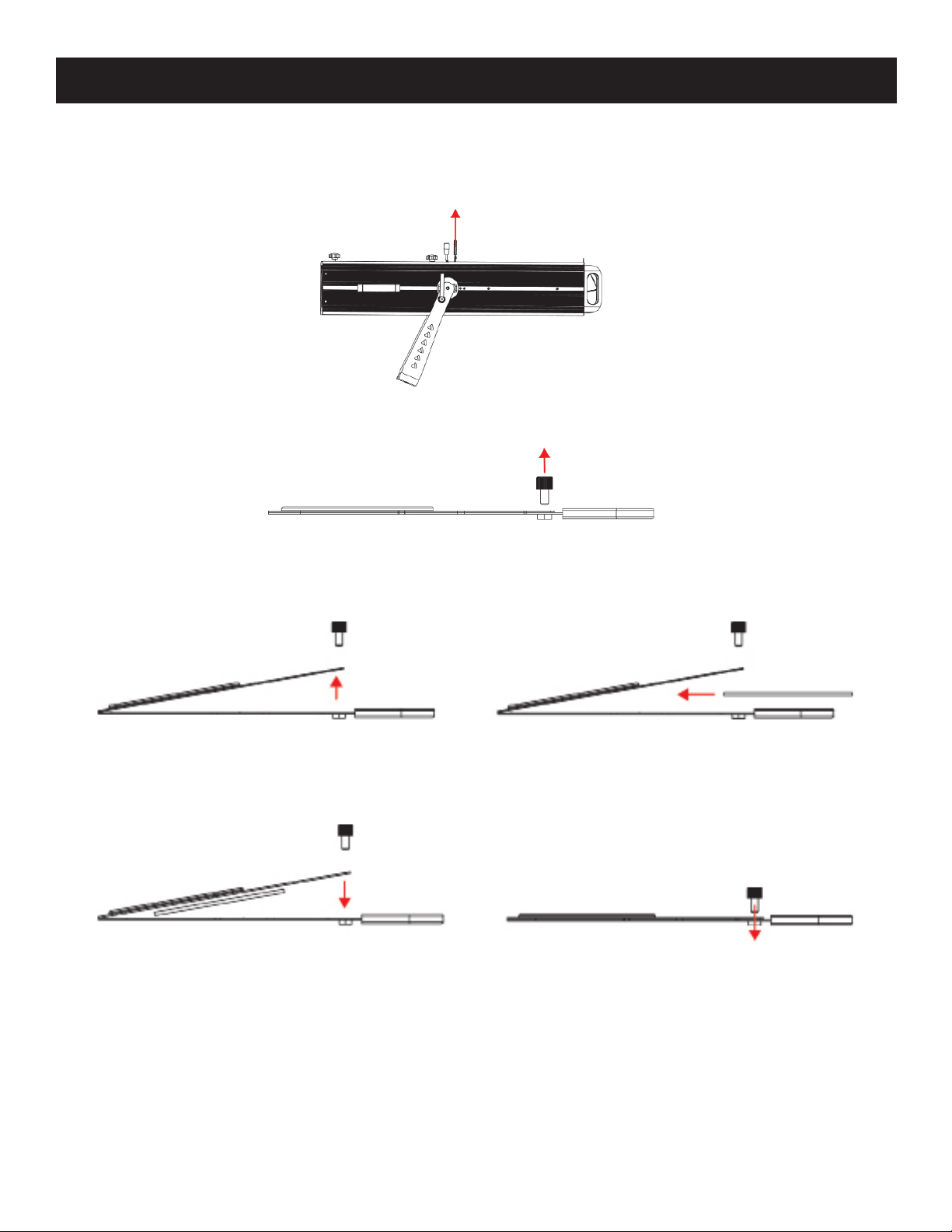

In order to install and use the included Gobo Holder, follow the directions shown below:
2. Unscrew the retainer screw from the Gobo Holder.
3. Open up the Gobo Holder. Slide the Glass Gobo between the two halves of the Gobo Holder,
making sure that the Glass Gobo has been placed securely in its cutout.
4. Close the Gobo Holder. Replace and tighten the retainer screw.
1. Remove the Gobo Holder from its slot. The Gobo Holder handle is the ring-shaped item located
just aft of the Iris Adjustment lever.
5. Re-insert the Gobo Holder back into its slot on the xture. Make sure that the retainer screw on
the Gobo Holder is facing backwards (towards the control screen).

1. Slide the 4-slot Boomerang onto the lens end of the xture. Hook the installation bracket of the
4-slot Boomerang over the thumb screws. The notched slots on the installation bracket of the
4-slot Boomerang should slide on smoothly and then drop down into place over the thumb
screws.
FS3000LED 4-slot Boomerang
2. Tighten the thumb screws to secure the 4-slot Boomerang in place.
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 11
A 4-slot Boomerang attachment is included in with this device. Follow the steps listed below to in-
stall this accessory onto your device.

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 12
FS3000LED System Menu
SYSTEM MENU
The device includes an easy to navigate system menu that can be accessed via controls on the
touchscreen display panel.
The BACK button is used to return to the previous menu.
The UP and DOWN buttons are used to adjust the value of a particular setting or to
cycle through dierent menu options.
The ENTER button is used to enter a menu or adjustable setting.

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 13
FS3000LED System Menu
DMX
SETTINGS
DMX
Address
001 - 512
DMX
Channel
Mode
1-channel
3-channel
6-channel
No DMX
Status
Hold Last
Blackout
Manual
Settings
PERSON-
ALITY
Primary ON / OFF
Secondary ON / OFF
Dim Modes
Standard
Stage
TV
Architectural
Theatre
Stage 2
Dim Delay 0 - 99
Dim Curves
Linear
Square
Inv. Sq.
S-Curve
LED Refresh
Rate
900 Hz, 1000Hz, 1100 Hz, 1200 Hz, 1300 Hz,
1400 Hz, 1500 Hz, 5000 Hz, 15000 Hz
Display
Screen
Saver Delay
OFF, 1 - 10 seconds
Touch
Screen Lock
OFF, 1 - 30 seconds, 1 min
Rotate
Display 180
YES / NO
Language Passcode
(050)
English
Spanish
Service Passcode
(011)
Factory
Restore
YES / NO
CONTINUED ON NEXT PAGE

ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 14
FS3000LED System Menu
PERSONAL-
ITY
(continued
from prev
page)
Service Passcode
(011)
Factory
Restore
YES / NO
USB Port
Power
OFF / ON
MANUAL
CONTROL See Manual Control section of this manual
INFORMA-
TION
LED Tem-
perature
xxx F /
xxx C
Software
Version
x.xx

FS3000LED DMX Traits
1-CHANNEL MODE
ADJ FS3000LED DMX TRAITS
Software Version: 1.0
CHANNEL VALUES TRAITS
1 000 - 255 Dimmer intensity: 0 to 100%
3-CHANNEL MODE
ADJ FS3000LED DMX TRAITS
Software Version: 1.0
CHANNEL VALUES TRAITS
1
STROBE
000 - 031 No function (shutter closed)
032 - 063 Shutter open
064 - 095 Strobe, slow to fast
096 - 127 Shutter open
128 - 159 Pulse eect, slow to fast
160 - 191 Shutter open
192 - 223 Random strobe, slow to fast
224 - 255 Shutter open
2 000 - 255 Dimmer intensity, 0 to 100%
3 000 - 255 Dimmer ne 16-bit, 0 to 100%
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 15

FS3000LED DMX Traits
6-CHANNEL MODE
ADJ FS3000LED DMX TRAITS
Software Version: 1.0
CHANNEL VALUES TRAITS
1
STROBE
000 - 031 No function (shutter closed)
032 - 063 Shutter open
064 - 095 Strobe, slow to fast
096 - 127 Shutter open
128 - 159 Pulse eect, slow to fast
160 - 191 Shutter open
192 - 223 Random strobe, slow to fast
224 - 255 Shutter open
2 000 - 255 Dimmer intensity, 0 to 100%
3 000 - 255 Dimmer ne 16-bit, 0 to 100%
4
DIM MODES
000 - 020 Standard
021 - 040 Stage
041 - 060 TV
061 - 080 Architectural
081 - 100 Theatre
101 - 120 Stage 2
DIMMING SPEED
121 0.1 s
122 0.2 s
123 0.3 s
124 0.4 s
125 0.5 s
126 0.6 s
127 0.7s
128 0.8 s
CONTINUED ON NEXT PAGE
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 16

FS3000LED DMX Traits
6-CHANNEL MODE (continued from previous page)
CHANNEL VALUES TRAITS
4
(continued
from prev
page)
DIMMING SPEED (continued from prev page)
129 0.9 s
130 1 s
131 1.5 s
132 2 s
133 3 s
134 4 s
135 5 s
136 6 s
137 7 s
138 8 s
139 9 s
140 10 s
141 - 255 Default to unit setting
5
DIM CURVES
000 - 020 Linear
021 - 040 Square
041 - 060 Inv. Squa
061 - 080 S. Curve
081 - 255 No function
6
LED REFRESH RATES
000 - 010 Normal operation (Default LED refresh rate of 1200 Hz)
011 900 Hz
012 910 Hz
013 920 Hz
014 930 Hz
015 940 Hz
016 950 Hz
017 960 Hz
018 970 Hz
CONTINUED ON NEXT PAGE
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 17

FS3000LED DMX Traits
6-CHANNEL MODE (continued from previous page)
CHANNEL VALUES TRAITS
6
(continued
from prev
page)
DIMMING SPEED (continued from prev page)
019 980 Hz
020 990 Hz
021 1000 Hz
022 1010 Hz
023 1020 Hz
024 1030 Hz
025 1040 Hz
026 1050 Hz
027 1060 Hz
028 1070 Hz
029 1080 Hz
030 1090 Hz
031 1100 Hz
032 1110 Hz
033 1120 Hz
034 1130 Hz
035 1140 Hz
036 1150 Hz
037 1160 Hz
038 1170 Hz
039 1180 Hz
040 1190 Hz
041 1210 Hz
042 1220 Hz
043 1230 Hz
044 1240 Hz
045 1250 Hz
046 1260 Hz
047 1270 Hz
CONTINUED ON NEXT PAGE
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 18

FS3000LED DMX Traits
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 19
6-CHANNEL MODE (continued from previous page)
CHANNEL VALUES TRAITS
6
(continued
from prev
page)
DIMMING SPEED (continued from prev page)
048 1280 Hz
049 1290 Hz
050 1300 Hz
051 1310 Hz
052 1320 Hz
053 1330 Hz
054 1340 Hz
055 1350 Hz
056 1360 Hz
057 1370 Hz
058 1380 Hz
059 1390 Hz
060 1400 Hz
061 1410 Hz
062 1420 Hz
063 1430 Hz
064 1440 Hz
065 1450 Hz
066 1460 Hz
067 1470 Hz
068 1480 Hz
069 1490 Hz
070 1500 Hz
071 2500 Hz
072 4000 Hz
073 5000 Hz
074 6000 Hz
075 10,000 Hz
076 15,000 Hz
CONTINUED ON NEXT PAGE

FS3000LED DMX Traits
ADJ Products, LLC - www.adj.com - FS3000LED User Manual Page 20
6-CHANNEL MODE (continued from previous page)
CHANNEL VALUES TRAITS
6
(continued
from prev
page)
DIMMING SPEED (continued from prev page)
077 20,000 Hz
078 25,000 Hz
079 Disable LED refresh rate
080 - 255 No function
