ADJ Jolt Bar FX User manual

User Manual
JOLT BAR FX

2
©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Date Document
Version
Software
Version DMX Channels Notes
01/24/2022 1.0 1.0 6/9/13/16/18/32/38/
42/64/112/126 Initial Release
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Guidelines 7
Overview 8
Installation 9
Remove Device Management 12
Control Panel 13
System Menu 14
DMX Setup 17
DMX Traits 19
LED Pixel Zones 25
Dimmer Modes and Curves 26
Daisy Chain Power Linking | Cleaning and Maintenance 27
Dimensional Drawings 28
Specifications 29

4
Unpacking: Thank you for purchasing the Jolt Bar FX by ADJ Products, LLC. Every device has been
thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the carton appears to have been dam-
aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate
the unit have arrived intact. In the event that damage has been found or parts are missing, please
contact our toll free customer support number for further instructions. Do not return this unit to your
dealer without rst contacting customer support.
Introduction: The ADJ Jolt Bar FX is a DMX intelligent, high powered LED xture. To optimize the
performance of this product, please read these operating instructions carefully to familiarize yourself
with the basic operations of this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with the unit for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
CAUTION! This device is intended for indoor use only! Do not expose to rain or moisture!
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event that your unit requires service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
INTRODUCTION

5
LIMITED WARRANTY (USA ONLY)
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of
manufacturing defects in material and workmanship for a prescribed period from the date of purchase
(see specic warranty period on reverse). This warranty shall be valid only if the product is purchased
within the United States of America, including possessions and territories. It is the owner’s responsibility
to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product
back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to
the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return ship-
ping charges only to a designated point within the United States. If the entire instrument is sent, it must be
shipped in its original package and packaging material. No accessories should be shipped with the prod-
uct. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever
for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modied in any manner which ADJ Products, LLC concludes, after inspection, aects the reliability of the
product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is dam-
aged because it was not properly maintained as set forth in the product instructions, guidelines and/or
user manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic
checkup. During the period specied above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason
of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty
shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion
of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012,
and bear identifying marks to that eect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or tness,
are limited in duration to the warranty period set forth above. And all warranties, whether expressed or
implied, including warranties of merchantability or tness, are limited in duration to the warranty period set
forth above. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is ex-
pressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or
damage, direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Eect Lighting, Intelligent Lighting,
UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands,
Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
• ADJ DMX Controllers = 2 Year (730 Days)
• American Audio Products = 1 Year (365 Days)

6
FEATURES
The ADJ Jolt Bar FX is a professional linear LED fixture that delivers lighting designers huge output as
well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored
chase effects in one versatile unit. Ideal for concert productions, festival stages and rental houses, as
well as for permanent installation in large nightclubs, the Jolt Bar FX is a flexible fixture that can be
used to create a wide variety of effects.
• 32 x RGB LED zones with individual control
• 16 X Cool White LED zones with individual control
• Color mixing effect
• Strobe effect with variable speed
• Smooth dimming from 0% to 100%
• Double mounting brackets with 180-degree adjustability
INCLUDED ITEMS:
• 1 x Locking power cable
IP RATING
This device is IP20 rated. This means that the unit is protected against the instrusions of solids
approximately the size of an adult finger (2.5mm) or larger, but the unit is not protected against
water or liquid intrusion of any kind.
WARRANTY REGISTRATION
The Jolt Bar FX carries a 2 year limited warranty. Please ll out the enclosed warranty card to validate
your purchase. All returned service items, whether under warranty or not, must be freight pre-paid
and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on
the outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by con-
tacting our customer support team on our customer support number. All packages returned to the
service department not displaying an R.A. number on the outside of the package will be returned to
the shipper.

7
SAFETY GUIDELINES
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE
SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN
THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES
RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION
PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED PERSONNEL SHOULD PERFORM
INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS
FIXTURE SHOULD BE USED FOR INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR
THE INCLUDED MOUNTING HARDWARE WILL VOID THE ORIGINAL MANUFACTURER’S WARRANTY
AND INCREASE THE RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL
SHOULD PERFORM INSTALLATION OF THIS FIXTURE.
• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
• DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR
REPAIRS.
• DO NOT PLUG FIXTURE INTO A DIMMER PACK!
• NEVER OPEN THIS FIXTURE WHILE IN USE!
• UNPLUG POWER BEFORE SERVICING FIXTURE!
• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
• RETINA INJURY RISK - MAY INDUCE BLINDNESS!
• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• INDOOR / DRY LOCATIONS USE ONLY!
• DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)
• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER).
• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow approximately 60
minutes for the xture to cool down before serving.
• DO NOT shake xture, and avoid brute force when installing and/or operating xture.
• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power cord
connectors are damaged and do not insert into the xture securely with ease. NEVER force a power cord
connector into the xture. If the power cord or any of its connectors are damaged, replace it immediately
with a new one of the same power rating.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow
approx. 6” (15cm) between xture and other devices or a wall for proper cooling.
• When installing xture in a suspended environment, always use mounting hardware that is no less than
M10 x 25 mm, and always install xture with an appropriately rated safety cable.
• Always disconnect xture from main power source before performing any type of service and/or cleaning
procedure.
• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the
cord.
• During the initial operation of this xture, a light smoke or smell may emit from the interior of the xture.
This is a normal process and is caused by excess paint in the interior of the casing burning off from the
heat associated with the lamp and will decrease gradually over time.
• Consistent operational breaks will ensure xture will function properly for many years.
• Only use original packaging and materials to transport the xture in for service.

8
OVERVIEW

9
INSTALLATION
FLAMMABLE MATERIAL WARNING
Keep xture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech-
nics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS).
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6
FEET (0.5 METER)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
• Fixture MUST be installed following all local, national, and country commercial electrical and con-
struction codes and regulations.
• Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing
the xture(s) on any surface, a professional equipment installer MUST be consulted to determine
if the metal truss/structure or surface is properly certied to safely hold the combined weight of
the xture(s), clamps, cables, and accessories.
• Maximum ambient operating temperature is 113°F (45°C). Do not use xture when ambient tem-
perature exceeds this value.
• Fixture(s) should be installed outside walking paths, seating areas, or areas where unauthorized
personnel might reach the xture by hand.
• NEVER stand directly below the xture(s) when rigging, removing, or servicing.
• Overhead xture installation must always be secured with a secondary safety attachment, such
as an appropriately rated safety cable.
• Allow approximately 60 minutes for the xture to cool down before servicing.
IP RATING
This device is IP20 rated. This means that the unit is protected against the intrusion of solids
2.5mm in size or larger (approximately the size of an adult finger tip). The unit is NOT pro-
tected against water or liquid intrusion of any kind!
RIGGING
Overhead rigging requires extensive experience, including calculating working load limits,
knowledge of installation material being used, and periodic safety inspection of all installation
material and the fixture, among other skills. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.

10
INSTALLATION
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A
SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF
THE CLAMPS FAIL.
CLAMP INSTALLATION

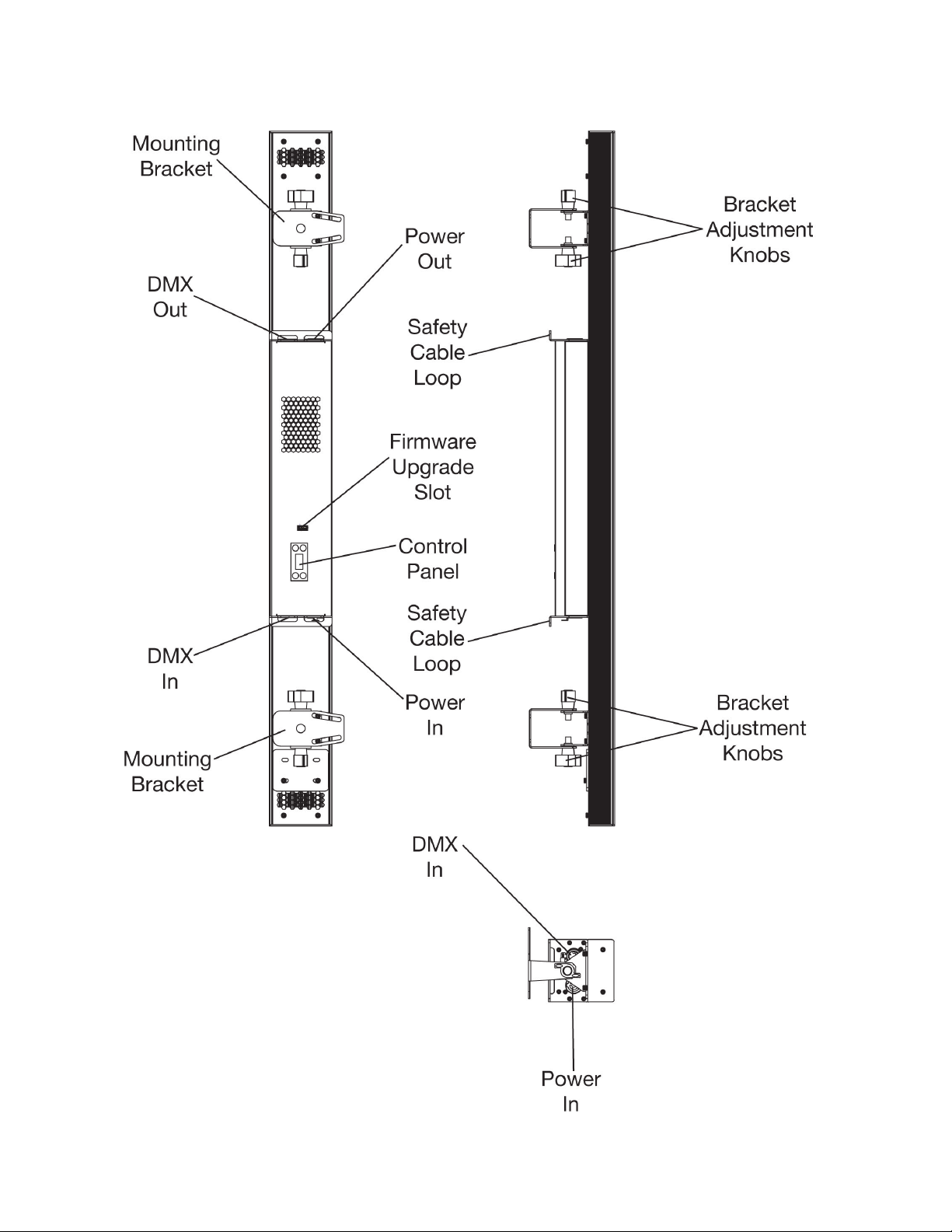

This fixture features a mounting point for the attachment of a mounting clamp on each mount-
ing bracket. In order to ensure stability, the device should be mounted using both mounting clamp
points. There is also one safety cable loop located on each side of the housing that contains the
control panel. (see the illustration below). When mounting the fixture to a truss or any other sus-
pended or overhead installation, be sure to secure appropriately rated clamps (not included) to the
mounting brackets, and attach a separate SAFETY CABLE of the appropriate weight rating to the
safety cable loop.

11
INSTALLATION
CONNECTOR PLATE:
Each unit includes a connector plate that can be used to secure two adjacent mounted units
together. To install the connector plate, follow the directions below:
1. Locate the connector plate. It is affixed to back of the unit, near one of the ends of the bar. See
the illustrations below for guidance.
2. Remove the two (2) screws holding the connector plate in place, as well as two (2) screws on the
end of each adjacent unit, for a total of six (6) screws. Remove the connector plate.
3. Place the connector plate across the gap between the two units, making sure to align the plate
with the four (4) screw holes. Reinstall the four (4) screws that secure the connector plate in
place, as well as the two (2) additional screws that held the connector plate in its storage posi-
tion. The installation is now complete.

12
REMOTE DEVICE MANAGEMENT
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, and allows the DMX systems of the xtures to be modied and monitored remotely. This
protocol is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-
troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known
as a GET command). The controller can then use its SET command to modify settings that would
typically have to be changed or viewed directly via the unit’s display screen, including the DMX Ad-
dress, DMX Channel Mode, and Temperature Sensors.
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the fea-
tures that you require.
The following parameters are accessible in RDM on this device:
MANUFACTURER
SOFTWARE VERSION
DMX START ADDRESS
DEVICE MODEL DESCRIPTION
DEVICE LABEL
DMX PERSONALITY
DMX PERSONALITY DESCRIPTION
DEVICE HOURS
RESET DEVICE - WARM RESET
RESET DEVICE - COLD RESET

13
CONTROL PANEL
The xture includes an easy to navigate system menu control panel display where all necessary set-
tings and adjustments are made. (See image below)
• MENU: Leave current menu and return to previous menu level.
• UP: Scroll up in currently displayed menu.
• DOWN: Scroll down in currently displayed menu.
• ENTER: Select an option or confirm a selection.
This fixture includes a display lock feature which automatically shuts off the display screen after a
certain period of inactivity. This feature is OFF by default, which means that the display will always
remain on regardless of inactivity, but can be configured to kick in after up to 10 minutes of inactivity.
See the System Menu section of this manual for details on how to configure this setting.

14
SYSTEM MENU
DMX SETTINGS
DMX Address
1- 507 (6ch)
1- 504 (9ch)
1- 500 (13ch)
1- 497 (16ch)
1- 495 (18ch)
1- 481 (32ch)
1- 475 (38ch)
1- 471 (42ch)
1- 449 (64ch)
1- 401 (112ch)
1- 387 (126ch)
DMX Channel Mode
6CH
9CH
13CH
16CH
18CH
32CH
38CH
42CH
64CH
112CH
126CH
No DMX Status
Blackout
Takes all traits to 0
when DMX signal is
lost or interrupted.
Hold
Holds all traits at last
received value when
DMX signal is lost or
interrupted.
Manual
Defaults to values set
in Manual Mode when
DMX signal is lost or
interrupted.
PERSONALITY Dim Modes
Standard
Stage
TV
Architectural
Theatre
Stage 2
CONTINUED ON NEXT PAGE

15
SYSTEM MENU
PERSONALITY
(continued)
Dimmer Curve
Linear
Square
Inv. Sq.
S-Curve
Display
Display Backlight O - 2 min
Display Lock O - 10 min
Display Invert No / Yes
Temperature Unit °C / °F
Fan Speed
Low
High
Auto
Service
(Passcode = 011)
White Balance
Red1 (000 - 255)
Green1 (000 - 255)
Blue1 (000 - 255)
White1 (000 - 255)
Red2 (000 - 255)
Green2 (000 - 255)
Blue2 (000 - 255)
White2 (000 - 255)
...
Update Software Yes / No
Factory Restore Yes / No
MANUAL
Red1 000 - 255
Note: Manual control
settings shall always
hold when no DMX
signal is detected.
Green1 000 - 255
Blue1 000 - 255
White1 000 - 255
Red2 000 - 255
Green2 000 - 255
Blue2 000 - 255
White2 000 - 255
... ...
Dimmer Fine 000 - 255
FIXTURE TEST Auto Test
CONTINUED ON NEXT PAGE

16
SYSTEM MENU
FIXTURE INFORMA-
TION
Fixture Use Hour
LED Use Hour
Total LED Hour
LED On Hour
LED Hours Reset Passcode = 011
Temperature
Fan State
RDM UID xxxxxx
Error Logs
Fixture Errors
Reset Error Log
(Passcode = 011) No / Yes
Firmware Version x.xx

17
DMX SETUP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):The Jolt Bar FX can be controlled
via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX control-
ler require a 5-pin XLR connector for data input and data output. If you are making your own cables,
be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro
lighting stores). Your cables should be made with a male XLR connector at one end and a female
XLR connector at the other. Also remember that DMX cable must be daisy chained and cannot be
split.

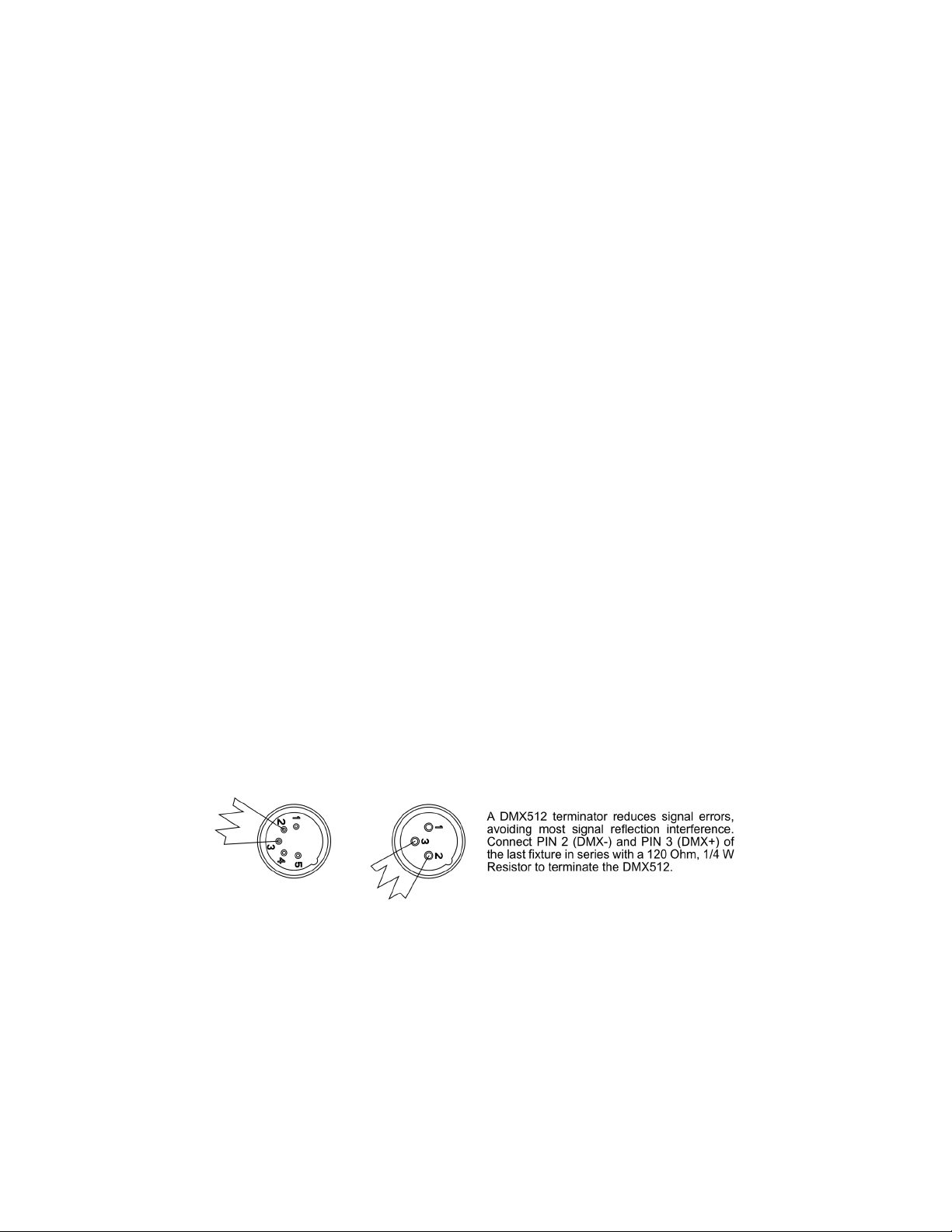

Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

18
DMX SETUP
DMX ADDRESSING
All fixtures should be given a DMX starting address when operating with a DMX controller, in order to
ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. The assignment of this starting DMX address is achieved by setting the correct
DMX address on the digital control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will “listen” starting at the channel num-
ber you have set, based on the quantity of DMX channels of each fixture. That means changing the
settings of one channel will only affect the selected fixture.
As an example, when operating this device in 6 channel mode, you should set the starting DMX
address of the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), and so on.
(See the chart below for more details.)
Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
6 Channels 1 7 13 19
9 Channels 1 10 19 28
13 Channels 1 14 27 40
16 Channels 1 17 33 49
18 Channels 1 19 37 55
32 Channels 1 33 65 97
38 Channels 1 39 77 115
42 Channels 1 43 85 127
64 Channels 1 65 129 193
112 Channels 1 113 225 337
126 Channels 1 127 253 379

19
DMX TRAITS
CHANNEL DMX
VALUES FUNCTION
6
CH
9
CH
13
CH
16
CH
18
CH
32
CH
38
CH
42
CH
64
CH
112
CH
126
CH
1 1 1 1 000 - 255 Outer Red, 0% to 100%
2 2 2 2 000 - 255 Outer Green, 0% to 100%
3 3 3 3 000 - 255 Outer Blue, 0% to 100%
4 4 4 000 - 255 Inner White, 0% to 100%
30 32 000 - 255 Inner White Group 1
31 33 000 - 255 Inner White Group 2
32 34 000 - 255 Inner White Group 3
33 35 000 - 255 Inner White Group 4
5 5 6 000 - 255 Dimmer, 0% to 100%
6 6 7 000 - 255 Dimmer Fine, 0% to 100%
5 25 25 97 000 - 255 Outer Dimmer, 0% to 100%
6 26 26 98 000 - 255 Outer Dimmer Fine, 0% to 100%
7
Strobe Eect
000 - 002 Open
003 - 005 Strobe
006 - 050 Ramp up
051 - 100 Ramp down
101 - 150 Ramp up-down
151 - 200 Lightning
201 - 255 Random
8 000 - 255 Strobe Rate, slow to fast
9 000 - 255 Strobe Duration, slow to fast
5 4 000 - 255 Outer Color Macros
8 7 27 27 99
Outer Strobe Eect
000 - 002 Open
003 - 005 Strobe
006 - 050 Ramp up
051 - 100 Ramp down
101 - 150 Ramp up-down
151 - 200 Lightning
201 - 255 Random
9 8 28 28 100 000 - 255 Outer Strobe Rate, slow to fast
10 9 29 29 101 000 - 255 Outer Strobe Duration, slow to fast
CONTINUED ON NEXT PAGE

20
DMX TRAITS
CHANNEL DMX
VALUES FUNCTION
6
CH
9
CH
13
CH
16
CH
18
CH
32
CH
38
CH
42
CH
64
CH
112
CH
126
CH
11 10 30 102
Outer Program Macro
000 - 005 No function
006 - 015 Macro1
016 - 025 Macro2
026 - 035 Macro3
036 - 045 Macro4
046 - 055 Macro5
056 - 065 Macro6
066 - 075 Macro7
076 - 085 Macro8
086 - 095 Macro9
096 - 105 Macro10
106 - 115 Macro11
116 - 125 Macro12
126 - 135 Macro13
136 - 145 Macro14
146 - 155 Macro15
156 - 165 Macro16
166 - 175 Macro17
176 - 185 Macro18
186 - 195 Macro19
196 - 205 Macro20
206 - 215 Macro21
216 - 225 Macro22
226 - 235 Macro23
236 - 245 Macro24
246 - 255 Macro25
11 31 103 000 - 255 Outer Program Macro Speed
12 34 36 120 000 - 255 Inner Dimmer, 0% to 100%
13 35 37 121 000 - 255 Inner Dimmer Fine, 0% to 100%
CONTINUED ON NEXT PAGE
