ADJ ENCORE PROFILE PRO COLOR User manual

ENCORE PROFILE PRO COLOR
User Instructions
Shown with optional 19° Lens Kit. Lens Kits sold separately.

2
©2020 ADJ PRODUCTS LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ logo and identifying product names and
numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information now allowed by statutory or judicial law
or hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-ADJ brands and
product names are trademarks or registered trademarks of their respective companies.
ADJ PRODUCTS LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation
of this product.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This device uses and can radiate radio frequency energy and, if not installed and used in
accordance with the included instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device
does cause harmful interference to radio or television reception, which can be deter- mined by turning
the device off and on, the user is encouraged to try to correct the interference by one or more of the
following methods:
• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit different from which the radio receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn off all electrical products
when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment
from power when not in use. Thank you!
D O C U M E N T V E R S I O N
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual, before
beginning installation and/or programming.
Date Document Version SoftwareVersion
≥
DMX Channel Modes Notes
07/23/2020 1.0 1.04 2/4/13/14/16 Initial Release

3
Encore Prole Pro Color Table of Contents
General Information 4
Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Guidelines 7

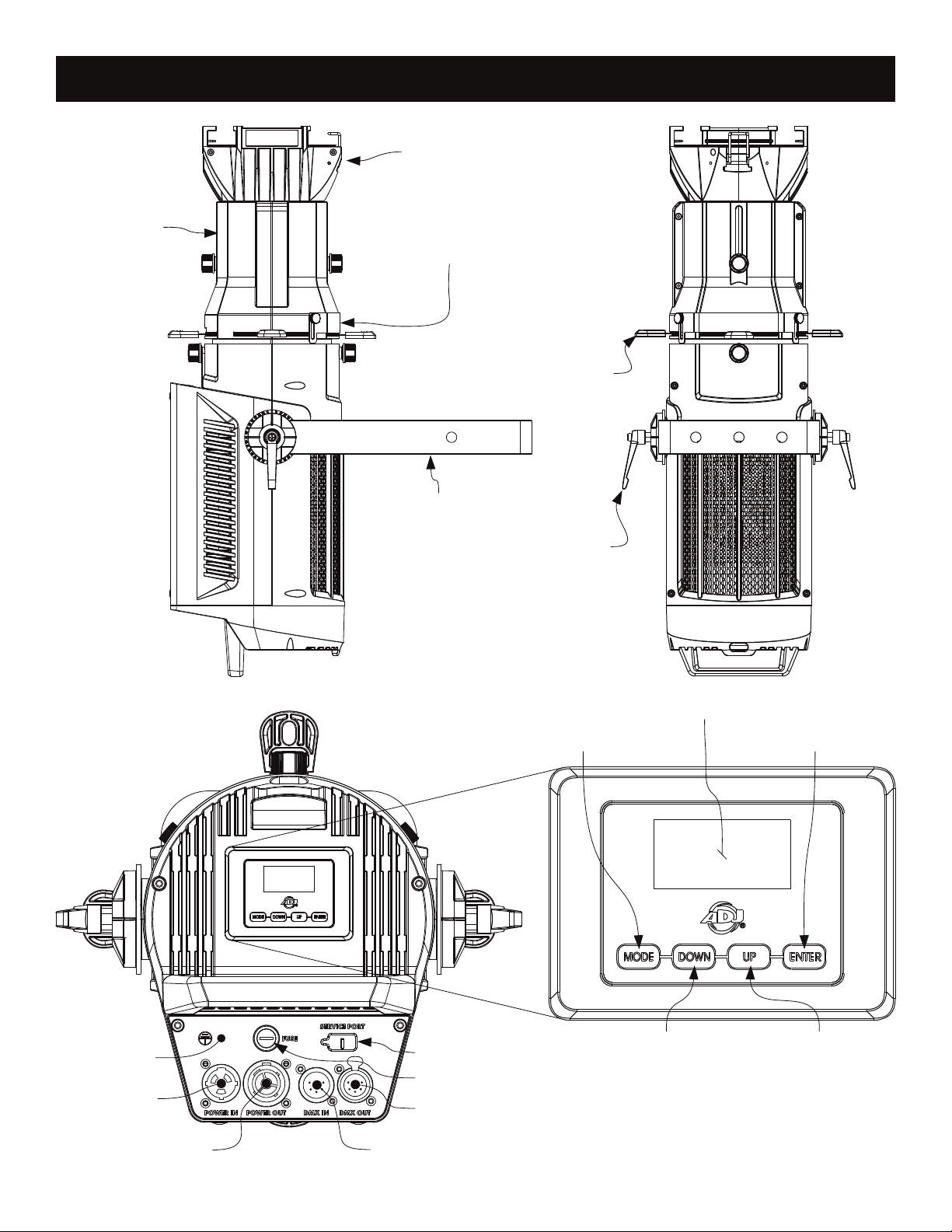

Overview 8
Lens & Gobo Holder Installation 9
Installation 10
System Menu 13

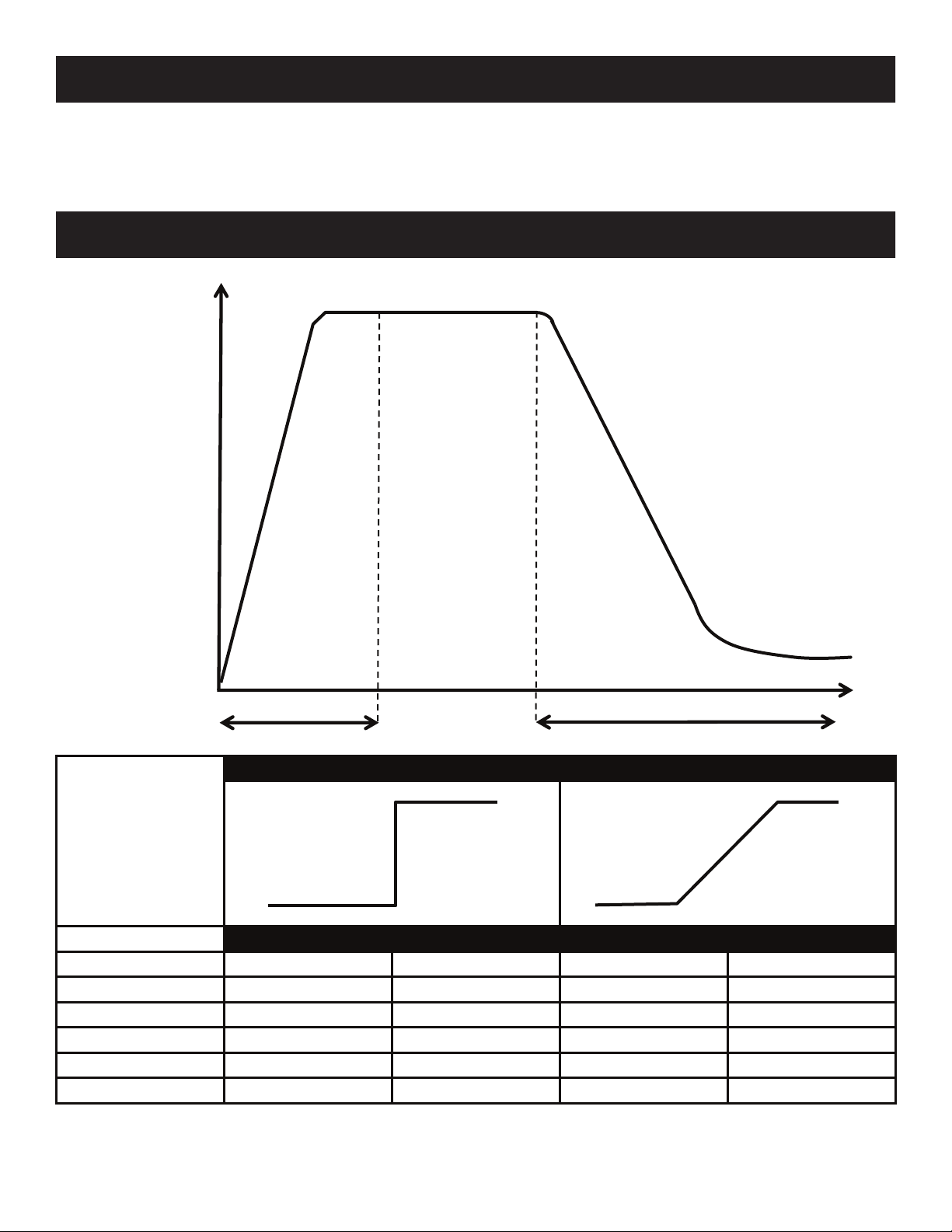

Multiple Unit Power Linking | Dimmer Mode Chart 16
DMX Setup 17
DMX Addressing 18
DMX Channel Functions & Values 19
Specications 23
Dimensional Drawings 24
Dimensional Drawings of Optional Lens Kits 25
Troubleshooting | Cleaning | Maintenance 28

4
Encore Prole Pro Color Introduction
Unpacking: Thank you for purchasing the Encore Prole Pro Color by ADJ Products, LLC. Every
Encore Prole Pro Color has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton
appears to be damaged, carefully inspect your xture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Do not return this
unit to your dealer without rst contacting customer support.
Introduction: The ADJ Encore Prole Pro Color is a DMX intelligent, high powered LED xture. To optimize
the performance of this product, please read these operating instructions carefully to familiarize yourself
with the basic operations of this unit. These instructions contain important safety information regarding
the use and maintenance of this unit. Please keep this manual with the unit, for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
https://forums.adj.com/ with questions, comments or suggestions.
Parts:To purchase parts online visit http://parts.americandj.com
ADJ SERVICEUSA-Monday-Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax:[phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30to17:00CET
Voice:[phone] | Fax:[phone] | [email protected]
ADJ PRODUCTS, LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone] | www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing
so will void your manufactures warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
PLEASE recycle the shipping carton whenever possible.

5
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be
free of manufacturing defects in material and workmanship for a prescribed period from the date of
purchase (see specic warranty period on reverse). This warranty shall be valid only if the product
is purchased within the United States of America, including possessions and territories. It is the
owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the
time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the
product back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the
product only to the ADJ Products, LLC factory. All shipping charges must be prepaid. If the
requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ
Products, LLC will pay return shipping charges only to a designated point within the United States.
If the entire instrument is sent, it must be shipped in its original package and packaging material. No
accessories should be shipped with the product. If any accessories are shipped with the product,
ADJ Products, LLC shall incur no liability whatsoever for loss of or damage to any such accessories,
nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product
is modied in any manner which ADJ Products, LLC concludes, after inspection, affects the
reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ
Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products,
LLC; if the product is damaged because it was not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic
checkup. During the period specied above, ADJ Products, LLC will replace defective parts at its
expense with new or refurbished parts, and will absorb all expenses for warranty service and repair
labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC
under this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were
manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its
products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied
with products described above. Except to the extent prohibited by applicable law, all implied
warranties made by ADJ Products, LLC in connection with this product, including warranties of
merchantability or tness, are limited in duration to the warranty period set forth above. And all
warranties, whether expressed or implied, including warranties of merchantability or tness, are
limited in duration to the warranty period set forth above. The consumer’s and/or dealer’s sole
remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall ADJ Product, LLC be liable for any loss and/or damage, direct and/or
consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting, UV
lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands, Power/Data
Distribution, etc. excluding LED and lamps)
Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States.
StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
ADJ DMX Controllers = 2 Year (730 Days)
American Audio Products = 1 Year (365 Days)
Encore Prole Pro Color Limited Warranty (USA Only)

6
Encore Prole Pro Color Warranty Registration
The Encore Prole Pro Color carries a 2 year limited warranty. Please ll out the enclosed warranty card
to validate your purchase. All returned service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on
the outside of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by contacting
our customer support team on our customer support number. All packages returned to the service
department not displaying a R.A. number on the outside of the package will be returned to the shipper.
Encore Prole Pro Color Features
The Encore Prole Pro Color™ ellipsoidal features a high powered 250W RGBWAL (Red/Green/Blue/
White/Amber/Lime) LED Engine > 90CRI 6,000 Total Lumens* (*with 26° lens), 5°, 10°, 14°, 19°, 26°,
36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual
focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable
dimming curves and dimming modes, adjustable refresh frequency for icker free operation for TV and
FILM, locking 5-pin XLR In/Out and Locking Power In/Out, (4) button LCD control display panel, an
integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply
(AC100-240v).

7
Encore Prole Pro Color Safety Precautions
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO
GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/
OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF
THE INFORMATION PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED
PERSONNEL SHOULD PERFORM INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL
RIGGING PARTS INCLUDED WITH THIS FIXTURE SHOULD BE USED FOR INSTALLATION. ANY
MODIFICATIONS TO THE FIXTURE AND/OR CERTIFIED PERSONNEL SHOULD PERFORM
INSTALLATION OF THIS FIXTURE AND/OR THE INCLUDED MOUNTING HARDWARE WILL VOID
THE ORIGINAL MANUFACTURER’S WARRANTY AND INCREASE THE RISK OF DAMAGE
AND/OR PERSONAL INJURY.
• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
• THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
• DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS
FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURE’S WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
• DO NOT PLUG FIXTURE INTO A DIMMER PACK!
• NEVER OPEN THIS FIXTURE WHILE IN USE!
• UNPLUG POWER BEFORE SERVICING FIXTURE!
• NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
• KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
• NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
• RETINA INJURY RISK - MAY INDUCE BLINDNESS!
• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• INDOOR / DRY LOCATIONS USE ONLY!
• DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!
• MINIMUM DISTANCE TO OBJECTS/SURFACES
• MUST BE 6.6 FEET (2 METERS)
• MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C)
• MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
• FROM THE SURFACE 1.6 FEET (0.5 METER)'
• DO NOT TOUCH the xture housing during operation. Turn OFF the power and allow approximately
60 minutes for the xture to cool down before serving.
• DO NOT shake xture, avoid brute force when installing and/or operating xture.
• DO NOT operate xture if the power cord is frayed, crimped, damaged and/or if any of the power
cord connectors are damaged and do not insert into the xture securely with ease. NEVER force a
power cord connector into the xture. If the power cord or any of its connectors are damaged,
replace it immediately with a new one of similar power rating.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between xture and other devices or a wall for proper cooling.
• When installing xture in a suspended environment, always use mounting hardware that is no less than
M10 x 25 mm, and always install xture with an appropriately rated safety cable.
• Always disconnect xture from main power source before performing any type of service and/or
cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by tugging
the wire portion of the cord.
• During the initial operation of this xture, a light smoke or smell may emit from the interior of the
xture. This is a normal process and is caused by excess paint in the interior of the casing burning off
from the heat associated with the lamp and will decrease gradually over time.
• Consistent operational breaks will ensure xture will function properly for many years.
• ONLY Use original packaging and materials to transport the xture in for service.

8
Encore Prole Pro Color Overview
Lens (not included)
Blade Shutters
Yoke Handle
Mounting Yoke
Focus
Gobo Slot Cover
LCD Menu Control Display
ENTER Button
UP Button
MODE Button
DOWN Button
5pin DMX OUT
5pin DMX In
Power Out
Power In
Ground Service Port
Fuse

9
Encore Prole Pro Color Lens Installation
Insert the lens kit (not included)
into the lens cone inside.
Insert (2x) knurled thumb
screws of the lens kit into
their respective gaskets, and
through the bar slots into the
lens kit housing, then tighten.
Gobo Holder
To install Gobo Holder, loosen the
(2x) thumb screws of Gobo Holder
Slot Cover and slide it forward.

10
FLAMMABLE MATERIAL WARNING
Keep xture minimum 5.0 feet (1.5m) away from ammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER
CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT
ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 6.6 FEET (2 METERS)
MINIMUM DISTANCE OF INFLAMMABLE MATERIALS
FROM THE SURFACE 1.6 FEET (0.5 METER)
MAXIMUM TEMPERATURE OF EXTERNAL SURFACE 185° F (85°C)
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single xture or multiple xtures to any metal truss/structure or placing the
xture(s) on any surface, a professional equipment installer MUST be consulted to determine if the
metal truss/structure or surface is properly certied to safely hold the combined weight of the xture(s),
clamps, cables, and accessories.
Fixture ambient operating temperature range is 14° to 113°F. (-10° to 45°C).
Do not Use xture under or above this temperature.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were
unauthorized personnel might reach the xture by hand.
NEVER stand directly below the xture(s) when rigging, removing or servicing.
Overhead xture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable.
Allow approximately 60 minutes for the xture to cool down before servicing.
RIGGING
Overhead rigging requires extensive experience, including among others calculating working
load limits, installation material being used, and periodic safety inspection of all installation
material and the xture. If you lack these qualications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE (NOT INCLUDED) THAT
MEETS ALL LOCAL, NATIONAL, AND COUNTRY CODES AND REGULATIONS WHENEVER
INSTALLING FIXTURE IN A SUSPENDED ENVIRONMENT!
Encore Prole Pro Color Installation

11
Encore Profile Pro Color Installation
Always ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10 times the unit’s
weight. Always use safety cables that can hold 12 times the weight of the unit when installing the xture. This
equipment must be installed by a professional, and it must be installed in a place where it is out of the reach of
people’s grasp.
The Encore Prole Pro Color is fully operational in three different mounting positions; hanging upside-down,
mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at least 12m (40ft) away
from any ammable materials (decoration etc.).
OVERHEAD RIGGING: The Encore Prole Pro Color includes two rigging options.
1) OMEGA BRACKET - Mount the xture with an appropriately rated professional grade rigging clamp (not
included) to the included Omega Bracket using an M12 screw and nut (not included). With the rigging clamp
securely attached to the Omega Bracket, attach the Omega Bracket to the xture by inserting both of the 1/4-turn
quick-lock fasteners into the aligning holes on the xture yoke bracket, and turning each clockwise to secure.
MAKE SURE THE OMEGA BRACKET IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!
2) MOUNTING YOKE - Mount the xture with an appropriately rated professional grade rigging clamp (not
included) to the xture yoke bracket center hole using an M12 screw and nut (not included). MAKE SURE THE
CLAMP IS SECURELY ATTACHED BEFORE RIGGING FIXTURE!
SAFETY CABLE: Pull the safety-cable through the opening located on the rear of the unit and over the trussing
system or a safe xation spot. Insert the end in the carabiner and tighten the safety screw. Always use and install
a safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.
CLAMP INSTALLATION
When mounting xture to truss, be sure to secure an appropriately rated professional grade rigging clamp to
either the included Omega Brackets using an M10 screw tted through the center hole of the Omega Brackets,
or to the Mounting Yoke. The xture provides a built-in rigging point for a SAFETY CABLE (not included). Be
sure to only use one of the designated rigging point for the safety cable and never secure a safety cable to the
carrying handle.
Safety Cable
(Not included)
A Truss Clamp can be
mounted directly to yoke
Mounting Holes for Omega
Bracket Installation
S A F E T Y C A B L E
ALWAYS ATTACH A SAFETY WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS. It’s not enough
that the Safety Cable is attached to the fixture, it must also be routed around the truss or secure
fixation point and both ends securely affixed to the carabiner attached at the built-in rigging point.
Encore Prole Pro Color Installation

12
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting moving head xtures, and lasers, which
are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ lighting
xtures, can cause severe internal damage including burning to optics, dichroic color lters, glass and
metal gobos, prisms, animation wheels, frost lters, iris, shutters, motors, belts, wiring, discharge
lamps, and LEDs.
This issue is not specic to ADJ lighting xtures, it is a common issue with lighting xtures from all
manufacturers. Although there is no true way to fully prevent this issue from happening, the following
guidelines can prevent any potential damage from occurring if followed. Contact ADJ Service for more
details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS WHILE
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
Encore Prole Pro Color Installation

13
SYSTEM MENU
The xture includes an easy to navigate system-menu control panel display where all necessary settings
and adjustments are made. (See image below) During normal operation, pressing the MENU button once
will access the xture’s main menu. Once in the main menu, you can navigate through the different
menu’s with the UP, DOWN, and MENU buttons. When you reach a eld that requires adjusting, press
the ENTER button to access that eld and use the UP and DOWN buttons to adjust the eld. Pressing
the ENTER button once more to conrm your setting. You may exit the menu’s at any time without
making any adjustments by pressing the MENU button.If there are no changes/adjustments made within
10 seconds, the unit will revert back to the setting made under “No DMX State”.
Encore Prole Pro Color System Menu

14
Supports Software Versions: 1.04
MENU OPTIONS / VALUES (Default Settings in BOLD)DESCRIPTION
DMX Address 001 001 - 512
Shall be used to set the units starting
DMX address channel. Depending
on set DMX mode, unit shall not
allow to be addressed any higher
that will not allow for all channels to
be accessed from the console.
DMX Channel Mode 2CH/4CH/13CH/14CH/16CH Note: When using 2 channel DMX mode, user must use the manual color
and/or CCT channels to set the desired color.
Shall be used to set the units desired
DMX mode.
Personality
Status Lost Dmx Black/Hold No dmx status
LCD Set
Display ON/OFF 30S blackout display
Key Lock ON/OFF
Flash ON/OFF No DMX Flash
Invert ON/OFF Screen 180°ip
Disp Set
Address
Chan. Val
MastSlav
Starting DMX Address
Shall display last active DMX value
Master / Slave
Temp.C/F C/FSet temperature unit
Dim Mode
Standard Standard mode
Stage Stage mode
TV TV mode
Architectural Architectural mode
Theatre Theater mode
Stage 2 Stage 2 mode
Dim Spd 0-10s
Disp. Set
ADDR
Disp.CH
Slave
Dim Curve
Linear
Square
Inv.Squa
S. Curve
Frequen
900HZ,1000HZ,1100HZ, 1200HZ, 1300HZ,
1400HZ, 1500HZ, 2500HZ, 4000HZ, 5000HZ,
10KHZ, 15KHZ, 20KHZ, 25KHZ
MasterSw ON/OFF Master transmit the signal(should be
on then can do the master & slave)
USB_Data ON/OFF
DFSE ON/OFF Default Setting
Manual Control ManCtrl
Red=XXX
Green=XXX
Blue=XXX
White=XXX
Amber=XXX
Lime=XXX
Strobe=XXX
Dimmer=XXX
CCT=XXX
Tint=XXX
Service Calibrat
Password
Red
Green
Blue
White
Amber
Lime
Info
TimeInfo
Current Current lamp running time(H)
Total Total lamp running time (H)
Last Last cleared machine running time
Password Clear password (50/60)
Clear ON/OFF
TempInfo xxxF/xxxC
ErrInfo XXX
ModelInf Encore Prole Pro Color
Software V1.04
Encore Prole Pro Color System Menu

15
Encore Prole Pro Color System Menu
DMX Address - In this menu you can nd and set your desired DMX address.
Channel Mode - In this menu you can nd and set your desired DMX channel mode.
Function Status - This menu setting is used as a precaution mode in case the DMX signal is lost or
interrupted. The operating mode chosen in this menu is the running mode the xture will go into when
the DMX signal is lost. Listed below are the 3 modes.
•Hold - This setting will have the xture stay in the last DMX setup.
•Black - This setting will have the xture automatically go into stand by mode.
LCD Set - In this menu you you are able to activate/deactivate the display blackout and activate/deactivate the
display lock.
Temp.C/F - Set temperature display between Celsius and Fahrenheit.
Dim Mode - In this menu you are able to select your desired dimmer mode and adjust the dimming
speed time.
Disp. Set - In this menu you you are able to activate/deactivate the display blackout and activate/deactivate the
display lock.
Dim Curve - Set Dimming Curve
Frequen - Set xture frequency.
MasterSW- This transmits the DMX signal via a master & slave control hierarchy.
Service - In this menu you are able to access and adjust/change: the calibration (effect adjust) and
restore the factory settings.
USB_Data - Turns USB data access on or off.
DFSE - Turns Default Setting on or off.
Time Info - Select between Current xture running time and Fixture total running time. Only the Fix‐
ture Current xture running time can be cleared
TempInfo - Displays xture temperature.
Err.Info - Displays xture error information.
ModelInf - Displays xture information.
Software - Displays current software version.
ManCTRL - Manual Dimmer Control.
Strobe=XXXX - Test Strobe Effect.
Calibrate - Calibrate LED, password protected.

16
DIMMER
100%
50%
10%
0%
Time (ms)
0 Sec Rise Time Down Time
Dimming Curve Ramp
Effect
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Stage 2 0 1100 0 1660
0
255
0
255
Encore Prole Pro Color Multiple Unit Power Linking
Encore Prole Pro Color Dimmer Mode Chart
With this feature you can connect the xtures to one another using the power cable input and
output sockets.
NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES AS THE POWER
CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAXIMUM POWER OUTPUT
ON THIS FIXTURE! CHECK SILK SCREEN FOR MAXIMUM AMPERES.

17
Encore Profile Pro Color DMX Set Up
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication
between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the
controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a
DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the
shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore Prole Pro Color can be controlled
via DMX-512 protocol. The Encore Prole Pro Color has multiple DMX channel modes. Your unit and
your DMX controller requires a 5-pin XLR connector for data input and data output. If you are making your
own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at
almost all pro lighting stores). Your cables should be made with a male and female XLR connector on
either end of the cable. Also remember that DMX cable must be daisy chained and cannot be split.
Special Note: Line Termination.
When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected
between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female
XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ
part number Z-DMX/T) will decrease the possibilities of erratic behavior.

18
Encore Profile Pro Color DMX Addressing
DMX ADDRESSING
All xtures should be given a DMX starting address when using a DMX controller, so the correct xture
responds to the correct control signal. This digital starting address is the channel number from which
the xture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment of
this starting DMX address is achieved by setting the correct DMX address on the digital control display
on the xture.
You can set the same starting address for all xtures or a group of xtures, or set different addresses
for each individual xture. Setting all xtures to the same DMX address will cause all xtures to react
in the same way, in other words, changing the settings of one channel will affect all the xtures
simultaneously.
If you set each xture to a different DMX address, each unit will start to “listen” to the channel number you
have set, based on the quantity of DMX channels of each xture. That means changing the settings of one
channel will only affect the selected xture.

19
Encore Profile Pro Color DMX Channel Functions & Values
Supports Software Versions: ≥ 1.04
Features subject to change without notice
Modes Values Function
2Ch 4Ch 13Ch 14Ch 16Ch
1 1 1 Red
000-255 0% - 100%
2 2 2 Green
000-255 0% - 100%
3 3 3 Blue
000-255 0% - 100%
4 4 4 White
000-255 0% - 100%
5 5 5 Amber
000-255 0% - 100%
6 6 6 Lime
000-255 0% - 100%
1 7 7 7 000‐255 COLOR TEMPERATURE LINEAR 2500K-10000K
2 8 8 8
COLOR TEMPERATURE PRESETS
000-031 No Function
032-076 2700K
077-121 3200K
122-166 4000K
167-211 5600K
212-255 6500K
9 9 9
COLOR TEMPERATURE RED to GREEN
0 No Function
001-255 Shift CT Red to Green
10 10 10 000‐255 64 Color Macros (See Color Macros Chart)
11 11 11
Shutter
000-031 Shutter Closed (LEDs OFF)
032-063 Shutter OPEN (LEDs ON)
064-095 Strobe effect slow to fast
096-127 Shutter OPEN (LEDs ON)
128-159 Pulse effect in sequences
160-191 Shutter OPEN (LEDs ON)
192-223 Random strobe effect slow to fast
224-255 Shutter OPEN (LEDs ON)
248–255 Open
1 3 12 12 12 Dimmer Intensity
000-255 0 to 100%
2 4 13 13 13 000‐255 Dimmer Fine 16bit

20
Encore Profile Pro Color DMX Channel Functions & Values
Supports Software Versions: ≥ 1.04
Features subject to change without notice
Modes Values Function
2Ch 4Ch 13Ch 14Ch 16Ch
14 14
Dim Modes
000-020 Standard
021-040 Stage
041-060 TV
061-080 Architectural
081-100 Theatre
101-120 Stage 2
Dimming Speed
121 0.1 s
122 0.2 s
123 0.3 s
124 0.4 s
125 0.5 s
126 0.6 s
127 0.7 s
128 0.8 s
129 0.9 s
130 1 s
131 1.5 s
132 2 s
133 3 s
134 4 s
135 5 s
136 6 s
137 7 s
138 8 s
139 9 s
140 10 s
141-255 Default to Unit Setting
15
Dim Curves
000-020 Linear
021-040 Square
041-060 Inv. Squa
061-080 S. Curve
081-255 No Function
