ADJ INNO POCKET Z4 User manual

User Instructions
10/20
INNO POCKET Z4

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 2
©2020 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are subject
to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products,
LLC. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this
document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-ADJ
Products, LLC brands and product names are trademarks or
registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim
any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe,
unsufcient and negligent as- sembly, installation, rigging, and
operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment.
Please turn off all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 3
Unpacking: Thank you for purchasing the Inno Pocket Z4 by ADJ
Products, LLC. Every Inno Pocket Z4 has been thoroughly tested
and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully
inspect your xture for any damage and be sure all equipment
necessary to operate the unit has arrived intact. In the event
damage has been found or parts are missing, please contact our toll
free customer support number for fur- ther instructions. Please do
not return this unit to your dealer without contacting customer
support rst.
Introduction: The Inno Pocket Z4 is a DMX intelligent, zooming,
moving head, mini LED xture. The Inno Pocket Z4 can operate as
a stand alone xture or in a Primary/Secondary set up. The Inno
Pocket Z4 has three operating modes; sound active mode, show
mode, DMX controlled. This xture is suitable for theaters, studios,
retail stores, and other similar locations. For best results use fog or
special eects smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question
should you encounter problems during your set up or initial
operation. You may also visit us on the web at www.adj.com for any
comments or suggestions. Service Hours are Monday through
Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Phone [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
INNO POCKET Z4 GENERAL INFORMATION

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 4
INNO POCKET Z4 GENERAL INSTRUCTIONS
INNO POCKET Z4 FEATURES
INNO POCKET Z4 HANDLING PRECAUTIONS
INNO POCKET Z4 WARRANTY REGISTRATION
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
• DMX-512 Protocol Compatible (3 DMX Channel Modes: 16
Chan- nels, 19 Channels, & 22 Channels)
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Internal Microphone
• Digital Display for Address and Function Setting
• 4 Preprogrammed Shows
• UC IR Compatiable (Not Included)
The Inno Pocket Z4 carries a 2 year (730 days) limited warranty.
Please ll out the enclosed warranty card to validate your purchase
and warranty. You may also register your product online at
www.adj.com. All returned service items whether under warranty or
not, must be freight pre-paid, and accompany a return authorization
(R.A.) number. If the unit is under warranty you must provide a copy
of your proof of purchase invoice. Please contact ADJ Products,
LLC customer support for a R.A. number.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your warranty. In the
unlikely event your unit may require service please contact ADJ
Products, LLC.
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting
damages caused by the non-observance of this manual or any
unauthorized modication to this unit.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 5
INNO POCKET Z4 SAFETY PRECAUTIONS
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit rain
or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt- age for
your unit.
• Do not attempt to operate this unit if the power cord has been frayed
or broken.
• Do not attempt to remove or break o the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical shock
and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out- doors
voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
• • Cleaning -The xture should be cleaned only as recommended by the
manufacturer. See page 29 for cleaning details.
• Heat -This xture should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances (including ampliers)
that produce heat.
• The xture should be serviced by qualied service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 6
INNO POCKET Z4 MOUNTING
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety
attachment, e.g. and appropriate safety cable. Never stand directly
below the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including
calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and unit. If you
lack these qualications, do not attempt the installation yourself. The
installation should be checked by a skilled person once a year.k
The Inno Pocket Z4 is fully operational in three different mounting
positions, hanging upside-down from a ceiling, set on a at level surface,
or on its side attached to trussing. Be sure this xture is kept at least 0.5m
away from any ammable materials (decoration etc.). Always use and
install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails (see next page).

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 7
INNO POCKET Z4 MOUNTING
NOTICE: The suitable environmental temperature for this lighting
xture is between -25˚ C to 45˚ C. Do not place this lighting xture in
an environment where the temperatures are under or above the
temperatures stated above. This will allow the xture to run at its best
and help prolong the xture life.
1. Truss Clamp
2. Clamp Bolt
3. Truss Clamp Mounting Bracket
4. Eye-Screw
5. Safety-Cable
Screw one clamp via a M12 screw and nut to the included bracket.
Attach the bracket using the included screws to the bottom of the
Inno Pocket Z4. Attach the eyebolt to the bottom of the base and pull
the safety-cable through the screw and over the trussing system or
a safe xation spot. Insert the end in the carbine and tighten the
safety screw.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 8
INNO POCKET Z4 DMX SET UP
Figure 1
Power Supply: The ADJ Inno Pocket Z4 contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal
protocol used by most lighting and controller manufactures as a form
of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to
the xture. DMX data is sent as serial data that travels from xture to
xture via the DATA “IN” and DATA “OUT” XLR terminals located on
all DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX xtures try to use the shortest cable path possible. The
order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned a
DMX address of 1 may be placed anywhere in a DMX line, at the
beginning, at the end, or anywhere in the middle. Therefore, the rst
xture controlled by the controller could be the last xture in the
chain. When a xture is assigned a DMX address of 1, the DMX
controller knows to send DATA assigned to address 1 to that unit, no
matter where it is located in the DMX chain.

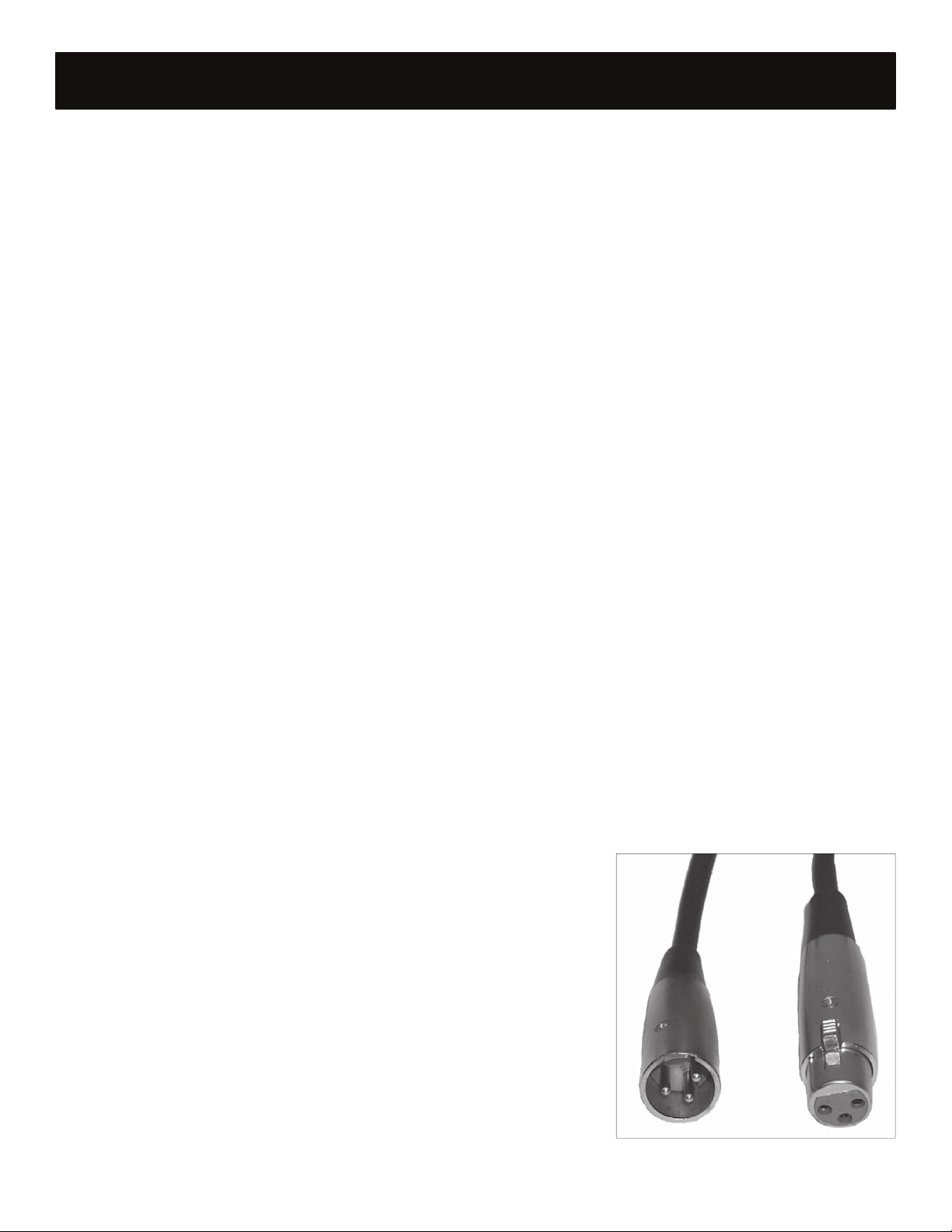

Data Cable (DMX Cable) Requirements (For DMX and primary/
Secondary Operation): The Inno Pocket Z4
can be controlled via DMX-512 protocol. The
Inno Pocket Z4 three DMX channel modes;
16 channel mode, 19 channel mode, & 22
channel mode. The DMX address is set
electronically using the controls on the front
panel of the unit. Your unit and your DMX
controller require an approved DMX-512 110
Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-
Cable DMX cables. If you are making your
own cables, be sure to use standard 110-120

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 9
INNO POCKET Z4 DMX SET UP
Ohm shielded cable (This cable may be purchased at almost all
professional sound and lighting stores). Your cables should be made
with and female XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained and cannot be
split.
Notice: Be sure to follow gures two and three when making your
own cables. Do not use the ground lug on the XLR connector. Do not
con- nect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing.
Grounding the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3DMX +
DMX -
COMMON
DMX512 OŠT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid
erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is con- nected between pins 2 and 3 of a male XLR connector
(DATA + and DATA -). This unit is inserted in the female XLR
connector of the last unit in your daisy chain to terminate the line.
Using a cable terminator (ADJ part number Z-DMX/T) will decrease
the possibilities of erratic behavior.
1
2
3
Termination reduces signal errors and avoids
signal transmission problems and interference.
It is always advisable to connect a DMX terminal,
(Resistance 120 Ohm 1/4 W) between PIN 2
(DMX-) and PIN 3 (DMX +) of the last fixture.
Figure 4
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 10
INNO POCKET Z4 DMX SET UP
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512
data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting
standard 5-pin data cables in to a 3-pin line a cable adapter must be
used, these adapters are readily available at most electric stores. The
chart below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out) 5-Pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Pin 4 - Do Not Use
Not Used Pin 5 - Do Not Use

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 11
INNO POCKET Z4 SYSTEM MENU
DMX Address
Channel Mode
Primary
Secondary 1
Show Mode
Sound Mode
Sound Sense
DMX Last State
Secondary 2
Dimmer Mode
Pan Invert
Tilt Invert
LED
Display
Auto Test
Manual Test
Temperature
Fixture Hours
Software Version
Reset
White Balance

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 12
INNO POCKET Z4 SYSTEM MENU
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button for at
least 3 seconds. To exit without making any adjustments press
the MENU button. The display will lock after 30 seconds, press
the MENU button for 3 seconds to unlock.
ADDR - DMX Address Setting.
1. Press the either the MENU,UP, or DOWN buttons until “ADDR”
is displayed, press ENTER.
2. The current address will now be displayed and ashing. Press the
UP or DOWN buttons to nd your desired address. Press ENTER
to set your desired DMX address.
CHND - This will let select your desired DMX channel mode.
1. Press the either the MENU button until “CHND” is displayed,
press ENTER. The current DMX channel mode will be displayed.
2. Press the UP or DOWN buttons to nd your desired DMX channel
mode and press ENTER to conm and exit.
ScND - This will let you set unit as a Primary or Secondary in a
primary/Secondary conguration.
1. Press the MENU button until “ScND” is displayed, press
ENTER. Either “Pr1”, “SEC1”, or “SEC2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, press ENTER to conm.
NOTE: In a Primary/Secondary conguration you can set one xture
to Primary and then set the next xture to “SEC2”, the xtures will
now have contrast movement to each other.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 13
INNO POCKET Z4 SYSTEM MENU
SHND - Show modes 1-4. Show mode can run with or without
sound active mode active.
1. Press the MENU button until “SHND” is displayed, press ENTER.
2. “Sh X” will now be displayed, “X” representing a number between
1-4. Use the UP or DOWN buttons to nd your desired show.
3. When you have found your desired show press ENTER, then
press and hold the MENU button for at least 3 seconds to
activate.
SOUN - Sound Active mode.
1. Press the MENU button until “SOUN” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to activate sound active mode, or
“OFF” to deactivate sound active mode.
3. Press ENTER to conrm.
SENS - In this mode you can adjust the sound sensitivity.
1. Press the MENU button until “SENS” is displayed, press ENTER.
2. A number between 0-100 will be displayed. Press the UP or
DOWN buttons to adjust the sound sensitivity. 0 being the least
sensitive, and 100 being the most sensitive.
3. When you have found your desired setting press ENTER to
conrm.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 14
INNO POCKET Z4 SYSTEM MENU
DNST - This mode can be used as a precaution mode, that in
case the DMX signal is lost, interrupted, or power is lost, the
operating mode chosen in the setup is the running mode the
xture will go into when the DMX signal is lost. You can also set
this as the operating mode you would like the unit to return to
when power is applied.
1. Press the MENU button until “DNST” is displayed, and either
“PrSE”, “BLND”, or “LAST” will be displayed beneath.
2. Press ENTER and the bottom choice will begin to ash. Use the
UP or DOWN buttons to choose an operating mode you would
like the unit to start up in when power is applied or the DMX signal
is lost.
•LAST - If the DMX signal is lost the xture will stay in the last
DMX setting. If power is applied and this mode is set, the unit will
automatically go into the last DMX set up.
•PrSE (Primary Secondary) - If the DMX signal is lost or power is
applied, the unit will automatically go into Primary Secondary
mode and run a built-in show.
•BLND (Blackout) - If the DMX signal is lost or interrupted, the unit
will automatically go into stand by mode.
3. Press ENTER to conrm your desired set up.
DIND - This will let select your desired dimmer curve.
1. Press the MENU button until “DIND” is displayed, and press
ENTER. 1 of 5 dimmer curves will be displayed. “STDA”
(standard), “STGE” (stage), “TV” (TV), “ARAL” (Architectural), or
“THAL” (Theatre). See the dimmer curve chart on page 28 for
more info.
2. Press the UP or DOWN buttons to nd your desired dimmer curve
and press ENTER to conrm and exit.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 15
INNO POCKET Z4 SYSTEM MENU
PINT - Pan Inversion
1. Press the MENU button until “PINT” is displayed, press ENTER.
Either “Yes” or “No” will be displayed.
2. To activate the Pan inversion press the UP or DOWN buttons until
“Yes” is displayed, press ENTER to conrm. To deactivate Pan
inversion, select “No” and press Enter.
TINT - Tilt Inversion
1. Press the MENU button until “TINT” is displayed, press ENTER.
Either “Yes” or “No” will be displayed.
2. To activate the tilt inversion press the UP or DOWN buttons until
“Yes” is displayed, press ENTER to conrm. To deactivate tilt
inversion, select “No” and press Enter.
LED - With this function you can have the display back- light
turn off after 10 seconds.
1. Press the MENU button until “LED” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to keep the LED display on at all
times, or “OFF” to switch to have the LED display switch off after
10 seconds.
3. Press ENTER to conrm. To make you LED display reappear
again press any button.
DISP - This function will reverse the display 180º.
1. Press the MENU button until “DISP” is displayed, press ENTER.
2. Press ENTER to “ip” the display. Press ENTER to “ip” it again.
Press ENTER when you have made your desired setup.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 16
INNO POCKET Z4 SYSTEM MENU
TEST - This function will run a self test program.
1. Press the MENU button until “TEST” is displayed, press ENTER.
2. The xture will now run a self test.
MANU - In this submenu you are able to test the different
functions; pan, tilt, LEDs, zoom, dimmer, and strobe.
1. Press the MENU button until “MANU” is displayed, press ENTER.
2. Use the UP and DOWN buttons to scroll through the various
functions able for testing. Once you have found your desired
function you would like to test press ENTER.
3. After you have pressed ENTER, use the UP and DOWN buttons
to adjust the values and test the function. To exit press the MENU
button.
TEMP - With this function you can check the temperature of the
xture.
1. Press the MENU button until “TEMP” is displayed, press ENTER.
2. The xture temperature will now be displayed. Press MENU to
exit.
FHRS - With this function you can display the running time of
the unit.
1. Press the MENU button until “FHRS” is displayed, press ENTER.
2. The running time of the xture will now be displayed. Press
MENU to exit.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 17
INNO POCKET Z4 SYSTEM MENU
VER - Use this function to display the Software version of the
unit.
1. Press the either the MENU button until “VER” is displayed, press
ENTER.
2. The display will show the software version.
RSET - Use this function to reset the unit.
1. Press the MENU button until “RSET” is displayed, press ENTER.
2. The xture will now reset.
BALA - With this function you can adjust the RGB colors to
make your desired color.
1. Press the MENU button until “BALA” is displayed, press ENTER.
2. Use the UP or DOWN buttons to nd the color you wish to adjust.
3. Once you nd the color you want to adjust press ENTER, the
displayed value will begin to ash. Use the UP or DOWN buttons
to adjust the value. Once you have made your adjustment press
ENTER.
4. Repeat steps 2-3 until satised.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 18
INNO POCKET Z4 SYSTEM MENU
To enter the home position adjustment menu, unlock the display by
pressing the MODE button for at least 3 seconds. Then press the
ENTER button for at least 3 seconds to enter the home adjustment
menu. In this submenu you are able to adjust the original position of
the pan position and tilt position.
PINT - Adjustment of the pan position.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “PINT” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one
second to exit.
TINT - Adjustment of the tilt position.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “TINT” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one
second to exit.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 19
INNO POCKET Z4 SYSTEM MENU
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns,
dimmer and strobe. A DMX controller allows you to create unique
programs tailored to your individual needs.
1. The Inno Pocket Z4 has 3 DMX channel modes; 16 channel
mode, 19 channel mode, and 22 channel mode. See pages
21-27 for detailed description of the DMX values and traits.
2. To control your xture in DMX mode, follow the set-up
procedures on pages 7-9 as well as the set-up specications that
are included with your DMX controller.
3. Use the controller’s faders to control the various DMX xture
traits.
4. This will allow you to create your own programs.
5. Follow the instruction on page 11 to set the DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on
the last xture.
7. For help operating in DMX mode consult the manual included
with your DMX controller.
Sound Active Mode: This mode allows either single unit or several
units linked together, to run to the beat of the music.
1. Press the MENU button until “SOUN” is displayed, and press
ENTER. Press the UP or DOWN buttons so that “ON” is
displayed and press ENTER.
2. Press the MENU button until “SENS” is displayed, and press
ENTER. Use the UP and DOWN buttons to adjust the sound
sensitivity. Press ENTER when you have found your desired
sensitivity level.
Show Mode: This mode allows either a single unit or several units
linked together, to run one of four shows that you choose.
1. Press the MENU button until “SHND” is displayed, and press
ENTER.
2. Press the UP or DOWN buttons to nd your desired show, and
press ENTER.

ADJ Products, LLC - www.adj.com - Inno Pocket Z4 Instruction Manual Page 20
INNO POCKET Z4 SYSTEM MENU
Primary-Secondary Operation This function will allow you to link
up to 16 units together and operate without a controller. The units will
be sound activated. In Primary-Secondary operation one unit will act
as the controlling unit and the others will react to the controlling units
programs. Any unit can act as a Primary or as a Secondary.
1. Using approved DMX data cables, daisy chain your units
together via the XLR connector on the rear of the units.
Remember the Male XLR connector is the input and the Female
XLR connector is the output. The rst unit in the chain (Primary)
will use the female XLR connector only - The last unit in the chain
will use the male XLR connector only. For longer cable runs we
suggest a terminator at the last xture.
2. On the Primary unit press the MENU button until “ScND” is
displayed, and press ENTER. Use the UP and DOWN buttons to
scroll to the “Pr1” setting and press ENTER.
3. After setting the Primary unit to the Primary setting nd and set
your desired operating mode.
4. On the Secondary units press the MENU button until “ScND” is
displayed, and press ENTER. Choose either “SEC1” or “SEC2”
and press ENTER. See page 11 for more info.
5. The Secondary units will now follow the Primary unit.
