ADLINK IMB-M47 ATX is an industrial motherboard supporting 12/13th Generation Intel® Core™ i9/i7/i5/i3 desktop
processors, an Intel® Q670 Chipset, and 7 PCIe expansion slots to provide a cost-competitive embedded
computing solution. It includes high-speed data transfer interfaces such as PCIe 5.0, USB 3.2 Gen2, and SATA 6
Gb/s (SATA III), and dual-channel DDR5 3600/4000/4800 MHz RAM for industrial automation applications. With
industrial-grade I/O port design, the IMB-M47 offers a significant competitive advantage for embedded computing
applications in terms of device compatibility, durable connectivity, and extreme environment readiness.
1.1 Packing List
•IMB-M47 ATX motherboard
•Rear I/O shield
•M.2 screw kit
1.2 Optional Accessories
•CPU cooler for 65W CPU (Part Number: 32-20976-0000-A0)
•CPU cooler for 125W CPU (available by request only)
•2-port USB 2.0 cable with bracket (Part Number: 30-25010-3010)
•2-port USB 3.0 cable with bracket (Part Number: 30-25046-0100)
•1-port LPT cable with bracket (Part Number: 30-25019-2000)
•2-port COM cable with bracket (Part Number: 30-25116-0000-A0)

2 Introduction
This page intentionally left blank.

IMB-M47
Specifications 3
2 Specifications
2.1 Core System
CPU:
•Intel® Core™ i9-12900E, 5.00GHz, 16 Core, DDR5 4800MHz supported, 30M Cache, 65W TDP
•Intel® Core™ i9-12900TE, 4.80GHz, 16 Core, DDR5 4800MHz supported, 30M Cache, 35W TDP
•Intel® Core™ i7-12700E, 4.80GHz, 12 Core, DDR5 4800MHz supported, 25M Cache, 65W TDP
•Intel® Core™ i7-12700TE, 4.60GHz, 12 Core, DDR5 4800MHz supported, 25M Cache, 35W TDP
•Intel® Core™ i5-12500E, 4.50GHz, 6 Core, DDR5 4800MHz supported, 18M Cache, 65W TDP
•Intel® Core™ i5-12500TE, 4.30GHz, 6 Core, DDR5 4800MHz supported, 18M Cache, 35W TDP
•Intel® Core™ i3-12100E, 4.20GHz, 4 Core, DDR5 4800MHz supported, 12M Cache, 65W TDP
•Intel® Core™ i3-12100TE, 4.00GHz, 4 Core, DDR5 4800MHz supported, 12M Cache, 35W TDP
•Intel® Pentium® G7400E, 3.60GHz, 2 Core, DDR5 4800MHz supported, 6M Cache, 46W TDP
•Intel® Pentium® G7400TE, 3.00GHz, 2 Core, DDR5 4800MHz supported, 6M Cache, 35W TDP
•Intel® Celeron® G6900E, 3.00GHz, 2 Core, 4M Cache, DDR5 4800MHz supported, 46W TDP
•Intel® Celeron® G6900TE, 2.40GHz, 2 Core, 4M Cache, DDR5 4800MHz supported, 35W TDP
•Intel® Core™ i9-13900E, 5.20GHz, 24 Core, 36M Cache, DDR5 5600MHz supported, 65W TDP
•Intel® Core™ i9-13900TE, 5.00GHz, 24 Core, 36M Cache, DDR5 5600MHz supported, 35W TDP
•Intel® Core™ i7-13700E, 5.10GHz, 16 Core, 30M Cache, DDR5 5600MHz supported, 65W TDP
•Intel® Core™ i7-13700TE, 4.80GHz, 16 Core, 30M Cache, DDR5 5600MHz supported, 35W TDP
•Intel® Core™ i5-13500E, 4.60GHz, 14 Core, 24M Cache, DDR5 4800MHz supported, 65W TDP
•Intel® Core™ i5-13500TE, 4.50GHz, 14 Core, 24M Cache, DDR5 4800MHz supported, 35W TDP
•Intel® Core™ i3-13100E, 4.40GHz, 4 Core, 12M Cache, DDR5 4800MHz supported, 65W TDP
•Intel® Core™ i3-13100TE, 4.10GHz, 4 Core, 12M Cache, DDR5 4800MHz supported, 35W TDP
Chipset: Intel® Q670 Express Chipset
Memory: 4x 288-pin DDR5 NON ECC socket, dual-channel DDR5 3600/4000/4800 MHz, up to 128 GB (based
on CPU)
BIOS: AMI® UEFI BIOS, 256 Mb SPI Flash Memory
Hardware Monitor: CPU voltage
•+3.3V voltage
•+5V voltage
•+12V voltage
•CPU temperature
•System temperature
•CPU fan speed
•System fan speed

4 Specifications
2.2 I/O Interface
Expansion slots:
•1x PCIe x16 Gen5
•1x PCIe x8 Gen5
•2x PCIe x4 Gen4
•3x PCIe x1 Gen3
SATA: 8x SATA 6.0 Gb/s connectors, Intel® software RAID 0/1/5/10 support
USB:
•1x USB 3.2 Gen2 type C connector (rear)
•5x USB 3.2 Gen2 connectors (rear)
•2x USB 3.1 via pin headers
•2x USB 2.0 via pin headers
•2x USB 2.0 vertical connectors
COM: 2x RS-232/422/485 (rear), 4x RS-232 pin headers
Parallel Port: 1x LPT pin header
PS/2 Combo Port: 1x PS/2 keyboard/mouse pin header
DIO: 8-bit GPIO (shared with LPT header)
TPM: TPM 2.0
M.2 connectors:
•1x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
•1x M.2 (Key B, 3042/3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM socket for 4G/5G
•1x M.2 (Key M, 2242/2260/2280/25110) with PCIe x4 Gen4
2.3 Video
Interfaces: 1x VGA connector (rear), resolution up to 1920 x 1200 at 60 Hz, 1x HDMI 2.0b connector (rear)
resolution up to 4096 x 2160 at 30 Hz, 1x DP 1.4++ connector (rear), resolution up to 4096 x 2160 at 60 Hz
2.4 Audio
Audio Codec: Realtek® ALC897
Interfaces: 1x Mic-in, 1x Line-in, and 1x Line-out connectors (rear)
2.5 LAN
LAN1: Intel® I226-V via RJ45 connector, with 10/100/1000/2500 Mbps
LAN2: Intel® I226-LM via RJ45 connector, with 10/100/1000/2500 Mbps, vPro support
LAN3:Intel® I226-V via RJ45 connector, with 10/100/1000/2500 Mbps

IMB-M47
Specifications 5
2.6 Temperatures
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
2.7 Humidity
60°C at 90% RH, non-condensing
2.8 Certificate (EMC)
CE/FCC Class B
2.9 Form Factor
ATX: 305 mm x 244 mm (W x L)
2.10 Operating Systems
Microsoft® Windows® 10, 64-bit
Microsoft® Windows® 11, 64-bit

6 Specifications

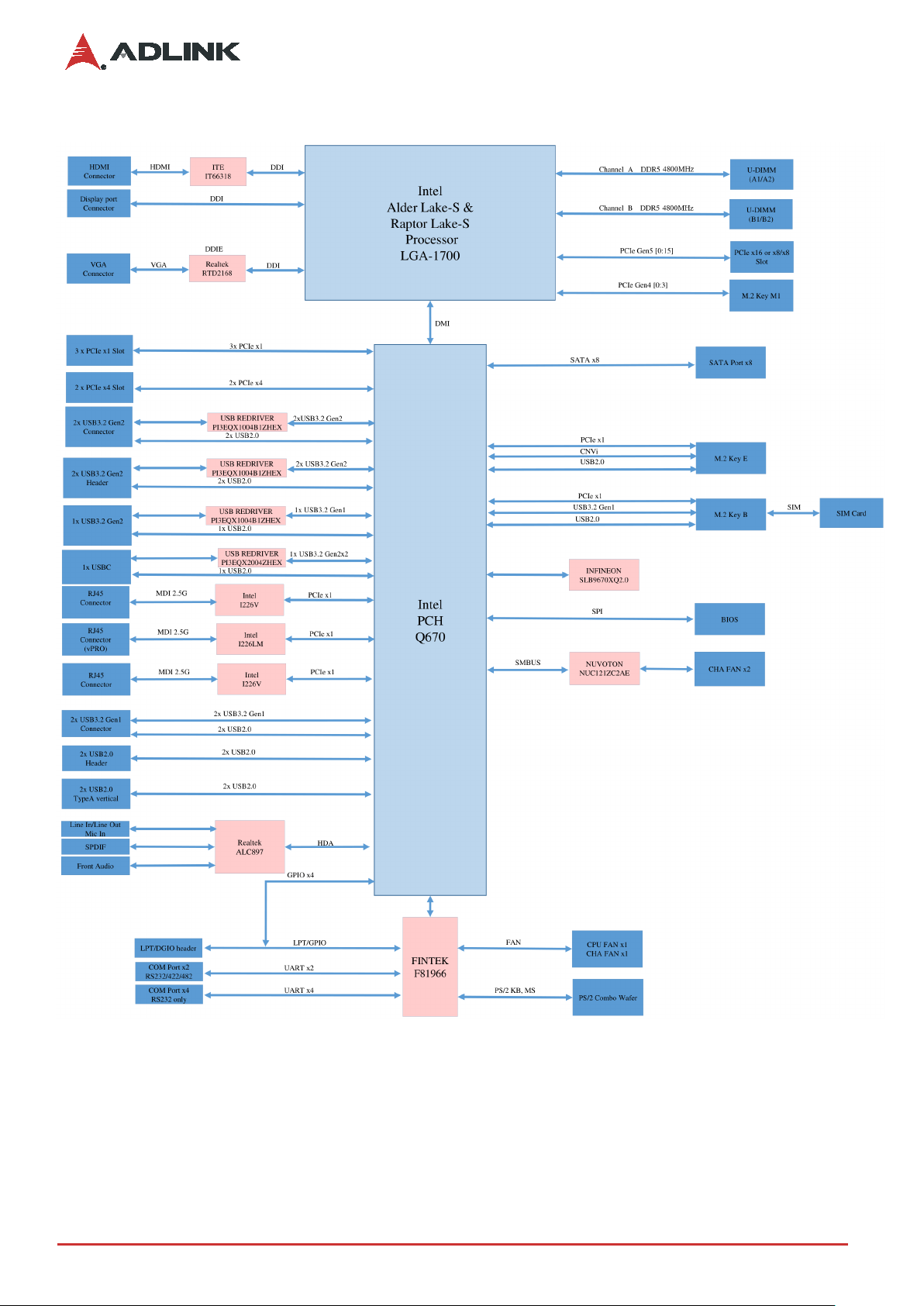

2.11 Functional Block Diagram
Figure 1: Functional Block Diagram

IMB-M47
Mechanical Layout 7
3 Mechanical Layout
3.1 Connector Locations

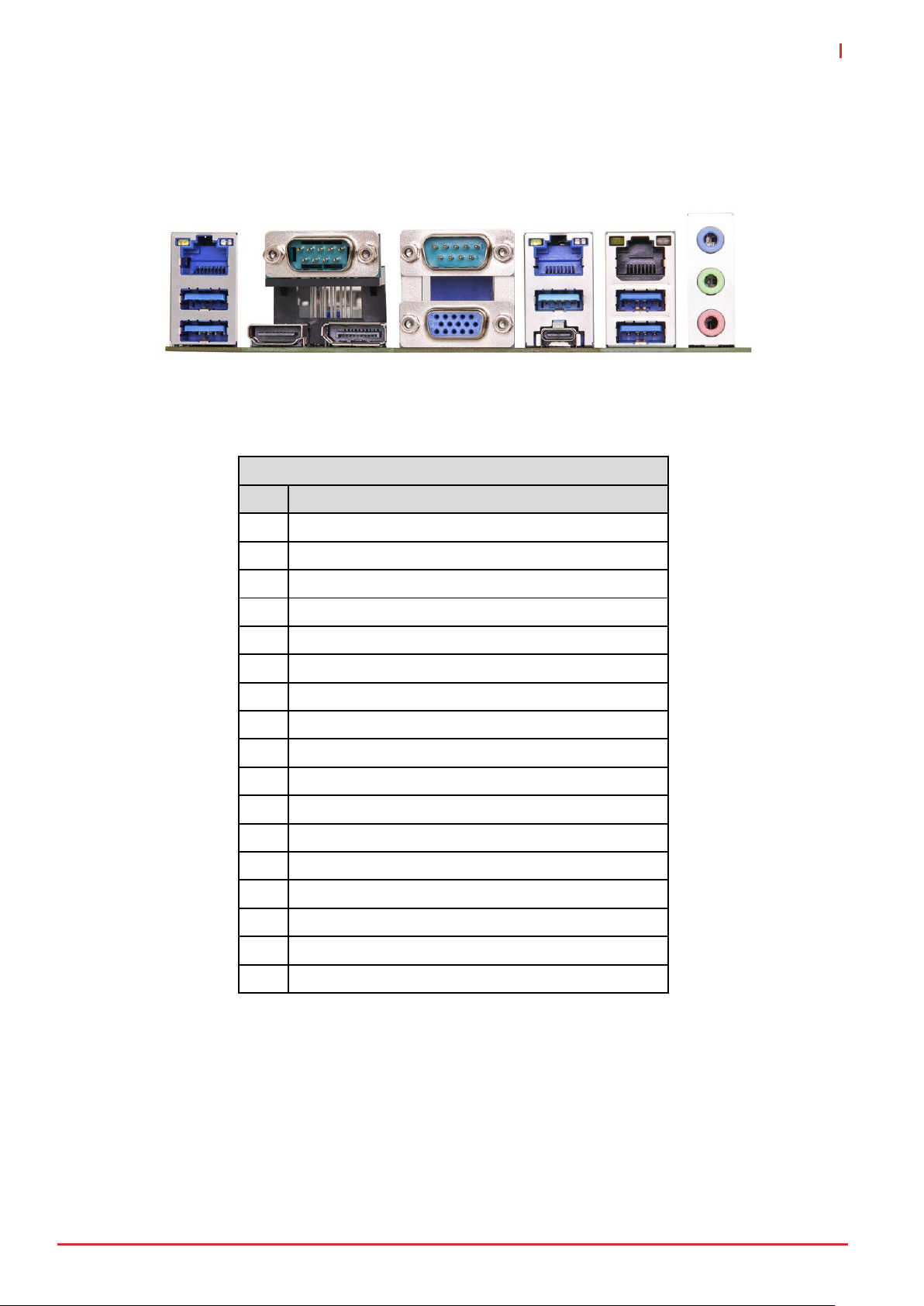

Figure 2: IO Panel Connector Locations
Table 1: IO Panel Connector Definitions
IO Panel Connectors
Item
Description
A USB 3.2 Gen2 Port
B USB 3.2 Gen2 Port
C RJ45 LAN Port (LAN3)
D COM Port (COM1) (RS232/422/485)
E COM Port (COM2) (RS232/422/485)
F RJ45 LAN Port (LAN2)
G RJ45 LAN Port (LAN1)
H Line in (light blue)
I Line out (lime)
J Mic in (pink)
K USB 3.2 Gen2 Port
L USB 3.2 Gen2 Port
M USB 3.2 Gen2 Port
N USB 3.2 Gen2x2 Type-C Port
O D-Sub Port (VGA1)
P DisplayPort (DP1)
Q HDMI Port (HDMI1)
A
B
H
I
C
D
E
F
G
J
K
L
M
N
O
P
Q

8 Mechanical Layout

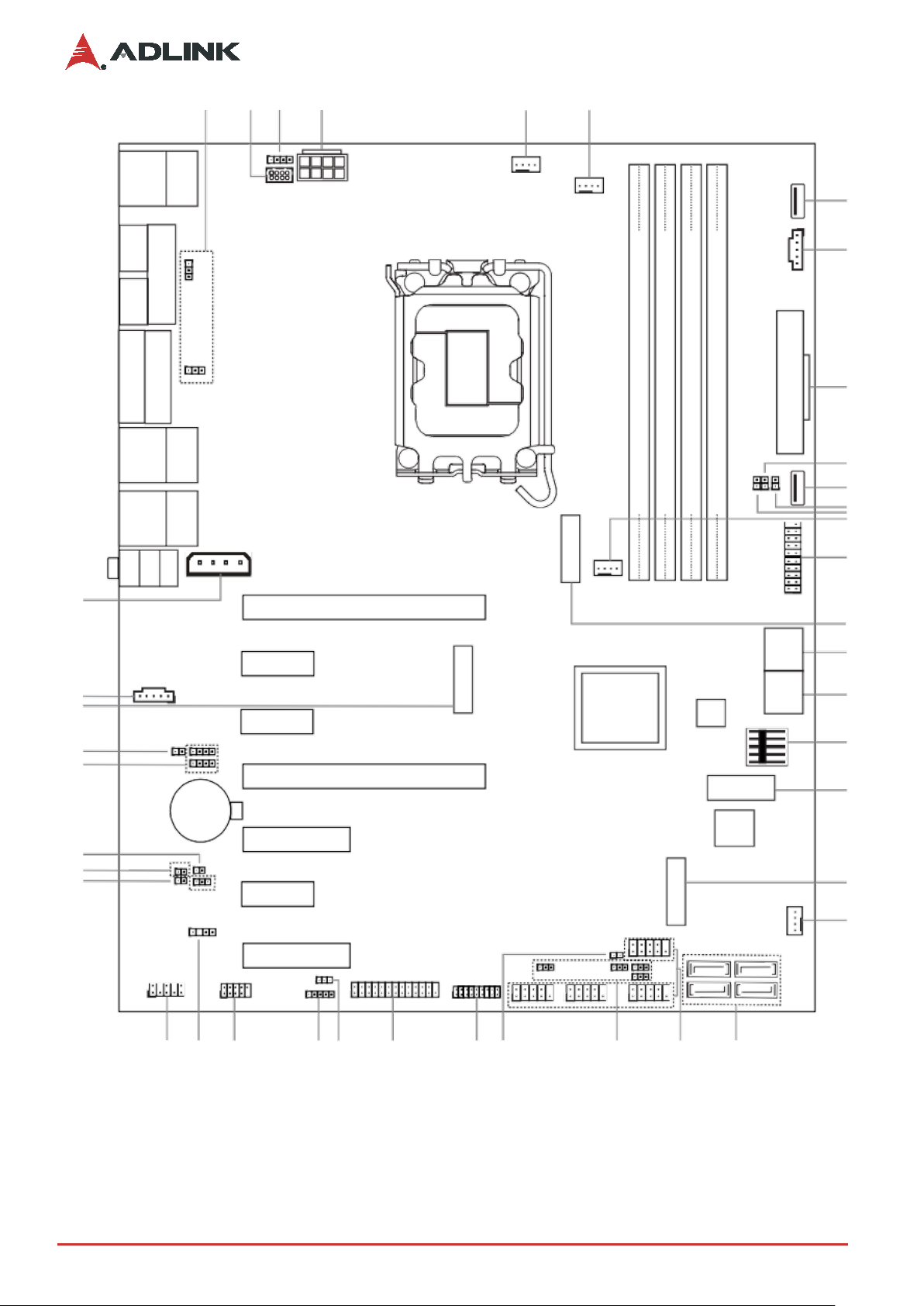

Figure 3: Onboard Connector Locations
1
2
3
4
5
6
7
8
9
11
12
13
14
10
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
41
40
39
38
37
PCIE1
PCIE2
PCIE3
PCIE4
PCIE5
PCIE6
PCIE7
CMOS
Battery
DDR5_A1
DDR5_A2
DDR5_B1
DDR5_B2

IMB-M47
Mechanical Layout 9
Table 2: Onboard Connector Definitions
Onboard Connectors
Item Description Remarks
1 COM Port Pin9 PWR Setting Jumpers
PWR_COM1~2 (For COM Port1~2)
2 PS/2 Keyboard/Mouse Header
3 LAN LED Headers
I225_LED3 (For LAN3 Port)
4 ATX 12V Power Connector ATX12V1
5 Chassis Fan Connectors (+12V) CHA_FAN1
6 CPU Fan Connector (+12V)
7 USB 2.0 Port USB2_13
8 PSU_SMB1
9 24-pin ATX Power Input Connector ATXPWR1
10 Chassis Intrusion Header CI1
11 USB 2.0 Port USB2_12
12 PWR LOSS Jumper PWR_LOSS1
13 Chassis Intrusion Header CI2
14 Chassis Fan Connector (+12V) CHA_FAN3
15 USB 3.2 Gen1 Header USB3_5_6
16 M.2 Key-M Socket M2_M1
17 SATA3 Connectors SATA3_4~5
18 SATA3 Connectors SATA3_6~7
19 System Panel Header PANEL1
20 M.2 Key-B Socket M2_B1
21 M.2 Key-M Socket M2_M2
22 Chassis Fan Connector (+12V) CHA_FAN2
23 SATA3 Connectors SATA3_0~3
24 COM Port Headers (RS232) COM3~6
25 COM Port Pin9 PWR Setting Jumpers
PWR_COM3~6 (For COM Port3~6)
26 ATX/AT Mode Jumper SIO_AT1
27 ESPI Header ESPI1
28 Printer Port / GPIO Header LPT_GPIO1
29 Digital Input / Output Default Value
Setting
JGPIO_SET1
30 Digital Input / Output Power Select JGPIO_PWR1
31 USB 2.0 Header USB2_10_11
32 SPDIF Header SPDIF1
33 Front Panel Audio Header HD_AUDIO1

10 Mechanical Layout
Onboard Connectors
34 Buzzer BUZZ2
35 Clear CMOS Headers CLRMOS1~2
36 PWR_BAT1
37 LAN LED Headers (For LAN1~2 Port) I225_LED1
I225_LED2
38 DACC1
39 M.2 Key-E Socket M2_E1
40 5-pin Thunderbolt AIC Connector TB1
41 PCIe Power Connector PCIE_PWR1

IMB-M47
Mechanical Layout 11

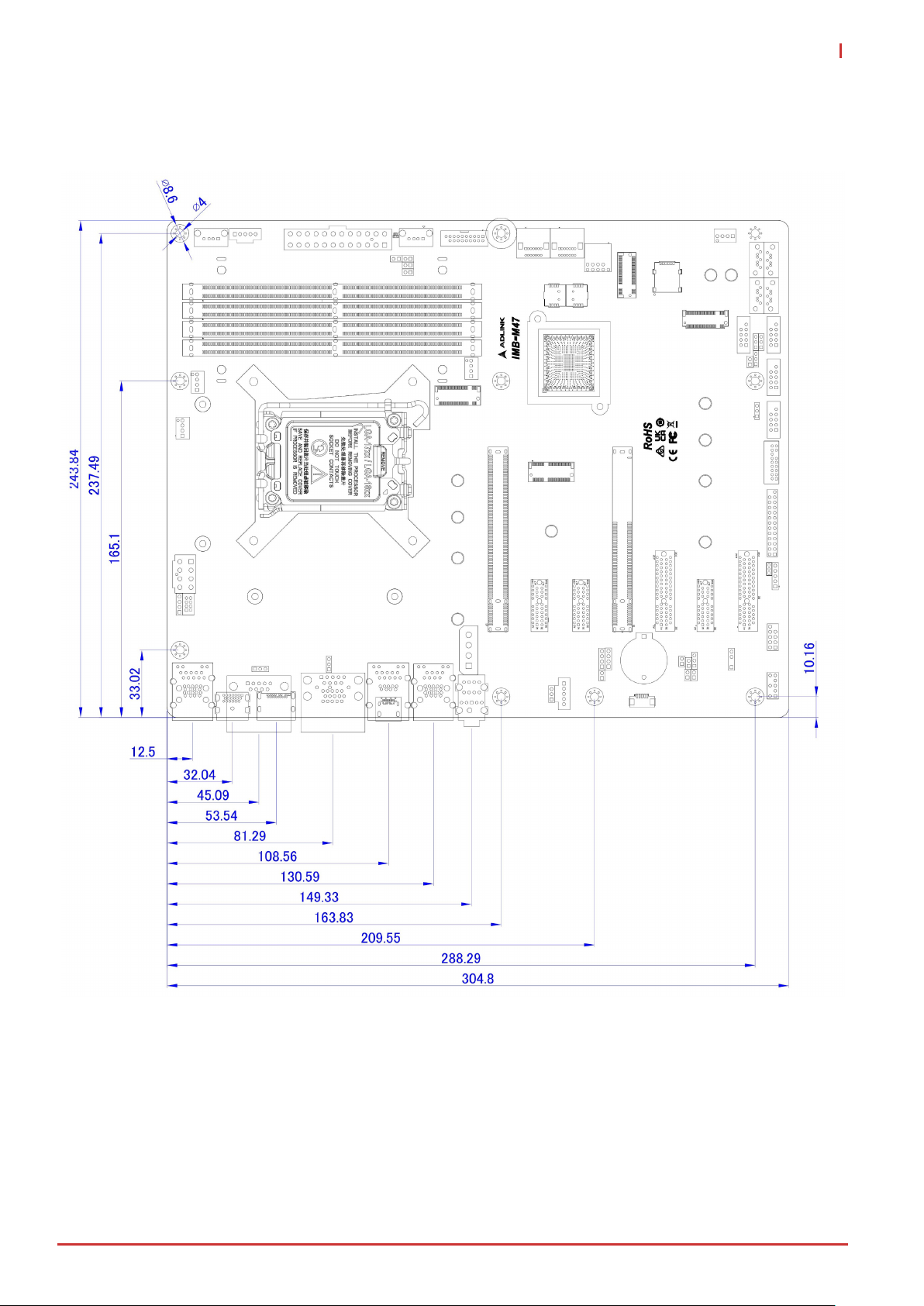

3.2 Mechanical Dimensions
Top View
Dimensions: mm
Figure 4: Mechanical Dimensions

12 Mechanical Layout
Side View
Dimensions: mm
Figure 5: Mechanical Dimensions - IO Panel
