IMB-M43H is an ATX motherboard supporting the Desktop 6th and 7th Generation Intel® Core™ i7/i5/i3
Processors with Intel® H110 Chipset, providing the most cost-competitive solution anywhere in embedded
computing and fulfilling the specific needs of all users requiring 5 PCI add-on cards. With high-speed data transfer
interfaces such as PCIe 3.0/2.0, USB 3.0, and SATA 6 Gb/s (SATA III), dual-channel DDR4 memory up to 32 GB
in two DIMM slotsfor industrial automation applications, the ADLINK IMB-M43H carries significant competitive
advantage in the market. This leading, rugged I/O design enhances user experience with robust device
compatibility, durable connectivity, and extreme environment readiness.
1.1. Packing List
•IMB-M43H ATX motherboard
•Rear I/O shield
1.2. Optional Accessories
•2-port USB 2.0 port cable with bracket
•1-port LPT port cable with bracket
•2-port COM port cable with bracket
•LGA1156 2U Thermal Module

2 Introduction
This page intentionally left blank.

IMB-M43H
Specifications 3
2. Specifications
2.1. Core System
CPU: Desktop 6th/7th Generation Intel® Core™ i7/i5/i3 Processor, LGA1151 socket
•Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T)
•Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T)
•Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T)
•Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T)
•Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm,51W TDP, LGA1151 (2C/4T)
•Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
•Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T)
•Intel® Pentium® G4400TE, 2.4GHz, 3M Cache,14nm, 35W TDP, LGA1151 (2C/2T)
•Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T)
•Intel® Celeron® G3900TE, 2.3GHz, 2M Cache,14nm, 35W TDP, LGA1151 (2C/2T)
•Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T)
•Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T)
•Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T)
•Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T)
•Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T)
•Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
Chipset:Intel® H110 Chipset
Memory: Two 288 PIN DDR4 Sockets (vertical type), Dual channel DDR4 2133MHz, up to 32 GB
BIOS: AMI® UEFI BIOS, 128 Mb SPI Flash Memory
2.2. I/O Interface
Expansion slots:1xPCIe x16 Gen3,1xPCIe x4 Gen2, 5x PCI 2.2
LAN: Dual GbE RJ-45 (rear)
SATA:4x SATA 6.0 Gb/s connectors
USB: 4x USB 3.0 connectors (rear), 2x USB 2.0 connectors (rear), 2x USB 2.0 pin headers, 2x USB 2.0
(vertical type A connector)
COM: 2x RS-232/422/485 with auto flow control connector (rear), 4x RS-232 pin headers
Parallel Port: 1x LPT pin header
PS2 Combo Port: 1x PS/2 keyboard & Mouse connector (rear)
DIO: 2x 20-pin/2.0mm GPIO pin header: 16 in and 16 out, one ground pin and one power pin
2.3. Video
Graphics Engine: Integrated Intel® HD Graphics series (based on CPU)
Interfaces: 1x VGA connector (rear), resolution up to 1920 x 1200 @ 60 Hz, 1x HDMI connector (rear)
resolution up to 4096 x 2160 @ 24 Hz

4 Specifications
2.4. Audio
Audio Codec: Realtek® ALC892-CG
Interfaces: 1x Mic-in, 1x Line-out and 1x Line-in connector (rear)
2.5. LAN
LAN1: Intel® I219-LM via RJ45 connector (rear)
LAN2:Intel® I211-AT via RJ45 connector (rear)
2.6. Temperatures
Operating Temperature:0°C to 60°C
Storage Temperature: -40°C to 85°C
2.7. Humidity
40° C @ 95% RH Non-condensing
2.8. Certificate (EMC)
CE/FCC Class B
2.9. Form Factor
ATX: 305 mm x 244 mm (W x L)
2.10. Operating Systems
Microsoft® Windows® 7 32/64-bit (only for 6th Gen Intel® Core™ processors)
Microsoft® Windows® 8.1 64-bit
Microsoft® Windows® 10 64-bit
OpenSUSE Leap 42.1 64-bit
Fedora 25 64-bit
Ubuntu 16.04 LTS 64 bit

IMB-M43H
Specifications 5
2.11. Functional Block Diagram
Figure 1: Functional Block Diagram
PCIe Gen3 x16
ALC892
IT8892E
IT8209R
I211AT
I219LM H110
6th 7th Gen
Intel Core
NCT6106D
PTN3355BS
SPI ROM
SYS FAN x2
CPU FAN
Printer Port
32bit GPIO
On-board connectors/pin headers
Connectors on IO panel
SPI
DMI
HDMI
LPC
LAN
VGA
RJ-45
RJ-45 PCI 3~5
PCI 1~2
PCIe x1
RS232 x4
USB2.0 x4
USB2.0 x2
USB3.0 x4
PCIe x4
PCIe x1
SATAGen3 x4
RS232/422/485 x2
PS2 KB/MS combo
Dual Channel
DDR4-2133/2400
Line out/in,
Mic in

6 Specifications
This page intentionally left blank.

IMB-M43H
Mechanical Layout 7
3. Mechanical Layout
3.1. Connector Locations

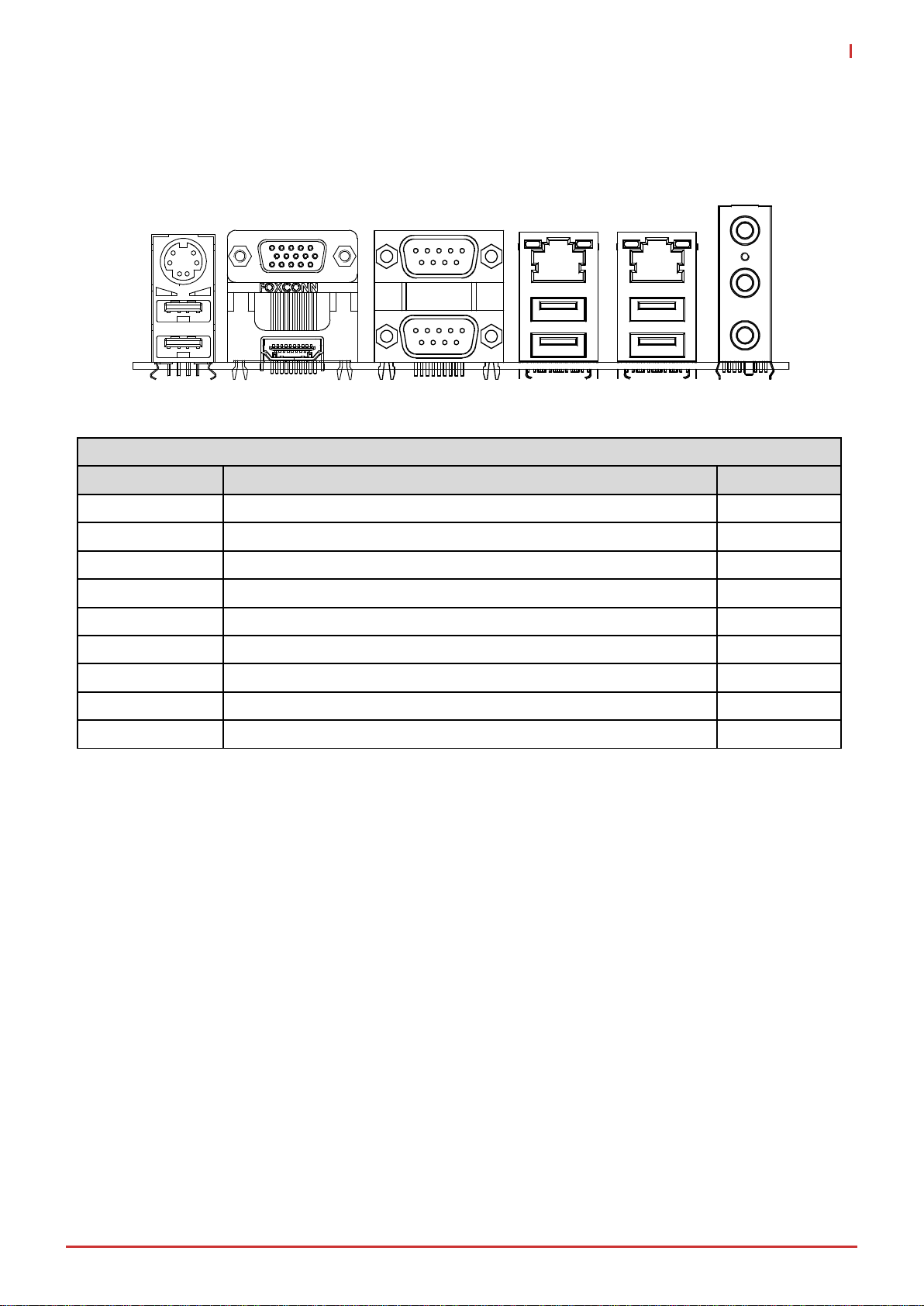

Figure 2: IO Panel Connector Locations
IO Panel Connectors
Item
Description
Remarks
A KBMS PS2
B
USB2.0
USB 7-8
C VGA VGA1
D HDMI HDMI1
E COM COM5
F COM COM6
G LAN+USB3.0 LAN1_USB12
H LAN+USB3.0 LAN2_USB34
I Line-In Port / Line-Out Port / MIC-In Port AUDIO1
A
B
C
D
E
F
G
H
I

8 Mechanical Layout
Figure 3: IO Panel and On-Board Connector Locations
Table 1: IO Panel and On-Board Connector Definitions
IO Panel and On-Board Connectors
Item Description Remarks
A KBMS+USB PS2_USB78
B VGA VGA1
C HDMI HDMI1
D COM 5-6 COM 5-6
E LAN1+USB3.0 LAN1_USB12
F LAN2+USB3.0 LAN2_USB34
G Audio AUDIO1
H ATX POWER 8PIN ATX12V1
I CHA_FAN CHA_FAN1
J CPU_FAN CPU_FAN1
K SYS_FAN SYS_FAN1
L ATX POWER 24PIN EATXPWR1
M AT/ATX mode header JPSON1
N SATA1- SATA4 SATA1
O USB 5-6 USB 5-6
P Front Panel F_PANEL1
18
22
1
6
11
7
12
17
18
22
1
6
11
712
17
18
22
1
6
11
7
12 17
18
22
1
6
11
712
17
18
22
1
6
11
7
12
17
+
+
+
+
+
+
+
BDA
45
1
37
48
1
12
24
13
25 36
+
97
128
1
32
64
33
65
96
97
128
1
32 64
33 65
96
37
48
1
12
24
13
25
36
49
64
116
32
17
33
48
+
++
+
+
+
++
+
+
+
+
+
+
++
+
+
+
37
48
1
12
24
13
25
36
31
40
1
10
20
11
21 30
ML N O P K
QR
S
A8
A7
A10
A18
A19
A9
A13
A12
YZA1
A2 A3
A4 A5
A11
T
U
V
W
X
A6
G
F
E
D
C
B
A
I
H
J
A14 A15
A16 A17

IMB-M43H
Mechanical Layout 9
IO Panel and On-Board Connectors
Item Description Remarks
Q USB9 USB9
R USB10 USB10
S
GPIO
JDIO1
T COM4 COM4
U COM3 COM3
V COM2 COM2
W COM1 COM1
X
PRINT PORT
LPT1
Y PCIEX16 PCIEX16_1
Z PCI1 PCI1
A1 PCIEX4 PCIEX4_1
A2 PCI2 PCI2
A3 PCI3 PCI3
A4 PCI4 PCI4
A5 PCI5 PCI5
A6 FRONT AUDIO FP_AUDIO1
A7 Clear CMOS JCMOS1
A8 DIO no power/+5V/+12V select JPW1
A9 SMBUS no power/+3.3V/+5V select JPW2
A10 I2C no power/+3.3V/+5V select JPW3
A11 Case open alarm JCASE1
A12 SMBUS header CN2
A13
I2C header
CN4
A14 COM5 RS232/422/485 select JSETCOM5
A15 COM6 RS232/422/485 select JSETCOM6
A16 COM5 master/slave and terminal select COM5_S1~4
A17 COM6 master/slave and terminal select COM6_S1~4
A18 LPC Port 80 JLPC1
A19 SPI SPI1

10 Mechanical Layout
3.2. Mechanical Dimensions
Top View
Dimensions: mm
Figure 4: Mechanical Dimensions
Side View
Dimensions: mm
Figure 5: Mechanical Dimensions - IO Panel
18
22
1
6
11
7
12
17
18
22
1
6
11
712
17
18
22
1
6
11
7
12 17
18
22
1
6
11
712
17
18
22
1
6
11
7
12
17
+
+
+
+
+
+
+
BDA
45
1
37
48
1
12
24
13
25 36
+
97
128
1
32
64
33
65
96
97
128
1
32 64
33 65
96
37
48
1
12
24
13
25
36
49
64
116
32
17
33
48
+
++
+
+
+
++
+
+
+
+
+
+
++
+
+
+
37
48
1
12
24
13
25
36
31
40
1
10
20
11
21 30
12
38 73.01101.38
124.88
146
163.83 45.72
288.29
10.16
33.02 165.1 237.49
R4
Ø3.99
304.8
243.84
37.7
5
6
10 11
15
1

IMB-M43H
Connector Pinouts 11
4. Connector Pinouts
See 3.1 Connector Locations on page 7 for connector locations.

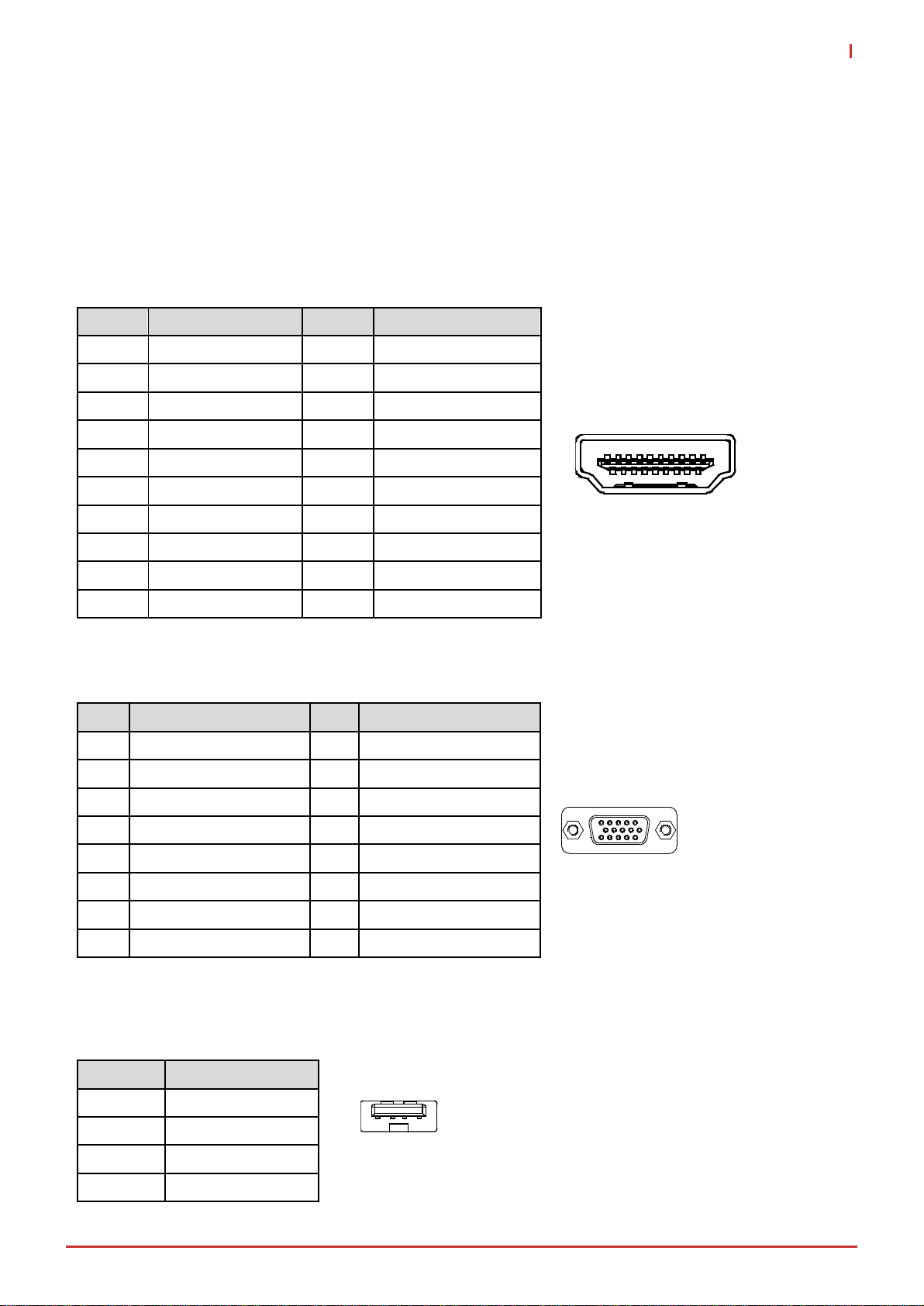

4.1. Rear IO Connectors
4.1.1. HDMI
Pin Signal Name Pin Signal Name
1 HDMI1_CON_DP2 2 GND
3 HDMI1_CON_DN2 4 HDMI1_CON_DP1
5 GND 6 HDMI1_CON_DN1
7
HDMI1_CON_DP0
8
GND
9 HDMI1_CON_DN0 10 HDMI1_CON_CKP
11 GND 12 HDMI1_CON_CKN
13 NC 14 NC
15 HDMI1_DDC_CLK 16 HDMI1_DDC_DATA
17 GND 18 +5V_HDMI
19 HDMI1_CON_HPD
4.1.2. VGA Connector
Pin Signal Name Pin Signal Name
1 VGA_CON_RED 2 VGA_CON_GREEN
3 VGA_CON_BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 +5V_HDMI 10 GND
11 NC 12 VGA_DDCDAT
13 VGA_CON_HS 14 VGA_CON_VS
15 VGA_DDCCLK
4.1.3. USB Connectors
USB 3.0, USB 2.0
Pin #
Signal
1 +5 VDC
2 USB D-
3 USB D+
4 GND
1
2
4
3
17
19
18
15
1115
4321
USB2.0

12 Connector Pinouts
Pin #
Signal
1 +5V_USB12
2 USB_CM_N1
3 USB_CM_P1
4 GND
5 USB3_RX_CM_N1
6 USB3_RX_CM_P1
7 GND
8 USB3_TX_CM_N1
9 USB3_TX_CM_P1

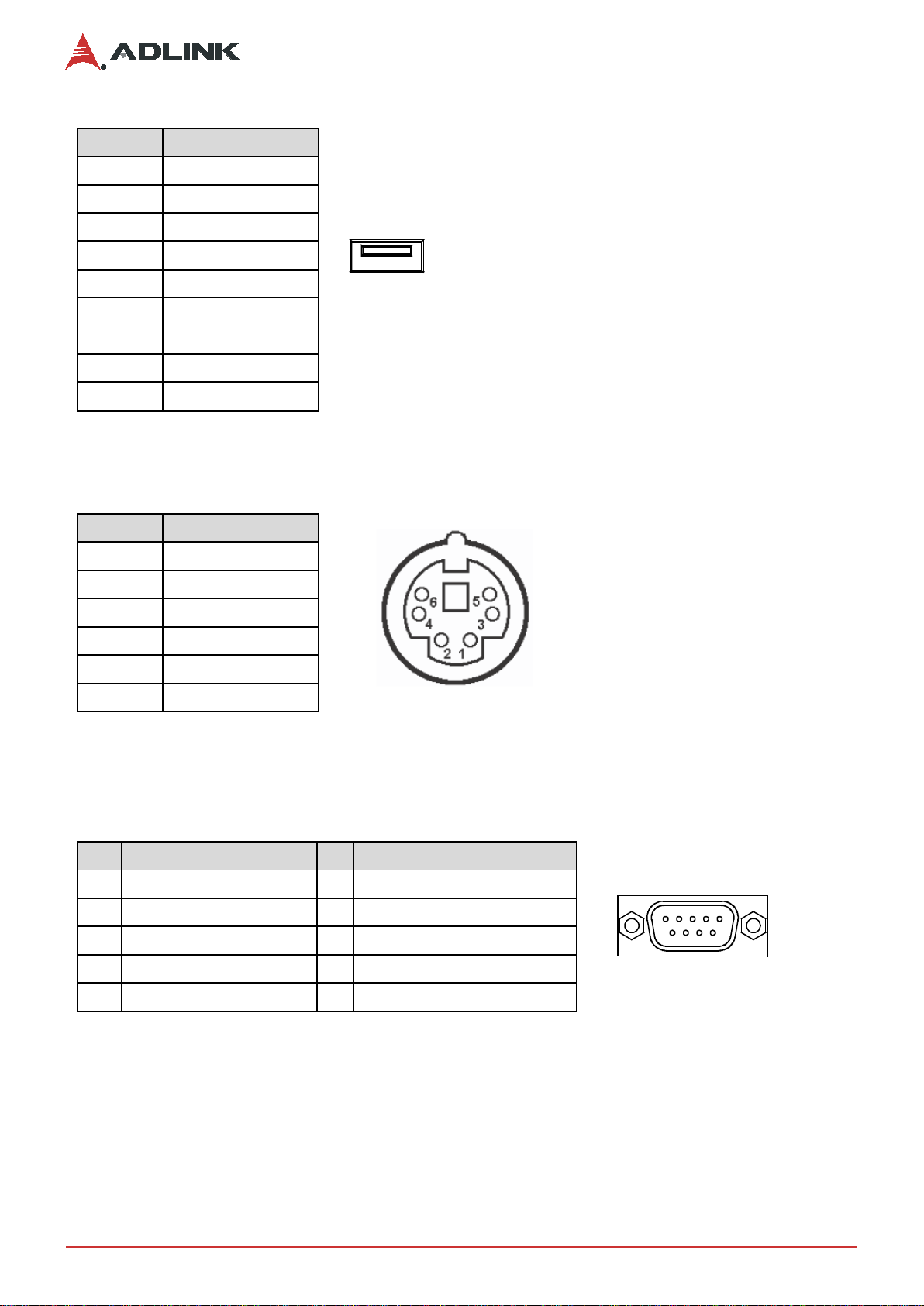

4.1.4. PS2 Combo connector
Pin #
Signal
1 KB_DAT
2 MS_DAT
3 GND
4 +5V_DUAL
5 KB_CLK
6 MS_CLK
4.1.5. COM 5-6 connector stack (Top connector COM5, Bottom connector COM6)
Pin
Signal Name
Pin
Signal Name
1 COM_CN_DCD# 2 COM_CN_RX
3 COM_CN_TX 4 COM_CN_DTR#
5 GND 6 COM_DSR#
7 COM_RTS# 8 COM_CTS#
9 COM_RI# N/A Not Applicable
123 4
9 8 7 6 5
USB3.0
1
69
5

IMB-M43H
Connector Pinouts 13
4.1.6. Ethernet Connectors (LAN1, LAN2)
Dual 10/100/1000Mbit/s LAN Ethernet controllers based on Intel® i219LM/i211AT, support PXE and WOL over
both LANs.
Pin # 10BASE-
T/100BASE-TX
1000BASE-T
1 TX+ LAN_MDI0+
2 TX- LAN_MDI0-
3 RX+ LAN_MDI1+
4 -- LAN_MDI2+
5 -- LAN_MDI2-
6 RX- LAN_MDI1-
7 -- LAN_MDI3+
8 -- LAN_MDI3-
LED1 (Speed)
LED2 (Link/Activity)
Status Description Status Description
Off 10 Mb
connection Off No Link
Green 100 Mb
connection Green Linked
Orange 1 Gb connection Blinking Data Activity
4.2. Internal Connectors
4.2.1. USB 5-6
Pin Signal Name Pin Signal Name
1 VDC 2 VDC
3 D5 - 4 D6 -
5 D5 + 6 D6 +
7 Ground 8 Ground
9 KEY (no pin) 10 No Connect/ OC
The +5 VDC power on the USB headers is fused.
1 2
10

14 Connector Pinouts

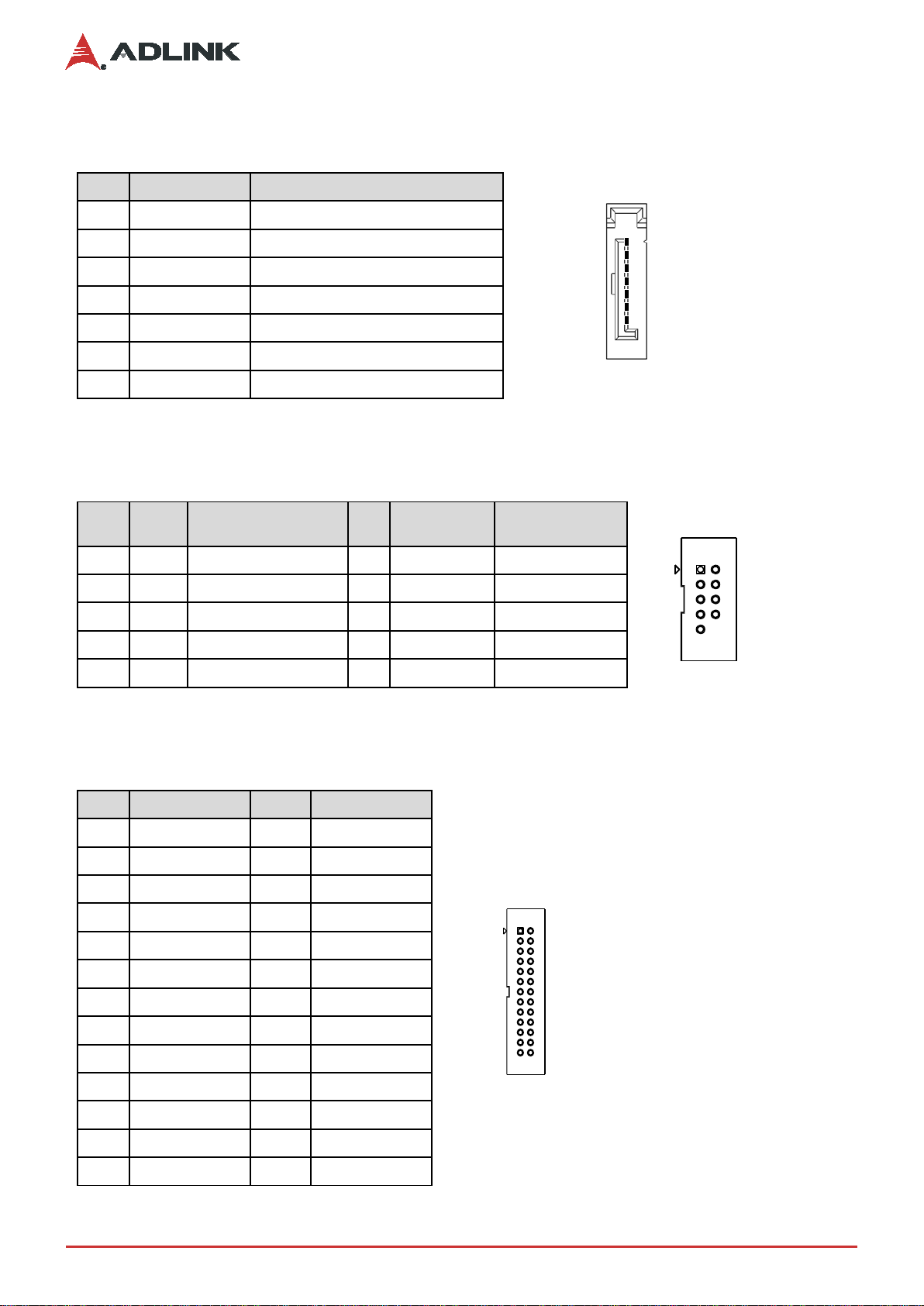

4.2.2. SATA1, SATA2, SATA3, SATA4
Pin Signal Name Description
1 GND Ground
2 TXP Transmit diff data – positive
3 TXN Transmit diff data – negative
4 GND Ground
5 RXN Receive diff data – negative
6 RXP Receive diff data – positive
7 GND Ground
4.2.3. COM1, COM2, COM3, COM4
Serial Port is over-current protected.
Pin Signal
Name
Description Pin Signal Name Description
1 DCD# Data Carrier Detect 2 DSR# Data Set Ready
3 RXD Receive Data 4 RTS# Request To Send
5 TXD# Transmit Data 6 CTS# Clear To Send
7 DTR# Data Terminal Ready 8 RI# Ring Indicator
9 GND GND 10 KEY No Pin
4.2.4. LPT1
Pin
Signal Name
Pin
Signal Name
1 STB# 2 AFD#
3 DATA0 4 ERR#
5 DATA1 6 INIT#
7 DATA2 8 SLIN#
9 DATA3 10 GND
11
DATA4
12
GND
13 DATA5 14 GND
15 DATA6 16 GND
17 DATA7 18 GND
19 ACK# 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 NC
1
7
12
9
1 2
25 26
