Adrian Steel 64-GLGM2 User manual

PAGE 1 of 2
The information contained in this document is the sole property of ADRIAN STEEL COMPANY. ADRIAN STEEL
COMPANY retains the right to modify and/or change the product of its design at any time without prior notification.
SEE PAGE 2 FOR APPLICATION NOTES AND ACCESSORIES, OTHER PRODUCTS THAT
WORK WITH THIS UNIT.
PRODUCT WEIGHT
WIDTH x DEPTH x HEIGHT
CAPACITY
COLOR
CATALOG NUMBER
PRODUCT FEATURES
DBL GRIP LOCK WITH STEP LADDER KIT, GM FSV
This Dbl Grip Lock has the step ladder kit and is designed to fit
the GM FSV. The grip lock will carry 16 to 28 foot extensions
ladders, and 8 to 12 foot step ladders. Use 69-GL for a 32 foot
extension ladder.
For a GM side slider door, Please order a 55075 riser kit. This is available
upon request. These feet raise the grip lock approximately 2”. This also
comes with a wind deflector as raising the rack changed the harmonics.
SEE PAGE 2 FOR APPLICATION NOTES AND ACCESSORIES, OTHER PRODUCTS THAT
WORK WITH THIS UNIT.
64 lbs
28 FOOT EXT
Aluminum / Black
64-GLGM2

PAGE 2 of 2
CATALOG NUMBER
PRODUCT APPLICATION
ACCESSORIES THAT WILL WORK WITH THIS PRODUCT
CATALOG NUMBER DESCRIPTION
SPECIAL APPLICATION NOTES
64-GLGM
This dbl grip lock with step ladder kit is designed to fit the GM FSV
GLSLKFSV STEP LADDER KIT , GRIP LOCK ( CONVERT STREET)
69-GL EXTENSION, GRIP LOCK LADDER RACK—FOR 32 FOOT LADDER
80-1LR
80-2LR CONDUIT KITS, ALUMINUM
70-1LR
70-2LR CONDUIT KITS, PVC
55075 GM, G/L SIDE SLIDER DOOR KIT
DBL GRIP LOCK WITH STEP LADDER KIT, GM FSV

PAGE 1 of 2
The information contained in this document is the sole property of ADRIAN STEEL COMPANY. ADRIAN STEEL
COMPANY retains the right to modify and/or change the product of its design at any time without prior notification.
SEE PAGE 2 FOR APPLICATION NOTES AND ACCESSORIES, OTHER PRODUCTS THAT
WORK WITH THIS UNIT.
PRODUCT WEIGHT
WIDTH x DEPTH x HEIGHT
CAPACITY
COLOR
CATALOG NUMBER
PRODUCT FEATURES
STEP LADDER KIT, GRIP LOCK LOW ROOF
This Grip lock step ladder kit is designed to adapt to the 61-GL2
SERIES and 63-GL2 SERIES grip lock ladder racks.
This step ladder kit will get you move to any location along the new
grip lock rack. This will allow you to carry shorter ladders on your
vehicle.
This step ladder kit will accommodate a 6, 7 and 8 foot step ladder
and on the extension ladders, a 12, 14 and 16 foot standard.
SEE PAGE 2 FOR APPLICATION NOTES AND ACCESSORIES, OTHER PRODUCTS THAT
WORK WITH THIS UNIT.
4.25 lbs
8”x20”x7”
6, 7 & 8 FT STEP
Aluminum / Black
GLSLKFSV

PAGE 2 of 2
CATALOG NUMBER
PRODUCT APPLICATION
ACCESSORIES THAT WILL WORK WITH THIS PRODUCT
CATALOG NUMBER DESCRIPTION
SPECIAL APPLICATION NOTES
GLSLKFSV
This Grip lock step ladder kit is designed to adapt to the 61-GL2
SERIES and 63-GL2 SERIES grip lock ladder racks.
STEP LADDER KIT, GRIP LOCK LOW ROOF

1
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions
Introduction / Comments:
THIS GRIP LOCK STEP LADDER KIT IS DESIGNED TO ADAPT TO YOUR GM GRIP LOCK
AND CROSS BOW KIT.
Note:
It is advised that all fasteners used in this assembly and installation of this Rack should be
checked for tightness at the following intervals: @ 2-weeks and again @ 6-weeks of opera-
tion. This preventive maintenance step must be completed to ensure your package gives you
long service life.
GLSLKFSV
GRIP LOCK STEP LADDER KIT
VARIOUS LOW ROOF VEHICLES

2
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions

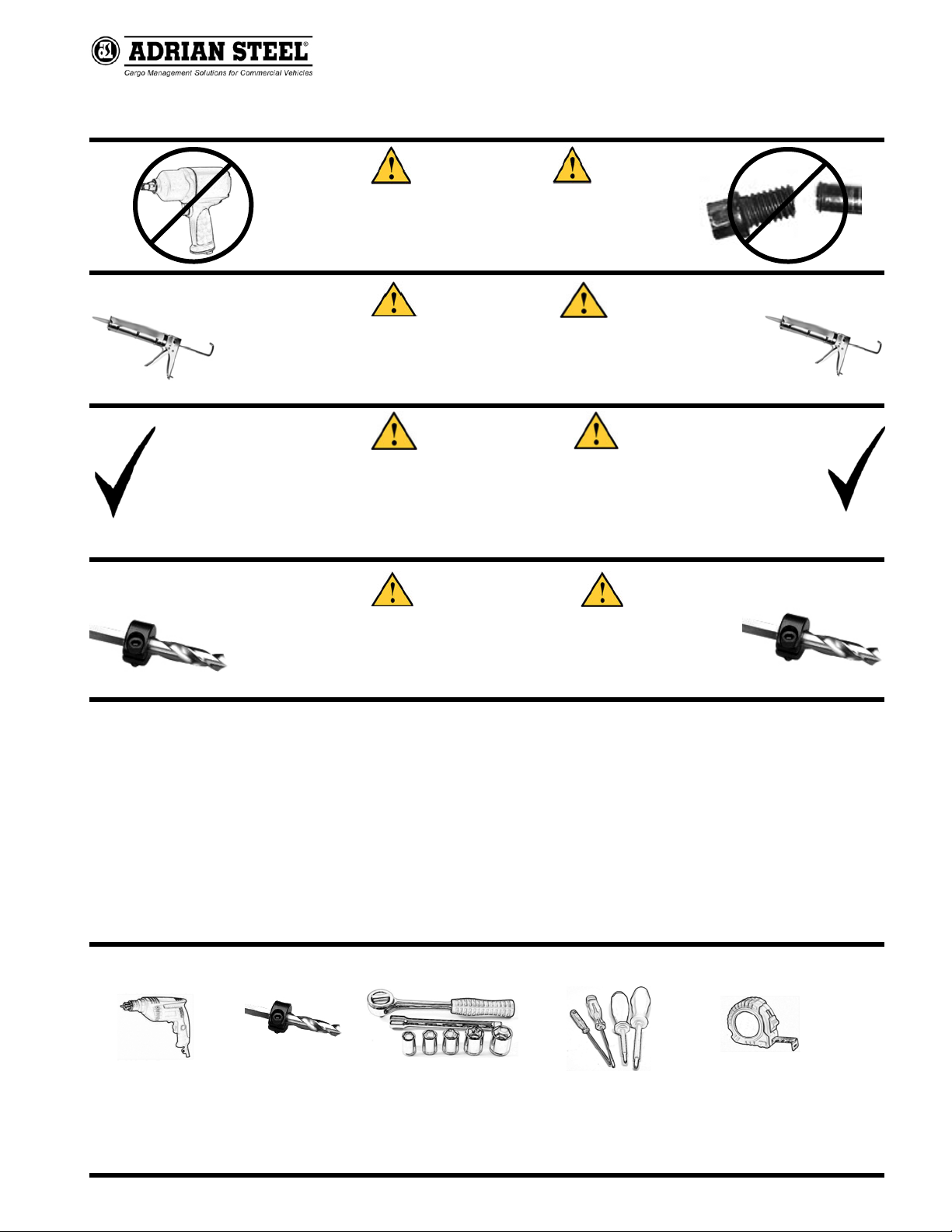

CAUTION
THE USE OF AIR IMPACT TOOLS CAN
OVER-TORQUE FASTENERS AND
CAUSE FASTENER FAILURE!
CAUTION
ALL INSTALLATION HOLES SHOULD BE SEALED
WITH SILICON OR BUTYL SEALANT TO PREVENT
EXHAUST FUMES FROM ENTERING THE VEHICLE!
- PRECAUTIONS -
DANGER
INSPECT FOR FUEL TANK, FUEL LINES, BRAKE LINES, HIGH
VOLTAGE BATTERIES AND ELECTRICAL LINES PRIOR TO
DRILLINGTO AVOID DAMAGING CRITICAL VEHICLE SYSTEMS
OR INJURY TO INSTALLER DURING INSTALLATION PROCESS!
CAUTION
TO AVOID DAMAGING THE VEHICLE ALWAYS USE DRILL
STOPS WHEN DRILLING ANY INSTALLATION HOLES!
ADRIAN AVAILABLE PART #’S 31119-0 (3/8” X 1/2”
DEEP), 31121-0 (1/2” x 1/2” DEEP)
1. SUBSTITUTING ADRIAN STEEL SPECIFIED FASTENERS FOR ASSEMBLY AND/OR INSTALLATION
WILL VOID YOUR PRODUCT WARRANTY.
2. ALL HOLES DRILLED INTO VEHICLE SHOULD HAVE THE RAW METAL EDGES SEALED WITH A SELF
-ETCHING PRIMER TO RESIST CORROSION AND POTENTIAL FASTENER POINT FAILURE.
3. ALL FASTENERS USED IN THE INSTALLATION OF THIS PRODUCT SHOULD BE TIGHTENED TO THE
TORQUE(S) SPECIFIED IN THESE INSTRUCTIONS.
4. THESE INSTRUCTIONS SHOULD BE KEPT WITH THE VEHICLE.
- IMPORTANT WARRANTY REQUIREMENTS -
THE BASIC TOOLS NEEDED FOR MOST INSTALLATIONS
DRILL DRILL BIT WITH
STOP RATCHET, SOCKETS AND/OR WRENCHES SCREWDRIVERS MEASURING TAPE
ADDITIONAL TOOLS MAY BE NEEDED FOR THIS INSTALLATION AND THEY WILL BE IDENTIFIED IN THE STEPS THAT FOLLOW.

3
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions
BAGGLSLK - FASTENER BAG

4
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions

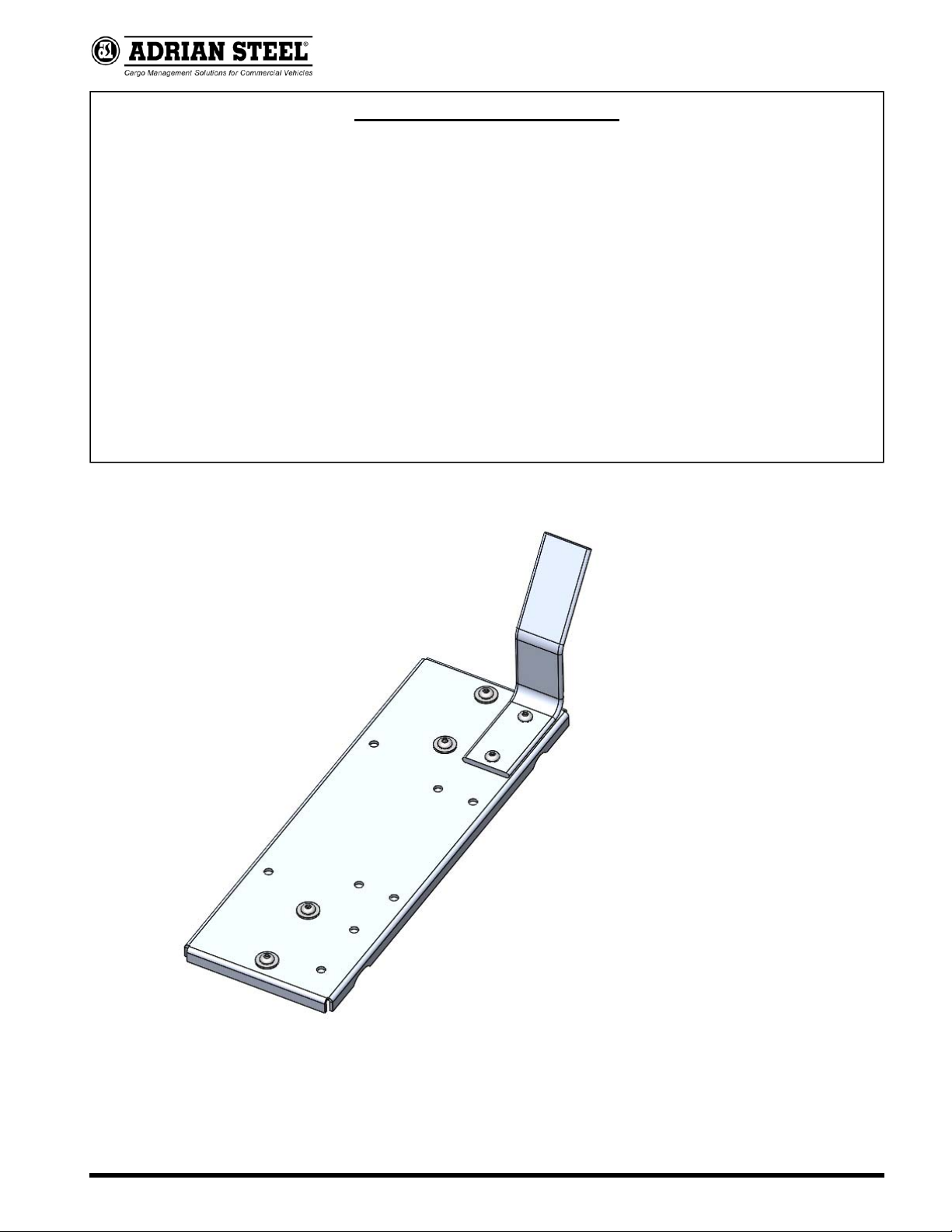

STEP #1A : SUB ASSEMBLE STEP LADDER KIT—CURB SIDE SHOWN
FAS0813— 5/15 BHCS (2)
FAS0248—5/16 NYLOCK (2)
FAS0813— 5/15 BHCS (2)
FAS0248—5/16 NYLOCK (2)
51680—G/L POST ASSM
MOVED FROM EXISTING
CROSS BOW.
NOT PART OF THIS KIT 54588 SLK BRACKET
50889—WEAR STRIP X 16 LG
MOVED FROM EXISTING
CROSS BOW.
NOT PART OF THIS KIT
FAS0813— 5/15 BHCS (2)
FAS0552– FW (2)
FAS0248—5/16 NYLOCK (2)

5
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions

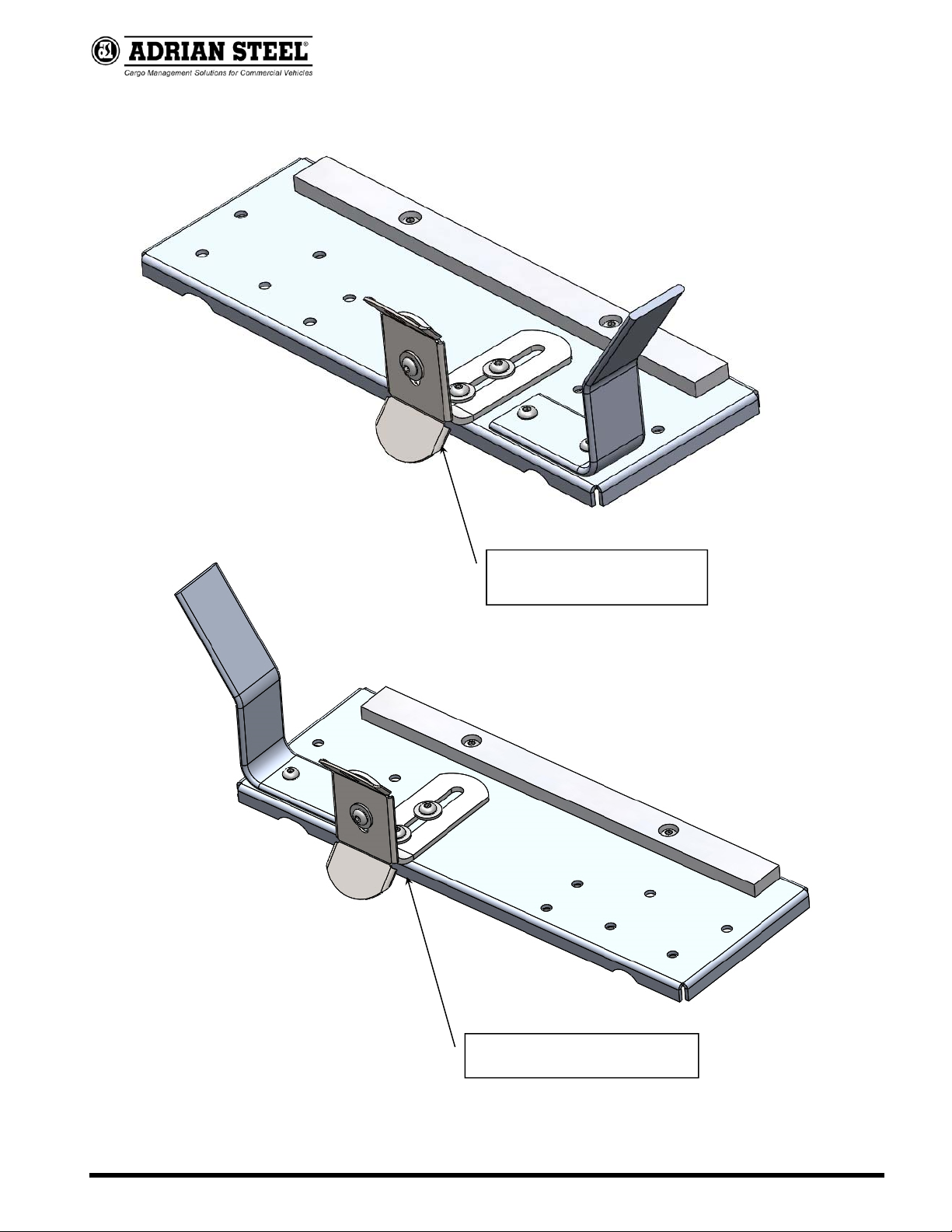

STEP #1B : SUB ASSEMBLE STEP LADDER KIT
CURB SIDE SHOWN
STREET SIDE ASSEMBLY

6
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions

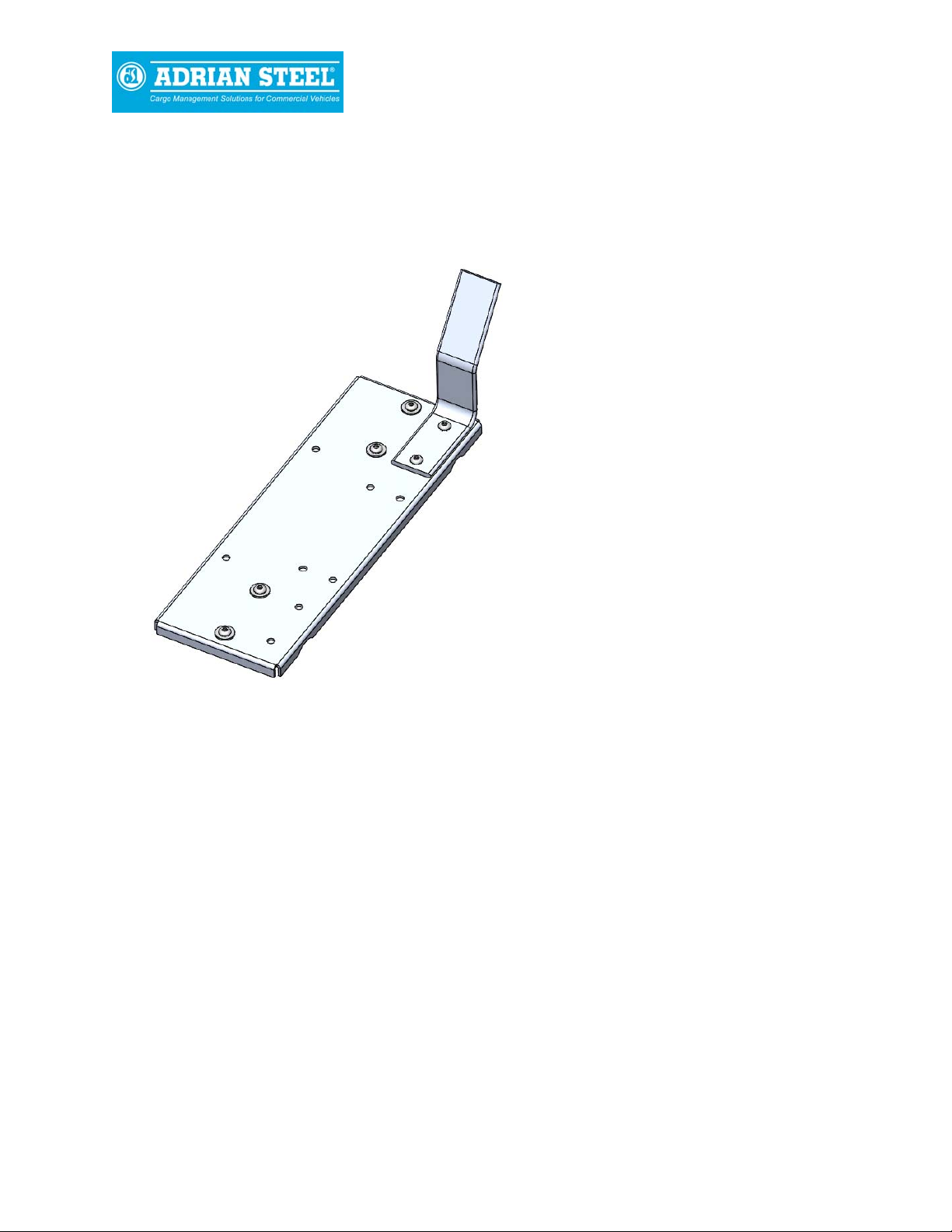

STEP #2: PLACE G/L STEP LADDER KIT ON THE INSTALLED GRIP LOCK.
MOVE TO DESIRED LOCATION DEPENDING ON YOUR LADDER
FAS0813— 5/16 X1 LG BHCS (4)
FAS0552— FW (8)
FAS0248-NYLOCK (4)
54587—CAPTURE
BRACKET (2)

7
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions

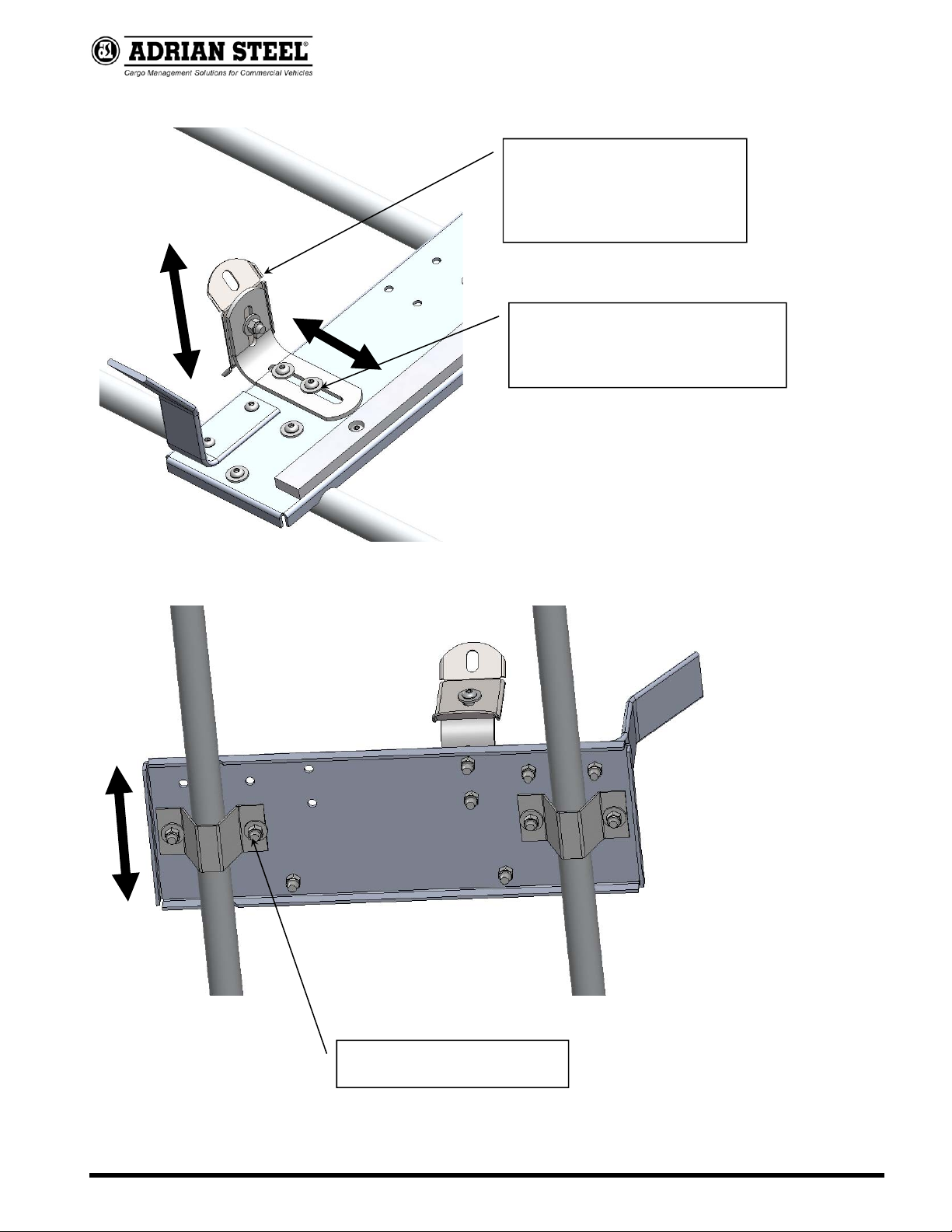

STEP #10A: HOW TO ADJUST THE CLAMP PADS
FINAL HORIZONTAL
ADJUSTMENT IS IN THIS
BRACKET.
ADJUST VERTICALLY TO
YOUR LADDER
LOOSEN FASTENERS
TO ADJUST CLAMP

8
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions
STEP #10B : HOW TO ADJUST THE CLAMP PADS
CURB SIDE
DOUBLE CHECK ALL FASTENERS LOCATIONS TO BE SURE THAT ALL
FASTENERS ARE TIGHTENED TO SPECIFICATIONS.
YOUR INSTALLATION IS NOW COMPLETE!
STOW THIS COPY IN THE VEHICLE FOR FUTURE REFERENCES!

9
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 54636 Revision Level: CECN Release: 22470
GLSLKFSV —GRIP LOCK STEP LADDER KIT Instructions
Note: As per the image below, the curbside of the vehicle
should be the default location for the step ladder kit.
CURB SIDE

1
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions
Introduction / Comments:
THIS ROOF RAIL AND CROSS BOW KIT IS DESIGNED FOR THE GM FSV, IT IS THE
BASE UNIT FOR ALL OF THE LADDER RACK COMBINATIONS FOR THIS VEHICLE. IN-
CLUDING THE SINGLE AND DOUBLE DROP DOWN LADDER RACK, THE SINGLE AND
DOUBLE GRIP LOCK, AND THE COMBO GRIP LOCK DROP DOWN LADDER RACK.
FOR A GM SIDE SLIDER DOOR, PLEASE ORDER A 55075 RISER
KIT. THIS IS AVAILABLE UPON REQUEST. THESE FEET RAISE
THE GRIP LOCK APPROX 2” AND CLEARS THE SIDE SLIDER
DOOR. THIS ALSO COMES WITH A WIND DEFLECTOR AS RAIS-
ING THIS RACK CHANGED THE HARMONICS.
Note:
It is advised that all fasteners used in this assembly and installation of this Rack should be
checked for tightness at the following intervals: @ 2-weeks and again @ 6-weeks of opera-
tion. This preventive maintenance step must be completed to ensure your package gives you
long service life.
RRKGMFSV
ROOF RAIL AND CROSS BOW KIT
GM FULL SIZE VAN
TO VIEW INSTALL VIDEO

2
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions
CAUTION
THE USE OF AIR IMPACT TOOLS CAN
OVER-TORQUE FASTENERS AND
CAUSE FASTENER FAILURE!
CAUTION
ALL INSTALLATION HOLES SHOULD BE SEALED
WITH SILICON OR BUTYL SEALANT TO PREVENT
EXHAUST FUMES FROM ENTERING THE VEHICLE!
- PRECAUTIONS -
DANGER
INSPECT FOR FUEL TANK, FUEL LINES, BRAKE LINES, HIGH
VOLTAGE BATTERIES AND ELECTRICAL LINES PRIOR TO
DRILLINGTO AVOID DAMAGING CRITICAL VEHICLE SYSTEMS
OR INJURY TO INSTALLER DURING INSTALLATION PROCESS!
CAUTION
TO AVOID DAMAGING THE VEHICLE ALWAYS
USE DRILL STOPS WHEN DRILLING ANY IN-
STALLATION HOLES!
1. SUBSTITUTING ADRIAN STEEL SPECIFIED FASTENERS FOR ASSEMBLY AND/OR INSTALLATION
WILL VOID YOUR PRODUCT WARRANTY.
2. ALL HOLES DRILLED INTO VEHICLE SHOULD HAVE THE RAW METAL EDGES SEALED WITH A SELF
-ETCHING PRIMER TO RESIST CORROSION AND POTENTIAL FASTENER POINT FAILURE.
3. ALL FASTENERS USED IN THE INSTALLATION OF THIS PRODUCT SHOULD BE TIGHTENED TO THE
TORQUE(S) SPECIFIED IN THESE INSTRUCTIONS.
4. THESE INSTRUCTIONS SHOULD BE KEPT WITH THE VEHICLE.
- IMPORTANT WARRANTY REQUIREMENTS -
THE BASIC TOOLS NEEDED FOR MOST INSTALLATIONS
DRILL DRILL BIT WITH
STOP RATCHET, SOCKETS AND/OR WRENCHES SCREWDRIVERS MEASURING TAPE
ADDITIONAL TOOLS MAY BE NEEDED FOR THIS INSTALLATION AND THEY WILL BE IDENTIFIED IN THE STEPS THAT FOLLOW.

3
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions

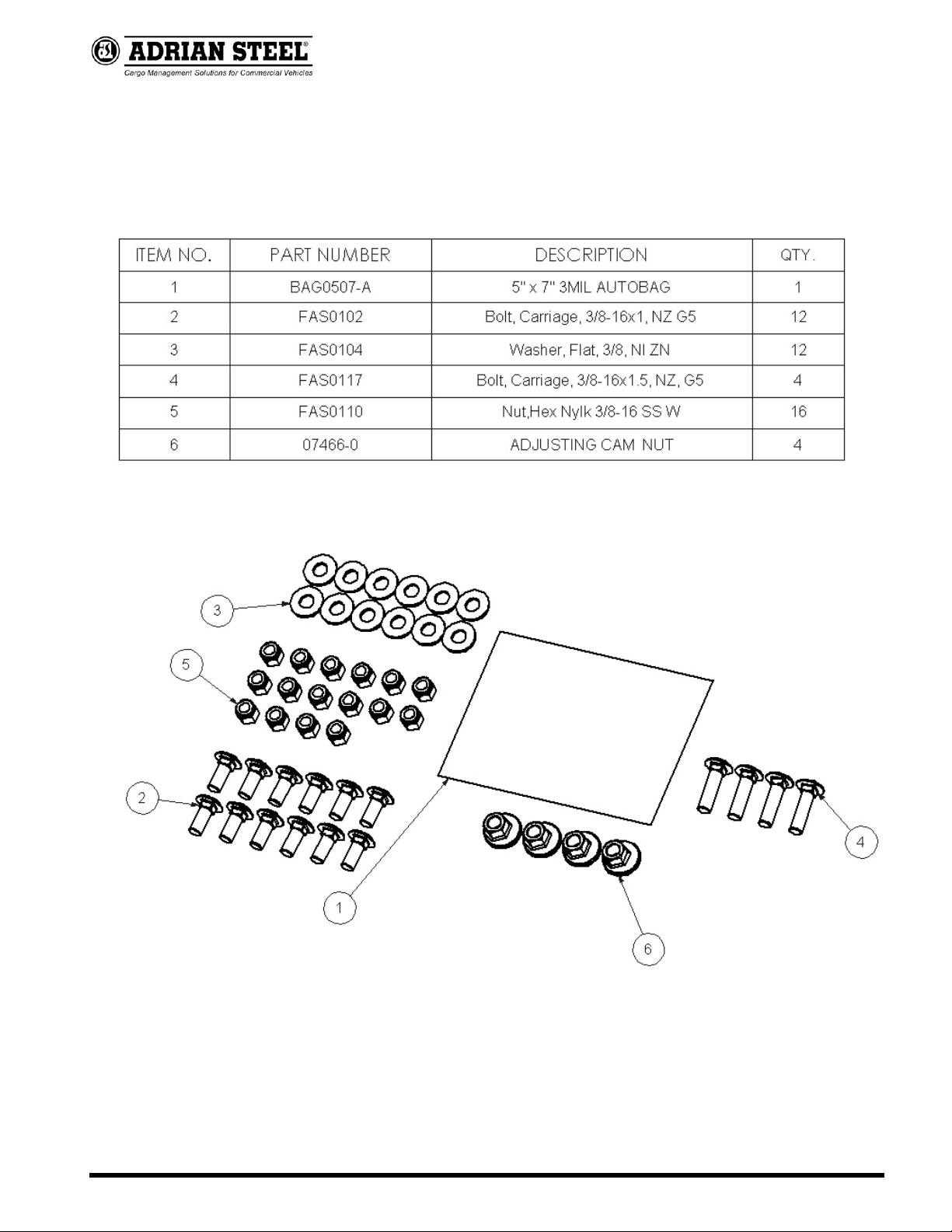

BAG51368 - FASTENER BAG

4
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions

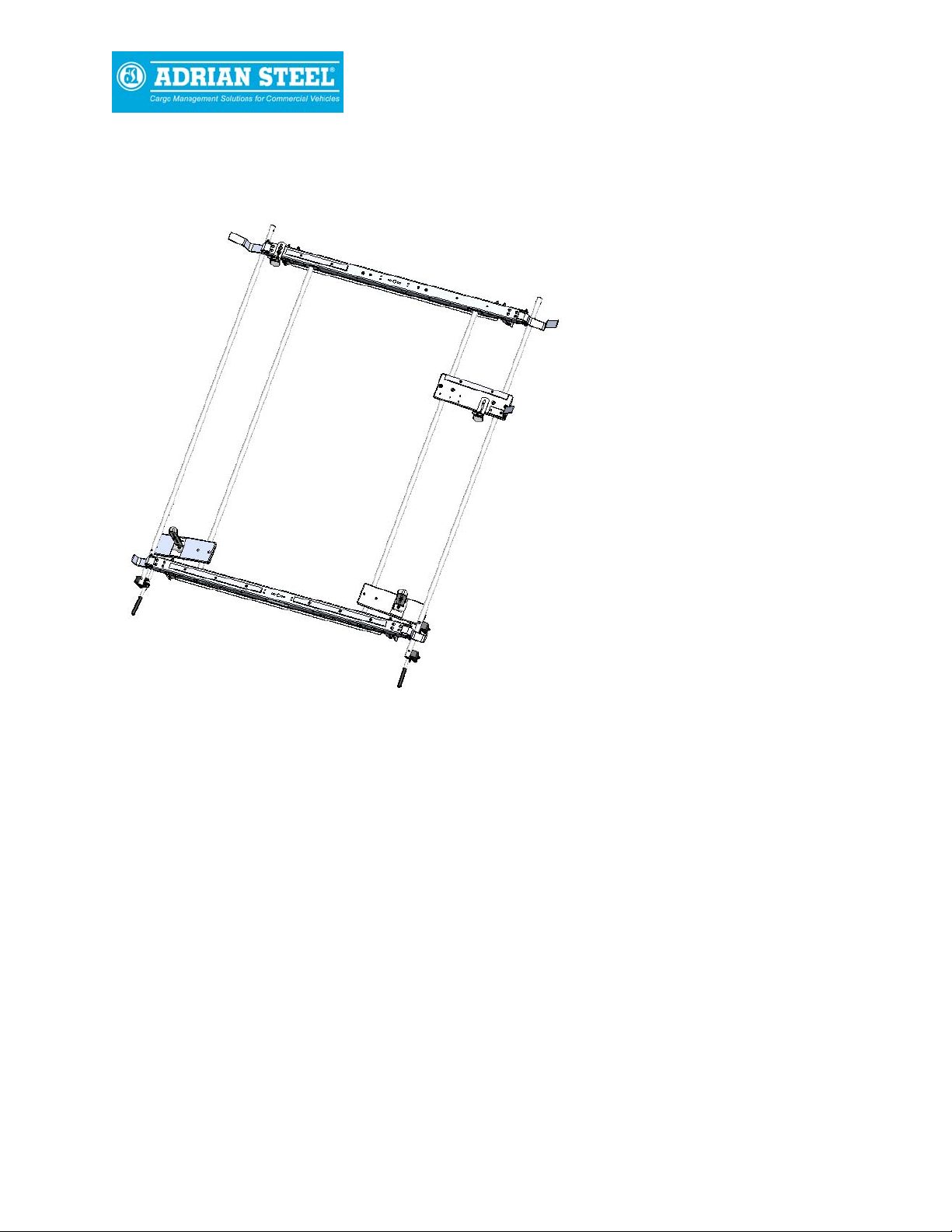

STEP #1 : ASSEMBLE REAR CROSS BOW
51629-CROSS BOW ASSM
BE SURE THE STICKERS ARE FACING
THE REAR OF THE VAN WHEN
ASSEMBLING
51633-B GM FOOT MOUNT, LH
51632-B GM FOOT MOUNT, RH
FAS0104—WASHER (3)
FAS0110—NYLOCK NUT (3)
DO NOT FULLY TIGHTEN
FAS0102-CARRIAGE
BOLT X 1 LG (3)
DO NOT FULLY TIGHTEN
ASSEMBLED VIEW
MTG FOOT SHOULD MOVE
FREELY IN SLOT
REAR OF THE VAN

5
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions
STEP #2 : ASSEMBLE FRONT CROSS BOW
51629-CROSS BOW ASSM
BE SURE STICKERS ARE FACING THE
FRONT OF THE VAN. YOU CAN NOT SEE
THEM IN THIS VIEW
51632-B GM FOOT MOUNT, LH
51633-B GM FOOT MOUNT, RH
FAS0104—WASHER (6)
FAS0110—NYLOCK NUT (6)
DO NOT FULLY TIGHTEN
FAS0102-CARRIAGE
BOLT X 1 LG (6)
DO NOT FULLY TIGHTEN
ASSEMBLED VIEW
MTG FOOT SHOULD MOVE
FREELY IN SLOT
FRONT OF THE VAN

6
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions
STEP #3 : FOLLOWING THE DROP DOWN / GRIP LOCK INSTRUCTIONS,
ASSEMBLE WHAT YOU CAN PRIOR TO INSTALLING ON THE VEHICLE.
SHOWING A DOUBLE DROP
DOWN SHIP THRU VERSION
SHOWING A DROP DOWN
GRIP LOCK COMBO
SHIP THRU VERSION

7
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 51369 Revision Level: GECN Release: 20509
RRKGMFSV—GM ROOF RAIL KIT Asm/Install Instructions
STEP #4A : LOCATE AND ATTACH REAR CROSS BOW TO THE VEHICLE.
51629-REAR CROSS BOW ASSM
HAS ASCO CENTER STICKER
AND TWO SAFETY STICKERS
22856-B GM FOOT CLAMP
REAR OF THE VAN
FAS0117—CARRIAGE BOLT(2)
07466-0—ADJUSTING CAM (2)
FAS0110—NYLOCK NUT (2)
ROTATE CAM NUT
CLOCKWISE TO TIGHTEN
THE FOOT CLAMP
AGAINST THE DRIP RAIL.
NOW FIRMLY TIGHTEN
THE 3/8 NYLOCK NUT
