RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
Introduction / Comments:
This rail kit is designed to fit in your 130 wheel base Ford Transit, Standard roof.
This rail kit will not work with the OEM liner kit, if you have this liner kit in your vehicle, the top
panels will need to be removed.
Note:
It is advised that all fasteners used in this assembly and installation should be checked for
tightness at the following intervals: @ 2-weeks and again @ 6-weeks of operation. This pre-
ventive maintenance step must be completed to ensure your Partition gives you long service
life.
RK130FTS
RAIL KIT, 130 WB
FORD TRANSIT
AD44FP, ADAPTIVE SHELFING,
NOT INCLUDED IN THIS RAIL KIT
WKC1FDTS, WING KIT,
NOT INCLUDED IN THIS
RAIL KIT

2
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
CAUTION
THE USE OF AIR IMPACT TOOLS CAN
OVER-TORQUE FASTENERS AND
CAUSE FASTENER FAILURE!
CAUTION
ALL INSTALLATION HOLES SHOULD BE SEALED
WITH SILICON OR BUTYL SEALANT TO PREVENT
EXHAUST FUMES FROM ENTERING THE VEHICLE!
- PRECAUTIONS -
DANGER
INSPECT FOR FUEL TANK, FUEL LINES, BRAKE LINES, HIGH
VOLTAGE BATTERIES AND ELECTRICAL LINES PRIOR TO
DRILLINGTO AVOID DAMAGING CRITICAL VEHICLE SYSTEMS
OR INJURY TO INSTALLER DURING INSTALLATION PROCESS!
CAUTION
TO AVOID DAMAGING THE VEHICLE ALWAYS USE DRILL
STOPS WHEN DRILLING ANY INSTALLATION HOLES!
ADRIAN AVAILABLE PART #’S 31121-0 (1/2” DEEP),
31122-0 (3/4” DEEP)
1. SUBSTITUTING ADRIAN STEEL SPECIFIED FASTENERS FOR ASSEMBLY AND/OR INSTALLATION
WILL VOID YOUR PRODUCT WARRANTY.
2. ALL HOLES DRILLED INTO VEHICLE SHOULD HAVE THE RAW METAL EDGES SEALED WITH A SELF
-ETCHING PRIMER TO RESIST CORROSION AND POTENTIAL FASTENER POINT FAILURE.
3. ALL FASTENERS USED IN THE INSTALLATION OF THIS PRODUCT SHOULD BE TIGHTENED TO THE
TORQUE(S) SPECIFIED IN THESE INSTRUCTIONS.
4. THESE INSTRUCTIONS SHOULD BE KEPT WITH THE VEHICLE.
- IMPORTANT WARRANTY REQUIREMENTS -
THE BASIC TOOLS NEEDED FOR MOST INSTALLATIONS
DRILL DRILL BIT WITH
STOP RATCHET, SOCKETS AND/OR WRENCHES SCREWDRIVERS MEASURING TAPE
ADDITIONAL TOOLS MAY BE NEEDED FOR THIS INSTALLATION AND THEY WILL BE IDENTIFIED IN THE STEPS THAT FOLLOW.

3
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
If your vehicle contains carpet or a rubber floor mat you will need to prepare the mounting location.
Position the product to be installed into the vehicle and once your are satisfied with the mounting locations,
mark the mounting locations. Using a 1-3/16” diameter carpet cutter (P/N: 31183-0). Select the appropriate
floor spacers as shown in the illustration. Set those aside for use later into the installation process.
Using the correct drill bit size for the selected plusnut, drill the mounting holes in the vehicle sheet metal to
prepare for installing the plusnuts.
If you are thru-bolting at any of the locations simply drill a hole that is 1/16” larger than the bolt size(s) for
those locations.
Once you have drilled the holes into the vehicle, the raw metal edges should be sealed using a self-etching
primer to resist corrosion and potential fastener point failure.
A PLUSNUT (RIVNUT) SETTING TOOL ISREQUIRED FOR PLUSNUT (RIVNUT) INSTALLATION AND IS NOT SUPPLIED
WITH THIS KIT. OR USE AN AIR POWERED PLUSNUT SETTING GUN.
1/4-20UNC Plusnut (FAS0052) Use 3/8” dia. drill w/stop
FAS0080 SCREW, HXHD, 1/4-20UNCx2.00”, G8
FAS0067 WASHER, FLAT, 1/4”ID
22200-0 PLUSNUT TOOL
5/16-18UNC Plusnut (FAS0091) Use 1/2” dia. drill w/stop
FAS0095 SCREW, HXHD, 5/16-18UNCx2.00”, G8
FAS0086 WASHER, FLAT, 5/16”ID
22200-0 PLUSNUT TOOL
Place barrel of the plusnut body in sheet metal thru hole until flange is flush with sheet metal.
Using a 9/16” combination wrench of plusnut tool body and a second hand wrench, ratchet, or air tool, rotate the hex bolt head
CW to draw plus nut flanges up (set the plusnut).

4
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
Assembly and Installation
Fastener Identification Sheet
( BAG45340)

5
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: E ECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 1A —VEHICLES WITH OEM LINER KITS—NEED TO REMOVE UPPER PANELS
ON THE STREET AND CURB SIDE.
GENERIC PICTURE OF VEHICLE AND
LINER KIT.

6
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: E ECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 1B STREET SIDE UPPER RAIL, RAIL ASSEMBLY
- ASSEMBLE RAIL BEFORE PUTTING IN VEHICLE, DO NOT FULLY TIGHTEN
BRACKET— 47007-G (2)
FAS0062—1/4-20 PHILIPS SCREW (3)
FAS0055—1/4-20 NYLOCK NUT (3)
BRACKET— 47097—G
BRACKET— 47078-G 35335-0 SLIDE
FAS0165— HEX HEAD (1)
FAS0085—STAR WASHER (1)
FAS0086—FLAT WASHER (1)
47084, RAIL X 100.94

7
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 1C STREET SIDE UPPER RAIL
- INSERT RAIL ASSEMBLY INTO VEHICLE, TRANSFER HOLES TO ADD PLUSNUTS
EXISTING M8 INSERT
TRANSFER HOLES
OPEN HOLE UP TO 1/2” DIA
WITH DRILL STOP
ADD PLUSNUTS
FAS0091—5/16 PLUSNUT (3)
ADD PLUSNUT TO THE TOP
HALF OF THE EXISTING
SLOT

8
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF

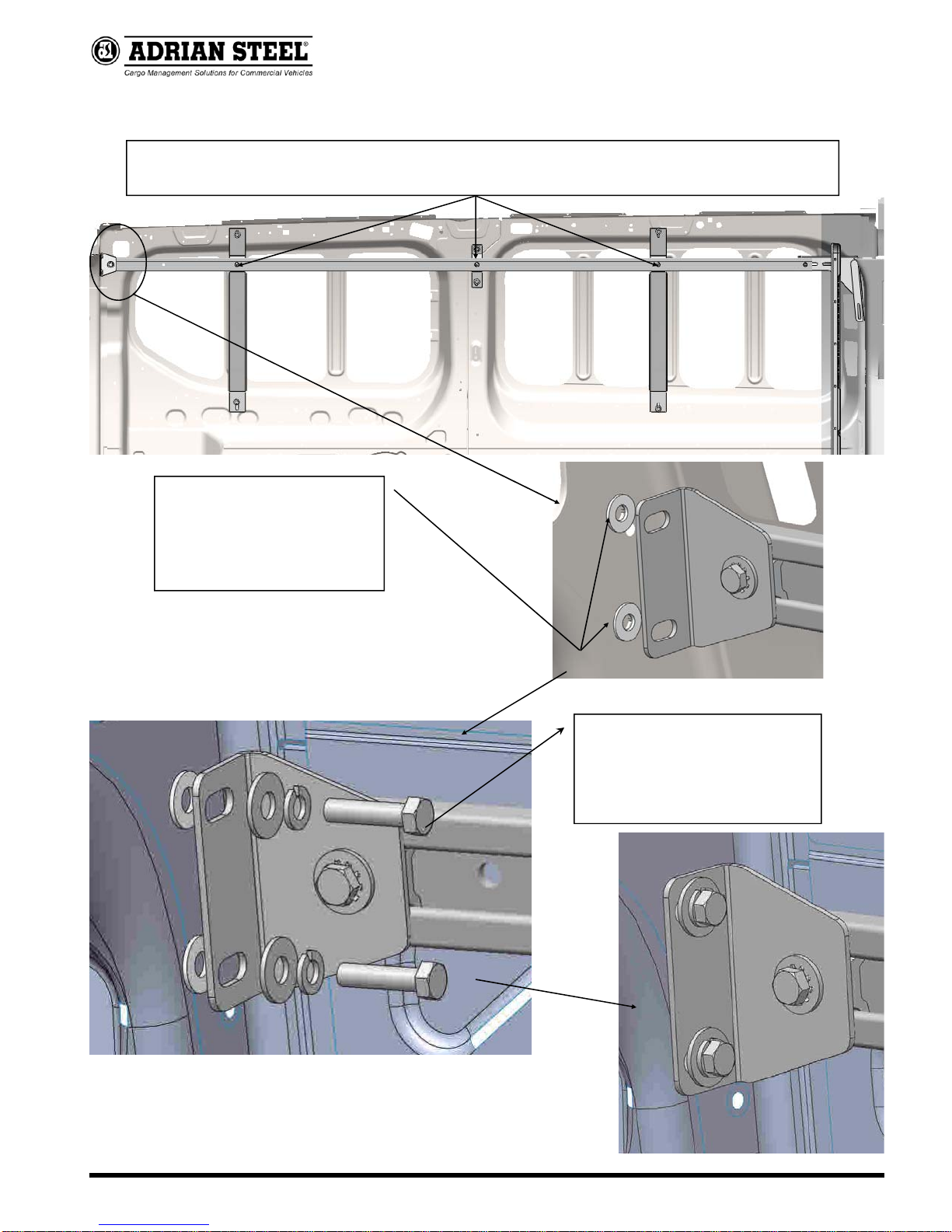

STEP 1D - INSTALLATION OF STREET SIDE UPPER RAIL
TRANSFER HOLES
OPEN HOLE UP TO 1/2” DIA
WITH DRILL STOP
ADD PLUSNUTS
FAS0091—5/16 PLUSNUT (2)
FAS0093— HEX HEAD (5)
FAS0098—LOCK WASHER (5)
FAS0086—FLAT WASHER (5)
EXISTING M8 INSERT
FAS0741— M8 1.25 BUTTON
SCREW (1)
FAS0098—LOCK WASHER (1)
FAS0086—FLAT WASHER (1)

9
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 1E- STREET SIDE UPPER RAIL
BRACKET— 46861-G
FAS0062—1/4-20 PHILIPS SCREW (1)
FAS0055—1/4-20 NYLOCK NUT (1)

10
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 1F - FINAL INSTALLATION OF STREET SIDE UPPER RAIL
FAS0093— HEX HEAD (2)
FAS0098—LOCK WASHER (2)
FAS0086—FLAT WASHER (2)
TRANSFER HOLES
OPEN HOLE UP TO 1/2” DIA
WITH DRILL STOP
ADD PLUSNUTS
FAS0091—5/16 PLUSNUT (2)
MAKE SURE THE RAIL IS STRAIGHT AND TIGHTEN TO AN APPROXIMATE HEIGHT OF 47.25”
FROM THE FLOOR TO THE BOTTOM OF THE RAIL.

11
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 2 - ADD STREET SIDE FLOOR RAIL WITH ADRIAN PARTITION
TOUCHING TO
APPROXIMATELY 1/8” AWAY
FROM FOOTER RAIL
INSTALLED
ADRIAN PARTITION
FOOTER RAIL.
UP AGAINST WHEEL WELL
FAS0091—PLUSNUT (5)
FAS0048— BUTTON HD (5)
FAS0085—STAR WASHER (5)
47084, RAIL X 100.94
WITH FLOORING USE
TALL SPACERS
03927-2 (5)

12
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF

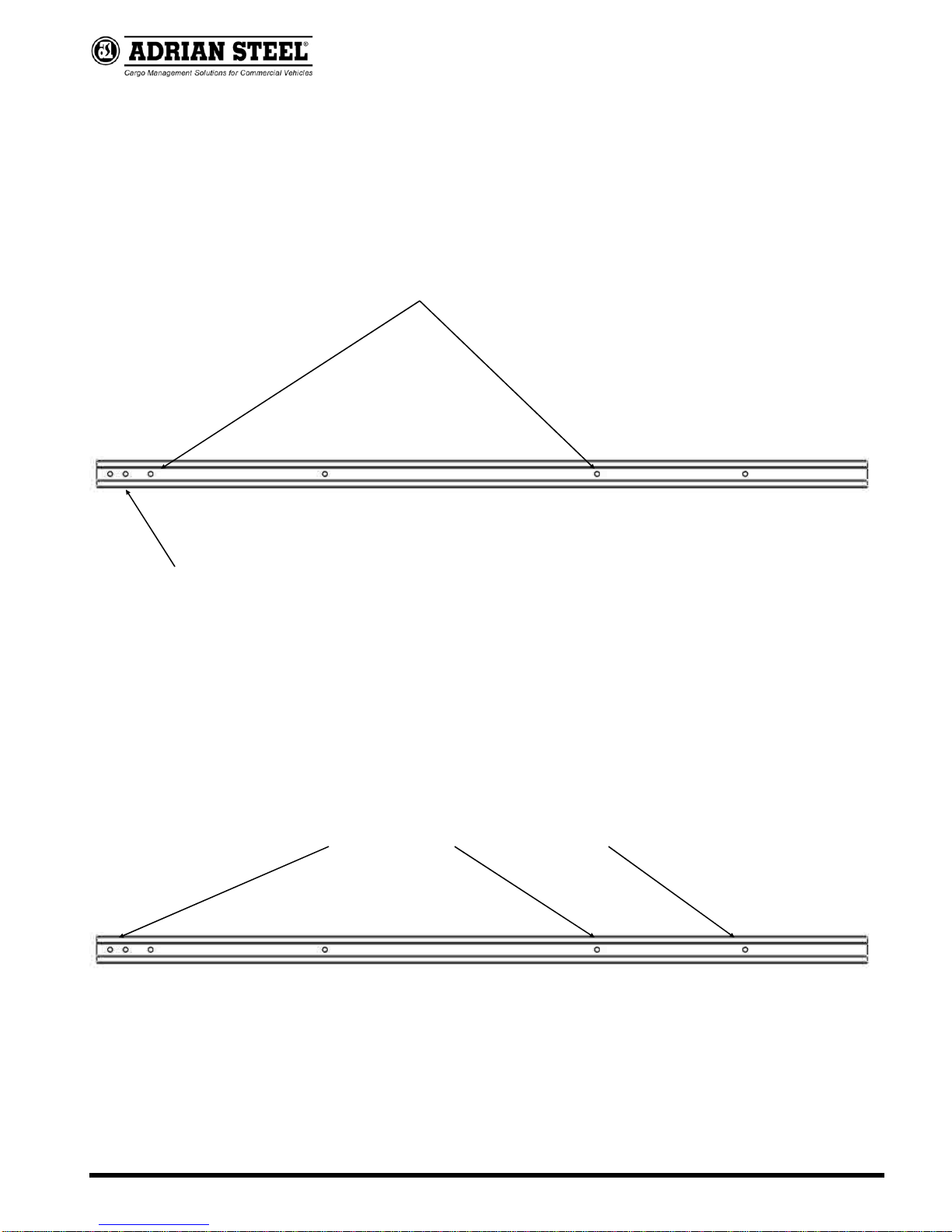

STEP 3A CURB SIDE UPPER RAIL/LOWER RAIL HOLE IDENTIFICATION PAGE
UPPER RAIL HOLE LOCATIONS
(3RD AND 5TH)
IMPORTANT:
DO NOT USE FRONT TWO HOLES FOR UPPER RAIL
INSTALLATION
FLOOR RAIL HOLE LOCATIONS
(1ST, 5THAND 6TH)

13
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 3A CURB SIDE UPPER RAIL, RAIL ASSEMBLY
- ASSEMBLE RAIL BEFOR PUTTING IN VEHICLE, DO NOT FULLY TIGHTEN
FAS0062—1/4-20 PHILIPS SCREW (1)
FAS0055—1/4-20 NYLOCK NUT (1)
BRACKET— 47097-G
BRACKET— 47077-G
FAS0062—1/4-20 PHILIPS SCREW (1)
FAS0055—1/4-20 NYLOCK NUT (1)
BRACKET— 47078 –G
35335-0 SLIDE
FAS0165— HEX HEAD (1)
FAS0085—STAR WASHER (1)
FAS0086—FLAT WASHER (1)
47085, RAIL X 53.63

14
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF

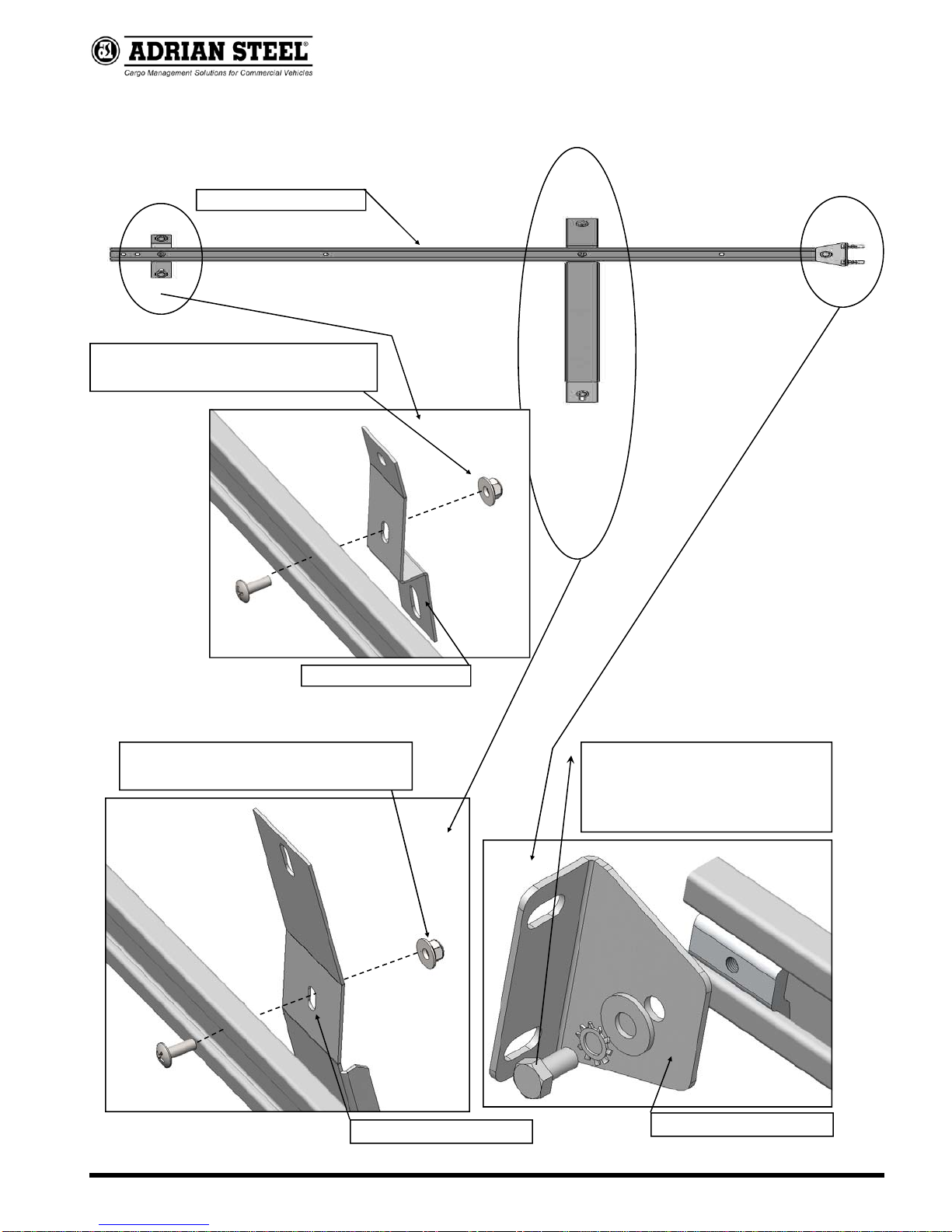

STEP 3B CURB SIDE UPPER RAIL
- INSERT RAIL ASSEMBLY INTO VEHICLE, TRANSFER HOLES TO ADD PLUSNUTS
TRANSFER HOLES
WITH DRILL STOP
ADD PLUSNUTS
FAS0091—5/16 PLUSNUT (3)
MARK AND ADD PLUSNUT
EXISTING M8 INSERT

15
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: E ECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 3C - INSTALLATION OF CURB SIDE UPPER RAIL
FAS0093— HEX HEAD (3)
FAS0098—LOCK WASHER (3)
FAS0086—FLAT WASHER (3)
FAS0091—5/16 PLUSNUT
EXISTING M8 INSERT
FAS0741— M8 1.25 BUTTON
SCREW (1)
FAS0098—LOCK WASHER (1)
FAS0086—FLAT WASHER (1)

16
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 3D - FINAL INSTALLATION OF CURB SIDE UPPER RAIL
FAS0093— HEX HEAD (2)
FAS0098—LOCK WASHER (2)
FAS0086—FLAT WASHER (2)
TRANSFER HOLES
OPEN HOLE UP TO 1/2” DIA
WITH DRILL STOP
ADD PLUSNUTS
FAS0091—5/16 PLUSNUT (2)
MAKE SURE THE
RAIL IS STRAIGHT
AND TIGHTEN TO
AN APPROXIMATE
HEIGHT OF 47.25”
FROM THE FLOOR
TO THE BOTTOM
OF THE RAIL.

17
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 4 - ADD CURB SIDE FLOOR RAIL
TRANSFER HOLE LOCATIONS
(3) PLACES, 1ST, 5TH, 6TH
HOLE
REMOVE RAIL
DRILL AND SET PLUSNUTS
FAS0091—5/16 PLUSNUT (3)
UP AGAINST WHEEL WELL
FAS0091—PLUSNUT (3)
FAS0048— BUTTON HD (3)
FAS0085—STAR WASHER (3)
APPROX 11/16” FROM SEAM
LINE UP WITH TOP RAIL
DO NOT USE THIS HOLE
DO NOT USE THESE
TWO HOLES HOLE
(2ND & 3RD)
47085, RAIL X 53.63
WITH FLOORING USE
TALL SPACERS
03927-2 (3)

18
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: E ECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 5 - ADD SHELFING BRACKETS - 4 ON STREET SIDE UPPER AND 2 ON CURB
SIDE UPPER
SHELFING BRACKET—
45339-G (6)
4 UPPER STREET SIDE
2 UPPER CURB SIDE
35335-0 SLIDE (6)
FAS0165— HEX HEAD (6)
FAS0085—STAR WASHER (6)
FAS0086—FLAT WASHER (6)

19
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
STEP 5 - ADD SLIDES AND END CAPS TO RAILS
36496-0 END CAPS (2)
36496-0 END CAPS (2)
35335-0 SLIDES (4) EACH
BOTH STREET SIDE RAILS
BEFORE CAPS
35335-0 SLIDES (2) EACH
BOTH CURB SIDE RAILS
BEFORE CAPS

20
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
Publication Number: 45336 Revision Level: EECN Release: 17160
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
YOUR INSTALLATION IS NOW COMPLETE
DOUBLE CHECK ALL FASTENERS LOCATIONS TO BE SURE THAT ALL
FASTENERS ARE TIGHTENED TO SPECIFICATIONS.
YOUR INSTALLATION IS NOW COMPLETE!
STOW THIS COPY IN THE VEHICLE FOR FUTURE REFERENCES!
WKC1FDTS, WING KIT,
NOT INCLUDED IN THIS
RAIL KIT
AD44FP, ADAPTIVE SHELFING,
NOT INCLUDED IN THIS RAIL KIT
