Advan AMM15TK2-TE User manual

AUTO-SCANNING WITH DIGITAL CONTROL
LCD COLOR MEDICAL MONITOR
AMM15TK3/AMM15TK2-TE/AMM15TK2-TEW
Operation Manual
For future reference, record the serial
number of your display monitor in the
space below:
SERIAL number
The serial number is located on the
back of the monitor

2
WARNING
The title “WARNING” is used to inform the users of
possible causes that could inflict the injury, death, or
property damage to the patients.
CAUTION
The title “CAUTION” is used to inform the users of possible
causes that could inflict the patients although it might not
severe enough to cause deaths.
NOTE
The title “NOTE” is used to inform the users of items that
are of importance in terms of installation, operation, or
maintenance of the Equipment although the failure does not
inflict the bodily harm to the patients.
ADAVN INT’L CORP.2005
“ELO” is a Registered trademark of Elo TouchSystems, Inc.,
All other trademarks are the property of their reference owners.
This document is subject to change without notice.
Advan provides this information as reference only. Reference to other vendor’s
products does not imply any recommendation or endorsement.
Revision Control
Date Description
07162005 Document number

3
TABLE OF CONTENTS
Warnings and Cautions…………………………………………… 4
Warnings…………………………………………………………….. 5
Cautions……………………………………………………………… 6
Product Description and Intended Use…….………………….. 7
Functional Description……………………………………………. 8
Product Features…………………………………………………… 8
Cleaning instructions……………………………………………… 9
Symbol Explanations……………………………………………… 10
Regulatory Compliance…………………………………………… 11
EU Declaration of Conformity for Medical Applications……. 11
Prepare for Unpack………………………………………………… 11~12
DDC…………………………………………………………………... 13
Installation…………………………………………………………... 13
Screen Position Adjustment…………………………………….. 14
Connecting the Power Cord…………………………………….. 14
Power Management Function…………………………………… 15
Power Management System…………………………………….. 15
User Controls………………………………………………………. 16
Standard OSD Operation…………………………………………. 16
OSD Function Description (Analog)……………………………. 17
OSD Function Description (C or S Video )…….………………. 18
Specification Of AMM15TK3..…………………………………….. 19
Supported Modes…………………………………………………... 20

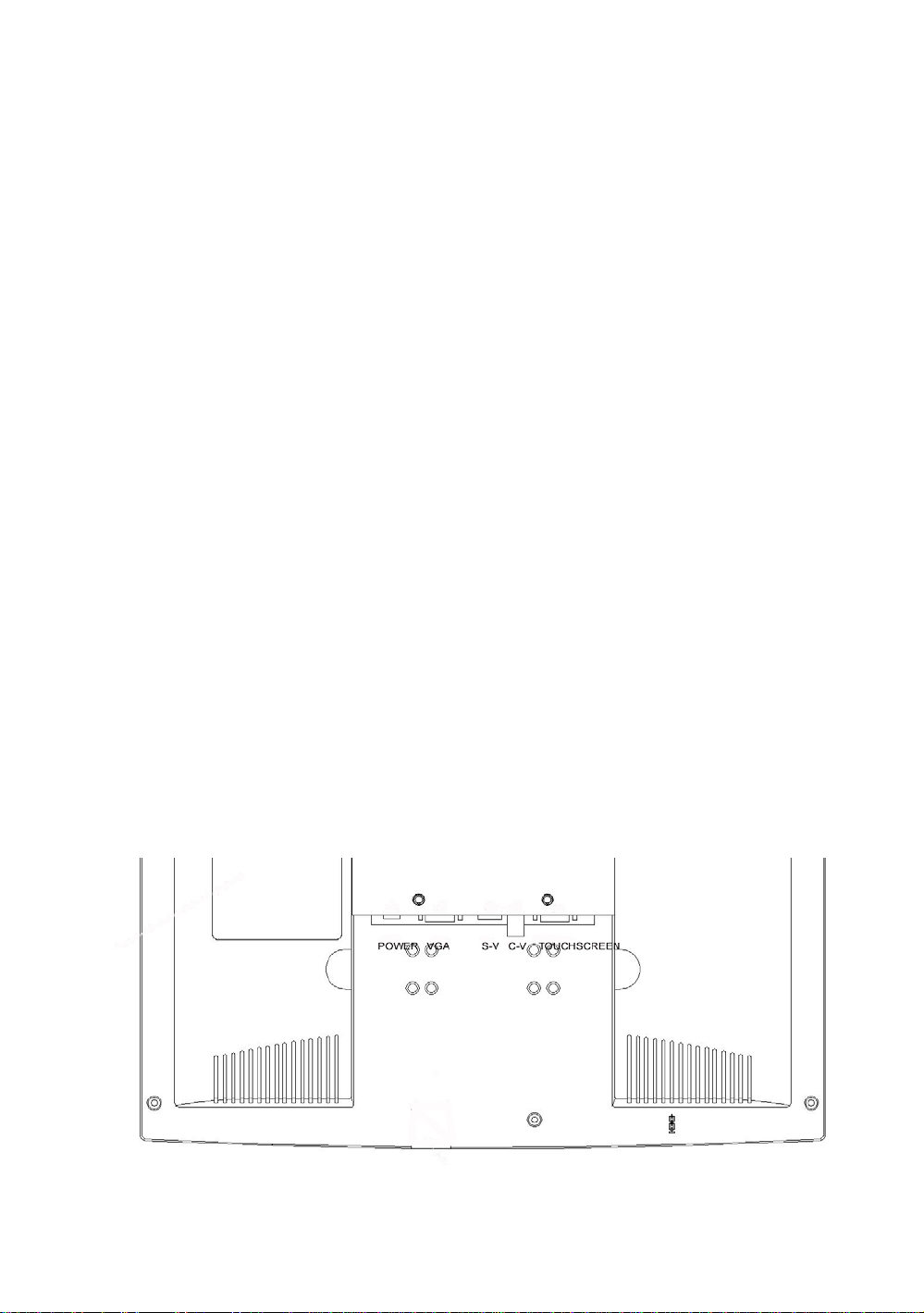

Connectors…………………………………………………………... 21
Troubleshooting…………………………………………………….. 22
Electromagnetic Compatibility…………………………………… 24~26
Description of Warranty……………………………………………. 27~28
Tounchscreen User’s Manual………………………………………29~30

Warnings and Cautions
Please read this manual and follow its instructions carefully. The words warning, caution, and
note carry special meanings and should be carefully reviewed:
Warranty is void if any of these warnings are disregarded.
ADVAN Int’l Corp accepts full responsibility for the effects on safety, reliability, and
performance of the equipment only if:
• Re-adjustments, modifications, and/or repairs are carried out exclusively by ADVAN Int’l
Corp.
• The electrical installation of the relevant operating room complies with the applicable IEC and
CE requirements.
Warning Federal law (United States of America) restricts this device to use by,
or on order of a physician.
The ADVAN Int’l Corp AMM15TK3Series Monitorhas beentested underUL60601-1
standard and UL listed for Medical application.
4
ADAVN Int’l Corp reserves the right to make improvements in the product(s) described herein.
Product(s), therefore, may not agree in detail to the published design or specifications. All
specifications are subject to change without notice. Please contact ADVAN Int’l Corp directly
or phone your local ADVAN Int’l Corp sales representative or agent for information on changes
and new products.

Warnings
1. Read the operating manual thoroughly and be familiar with its contents prior to using this
equipment.
2. Carefully unpack the unit and check if any damage occurred during shipment.
3. Should any solid object or liquid fall into the panel, unplug the unit and have it checked by
qualified personnel before operating it any further.
4. Unplug the unit if it is not to be used for an extended period of time. To disconnect the cord,
pull it out by the plug. Never pull the cord itself.
5. Be a qualified physician, having complete knowledge of the use of this equipment.
6. Test this equipment prior to a surgical procedure. This monitor was fully tested at the factory
before shipment.
7. Avoid removing covers on control unit to avoid electric shock.
8. Attempt no internal repairs or adjustments not specifically detailed in this operating manual.
9. Pay close attention to the care, cleaning instructions in this manual. A deviation may cause
damage (refer to the Cleaning section on page 9).
10. DO NOT STERILIZE MONITOR.
11. Read the entire instruction manual before assembling or connecting the camera.
12. Do not place the monitor or any other heavy object on the power cord. Damage to the cable
can cause fire or electric shock.
13. Monitor with power supply is suitable for use in patient environment.
14. DO NOT stack more than 8 boxes high
This equipment has been tested and found to complywith the limits for medical devices in IEC
601-1-2:2003. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to other devices in the
vicinity. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to other devices, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving device.
- Increase the separation between the equipment.
- Connect the equipment into an outlet on a circuit different from that to which the other
device(s) are connected.
- Consult the manufacturer or field service technician for help.
NOTICE TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference,and (2) this device must accept any interference
received,including interference that may cause undesired operation.
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or modifications to this equipment
may cause harmful interference unless the modifications are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if unauthorized change or modification is made.
5

6
Cautions
1. The AC Adapter must be plugged into a Grounded power outlet.
2. Use onlythe proprietary AMM15TK3power supplyfor the AMM15TK3monitor.Make a
proper connection by ensuring that the shrink tubing completely secures the connection between
the DC power cord and the extension cord.
3. Turn power off when unit is not in use.
4. Never operate the unit right after having transported from a cold location directly to a warm
location.
5. Do not expose the monitor to moisture or directly apply liquid cleaners directly to the screen.
Spray the cleaning solution into a soft cloth and clean gently.
6. Handle the monitor with care. Do not strike or scratch the screen.
7. Do not block the monitor cooling vents. The monitor is cooled by natural convection and has
no fan.
8. Do not force the monitor past 28 degrees of vertical when adjusting the screen position. (For
monitors equipped with stands only.)
9. Remove the power module and connection when transporting the unit.
10. Save the original carton and associated packing material. They will be useful should you
have to transport or ship the unit.
11. Allow adequate air circulation to prevent internal heat buildup.
12. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies)
that may block the ventilation slots.
13. Do not install the unit near sunlight, excessive dust, mechanical vibration or shock.
14. The unit is designed for operation in a horizontal position. Never operate the unit in a
vertical position.
15. Keep the unit away from equipment with strong magnets (i.e. a large loudspeaker.)
16. Do not expose the monitor to moisture or excessive dust.
17. Equipment with SIP/SOP connectors should either comply with IEC 60601-1 and/or IEC
60601-1-1 harmonized national standard or the combination should be evaluated. Do not touch
the patient with signal input or output connectors.
18. Use only a hospital grade power supply cord.
19. This equipment generates, uses, and can radiate radio frequency energy. If not installed
correctly and or not used in accordance with these instructions, it may cause harmful
interference with other devices. This may be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference through one or more of the following
measures: •Reorient or relocate the receiving device.
•Increase the separation distance between the equipment.
•Connect the equipment to an outlet on a circuit different from that to which the other
device(s) are connected.
•Consult the manufacturer or field service technician for help.
20. Grounding reliability can only be achieved when the equipment is connected to an
equipment receptacle labeled “Hospital Only” or “Hospital Grade.”
Note To connect to an international power supply, use a an attachment plug appropriate for
the power outlet.
Note Refer to the “Electromagnetic Compatibility” (EMC) section of this manual to ensure
EMC. The AMM15TK3must be installed and operated according to the EMC information
provided in this manual.

7
Product Description and Intended Use
The AMM15TK3Series Medical Monitor is an intelligent, microprocessor-based TFT-LCD
monitor intended for use in medical applications. It has an ergonomically designed display and
is compatible with most analog RGB (Red, Green, Blue) display standards.
Advan AMM15TK3Series Medical Monitor consists ofa low-profile molded plastic monitor
head, video and a power supply. Options include a Super sonic Acoustic Wave (AMM15TK2-
TEW) or Resistive (AMM15TK2-TE) touchscreen with interface cable. The display shows
262,144 colors with a pixel matrix of 1024 columns by 768rows.
• Advanced Viewing Solution (AVS): Our sophisticated filter extends the viewing angle of
the screen image, without sacrificing contrast ratio and brightness.
• Advanced Timing Setup (ATS): A unique technology from ADVAN is the One Touch
Auto Adjustment. Pressing the Auto Adjust button on the front panel, automatically
optimizes position, phase, frequency, contrast and color balance. This allows the user to
maximize the perfect screen setting in the shortest amount of time.
• Advanced Mounting Solution (AMS): ADVAN and Ergoton share their technology to
improve flat panel environment, utilizing numerous ergonomic mounting solutions to allow
creative use in conjunction to product application.
• The monitor is able to properly function even in case of upgrade video cards or software
because of the wide auto-scanning compatibility range without requiring to buy a new
monitor.
• The internal microprocessor digitally controls auto-scanning. For horizontal scan
frequencies between 24.8 KHz and 60.2 KHz, and vertical scan frequencies between 50.0
Hz and 85.1 Hz. In each frequency mode, the microprocessor-based circuitry allows the
monitor to function at the precision-of a fixed frequency.
• The resident memory allows for storing factory default settings and also additional user
adjustment parameters.
• The maximum resolution achievable is XGA (1024 x 768), best suited for Windows
applications
• The compact and sleek cabinet design saves lot of your desk space and makes your desk
look neat and tidy.
• The monitor is compliant with VESA-DPMS power management standard. In order to save
energy, the monitor must be connected to a system compliant with the standard.
The monitor is certified by UL International to medical standard UL 60601-1, EN60601-1
and EN60601-1-2. It is also CE marked for sale into the European Community for integration or
use with medical products.

Functional Description and Product Features
• Display Type Color Active Matrix LCD
• Control Buttons:
-OSD menu display: Menu Button
-Adjustment increase and Adjustment decrease and
-Power on/off
-Auto adjust & exit OSD menu: Auto Button
• Adjust brightness/contrast directly with the adjustment increase/decrease buttons.
• Indicators
-On-Screen Display "OSD" function
-Power LED indicator is lit when the monitor is on and blinking when the monitor is
power-save/standby mode
• Display formats
-VGA, SVGA, and XGA
-VESA DDC1 and DDC2B Plug and Play Functions
8

Cleaning Instructions
Advan AMM15TK2 Series Monitors will continue to operate normally while being cleaned in a
fashion normal for a hospital environment. This includes cleaning with a damp (wrung out),
mild soapy cloth. Protection from various chemicals used for cleaning.
Advan AMM15TK2 Series Monitors will withstand non-abrasive cloths and cleaning solutions
used in hospitals for like equipment. This is typically warm water and mild detergent for all
surfaces or 70% IPA for the touchscreen surface. Possible chemicals include:
• 70% isopropyl alcohol
• 6% aqueous ammonia
• Cidex (2.4% glutaraldehyde solution)
• Sodium Hypochlorite (bleach) 10%
• “Green soap” USP
• 0.5% Chlorhexidine in 70% isopropyl alcohol
• Ovation®
• Formula 409®
• Fantastic®
• Wex Cide®
To clean the screen, do not spray liquid cleaners directly on to the unit. Stand away Form the
monitor and spray cleaning solution onto a cloth. Without applying excessive pressure, clean
the screen with the slightly dampened rag.
9

Symbol Explanations
Indicates proof of conformity to applicable European Economic
Community Council directives and to harmonized standards
published in the official journal of the European Communities
Tested and certified by UL to UL60601-1. If this mark appears with
the indicators "C" and "US" the product is certified for both the U.S
and Canadian markets, to the applicable U.S and Canadian
standards.
Tested to comply with FCC Class B standards.
Dangerous high voltage.
Consult accompanying documents.
Indicates protective earth ground.
For indoor use only.
Direct Current
DC power control switch
10

Regulatory Compliance
This monitor has been tested to comply with IEC/EN 60601-1 and IEC/EN60601-1-2
Certified by UL to medical standard UL60601-1(UL/cUL Mark).
Because many medical offices are located in residential areas, this monitor, in addition to the
medical requirements, has also been tested and found to comply with the limits for FCC Class B
computing devices in a typically configured system. It is the system integrator or configurer's
responsibility to test and ensure that the entire system complies with applicable EMC laws.
EU Declaration of Conformity for Medical Applications
A Declaration of Conformity has been filed for this product. A sample of this document may be
found in the addendum which accompanied this manual. For a copy of the Declaration of
Conformitydocument, please contact ADVAN Int’l Corp. and request for AMM15TK3DOC.
Prepare for Unpack
Before you unpack your monitor, prepare a suitable workspace. You need a stable and level
surface near a grounded wall outlet in an area which is relatively free of glare from sunlight or
other sources of bright light. The monitor is cooled by natu convection (it has no fan).ral
For optimum performance, do not block the cooling vents.
While unpacking the monitor, inspect it and other package contents for shipping damage that
could cause a fire or shock hazard. Immediately report any shipping damage to the carrier or
transportation company and contact customer service for monitor in the future or in case of
return.
After you unpack the monitor, make sure the following items are included
• Monitor with 1.5 meter(5ft)monitor-to computer video cable
• AC adapter with cable
( CAUTION: ACAdapter must be plugged into Grounded a power outlet)
CAUTION : AC adapter
Manufacturer: Ault Inc
Model No: MW160KA1203F54
• Touchscreen cable if monitor has touchscreen option
• This operations manual
Note : Your system provider may offer alternative cords or cables
depending on the installation requirement and local geography issues.
11

Please check if the following items are present when you unpack the box, and save the
packing materials in case you will need to ship or transport the monitor in future.
·AMM15TK2 Series Medical Monitor, VGA cable, S-Video cable, BNC cable and
BNC to RCA adapter.
·AC power cord and AC-Adapter
CAUTION
Manufacturer : Ault Inc.
Model No : MW160KA1203F54
·User Manual.
·Touch screen DB9 data cable and floppy disk (touchscreen driver) optional
12

DDC
To make your installation easier, the monitor is able to Plug and Play with your system
if your system also supports DDC protocol. The DDC(Display Data Channel)is a
communication protocol through which the monitor automatically informs the host
system about its capabilities, for example, supported resolution and corresponding
timing. The monitor supports DDC1 and DDC2B standard.
Installation
To install the monitor to your host system, please follow the steps as given below:
Steps
1. Use the VGA cable that provides D-SUB 15P connector and connect to the 15-pin
connector on the VGAcontroller card.
2. Use the S-Video cable that provides S-Video connector and connector to the S-
Video port on the video source device (ex. VCR, Camera system)
3. Use the BNC cable with the BNC to RAC adapter that provides composite video
connector and connector to the composite video port on the video source device.
4. Use the RS-232 serial cable that provides DB9 pin connector and connect to the 9-
pin connector on the source device for touch screen communication. (Optional)
5. Connect the DC power to the DC power connector on the monitor.
6. Connect one end of AC power cord into the AC Adapter and the other end to AC
power outlet.
7. Then turn the computer on and then the monitor.
8. If the monitor still does not function properly, please refer to the troubleshooting
section to diagnose the problem.
13

Screen Position Adjustment (with optional stand)
In order to optimize the best viewing position, you can adjust the tilt of the monitor by
using both of your hands to hold the edges of the monitor as shown in the figure below.
The monitor can be adjusted up to 30 degrees as indicated by arrow below.
Connecting the Power Cord
• Check first to make sure that the power cord you use is the correct type required
for your area.
• This monitor has an universal AC adapter that allows operation in either AC 100
- 240 Vac voltage area. No user-adjustment is required.
• Plug one end of the power cord to the AC adapter, plug another end to a proper
AC outlet.
The cord set should have the appropriate safety approvals for the country in which
the equipment will be installed and marked HAR.
For 120 volt Applications, use only UL Listed detachable power cord with NEMA
configuration 5-15P type (parallel blades) plug cap. For 240 volt applications use only
UL Listed Detachable power supply cord with NEMA configuration 6-15P type
(tandem blades) plug cap.
14

15
Power Management Function
The monitor is equipped with the power management function which automatically reduce the
power consumption when not in use in three power level modes.
• Stand-by Mode
The monitor goes into stand-by mode when the horizontal sync signal is off for about 10
seconds. In this mode, the screen goes off and the power LED blinks for 1 seconds On and 1
second Off. The screen is displayed after the horizontal sync signal is restored.
• Suspend Mode
The monitor goes into suspend mode when the vertical sync signal is off for about 10 seconds.
The power consumption during this is less than 8 W. In this mode, the screen goes off and the
power LED blinks for 1 seconds On and 1 second Off. The screen is displayed after the vertical
sync signal is restored.
• Off Mode
The monitor goes into power-off mode when the vertical and horizontal sync signals are off for
about 10 seconds. In this mode, the screen goes off and the power LED blinks for 1 seconds On
and 1 second Off. The screen is displayed after the vertical and horizontal sync signals are
restored.
Power Management System
The AMM15TK2 Series Medical Monitor complies with the VESA DPMS power management
proposal. The VESA DPMS proposal provides four phases of power-saving modes by detecting
the horizontal sync signal as shown in the table blow.
Mode
DC Input Power (monitor only) AC Input power (incl. AC adapter) LED Status
On 28.0 W max. 37 W max. Steady Green
Standby 4.5 W max. 6W max Blinking Green
Suspend 4.5 W max. 6W max Blinking Green
Off 4.5 W max. 6W max Blinking Green
When the monitor is power saving mode or detects an incorrect timing, the screen will be blank
and power LED indicator will blink.

User Controls
Front Panel Controls
1. Power LED : Lights up to indicate the power is turned ON.
2. Power Switch : To turn ON or OFF the power.
3. + : To increase the value of the parameter in the OSD you have selected for
adjustment.
: To increase the contrast directly when OSD menu is not activated.
: To move upward in the OSD menu.
: Execute a function of selected item.
4. - : To decrease the value of the parameter in the OSD you have selected for
adjustment.
: To decrease the brightness directly when OSD menu is not activated.
: To move downward in the OSD menu.
5. Menu : To enter OSD.
6. Select : Enter a sub menu or select a menu item.
If video display option is adopted, switch PC display to Video display and vice versa
by one touch when OSD menu is not activated.
7. Auto Button : One touch Auto adjust or Exit OSD menu.
Standard OSD Operation
1. Press “Menu” button to activate the OSD.
2. Use “+” then “-” keys to move through the menu.
The parameter will be highlighted when selected.
3. Then use “+” or “-” to increase or decrease the value of the parameter, or make
selection between different options.
4. To quit the OSD screen at any time during the operation, press “Auto” button.
If no keys are pressed for a time period, the OSD automatically disappears.
16

17
OSD Function Description
Under Analog RGB Display
Item Function
Brightness To increase or decrease the brightness.
Contrast To increase or decrease the contrast.
Frequency To adjust frequency (dot clock).
Phase To adjust phase (clock-phase).
Vertical. To move the screen upward or downward
Horizontal To move the screen left or right.
OSD Hor Pos To move OSD menu left or right.
OSD Ver Pos To move OSD menu upward or downward.
OSD Background Choose between Opaque and Translucent.
User Timeout Set OSD screen appearing time.
Color Temp Choose between Default, System1, Sytem2, Sytem3, System4 for
color temp.
Red Balance Red.
Green Balance Green.
Blue Balance Blue.
DPMS Enable or Disable DPMS.
Auto Source Select Enable or disable auto source selection.
Freeze Frame Enable or disable freeze frame.
Zoom Enable zoom-in function.
Scale Mode Choose scale mode between “Fill Screen”, “Aspect Ratio”, “One to
One”
Input Source Select Choose input source between “Analog RGB”, “Composite Video”,
“Super Video”
Auto Adjust Press + to turn on this function. The Auto-Adjust will automatically
adjust V-Position, H-Position, Frequency, Clock-Phase. The whole
process takes about 5 seconds. (Please use the test pattern file in the
attached LCD monitor utility disk for Auto Adjust)
Factory Reset Set to factory default.
Information Display information on resolution, refresh rate and input mode.

18
Under Composite or Super Video Display
Item Function
Hue To increase or decrease the hue level.
Saturation To increase or decrease the saturation level.
Brightness To increase or decrease the brightness.
Contrast To increase or decrease the contrast.
Frequency To adjust frequency (dot clock).
Phase To adjust phase (clock-phase).
Vertical. To move the screen upward or downward
Horizontal To move the screen left or right.
OSD Hor Pos To move OSD menu left or right.
OSD Ver Pos To move OSD menu upward or downward.
OSD Background Choose between Opaque and Translucent.
User Timeout Set OSD screen appearing time.
Color Temp Choose between Default, System1, Sytem2, Sytem3, System4 for
color temp.
Red Balance Red.
Green Balance Green.
Blue Balance Blue.
DPMS Enable or Disable DPMS.
Auto Source Select Enable or disable auto source selection.
Freeze Frame Enable or disable freeze frame.
Zoom Enable zoom-in function.
Video-Sharp To increase or decrease the video sharpness.
Video Scale Mode Choose scale mode between “Normal”, “One to One”, “Wide”
Input Source Select Choose input source between “Analog RGB”, “Composite Video”,
“Super Video”
Factory Reset Set to factory default.
Information Display information on resolution, input mode.

Specification Of AMM15TK3
AMM 15TK2 LCD Panel 15" Color TFT Panel
Type Active Matrix
Resolution 1024 ×768 @ 75Hz Max.
Display Color 16 million colors
Response Time 25 ms
Color Tone Upto 256 tone
Color Filter RGB vertical stripe type
Face Finishing Anti-glare Hard Coated
Viewing
Angle(L/R/T/B) 85/85/85/85
Video 0.7 Vp-p analog RGB
Sync 2.5 ~ 5.0 Vp-p separated sync
Input Signal Input Impedance Video-75 Ohm, Sync-1k Ohm
Horizontal 30 ~ 68 KHz
Scanning
Frequency Vertical 50 ~ 75 Hz
Display Size H x V 12.09 "×9.07 "(307.2 mm ×230.4 mm)
Brightness 300 cd/m
270 cd/m (AMM15TK2-TEW,)
225 cd/m (AMM15TK2-TE)
Gray Scale Up to 256 Gray Scale
Brightness,
Contrast Ratio
Gray Scales
Contrast Ratio 450 : 1
Video D-Sub 15pin, Composite Video, S-Video
Signal
Input Connector Touchscreen RS-232 DB-9 (Optional)
Operating Temperature
& Humidity 50 F ~ 104 F (10°C ~ 40°C),
30% ~75% (Without Condensation)
Storage Temperature -4 F ~ 140 F (-20°C ~ 60°C)
Storage Humidity 10% ~90% (Max, Without condensation)
Environment
Atmospheric Pressure Within 500 to 1060 hPa
Display Monitor DC 12 V 3.5 A
Power Source AC Adapter AC 100 ~ 240 V
Regulations Safety and EMC UL 60601-1, EN60601-1, EN60601-1-2,
CE, FCC
15.7 "(W)×15.5 "(H) x 5.9 "(D)
Desk top Stand 399 mm(W)×395 mm(H)×64 mm(D)
45.7 "(W)×12.6 "(H)×2.5 "(D)
Cabinet
Free Mount 399 mm(W)×320 mm(H)×64 mm(D)
Desktop Stand 11.7 lbs (5.3 Kg)
13.9 lbs (6.3 Kg) Touchscreen model
Weight
Free Mount 7.5 lbs (3.4 Kg)
10.7 lbs (4.8 Kg) Touchscreen model
Optional Module Touch Panel
* All contents are subject to change without notice.
* Touch Screen Model doesn’t include the Video-in (C-Video, S-Video) function.
* Surface Wave Touchscreen model AMM15TK2-TEW and Resistive Touchscreen model AMM15TK2-TE
19

20
Supported Modes
Mode Resolution(H ×V) H. Freq.(KHz) V. Freq.(Hz)
1640 ×350 31.5 70
4 720 ×400 31.5 70
6 640 ×480 31.5 60
7 640 ×480 35.0 67
8 640 ×480 37.9 72
9 640 ×480 37.5 75
11 800 ×600 35.1 56
12 800 ×600 37.9 60
13 800 ×600 48.1 72
14 800 ×600 46.9 75
16 832 ×624 49.7 75
17 1024 ×768 48.8 60
18 1024 ×768 48.4 60
19 1024 ×768 56.5 70
20 1024 ×768 60 75
