Mettler Electronics Sonicator 730 User manual

Sonicator“ 730
Maintenance Manual
|
|
人
へ
grrugn
SLECTRONICS®
corp.

Sonicator“ 730
Maintenance Manual
| ΛΛεττιεη Ἔσιεοτηονιος”
corp.
1333 S. Claudina Street
Anaheim, California 92805 U.S.A.
Call toll free: (800)-854-9305
or call: (714)-533-2221
FAX: [phone]
March, 2003 IR7-39
O A A A

Mettler Electronics Corp.

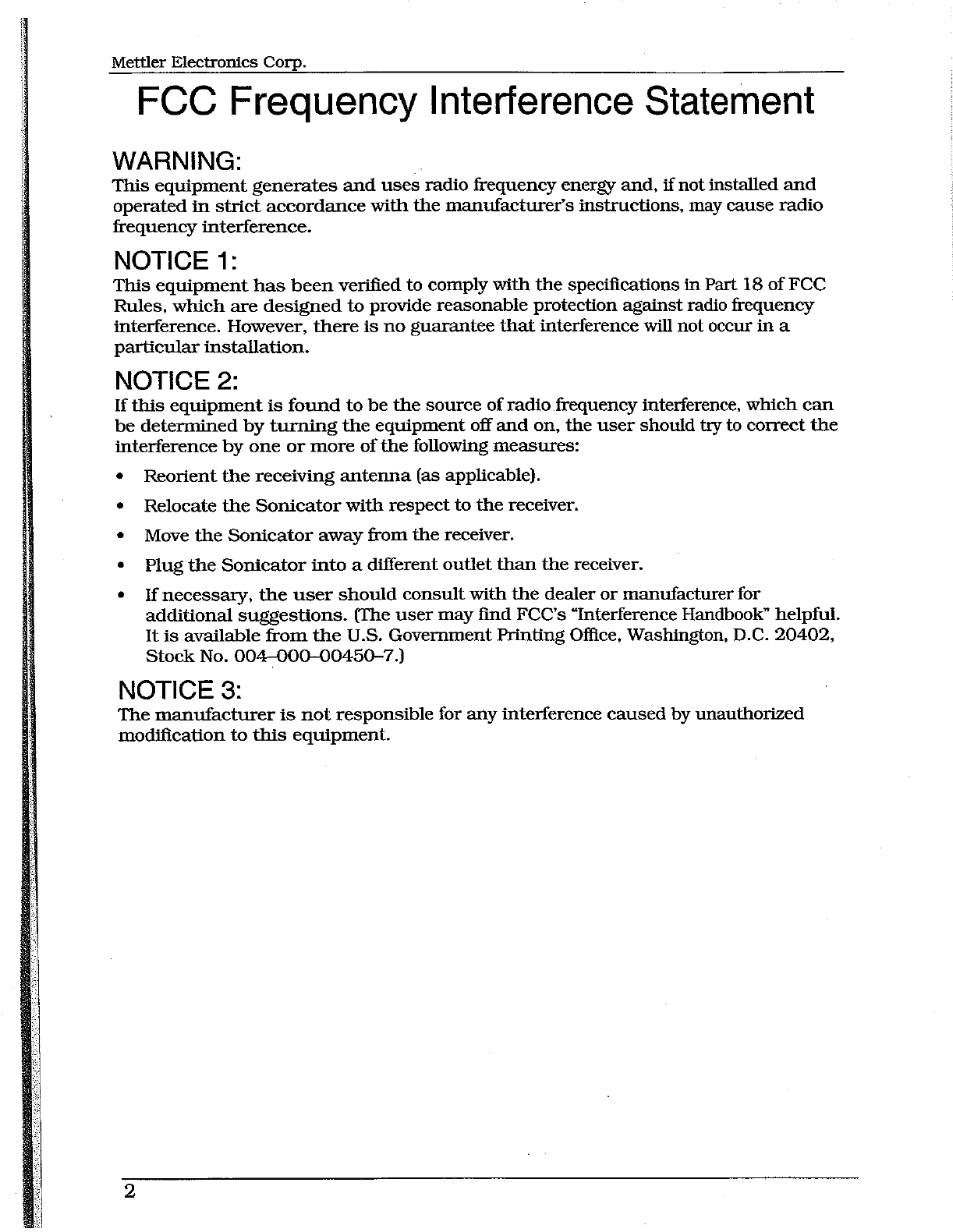

FCC Frequency Interference Statement
WARNING:
This equipment generates and uses radio frequency energy and, if not installed and
operated in strict accordance with the manufacturer’s instructions, may cause radio
frequency interference.
NOTICE 1:
This equipment has been verified to comply with the specifications in Part 18 of FCC
Rules, which are designed to provide reasonable protection against radio frequency
interference. However, there is no guarantee that interference will not occur in a
particular installation.
NOTICE 2:
If this equipment is found to be the source of radio frequency interference, which can
be determined by turning the equipment off and on, the user should try to correct the
interference by one or more of the following measures:
+ Reorient the receiving antenna (as applicable).
e Relocate the Sonicator with respect to the receiver.
e Move the Sonicator away from the receiver.
e Plug the Sonicator into a different outlet than the receiver.
e If necessary, the user should consult with the dealer or manufacturer for
additional suggestions. (The user may find FCC’s “Interference Handbook” helpful.
It is available from the U.S. Government Printing Office, Washington, D.C. 20402,
Stock No. 004-000-00450-7.)
NOTICE 3:
The manufacturer is not responsible for any interference caused by unauthorized
modification to this equipment.

Sonicator 730 Maintenance Manual

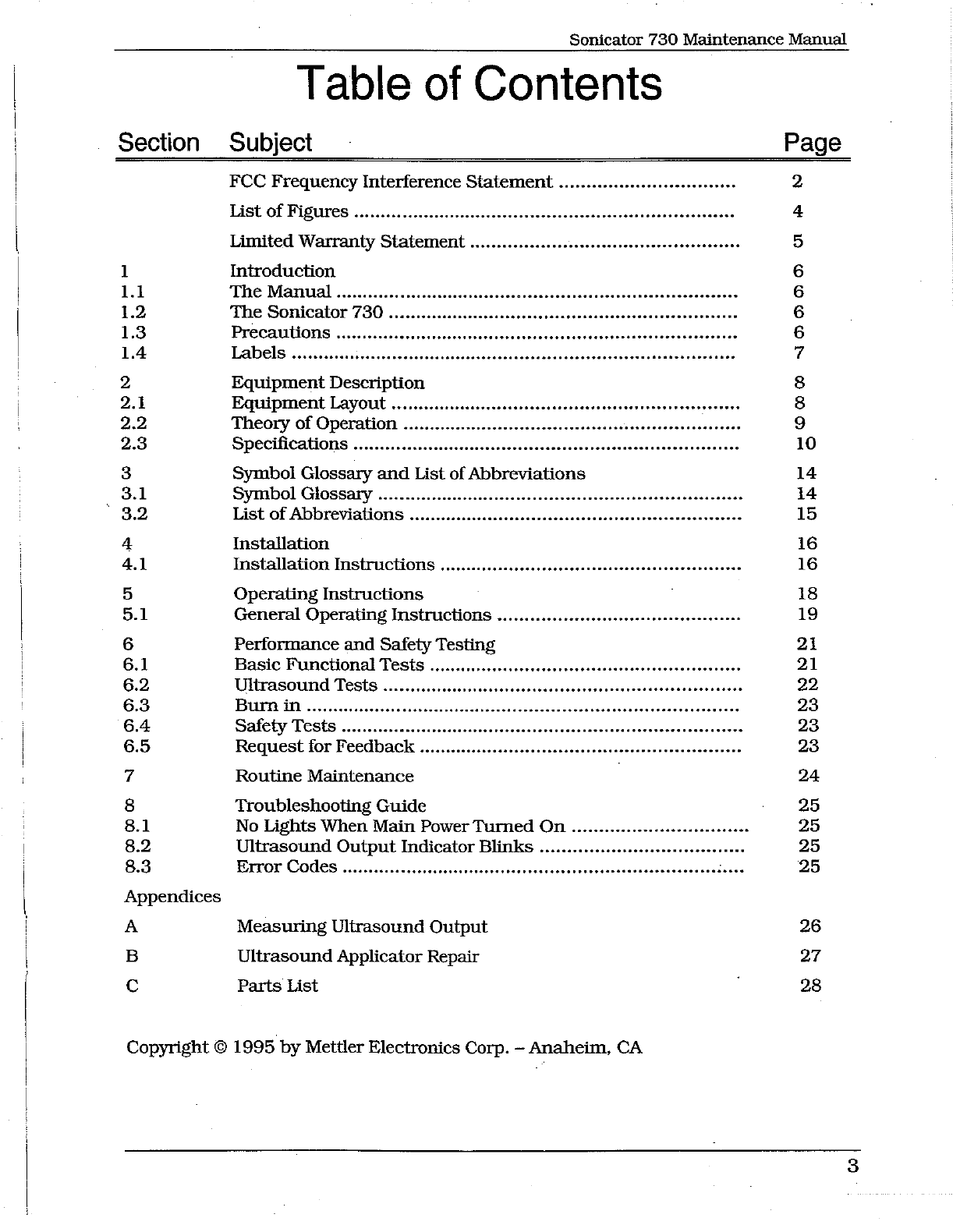

Table of Contents
Section Subject - Page
FCC Frequency Interference Statement .…............................. 2
ist of Figures нии иииини инте тени нити топи ви винила 4
Limited Warranty Statement ss 5
1
Introduction
6
1.1 The Manual .....................0000.0000eoooooeooo eee nene eno e nn ee ana n ae eee ne 0000 6
1.2 The Sonicator 730 6
1.3 Precautions ....... 6
1.4 Labels 000000 ooo eee eee nooo een ae ekon 7
2 Eguipment Description 8
2.1 Equipment LayoUt een ee nenene 8

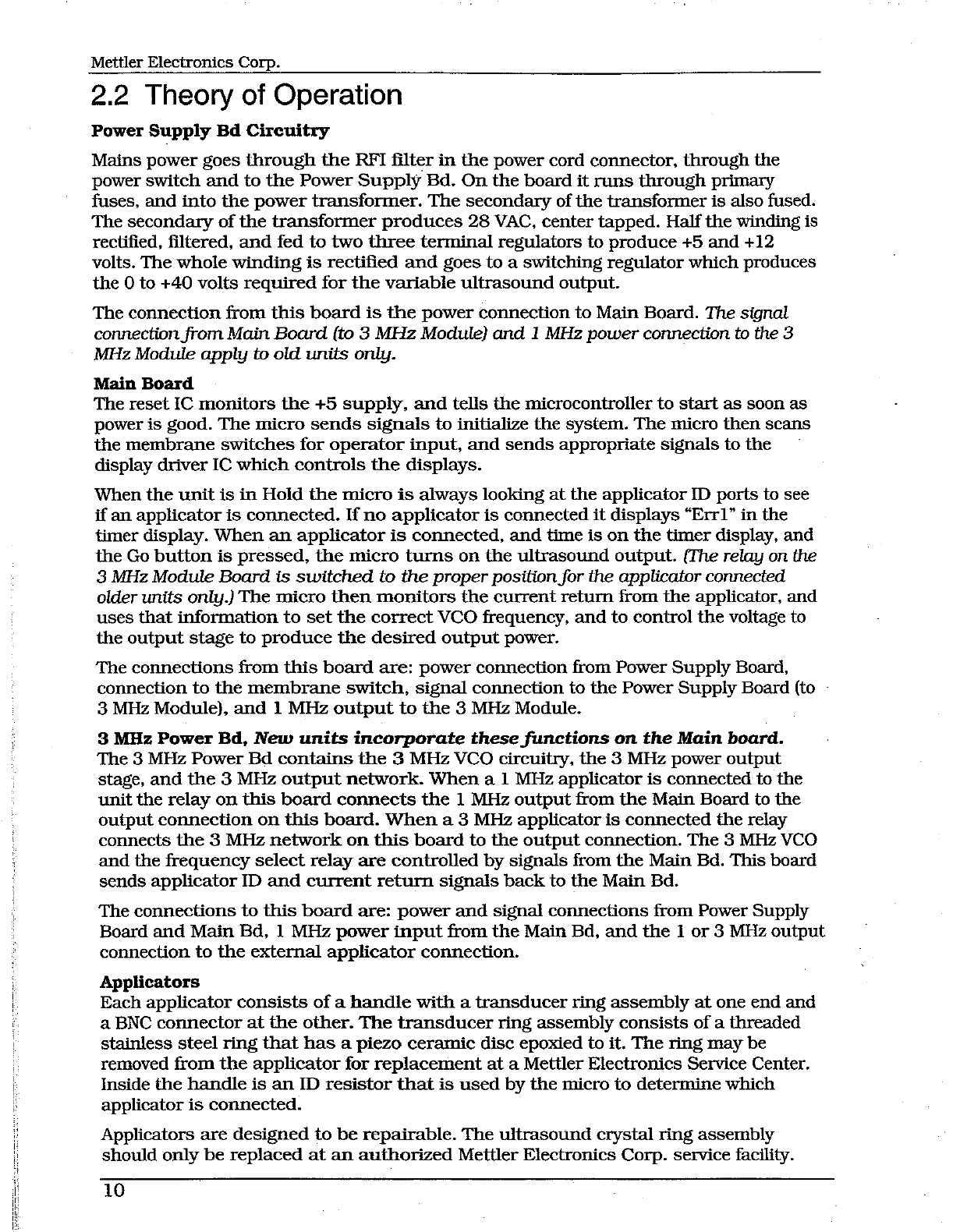

2.2 Theory of Operation . 9

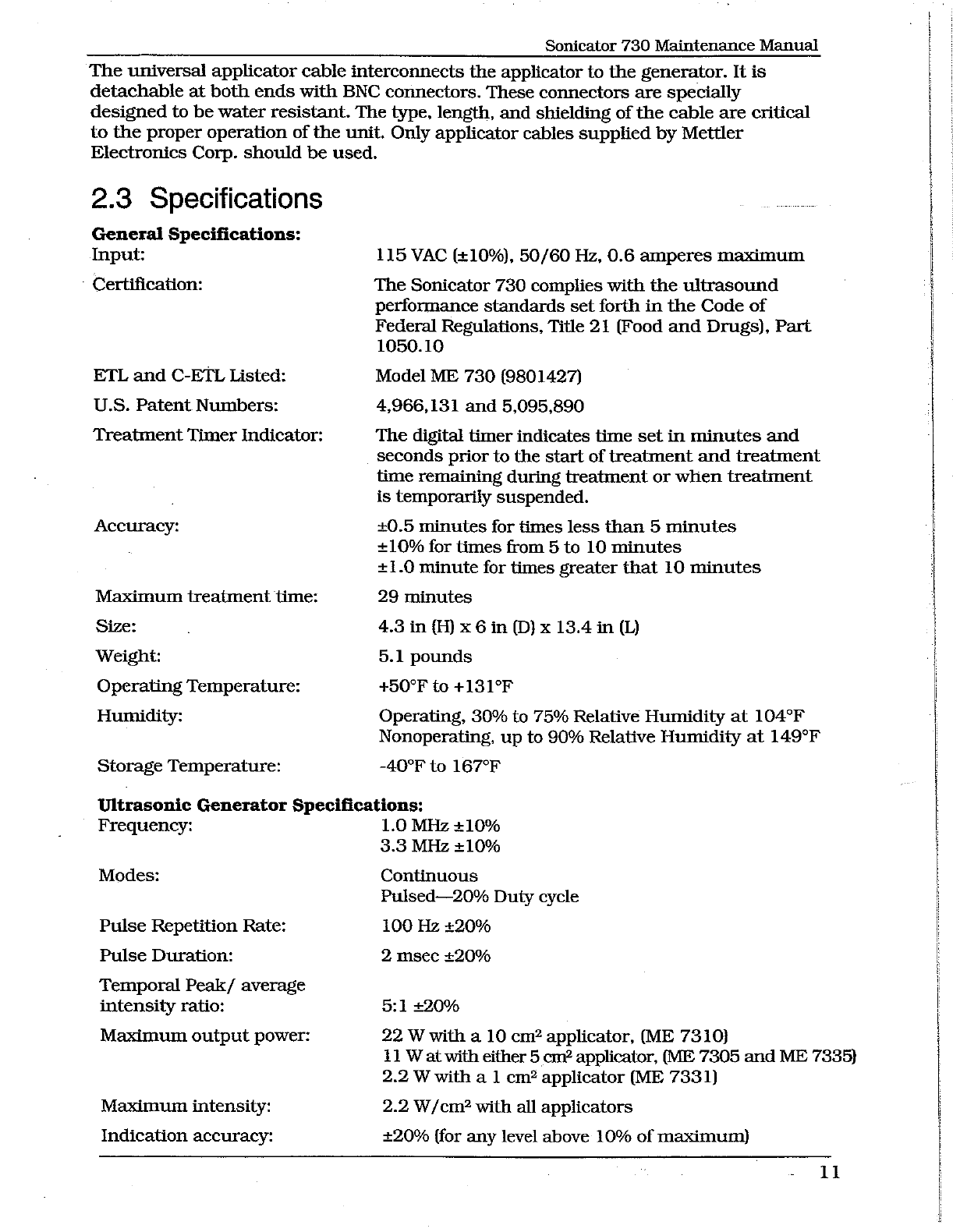

2.3 Specifications μμ μμ srescersenensensescssesssseesssesee 10

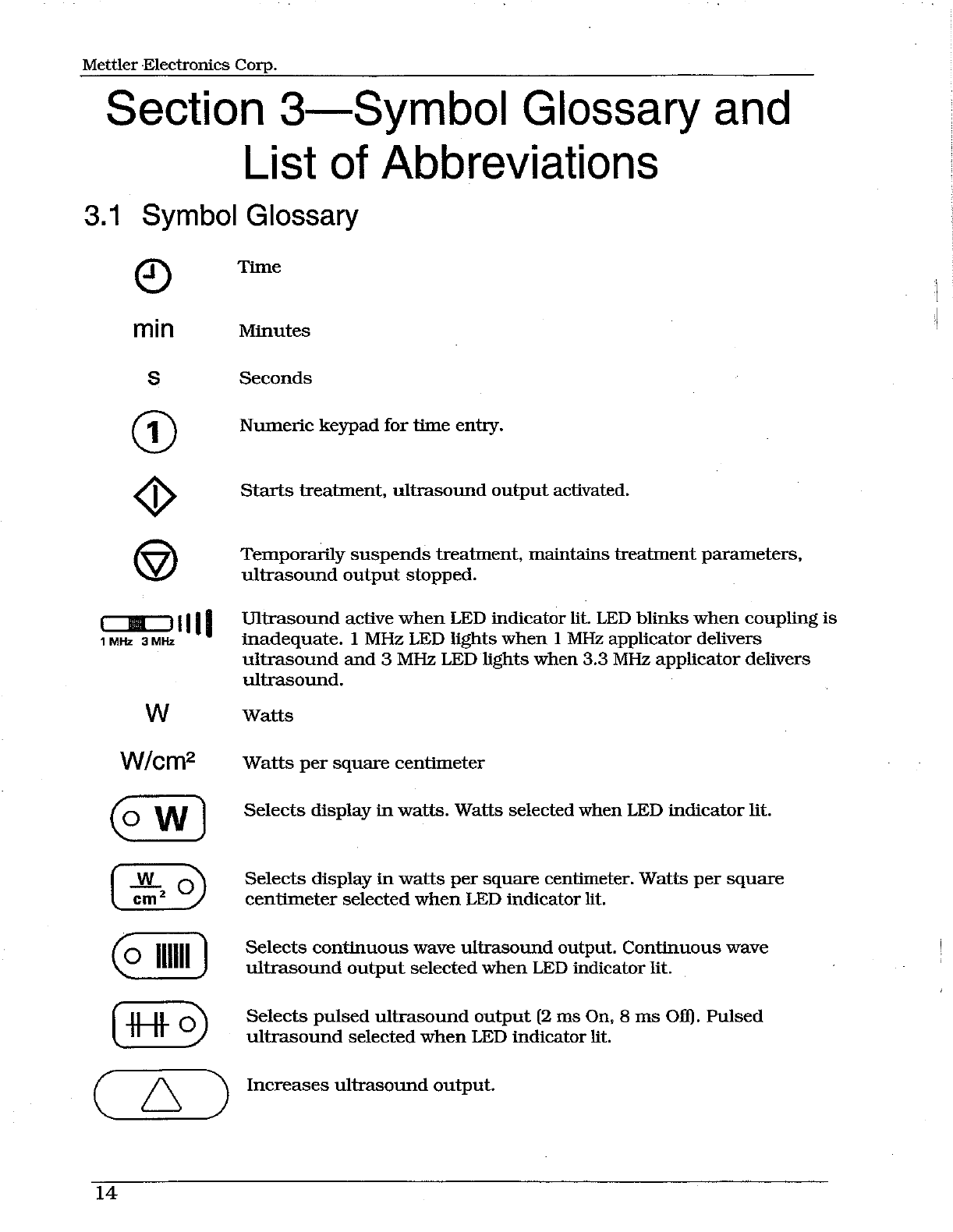

3 Symbol Glossary and List of Abbreviations 14
3.1 Symabol Glossary κκ ών οκ ες κα σος 14
32 List of Abbreyiations .pe 15
4 Installation 16
4.1 Installation INStructions .pe 16
5 Operating Instructions 18
5.1 General Operating Instructions sn 19
6 Performance and Safety Testing 21
6.1 Basic Functional TestS ..cconoconinonaonononsanonrronccnnaconoconononacanononnos 21
6.2 Ultrasound Tests 22
6.3 Виг İN ooo. e ieeeee rice nie e ie nie iie cene eieereeerieeriere vieni 23
6.4 Safety Tests AA 23
6.5 Request for Feedback seen 23
7 Routine Maintenance | 24
8 Troubleshooting Guide ] 25
8.1 No Lights When Main Power Turned On ss νεος 25
8.2 Ultrasound Output Indicator Blinks 25
8.3 Ed isens 25
Appendices
A Measuring Ultrasound Output 26
B Ultrasound Applicator Repair 27
C Parts List - 28
Copyright © 1995 by Mettler Electronics Corp. ~ Anaheim, CA

Mettler Electronics Corp.
List of Figures
Number Title Page
2.1 Sonicator 730 Block Diagram 9
2.2 Sonicator 730 Old Block Diagram 9
2.3 Pulse Waveform 12
2.4 Continuous Wave Waveform 12

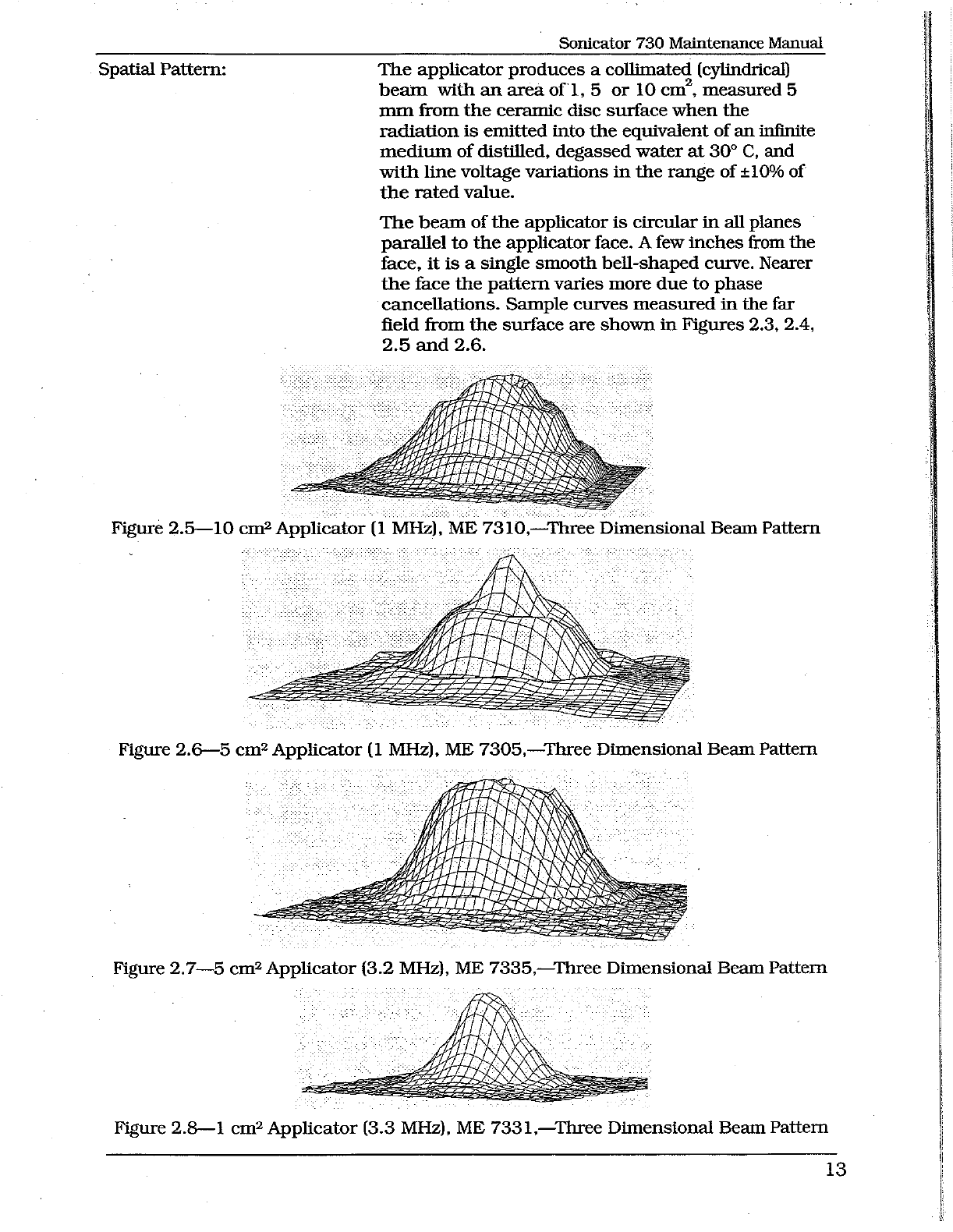

2.5 10 cm? / 1 MHz Applicator, Far Field Beam Scan 13
2.6 5 cm? / 1 MHz Applicator, Far Field Beam Scan 13
2.7 5 em? / 3.3 MHz Applicator, Far Field Beam Scan 13
2.8 1 cm? / 3.3 MHz Applicator, Far Field Beam Scan 13

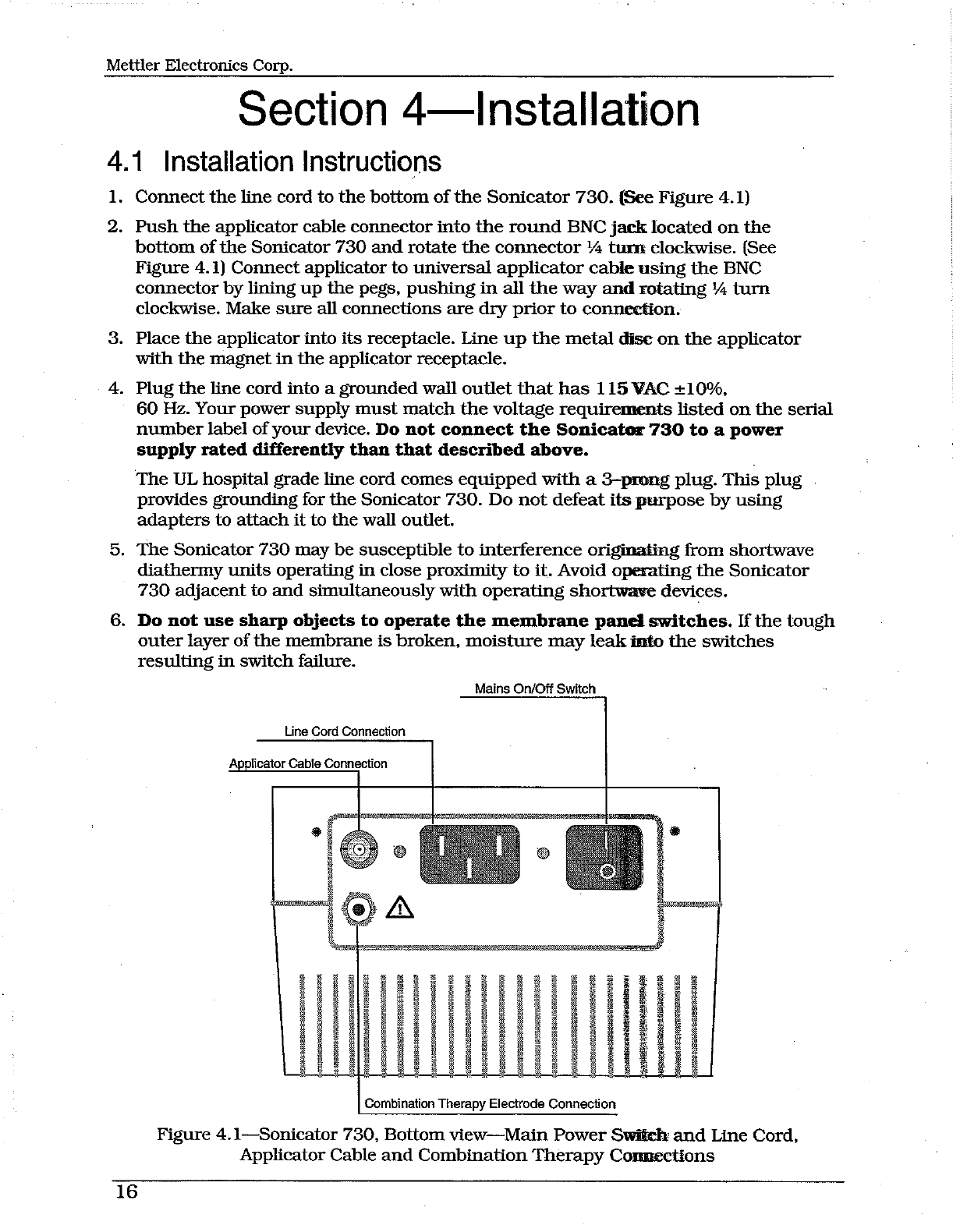

4.1 Sonicator 730, Bottom View— Main Power Switch and
Line Cord, Applicator Cable and Combination Therapy
Connections 16

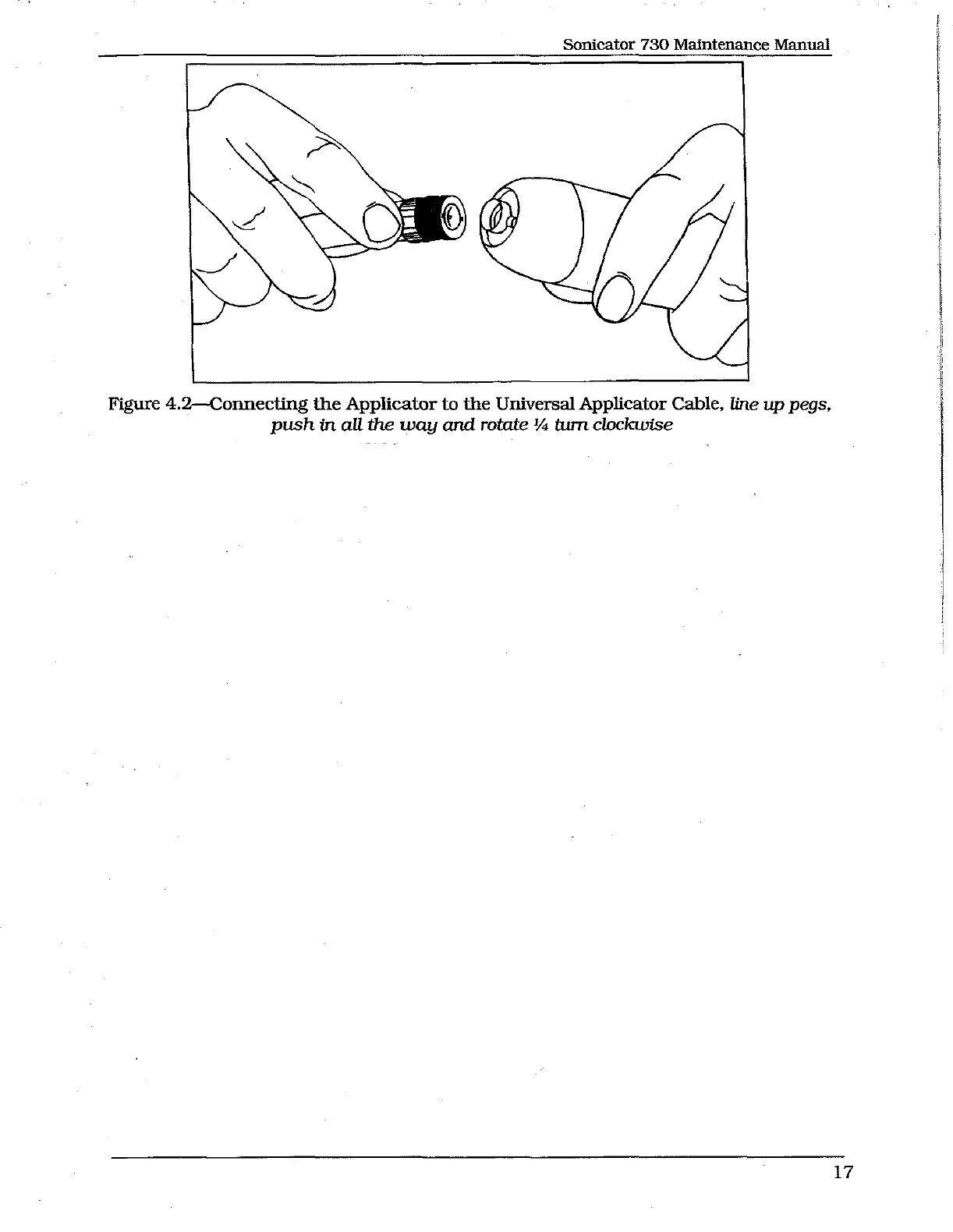

4.2 Connecting the Applicator to the Universal Applicator Cable 17

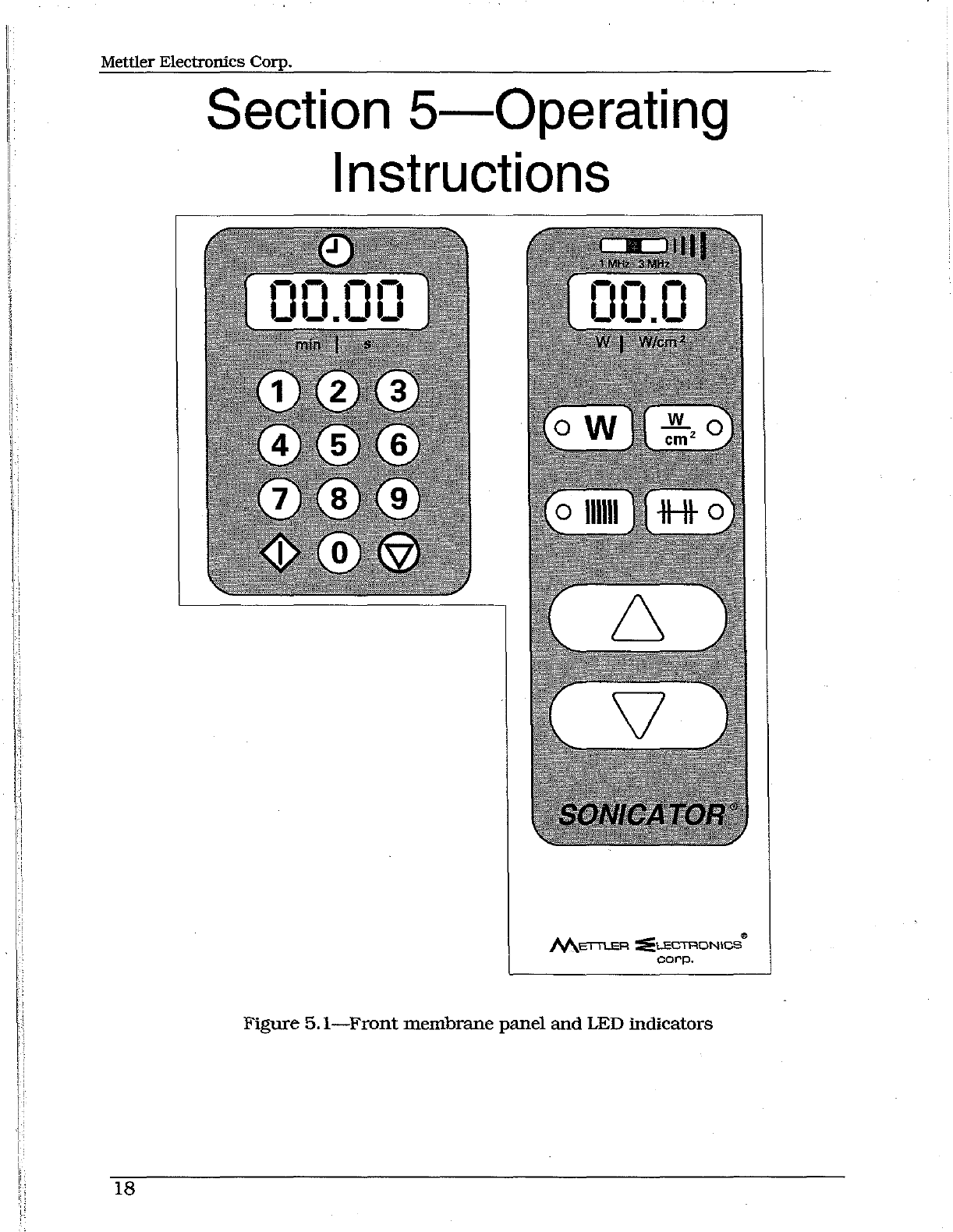

5.1 Front membrane panel and LED indicators 18
B.1 Applicator Top Assembly 27

Sonicator 730 Maintenance Manual
Limited Warranty
The Sonicator 730 generating unit is warranted against defects in materials and
“workmanship for a period of two years from date of purchase. The Sonicator 730
applicators are warranted against defects in materials and workmanship for a period
of one year from date of purchase. During the applicable warranty period Mettler Elec-
tronics Corp. will, at its discretion, either repair or replace the Product without charge
for these types of defects.
For service under this warranty, the Product must be returned by the buyer within
the applicable warranty period to Mettler Electronics Corp. Shipping charges to
Mettler Electronics Corp. under this warranty must be paid by the buyer. The
buyer must also include a copy of the sales receipt or other proof of the date of
purchase. If the Product is returned without proof of the date of purchase, it will
be serviced as an out-of- warranty product at Mettler Electronics Corp.'s
prevailing service rates.
Alteration, misuse, or neglect of the Product voids this warranty. Except as
specifically set forth above, Mettler Electronics Corp. makes no warranties,
express or implied, including without limitation any implied warranty of
merchantability or fitness for a particular purpose, with respect to the Product.
If any implied warranties apply as a matter of law, they are limited in duration
to one year.
Mettler Electronics Corp. shall not be liable for any indirect, special,
consequential or incidental damages resulting from any defect in or use of the
Product.
Any legal action brought by the buyer relating to this warranty must be
commenced within one year from the date any claim arises and must be brought only
in the state or federal courts located in Orange County, California.
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to the buyer. This warranty gives the buyer
specific legal rights, and the buyer may also have other rights which vary from state to
state.

i
|
!
Hi
|
Mettler Electronics Corp.

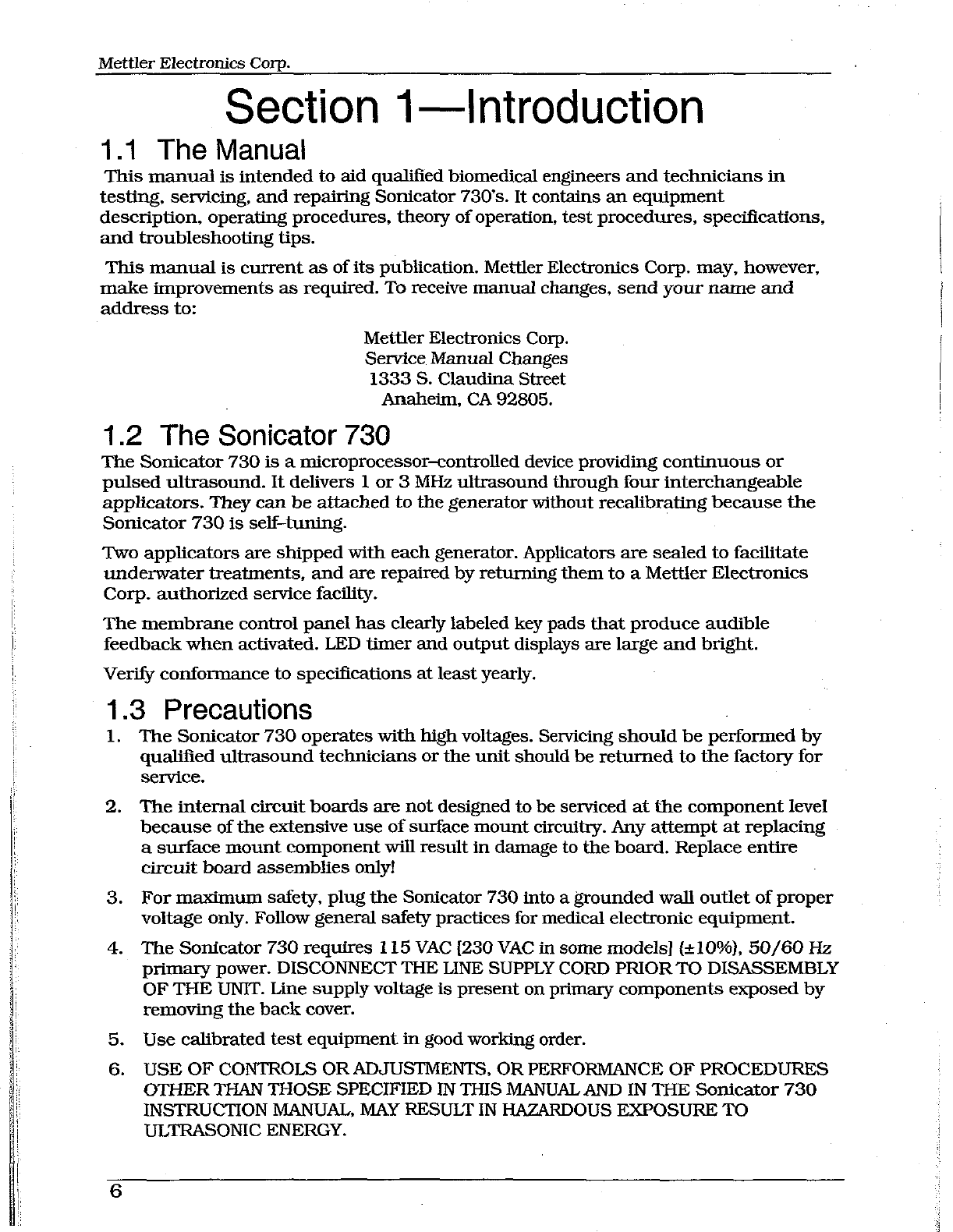

Section 1—Introduction
1.1 The Manual
This manual is intended to aid qualified biomedical engineers and technicians in
testing, servicing, and repairing Sonicator 730’s. It contains an equipment
description, operating procedures, theory of operation, test procedures, specifications,
and troubleshooting tips.
This manual is current as of its publication. Mettler Electronics Corp. may, however,
make improvements as required. To receive manual changes, send your name and
address to:
Mettler Electronics Corp.
Service Manual Changes
1333 S. Claudina Street
Anaheim, CA 92805.
1.2 The Sonicator 730
The Sonicator 730 is a microprocessor-controlled device providing continuous or
pulsed ultrasound. It delivers 1 or 3 MHz ultrasound through four interchangeable
applicators. They can be attached to the generator without recalibrating because the
Sonicator 730 is self-tuning.
Two applicators are shipped with each generator. Applicators are sealed to facilitate
underwater treatments, and are repaired by returning them to a Mettler Electronics
Corp. authorized service facility.
The membrane control panel has clearly labeled key pads that produce audible
feedback when activated. LED timer and output displays are large and bright.
Verify conformance to specifications at least yearly.
1.3 Precautions
1. The Sonicator 730 operates with high voltages. Servicing should be performed by
qualified ultrasound technicians or the unit should be returned to the factory for
service.
2. The internal circuit boards are not designed to be serviced at the component level
because of the extensive use of surface mount circuitry. Any attempt at replacing
a surface mount component will result in damage to the board. Replace entire
circuit board assemblies only!
3. For maximum safety, plug the Sonicator 730 into a grounded wall outlet of proper
voltage only. Follow general safety practices for medical electronic equipment.
4. The Sonicator 730 requires 115 VAC {230 VAC in some models] (110%), 50/60 Hz
primary power. DISCONNECT THE LINE SUPPLY CORD PRIOR TO DISASSEMBLY
OF THE UNIT. Line supply voltage is present on primary components exposed by
removing the back cover.
5. Use calibrated test equipment in good working order.
6. USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED IN THIS MANUAL AND IN THE Sonicator 730
INSTRUCTION MANUAL, MAY RESULT IN HAZARDOUS EXPOSURE TO
ULTRASONIC ENERGY.

Sonicator 730 Maintenance Manual

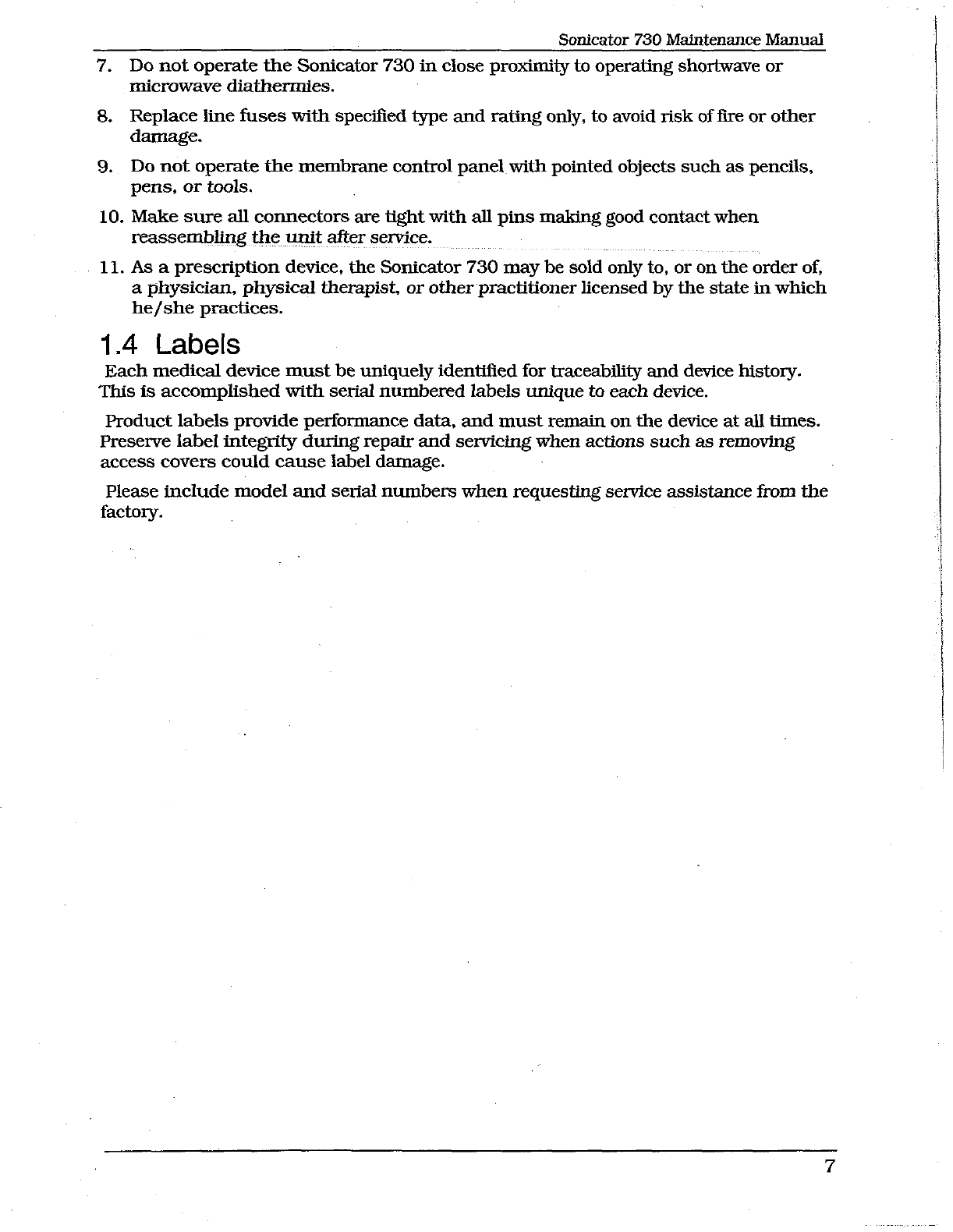

7. Do not operate the Sonicator 730 in close proximity to operating shortwave or
microwave diathermies.
8. Replace line fuses with specified type and rating only, to avoid risk of fire or other
damage.
9.. Do not operate the membrane control panel with pointed objects such as pencils,
pens, or tools.
10. Make sure ail connectors are tight with all pins making good contact when
reassembling the unit after service.
11. As a prescription device, the Sonicator 730 may be sold only to, or on the order of,
a physician, physical therapist, or other practitioner licensed by the state in which
he/she practices.
1.4 Labels
Each medical device must be uniguely identified for traceability and device history.
This is accomplished with serial numbered labels unigue to each device.
Product labels provide performance data, and must remain on the device at all times.
Preserve label integrity during repair and servicing when actions such as removing
access covers could cause label damage.
Please include model and serial numbers when requesting service assistance from the
factory.

Mettler Electronics Corp.

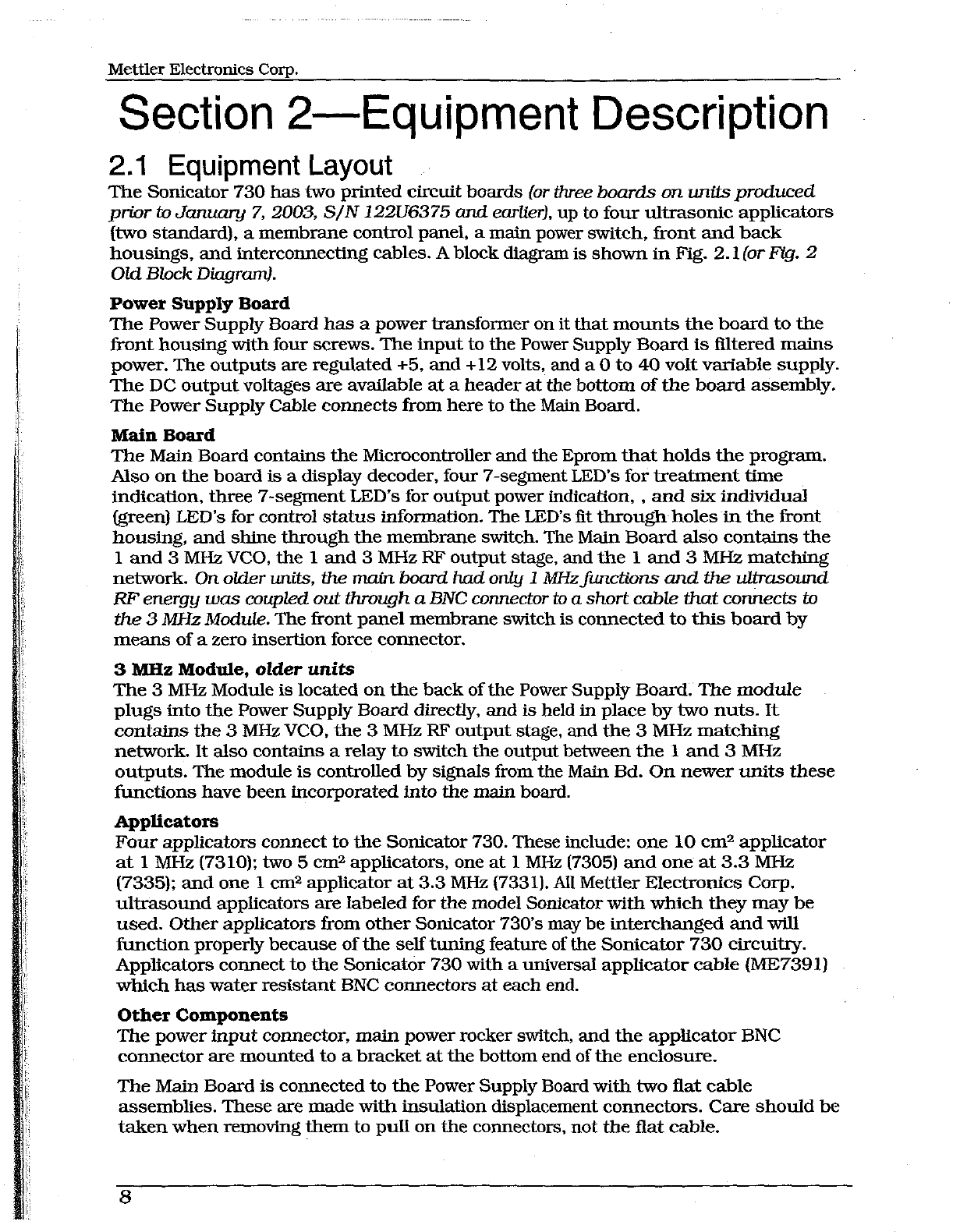

Section 2—Equipment Description
2.1 Equipment Layout
The Sonicator 730 has two printed circuit boards (or three boards on units produced
prior to January 7, 2003, S/N 122U6375 and earlier), up to four ultrasonic applicators
(two standard), a membrane control panel, a main power switch, front and back

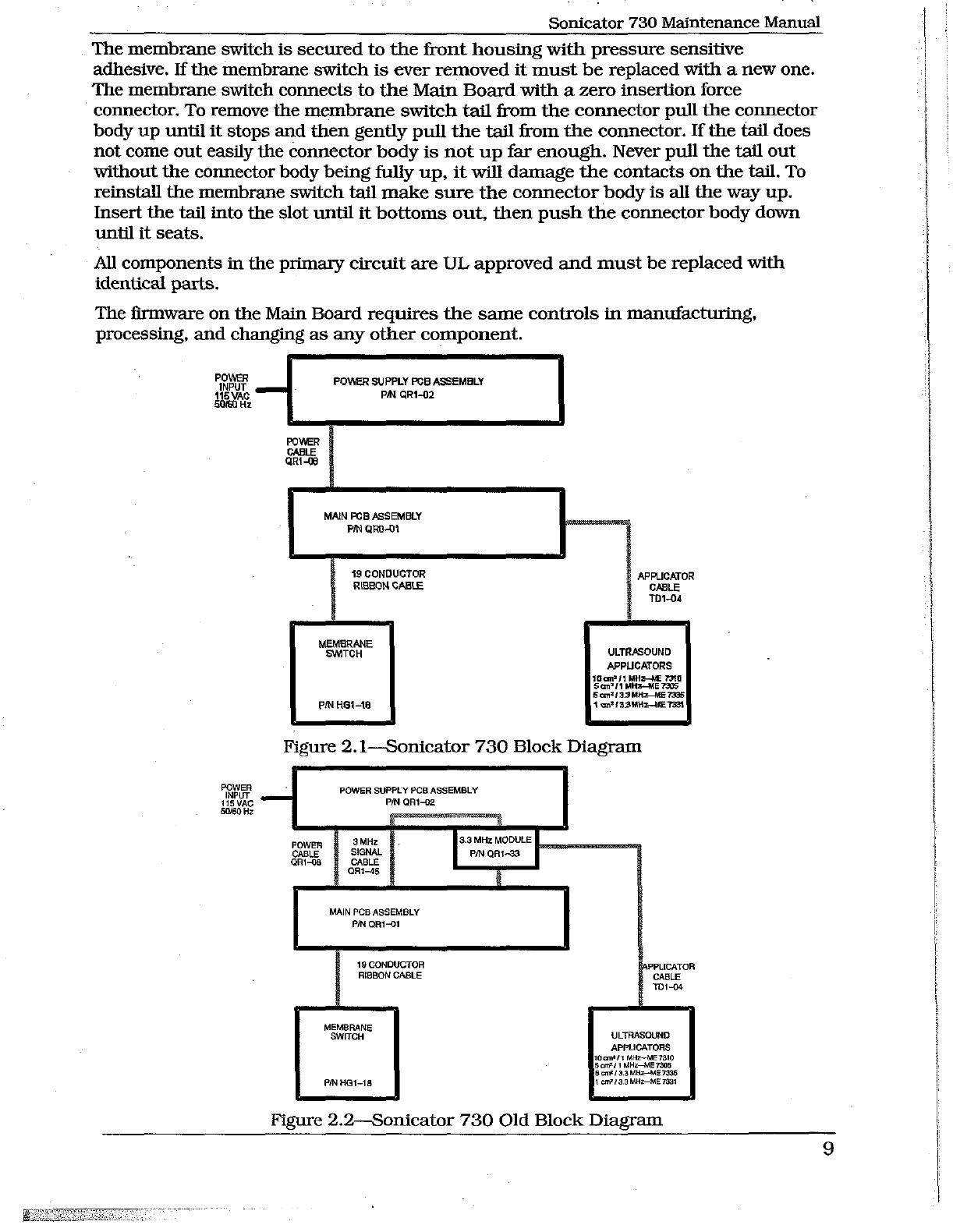

housings, and interconnecting cables. A block diagram is shown in Fig. 2.1(or Fig. 2
Old Block Diagram).
Power Supply Board
The Power Supply Board has a power transformer on it that mounts the board to the
front housing with four screws. The input to the Power Supply Board is filtered mains
power. The outputs are regulated +5, and +12 volts, and a 0 to 40 volt variable supply.
The DC output voltages are available at a header at the bottom of the board assembly.
The Power Supply Cable connects from here to the Main Board.
Main Board
The Main Board contains the Microcontroller and the Eprom that holds the program.
Also on the board is a display decoder, four 7-segment LED’s for treatment time
indication, three 7-segment LED’s for output power indication, , and six individual
(green} LED’s for control status information. The LED’s fit through holes in the front
housing, and shine through the membrane switch. The Main Board also contains the
1 and 3 MHz VCO, the 1 and 3 MHz RF output stage, and the 1 and 3 MHz matching
network. On older units, the main board had only 1 MHz functions and the ultrasound
RF energy was coupled out through a BNC connector to a short cable that connects to
the 3 MHz Module. The front panel membrane switch is connected to this board by
means of a zero insertion force connector.
3 MHz Module, older units
The 3 MHz Module is located on the back of the Power Suppiy Board. The module
plugs into the Power Supply Board directly, and is held in place by two nuts. It
contains the 3 MHz VCO, the 3 MHz RF output stage, and the 3 MHz matching
network. It also contains a relay to switch the output between the 1 and 3 MHz
outputs. The module is controlled by signals from the Main Bd. On newer units these
functions have been incorporated into the main board.
Applicators
Four applicators connect to the Sonicator 730. These include: one 10 cm? applicator
at 1 MHz (7310); two 5 cm? applicators, one at 1 MHz (7305) and one at 3.3 MHz
(7335); and one 1 cm? applicator at 3.3 MHz (7331). All Mettler Electronics Corp.
ultrasound applicators are labeled for the model Sonicator with which they may be
used. Other applicators from other Sonicator 730’s may be interchanged and will
function properly because of the self tuning feature of the Sonicator 730 circuitry.
Applicators connect to the Sonicator 730 with a universal applicator cable (ME7391)
which has water resistant BNC connectors at each end.
Other Components
The power input connector, main power rocker switch, and the applicator BNC
connector are mounted to a bracket at the bottom end of the enclosure.
The Main Board is connected to the Power Supply Board with two flat cable
assemblies. These are made with insulation displacement connectors. Care should be
taken when removing them to pull on the connectors, not the flat cable.

Sonicator 730 Maintenance Manual
The membrane switch is secured to the front housing with pressure sensitive
adhesive. If the membrane switch is ever removed it must be replaced with a new one.
The membrane switch connects to the Main Board with a zero insertion force
connector. To remove the membrane switch tail from the connector pull the connector
body up until it stops and then gently pull the tail from the connector. If the tail does
not come out easily the connector body is not up far enough. Never pull the tail out
without the connector body being fully up, it will damage the contacts on the tail. To
reinstall the membrane switch tail make sure the connector body is all the way up.
Insert the tail into the slot until it bottoms out, then push the connector body down
until it seats.
All components in the primary circuit are UL approved and must be replaced with
identical parts.
The firmware on the Main Board requires the same controls in manufacturing,
processing, and changing as any other component.
FOUR POWER SUPPLY PCB ASSEMBLY
115 VAG PAY QR1-02
5060 Hz
POWER
CABLE
ORI-
MAIN PCB ASSEMBLY — —
PIN GRO-D4 i
19 CONDUCTOR APPLICATOR
RIBRON CABLE ) CABLE
TD1-04
MEMBRANE
SMTCH ULTRASOUND
APPLICATORS:
16 car 1 MHE-NE 7510
San*/1 MHz-ME 7905
5cm3/3.3MH2—ME 7325
ΡΝ ΗΘ1-18 4 212133 МИЕ-МЕ 7531
|
Figure 2.1—Sonicator 730 Block Diagram
POWER POWER SUPPLY PCB ASSEMBLY
İNPUT. aman
tis VÃO PAN QR1-02
50/60 Hz
.3 MHz MODULE
POWER 3MHz |. 33
CABLE ‘SIGNAL PIN QR1-33
GAS CABLE
QR1-45 T
MAIN PCB ASSEMBLY
PIN QR1-01
19 CONDUCTOR APPLICATOR
RIBBON CABLE CABLE
TO1-04
MEMBRANE
SWITCH ULTRASOUND
APPLICATORS
ho ones 1 MH2~ME 7310
5 cmP7 1 MHz 一 ME 7305
5 om? # 3.3 MHZ—ME 7335.
PINHGI-18 1 спё/ 3.3 MHz 一 ME7931
Figure 2.2—Sonicator 730 Old Block Diagram

Mettler Electronics Corp.
2.2 Theory of Operation
Power Supply Bd Circuitry
Mains power goes through the RFI filter in the power cord connector, through the
power switch and to the Power Supply Bd. On the board it runs through primary
fuses, and into the power transformer. The secondary of the transformer is also fused.
The secondary of the transformer produces 28 VAC, center tapped. Half the winding is
rectified, filtered, and fed to two three terminal regulators to produce +5 and +12
volts. The whole winding is rectified and goes to a switching regulator which produces
the 0 to +40 volts required for the variable ultrasound output.
The connection from this board is the power connection to Main Board. The signal
connection from Main Board (to 3 MHz Module) and 1 MHz power connection to the 3
MHz Module apply to old units only.
Main Board
The reset IC monitors the +5 supply, and telis the microcontroller to start as soon as
power is good. The micro sends signals to initialize the system. The micro then scans
the membrane switches for operator input, and sends appropriate signals to the
display driver IC which controls the displays.
When the unit is in Hold the micro is always looking at the applicator ID ports to see
if an applicator is connected. If no applicator is connected it displays “Errl” in the
timer display. When an applicator is connected, and time is on the timer display, and
the Go button is pressed, the micro turns on the ultrasound output. (The relay on the
3 MHz Module Board is switched to the proper position for the applicator connected
older units only.) The micro then monitors the current return from the applicator, and
uses
that information to set the correct VCO frequency, and to control the voltage to
the output stage to produce the desired output power.
The connections from this board are: power connection from Power Supply Board,
connection to the membrane switch, signal connection to the Power Supply Board (to -
3 MHz Module), and 1 MHz output to the 3 MHz Module.
8 MHz Power Bd, New units incorporate these functions on the Main board.
The 3 MHz Power Bd contains the 3 MHz VCO circuitry, the 3 MHz power output
stage, and the 3 MHz output network. When a 1 MHz applicator is connected to the
unit the relay on this board connects the 1 MHz output from the Main Board to the
output connection on this board. When a 3 MHz applicator is connected the relay
connects the 3 MHz network on this board to the output connection. The 3 MHz VCO
and the frequency select relay are controlled by signals from the Main Bd. This board
sends
applicator ID and current return signals back to the Main Bd.
The connections to this board are: power and signal connections from Power Supply
Board and Main Bd, 1 MHz power input from the Main Bd, and the 1 or 3 MHz output
connection to the external applicator connection.
Applicators
Each applicator consists of a handle with a transducer ring assembly at one end and
a BNC connector at the other. The transducer ring assembly consists of a threaded
stainless steel ring that has a piezo ceramic disc epoxied to it. The ring may be
removed from the applicator for replacement at a Mettler Electronics Service Center.
Inside the handle is an ID resistor that is used by the micro to determine which
applicator is connected.
Applicators are designed to be repairable. The ultrasound crystal ring assembly
should only be replaced at an authorized Mettler Electronics Corp. service facility.
10

Sonicator 730 Maintenance Manual
The universal applicator cable interconnects the applicator to the generator. It is
detachable at both ends with BNC connectors. These connectors are specially
designed to be water resistant. The type, length, and shielding of the cable are critical
to the proper operation of the unit. Only applicator cables supplied by Mettler
Electronics Corp. should be used.
2.3 Specifications
General Specifications:
Input:
Certification:
ETL and C-ETL Listed:
U.S. Patent Numbers:
Treatment Timer Indicator:
Accuracy:
Maximum treatment time:
Size:
Weight:
Operating Temperature:
Humidity:
Storage Temperature:
115 VAC (410%), 50/60 Hz, 0.6 amperes maximum
The Sonicator 730 complies with the ultrasound
performance standards set forth in the Code of
Federal Regulations, Title 21 (Food and Drugs), Part
1050.10
Model ME 730 (9801427)
4,966,131 and 5,095,890
The digital timer indicates time set in minutes and
. Seconds prior to the start of treatment and treatment
time remaining during treatment or when treatment
is temporarily suspended.
+0.5 minutes for times less than 5 minutes
+10% for times from 5 to 10 minutes
+1.0 minute for times greater that 10 minutes
29 minutes
4.3 in (H) x 6 in (D) x 13.4 in (L)
5.1 pounds
+50°F to +131°F
Operating, 30% to 75% Relative Humidity at 104°F
Nonoperating, up to 90% Relative Humidity at 149°F
-40°F to 167°F
Ultrasonic Generator Specifications:
Frequency:
Modes:
Pulse Repetition Rate:
Pulse Duration:
Temporal Peak/ average
intensity ratio:
Maximum output power:
Maximum intensity:
Indication accuracy:
1.0 MHz +10%
3.3 MHz +10%
Continuous
Pulsed—20% Duty cycle
100 Hz +20%
2 msec +20%
5:1 +20%
22 W with a 10 cm? applicator, (ME 7310)
11 Wat with either 5 cm? applicator, (ME 7305 and ME 7335)
2.2 W with a 1 cm? applicator (ME 7331)
2.2 W/cm? with all applicators
+20% {for any level above 10% of maximum)
11

Mettler Electronics Corp.
Output description: The output waveform is continuous or pulsed as
programmed by the membrane panel control. In the
pulse mode the 1 or 3.3 MHz square wave pulses
are modulated. The power level is adjusted by
varying the pulse amplitude. The pulse waveform is
shown below:
1, 3.2 or 3.3 MHz
Output TT To
Time 2 ms 8 ms 2 ms
Puise Space = 10 ms
Figure 2.3—Pulse Waveform
In the continuous mode, the power is on at least
95% of the time the timer is running. The
continuous mode waveform is shown below:
1, 3.2 or 3.3 MHz
Output
a
VV
Figure 2.4—Continuous Waveform
Ultrasonic Applicator Specifications:
Piezoelectric discs: The output transducer utilizes a barium titanate disc
with a specially coated face.
Individual Applicator Specifications:
Applicator Part Number Frequency Effective Radiating
Area
ME 7305 1 MHz +10% 5 cm? +20%
ME 7310 1 MHz +10% 10 cm?+20%
ME 7331 3.3 MHz +10% 1 em? +20%
ME 7335 3.2 MHz +10% 5 cm? +20%
Maximum Beam
Non-Uniformity Ratio: 6:1
12

Spatial Pattern:
Sonicator 730 Maintenance Manual
The applicator produces a collimated (cylindrical)
beam with an area of 1,5 or 10 cm’, measured 5
mm from the ceramic disc surface when the
radiation is emitted into the equivalent of an infinite
medium of distilled, degassed water at 30° C, and
with line voltage variations in the range of +10% of
the rated value.
The beam of the applicator is circular in all planes
parallel to the applicator face. A few inches from the
face, it is a single smooth beil-shaped curve. Nearer
the face the pattern varies more due to phase
cancellations. Sample curves measured in the far
field from the surface are shown in Figures 2.3, 2.4,
2.5 and 2.6.
Figure 2.8—1 cm? Applicator (3.3 MHz), ME 7331,—Three Dimensional Beam Pattern
13

Mettler Electronics Corp.
Section 3—Symbol Glossary and
List of Abbreviations
3.1 Symbol Glossary
©
$
O
个
©
στι 114
1MHz 3 MHz
W
W/cm?
78888
Time
Minutes
Seconds
Numeric keypad for time entry.
Starts treatment, ultrasound output activated.
Temporarily suspends treatment, maintains treatment parameters,
ultrasound output stopped.
Ultrasound active when LED indicator lit. LED blinks when coupling is
inadequate. 1 MHz LED lights when 1 MHz applicator delivers
ultrasound and 3 MHz LED lights when 3.3 MHz applicator delivers
ultrasound.
Watts
Watts per square centimeter
Selects display in watts. Watts selected when LED indicator lit.
Selects display in watts per square centimeter. Watis per square
centimeter selected when LED indicator lit.
Selects continuous wave ultrasound output. Continuous wave
ultrasound output selected when LED indicator lit.
Selects pulsed ultrasound output (2 ms On, 8 ms Off). Pulsed
ultrasound selected when LED indicator lit.
Increases ultrasound output.
14

IPX7
AD.
Sonicator 730 Maintenance Manual
Decreases ultrasound output.
Mains On.
Mains Off.
Refer to instruction manual for directions.
Diagram of Pulsed Mode duty cycle
Protected against the effects of immersion, applicator only.
ETL and C-ETL Listed
3.2. List of Abbreviations
Area
BNR
cm?
Coll
ERA
Freq
Gen
Hz
LED
MHz
S/N
VCO
W/cm?
Effective Radiating Area in square centimeters (cm?)
Beam Non-uniformity Ratio
Square centimeters
Collimating
Effective Radiating Area in square centimeters (cm?)
Frequency |
Generator
Hertz (cycles per second)
Light Emitting Diode
Megahertz (1,000,000 Hz)
Serial Number
Voltage Controlled Oscillator
Watts)
Watt(s) per square centimeter
15

Mettler Electronics Corp.
Section 4— Installation
4.1 Installation Instructions
1. Connect the line cord to the bottom of the Sonicator 730. (See Figure 4.1)
2. Push the applicator cable connector into the round BNC jack located on the
bottom of the Sonicator 730 and rotate the connector 4 turn clockwise. (See
Figure 4.1) Connect applicator to universal applicator cable using the BNC
connector by lining up the pegs, pushing in all the way and rotating 4 tum
clockwise. Make sure all connections are dry prior to connection.
3. Place the applicator into its receptacle. Line up the metal dise on the applicator
with the magnet in the applicator receptacle.
4. Plug the line cord into a grounded wall outlet that has 115 VAC +10%,
60 Hz. Your power supply must match the voltage requirements listed on the serial
number labei of your device. Do not connect the Sonicater 730 to a power
supply rated differently than that described above.
The UL hospital grade line cord comes equipped with a 3-prong plug. This plug -
provides grounding for the Sonicator 730. Do not defeat its purpose by using
adapters to attach it to the wall outlet.
5. The Sonicator 730 may be susceptible to interference originating from shortwave
diathermy units operating in close proximity to it. Avoid operating the Sonicator
730 adjacent to and simultaneously with operating shortwave devices.
6. Do not use sharp objects to operate the membrane panel switches. If the tough
outer layer of the membrane is broken, moisture may leak into the switches
resulting in switch failure.
Mains On/Off Switch
Line Cord Connection
Applicator Cable Connection
Combination Therapy Electrode Connection
Figure 4.1—Sonicator 730, Bottom view—Main Power Switch and Line Cord,
Applicator Cable and Combination Therapy Connections
16

Sonicator 730 Maintenance Manual
(/
Figure 4.2—Connecting the Applicator to the Universal Applicator Cable, line up pegs,
push in all the way and rotate % turn clockwise
17

Mettler Electronics Corp.
Section 5—Operating
Instructions
©
cS
Meme SSLECTRONH
corp.
Figure 5.1-—Front membrane panel and LED indicators
18

Sonicator 730 Maintenance Manual
5.1 General Operating Instructions:
Before you start.
a) Review precautions and contraindications in Section 5.
b) Verify connection of the line cord to a grounded wall receptacle and the
Sonicator 730.
с) Check the universal applicator cable connections to the Sonicator 730
and to the applicator of choice to assure secure connection.
d) Note: Descriptions of the symbols used on controls are in Section 2.
1, Turn on the mains power switch by pressing “I” icon on
switch.
2. Select the desired treatment time by pressing a
number(s) on the numeric keypad. Unit beeps when a
button is pressed. Only whole minutes may be selected.
Treatment times from 1 to 29 minutes are valid. Time is
displayed in the time window.
OBA
©0000
SOS
3. Select either continuous (IHN or pulsed
(IL) ultrasound by pressing the appropriate
button. The LED indicator on the button will illuminate
which selection is made.
Select either Watts (W) or Watts per square centimeter
(W/cm?) as the units of measure for ultrasound power
that will be displayed. The LED indicator on the button
will illuminate which selection is made.
5. Apply a layer of ultrasound couplant gel to the
treatment area.
一
개
6. Couple the applicator to the treatment area by keeping
the entire surface of the applicator in contact with the
gel that has been applied to the patient. This will ensure
an efficient delivery of therapeutic ultrasound to the
patient.
7. Press the button pictured to the left to begin treatment.
19
