Advanced Elements STRAITEDGE AE1006 Owner's User manual

IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE PROCEEDING. AFTER READING
THIS MANUAL, SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
StraitEdge™
Inflatable Kayak
Owner’s Manual
MODEL AE1006
1 PERSON KAYAK
ADVANCED ELEMENTS, INC. 2020 REV 08-2020
PATENTED

3
TABLE OF CONTENTS
1. Caution/Safety .................................................................. 4
1.1 Boating Safety ........................................................ 5
2. Specification ...................................................................... 6
2.1 Capacity ................................................................. 6
2.2 Features .................................................................. 6
3. Assembly/Inflating/Deflation Instruction .................... 7
3.1 Assembly ............................................................... 7
3.2 Understanding Your Valves................................ 8
3.3 Inflating ................................................................ 10
3.4 Over Inflation ...................................................... 10
3.5 Deflation ............................................................... 11
3.6 Folding ................................................................. 11
4. Guidelines for Usage ..................................................... 11
4.1 To Use As Self-Bailing ........................................ 12
5. Proper Care and Storage ............................................... 13
6. Repairs ............................................................................. 13
6.1 Repairing Small Punctures and Cuts ............... 13
6.2 Repairing Pinholes ............................................. 13
7. Troubleshooting ............................................................. 14
8. Statement of Origin ....................................................... 17
9. Declaration of Conformity ........................................... 18
10. Warranty and Registration ........................................... 19

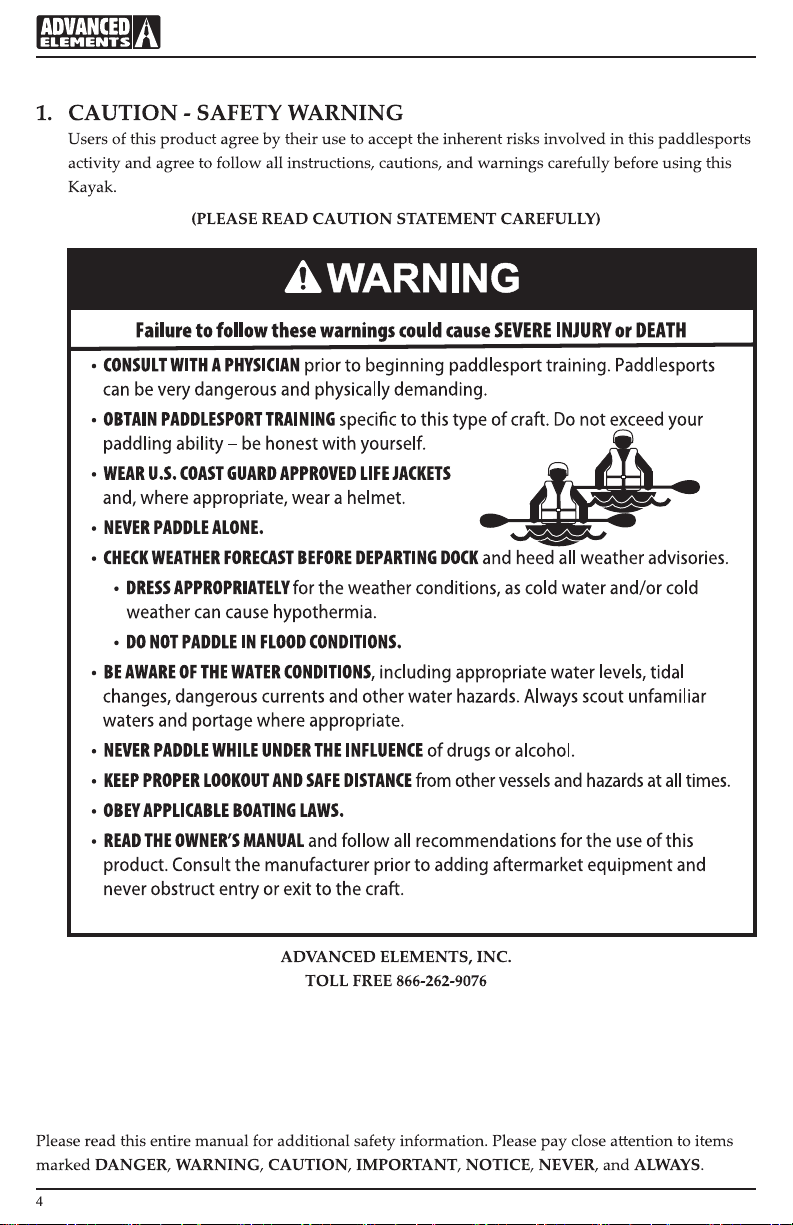

• Not intended for Commercial Use.
• Never use a compressor or compressed air to inflate as it could result in damage or injury.
• Do not transport a fully inflated boat or leave it on the beach. Heat from the sun or an
increase in elevation can lead to over-inflation and damage.
• Do not over-inflate, as it can damage the kayak or cause injury.

StraitEdge™ Inatable Kayak Owner’s Manual
5
1.1 Boating Safety
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury or
death.
DANGER
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury or
substantial property damage.
WARNING
Indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury or
property damage.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
CAUTION
Used without the safety alert symbol
indicates a potentially hazardous
situation, which, if not avoided, may
result in property damage.
NOTICE
Indicates installation, operation or
maintenance information which is
important but not hazard-related.
The precautions listed in this manual and on the cra are not all-inclusive. If a procedure,
method, tool or part is not specically recommended, you must satisfy yourself that it is safe
for you and others, and that the cra will not be damaged or made unsafe as a result of your
decision. REMEMBER - always use common sense when paddling YOUR KAYAK!

TM
6
2. SPECIFICATION
Dimensions:
Length: 9’8”
Width: 35”
Weight: 34 lbs (15 kg)
Max. Person Capacity: 300 lbs (136 kg)
Max. Persons & Gear Capacity: 300 lbs (136 kg)
Recommended Pressure:
Main chambers: 2.25 psi (0.16 bar)
Floor chamber: 1.0 psi (0.07 bar)
Bow/Stern air bag: 1.0 psi (0.07 bar)
2.1 Capacity
The person/load capacity is determined by the availability of proper seating on the kayak.
Acceptable seating determines the number of passengers, not the overall load capacity.
MAXIMUM CAPACITIES
300 LBS PERSON, GEAR
PRESSURE = 2.25 psi (main chambers)
MANUFACTURER: ADVANCED ELEMENTS, INC. CONCORD, CA USA 94524
MODEL AE1006 - STRAITEDGE™ KAYAK
COMPLIANCE
WITH
ISO 6185-1
TYPE III, A
0123
1+ = 136 kg
0,16 bar (main chambers)
1PERSON OR 300 LBS.
THIS BOAT COMPLIES WITH NMMA STANDARDS OF EFFECT
ON THE DATE OF CERTIFICATION
NATIONAL MARINE MANUFACTURES ASSN.
2010
NOT INTENDED FOR MECHANICAL PROPULSION
StraitEdge Kayak Capacity Label
WARNING:
Overloading will reduce freeboard and increase the likelihood of swamping, especially in heavy
2.2 Features
SPECIAL FEATURES:
Hull Design
Versatile: Set-up as Self-bailing in bigger waves, and close ports in calm or cold water.
Easy to Set Up
Comfortable: High support, adjustable padded seat provides comfort for hours of paddling.
Durable: Heay-duty PVC Tarpaulin material for extreme puncture resistance.

StraitEdge™ Inatable Kayak Owner’s Manual
7
Bow and Stern Design
The bow and stern have removable ribs of high grade aluminum. When the chambers are
inated these ribs press against the outer cover and form a high performance bow and stern.
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
The StraitEdge™ Kayak has a rigid frame in the bow and stern that enhances its performance.
3.1 Assembly
1. Insert aluminum Bow rib and the Stern rib into the webbing slots on the StraitEdge™
air bags and webbing slots on the kayak oor, at the bow and stern.
2. Aach air bags to the outer cover by tightening the “air bag compression straps” and
buckling the “air bag buckle”. Do this while the air bag is deated. These are preset
at the factory and may not require any adjustment.
3. Aach adjustable seat to the StraitEdge™ side tubes by fastening buckles.

TM
8
3.2 Understanding Your Valves
Advanced Elements StraitEdge™ kayak uses the following valves. The Advanced Elements
spring valve has the function and durability of other military type valves and is compatible with
most standard pumps. The lock nut holds the valve in place with the cover for easy ination.
The following gures will have details on how to operate the valves.
To Inate: The valve’s plunger stem should be in the up/outward position ush with the valve
threading.
To Deate: The valve’s plunger stem should be set in the down/inward position recessed in the
valve threading.
In order to switch the valve from inate to deate or vice-versa, simply use your nger to
press the valve stem down/inward and rotate it a 1/4 turn to either lock it down for deate, or
unlock it (stem will spring up) for inate.
How the Spring Valve Works:
When the valve is in the inate (up/outward) position, the air being pumped in pushes the
spring-loaded plunger open, allowing air to enter the air chamber, but not leing it escape.
When the valve is in the deate (down/inward) position, the spring loaded plunger is wide open
allowing the air to come rushing out of the air chamber. If the valve is in the inate position, the
valve’s plunger stem will be ush with the rim of the valve. If the valve is in the deate position,
the valve’s plunger stem will be inside, or lower than, the rim of the valve. To change the valve
from the inate position to the deate position, simply use your nger to press the valve plunger
stem down/inward, and give it a 1/4 turn. This will lock the plunger open and allow the air to
rush out. Use the same procedure in reverse to unlock the valve plunger, allowing it to spring up
into the inate position.
Special Note: If you are using a 12v inator, like those that come with most inatable maresses
or those that plug into car cigaree lighters, you may need to have the valve in the deate (down/
inward) position because these types of pumps typically do not provide enough air pressure
to press the plunger open to allow air into the air chamber. Additionally, 12v inators do not
provide enough pressure to fully inate the kayak, so you will need a secondary pump to nish
the job.
Using the NEW “Screw-on” Spring Valve Adaptor:
The screw-on Spring Valve Adaptor was designed to enable the pump hose to securely connect to
the Advanced Elements Spring Valve without falling o during ination, making ination easier.
The valve adaptor also has a semi-circle protrusion that depresses the valve stem, opening the
valve slightly to allow pumps with pressure gauges to take a constant reading. When inating
the kayak using the Spring Valve Adaptor, the valve should be in the inate position.

StraitEdge™ Inatable Kayak Owner’s Manual
9
Special Note: The Spring Valve Adaptor comes with all current Advanced Elements pumps,
with the exception of the 12v inator, and will aach to any Advanced Elements pump that
does not have the adaptor already included, with the exception of the 12v inator. The Spring
Valve Adaptor will also aach to some other manufacturer’s pumps, but you must check the
aachment style at the end of the pump hose to be sure it will t.

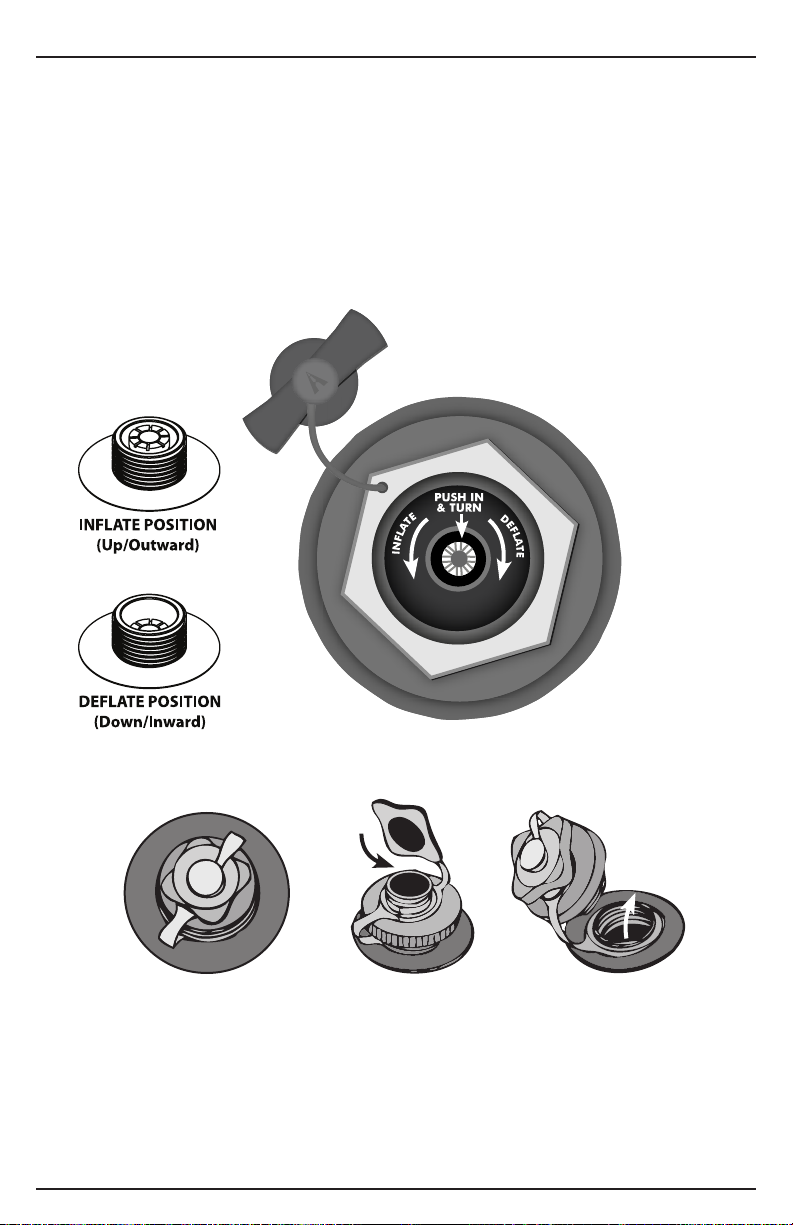

Figure 1. Inate/Deate Spring Valve
Deate
Inate
Figure 2. Inate/Deate Boston Valve
To begin inating your kayak, you will need a Bellows Foot Pump or a Double Action Hand
Pump. Never use compressors, CO2 or compressed air as they may damage you kayak.

TM
10

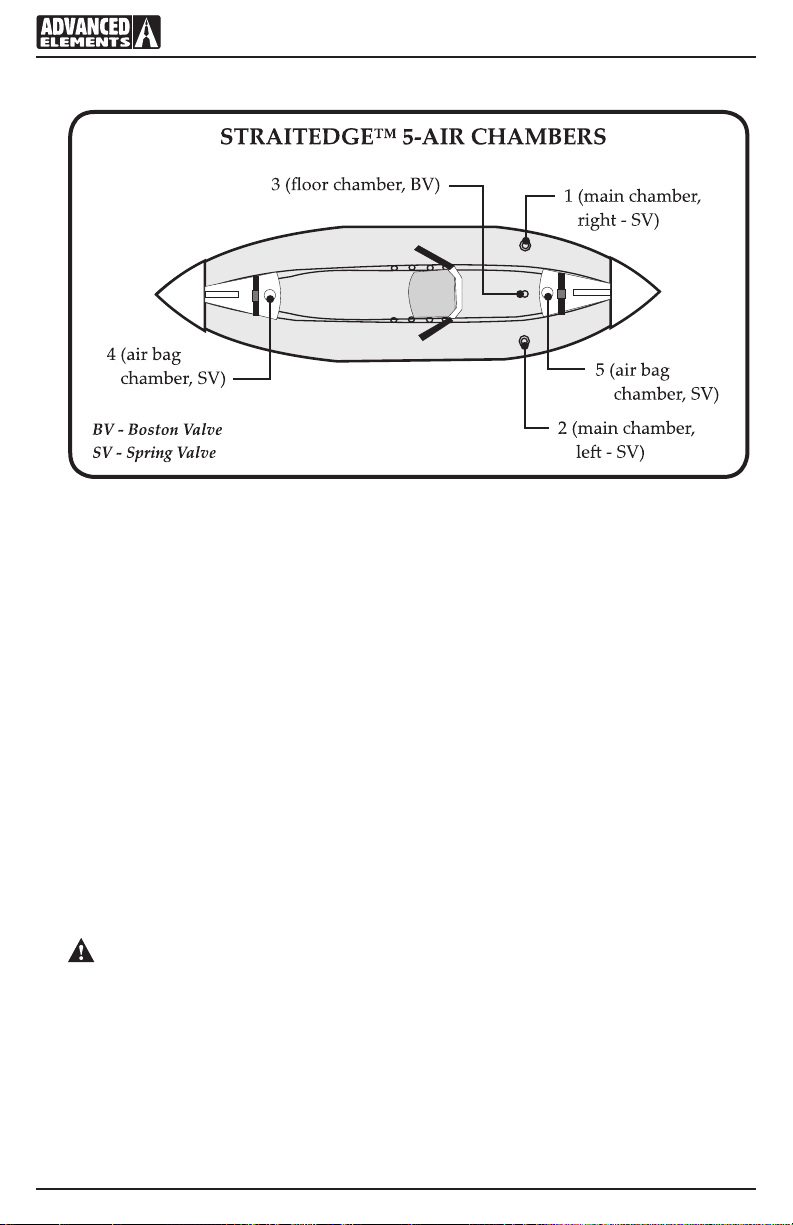

Diagram of Ination Chambers
3.3 Inating
IMPORTANT: Before inating, check to be sure that the kayak is completely assembled.
Inate your kayak in the following order. Failure to follow these instructions may cause
damage to your kayak. Do not over inate.
1. Locate chamber 1. Unscrew cap and check that plunger valve is in the inate position.
Inate Chamber 1 until rm to the touch (2.25 psi ONLY).
2. Proceed to chamber 2. Inate chamber 2 until StraitEdge™ tube is rm to touch (2.25 psi
ONLY). Close caps on chambers 1 and 2 tightly.
3. Locate chamber 3 “oor.” Make sure valve body is screwed in tightly. Remove small
cap (See Figure 2) and use appropriate pump nozzle. Inate chambers until rm (1.0 psi
ONLY). Do not over inate!
4. Locate Chambers 4 and 5. Inate Chambers 4 and 5 until rm (1.0 psi ONLY).
5. Make sure all valves are closed tightly and properly. Check to be sure the cap tether is
not interfering with the valve seating chamber 3.
3.4 Over Ination
CAUTION: Water temperature and weather will aect the air pressure of the kayak. In cold
weather and water your kayak will lose some pressure. If this occurs, you may want to add a
bit more air to the kayak to improve performance. In hot weather or prolonged sunlight, the air
inside the kayak will expand. You must let some air out of the appropriate chambers to prevent
the kayak from failing due to overpressure. You should avoid exposing your kayak to extreme
temperatures (hot or cold).

StraitEdge™ Inatable Kayak Owner’s Manual
11
3.5 Deation
1. Remove the caps from chamber 1, 2, 4 and 5.
2. Push valve stems inward and rotate to deate position.
3. Unscrew valve body to chamber 3 (See Figure 2).
4. Once the chambers are deated you can use your pump to vacuum out any additional air to
improve folding

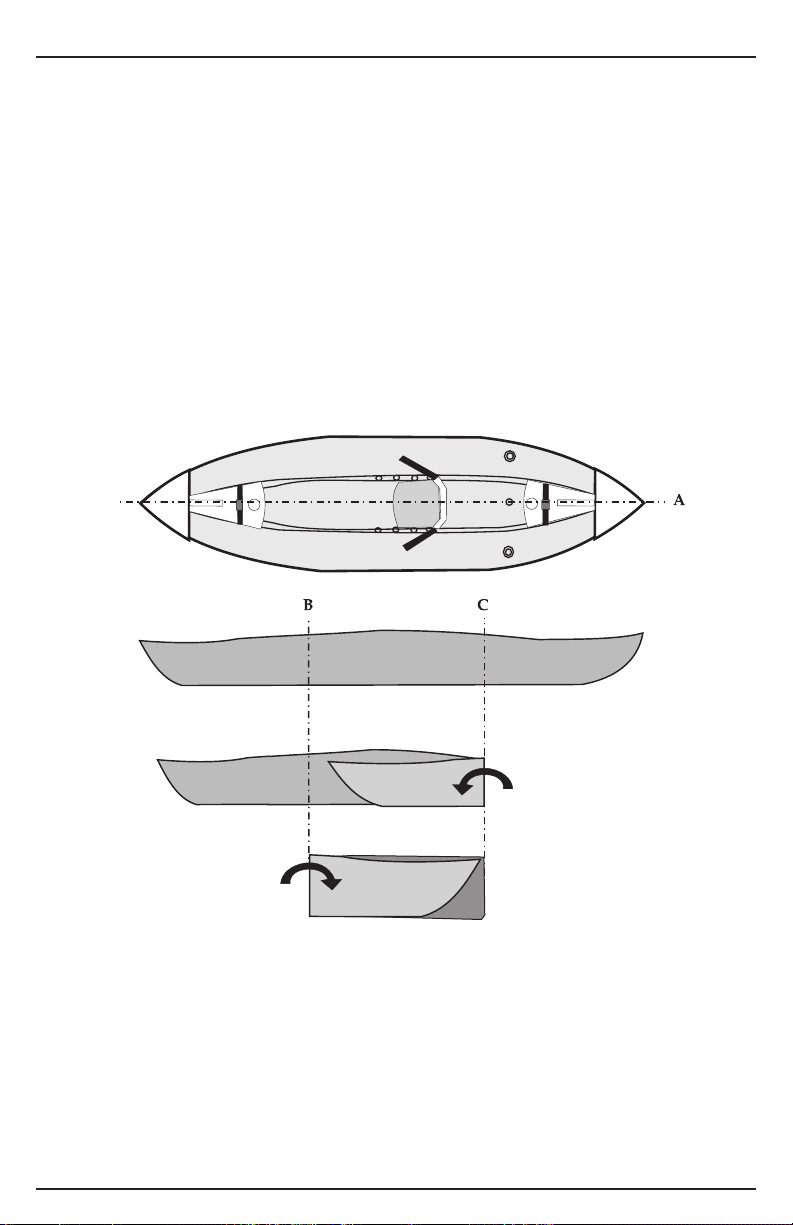

3.6 Folding
NOTICE: Reverse your pump to completely deate all chambers.
1. Completely deate all air chambers and thoroughly dry the kayak and remove the seat.
2. Fold in half, down the center, lengthwise.
3. Fold into 3 equal sections.
4. Place into duel bag.
4. GUIDELINES FOR USAGE
Paddlesports can be very dangerous and physically demanding. The user of this product should
understand that participation in paddlesports may involve serious injury or death. Observe the
following safety standards whenever using this product. The user of this product acknowledges
both an understanding and an assumption of the risk involved in paddlesports.
Aer you have inated your kayak and before you put it in the water, inspect your equipment
for obvious signs of wear or failure. Review local rules and regulations and read again the
“CAUTION” statement.

TM
12
Most areas have local laws and regulations about the use and equipment of small boats. Usually
a phone call to the local authorities will provide you with the needed information. Some areas
may require that you register and display a registration number on the front of your kayak.
Once you have been issued a number, it is best to ax it to the kayak by printing it on the
material with a permanent ink marker. If you are required to display a sticker or vinyl leers, an
inatable boat ID kit can be purchased at most marine stores.
Your kayak is designed to be paddled with a double bladed kayak paddle. Paddle with short
and even strokes. Keep the blade close to the kayak and the paddle almost vertical. Pull with
your lower hand and push with your upper hand. To reduce the amount of swaying at the
front of the kayak, ease o on the force of your stroke. Paddling with a backward stroke can
sometimes oer quick maneuverability.
ALWAYS practice safety and take the time to learn about the area where you are paddling. Get
ocial information about the local tides and currents before paddling there. Be careful that
you do not over estimate your strength, your endurance or your skill. Be careful never to under
estimate weather conditions. Be aware of the dangers before you begin. Be aware of your skill
level. Be sure you understand and accept the risk of these dangers. There are many paddling
clubs all over the world. These can be a great source of information on places to paddle, people
to paddle with and most importantly, continued safety practices.
4.1 To Use As Self-Bailing
The StraitEdge™ can be used as both a self-bailing and non self-bailing kayak. Most self-bailing
inatable kayaks are designed for paddling white water only. They typically have quite a bit of
rocker to allow quick turning and other maneuvers. By opening the drain ports you will allow
water or waves that spills into the kayak to drain out through the boom. In calm conditions or
on cold days you may wish to close the drain ports to prevent water from entering the kayak at
all. The StraitEdge™ incorporates the aluminum bow and stern frame to improve tracking in
open water conditions.
To change to a self-bailing kayak, locate the self-bailing ports and remove the caps as shown
below.

13
5. PROPER CARE AND STORAGE
use and care will increase the life of your kayak. Before storing your kayak, make sure it is both
CLEAN and DRY. You may clean your kayak with a mild soap and water. NEVER use strong
solvents to clean your kayak as they will destroy the material.
NEVER unzip the chamber cover when the kayak is inflated.
kept out of direct sunlight when stored. Avoid exposure to extreme temperatures (hot or cold).
If your boat is exposed to freezing temperatures while storing, allow it to warm up before
unfolding.
Do not store your kayak for an extended period of time while wet.
Follow these steps for removing excess water.
1. Unzip the 2 zippers that run down the sides of the kayak.
2. Use a sponge or towel and wipe up any excess water in the outer cover.
3.
4. If there is sand or gravel in the kayak, you can hose out the cover, and then wipe it
down with a towel.
5. Most of the time you can wipe out the inside of the kayak absorbing most of the water,
then pack it up.
6.2 Repairing Pinholes
1.
you see air bubbles. Mark the location of the pinhole.
2.
3. Allow glue to dry completely.
4.
6. REPAIRS
6.1 Repairing Small Punctures and Cuts Using the Peel-And-Stick Patch
All kayaks come with a repair kit that includes a glueless peel-and-stick patch. For more significant
repairs, we include a selection of material patches that can be glued on. Simply aquire a PVC
glue at your local marine or outdoor store or contact our Customer Service for assistance via
email at [email protected] or 1-866-262-9076.
1. Cut a patch to size (approx. 1/2” larger than the hole or damaged area).
2. Carefully clean the area where patch will be placed with water and/or mild soap.
3. Make sure all surfaces are completely dry befor proceeding.
4. Carefully peel back the paper liner on the glueless patch and carefully apply the patch
over the hole-taking care to avoid any bubbles in the patch. Rub all edges to seal.
5. As a rule of thumb, the patch will start to cure immediately with approx. immediate
adhesion of 50% with full 100% adhesion 24 hours after application.

14
PROBLEM
Does not hold air
while inating.
The kayak is sagging
or under inated.
The kayak will not hold
full pressure for more
than a couple of hours.
Kayak still loses air.
The oor bladders are
losing air.
Tube is kinked or bent.
The kayak is not self
bailing.
There is water in the
kayak.
The kayak dris to
one side.
The kayak does not
track well.
SOLUTION
The spring valve uses a plunger system. The only time the plunger
should be in the open position is when you are deating. Make sure
that the plunger is closed to inate. Push the plunger in and rotate
counter-clockwise.
Be sure that the right pump is being used. You need a bellows foot
pump or a double action hand pump. A 12-V electric does not supply
enough pressure to fully inate the kayak. The 12-V can be used to par-
tially inate the kayak but one of the other pumps is needed to top it o.
Make sure that the plunger is in the closed position. It should only
be open when deating. If it is open, the only seal is the black rubber
gasket inside the cap. Even then, a lile air may still leak out.
If you have checked all the previous possible reasons for the kayak los-
ing air, then there may be a pinhole or hole somewhere on the tube. Pull
tube from outer covers. Inate. If you cannot see or hear where a leak
may be, take a clean rag with soapy water and begin rubbing the tube.
If a hole is present, bubbles will continually form. Repair using repair
kit. If it is a very small pinhole, a dab of the glue may be sucient.
Check valve gaskets and make sure that the cap thether (ring that holds
the cap to the valve so as not to lose it) is not interfering with the seal.
The valves must be closed tightly.
The tube just needs to be adjusted. When kayak is fully deated try
adjusting the position of the tube inside of the outer shell.
The kayak is a self bailing kayak. There are four port holes under each
side of the kayak. The port holes have caps so it can be used as a self
bailing or a dry kayak. Make sure the caps are o.
There will almost always be a lile water in the kayak. One reason is
the water drips o of the paddle and into the kayak. The kayak is a self
bailing kayak. There are four port holes under each side of the kayak.
The port holes have caps so it can be used as a self bailing or a dry
kayak. Make sure the caps are on.
A kayak will always head in the direction of your last stroke. Make
sure to check that the air bags in the bow and stern are properly inated
and that the straps are pulled tight. If one of the oor bladders is not
completely inated, this will also cause the kayak to dri.
Try moving your seat forward a lile more. This will allow for beer
weight distribution and beer tracking.
7. TROUBLESHOOTING

15
PADDLING NOTES:
It is alway a good idea to keep nots of your paddling experiences. Your notes can serve as a reminder
of what to look out for, as well as what gear to bring along, and what conditions are like.
DATE TIME LOCATION NOTES

16
NOTES:

Note: If your state requires the licensing of this boat, please use the form below. If you need any assistance filling
out this form, please contact Advanced Elements Customer Service Department.
MANUFACTURER’S STATEMENT OF ORIGIN
FOR A VESSEL SOLD IN THE STATE OF_____________________________________
, the property of
said manufacturer, has been transferred this _________day of _____________________, 20_________on
Invoice# _________________to:
Owner’s/Dealer’s Name_____________________________________________________________
Address___________________________________________________________________________
City, State, Zip______________________________________________________________________
Model Name Model Year
StraitEdge™ Kayak (AE1006) __________ HIN# ___________________________
Type: Kayak Hull Material: PVC/Polyester
Length Overall: 9’8” Beam: 35”
U. S. Coast Guard Capacity Plate Information (where applicable):
Maximum persons capacity in whole persons: 300 lbs (136 kg)
Maximum weight capacity (persons & gear): 300 lbs (136 kg)
information given herein is true and accurate to the best of their knowledge
TM
P.O. Box 5128 Concord, CA 94524
Signature_________________________________________________________________________________
FIRST ASSIGNMENT
FOR VALUE RECEIVED, in the amount of $ __________________________________________________,
to _______________________________________________________________________________________
Address __________________________________________________________________________________
Advanced
Elements, Inc. also warrants the title of said boat at time of delivery, subject only to the liens and
encumbrances as set out below:
Amount of Lien Date To whom Due Address
___________________ __________ __________________ ___________________________________
Dates___________________________ 20 _________, at _____________________ ____________________
___________________________ By:___________________________________________________________
Transferrer (Firm name) Sign Here ___________________________________________________________
Before me personally appeared _____________________________ who by me being duty sworn under
oath says the statements set forth above are true and correct. Subscribed and sworn to me before
this __________ day of _____________________________ 20 ___________.
___________________________________Notary Public Date commission expires_______________
(SEAL)

18
Declaration of Conformity
(according to ISO/IEC Guide 22 and EN 45014)
s’rerutcafunaM Name: Advanced Elements, Inc.
s’rerutcafunaM Address: P.O. Box 5128
Concord, CA 94524
,seralced that the product:
tcudorP Name: StraitEdge™ Kayak
ledoM Number (s): AE1006
to which this declaration relates, meets the essential health and safety
stnemeriuqer and is in conformity with the relevant EU Directives listed below:
General Product Safety Directive
using the relevant section of the following EU standards and other normative
documents:
EN ISO 6185-1 : 2001
ABYC H-29: 2019
Date: January 1, 2016
Clay Haller, President
This product complies with European directives for recreational vessels as
published by the International Organization for Standardization (ISO).

19
LIMITED WARRANTY
Advanced Elements, Inc. warrants this product to be free from defects in material or workmanship for a period of
one year from the date of purchase. Products that prove to be defective under conditions of normal and proper use
during the warranty period because of defective workmanship or faulty material will be replaced or repaired without
charge. For warranty service, contact Advanced Elements, Inc.
Advanced Elements, Inc shall inspect all warranty claims and in the event of a defect, repair or replace the defective
part or entire item, at its option. The purchaser must, before return of a defective product, obtain from Advanced
Elements, Inc, a return authorization number and return center address. Please write or call as listed below. Once an
authorization number is obtained, the purchaser must ship the product, POSTAGE PREPAID, to Advanced Elements,
Inc for repair. Do not ship to P.O. Box address as it may be sent back.
This warranty does NOT cover:
Products used for rental, for hire or in professionally guided tours and other uses not considered normal recreational
purposes; and punctures, cuts and abrasions sustained in normal use; and items involved in accidents; and items
damaged in white water mishaps, and other unreasonable uses or improper storage.
Advanced Elements, Inc shall within (30) days from receipt of an authorized return from purchaser, perform its re-
sponsibilities in conformance with this warranty.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF.
ADVANCED ELEMENTS SHALL NOT BE HELD LIABLE FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES.
THIS WARRANTY IS INCLUSIVE IN LIEU OF ALL OTHER WARRANTIES.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Advanced Elements, Inc.
P.O. Box 5128, Concord, CA 94524
Toll Free - 866-262-9076 - email [email protected] - www.advancedelements.com
If you need help or have an issue please call us immediately Toll Free at 866-262-9076.
Please use the Warranty Registration Form at: www.advancedelements.com/warranty to register your Advanced
Elements Product.
