Model: WP-T810
Version: 1.04

WP-T810 Thermal Printer
2
Index
1 General Description....................................................................6
1.1 Overview ...............................................................................6
1.2 Feature..................................................................................6
1.3 Accessories ..........................................................................7
2 Specifications..............................................................................8
2.1 Main Specifications ..............................................................8
2.2 Operating Specifications....................................................10
3 External Appearance and Descriptions....................................11
4 Installations...............................................................................12
4.1 How to Connect Power Adapter .........................................12
4.2 How to Connect Cash Drawer ............................................13
4.3 How to Connect USB Connector........................................14
4.4 How to Load Thermal Paper...............................................15
5 Control Panel.............................................................................17
5.1 Basic Operation..................................................................17
5.2 Switch Operation (Combined Switch Operation)...............19
5.3 Setting.................................................................................21
6 Interface Specifications............................................................24
6.1 Changing the Interface Card ..............................................24

WP-T810 Thermal Printer
3
6.2 Serial Interface Specifications ...........................................25
6.3 Parallel interface specifications.........................................26
6.4 USB Interface Specifications..............................................27
7 Cash Drawer Connector............................................................28
8 Commands ................................................................................29
9 Character Code Tables .............................................................35
9.1 International Character sets...............................................35
9.2 Characters: 00H to 7FH ......................................................36
9.3 Code Page 0: PC437 (USA, European Standard)...............37
9.4 Code Page 1: Katakana (Japanese)....................................38
9.5 Code Page 2: PC850 (Multilingual).....................................39
9.6 Code Page 3: PC860 (Portuguese).....................................40
9.7 Code Page 4: PC863 (Canadian-French)............................41
9.8 Code Page 5: PC865 (Nordic).............................................42
9.9 Code Page 11: PC851 (Greek) ............................................43
9.10 Code Page 12: PC853 (Turkish)........................................44
9.11 Code Page 13: PC857 (Turkish)........................................45
9.12 Code Page 14: PC737 (Greek) ..........................................46
9.13 Code Page 15: ISO8859-7 (Greek) ....................................47
9.14 Code Page 16: WPC1252 (Windows Latin 1)....................48

WP-T810 Thermal Printer
4
9.15 Code Page 17: PC866 (Russian).......................................49
9.16 Code Page 18: PC852 (Slavonic)......................................50
9.17 Code Page 19: PC858 (Multilingual with Euro Symbol)...51
9.18 Code Page 20: KU42 (Thai)...............................................52
9.19 Code Page 21: TIS11 (Thai) ..............................................53
9.20 Code Page 22: TIS13 (Thai) ..............................................54
9.21 Code Page 23: TIS14 (Thai) ..............................................55
9.22 Code Page 24: TIS16 (Thai) ..............................................56
9.23 Code Page 25: TIS17 (Thai) ..............................................57
9.24 Code Page 26: TIS18 (Thai) ..............................................58
9.25 Code Page 30: TCVN-3 (Vietnamese) ...............................59
9.26 Code Page 31: TCVN-3 (Vietnamese) ...............................60
9.27 Code Page 32: PC720 (Arabic) .........................................61
9.28 Code Page 33: WPC775 (Baltic)........................................62
9.29 Code Page 34: PC855 (Cyrillic).........................................63
9.30 Code Page 35: PC861 (Iceland) ........................................64
9.31 Code Page 36: PC862 (Hebrew)........................................65
9.32 Code Page 37: PC864 (Arabic) .........................................66
9.33 Code Page 38: PC869 (Greek) ..........................................67

WP-T810 Thermal Printer
5
9.34 Code Page 39: ISO8859-2 (Central European) .................68
9.35 Code Page 40: ISO8859-15 (Latin 9).................................69
9.36 Code Page 41: PC1098 (Farsi)..........................................70
9.37 Code Page 42: PC1118 (Lithuanian).................................71
9.38 Code Page 43: PC1119 (Lithuanian).................................72
9.39 Code Page 44: PC1125 (Ukrainian)...................................73
9.40 Code Page 45: WPC1250 (Central European) ..................74
9.41 Code Page 46: WPC1251 (Cyrillic) ...................................75
9.42 Code Page 47: WPC1253 (Greek) .....................................76
9.43 Code Page 48: WPC1254 (Turkish)...................................77
9.44 Code Page 49: WPC1255 (Hebrew)...................................78
9.45 Code Page 50: WPC1256 (Arabic) ....................................79
9.46 Code Page 51: WPC1257 (Baltic)......................................80
9.47 Code Page 52: WPC1258 (Vietnamese)............................81
9.48 Code Page 53: KZ1048 (Kazakhstan) ...............................82
10 External Dimensions...............................................................83

WP-T810 Thermal Printer
6
1 General Description
1.1 Overview
The WP-T810 thermal line thermal receipt printer is designed for use
with ECR, POS Terminal, electronic instruments, computer peripheral
equipment, kitchen printer, and so on.
1.2 Feature
1 Compact desktop Line Thermal printer.
2 Easy loading designed for dropping the paper roll
3 Built-in USB and interface conformity to RS-232C, centronics and
Ethernet for different applications depends on which interface card
is inserted into the printer.
4 Command protocol is compatible with ESC/POS.
5 2 drawer kick-out.
6 The resident data buffer has storage capacity of about 4K-bytes,
enable data to be received even while printing.
7 Support download bit image, directly bit image and bar-code
printing.
8 The sensors include paper end, paper near end and cover sensor.

WP-T810 Thermal Printer
7
1.3 Accessories
Item Unit
Paper roll / 80mm (width) x 70mm (diameter) (1 roll)
Power adapter (1 unit)
Power cord (1 unit)
User’s manual and driver CD (1 unit)
Paper divider for 58mm (width) thermal paper (1 unit)
Option
Cable for RS-232C (packed with RS-232C interface version) (1 unit)
Cable for Centronics (packed with Centronics interface version) (1 unit)
Cable for USB (packed with USB interface version) (1 unit)

WP-T810 Thermal Printer
8
2 Specifications
2.1 Main Specifications
Item Description
1 Printing method Thermal line
2 Printing speed Approx. 220 mm/s
3 Command ESC/POS
4 Driver Linux, Windows and OPOS
5 Character structure Alphanumeric (A) Alphanumeric (B) Kanji
12 x 24 9 x 17 24 x 24
6 Columns 80mm/58mm 48 / 34 columns 64 / 45 columns 24 / 17 columns
7 Character size 1.50(W) x 3.00(H) 1.13(W) x 2.13(H) 3.00(W) x 3.00(H)
8 Density 203dpi
9 Fonts Multilingual code page x 40, Chinese, Japanese, Thai,
Korean, Others
10 Bar Code UPC-A, UPC-E. EAN13, EAN8, Code39, Code93,
Code128, CODABAR, ITF, QR Code.
11 Detectors Paper end, Paper near end, Cover, Printer head
overheat and Cutter jam
12 Paper Singly-ply thermal paper roll
13 Paper roll size 79.5±0.5 (W) x 83 mm (Dia.)
14 Paper thickness 0.05 ~ 0.06 mm
15 Drawer output 2
16 Reliability Head 100 km or more
Cutter 700,000 times
17 Memory
Buffer 4K bytes
SRAM 256K bytes
Flash 1M bytes (NV Image)
18 Power supply +24 VDC / 2.5A
19 Interface Built-in USB/RS-232, Parallel and Ethernet are optional
20 Gross weight 2.40 kg

WP-T810 Thermal Printer
9
21 External dimension 136 (W) x 178 (D) x 123 (H) mm
22 Temperature
Operating 0 ~ 45oC
Storage -10 ~ 50oC
23 Humidity Operating 10 ~ 90 %RH
Storage 10 ~ 90 %RH

WP-T810 Thermal Printer
10
2.2 Operating Specifications
Item Specifications
Temperature/
Humidity
Operating
0 to 45℃(32 to 113℉),0 to 90% RH no
condensation allowed.(Refer to ambient
operating ranges in the figure below.)
Storage:(shipped packed state) -10 to +50℃(14 to 122℉),0 to 90% RH
(excluding paper)
〔
℃
〕
〔
%RH
〕
90
34 40 45
Temperature
90%
65%
50%
65
0

WP-T810 Thermal Printer
11
3 External Appearance and Descriptions
(1) Printer cover
(2) Control panel
(3) Main housing
(4) Cover open lever
(5) Power switch
(6) USB connector
(7) Interface card
(8) DIP switch cover
(9) Power connector
(10) Cash drawer connector

WP-T810 Thermal Printer
12
4 Installations
4.1 How to Connect Power Adapter
1 Ensure that the power switch is OFF.
2 Plug the power connector into the printer’s power connector.
3 Plug the power cord into the outlet, and turn on the power.
4 Connector Specifications shows as below.
Pin Number Signal Name
(1) +24VDC
(2) GND
(3) NC
Shell Frame GND

WP-T810 Thermal Printer
13
4.2 How to Connect Cash Drawer
1 Ensure that the power switch is OFF.
2 Plug the connector into the RJ11 phone jack.
3 Note: The voltage for drawer kick out is 24VDC. If voltage of cash
drawer is different that may harm the cash drawer.

WP-T810 Thermal Printer
14
4.3 How to Connect USB Connector
1 Ensure that the power switch is OFF.
2 Plug B type USB into the USB connector.

WP-T810 Thermal Printer
15

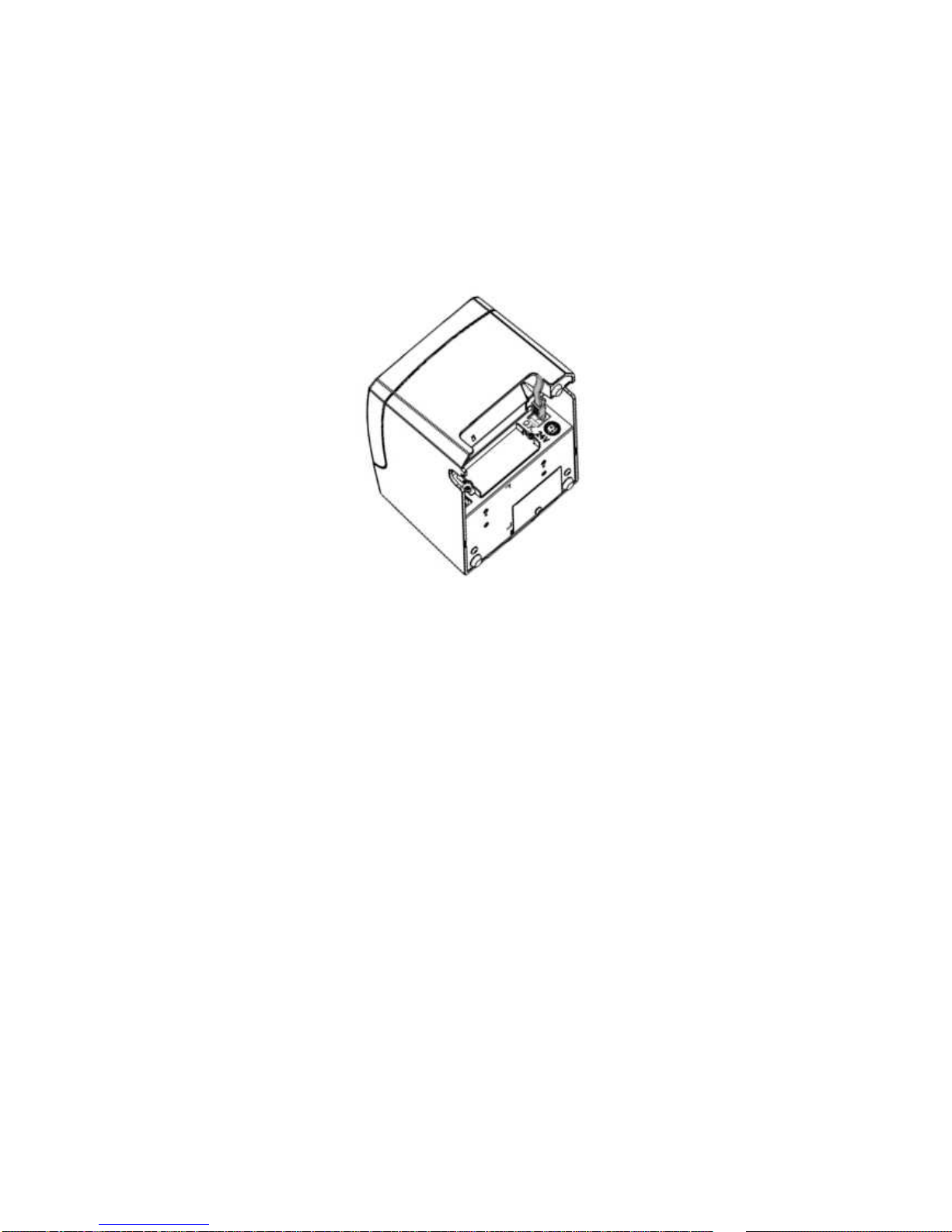

4.4 How to Load Thermal Paper
1 Pull the cover open lever to open the printer cover.
2 Remove any used paper roll’s core and put the new paper roll.

WP-T810 Thermal Printer
16
3 Pull out the thermal paper.
4 Close the printer cover.

WP-T810 Thermal Printer
17
5 Control Panel
5.1 Basic Operation
1 Feed button
When this push-button switch is pressed once briefly (for 0.5 seconds
or less), the paper is fed forward by one line. When it is held down
continuously, the paper is fed forward continuously until the switch is
released.
2 Power LED indicator
The light indicates power well connected.

WP-T810 Thermal Printer
18
3 Paper LED indicator
zThe indicator remains lighting when paper near end or paper end.
zThe indicator keeps sparkling when printer process in self-test or
hexadecimal dump mode.
zThe flash timing chart shows as below.
Printer status Blinking Pattern
Self-Testing
ON
OFF
500 ms
Paper end
ON
OFF
4 Error LED indicator
When printer cover is not properly closed or paper jam happen on
cutter part or paper is not put properly, the error indicator lamp (red
LED) will light.

WP-T810 Thermal Printer
19
5.2 Switch Operation (Combined Switch Operation)
1 Self-printing mode
Turn the power on while holding the feed
button depressed. Self-printing receipt will
be printed out (Ref. the right receipt).
Self-printing will be performed according to
the VER. NO., printer settings and
characters etc (Ref. the right receipt). When
the feed button is pressed again after
self-printing stopped, the printer will print
self-printing receipt again.
To turn off this mode, it is necessary to turn
off the printer power completely.

WP-T810 Thermal Printer
20

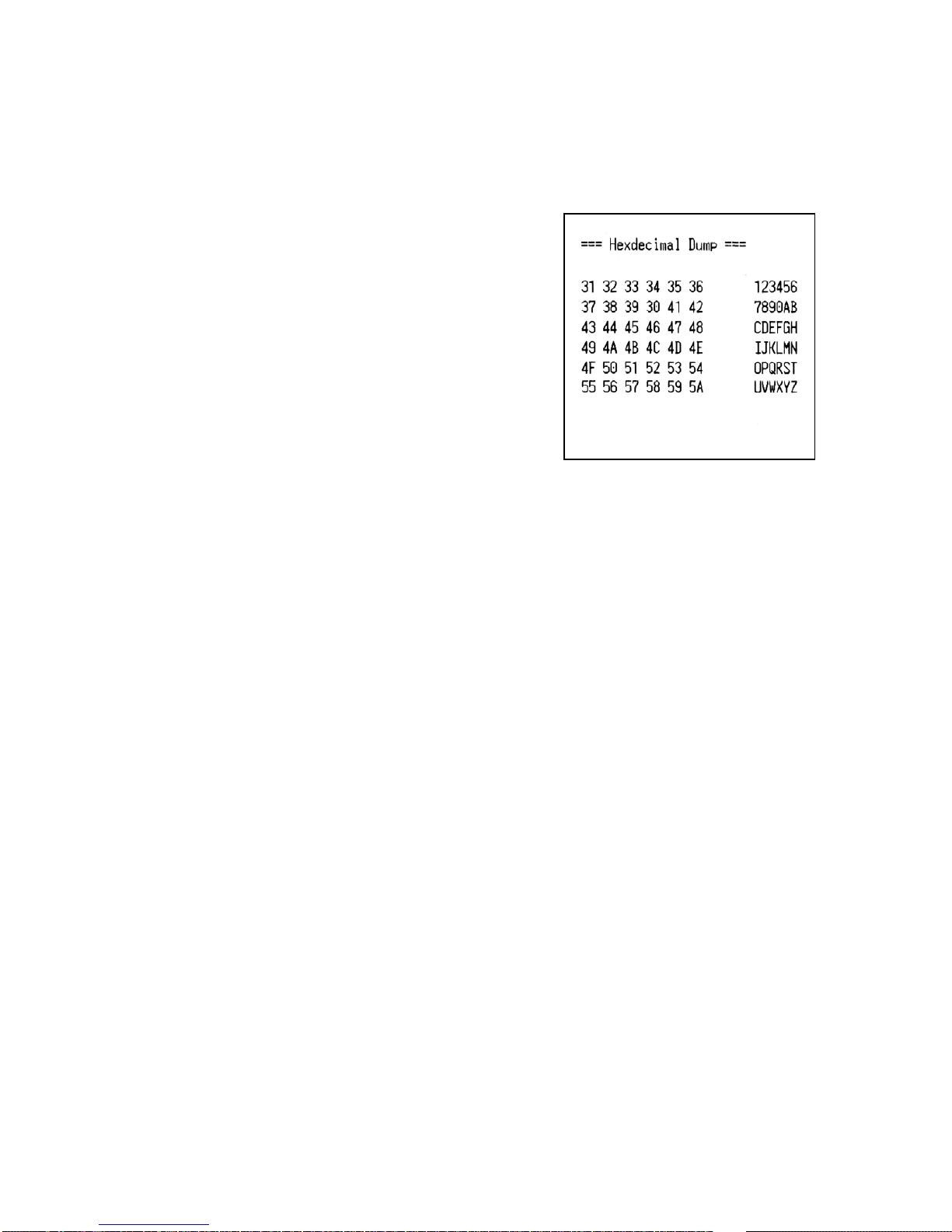

2 Hexadecimal dump mode
Open printer cover. Turn on power while
holding the feed button depressed. Then
close printer cover. The printer will be set
to hexadecimal mode.
Each of the signals sent from the computer
to the printer will be printed out in
hexadecimal code. This function allows user to check control code.
To turn off the mode, it is necessary to turn off the printer completely.
