Advantech PCA-6774 User manual

i
PCA-6774
ISA Socket370 SlotPC,
VGA/LCD/LVDS/LAN/CFC
with optional second LAN and
Gigabit LAN
Users Manual

PCA-677 4 User’s Manual ii
Copyright
This document is copyrighted, © 2004. All rights are reserved. The orig-
inal manufacturer reserves the right to make improvements to the prod-
ucts described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmit-
ted in any form or by any means without the prior written permission of
the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the
rights of third parties that may result from such use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
VIA is a trademark of VIA Technologies, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business
Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology LTD.
All other product names or trademarks are properties of their respective
owners.
For more information on this and other Advantech products, please visit
our websites at: http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our support website at:
http://support.advantech.com
This manual is for the PCA-6774.
Part No. 2006677410
1st Edition, Mar, 2004

iii
Packing List
Before you begin installing your card, please make sure that the following
materials have been shipped:
• 1 PCA-6774all-in-one single board computer
• 1 startup manual
• CD-ROM or disks for utility, drivers, and manual (in PDF format)
• 1 power cable p/n: 1703080101
• 1 PS/2 KB/M cable p/n: 1700060202
• 1 COM port cable p/n:1700100250
• 1 Printer cable p/n:1700260250
• 1 FDD cable p/n:1703340400
• 1 EIDE cable p/n:1701400452
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
Optional item:
1700100170 USB cable adapter (2.54 mm)
Model No. List Description
PCA-6774F-00A1 ISA Socket 370 half-sized CPU Card with
VGA/LCD/LVDS/LAN/CFC
PCA-6774FG-00A1 ISA Socket 370 half-sized CPU card with
VGA/LCD/LVDS/Giga LAN/CFC
PCA-6774F-02A1 ISA Eden 400 half-sized CPU card with
VGA/LCD/LVDS/2LAN/CFC

PCA-677 4 User’s Manual iv
Additional Information and Assistance
1. Visit the Advantech web site at www.advantech.com where you can
find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer
service center for technical support if you need additional assistance.
Please have the following information ready before you call:
• Product name and serial number
• Description of your peripheral attachments
• Description of your software (operating system, version, application
software, etc.)
• A complete description of the problem
• The exact wording of any error messages

1 Chapter 1 General Information
1
General Information
This chapter gives background
information on the PCA-6774.
Sections include:
• Introduction
• Features
• Specifications
• Board layout and dimensions
CHAPTER

PCA-677 4 User’s Manual 2
Chapter 1 Introduction
1.1 Introduction
Advantech's new PCA-6774 is a new Socket 370 half-sized CPU card
that will support up to 1.26GHz Pentium III with 512KB using VIA
VT8606"TwisterT" chipset. This SBC includes a 4X AGP controller, a
PCI Ethernet interface, and 36-bit TTL interface. Its design is based on
the half-sized CPU card and supports ISA bus expansion. Other on-board
features include an FDD, LPT, 2 USBs (4 USBs optional), and 2 serial
ports. The SSD solution supports CompactFlash cards. This product
uses a VIA TwisterT chip with Integrated Savage4 2D/3D/Video
Accelerator and supports 4X AGP VGA/LCD interface and up to
8/16/32 MB frame buffer using system memory. With the selection of
daughter boards, the PCA-6774 board can support a second LAN at
10/100Mbps, also this CPU card can support GigaLAN with Intel 82540.

3 Chapter 1 General Information
1.2 Features
• Supports Socket 370 for VIA C3 and Intel processors up to
Pentium III 1.26GHz with 512K (Tualatin).
• ISA bus half-sized CPU card
• Supports selectable LAN(1 x 10/100BASE-T LAN or 2 x 10/
100BASE-T LAN or 1 x Gigabit LAN)
• 4X AGP graphics for high performance applications
• Supports boot from USB device.
• Supports wake-on-LAN.
• Supports Ring-up by Modem.
• Supports LVDS interface.
• Supports LCD backlight turn-off function.
• RS-485 Auto-flow.
1.3 Specifications
1.3.1 Standard SBC Functions
• CPU: Supports Socket 370 for VIA C3 and Intel processors up to Pen-
tiumIII 1.26 GHz with 512K cache (Tualatin)
• System chipsets: VIA VT8606"TwisterT"+VT82C686B
• BIOS: Award 256 KB Flash memory
• System memory: One DIMM socket accepts 64 MB up to 512 MB
SDRAM
• 2nd cache memory: 128/256/512KB on Celeron/PentiumIII processor,
or 64 KB on the VIA C3 processor
• Enhanced IDE interface: One channel supports up to two EIDE
devices. Supports ATA-100, ATA-33 and PIO modes.
• FDD interface: Supports up to two FDDs

PCA-677 4 User’s Manual 4
• Serial ports: Two serial RS-232 ports:
COM1:RS-232
COM2:RS-232/422/485
RS-485 supports AUTO-flow
• Parallel port: Parallel port supports SPP/EPP/ECP mode
• Keyboard/mouse connector: Supports standard PC/AT keyboard and a
PS/2 mouse
• Power management: Supports power saving modes including Normal/
Standby/Suspend modes. APM 1.2 compliant
• Watchdog timer: 62 level timer intervals
• USB: Two universal serial bus ports, Optional 4 ports.
1.3.2 VGA/LCD Interface
• Chipset: VIA VT8606"TwisterT" chip with integrated Savage4 2D/3D/
Video Accelerator
• Frame buffer: Supports 8/16/32MB frame buffer with system memory
• Interface: 4X AGP VGA/LCD interface, Support for up to 36 bit TFT
• Display modes:
CRT Modes: 1280 x 1024@16bpp (60Hz),
1024 x 768@16bpp (85Hz),
LCD/Simultaneous Modes:
1280 x 1024@16bpp (60Hz),
1024 x 768@16bpp (60Hz);
LVDS interface:
Supports LVDS interface.
1.3.3 Solid State disk
• Supports CompactFlash Type I/II disks
1.3.4 PCI bus Ethernet interface
• Chipset: Intel 82551/82540
• Ethernet interface: IEEE 802.3u compatible10/100Base-T interface.
Supports selectable LAN(1 x 10/100base-T LAN or 2 x 10/100base-
T LAN or 1x Gigabit LAN)
• I/O address switchless setting

5 Chapter 1 General Information
1.3.5 Mechanical and Environmental
• Dimensions (L x W): 185 x 122 mm(7.28” x 4.80”)
• Power supply voltage: +5 V, +12V ±5%
• Power requirements:
• Max:
6.18 A @ +5 V, 0.22 A @+12 V
Typical:
5.5 A @ +5 V, (with PC133 128MB SDRAM,1 GHz)
0.17 A @ +5 V, (with PC133 128MB SDRAM,1 GHz)
• Operating temperature: 0 ~ 60°C (32 ~ 140°F)
• Operating humidity: 0% ~ 90% Relative Humidity, Non condensing
• Weight: 0.27 kg (weight of total package)

PCA-677 4 User’s Manual 6
1.4 Board layout: dimensions

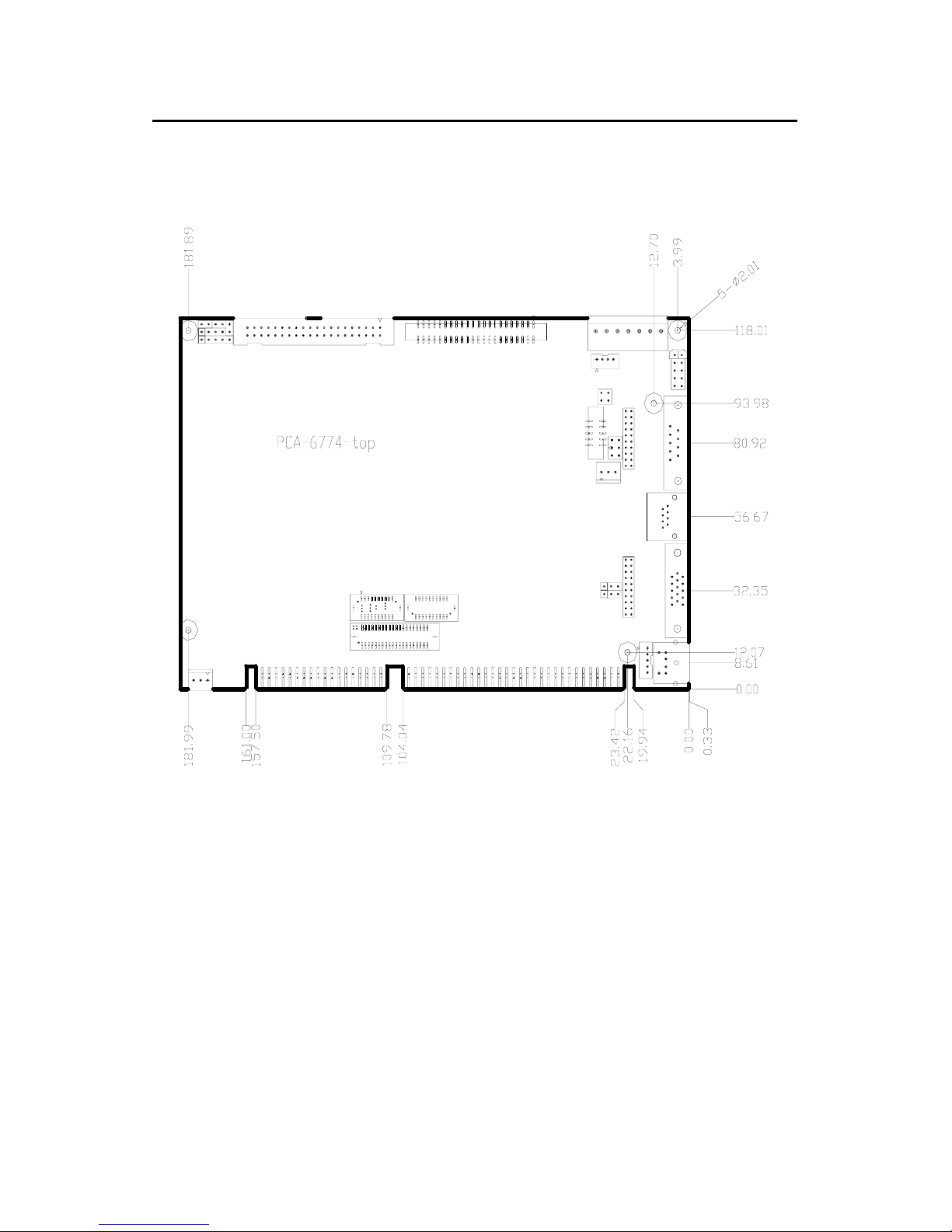

Figure 1.1: Board layout: dimensions (component side)

7 Chapter 1 General Information

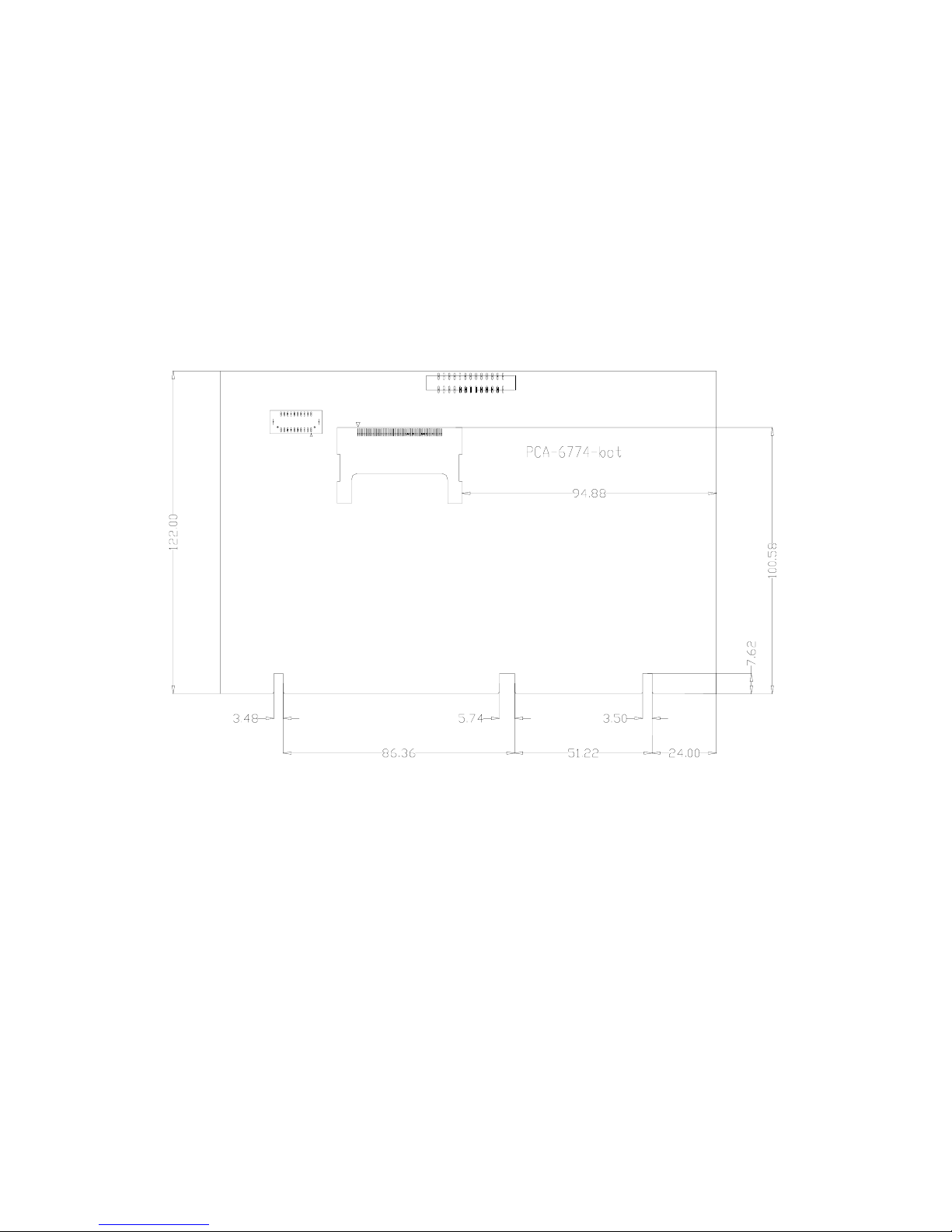

Figure 1.2: Board layout: dimensions (solder side)

9 Chapter 2 Installation
2
Installation
This chapter explains the setup procedures
of PCA-6774 hardware, including instruc-
tions on setting jumpers and connecting
peripherals, switches and indicators. Be
sure to read all safety precautions before
you begin the installation procedure.
CHAPTER

PCA- 6774 User’s Manual 10
Chapter 2 Installation
2.1 Jumpers
The PCA-6774 has a number of jumpers that allow you to configure your
system to suit your application. The table below lists the functions of the
various jumpers.
2.2 Connectors
On-board connectors link the PCA-6774to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the func-
tion of each of the board’s connectors
Table 2.1: Jumpers
Label Function
J1 CMOS clear
J2 Watchdog timer output selection
J3 COM2 RS232-422-485 Select

11 Chapter 2 Installation
.
Table 2.2: Connectors
Label Function
CN1 Primary IDE connector
CN2 Secondary IDE connector
CN3 FDD connector
CN4 Parallel port connector
CN5 CompactFlash Card connector
CN6 USB1, USB2 connector
CN7 VGA connector
CN8 10/100MHz LAN connector
CN9 COM1 connector
CN10 COM2 connector
CN11 PS/2 Keyboard&Mouse connector
CN12 External Keyboard
CN14 CPU FAN
CN15 Main Power connector(EBX)
CN16 Power LED&Keyboard Lock
CN17 External speaker
CN18 Reset connector
CN19 HDD LED connector
CN20 ATX Power feature connector
CN21 ATX Soft-ON Power Button connector
CN22 LCD 40 PIN connector
CN23 LCD 20 PIN connector2
CN24 LCD BackLight connector
CN25 LVDS connector
CN27 I/O Daughter Card connector1
CN28 I/O Daughter Card connector2
CN29 RS485/422 Connector

PCA- 6774 User’s Manual 12

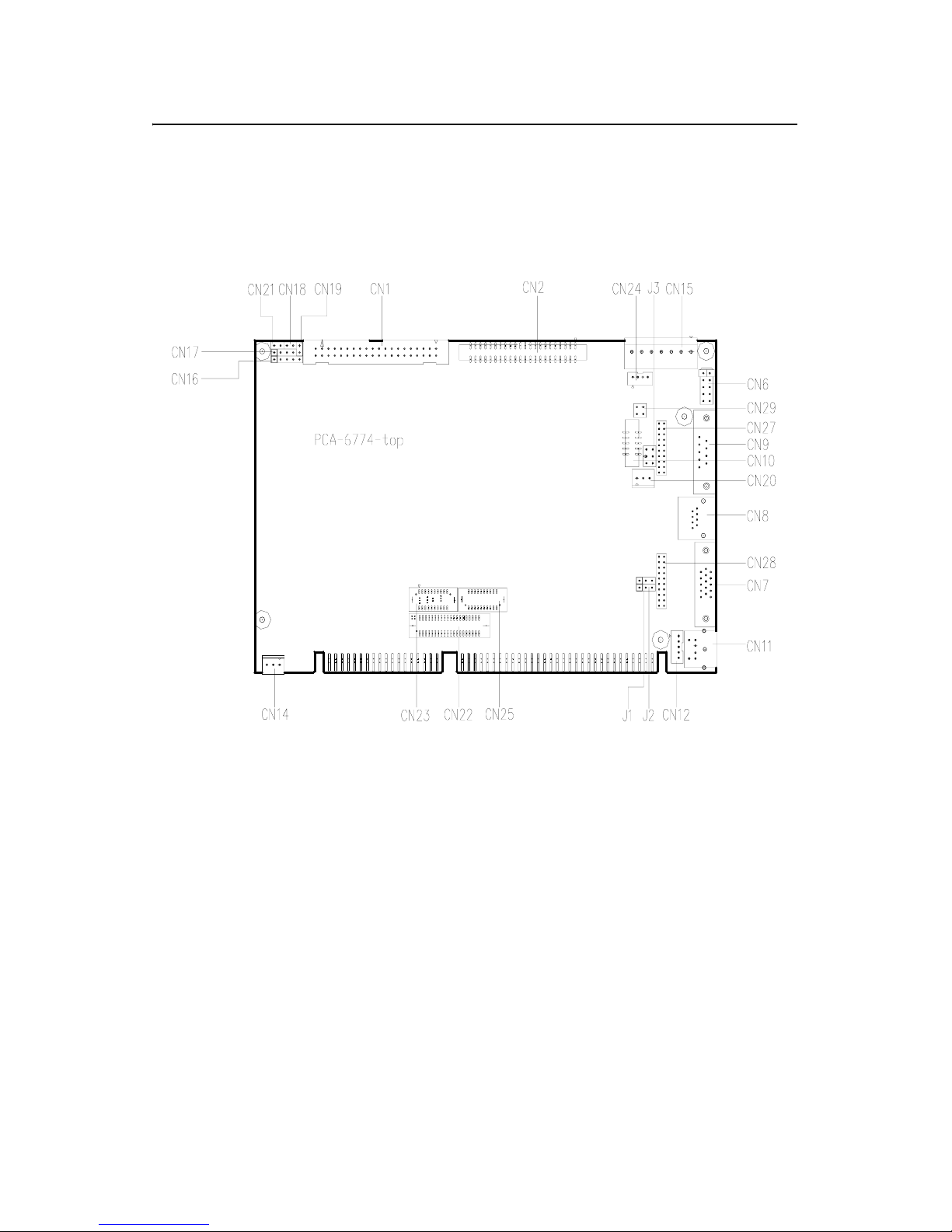

2.3 Locating Connectors(component side)
Figure 2.1: Jumper & Connector locations

13 Chapter 2 Installation
2.4 Locating Connectors(solder side)
Figure 2.2: Connectors (soldor side)

PCA- 6774 User’s Manual 14
2.5 Setting Jumpers
You may configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge used to close an electric cir-
cuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To “close” a
jumper, you connect the pins with the clip. To “open” a jumper, you
remove the clip. Sometimes a jumper will have three pins, labeled 1, 2
and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

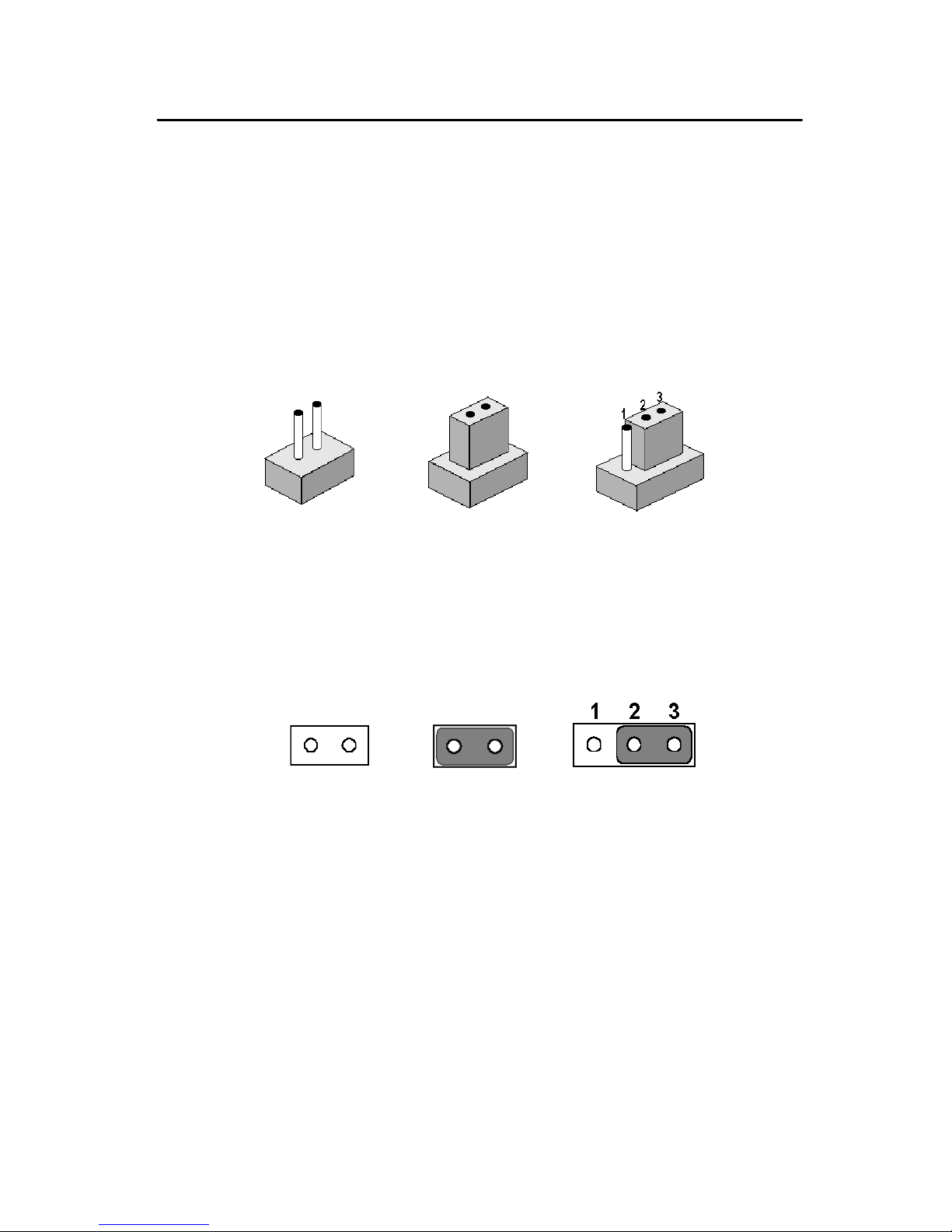

The jumper settings are schematically depicted in this manual as follows:.
A pair of needle-nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes.
Generally, you simply need a standard cable to make most connections.
open closed closed 2-3
open closed closed 2-3

15 Chapter 2 Installation
2.6 Clear CMOS (J1)
This jumper is used to erase CMOS data and reset system BIOS informa-
tion.
The procedure for clearing CMOS is:
1. Turn off the system.
2. Short pin 2 and pin 3.
3. Return jumper to pins 1 and 2.
4. Turn on the system. The BIOS is now reset to its default setting
Warning! To avoid damaging the computer, always turn
off the power supply before setting “Clear
CMOS.” Before turning on the power supply,
set the jumper back to “3.0 V Battery On.”

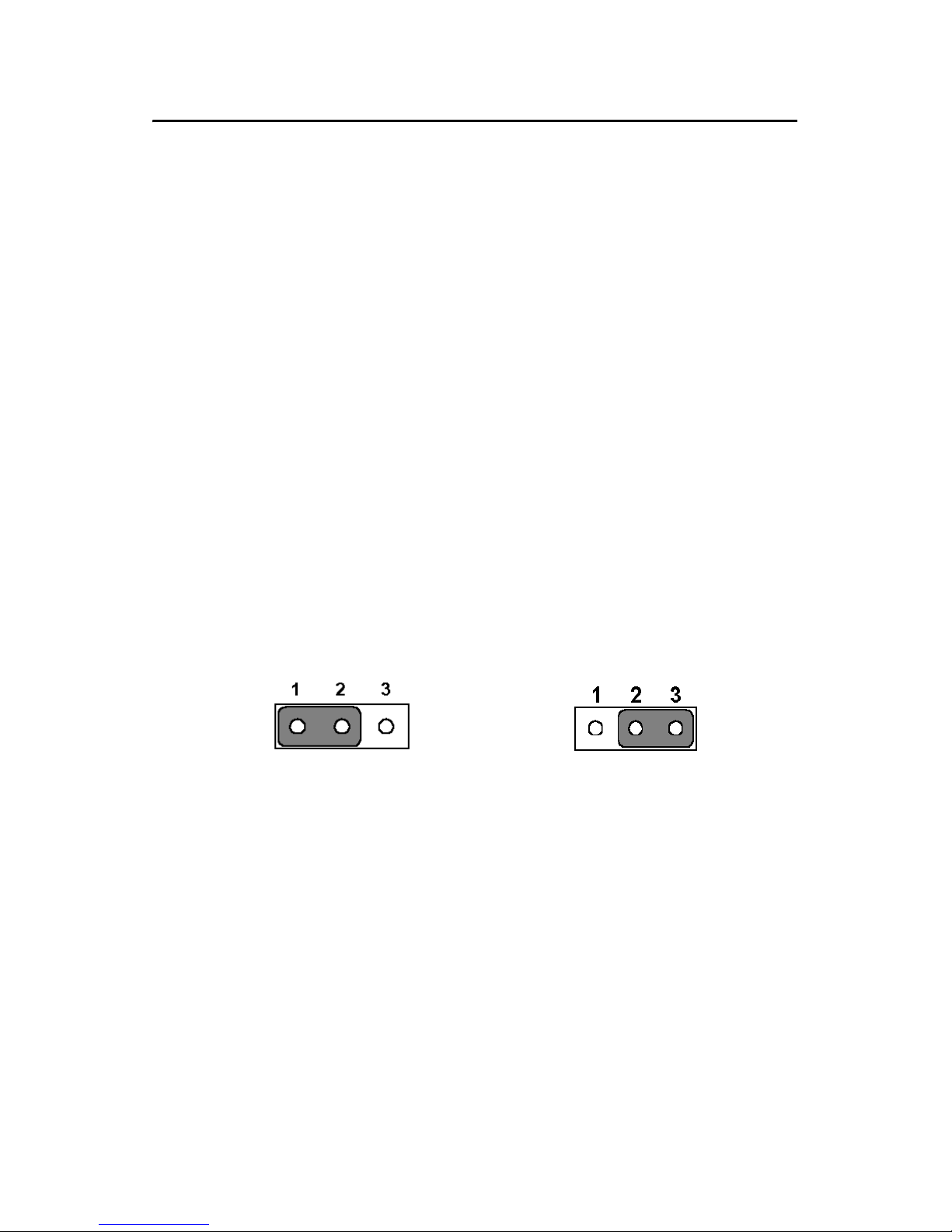

Table 2.3: CMOS clear (J1)
*3.0 V normal clear CMOS
* default setting

PCA- 6774 User’s Manual 16
2.7 COM2 RS232-422-485 Select (J3)
2.8 Watchdog timer configuration
An on-board watchdog timer reduces the chance of disruptions which
EMP (electro-magnetic pulse) interference can cause. This is an invalu-
able protective device for standalone or unmanned applications. Setup
involves one jumper and running the control software (refer to Appendix
A).
2.8.1 Watchdog timer output option (J2)
When the watchdog timer activates (CPU processing has come to a halt),
it can reset the system or generate an interrupt on IRQ11. This can be set
via setting J2 as shown below:
Table 2.4:
COM2 RS232-422-485 Select
PIN RS232* RS422 RS484
1-2 Closed Open Open
3-4 Open Closed Open
5-6 Open Open Closed
Table 2.5: Watchdog timer output option (J2)
*System reset IRQ 11
* default setting

17 Chapter 2 Installation
2.9 Installing DIMMs
The procedure for installing DIMMs is described below. Please follow
these steps carefully. The number of pins are different on either side of
the breaks, so the module can only fit in one way. DIMM modules have
different pin contacts on each side, and therefore have a higher pin den-
sity.
1. Make sure that the two handles of the DIMM socket are in the
“open” position. i.e. The handles remain leaning outward.
2. Slowly slide the DIMM module along the plastic guides on both
ends of the socket.
3. Press the DIMM module right down into the socket, until you hear
a click. This is when the two handles have automatically locked the
memory module into the correct position of the socket.
To remove the memory module, just push both handles outward, and the
module will be ejected from the socket.
