Advantech PCA-6155 User manual

PCA-6155
Full-size Pentium PICMG
PCI/ISA-bus CPU Card

Copyright Notice
This document is copyrighted, 1996, by Advantech Co., Ltd. All
rights are reserved. Advantech Co., Ltd., reserves the right to make
improvements to the products described in this manual at any time
without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of Advantech Co., Ltd. Information provided in this
manual is intended to be accurate and reliable. However, Advan-
tech Co., Ltd. assumes no responsibility for its use, nor for any
infringements upon the rights of third parties which may result
from its use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
IBM, PC AT and VGA are trademarks of International Business
Machines Corporation.
Microsoft Windows®and MS-DOS are trademarks of Microsoft
Corporation.
SMC is a trademark of Standard Microsystems Corporation.
Pentium and Intel are trademarks of Intel Corporation.
VIA is a trademark of VIA Technology, Inc.
PICMG is a trademark of the PCI Industrial Computer Manufac-
turer Group.
Part No. 2006155000 1st Edition
Printed in Taiwan May 1996

A Message to the Customer....
Advantech Customer Services
Each and every Advantech product is built to the most exacting
specifications to ensure reliable performance in the unusual and
demanding conditions typical of industrial environments. Whether
your new Advantech equipment is destined for the laboratory or
the factory floor, you can be assured that it will provide the
reliability and ease of operation for which the name Advantech has
come to be known.
Your satisfaction is our number one concern. Here is a guide to
Advantech’s customer services. To ensure you get the full benefit
of our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your prod-
ucts. If you run into technical difficulties, we are here to help. But
please consult this manual first.
If you still can’t find the answer, gather all the information or
questions that apply to your problem and, with the product close at
hand, call your dealer. Our dealers are trained and ready to give
you the support you need to get the most from your Advantech
products. In fact, most problems reported are minor and are able to
be easily solved over the phone.
In addition, free technical support is available from Advantech
engineers every business day. We are always ready to give advice
on application requirements or specific information on the
installation and operation of any of our products.

Product warranty
Advantech warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship
for one year from the date of purchase.
This warranty does not apply to any products which have been
repaired or altered by other than repair personnel authorized by
Advantech, or which have been subject to misuse, abuse, accident
or improper installation. Advantech assumes no liability as a
consequence of such events under the terms of this Warranty.
Because of Advantech’s high quality-control standards and
rigorous testing, most of our customers never need to use our
repair and replacement service. If an Advantech product ever does
prove defective, it will be repaired at no charge during the warran-
ty period. For out-of-warranty repairs, you will be billed according
to the cost of replacement materials, service time and freight.
Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered (e.g.
type of PC, CPU speed, Advantech products used, other
hardware and software used etc.). Note anything abnormal and
list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product and any other information readily available.
3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly.
4. Carefully pack the defective product, a completely filled-out
Repair and Replacement Order Card and a photocopy of a
dated proof of purchase (such as your sales receipt) in a
shippable container. A product returned without dated proof of
purchase is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.

Packing list
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1 PCA-6155 CPU card
• 1 6-pin mini-DIN keyboard & PS/2 mouse adapter
• 2 Hard disk drive (IDE) interface cables (40 pin)
• 1 Bus master IDE driver and Flash BIOS utility disk
• 1 Floppy disk drive interface cable (34 pin)
• 1 Parallel port adapter kit (26-pin)
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.

Contents
Chapter 1 Hardware Configuration .................................... 1
Introduction ...................................................................2
Specifications................................................................3
System ............................................................................3
I/O ...................................................................................3
General ...........................................................................4
Board Layout .................................................................5
Jumpers and Connectors.............................................6
Safety Precautions........................................................7
Jumper Settings ............................................................8
How to set jumpers .........................................................8
CPU type select (J3, J4, J6, J7, J8)................................9
CPU voltage select (J1, J2)...........................................10
Cache RAM select (J5) .................................................10
Watchdog timer reset/IRQ select (J9, J10)...................10
RTC data cache enable/disable (J11)...........................11
Buzzer enable/disable (J12)..........................................11
Installing DRAM (SIMMs)............................................11
Chapter 2 Connecting Peripherals ....................................13
Reset Switch (CN1) .....................................................15
Hard Drive LED (CN2) .................................................15
IrDA Tx/Rx Header (CN3) ............................................15
External Speaker (CN4) ..............................................15
Power LED and Keylock (CN5) ..................................16
Enhanced IDE (CN6, CN7) ..........................................16
Floppy Drive (CN8)......................................................17
Parallel Port (CN9).......................................................17
Serial Ports (CN11, CN12) ..........................................18
Keyboard & PS/2 Mouse (CN10/CN13) ......................18
CPU Cooling Fan Power Connector (CN14) .............19

Chapter 3 Award BIOS Setup ............................................21
Entering setup ...............................................................22
Standard CMOS setup..................................................23
BIOS features setup......................................................24
CHIPSET features setup...............................................28
Power management setup ............................................29
PCI configuration setup.................................................30
Load BIOS defaults .......................................................31
Load setup defaults.......................................................31
Password setting...........................................................31
IDE HDD auto detection................................................31
Save & Exit setup..........................................................31
Exit without saving ........................................................31
Appendix A Programming the Watchdog Timer..................33
Appendix B Hardware Information .......................................35

Chapter 1 Hardware Configuration 1
1
Hardware
Configuration
This chapter gives background informa-
tion on the PCA-6155. It then shows you
how to configure the card to match your
application and prepare it for installation
into your PC.
Sections include:
• Card specifications
• Board layout
• Safety precautions
• Jumper settings
• Installing DRAM (SIMMs)
CHAPTER

2PCA-6155 User's Manual
Introduction
The PCA-6155 packs all the functions of an industrial computer,
including IDE, FDD controller, RS-232 ports and a parallel port onto a
half-size card. This PICMG-compliant, all-in-one board supports Intel
Pentium and Cyrix 6x86 processors and can be used with PCIMG-
compliant PCI/ISA passive backplanes.
The PCA-6155's two PCI-bus enhanced IDE ports support PIO mode
4 and DMA bus master IDE transfer, enabling data transfer rates in
excess of 16 MB/second. Up to four IDE devices can be connected,
including large hard disks (up to 8 GB), CD-ROM drives, tape backup
drives, or other enhanced IDE devices.
On-board features also include two RS-232 ports with 16C550 UARTs
(one of which can also function as an infrared port) and one bidirec-
tional SPP/EPP/ECP parallel port. It provides COAST (Cache On A
STick) pipeline burst synchronous cache RAM. The PCA-6155 can
pack up to 128 MB of memory, using normal DRAM or EDO RAM.
If program execution is halted by a program bug or EMI, the board's
63-level watchdog timer can automatically reset the CPU or generate
an interrupt. This ensures reliability in unmanned or standalone
systems. The watchdog timer interval is set by software and can be
changed during runtime, eliminating jumper switch setting.

Chapter 1 Hardware Configuration 3
Specifications
System
•CPU: Intel Pentium 75-166 MHz; Cyrix 6x86
•2nd level cache: 256/512 KB pipeline burst cache RAM
•Bus interface: PCI/ISA, PICMG standard
•Chipset: VIA 82C570 series
•BIOS: Award
•Processing ability: 32 bit
•Bus speed: 8 MHz ISA; 33 MHz PCI
•RAM: 2 MB to 128 MB. Uses four 72-pin SIMM sockets. 72-pin
sockets accept 1, 2, 4, 8, 16 or 32 MB SIMMs. Supports both EDO
and fast page DRAM.
•Shadow RAM: Supports system and video BIOS of up to 256 KB
in 16 KB blocks
I/O
•Enhanced IDE hard disk drive interface:
Supports up to four IDE (AT bus) large (up to 8 GB) hard disk
drives or other enhanced IDE devices. Supports mode 4 (16.6 MB/
sec. data transfer rate). BIOS enables/disables on-board IDE
controller.
•Floppy disk drive interface: Supports up to two floppy disk drives,
5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB and 2.88
MB). BIOS enables/disables on-board FPP controller. Drives A and
B may be swapped.
•Enhanced bidirectional parallel port: Configurable to LPT1,
LPT2, LPT3, or disabled. Standard DB-25 female connector
provided. Multi-mode parallel port supports SPP/EPP/ECP.

4PCA-6155 User's Manual
•Serial ports: Two RS-232 serial ports, both with 16C550 UARTs
(or compatible) with 16-byte FIFO buffer. Support speeds up to 115
Kbps. Ports can be individually configured as COM1, COM2 or
disabled. COM2 can function as an infrared port or an RS-232 port.
•Keyboard & PS/2 mouse connector: A 6-pin mini DIN connector
is located on the mounting bracket for easy keyboard and/or PS/2
mouse connection.
•Watchdog timer: Can generate a system reset or IRQ11/15. The
timer interval is 1 - 63 seconds (63 levels). Run-time software setup.
General
•Max. power requirements: +5 V @ 5 A
•Power supply voltage: +5 V (4.75 V to 5.25 V)
•Operating temperature: 32 to 140oF (0 to 60oC)
•Storage temperature: -40 to 176oF (-40 to 80oC)
•Board size: 13.3" (L) x 4.8" (W) (338 mm x 122 mm)
•Board weight: 1.2 lbs (0.5 kg)

Chapter 1 Hardware Configuration 5
Board Layout
Pentium
intel
CN1
CN4
CN5
CN6
CN7
CN8 CN9
CN1
1
CN1
2
CN13
J8
J3
1
111
SIMM
431
2
CN2
CN3
Cache module
PIN1
J4
J5
J7J6
Buzzer
J1J2
J10
J9
J11
J12
CN10
BANK 0
BANK 1
1
+
J14
CN14
1

6PCA-6155 User's Manual
Jumpers and Connectors
Connectors on the board link it to external devices such as hard disk
drives, a keyboard, or floppy drives. In addition, the board has a
number of jumpers which you use to configure it for your application.
The table below lists the function of each of the board jumpers and
connectors. Later sections in this chapter give instructions on setting
jumpers and detailed information on each jumper setting. Chapter 2
gives instructions for connecting external devices to your card.
Jumpers and connectors
Number Function
J1, J2 CPU voltage select
J3, J4 CPU clock select
J5 Cache RAM select
J6, J7, J8 CPU type select
J9, J10 Watchdog timer reset/IRQ select
J11 RTC data erase enable/disable
J12 Buzzer enable/disable
J13 Reserved
J14 PS/2 mouse select
CN1 Reset
CN2 HDD LED
CN3 IrDA Tx/Rx header
CN4 External speaker
CN5 Power LED and keylock
CN6 Primary IDE
CN7 Secondary IDE
CN8 Floppy drive connector
CN9 Parallel port
CN10 Keyboard pin-header connector
CN11 COM1 (DB-9)
CN12 COM2 (DB-9)
CN13 Keyboard & PS/2 mouse DIN connector
CN14 CPU cooling fan power connector

Chapter 1 Hardware Configuration 7
Safety Precautions
Follow these simple precautions to protect yourself from harm and
your PC from damage.
1. To avoid electric shock, always disconnect the power from your PC
chassis before you work on it. Don’t touch any components on the
CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The
sudden rush of power as you connect a jumper or install a card may
damage sensitive electronic components.
3. Always ground yourself to remove any static charge before you
touch your CPU card. Be particularly careful not to touch the chip
connectors. Modern integrated electronic devices, especially CPUs
and memory chips, are extremely sensitive to static electric
discharges and fields. Keep the card in its antistatic packaging
when it is not installed in the PC, and place it on a static dissipative
mat when you are working with it. Wear a grounding wrist strap for
continuous protection.

8PCA-6155 User's Manual
Jumper Settings
This section tells how to set the jumpers to configure your card. It
gives the card default configuration and your options for each jumper.
After you set the jumpers and install the card, you will also need to run
the BIOS Setup program (discussed in Chapter 3) to configure the
serial port addresses, floppy/hard disk drive types and system operat-
ing parameters. Connections, such as hard disk cables, appear in
Chapter 2.
For the locations of each jumper, see the board layout diagram
depicted earlier in this chapter.

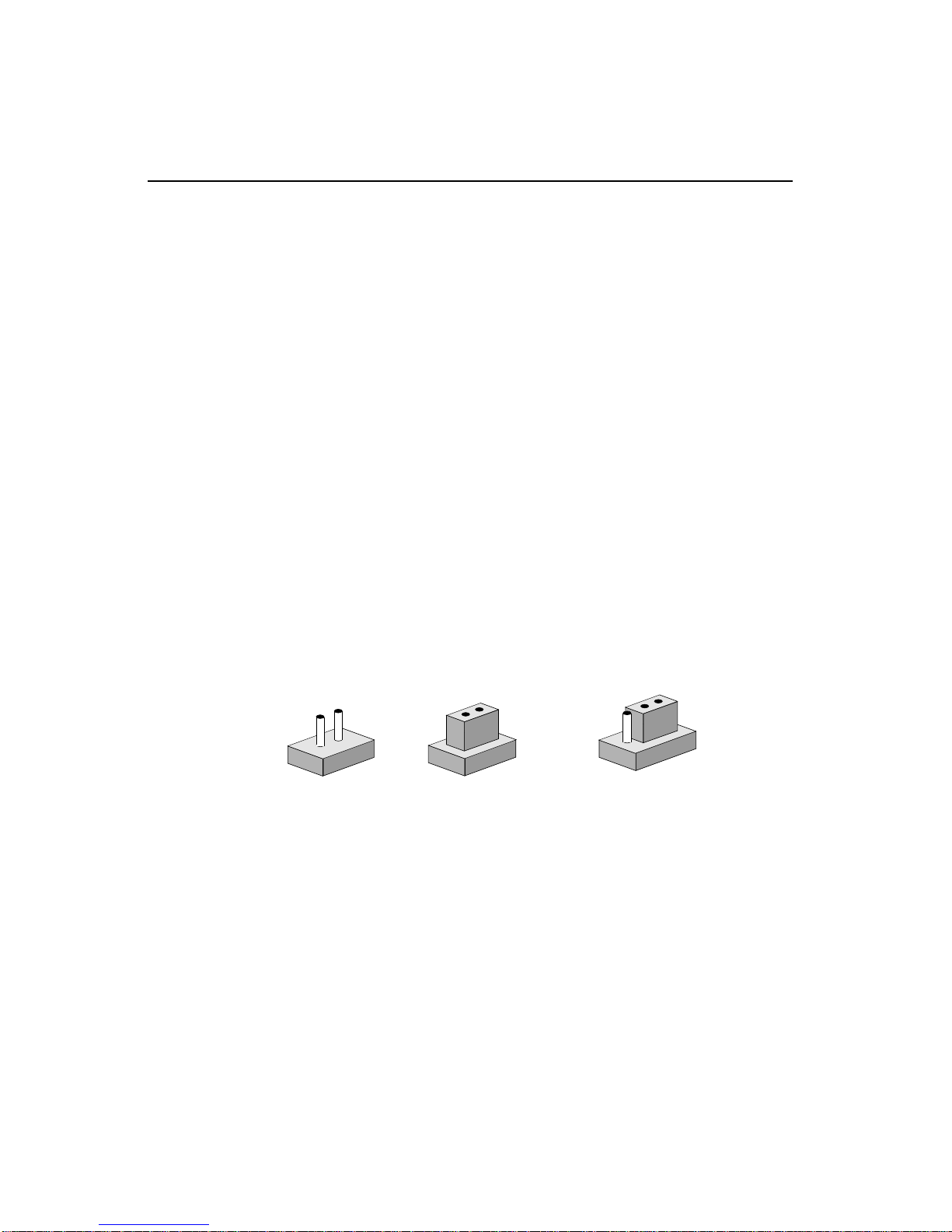

How to set jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by a
plastic cover) that slides over the pins to connect them. To “close” a
jumper you connect the pins with the clip. To “open” a jumper you
remove the clip. Sometimes a jumper will have three pins, labeled 1, 2
and 3. In this case you connect either pins 1 and 2 or 2 and 3.
You may find pair of needle-nose pliers useful for setting the jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative
before you make any changes.
Open Closed Closed 2-3
1
3
2

Chapter 1 Hardware Configuration 9
CPU clock select (J3, J4, J6, J7, J8)
In order for the system to function properly, the jumpers must be set to
accommodate the correct CPU. The following table shows the jumper
settings, as well as the clock and frequency values, for each CPU type.
CPU clock select (J3, J4, J6, J7, J8)
Pentium CPU/
Cyrix 6x86 CPU J3 J4 J6 J7 J8
75 MHz
(1.5 x 50 MHz)
90 MHz
(1.5 x 60 MHz)
100 MHz
(1.5 x 66 MHz)
120 MHz
(2 x 60 MHz)
133 MHz
(2 x 66 MHz)
150 MHz
(2.5 x 60 MHz)
166 MHz
(2.5 x 66 MHz)

10 PCA-6155 User's Manual
CPU voltage select (J1, J2)
CPU voltage select (J1, J2)
Voltage J1 J2
3.3 V
3.45 V
3.6 V
3.7 V
Cache RAM select (J5)
The PCA-6155 provides a COAST cache module slot for 2nd level
cache. Users can select either 256 KB or 512 KB (BIOS detected) to
enhance performance.
Cache RAM select (J5)
Burst RAM Synchronized Asynchronized No Cache (default)
J5
Watchdog timer reset/IRQ select (J9, J10)
Watchdog timer reset/IRQ select (J9, J10)
Reset (default) IRQ11 IRQ15
J9
J10

Chapter 1 Hardware Configuration 11
RTC data erase enable/disable (J11)
J11 determines whether RTC data is kept or erased.
RTC data erase enable/disable (J11)
Enable (keep data) Disable (dump data)
3 2 1 3 2 1
J11
Buzzer enable/disable (J12)
Buzzer enable/disable (J12)
Enable Disable
J12
PS/2 mouse select (J14)
IRQ 12 is designed for PS/2 mouse use. It may also be reserved for
user selected applications.
Buzzer enable/disable (J14)
PS/2 Mouse (default) Reserve IRQ 12
J14
Installing DRAM (SIMMs)
The PCA-6155 has four 72-pin SIMM (Single In-Line Memory
Module) sockets that provide anywhere from 2 MB to 128 MB of
DRAM. Each socket accepts from 1 to 32 MB of DRAM. For more
detailed information please refer to the memory configuration tables
on page 12 of this manual.

12 PCA-6155 User's Manual
Total
Memory BANK 0 SIMM 1 SIMM 2 BANK 1 SIMM 3 SIMM 4
2MB 1MB x 1 1MB x 1
4MB 2MB x 1 2MB x 1
4MB 1MB x 1 1MB x 1 1MB x 1 1MB x 1
8MB 4MB x 1 4MB x 1
8MB 2MB x 1 2MB x 1 2MB x 1 2MB x 1
16MB 8MB x 1 8MB x 1
16MB 4MB x 1 4MB x 1 4MB x 1 4MB x 1
32MB 16MB x 1 16MB x 1
32MB 8MB x 1 8MB x 1 8MB x 1 8MB x 1
64MB 16MB x 1 16MB x 1 16MB x 1 16MB x 1
64MB 32MB x 1 32MB x 1
128MB 32MB x 1 32MB x 1 32MB x 1 32MB x 1
24MB 4MB x 1 4MB x 1 8MB x 1 8MB x 1
48MB 8MB x 1 8MB x 1 16MB x 1 16MB x 1
96MB 16MB x 1 16MB x 1 32MB x 1 32MB x 1
40MB 4MB x 1 4MB x 1 16MB x 1 16MB x 1
80MB 8MB x 1 8MB x 1 32MB x 1 32MB x 1
Table 2: Dual or Quad SIMM (64-bit) boot up
Total
Memory Bank 0 SIMM 1 SIMM 2 Bank 1 SIMM 3 SIMM 4 Remark
4MB 4MB x 1 32-bit boot up
8MB 8MB x 1 32-bit boot up
16MB 16MB x 1 32-bit boot up
32MB 32MB x 1 32-bit boot up
Table 1: Single SIMM (32-bit) boot up
