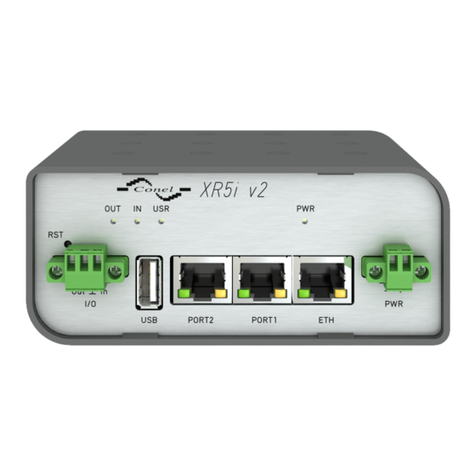

Advantech XR5i v2 Guide

Start Guide
for v2 Routers
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
Safety Instructions
Please take care to following instructions:
•Use the router in compliance with national and international law and in compliance with
any special or additional restrictions regulating the use of the router in the various appli-
cations and environments.
•To avoid possible injury and/or damage to the device, observe the relevant provisions
and standards. Use only the original accessories as recommended. Unauthorized de-
vice or accessory modification, or using accessories that have not been approved can
result in router damage and/or violation of the regulations.
•Unauthorized device or accessory modification or using the accessories that have not
been approved can result in warranty termination.
•Do not open the router.
•Caution! The SIM card can be swallowed by small children.
•When connecting the device to a power supply do not exceed the defined voltage.
•Do not expose the router to extreme ambient conditions. Protect the router against dust,
moisture, and high temperature.
•It is recommended that you do not use the router at petrol filling stations. We recommend
observing local restrictions concerning the use of radio-based devices while working with
explosive material for example, at petrol filling stations, or in chemical plants.
•While using the router close to personal medical devices, such as cardiac pacemakers
or hearing aids, proceed with heightened caution.
•Operating the router too close to TV sets, radio receivers, personal computers, or tele-
phones can cause interference.
•It is recommended that you create a copy or backup of the important settings stored in
the memory of the router.
QSG-0001-EN, April 29, 2020 1 Released in the Czech Republic
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
Product Disposal Instructions
The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc-
tive has been introduced to ensure that electrical/electronic products are recy-
cled using the best available recovery techniques to minimize the impact on
the environment. This product contains high-quality materials and components
which can be recycled. At the end of its life, this product MUST NOT be mixed
with other commercial waste for disposal. Check with the terms and conditions
of your supplier for disposal information.
Open Source Software License
The software in this device uses various pieces of open-source software governed by the
following licenses:
•GPL versions 2 and 3
•LGPL version 2
•BSD-style licences
•MIT-style licences
The list of components together with complete license texts can be found on the device
itself. See Licenses link at the bottom of the router’s main Web page (General Status) or point
your browser to this address (replace the DEVICE_IP string with real router’s IP address):
http://DEVICE_IP/licenses.cgi
This is a written offer valid for 3 years since the device purchase offering any third party
for a charge no more than the cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code on a flash drive medium. If you are
interested in obtaining the source, please contact us at:
[e-mail]
Modifications and debugging of LGPL-linked executables:
The manufacturer of the device hereby grants the right to use debugging techniques (e.g.
decompilation) and making customer modifications of any executable linked with an LGPL
library for own purposes. Note these rights are limited to the customer’s own usage. No further
distribution of such modified executables and no transmission of the information obtained
during these actions may be done.
QSG-0001-EN, April 29, 2020 2 Released in the Czech Republic
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
First Use
Before applying power to the router, connect the components that you required for your
applications. You cannot operate the router without a connected antenna, inserted SIM card,
nor a connected power supply.
If you do not have connected the main antenna during operation of the router, the router
can be damaged!
XR5i v2 routers are not equipped with a cellular module, which means that SIM card
readers and antenna connectors are not available on the router.
1. Antenna
Use an SMA connector to connect the antennas to the router. The main antenna is con-
nected to the router by screwing on the ANT connector (see the figure below). The second
diversity antenna can also be connected to the DIV connector to improve performance.
QSG-0001-EN, April 29, 2020 3 Released in the Czech Republic
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
2. SIM Card
The SIM card reader, for 3 V and 1.8 V SIM cards, is located on the front panel of the
router. The full version of the router contains two readers. If you intend to use this device to
communicate over a cellular network, please place an activated data-provisioned SIM card
with an unblocked PIN into the SIM card reader. Insert your SIM card into the SIM1 or SIM2
holder and push it to the reader (see the figure below).
Before handling the SIM card disconnect the router from the power supply!
3. Power
The router requires an external DC power supply. The DC voltage required is between
+10 to +30 V DC. The router has built-in protection against reverse polarity without signaling.
Connect the power supply cable to the PWR connector on the front panel of the router (see
the figure below) and tighten the locking screws.
QSG-0001-EN, April 29, 2020 4 Released in the Czech Republic
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
4. Ethernet
An Ethernet cable may be connected to the ETH connector on the front panel (see the
figure above). By default, this Ethernet port is configured as follows:
Connector Purpose Default Setting
ETH LAN port (default)
Connect your laptop or PC to this port to
get a local web-server for device configu-
ration and diagnostics.
DHCP Server
IP Address: 192.168.1.1
NetMask: 255.255.255.0
If the router is equipped with any expansion port, connect the appropriate cable to the port
PORT1 or PORT2. The pin assignments for expansion ports is described in manual for corre-
sponding expansion port.
Configuration
1. Configuring the Device Using the Web Browser
You can access the router for status monitoring, configuration, and administration after en-
tering the IP address of the router into the web interface. The default IP address is 192.168.1.1
(netmask 255.255.255.0). Configuration access is allowed for the user "root". The default
password is printed on the router’s label.1For a detailed description and examples of the
router configurations, see the Configuration Manual.
2. Configuring the Device Using the SSH or Telnet
Device management can be done by accessing the device through the Secure Shell (SSH)
or the Telnet protocol. The default IP address of the device is 192.168.1.1. Standard TCP
ports are used, 22 for the SSH and 23 for the Telnet. Please note, that access is permitted for
users of the admin role only and that the Telnet protocol is disabled by default. For a detailed
description of SSH and Telnet configuration, see the Configuration Manual.
1If the router’s label does not contain a unique password, use the password "root".
QSG-0001-EN, April 29, 2020 5 Released in the Czech Republic
01-07-20
LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: [phone] — E-Mail: [email protected] — www.lucom.de
www.lucom.de

Start Guide
3. Configuration Settings via WebAccess/DMP
Your router has been pre-installed with the WebAccess/DMP client. If you enable it in
the router’s web interface, you may configure the router from WebAccess/DMP. Navigate your
browser to:
https://www.wadmp.com
If this is your first time, please self-sign-up with the site. If not, please login with your
username and password. Once logged in, further assistance can be found here:
https://docs.wadmp.com
4. Restoring and Backing up the Router Configuration
After you reset the router, the current configuration is overwritten by the default settings.
We recommend that you back up the router configuration before resetting the device. Refer to
the Configuration Manual for more information.
When the PWR LED starts blinking, it is possible to restore the default configuration of the
router by pressing the RST button on the front panel. After pressing this button, the default
configuration is restored and then the router reboots (green LED will be on).
Important Notes
After logging on to the device for the first time, we strongly recommend changing the
default password due to security reasons. Simultaneously, you will gain access to all
functions of the router.
For security reasons, it is highly recommended to update the firmware of the router to the
latest version regularly. Downgrading the firmware to an older version than the production
version or uploading a firmware intended for a different device may cause the malfunction
of the device.
Documentation
User’s Manual, Configuration Manual and manual for each expansion port can be found
and downloaded on this web site: www.advantech-bb.cz/download
Hereby, Advantech Czech s.r.o., declares that the radio equipment type CR10 v2,
ER75i v2,LR77 v2,LR77 v2 Libratum,RR75i v2,UR5i v2,UR5i v2 Libratum,XR5i
v2 and XR5i v2E (versions with radio interface only) comply with Directive 2014/53/EU.
XR5i v2 and XR5i v2E versions without radio interface comply with the essential re-
quirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
www.advantech-bb.cz/eudoc
