Advantech UNO-IPS1560 User manual

User Manual
UNO-IPS1560
Intelligent Power System for PCs
智慧電源管理系統

UNO-IPS1560 User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2019
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of pur-
chase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty period. For out-
of-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Part No. 2003O15600 Edition 1
Printed in Taiwan January 2019

iii UNO-IPS1560 User Manual
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications. Test conditions
for passing included the equipment being operated within an industrial enclosure. In
order to protect the product from being damaged by ESD (Electrostatic Discharge)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo-
sure products.
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
警告使用者：這是甲類資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在
這種情況下，使用者會被要求採取某些適當對策。
Technical Support and Assistance
1. Visit the Advantech web site at www.advantech.com/support where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–A complete description of the problem
–The exact wording of any error messages

UNO-IPS1560 User Manual iv
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp
cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equip-
ment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to
the user's manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 50° C
(122° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.
16. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
17. ATTENTION: DANGER D'EXPLOSION SI LA BATTERIE EST INEXACTE-
MENT REMPLACÉE. REMPLACEZ SEULEMENT AVEC LA MÊME CHOSE
OU LE TYPE ÉQUIVALENT RECOMMANDÉ PAR LE FABRICANT, JETTENT
LES BATTERIES UTILISÉES INSTRUCTIONS DE S SELON FABRICANT
DES'.
The sound pressure level at the operator's position according to IEC 704-1:1982 is
no more than 70 dB (A).
DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech
disclaims all responsibility for the accuracy of any statements contained herein.

v UNO-IPS1560 User Manual
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.
Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive elec-
tronic components.
Battery Information
Batteries, battery packs, and accumulators should not be disposed of as unsorted
household waste. Please use the public collection system to return, recycle, or treat
them in compliance with the local regulations.

UNO-IPS1560 User Manual vi
安全指示
1. 請仔細閱讀此安全操作說明。
2. 請妥善保存此用戶手冊供日後參考。
3. 用濕抹布清洗設備前，請從插座拔下電源線。請不要使用液體或去汙噴霧劑清洗
設備。
4. 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。
5. 請不要在潮濕環境中使用設備。
6. 請在安裝前確保設備放置在可靠的平面上，意外跌落可能會導致設備損壞。
7. 設備外殼的開口是用於空氣對流，從而防止設備過熱。請不要覆蓋這些開口。
8. 當您連接設備到電源插座上前，請確認電源插座的電壓是否符合要求。
9. 請將電源線佈置在人們不易絆到的位置，並不要在電源線上覆蓋任何雜物。
10. 請注意設備上的所有警告和注意標語。
11. 如果長時間不使用設備，請將其同電源插座斷開，避免設備被超標的電壓波動損
壞。
12. 請不要讓任何液體流入通風口，以免引起火災或者短路。
13. 請不要自行打開設備。為了確保您的安全，請由經過認證的工程師來打開設備。
14. 如遇下列情況，請由專業人員來維修：
 電源線或者插頭損壞；
 設備內部有液體流入；
 設備曾暴露在過於潮濕的環境中使用；
 設備無法正常工作，或您無法通過用戶手冊來使其正常工作；
 設備跌落或者損壞；
 設備有明顯的外觀破損。
15. 請不要把設備放置在超出我們建議的溫度範圍的環境，即不要低於 -20°C （-
4°F）或高於 50°C （122°F），否則可能會損壞設備。
16. 注意：電腦配置了由電池供電的即時時鐘電路，如果電池放置不正確，將有爆
炸的危險。因此，只可以使用製造商推薦的同一種或者同等型號的電池進行替
換。請按照製造商的指示處理舊電池。
根據 IEC 704-1:1982 的規定，操作員所在位置的聲壓級不可高於 70dB(A)。
免責聲明：該安全指示符合 IEC 704-1 的要求。研華公司對其內容的準確性不承擔任
何法律責任。

vii UNO-IPS1560 User Manual
Contents
Chapter 1 General Information ............................1
1.1 Introduction ............................................................................................... 2
1.2 Specifications ............................................................................................ 2
1.3 Dimensions ............................................................................................... 3
Figure 1.1 Dimensions of UNO-IPS1560-AE............................... 3
Chapter 2 Installation............................................5
2.1 Introduction ............................................................................................... 6

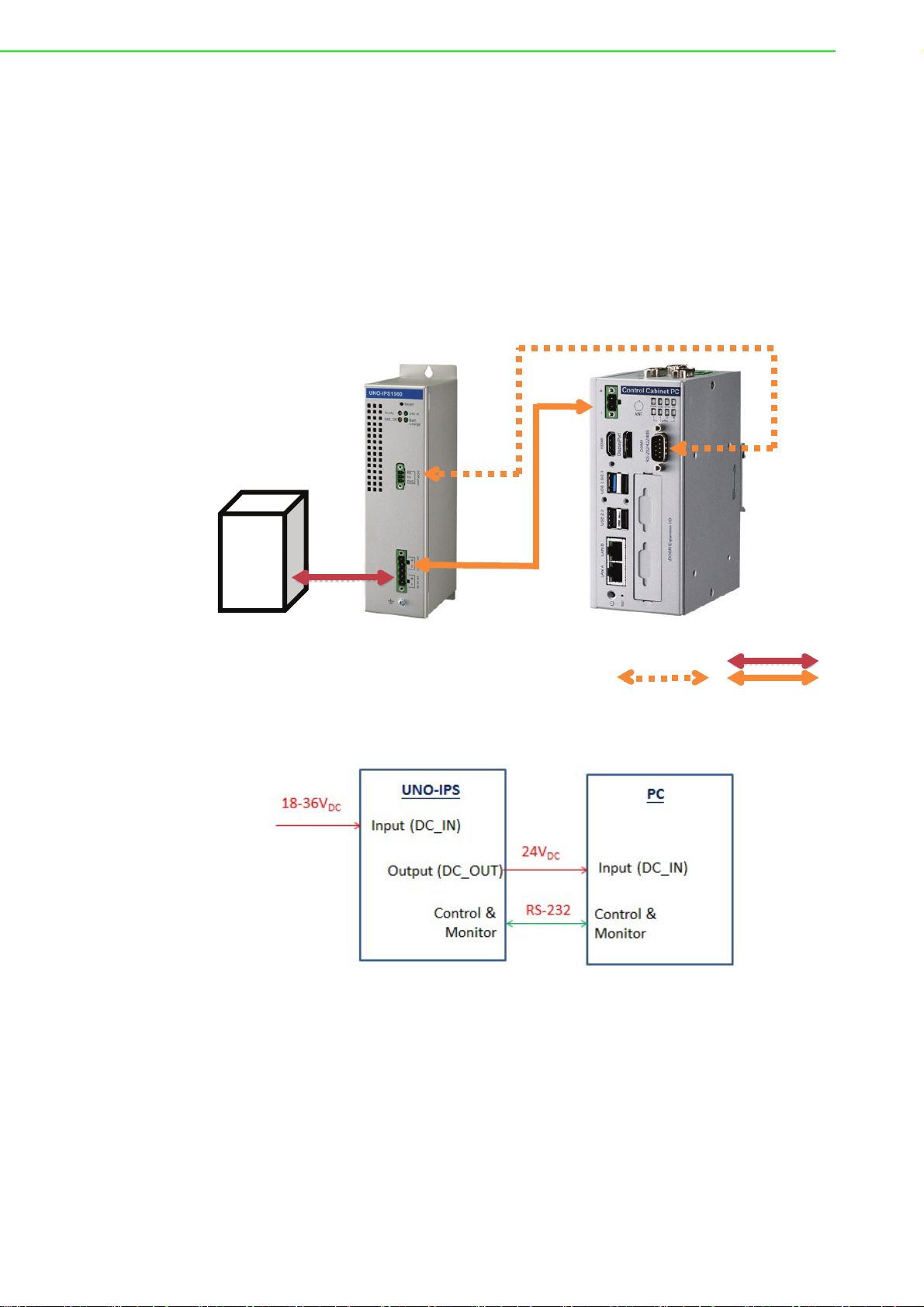

Figure 2.1 UNO-IPS1560 Wiring ................................................. 6
Figure 2.2 UNO-IPS1560 Connection Chart................................ 6
2.2 LED Indication........................................................................................... 7
2.3 Battery safety protection control................................................................ 8
2.4 A Quick Tour ............................................................................................. 8

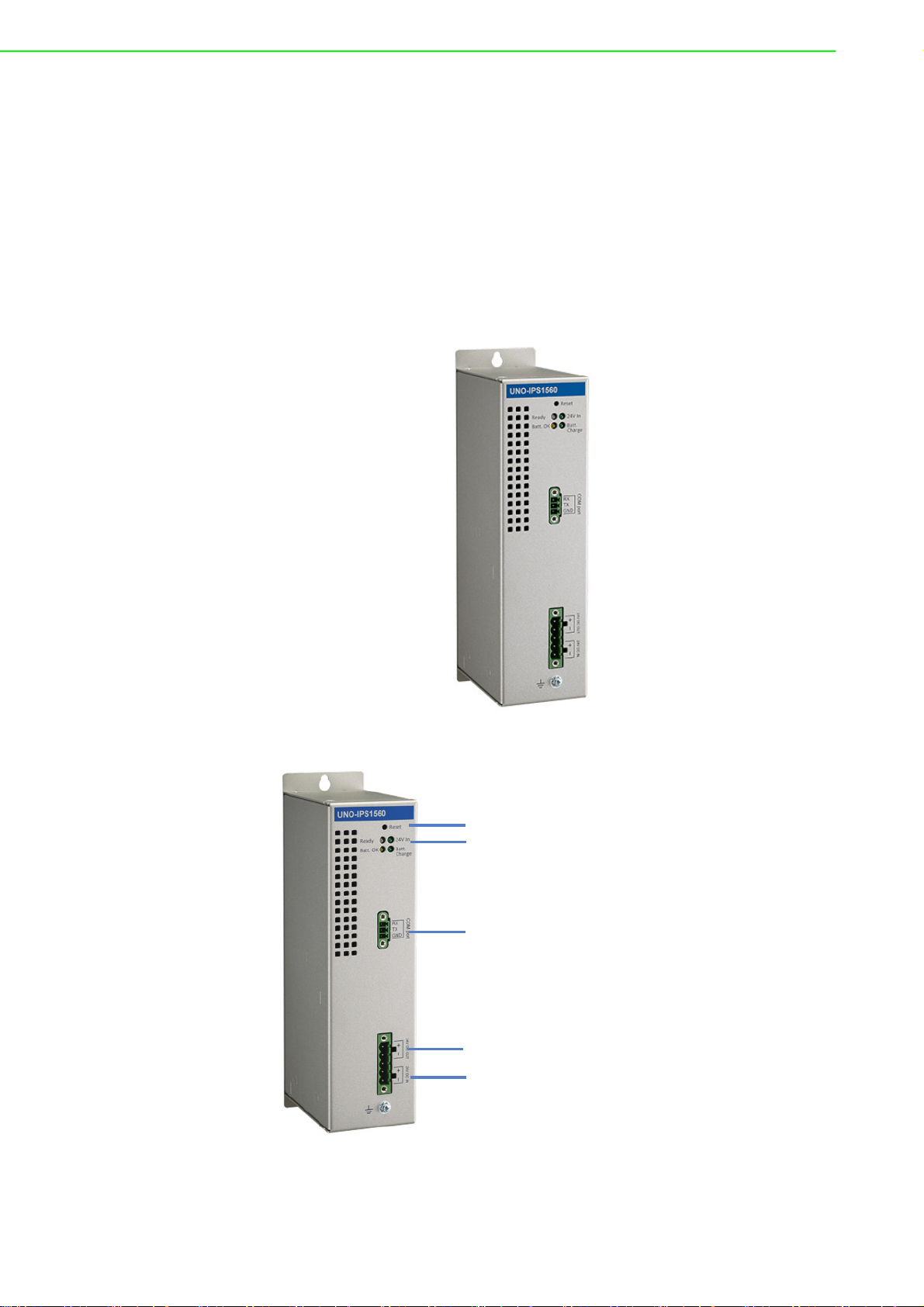

Figure 2.3 Overview..................................................................... 8
Figure 2.4 IO Connectors ............................................................ 8
2.5 Mounting Installation ................................................................................. 9

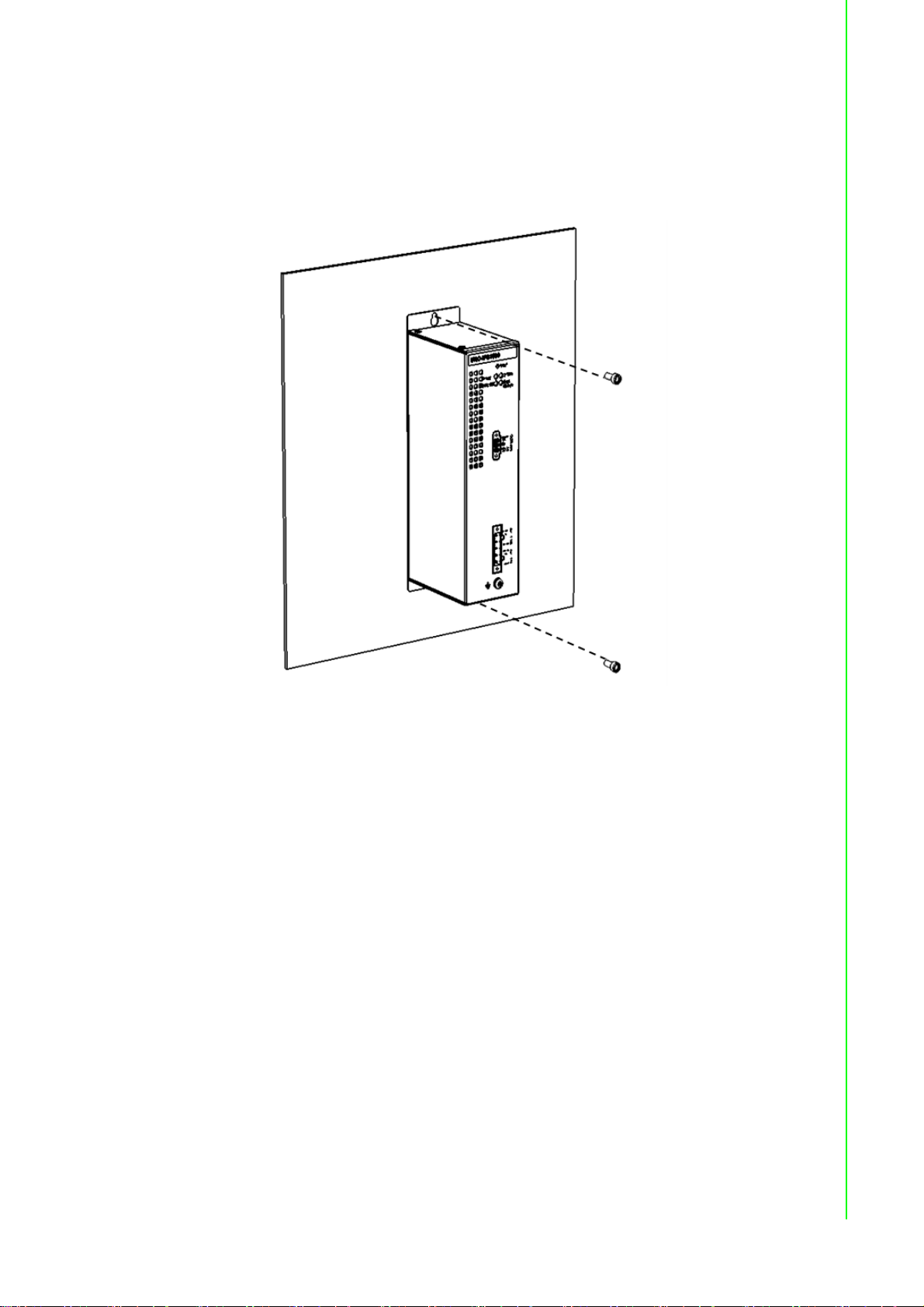

2.5.1 Book Mount Installation................................................................. 9

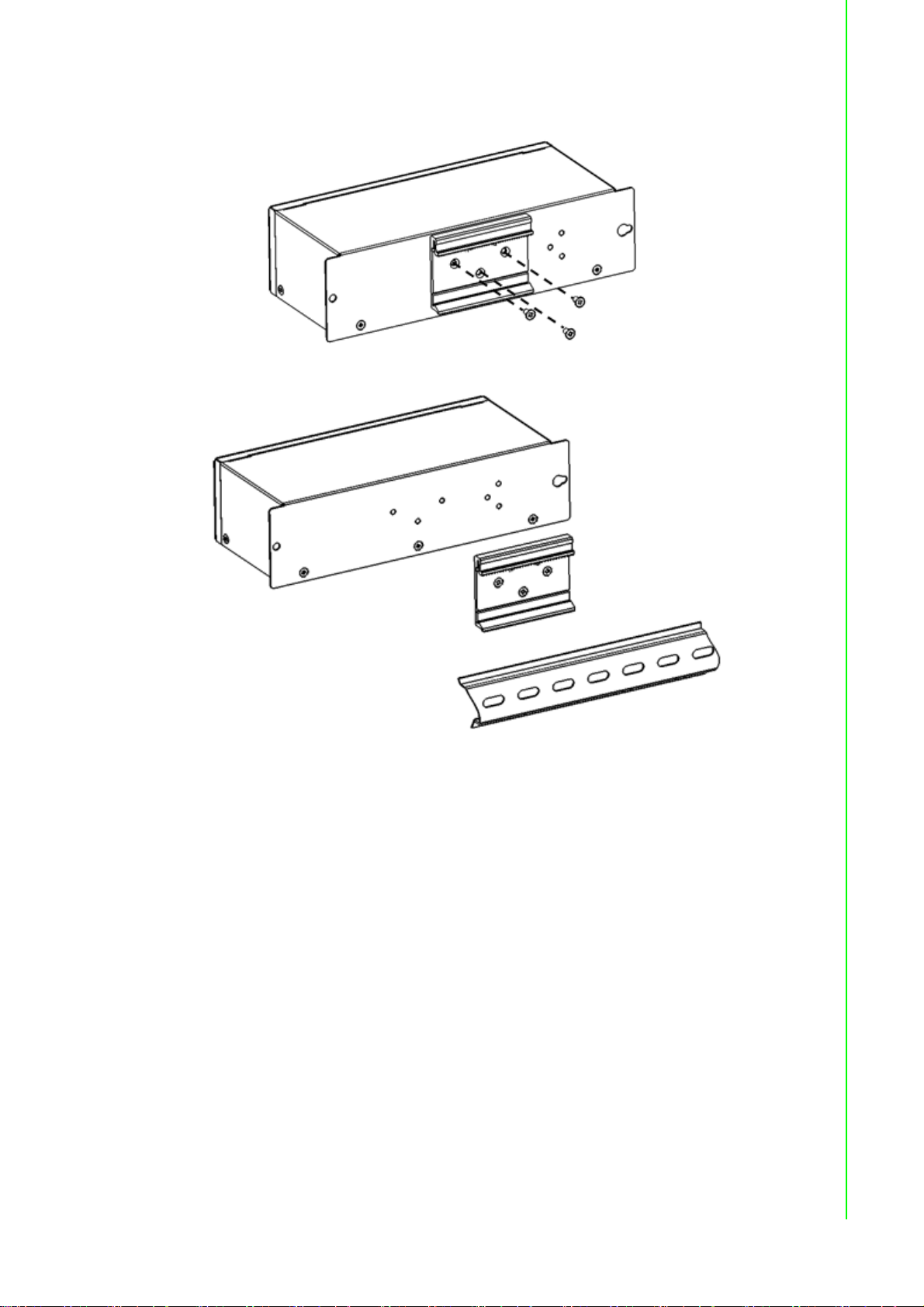

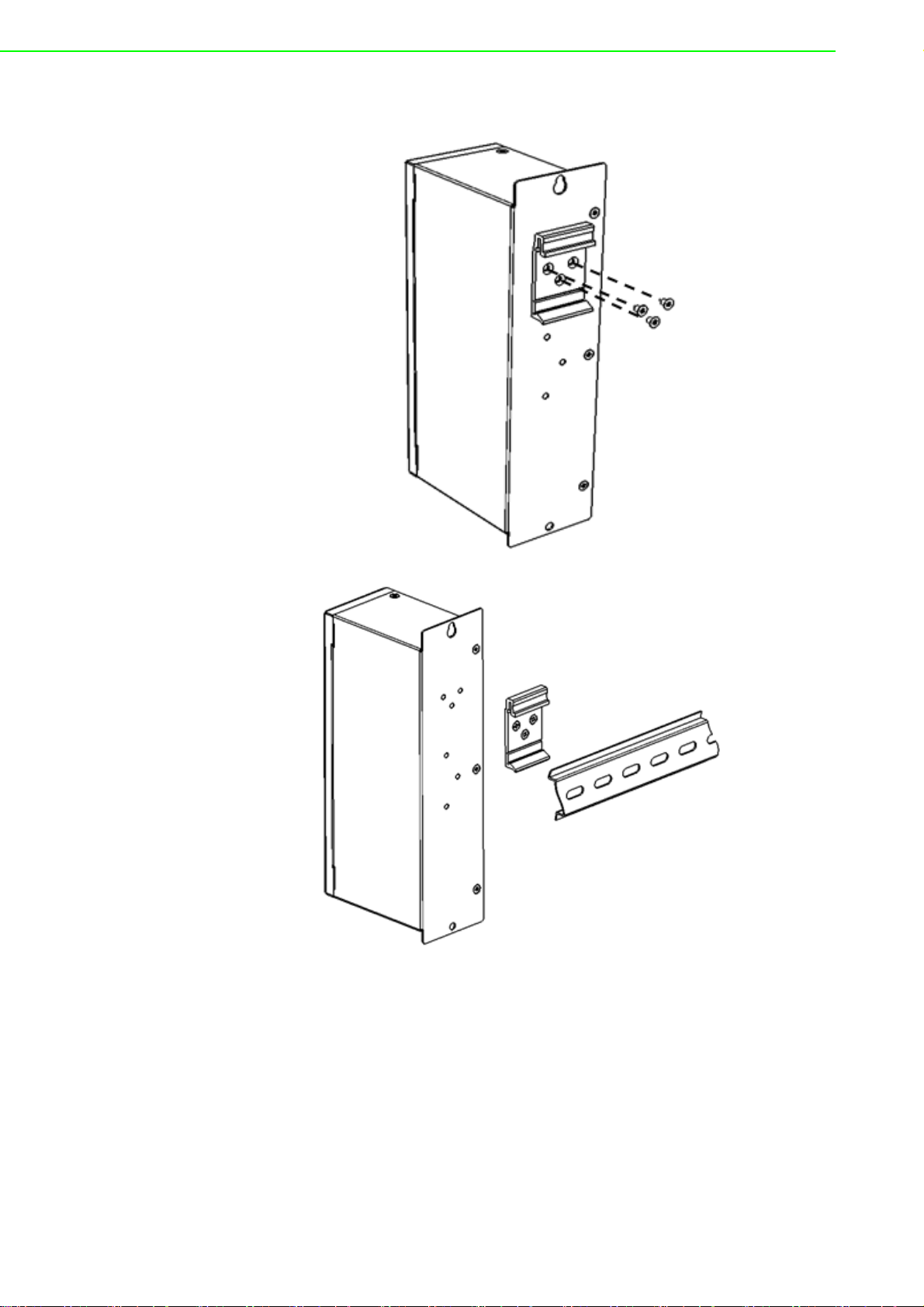

2.5.2 DIN-Rail Mount Installation ......................................................... 10
Chapter 3 UNO-IPS1560 Adjustment Tool ........13
3.1 Notice of Use........................................................................................... 14
3.1.1 Operating System Setting Environment...................................... 14
3.2 UI Introduction - General......................................................................... 14
3.2.1 Select COM Port ......................................................................... 15
3.2.2 Power State Selection (S4 or S5) ............................................... 15
3.2.3 UNO-IPS1560 Status.................................................................. 15
3.2.4 Final Countdown for Shutdown................................................... 15
3.2.5 Operating Temp. for Battery Pack .............................................. 15
3.3 UI Introduction - Advanced...................................................................... 16

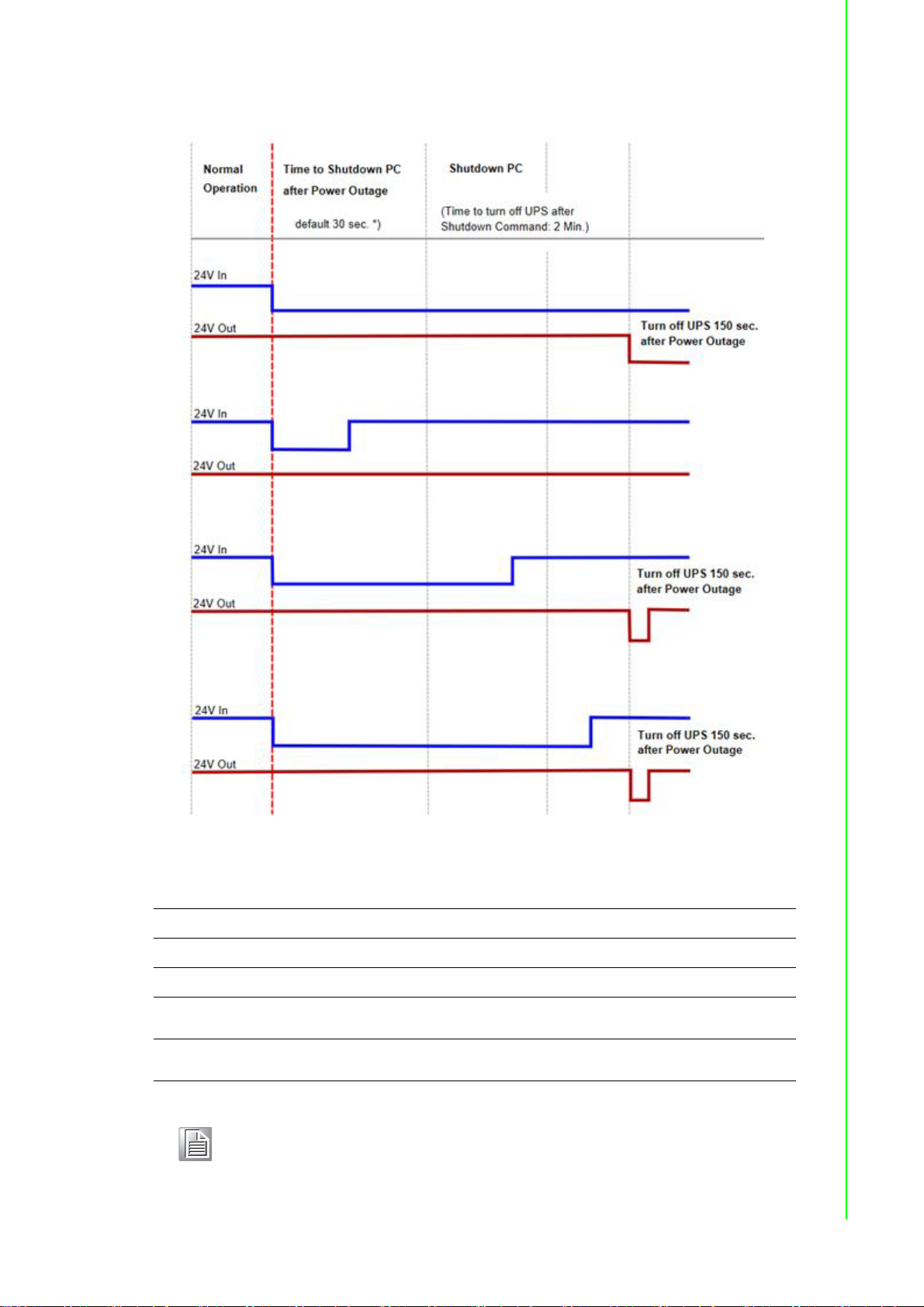

3.3.1 PC Shut-down Time after Power Outage.................................... 16
3.3.2 Time to Turn-Off UNO-IPS1560 after Shut-down Command...... 16

UNO-IPS1560 User Manual viii

Chapter 1
1General Information
This chapter gives background
information on the IPS.
Sections include:
Introduction
Specifications
Dimensions

UNO-IPS1560 User Manual 2
1.1 Introduction
UNO-IPS1560 lightweight and intelligent power management module protects the
system from electrical damage and greatly reduces the risk of losing data. UNO-
IPS1560 module serves as temporary power during power spikes and allows for safe
system shutdown.
1.2 Specifications
This product is intended to be supplied by a Listed Power Adapter or DC power
source, rated 18 - 36 VDC, 5.5-3.0A minimum and Tma 45 degree Celsius, if need
further assistance with purchasing the power source please contact Advantech for
further information.
Input Input Voltage 18 -36 Vdc
Output Output Voltage 24Vdc
Typical output current 3.0A (72W)
Battery Battery Capacity 14.4 VDC, 1560 mAH
Cycle life 300 times of charge circle
Protection Short-circuit protection Yes
Certification EMC CE, FCC, CCC, BSMI
Safety UL, CB, CCC, BSMI
Dimensions (W x D x H) 55 x 86.6 x 214 mm
Environment Operating Temperature 0-45°C
I/O Connectors Monitor & Set IPS RS-232

3 UNO-IPS1560 User Manual
Chapter 1 General Information
1.3 Dimensions
Figure 1.1 Dimensions of UNO-IPS1560-AE
193
55
86.60
4
Ø4.80
Ø7.50
Ø4.80

UNO-IPS1560 User Manual 4

Chapter 2
2Installation
Sections include:
Introduction
LED indication
Battery safety protection
control
A quick tour
Mounting installation
Power cable & control cable
Installation

UNO-IPS1560 User Manual 6
2.1 Introduction
The UNO-IPS1560 module serves as temporary power during power spikes. When
the power is off, the UNO-IPS1560 can provide backup power for systems to allow
operation to continue normally.
UNO-IPS1560 uses two cables to link with system (box/ Panel PC) and power
sources. The power cable provides power to the system (box/ Panel PC) and the
COM cable provides system battery information including battery capacity or health
through a utility.
Refer to the cable connections below for UNO-IPS and the system.
Figure 2.1 UNO-IPS1560 Wiring
Figure 2.2 UNO-IPS1560 Connection Chart
UNO-IPS1560
DC
Power
source
COM Cable (RS-232)
Power
Cable
Power
source
System
Power line
Control line

7 UNO-IPS1560 User Manual
Chapter 2 Installation
UNO-IPS1560 shutdown signal behavior
2.2 LED Indication
LED Bright (ON) Dark (OFF) Blinking
24V In DC_IN DC_IN loss No DC input & PC is going to switch off
Ready System ready System not work NA
Batt. OK BAT ready Not detect BAT 1. Low battery (Note 1)
2. BAT abnormal (0.5Hz blinking) (Note 2)
Batt. Charge NA BAT no charging 1. BAT charging (1Hz blink)
2. BAT abnormal (0.5Hz blinking) (Note 2)
Note! 1. Low battery
BAT ≤15%, BAT LED blinking, ≥16% return normal state.
2. BAT abnormal
BAT temperature ≥60° C, BAT & CHG LED blinking (0.5Hz),
≤55°Creturn normal state.

UNO-IPS1560 User Manual 8
2.3 Battery Safety Protection Control
a. Battery temperature ≥65° C, cut-off battery function.
b. Battery capacity ≤5%, cut-off battery function.
2.4 A Quick Tour
Before setting up the UNO-IPS1560, take a moment to become familiar with the loca-
tions and purposes of controls, connectors and ports, illustrated in the figures below.
When placed upright on the desktop, UNO-IPS1560 looks like this below.
Figure 2.3 Overview
Figure 2.4 IO Connectors
 A: System Reset
 B: LED Indicator
–
24V In
–
Ready
– Batt OK.
– Batt Charge
 C: RS- 232

D: DC out (24V)
 E: DC In (18 -36V)
A
B
C
D
E

9 UNO-IPS1560 User Manual
Chapter 2 Installation
2.5 Mounting Installation
UNO-IPS1560 can be installed by DIN-Rail and book mount.
2.5.1 Book Mount Installation

UNO-IPS1560 User Manual 10
2.5.2 DIN-Rail Mount Installation
Vertical

11 UNO-IPS1560 User Manual
Chapter 2 Installation
Horizontal

UNO-IPS1560 User Manual 12
