2 - Introduction
This is the user manual for the PixLite R4D-S pixel receiver, hardware version 1.3.
The PixLite R4D-S is designed to receive differential long distance signals of 300m
(1000') or more over a standard network cable from a PixLite T8 transmitter unit, and
convert these input signals back into a pixel-ready signal for output directly to pixels.
The PixLite R4D-S features 4 data-only outputs, each having both a dedicated fuse
and 'fuse good' LED indicator.
The PixLite R4D-S features a sleek, compact design and 4 holes for ease of wall
mounting as well as an optional DIN rail mounting kit. It also features industrial grade
protection on all inputs and outputs, making it the ideal option for reliable
commercial and industrial applications.
This manual covers physical aspects of the PixLite R4D-S receiver and its essential
setup steps only. Separate user manuals are available for the transmitter units. Other
manuals may be downloaded from here:
www.advateklights.com/downloads

- 4 -
www.advateklights.com PixLite R4D-S User Manual V220317
3 - Safety Notes
This LEDpixel receiver should be installed by someone with proper technical
knowledge only. Installation of the device and/or replacement of pixel output fuses
should not be attempted without such knowledge.
Specification and certification markings are located on the of the device.

- 5 -
www.advateklights.com PixLite R4D-S User Manual V220317
4 - Physical Installation
4.1 - Wall Mount
Assemble the unit onto the wall / ceiling using four screws of a type suitable for the
mounting surface (not supplied). The screws should be a pan head type, 3mm in
thread diameter and at least 15mm long, as shown in Figure 1 below.
Figure 1: receiver Assembled to Wall

- 6 -
www.advateklights.com PixLite R4D-S User Manual V220317
4.2 - DIN Rail Mount
The receiver can be mounted to a DIN rail using the optional mounting kit (part
number MNT0101).
1. Align the receiver's mounting holes with the outermost mounting holes on
each bracket. Using the four supplied M3, 12mm long screws, assemble the
receiver to the mounting brackets, as shown in Figure 2 below.

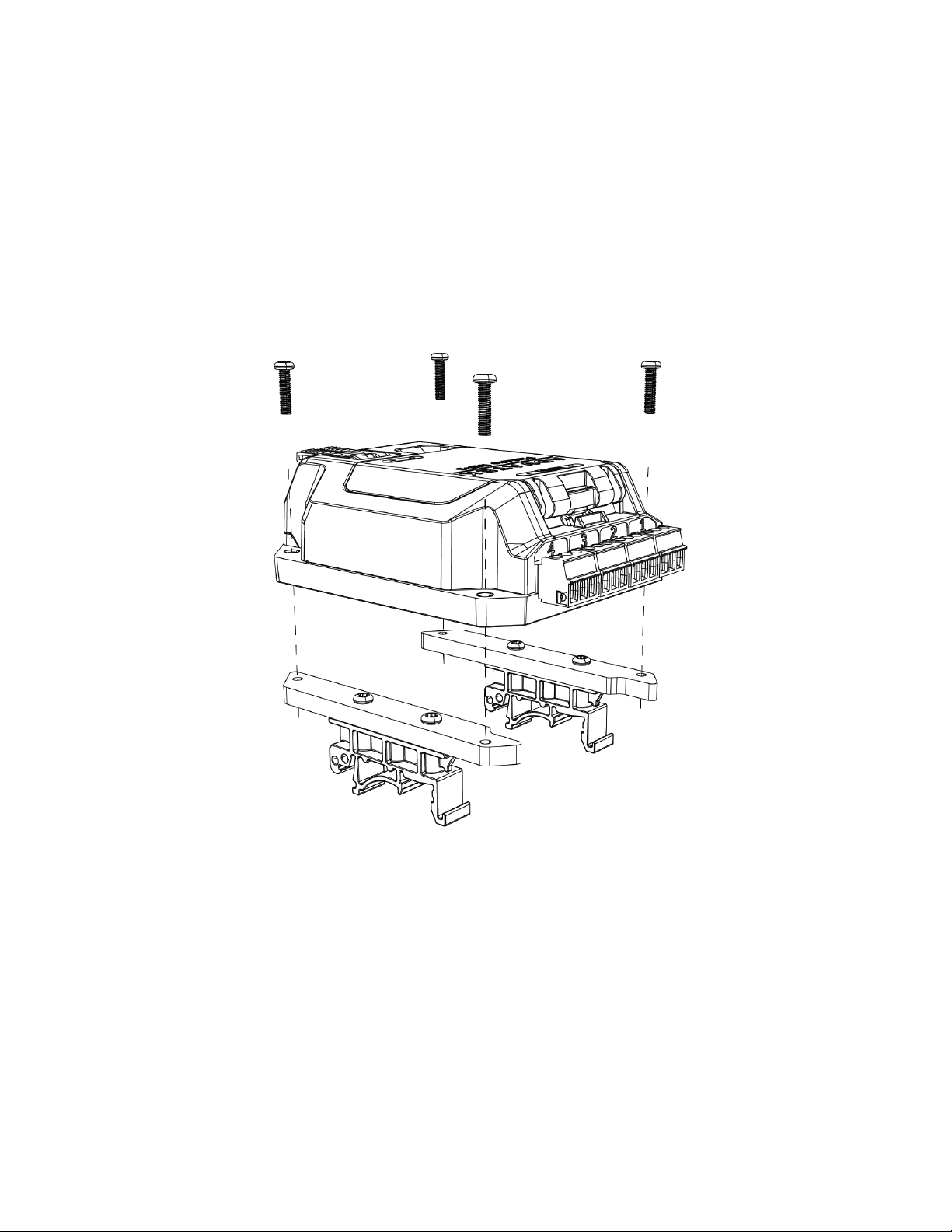

Figure 2: receiver Assembled to Bracket

- 7 -
www.advateklights.com PixLite R4D-S User Manual V220317
2. Align the lower edge of the bracket with the lower edge of the DIN rail (1), and
push the receiver down so it clicks onto the DIN rail (2), as shown in Figure 3
below.
Figure 3: receiver Assembled to DIN Rail

- 8 -
www.advateklights.com PixLite R4D-S User Manual V220317
3. To remove the receiver from the DIN rail, pull the receiver horizontally, toward
its power connector (1) and rotate the receiver up and off the rail (2), as
shown in Figure 4 below.
Figure 4: Removal of receiver from DIN Rail

- 9 -
www.advateklights.com PixLite R4D-S User Manual V220317
5 - Electrical Connections
5.1 - Supplying Power
Power is applied to the PixLite R4D-S via the large lever clamp connector. The levers
should be lifted up for wire insertion and then clamped back down, providing a highly
robust and secure connection. Ensure the wire’s insulation is stripped back 11-12mm,
so that the clamp does not rest on the insulation when closing the connector. Polarity
for the connector is clearly marked on the lid, as shown in Figure 5 below. The type of
wire required for supply connection is 4.0mm2, 10AWG, VW-1.
Figure 5: Location of Power Input
5.2 - Output Fuses & Power Injection
Each individual output is protected by a mini blade fuse. The PixLite R4D-S comes with
7.5A fuses by default. You may use any value of fuse, up to and including 7.5A,
depending on your specific application. Individual outputs should not exceed 7.5A
and the total current should not exceed 30A. If your application requires more current
than this, then you will need to inject power into the pixels directly.
The number of pixels that can be physically powered through this device may not be
as high as the amount of pixel control data that is being output. There is no definitive
rule as to how many pixels can be powered from the receiver, as it depends on the

- 10 -
www.advateklights.com PixLite R4D-S User Manual V220317
type of pixel. You need to consider if your pixel load will draw more than 7.5A of
current and whether there will be too much voltage drop in the pixel load for it to only
be powered from one end. If you need to “inject power” we recommend bypassing
the receiver’s power output pins entirely.
If a fuse needs replacing, a suitable replacement fuse is of type "F7.5A E 32V". An
additional spare fuse is also provided for quick replacement which can be accessed
by opening the lid, as shown in Figure 6 below.
Figure 6: Internal View of the PixLite R4D-S
No on- board power configuration is required. Power to the logic circuitry is
automatically regulated from the power input. Simply connect your DC power supply
in accordance with specifications listed in Section 7.1 to the power screw terminal, as
shown in Figure 5 above.
5.3 - Data Input
Data is connected via a standard network cable into the RJ45 jack located on the
front panel of the unit, as shown in Figure 7 below.

- 11 -
www.advateklights.com PixLite R4D-S User Manual V220317
Figure 7: Position of Data Input
Receivers are connected to the transmitter via the RJ45 jacks on the rear panel of the
PixLite T8. Each jack is labelled with its output number 1-8. These ports are not network
ports, and should not be connected to any networking equipment, as shown in Figure
8below. They are specifically designed to connect a PixLite transmitter with a PixLite
receiver. For this reason, the standard network cable you use can be safely used in
excess of 300m.
Figure 8: Correct equipment to use

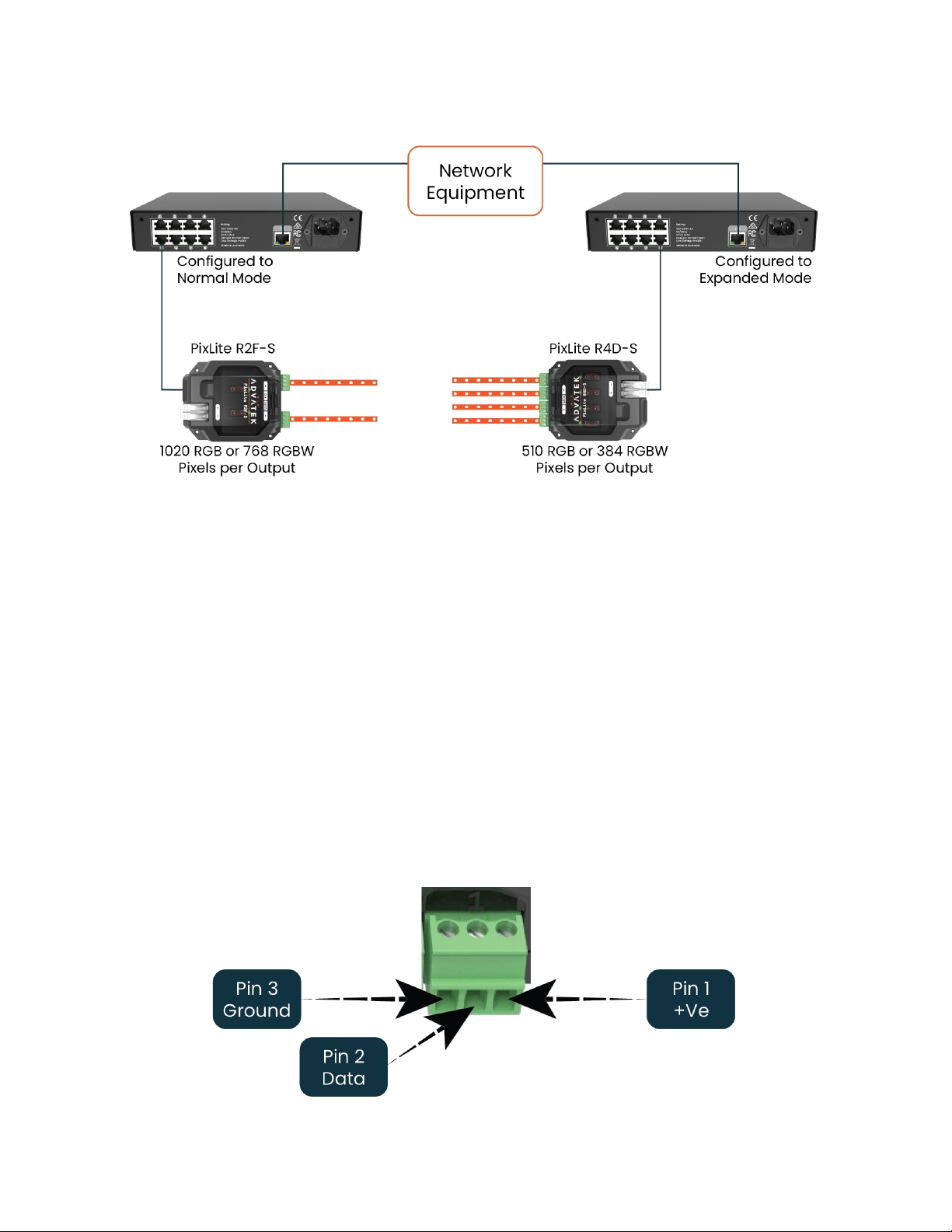

A typical setup is shown in Figure 9 below, which also shows how many pixels can be
run off each output.

- 12 -
www.advateklights.com PixLite R4D-S User Manual V220317
Figure 9: Connecting Receivers to Transmitter
5.4 - Connecting Pixel LEDs
The pixel lights are connected directly via the 4 pluggable screw terminal connectors
on the rear of the unit. Each connector is labelled with its output channel number (1-
4) and on the top of the lid the pin-out is clearly marked. Simply wire your lights into
each screw terminal and then plug them into the mating sockets.
Since the PixLite R4D-S product has data only outputs (no pixel clock lines), it takes
advantage of the transmitter's Expanded Mode. In expanded mode, the clock lines
are used as data lines instead. This means the receiver effectively has twice as many
pixel outputs than the PixLite R2 (4), but half as many pixels per output can be run.
The cable length between the output and the first pixel should not exceed 15m.
Figure 10: Pixel Output Pinout

- 13 -
www.advateklights.com PixLite R4D-S User Manual V220317
6 - Operation
6.1 - Start-up

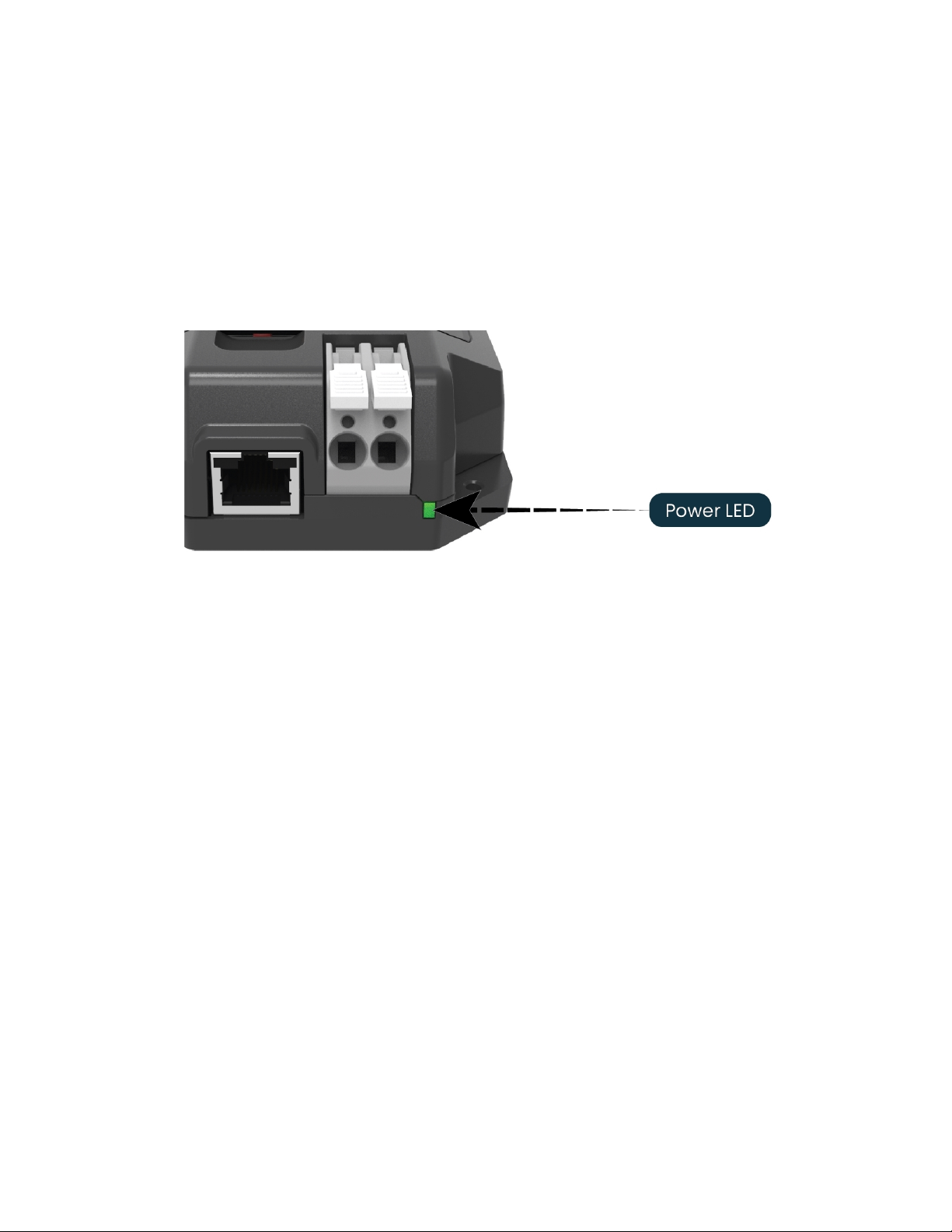

When power is applied to the receiver, the green power led in the bottom right-hand
corner on the front panel should be illuminated, as shown in Figure 11 below.
Figure 11: Position of the Power LED
If pixels have been correctly connected to the outputs and the data cable is
connected to the transmitter and valid data is being sent, you should see the pixels
turn on.
6.2 - Indicator LEDs
Each fuse is paired with a green LED which indicates the condition of the fuse. If the
fuse is good, the LED will be on. If the fuse has been blown or is not connected, the
LEDwill be off. This feature offers a quick method for determining the state of each
fuse, however in environments where these LEDs are needed to be turned off, a switch
is located underneath the spare fuse that will turn off this feature. If the switch is
pushed to the right, it is off, and all indicator LEDs and the power LED will always be off.
This switch is shown in Figure 12 below.

- 14 -
www.advateklights.com PixLite R4D-S User Manual V220317
Figure 12: Position of Indicator LEDs and Switch
6.3 - Outputs
The number of pixels per output is configured in the transmitter device and may vary
depending on the pixel capacity of the specific device.
The refresh rate of the pixels will depend on the operating frequency of the specific
pixel chip type. Refer to the user manual of the PixLite Transmitter device for more
information about this topic as the Transmitter will be responsible for the refresh rate
of this receiver.

- 15 -
www.advateklights.com PixLite R4D-S User Manual V220317
7 - Specifications
7.1 - Operating Specifications
The table below specifies the recommended operating conditions for a PixLite R4D-S
receiver.
Parameter Value/Range Units
Input Voltage Range 5-24 V DC
Max Current 30 A
Max Logic Current Consumption @ 5V 150 mA
Ambient Operating Temperature -20 to +55 °C
Maximum Current Per Pixel Output 7.5 A
7.2 - Mechanical Specifications
The PixLite R4D-S receiver has dimensions as below.
Dimension Metric Imperial
Length 95mm 3.7"
Width 78mm 3.1"
Height 33mm 1.3"
Weight 0.2kg 0.4lbs

- 16 -
www.advateklights.com PixLite R4D-S User Manual V220317

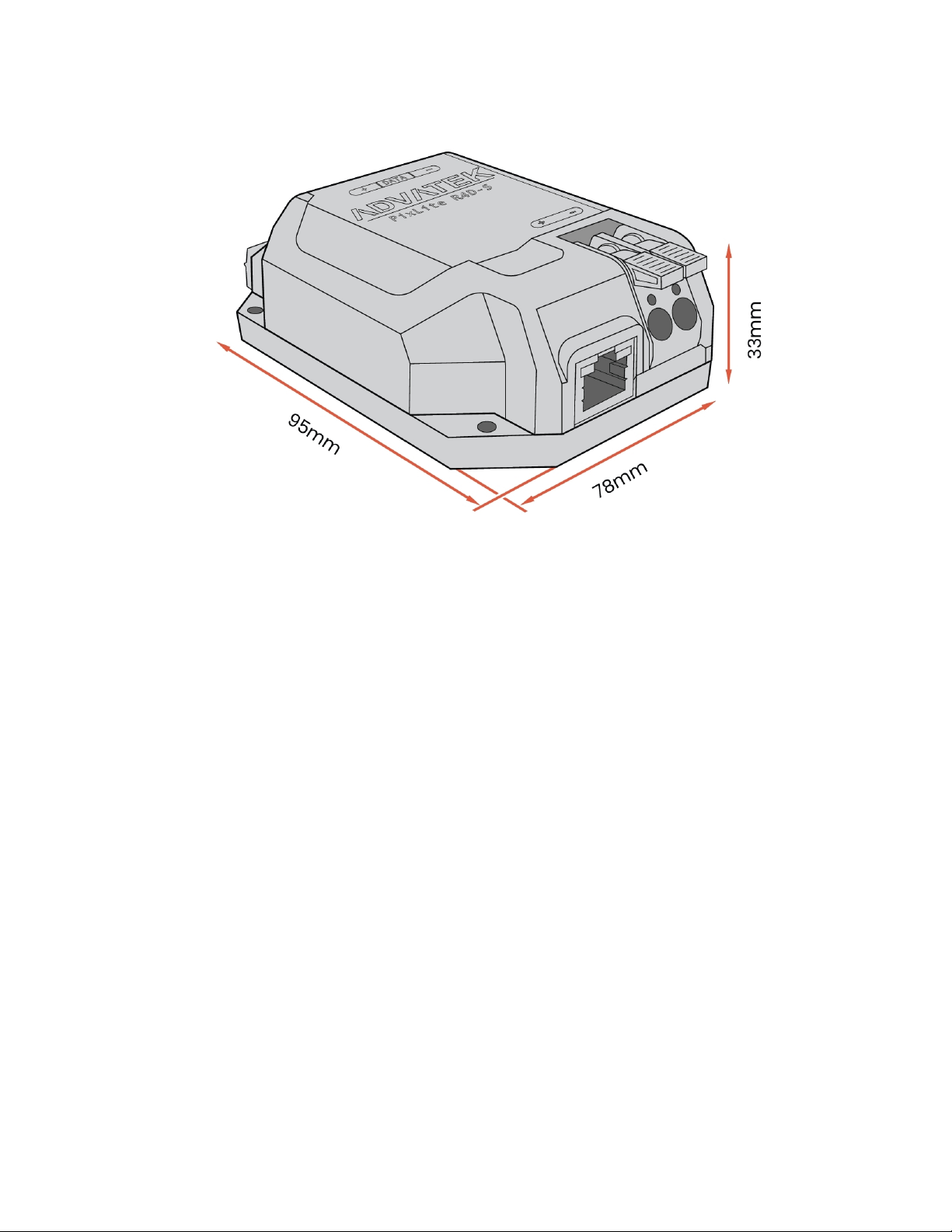

Figure 13: Receiver Mechanical Specifications
7.3 - Fault Protection
The PixLite R4D-S features notable protection from potential damage due to various
types of faults. This makes the device extremely robust and reliably able to withstand
installation and operation even in harsh environments.
ESD protection is present on all data input lines and on all pixel output lines.
The data input port is protected against shorts to external voltages of up to +/- 24V.
All pixel output lines are protected against direct shorts of up to +/- 24V. This means
that even if your pixels or wiring have a fault that causes a direct short between the
power and data or clock lines on any output, it will not damage the device.
The PixLite R4D-S itself is protected against damage from reversed polarity power
input. However it does not provide external reverse polarity protection for any loads
that you may have connected to the pixel outputs.

- 17 -
www.advateklights.com PixLite R4D-S User Manual V220317
8 - Troubleshooting
8.1 - No Power LED
Ensure that your power supply is supplying correct voltage. Additionally, ensure that it
can supply enough current to drive the lights that are connected. You should also try
disconnecting all outputs and see if the receiver then turns on.
8.2 - No Pixel Control
Check that the correct pixel IC type has been selected on the transmitter unit in the
dropdown box in the Advatek Assistant under the ‘LEDs’ tab. Also check the physical
wiring and pinout of the pixels, as well as the output fuses. Ensure that the green 'fuse
good' indicator LEDs under the lid compartment are all visible (one per output
channel). If any are off, replace any blown output fuses as required.
8.3 - Other Issues
For the latest more specific troubleshooting information and other help, you should
refer to our online knowledgebase here:
www.advateklights.com/knowledge-base
If you can’t resolve your problem with the help of our knowledgebase, you can send
an e-mail to: [email protected] and a support ticket will automatically be
created for you, or you can manually open a support ticket here:
www.advateklights.com/support

- 18 -
www.advateklights.com PixLite R4D-S User Manual V220317
9 - Disclaimer
If you require support or warranty, please refer to Section 8.3 for information on
creating a support ticket. You must be issued with a return authorization by Advatek
support staff before returning any product.
The PixLite R4D- S receiver is supplied with a 3 - year limited warranty and a
repair/replacement guarantee. Please see the terms and conditions on our website
for more information.
The PixLite R4D-S has been tested against and independently certified as compliant
with the Standards listed in the table below.
Audio/Video and ICTE - Safety Requirements UL 62368-1
Radiated Emissions EN 55032 & FCC
Part 15
Immunity for
ITE
EN 55024
Electrostatic Discharge EN 61000-4-2
Radiated Immunity EN 61000-4-3
Power Frequency Magnetic Field Immunity EN 61000-4-8
Restriction of Hazardous Substances RoHS 3
Through testing to the above standards, the PixLite R4D-S has the certifications and
marks listed in the table below.
Certification Relevant Country
ETLListing North America and Canada. Equivalent to UL Listing.
CE Europe
FCC North America
ICES3 Canada
RCM Australia and New Zealand
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can

- 19 -
www.advateklights.com PixLite R4D-S User Manual V220317
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their
own expense.
This product has been manufactured by:
Advatek Lighting Pty Ltd
16 / 52 Corporate Blvd
Bayswater, 3153
VIC, AUSTRALIA
