ADX XBOX AXBOXCS22 User manual

XBOX®DUAL DOCKING STATION
INSTRUCTION MANUAL
AXBOXCS22
NOT INCLUDED
Xbox® One / X / S Controller

2

Contents
Safety Warnings.............................................................................................. 3
Unpacking....................................................................................................... 7
Product Overview........................................................................................... 8
Top View ..............................................................................................................................8
Side View .............................................................................................................................8
Charging the Controller(s) ............................................................................. 9
Charging Indicator ....................................................................................... 11
Maintenance ................................................................................................. 11
Hints and Tips................................................................................................ 12
Specications................................................................................................ 12
Charging Station.............................................................................................................12
Battery................................................................................................................................13

4
• Read all the instructions carefully
before using the unit and keep
them for future reference.
• Retain the manual. If you pass the
unit onto a third party make sure
to include this manual.
• Check that the voltage marked
on the rating label matches your
mains voltage.
• Always insert the USB device in
the correct direction. Failure to do
so may result in damage to the
USB device and this unit.
• The power supply must be
located near the unit and should
be easily accessible.
• Do not use the charger when it is
damaged.
• Do not use with a damaged USB
charging cable as it can cause
overheating and damage to your
device.
• Do not drop, tamper, disassemble
or attempt to repair the unit by
yourself.
• Do not immerse it in water or
expose it to wet conditions.
• This product is intended for
private, non-commercial use only.
• Use the product for its intended
purpose only.
• For indoor use only.
• Avoid exposure to external
heat sources; direct, prolonged
sunlight; dust; corrosive
chemicals; and moisture.
Safety Warnings
• Do not drop the product or
subject it to undue shock.
• This product contains small parts.
Keep out of reach of children.
• Keep children away from the
packaging material as there is a
risk of suocation.
• Dispose of packaging material
according to applicable local
regulations.
• Do not attempt to service or
disassemble. If you experience
problems with the unit,
discontinue use and contact
Customer Support for assistance.
Attempting to open or service
the unit will void all warranties,
express or implied.
• Failure to follow these directions
may void the warranty.
Safety
• Always disconnect the unit
from the mains supply before
connecting/disconnecting other
devices or moving the unit.
• Unplug the unit from the mains
socket during a lightning storm.
Supervision
• Children should be supervised to
ensure that they do not play with
the unit and the remote control.
• Never let anyone especially
children push anything into the
holes, slots or any other openings
in the case - this could result in a
fatal electric shock.

5
Battery Pack
• The battery pack will generate
heat when charging. Always
charge in a well ventilated area.
Do not charge under pillows,
blankets or on ammable
surfaces.
• Do not short-circuit the battery
pack or store it in a receptacle
where it may be short-circuited
by other metallic or conductive
objects.
• Do not operate the battery pack
if it has been wet or otherwise
damaged, to prevent against
electric shock, explosion and/
or injury. Contact the dealer or
authorized agent.
• Do not expose it to re or any
heat source.
• Do not dispose the unit in your
household waste.
• Before charging, please refer to
the user’s manual of your specic
device for the manufacture’s
required charging amperage
and determine the appropriate
charging cable for your device.
• Always insert the USB cable in the
correct direction. Failure to do so
may result in damage to the USB
cable and this unit.
• Only use with products designed
to be powered or charged via a
USB socket.
• Battery pack usage by children
should be supervised.
• For IT equipment use only.
While in use
• Unwind the cable to its full
length.
• Never wrap the cable around the
unit, or coil it together or leave
it tangled. Doing so may result
to product damage and related
hazards.
• Do not charge the Powerbank
and charge a digital device at the
same time. This will shorten the
Powerbank’s battery life.
Built-in Battery Care
• Your product is powered by a
built-in rechargeable battery.
• The battery can be charged and
discharged hundreds of times,
but will eventually wear out.
• Unplug the charger from the
electrical plug and the product
when not in use.
• Do not leave a fully charged
battery connected to a charger,
since overcharging may shorten
its lifetime.
• If left unused, a fully charged
battery will lose its charge over
time.
• Leaving the product in hot or
cold places, such as in a closed
car in the summer and winter
conditions, will reduce the
capacity and lifetime of the
battery.
• Always try to keep your device in
a cool, moisture-free environment
that’s less than 32°C. A product
with a hot or cold battery may not

6
This unit is designed for
indoor use only.
This equipment is a Class
II or double insulated
electrical appliance. It
has been designed in
such a way that it does
not require a safety
connection to electrical
earth.
AC voltage: This symbol
indicates that the rated
voltage marked with the
symbol is AC voltage.
DC voltage: This symbol
indicates that the rated
voltage marked with the
symbol is DC voltage.
work temporarily, even when the
battery is fully charged. Battery
performance is particularly
limited in temperatures well
below freezing.
• If you plan to store your device for
longer than six months, charge
the battery for an hour every six
months to keep it fresh.
• The unit should be fully
recharged after using the device
each time. This will keep the
health of the battery.
Battery Warning!
• The battery used in this product
may present a risk of re or
chemical burn if mistreated.
• Do not attempt to open the
product or replace the battery.
It is built-in and not changeable.
Use of other batteries may
present a risk of re or explosion
and the warranty will be
terminated.
• Only recharge your battery with
the provided approved USB cable
designated for this product.
• Dispose of batteries according to
local regulations. Please recycle
when possible. Do not dispose
as household waste or in a re as
they may explode.
• Batteries may explode if
damaged.

7
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational
features it oers. You will also nd some hints and tips to help you
resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose
of it please do so according to local regulations.

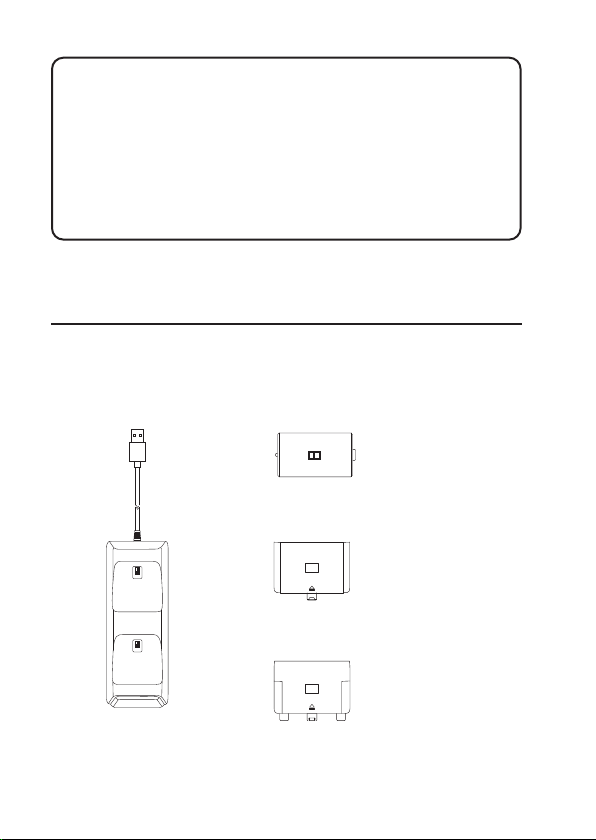

The following items are included:
XBOX® Dual Charging Station
Battery Compartment Cover
(Xbox one) × 2
Battery Compartment Cover
(Xbox X / S) × 2
Rechargeable Battery × 2

8
Product Overview

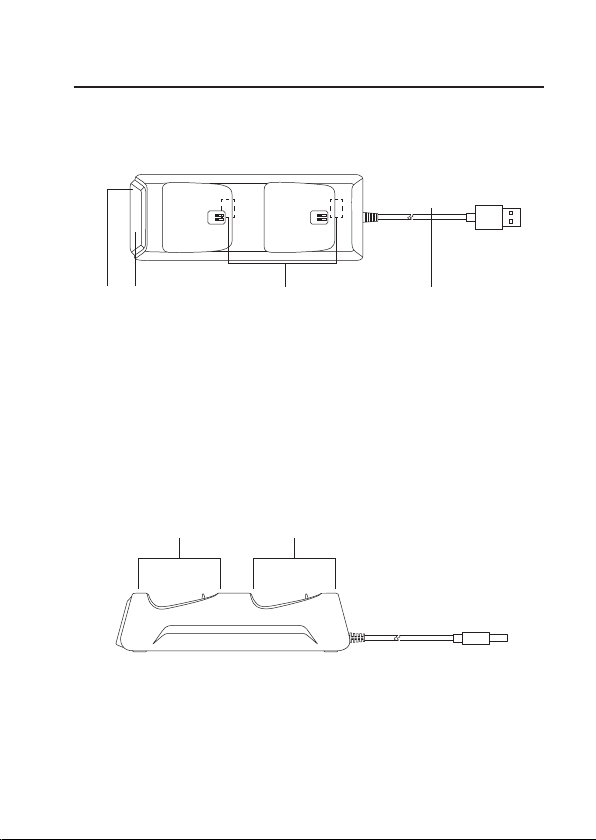

Top View
Side View
1. LED Charging Indicators (Charging Dock A)
2. LED Charging Indicators (Charging Dock B)
3. Charging Connector
4. Connecting Cable
1. Charging Dock A
2. Charging Dock B
321
1
4
2

9
Use a standard USB adaptor (5V, 1A or above) for charging.
Charging the Controllers
1. Connect the Charging Station to your Xbox® console (not included)
or USB charging device (not included). The indicators show green and
then red light

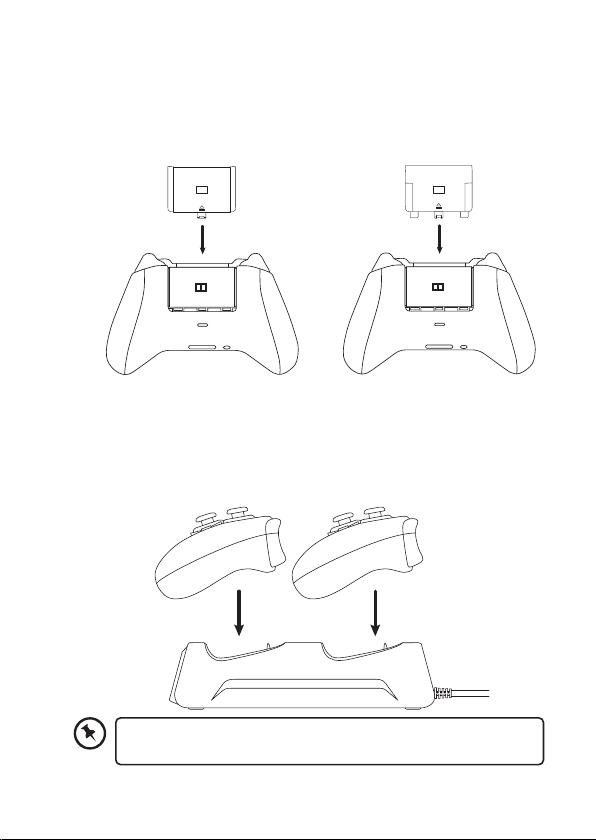

2. Insert the Rechargeable Battery into the battery compartment. Make
sure that the battery is correctly placed in the compartment.
Xbox one / X / S Controller
(not included)
Rechargeable
Battery
Xbox® console
(not included)
Charging Station
USB Charging Device
(not included)

10
Battery Compartment Cover
(for Xbox one controller)
Battery Compartment Cover
(for Xbox X / S controller)
3. Place the Battery Compartment Cover (Xbox one or Xbox X / S) on the
battery compartment.
4. Place the controller(s) (not included) onto the Charging Dock. The
indicator(s) will light up red while charging.
Check the indicator(s) after placing the controller(s). Make sure
that the indicator(s) light up red for charging.
Xbox one controller
(not included)
Xbox X / S controller
(not included)

11
Maintenance
Ensure the USB cable is fully unplugged from the unit before
cleaning.
• To clean the unit, wipe the case with a slightly moist, lint free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or
abrasives.
• Do not spray aerosol at or near the unit.
Charging Indicator
Charging indicator Status
Light up red Charging
Light up green Fully charged
Fast flash in red Charging over current
• Remove the Controller(s) from the charging
dock and unplug the USB cable from input
and then re-connect.
• It takes 6-7 hours (approximately) to fully charge an ocial
Xbox® Wireless Controller. Remove the controller from the
charging station when the indicator lights up green.
• The unit supports a maximum of two controllers for charging.
Do not overcharge the controller as it may shorten its life.
Disconnect the USB cable, or remove the controllers from the
charging docks after fully charged.

12
Hints and Tips
Problem Solution
Charging does not work. • Make sure the connecting cable is fully
plugged into a USB port and the game
console, or try to use a different USB port.
• Make sure that the controller is correctly
placed onto the charging dock.
Specications
Charging Station
Input Voltage DC 5V
Input Current 550mA
Single Group Conductive
Charging Current
240 mA
Dual Group Conductive
Charging Current
480 mA
Dimension (L × W × H) 213.78 mm × 55.3 mm × 79.6mm
(cable excluded)
Net Weight Charging Station: 168.8 g

13
Battery
Battery Pack
Model AXBOXCS22 Battery Pack
Battery Type Ni-MH
Battery Rating 2.4V 1200 mAh
Designation Code 2HRMU14/44
Manufacturer GT-COUPE ELECTRONIC CO. LTD.
Dimension (L × W × H) 54.5 mm × 29.06 mm × 15.95 mm
Net Weight 42.7 g
Battery Cell
Model SAA 1200mAh
Battery Type Ni-MH
Battery Rating 1.2V 1200 mAh
Designation Code HRMU14/44
Manufacturer Hu Nan Grepow New Energy Co., Ltd
Dimension (L × W × H) 35 mm × 35 mm × 43.1 mm
Net Weight 19.1 g
Features and specications are subject to change without prior notice.

Visit Partmaster.co.uk today for the
easiest way to buy electrical spares and
accessories. With over 1 million spares
and accessories available we can deliver
direct to your door the very next day. Visit
www.partmaster.co.uk or call 0344 800
3456 (UK customers only). Calls charged
at National Rate.
The symbol on the product or
its packaging indicates that
this product must not be
disposed of with your other
household waste. Instead, it is
your responsibility to dispose of your
waste equipment by handing it over to a
designated collection point for the
recycling of waste electrical and
electronic equipment. The separate
collection and recycling of your waste
equipment at the time of disposal will
help conserve natural resources and
ensure that it is recycled in a manner that
protects human health and the
environment.
For more information about where you
can drop o your waste for recycling,
please contact your local authority, or
where you purchased your product.
Notes for battery disposal
The batteries used with
this product contain
chemicals that are harmful
to the environment. To preserve
our environment, dispose of used
batteries according to your local laws or
regulations. Do not dispose of batteries
with normal household waste.
For more information, please contact the
local authority or your retailer where you
purchased the product.
Xbox® Series X/S & Xbox One® and Xbox®
logo are either registered trademarks or
trademarks of Microsoft Corporation in
the US and/or other countries.
IB-AXBOXCS22-220321V1
Currys Group Limited (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
EU Representative
Currys Ireland Limited (259460)
3rd Floor Oce Suite
Omni Park SC, Santry, Dublin 9, Republic of Ireland
