AEC Selfnergy M Series User manual

Allis Electric Co., Ltd.
12F. NO.19-11, San-chung Road, Nan Kang District, Taipei, Taiwan, R.O.C.
Tel:[phone]
E-mail:[e-mail]
Selfnergy M Series
User Manual
Hybrid Inverter
www.allis.com.tw

Contents
Contents
1 Note on this Manual
1.1 Scope of Validity
1.2 Target Group
1.3 Symbols Used
2 Safety
2.1 Important Safety Instructions
2.2 Explanation of Symbols
2.3 EC Directives
3 Introduction
3.1 Basic Features
tus 3.2 Work Sta
3.3 Dimension
3.4 Terminals of Inverter
4 Technical Data
4.6 General Data ( apply to version E, I, C )
4.5 EPS output ( apply to version E, I )
4.4 Efficiency, Safety and Protection ( apply to version E, I,C )
4.3 Internal Charger ( apply to version E, I, C )
4.2 AC output/input ( apply to version E, I, C )
4.1 DC input ( apply to version E, I, C )
5.3 Mounting
5.1 Check for Transport Damage
5.2 Packing List
5. Installation
03
03
03
03
04
04
08
09
10
10
12
13
14
15
17
17
16
16
15
15
19
18
18
18
6 Electrical Connection
6.1 PV Connection
6.2 Grid Connection
6.3 EPS Connection( apply to I Version and E Version)
6.4 Battery Connection
22
22
24
26
30
01

1.1 Scope of Validity
This manual is an integral part of Selfnergy M-Hybrid, It describes the assembly,
installation, commissioning, maintenance and failure of the product. Please read it
carefully before operating.
1 Notes on this Manual
Notes on this ManualContents
Danger！
“Danger” indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
Note！
“Note” provides tips that are valuable for the optimal operation of our
product.
Warning!
“Warning” indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
Caution！
“Caution” indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
R3KL1 R5KH1 R10KH3-ER5KH1-A
R3KH1 R8KH3 R20KH3-E20R5KH1-A12
R3K6L1 R10KH3 R5KL1-E
R3K6H1 R20KH3 R5KH1-E
R4K6L1 R5KL1-A R5KL1-E12
R5KL1 R5KL1-A12 R5KH1-E12
03
7. Setting
7.1 Control Panel
7.2 Instructions for LED Indicator
7.3 Instructions for the use of three modes
8 LCD Operation
8.1 LCD Operation
8.2 Setting
10 Fault diagnosis and solutions
42
42
43
43
6.5 Meter Connection
6.6 LAN Connection
6.7 DRM Connection
6.8 WiFi Connection(optional)
6.9 RF Connection(optional)
6.10 Inverter Manipulation
32
34
35
36
37
38
46
46
51
69
02
Naming rules ，For example . ：R4K6H1-A12
“ R” means “ series”.
“
“ 4K6、5K” means “output power 4.6kw or 5kw ”.
“H” means “High battery voltage”，“L” means “48V Battery Voltage”.
“1、3” means “Output single-phase (1) or three-phase (3).
“-A “means ”All in one system”. “ 12 “means ”Battery capacity 12 kWh ”.
Store this manual where it will be accessible at all times.
1.2 Target Group
This manual is for qualified electricians. The tasks described in this manual only
can be performed by qualified electricians.
1.3 Symbols Used
The following types of safety instructions and general information appear in this
document as described below:

2 Safety
SafetySafety
2.1 Important Safety Instructions
Danger!
Danger to life due to high voltages in the inverter!
All work must be carried out by qualified electrician.
The appliance is not to be used by children or persons with
reduced physical sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
Children should be supervised to ensure that they do not play
with the appliance.
Caution!
Danger of burn injuries due to hot enclosure parts!
During operation, the upper lid of the enclosure and the enclosure
body may become hot.
Only touch the lower enclosure lid during operation.
Caution!
Possible damage to health as a result of the effects of radiation!
Do not stay closer than 20 cm to inverter for any length of time.
Note!
Grounding the PV generator.
Comply with the local requirements for grounding the PV modules
and the PV generator. It is recommends connecting the generator
frame and other electrically conductive surfaces in a manner which
ensures continuous conduction and ground these in order to have
optimal protection of system and persons.
Warning!
Ensure input DC voltage ≤Max. DC voltage .Over voltage may
cause permanent damage to inverter or other losses, which will
not be included in warranty!
Warning！
Authorized service personnel must disconnect both AC and DC
power from inverter before attempting any maintenance or
cleaning or working on any circuits connected to inverter.
Prior to the application, please read this section carefully to ensure correct and
safe application. Please keep the user manual properly.
Accesories only together with the inverter shipment are recommanded here.
Otherwise may result in a risk of fire, electric shock, or injury to person.
Make sure that existing wiring is in good condition and that wire is not
undersized.
Do not disassemble any parts of inverter which are not mentioned in installation
guide. It contains no user-serviceable parts. See Warranty for instructions on
obtaining service. Attempting to service the inverter yourself may result in a risk
of electric shock or fire and will void your warranty.
Keep away from flammable, explosive materials to avoid fire disaster.
The installation place should be away from humid or corrosive substance.
Authorized service personnel must use insulated tools when installing or
working with this equipment.
PV modules shall have an IEC 61730 class A rating.
Never touch either the positive or negative pole of PV connecting device. Strictly
prohibit touching both of them at the same time .
The unit contains capacitors that remain charged to a potentially lethal voltage
after the MAINS , battery and PV supply has been disconnected.
Hazardous voltage will present for up to 5 minutes after disconnection from
power supply.
CAUTION-RISK of electric shock from energy stored in capacitor, Never operate
on the inverter couplers, the MAINS cables, Battery cables, PV cables or the PV
generator when power is applied. After switching off the PV , battery and Mains,
always wait for 5minutes to let the intermediate circuit capacitors discharge
before unpluging DC ,battery inplug and MAINS couplers.
When accessing the internal circuit of inverter, it is very important to wait 5
minutes before operating the power circuit or demounting the electrolyte
capacitors inside the device. Do not open the device before hand since the
capacitors time to sufficiently discharge! require
Measure the voltage between terminals UDC+ and UDC- with a multi-meter
(impedance at least 1Mohm) to ensure that the device is discharged before
beginning work (35VDC) inside the device.
Do not operate the in verter when the device is running .
WARNING !
Risk of electric shock!
WARNING !
04 05

Surge protection devices (SPDs) for PV installation
Over-voltage protection with surge arresters should be provided
when the PV power system is installed.
The grid connected inverter is not fitted with SPDs in both PV
input side and MAINS side.
WARNING !
Induced surges are the most likely cause of lightning damage in majority or installations,
especially in rural areas where electricity is usually provided by long overhead lines.
Surge may be included on both the PV array conduction and the AC cables leading
to the building.
Specialists in lightning protection should be consulted during the end use application.
Using appropriate external lightning protection, the effect of a direct lightning strike
into a building can be mitigated in a controlled way, and the lightning current can
be discharged into the ground.
Installation of SPDs to protect the inverter against mechanical damage and excessive
stress include a surge arrester in case of a building with external lightning protection
system (LPS) when separation distance is kept.
To protect the DC system, surge suppression device (SPD type2) should be fitted
at the inverter end of the DC cabling and at the array located between the inverter
and the PV generator, if the voltage protection level (VP) of the surge arresters is
greater than 1100V, an additional SPD type 3 required for surge protection for
electrical devices.
To protect the AC system, surge suppression devices (SPD type2) should be
fitted at the main incoming point of AC supply (at the consumer’s cutout),
located between the inverter and the meter/distribution system; SPD (test
impulse D1) for signal line according to EN 61632-1.
All DC cables should be installed to provide as short a run as possible, and positive
and negative cables of the string or main DC supply should be bundled together.
Avoiding the creation of loops in the system. This requirement for short runs
and bundling includes any associated earth bundling conductors .
Spark gap devices are not suitable to be used in DC circuits once conducting,
they won’t stop conducting until the voltage across their terminals is typically
more than 30 volts.
Lightning will cause a damage either from a direct strike or from surges due to a
nearby strike.
►
Anti-Islanding Effect
►
Islanding effect is a special phenomenon that grid-connected PV system still
supply power to the nearby grid when the voltage loss is happened in the
power system. It is dangerous for maintenance personnel and the public.
X1-Hybrid seires inverter provide Active Frequency Drift(AFD) to prevent
islanding effect.
PE Connection and Leakage Current
•The end-use application shall monitor the protective conductor by residual
current operated protective device (RCD) with rated fault current Ifn≤240mA
which automatically disconnects the device in case of a fault.
The device is intended to connect to a PV generator with a capacitance limit of
approx 700nf.
High leakage current!
Earth connection essential before connecting supply.
WARNING !
•Incorrect grounding can cause physical injury, death or equipment malfunction
and increase electromagnetic.
•Make sure that grounding conductor is adequately sized as required by safety
regulations.
•Do not connect the ground terminals of the unit in series in case of a multiple
installation. This product can cause current with a d.c component, Where a residual
current operated protective (RCD) or monitoring (RCM) device is used for protection
in case of direct or indirect contact, only an RCD or RCM of type B is allowed
on the supply side of this product.
For United Kingdom
•The installation that connects the equipment to the supply terminals shall
comply with the requirements of BS 7671.
•Electrical installation of PV system shall comply with requirements of BS 7671
and IEC 60364-7-712.
•No protection settings can be altered.
•User shall ensure that equipment is so installed, designed and operated to
maintain at all times compliance with the requirements of ESQCR22(1)(a).
For Australia and New Zealand
•Electrical installation and maintenance shall be conducted by licensed
electrician and shall comply with Australia National Wiring Rules.
►
SafetySafety
06 07
Battery Safety Instructions
►
Revo hybrid Series inverter should be worked with high voltage battery, for
the specific parameters such as battery type, nominal voltage and nominal
capacity etc., please refer to section 4.3.
As accumulator batteries may contain potential electric shock and short-circuit
current danger, to avoid accidents that might be thus resulted, the following
warnings should be observed during battery replacement:
1: Do not wear watches, rings or similar metallic items.
2: Use insulated tools.
3: Put on rubber shoes and gloves.
4: Do not place metallic tools and similar metallic parts on the batteries.
5: Switch off load connected to the batteries before dismantling battery
connection terminals.
6: Only personal with proper expertise can carry out the maintenance of
accumulator batteries.

2.2 Explanation of Symbols
This section gives an explanation of all the symbols shown on the inverter and
on the type label.
Symbols on the Inverter
Symbol Explanation
Operating Display.
Battery communication is active.
An error has occurred, please inform your installer immediately.
Symbols on the Type Label
Symbol Explanation
CE mark.
The inverter complies with the requirements of the applicable
CE guildlines.
TUV certified.
RCM remark.
SAA certification.
Beware of hot surface.
The inverter can become hot during operation. Avoid contact
during operation.
Danger of high voltages.
Danger to life due to high voltages in the inverter!
Danger.
Risk of electric shock!
Observe enclosed documentation.
08
The inverter can not be disposed together with the household waste.
Disposal information can be found in the enclosed documentation.
Do not operate this inverter until it is isolated from battery,mains and
on-site PV generation suppliers.
Danger to life due to high voltage.
There is residual voltage existing in the inverter after powering off,
which needs 5 min to discharge.
•Wait 5 min before you open the upper lid or the DC lid.
This chapter follows the requirements of the European low voltage
directives, which contains the safety instructions and conditions of
acceptability for the endues system, which you must follow when installing,
operating and servicing the unit. If ignored, physical injury or death may
follow, or damage may occur to the unit. Read this instructions before you
work on the unit. If you are unable to understand the dangers, warnings,
cautions or instructions, please contact an authorized service dealer before
installing. Operating and servicing the unit.
The Grid connected inverter meets the requirement stipulated in Low Voltage
Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive
2014/30/EU. The unit is based on:
EN 62109-1:2010 ; EN 62109-2:2011 ; IEC 62109-1(ed.1) ; IEC62109-2(ed.1)
EN 61000-6-3:2007+A:2011 ; EN 61000-6-1:2007 ;EN 61000-6-2:2005
In case of installation in PV system, startup of the unit (i.e. start of designated
operation) is prohibited until it is determined that the full system meets the
requirements stipulated in EC Directive (2014/35/EU,2014/30/EU, etc.)
The grid connected inverter leave the factory completely connecting device and
ready for connection to the mains and PV supply ,the unit shall be installed in
accordance with national wiring regulations. Compliance with safety regulations
depends upon installing and configuring system correctly, including using the
specified wires. The system must be installed only by professional assemblers who
are familiar with requirements for safety and EMC. The assembler is responsible for
ensuring that the end system complies with all the relevant laws in the country
where it is to be used.
The individual subassembly of the system shall be interconnected by means of
the wiring methods outlined in national/inter national such as the national electric
code (NFPA) No.70 or VDE regulation 0107.
2.3 CE Directives
09
Safety Safety

10 11
Introduction Introduction
3. Introduction
3.1 Basic features
Selfnergy M Hybrid Seires is a high-quality inverter which can convert solar
energy to AC energy and store energy into battery.
The inverter can be used to optimize self consumption, store in the battery for
future use or feedin to public grid. Work mode depends on PV energy and user’s
preference. It can provide power for emergency use during the grid lost by using
the energy from battery and inverter(generated from PV).
System Diagram
►
Selfnergy M Hybrid Series is designed with two EPS versions for customer to
choose based on the local rules.
E Version applies to the wiring rules that requires the Live line and Neutral line of
EPS must be disconnected with the Live line and Neutral line of grid. (applies to
most countires)
meter +
-
Battery
DPDT
E-BAR
Main switch
RCD
PV1+
PV1 -
PV2+
PV2 -
RCD
PE
EPS
Load
Inverter
I Version applies to the wiring rules that requires Neutral line of
alternative supply must NOT be isolated or switched (applies to wiring
rules AS/NZS_3000:2012 for Australia and New Zealand).
meter +
-
Battery
E-BAR
Main switch
RCD
PV1+
PV1 -
PV2+
PV2 -
RCD
EPS
Loads
Inverter
Loads
Note!
Please control the home loads, and make sure it’s within the “EPS
output rating” under EPS mode, otherwise the inverter will shutdown
with an “overlaod fault” warning.
Please confirm with the mains grid operator whether there is any
special regulations for grid connection.
•
•
E-BAR

Introduction Introduction
12 13
Work modes: Self-use (without PV Power)
When no PV supplied, battery will discharge
for local loads firstly, and grid will supply
power when the battery capacity is not
enough.
EPS Status
When the grid is off, system will supply
emergency power from PV or battery to
supply the home loads. (Battery is necessary
in EPS mode.)
3.2 Work Modes
Selfnergy M Series inverter provides multiple work modes based on
different requirements.
Work modes: Feed in Priority
Priority:load>grid>battery
This mode applies the area that has high feed-in
tariff and export control.
The PV generated power will be used to
supply the local loads firstly, then export to the
public grid. The redundant power will charge
the battery.
Work modes: Back up mode
Priority:battery>load>grid
This mode applies the area that has frequent
power outages. And this mode ensures the
battery will has enough energy to supply when
the grid is off.
In this mode battery will be charging forcibly
in the setting time and will never be
discharged when the grid is on, and it also
allows to choose whether charge from the
grid or not.
Work modes: Self-use (with PV Power)
Priority: load>battery>grid
This mode applies the area that has low feed-in
tariff and high energy price.
Work modes: Force time use
Priority:battery>load>grid(when charging)
Priority:load>battery>grid(when discharging)
This mode applies the area that has electricity
price between peak and valley. User can use off-
peak electricity to charge the battery.
The power generated from PV will be used to
supply the local loads firstly, then to charge
the battery. The redundant power will export
to the public grid.
The charging and discharging time can be set
flexibly, and it also allows to choose whether
charge from the grid or not.
3.3 Dimension

4. Technical Data
4.1 DC input ( apply to version E, I, C )
4.2 AC output/input ( apply to version E, I, C )
Max. recommended DC power [W]
Max. DC voltage[V]
Norminal DC operating voltage[V]
MPPT voltage range [V]
MPPT voltage range@full load [V]
Max. input current [A]
Max. short circuit current [A]
Start input voltage [V]
Start output voltage [V]
No. of MPP trackers
Strings per MPP tracker
Backfeed current to PV array
DC disconnection swtich
4600
550
360
125-550
160-500
10/10
14/14
125
150
2
1
0
Model R3KL1
X1-Hybrid-5.0-D
5600
550
360
125-550
195-500
10/10
14/14
125
150
2
1
0
6000
550
360
125-550
240-500
10/10
14/14
125
150
2
1
0
Norminal AC power[VA]
Max. apparent AC power[VA]
Rated grid voltage(range)[V]
Rated grid frequency[Hz]
Norminal AC current[A]
Max.AC current[A]
Displacement power factor
Total harmonic distortion(THDi)
Load control
3680
3680
16
16
Model
4600
4600
20
20
5000
5000
21.7
21.7
AC output
220/230/240 (180 to 280)
50/60
0.8 leading...0.8 lagging
< 2%
optional
AC input
3680
16
16
4600
20
20
5000
21.7
21.7
230(180 to 280)
50/60
0.8 leading...0.8 lagging
Introduction Technical Data
14 15
Object
A/B
C/D
J/K
E
F
G
H
M
I
O
L
P
DC switch (optional)
PV1+/PV1-
Battery +/Battery -
EPS output
Grid output
WiFi port for external Pocket WiFi
Pressure valve
Dry contact /Temperature detection
Ct485 port / DRM port
Battery communication /
USB port for upgrading
Description
Qualified electrician will be required for the installation.
WARNING !
3.4 Terminals of PV inverter
A B C D E F G H I
JM
A
K L
optional
Norminal AC power[VA]（E&CVersion）
Rated grid voltage(range)[V]
Rated grid frequency[Hz]
Norminal AC current[A]（E&CVersion）
Max.AC current[A]（E&CVersion）
Displacement power factor
AC inrush current 35 35 35
R4KL1 R5KL1
R3KL1 R4KL1 R5KL1
Norminal AC power[VA]（I Version）
3680+3680（bypass）
4600+4600（bypass）
5000+5000（bypass）
Norminal AC current[A]（I Version）
Max.AC current[A]（I Version）
16+16（bypass）20+20（bypass）21.7+21.7（bypass）
16+16（bypass）20+20（bypass）21.7+21.7（bypass）
N O P
PV2+/PV2-
GPRS port for external Pocket GPRS
N
CAN communication port for parallel operation

16 17
Technical Data
4.3 Internal Charger ( apply to version E, I, C )
Battery type
Battery voltage range[V]
Recommended battery voltage[V]
Max. charge/discharge current[A]
Peak charge/discharge current[A]
Communication interfaces
Reverse connect protection
Lithium battery
42-59
48VDC
110A
110A
CAN/RS485/WIfI/LAN/DRM
Yes
Model R3KL1 R4KL1 R5KL1
4.5 EPS output ( apply to version E, I )
EPS rated power[VA]
Max. EPS power[VA]
EPS rated voltage[v], Frequency[Hz]
EPS rated current[A]
Max. EPS current[A]
Switch time[s]
Total harmonic distortion(THDv)
Parallel operation
Compatible with the generator
R3KL1
Model R4KL1 R5KL1
3680
3680
16
16
4600
4600
20
20
5000
5000
21.7
21.7
230VAC, 50/60
<500ms
<2%
Yes
Yes(signal provided only)
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
4.4 Efficiency, Safety and Protection ( apply to version E, I,C )
MPPT efficiency
Euro efficiency
Max. efficiency
Model R3KL1 R4KL1 R5KL1
Safety & Protection
Over/under voltage protection
DC isolation protection
Monitoring ground fault protection
Grid protection
DC injection monitoring
Back feed current monitoring
Residual current detection
Anti-islanding protection
Over load protection
Over heat protection
99.9%
97%
97.6%
95%
99.9%
97%
97.6%
95%
99.9%
97%
97.6%
95%
4.6 General Data ( apply to version E, I, C )
Dimension [W/H/D](mm)
Dimension of packing [W/H/D](mm)
Net weight [kg]
Gross weight [kg]
Installation
Operating temperature range[℃]
Storage temperature [℃]
Storage/Operation relative humidity
Altitude [m]
Ingress Protection
Protective Class
Night-time consumption
Over Voltage Category
Pollution Degree
cooling
Noise level
Inverter Topology
Communication interface
Model
Wall-mounted
-20~+60 (derating at 45)
-20~+60
4%~100% (Condensing)
<2000
IP65(for outdoor use)
Ⅰ
<3W
Ⅲ(MAINS),Ⅱ( PV,Battery)
III
Nautral
＜40dB
non-isolated
Ehternet, Meter, Wifi(optional), RF(optional), DRM, USB
Technical Data
24.5 24.524.5
550*515*220
600*540*350
27.527.527.5
Max. Battery charge efficiency
Max. Battery discharge efficiency 95% 95% 95%
R3KL1 R4KL1 R5KL1

5. Installation
5.1 Check for Physical Damage
5.2 Packing List
Make sure the inverter is intact during transportation. If there is any visible
damage, such as cracks, please contact your dealer immediately.
Open the package and take out the product, please check the accessories first.
The packing list shown as below.
Installation Installation
Object
A
B
C
D
E
F
Inverter
Bracket
Expansion tubes & Expansion screws
PV connectors (2*positive, 2*negative)
Battery connectors (1*positive, 1*negative)
PV pin connectors (2*positive, 2*negative)
Description
Object
G
H
I
J
K
L
Ring terminal(for external enclosure grounding)
User manual
Description
Not in direct sunlight.
Not in areas where highly flammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 2000m above sea level.
Not in environment of precipitation or humidity (＞95%).
Under good ventilation condition.
The ambient temperature in the range of -20℃ to +60℃.
The slope of the wall should be within ± 5° .
The wall hanging the inverter should meet conditions below:
1.solid brick/concrete, or strength equivalent mounting surface;
2.Inverter must be supported or strengthened if the wall’s strength isn’t
enough(such as wooden wall, the wall covered by thick layer of decoration)
Please AVOIDE direct sunlight, rain exposure, snow laying up during installation
and operation.
A
5.3 Mounting
Installation Precaution
Selfnergy M Series inverter is designed for outdoor installation
(IP 65). Make sure the installation site meets the following
conditions:
B C D
E F G HK L
M
18
19
N
M
4 6AWG AC terminals and 4 10AWG AC terminals for Version I
4 10AWG AC terminals and 4 8AWG AC terminals for Version E and Version C
J
Set screw( for mounting)
Version I Version E&C
Grounding nut
N
I
OP
O
Meter
Smart Plug (optional)
P
Wifi module (optional)
Ring terminal(for internal enclosure grounding)
gasket( for using thin cable to connect on the AC port)

Space Requirement
Position Min.size
Ø
300mm 300mm Left 300mm
300mm
300mm
300mm
300mm
Right
Top
Bottom
Front
Table Available Space Size
300mm
300mm
Installation Installation
Mounting Steps
Ø
Step 1: Screw the wall bracket on the wall
Tools required for installation.
1.1 Place the bracket on the wall and mark down the position of the 4 holes.
1.2 Drill holes with driller, make sure the holes are deep enough (at least 60mm) to
support the inverter.
1.3 Install the expansion tubes in the holes, and tighten them. Then install the wall
bracket with the expansion screws.
Installation tools : crimping pliers for binding post and RJ 45, screwdriver,
manual wrench and
Step 1
Step 2
Overview of Mounting
Step 2: Place the inverter on the wall mounted bracket by holding the handle on
the side.
375.0 mm
263.0 mm
20 21
Step 3
Step 4
Step 3: Screw the set screw on the left-bottom of inverter tightly.
Step 4: If necessary, costomer can install an anti-theft lock on the left-bottom of
the inverter.

plug pin contact cable nut
Electrical Connection
6. Electrical Connection
6. PV connection
Slefnergy M Hybrid can be connected in series with 2-strings PV modules for 3.0KW,
4.KW and 5KW.
Select PV modules with excellent function and reliable quality. Open-circuit voltage of
module arrays connected in series should be <Max. DC input voltage; operating
voltage should be conformed to MPPT voltage range.
Max.DC Voltage Limitation
Model R3KL1 R4KL1 R5KL1
Max. DC Voltage (V)
MPPT Voltage Range(V)
550
125-550
PV module voltage is very high, which already achieve dangerous
voltage range, please comply with electric safety rules when connecting.
Please do not make PV positive or negative ground!
Warning!
Note!
Please choose a fitting external DC switch if the model (R3KL1,
R4Kl1,R5KL1)is purchased.
The following requirements of PV modules need to be applied for each
input area;
- Same type - Same quantity - Identical alignment - Identical tilt
Please do not make PV positive or negative ground!
In order to save cable and reduce the DC loss, we suggest to install the
inverter near PV modules.
Note!
PV connection mode below is NOT allowed!
Inverter
PV array
PV1
PV2
+
-
+
-
+
-
+
-
+
-
x
Connection Steps:
Step1. Checking PV module.
1.1 Use multimeter to measure module array voltage.
1.2 Check the PV+ and PV- from the PV string combiner box correctly.
1.3 Please make sure the impedance bewteen the positive pole and negative pole of PV to earth
should be MΩ level.
Step2. Separating the DC connector.
Step3. Wiring.
3.1 Choose the 12 AWG wire to connect with the cold-pressed terminal.
3.2 Remove 10mm of insulation from the end of wire.
3.3 Insert the insulation into pin contact and use crimping plier to clamp it.
Step4. Insert pin contact through the cable nut to assemble into back of the
male or female plug. When you feel or heard a “click” sound the pin contact
assembly is seated correctly.
10 mm
Crimp!
12AWG
insert
Overview of PV connection
Step2.
Step3.
Step4.
Step5.
22
23
Electrical Connection
Step5. Plug the PV conntector into the corresponding PV connector on inverter.

6.2 Grid Connection
Selfnergy M Hybrid series inverter are designed for single phase grid.
Voltage is 220/230/240V, frequency is 50/60Hz. Other technical requests
should comply with the requirement of the local public grid.
Micro-breaker should be installed between inverter and grid, any load should
not be connected with inverter directly.

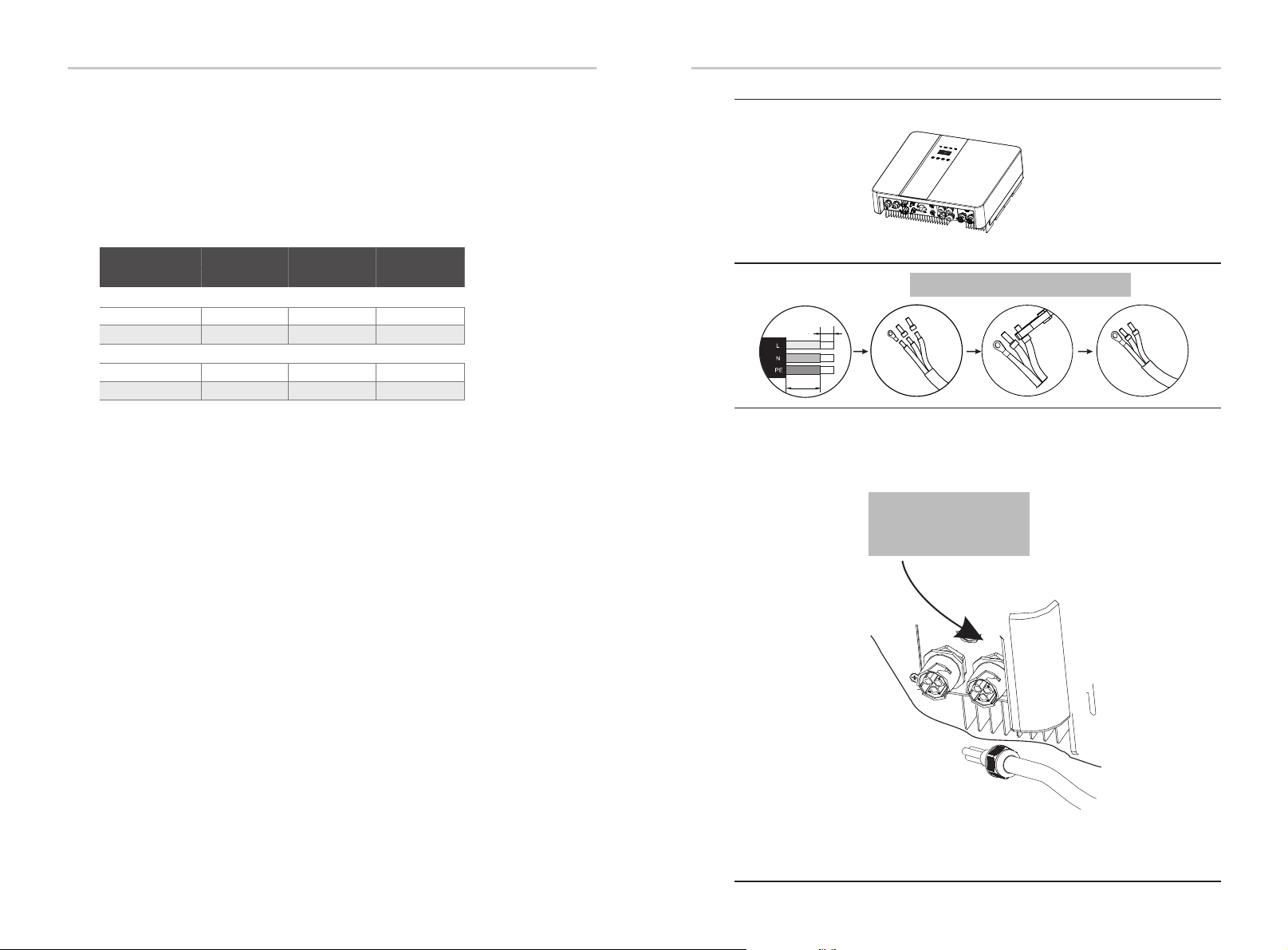

Table 4 Cable and Micro-breaker recommended
Connection Steps:
Step1. Check the grid voltage.
1.1 Check the grid voltage and compare with the permissive voltage range (Please refer to
technical data).
1.2 Disconnect the circuit board from all the phases and secure against re-connection.
Step2. Remove the top-down cover from the inverter.
Step3. Make AC wires.
3.1 Choose the appropriate wire(Cable size: refer to Table 4).
3.2 Reserve about 60mm of conductor material sectional area.
3.3 Remove 12mm of insulation from the end of wire.
3.4 Insert stripped wires into AC terminal and ensure that all conductor strands are captured in
the AC terminal.
3.5 Compress the AC terminal head by using a crimping pliers and screw down screw cap tightly.
Step4. Insert AC cable into Grid port through screw cap and then tighten the
screw cap. Insert L wire and N wire into corresponding ports of AC terminal.
Compress the PE wire with earth terminal , then screw it on the grounding stud.
Cable Size: Refer to Tabel 4(page 24)
Step2.
Step3.
Step4.
60mm
12mm
Cable 4-5mm²
Micro-breaker
4-5mm²5-6mm²
20A 20A 32A
Model R3KL1 R4KL1 R5KL1
Cable 8-10mm²Inverter+BMU
Micro-breaker
8-10mm²10-13mm²
50A 50A 63A
E Version & C Version
I Version
Electrical ConnectionElectrical Connection
24
25
Note: Insert AC connector
EPS
GRID
into grid interface

6.3 EPS Connection( apply to I Version and E Version only)
Selfnergy M series inverter has On and Off grid function, the inverter will deliver
output power through AC port when the grid is on, and it will deliver output
power through EPS port when the the grid is off.
ØI Version & E Version
Selfnergy M series inverter provides two versions for customer to choose based on
the local rules.
“I Version” means inverter has an build-in changeover switch. This version applies
to the wiring rules which requires Neutral line of alternative supply must not be
isolated or switched.(applies to wiring rules AS/NZS3000:2014 of Australia and
New Zealand.)
“E Version” means inverter needs to install an external changeover device for EPS
function. This version applies to the wiring rules which allows Neutral line of
alternative supply can be isolated or switched.( applies to most of the countries)
ØAuto & Manual
EPS function can be achieved automatically or manually according to user’s wishes.
For “I Version” inverter, EPS function can only be triggered automatically.
For “E Version” inverter, EPS function can be triggered either automatically or
manually according to user’s preference.
If user wants to use this function manually, it will need to be installed an external
switch. Please refer to specific wiring diagram below.
For automatical solution, please contact our sales.
+
-
Battery
E-BAR
PE
N-BAR
PV2+
PV2 -
RCD
EPS Load
L L
I Version
PV1+
PV1 -
RCD
Load
RCMB
L
L
N
I Version Auto Do not required for Changeover Switch
EPS AC
EPS breaker: refer to
Table 5(page 28)
RCD: type A
wired by manufactor
required for installation
+
-
Battery
E-BAR
PE
PV2+
PV2 -
RCD
EPS Load
L L
E Version
PV1+
PV1 -
RCD
Load
RCMB
L
L
N
E Version Manual Required for Changeover Switch
AC
RCD: type A
wired by manufactor
required for installation
EPS
changeover device( DPDT)
+
-
Battery
E-BAR
PE
PV2+
PV2 -
RCD
EPS Load
L L
E Version
PV1+
PV1 -
RCD
Load
RCMB
L
L
N
E Version Auto Required for Changeover Switch
AC
RCD: type A
wired by manufactor
required for installation
EPS
Contactor Device Contactor
Please contact our sales for any compatible contactor purchase requirement .
Note!
In case of discrepancies between wiring mode of local policy and
the operation guide above, espescially for the wiring of neutral line ,
grounding and RCD, please contact us before any operation!
Electrical ConnectionElectrical Connection
26
27
EPS breaker: refer to
Table 5(page 28)
EPS breaker: refer to
Table 5(page 28)
I I
PE
PE

Connection Steps:
60mm
12mm
60mm
12mm
I Version
Step1.Make EPS wires.
3.1 Choose the appropriate wire(cable size: refer to picture below).
3.2 Reserve about 60mm of conductor material sectional area.
3.3 Remove 12mm of insulation from the end of wire.
3.4 Insert stripped wires into AC terminal and insure all conductor strands are captured in
the AC terminal.
3.5 Compress the AC terminal head by using a crimping pliers and screw down screw cap tightly.
Step2. Insert EPS cable into EPS port through screw cap and then tighten the
screw cap. Insert L wire, N wire and PE wire( PE wire applies to E Version only)
into corresponding ports of EPS terminal and screw them tightenly.
Step2.
L NPE
I Version
E Version
Note: Connect PE wire into
PE port!
Note: The black cable( the I port )
has been wired during the
manufactory.
Step1.
ØRequirements for EPS loadØ
Make sure the EPS load power rating is within EPS output rating,
otherwise the inverter will shutdown with an “over load” warning.
When an “over load” is appeared, adjust the load power to make
sure it is within the EPS output power range, then turn the inverter
back on.
For the nonlinear load, please make sure the inrush power should
be within the EPS output power range.
WARNING !
Below table shows some common feasible loads for you reference.
Type Power
Start Rated
Common
equipment
Example
Resistive
load
Inductive
load
Capacitive
load
R 1
R 2
R 1
R 1.5
R 3~5R 2
Start Rated
100VA
(W)
100VA
(W)
80VA
(W)
60VA
(W)
450-750VA
(W)
300VA
(W)
Equipment
Fluorescent lamp Fluorescent lamp
40W
Fan Fridge Fridge
150W
Incandescent
lamp
TV Incandescent
lamp
100W
L N I
Electrical ConnectionElectrical Connection
28
29
E Version
Table 5 Cable and Micro-breaker recommended
EPS Cable ≥ 5mm²
EPS breaker
≥ 5mm²≥ 5mm²
25A 32A 32A
Model R3KL1 R4KL1 R5KL1

6.4 Battery Connection
Charging & discharging system of Selfnergy M Hybrid series inverter is
designed for high-voltage lithium battery.
Before choosing battery, please note the maximum voltage of battery can not
exceed 59V and the rated voltage of battery can not exceed 48V, and the
battery communication should be compatible with Revo Hybrid inverter.
Before connecting to battey, please install a nonpolarized DC breaker to make sure
inverter can be securely disconnected during maintanance.
Battery breakerØ
Voltage
Current[A] 160A
Model R3KL1 R4KL1 R5KL1
Nominal voltage of DC breaker should be larger
than maximum voltage of battery.
Battery connection diagramØ
Power Connection Steps:
Ø
Step2. Insert the stripped cable up to the stop ( negative cable for DC plug(-) and
positive cable for DC socket(+) are live). Hold the housing on the screw
connection.
Step3. Press down spring until it clicks audibly into place.(it must be possible to
see the fine wire strands in the chamber)
Step1. Choose the 9 AWG wire and strip the cable to 15mm.
48V lithium battery
+
-
CAN/ RS485
Nonpolarized
DC breaker
Power connection
Communication connection
Communication interface bewteen inverter and battery is RS485 or CAN with a
RJ45 connector.
BMS PIN DefinitionØ
Note！
The battery communication can only work when the battery BMS is
compatible with the inverter.
1
8
DC plug housing(-) DC socket housing(+)
screw connection
screw connection
spring
chamber
wire strands
Step4. Tighten the screw connection(tighten torque:2.0Nm)
Note: BAT port, not PV port!
Note: The positive line and negative line are not allowed to access anti-Line.
Electrical ConnectionElectrical Connection
Step5. Plug the PV conntector into the corresponding PV connector on inverter.
Step2.
Step3. Step 4.
Step5.
30
31
BMS_CANH
GNDX X BMS_CANL
Definition
23 4 56 7 81 PIN
BMS_485A BMS_485B
GNDX X
Definition
CAN
Rs485
X X X
X X X
When using RS485 protocol, please note that PIN2 must be disconnected.
Note: When working with Pylontech batteries, It is recommended the number of battery module
(H48050-15S) is 2-7 and the number of battery manager system (SC0500A-100S) is 1.

6.5 Meter Connection
Note！
It is necessary to connect meter to inverter otherwise inverter will
shutdown with a “Meter fault” alert.
The meter communication only works when meter is compatible
with the inverter.
Meter connection diagramØ
Communication interface bewteen inverter and meter is RS485 with a RJ45
connector.
Meter PIN DefinitionØ
Electrical
grid
Home Electric meter,
Single phase
meter
Load
Meter connection
L
N
IGRID_AP_I IGRID_AN_I IGRID_BP_I IGRID_CP_I IGRID_CN_I IGRID_BN_I RS485_A RS485_B
1 2 3 4 5 6 7 8
1
8
Electrical ConnectionElectrical Connection
32
33
Meter is used for monitoring the power usage for entire house, at the meantime,
inverter will also need the data from Meter to achieve the Export Control Function.
Meter Connection Steps:
Ø
Please refer to BMS connection steps (page32) for Meter connection. Please kindly
noted the PIN definition and port position will be slightly different.
Step1,2
Step3
Step4. Insert one Rj45 side of the cable into Meter port inside of inverter and the
other side into RS485 or Can port of the meter.
Step4
BMS Port: The first RJ45 port from right side
Step3. Assemble the cable gland and screw the cable nut.
Step1. Disassemble the BMS/Meter cable gland.
Step2. Prepare a communication cable(without sheath) and insert the commu-
nication cable through the cable nut.
The seal is used for waterproof. Please
make sure it has been kept back.
DRM CT Dry contact
BMS-485
BMS-CAN
Parallel NTC

6.6 LAN Connection
LAN communication is the standard communication interface. It can transmit the
data between the router and inverter via the local network.
LAN Connection Steps:
Ø
LAN Port: The RJ45 port from right side Fourth
LAN/DRM Port
Communication interface bewteen inverter and router is RS485 with a RJ45
connector.
LAN PIN DefinitionØ
TX+ TX- RX+ XX RX- X X
1 2 3 4 5 6 7 8
ØApplication Occasion
This function is appliable for the below situation:
When the wifi signal is too weak to transmit data, user can use LAN port for the
monitoring with a data cable.
Note: The wifi module still needs to be connected when using LAN connection.
Could
Router
data cable
6.7 DRM Connection
DRM is provided to support several demand response modes by emitting control
signals as below.
DRM Connection Steps:
Ø
LAN Port: The third RJ45 port from right side
LAN/DRM Port
DRM1/5 DRM2/6 DRM3/7 DRM4/8 +5V DRM0 GND GND
12345678
1
8
1
8
Note: Only PIN6(DRM0) is available now, and other PIN functions are being
developed.
Electrical ConnectionElectrical Connection
34
35
Please refer to BMS connection steps (page32) for LAN connection. Please kindly
noted the PIN definition and port position will be slightly different.
Please refer to BMS connection steps (page32) for DRM connection. Please kindly
noted the PIN definition and port position will be slightly different.
DRM
DRM CT Dry contact
BMS-485
BMS-CAN
Parallel NTC
DRM CT Dry contact
BMS-485
BMS-CAN
Parallel NTC

6.8 WiFi Connection(optional)
Inverter provides a WiFi port which can collect data from inverter and
transmit it to monitoring-website via a Pocket WiFi.
(Purchase the product from supplier if needed)
ØDiagram
Could
Router
WiFi Connection Steps:
Ø
Step3. Create a user account online.( Please check the Pocket WiFi user
manual for more details.)
Step1. Plug Pocket Wifi into “WiFi” port at the bottom of the inverter.
Step2. Build the connection between the inverter and router.
6.9 GPRS Connection(optional)
Revo Hybrid inverter provides a GPRS( radio frequency) interface which control the
switch time of a designated load via an exteral Smart Plug (purchase the product
from supplier if needed.) so that the load mostly consumes PV energy and incurs
the lowest-possible energy costs during operation.
GPRS Connection Steps:
Ø
Grid
Meter
AC
emitter
ØDiagram
Please refer to the Smart Plug user manual for detailed connection steps.
Electrical ConnectionElectrical Connection
36
37
Could
