OPERATION
&
SERVICE
MANUAL
9100/9110
9200/9210
SURVIVALINK
AED
automated external defibrillator

5 Year Limited Warranty
What is Covered?
Cardiac Science, Inc. (Cardiac Science) warrants to the original purchaser
that its products will be free of any defect in material and workmanship
according to the terms and conditions of this Five year Limited Warranty.
For purposes of this Limited Warranty, the original purchaser is deemed
to be the original end user of the product purchased. This Limited
Warranty is NONTRANSFERABLE and UNASSIGNABLE.
For How Long?
Five (5) years from the date of original shipment to original purchaser for
all products except those with a date expiration (electrodes and lead acid
batteries) and lithium batteries. Products with a date expiration shall be
warranted until the expiration date. Lithium batteries shall be warranted a
shelf life of Five (5) years from date of shipment. Lithium batteries shall
be warranted for an operating life of Two (2) years from the date of
installation into a Cardiac Science AED. The terms of the Limited
Warranty in effect as of the date of original purchase will apply to any
warranty claims.
What You Must Do
To qualify for this Limited Warranty, the original purchaser must send
the completed Warranty Validation Card within 30 days of original
shipment to Cardiac Science, Inc., 5420 Feltl Road, Minneapolis,
Minnesota 55343.
To obtain warranty service for your product, call us toll free at (800) 991-
5465, or [phone] seven days a week, 24 hours a day. Our
technical service representative will try to resolve your issue over the
phone. If necessary, and in our sole discretion, we will arrange for service
or a replacement of our product.
What We Will Do
If your Cardiac Science product contains defects in material or
workmanship, and is returned within 30 days of the date it was
purchased, at the direction of a technical service representative, we will
replace it with a new product of equal value at no charge to you, provided
the warranty applies.
If your Cardiac Science product contains defects in material or
workmanship and is returned, at the direction of a technical service
representative, after 30 days but within the warranty period, Cardiac
Science, at its sole discretion, will repair your product or replace it with a
new or reconditioned product of the same or similar design. The repaired
or replacement product will be warranted subject to the terms and
conditions of this Limited Warranty for either (a) 90 days or (b) the
remainder of the original warranty period, whichever is longer, provided
the warranty applies and the warranty period has not expired.
Obligations and Warranty Limits
Limited Warranty Obligation: Exclusive Remedy
THE FOREGOING LIMITED WARRANTY IS IN LIEU OF AND SPECIFICALLY
EXCLUDES AND REPLACES ALL OTHER EXPRESS OR IMPLIED WARRANTIES.
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not allow limitations on how long an implied warranty
lasts, so this limitation may not apply to you.
NO PERSON (INCLUDING ANY AGENT, DEALER, OR REPRESENTATIVE OF CARDIAC
SCIENCE) IS AUTHORIZED TO MAKE ANY REPRESENTATION OR WARRANTY
CONCERNING CARDIAC SCIENCE PRODUCTS, EXCEPT TO REFER PURCHASERS
TO THIS LIMITED WARRANTY.
YOUR EXCLUSIVE REMEDY WITH RESPECT TO ANY AND ALL LOSSES OR
DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER SHALL BE AS SPECIFIED
ABOVE. CARDIAC SCIENCE SHALL IN NO EVENT BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING, BUT NOT
LIMITED TO, EXEMPLARY DAMAGES, COMMERCIAL LOSS FROM ANY CAUSE,
BUSINESS INTERRUPTION OF ANY NATURE, LOSS OF PROFITS OR PERSONAL
INJURY, EVEN IF CARDIAC SCIENCE HAS BEEN ADVISED OF THE POSSIBILITIES OF
SUCH DAMAGES, HOWEVER OCCASIONED, WHETHER BY NEGLIGENCE OR
OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not
apply to you.
What This Warranty Does Not Cover
This Limited Warranty does not cover defects or damages of any sort
resulting from, but not limited to, accidents, damage while in transit to
our service location, alterations, unauthorized service, unauthorized
product case opening, failure to follow instructions, improper use, abuse,
neglect, fire, flood, war or acts of God. Cardiac Science does not warrant
your Cardiac Science product to be compatible with any particular other
medical device.
This Limited Warranty is Void if…
Any Cardiac Science product is serviced or repaired by any person or
entity other than Cardiac Science unless specifically authorized by
Cardiac Science;
Any Cardiac Science product case is opened by unauthorized
personnel or if a product is used for an unauthorized purpose;
Any Cardiac Science product is used in conjunction with
incompatible parts or accessories, including but not limited to batteries.
Parts and accessories are not compatible if they are not Cardiac Science
products or the functional equivalent.
If The Warranty Period has Expired…
If your Cardiac Science product is not covered by our Limited Warranty,
call us toll free at [phone], or [phone] for advice as to
whether we can repair your Cardiac Science product, and for other repair
information, including charges. Charges for non-warranty repairs will be
assessed and are your responsibility. Upon completion of the repair, the
terms and conditions of this Limited Warranty shall apply to such repair
or replacement product for a period of 90 days.
This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
Form, Cardiac Science Five Year Limited Warranty 400474-002 Rev.C0

Limited Warranty Validation Card
Note: This card must be returned in order to validate your
limited warranty and to insure traceability.
Prior to usage of this product, we recommend training for your
personnel. Please contact the sales representative or dealer
from which you purchased this product to arrange training. If you
experience difficulty arranging training, please contact us.
Extended warranties are available. Please contact your sales
representative or dealer or Cardiac Science for the details.
Model Number Serial Number
Date of Purchase Purchased From
Company Name
Contact Person
Street Address
City State Zip Code
Telephone Number
5420 Feltl Road
Minneapolis, MN 55343
(800) 991-Link
[phone]
[phone] (FAX)

NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO. 2135 HOPKINS, MN
POSTAGE WILL BE PAID BY ADDRESSEE Cardiac Science, Inc. 5420 Feltl Road Minneapolis, MN 55343-9884

Survivalink AED Operation and Service Manual
CAUTION
Survivalink AED is intended for use by or on the order of a Physician or persons licensed by State law.
IMPORTANT
Read this Operation and Service Manual carefully. It contains information about your safety and the safety of others. Become
familiar with the controls and their proper use before operating the product.
The Survivalink AED Models 9100/9110/9200/9210 are manufactured by:
Manufacturer:
Survivalink Corporation (wholly owned subsidiary of Cardiac Science, Inc.)
5420 Feltl Road
Minneapolis, MN 55343-7982
Authorized European Representative:
Cardiac Science International
Kirke Vaerloesevej 14
3500 Vaerloese Denmark
Trademark Information
Survivalink, MDLink, SmartGauge, STAR, IntelliSense, RescueReady, and RescueLink are trademarks and registered
trademarks of Cardiac Science, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.
COMPACTFLASH is a trademark of SanDisk Corporation.
Limited Warranty
The Survivalink AED Operation and Service Manual and any and all information contained herein does not constitute any
warranty as to the Survivalink AED or any related products in any manner whatsoever. The “Limited Warranty” is shipped
with the Survivalink AED products and serves as the sole and exclusive warranty provided by Cardiac Science regarding the
Survivalink AED.
Customer Service
For Customer Service, call:
[phone]
[phone]
[phone] (fax)
Technical Support
For 24-hour service, contact Technical Support at:
[phone] (USA only)
[phone] (USA and Canada)
[phone] (fax)
[phone] (International)
There is no charge to the customer for a Technical Support call. Please have the serial and model numbers available when
contacting Technical Support. (The serial and model numbers are located on the bottom of the Survivalink AED).
Notice of Rights
All rights reserved. No part of this documentation may be reproduced or transmitted in any form by any means without the
express written permission of Cardiac Science, Inc. Information in this documentation is subject to change without notice.
Names and data used in the examples are fictitious unless otherwise noted.
Defibrillator Tracking
Defibrillator manufacturers and distributors are required, under the Safe Medical Devices Act of 1990, to track the location of
defibrillators they sell. Please notify Survivalink Technical Support in the event that your defibrillator is sold, donated, lost,
stolen, exported, destroyed or if it was not purchased directly from Cardiac Science, Inc.

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 3
Table of Contents
Section 1 Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Safety Alert Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before Operating the Survivalink AED . . . . . . . . . . . . . . . . . . . . . 8
Safety Terms and Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Alert Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

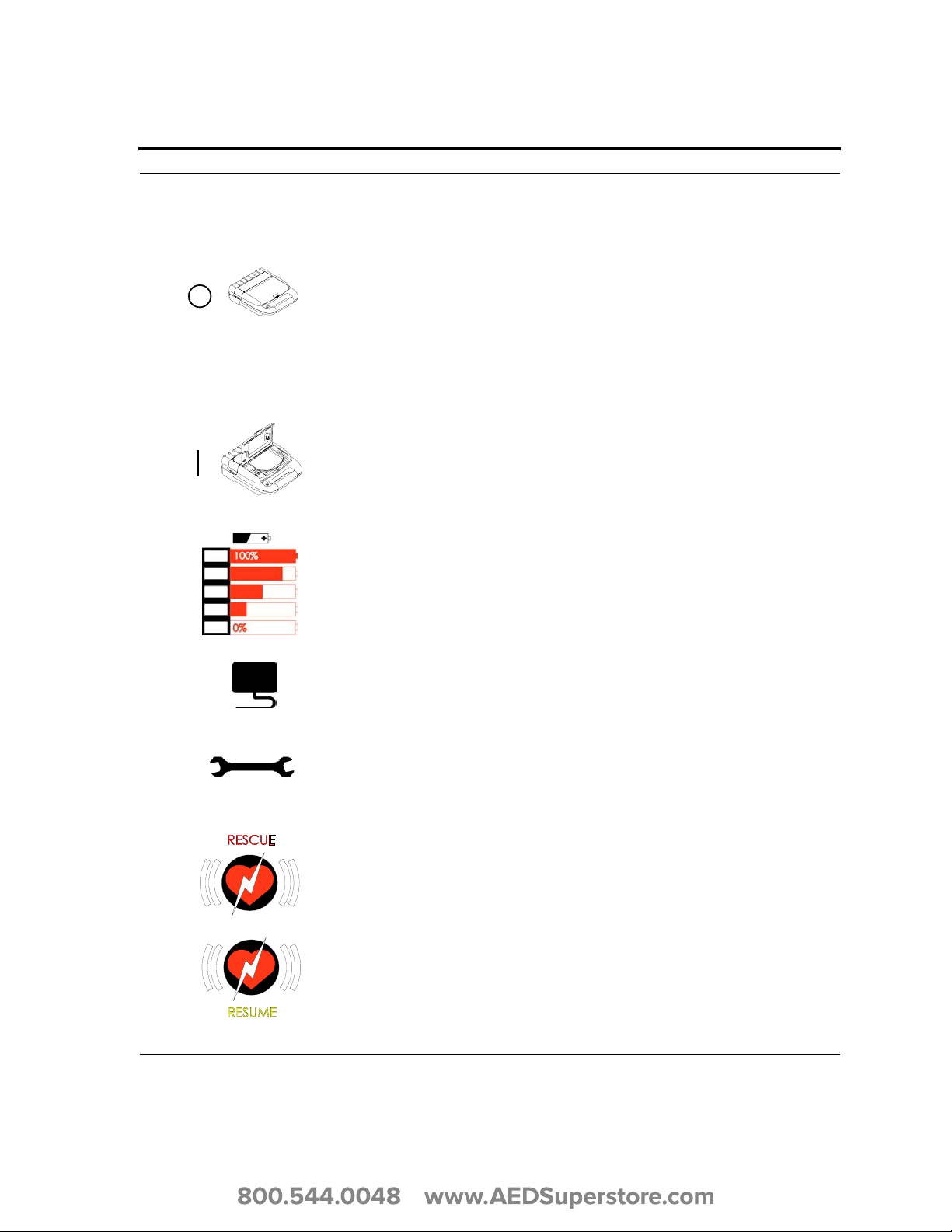

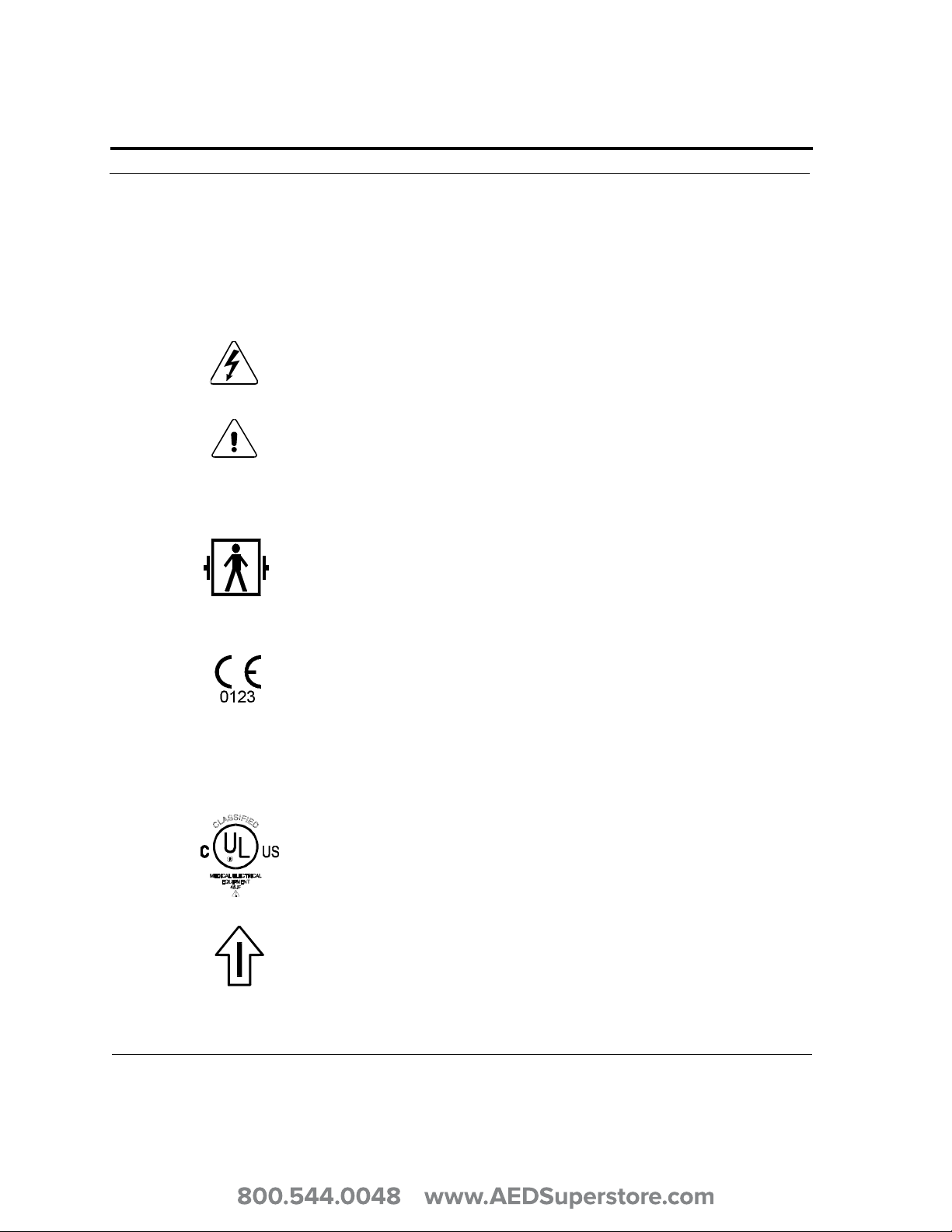

Symbols Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Section 2 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Survivalink AED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Survivalink AED Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Survivalink AED Rescue Sequence . . . . . . . . . . . . . . . . . . . . . . . 18
Survivalink AED Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . 20
IntelliSense Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
RescueReady Diagnostics (Self-Tests) . . . . . . . . . . . . . . . . . . . . 20
Maintenance Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rescue Data Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Text Display (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Internal Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Survivalink AED Operators and Indications for Use . . . . . . . . . . . . . . 22
Who Can Use the Survivalink AED? . . . . . . . . . . . . . . . . . . . . . . 22
What is the Operator’s Responsibility? . . . . . . . . . . . . . . . . . . . . 22
What are the Indications for Use? . . . . . . . . . . . . . . . . . . . . . . . . 22
What are the Contraindications for Use? . . . . . . . . . . . . . . . . . . 22
Survivalink AED Operator Training Requirements . . . . . . . . . . . . . . . 23
Section 3 Setup- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
Unpacking and Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Survivalink AED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Survivalink AED Operating and Standby Conditions . . . . . . . . . . 28
Survivalink AED Shipping and Transport Conditions . . . . . . . . . . 28
What You Should Know About the Batteries . . . . . . . . . . . . . . . . . . . 29
Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Battery Shelf-Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
To Install the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table of Contents
Page 4 ©2002 Cardiac Science, Inc. 300282-002Rev.E0
Activating the Survivalink AED Self-Tests. . . . . . . . . . . . . . . . . . . 31
What You Should Know About the Electrodes . . . . . . . . . . . . . . . . . . 32
To Install the Electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Survivalink AED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Audible Maintenance Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Diagnostic Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
SmartGauge Battery Status Indicator . . . . . . . . . . . . . . . . . . . . . . 35
Electrodes Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Service Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Rescue/Resume Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Rescue Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Resume Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Text Display (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Section 4 Rescue - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
Voice Prompt and Text Display Descriptions . . . . . . . . . . . . . . . . . . . 38
Pre-Rescue Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Performing the Rescue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Place Electrodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Survivalink AED Analyzes Rhythm . . . . . . . . . . . . . . . . . . . . . . . 44
Analyze/Charge/Defibrillation Shock . . . . . . . . . . . . . . . . . . . . . . 45
CPR Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Repeat Analyze/Charge/Defibrillation Shock Sequence. . . . . . . . 46
Non-Shockable Rhythm or Patient Converts to NSR . . . . . . . . . . 46
Transfer Patient to ALS Personnel . . . . . . . . . . . . . . . . . . . . . . . . 47
Post Rescue Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Section 5 Data Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 49
Internal and External Data Storage Capacity . . . . . . . . . . . . . . . . . . . 50
Survivalink AED Internal Storage Capacity . . . . . . . . . . . . . . . . . 50
External Memory Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Storing and Retrieving Rescue Data . . . . . . . . . . . . . . . . . . . . . . . . . 51
Inserting a Rescue Data Card Into the Survivalink AED . . . . . . . 51
Storing Data on a Rescue Data Card . . . . . . . . . . . . . . . . . . . . . 51
Transferring Data to a Rescue Data Card . . . . . . . . . . . . . . . . . . 52

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 5
Table of Contents
Retrieving Data From a Rescue Data Card . . . . . . . . . . . . . . . . . 52
Section 6 Maintenance & Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - 53
Self-Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Daily Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Weekly Self-Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Monthly Self-Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Performing the Annual Maintenance . . . . . . . . . . . . . . . . . . . . . . 56
Repair Service and Service Indications . . . . . . . . . . . . . . . . . . . . . . . 58
Authorized Repair Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Service Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Indicator Troubleshooting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Rescue Questions and Answers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Diagnostics Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . 62
Battery Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Section 7 Technical Data - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 67
Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Safety and Performance Standards . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Survivalink AED Models 9100/9110 & 9200/9210 . . . . . . . . . . . . 72
Clinical Study Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Comparison of Survivalink’s Biphasic and Monophasic
Truncated Exponential Waveforms . . . . . . . . . . . . . . . . . . . . . . . 81
Clinical Study Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Section 8 Parts & Software- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 83
Standard Parts and Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Model 9140 Standard 2-Year IntelliSense Battery . . . . . . . . . . . . 84
Defibrillation Electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
RescueLink Software Program . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Serial Communication Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
RescueLink User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Optional Parts and Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Model 9141 5-Year IntelliSense Extended Life Battery . . . . . . . . 85
PCMCIA Card Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Table of Contents
Page 6 ©2002 Cardiac Science, Inc. 300282-002Rev.E0
Rescue Data Storage Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
MDLink Options Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
MDLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
MDLink Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 7
Section 1 Safety
Overview
This section presents safety information to guard against injury to
persons, and damage to the Survivalink AED. The discussions are
Dangers, Cautions, Warnings, and Symbols.
Topic P age
Safety Alert Definitions 8
Safety Alert Descriptions 9
Symbols Descriptions 12

Section 1: Safety
Page 8 ©2002 Cardiac Science, Inc. 300282-002 Rev. E0
Safety Alert Definitions
Before Operating the Survivalink AED:
Before operating the Survivalink AED, become familiar with the various
safety alerts in this section.
Safety alerts identify potential hazards using symbols and words to
explain what could potentially harm you, the patient or the Survivalink
AED.
Safety Terms and Definitions
The triangle attention symbol shown below, left, identifies the potential
hazard categories. The definition of each category is as follows:
DANGER: This alert identifies hazards that will cause serious personal
injury or death.
WARNING: This alert identifies hazards that may cause serious
personal injury or death.
CAUTION: This alert identifies hazards that may cause minor personal
injury, product damage, or property damage.
The term “Survivalink AED” refers to Models 9100/9110 & 9200/9210.

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 9
Section 1: Safety
Safety Alert Descriptions
The following is a list of Survivalink AED safety alerts that appear in this
section and throughout this manual. You must read, understand, and heed
these safety alerts before attempting to operate the Survivalink AED.
DANGER: Fire and Explosion Hazard
Exercise caution when operating the Survivalink AED close to
flammable gases (including concentrated oxygen) to avoid possible
explosion or fire hazard.
WARNING: Shock Hazard
Defibrillation shock current flowing through unwanted pathways is
potentially a serious electrical shock hazard. To avoid this hazard during
defibrillation abide by all of the following:
• Do not touch the patient, unless performance of CPR in indicated
• Do not touch metal objects in contact with the patient
• Keep defibrillation electrodes clear of other electrodes or metal parts in
contact with the patient
• Disconnect all non-defibrillator proof equipment from the patient before
defibrillation
WARNING: Shock and Possible Equipment Damage
Disconnect all non-defibrillator proof equipment from the patient before
defibrillation to prevent electrical shock and potential damage to the
equipment.
WARNING: Battery is Not Rechargeable
Do not attempt to recharge the battery. Any attempt to recharge the
battery may result in an explosion or fire hazard.
CAUTION: Possible Radio Frequency (RF) Susceptibility
RF susceptibility from cellular telephones, CB radios, and FM 2-way
radio may cause incorrect rhythm recognition and subsequent shock
advisory.
When attempting a rescue using the Survivalink AED, do not operate
wireless radiotelephones within 1 meter of the Survivalink AED—turn
power OFF to the radiotelephone and other like equipment near the
incident.

Section 1: Safety
Page 10 ©2002 Cardiac Science, Inc. 300282-002 Rev. E0
CAUTION: Moving the Patient During a Rescue
During a rescue attempt, excessive jostling or moving of the patient may
cause AEDs to improperly analyze the patient’s cardiac rhythm. Stop all
motion or vibration before attempting the rescue.
CAUTION: Use only Survivalink Approved Equipment
Using batteries, electrodes, cables, or optional equipment other than those
approved by Survivalink may cause the Survivalink AED to function
improperly during a rescue.
CAUTION: Serial Communications Cable
The Survivalink AED will not perform a rescue when a serial
communication cable is connected to its serial connector. The voice
prompt will say, “remove cable to continue rescue.”
CAUTION: Possible Interference With Implanted Pacemaker
The Survivalink AED may not advise a defibrillation shock when the
patient has an implanted pacemaker.1However, a defibrillation attempt
should be made if the patient:
• Is unconscious and
• Is not breathing and
• Has no pulse
Placing Electrodes:
• Do not place the electrodes directly over an implanted device
• Place the electrode pad at least one inch from any implanted device
CAUTION: Lithium Sulfer Dioxide Battery
Pressurized contents; never recharge, short circuit, puncture, deform, or
expose to temperatures above 65°C (149°F). Remove the battery when
discharged.
CAUTION: Battery Disposal
Recycle or dispose of the lithium battery in accordance with all federal,
state and local laws. To avoid fire and explosion hazard, do not burn or
incinerate the battery.
1. Cummins, R., ed., Advanced Cardiac Life Support; AHA (1994): Ch. 4.

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 11
Section 1: Safety
CAUTION: Temperature/Humidity/Pressure Extremes
Exposing the Survivalink AED with the battery installed to extremes,
outside the following operation and standby conditions, will cause the
self-tests to be disabled and could cause the Survivalink AED to function
improperly. Storing the Survivalink AED outside the stated temperature
conditions for 5 consecutive days will result in a “Service required” alert.
• Temperature 0°C to 50°C (32°F to 122°F)
• Humidity 5% to 95% (non-condensing)
• Pressure 57kPa (+15,000 ft) to 170kPa (-15,000 ft)

Section 1: Safety
Page 12 ©2002 Cardiac Science, Inc. 300282-002 Rev. E0
Symbols Descriptions
The following symbols may appear in this manual, on the Survivalink
AED, or on its optional components. Some of the symbols represent
standards and compliances associated with the Survivalink AED and its
use.
Dangerous Voltage: The defibrillator output has high voltage and can
present a shock hazard. Please read and understand all safety alerts in this
manual before attempting to operate the Survivalink AED.
Attention!: Identifies important information in this manual, on the
Survivalink AED, or on its component parts regarding the safe and proper
use of the Survivalink AED.
Defibrillator Proof Type BF Equipment: The Survivalink AED, when
connected to the patient’s chest by the electrodes, can withstand the
effects of an externally applied defibrillation shock without diverting the
shock from the patient or into the Survivalink AED.
CE Mark: This equipment conforms to essential requirements of the
Medical Device Directive 93/42/EEC.
The Survivalink AED is protected against the effects of spraying water in
accordance with IEC 529.
Classified by Underwriters Laboratories Inc. with respect to electric
shock, fire and mechanical hazards only in accordance with UL 2601-1
and IEC 601-2-4, IEC SC 62D/WG2 (O’Dowd) and CAN/CSA C22.2
No.601.1-M90.
International symbol for ON. Open the lid to turn ON the Survivalink
AED.
IP23

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 13
Section 1: Safety
FAA TSO marking: This battery conforms to the FAA lithium sulfer
dioxide batteries technical standard order, TSO C97.
International symbol for OFF. Close the lid to turn OFF the Survivalink
AED.
Open the lid to turn ON the Survivalink AED.
Indicates the Survivalink AED battery status. The shaded areas indicate
the remaining battery capacity.
Check the electrodes. The electrodes are either missing or out of
specification. Also, on the electrode packaging, this symbol represents
one pair.
Indicates Survivalink AED requires maintenance by authorized service
personnel.
When lit, push this button to deliver a defibrillation shock.
When lit: push this button to clear the internal memory to allow storage of
new rescue data in the Survivalink AED.
TSO-C97

Section 1: Safety
Page 14 ©2002 Cardiac Science, Inc. 300282-002 Rev. E0
RED with a BLACK Xmeans the Survivalink AED requires operator
attention or maintenance, and is not RescueReady. For purposes of
retaining simple, clear instructions, this symbol will be referred to as RED
in the remainder of this manual.
GREEN without a BLACK Xmeans the Survivalink AED is
RescueReady. For purposes of retaining simple, clear instructions, this
symbol will be referred to as GREEN in the remainder of this manual.
Use by or install by date.
Expiration Date. Replace by this date.
Latex Free.
Disposable. Single patient use only.
Tear here to open.
Do not recharge battery.
The patient is unconscious.

300282-002 Rev. E0 ©2002 Cardiac Science, Inc. Page 15
Section 1: Safety
The patient is not breathing.
The patient has no pulse.
Place the electrodes on the chest of the patient.
The maximum energy delivered.
For use by or on the order of a Physician, or persons licensed by state law.
Dispose of properly in accordance with all state, province, and country
regulations.
Do not incinerate or expose to open flame.
Explosion Hazard: Do not use in the presence of a flammable gas,
including concentrated oxygen.
Upper and lower temperature limits.
Not Breathing
No Pulse

Section 1: Safety
Page 16 ©2002 Cardiac Science, Inc. 300282-002 Rev. E0
Serial Number.
Lot Number.
Additional information is provided in the Survivalink AED Operation and
Service Manual.
Points to important information regarding the use of the Survivalink
AED.
Lift Here
SN
