AED LUXIBEL B DIRECT User manual
UVC disinfection systems
TECHNICAL & USER MANUAL
This manual is subject to change without further notice. No rights can be derived from this manual. No part of this manual may be reproduced, in any form or by
any means, without prior written consent from AED Distribution NV, Belgium.
Luxibel® is a registered trademark of AED Distribution NV.
Luxibel® - 2020 - www.luxibel.com
Luxibel B Direct & B Direct II manual 1Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
CAUTION UV LIGHT
The product as described herein contains components that emit UVC light. Immediate or prolonged exposure to UVC
light can result in painful injury such as eye injury, skin burn, premature skin aging or skin cancer.
Do not use the product before carefully reading this manual.
Always keep this manual with the product and consult it regulary.
Luxibel B Direct & B Direct II manual 2Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
1. Using this manual - general
This manual (hereinafter referred to as the“Manual”) is intended to be used as work of reference for professional, well
trained and authorised users to be able to safely install, use, maintain and repair the product mentioned on the cover of
this document (hereinafter referred to as the“Product”). The observation of the Manual does not dispense the user from
the observance of the local safety instructions and regulations other than provided by the Manual. Such safety instruc-
tions and regulations must be observed at all time.
For information about specic adjustments, maintenance or repair jobs which are not dealt with in this manual, please
contact your Product supplier or Luxibel.
If you suspect that the Product is damaged or detect a potential or actual danger when using the Product, immediately
discontinue use of the Product and contact your supplier of the Product.
WARNING
When in operation the Product will emit UVC radiation. UVC radiation is invisible to humans
and exposure to UVC radiation may cause serious damage to eyes and skin.
The oodlights contain a small amount of mercury which can be poisonous at certain con-
centrations
Avoid:
direct or indirect lighting on eyes or skin of humans or animals;
usage of the Product with the presence of humans and animals;
exposure to direct or strongly reected UVC light.
Basic safety instructions
To minimise the risk of injury, the following basic safety precautions should be observed with each use of the
product:
1. Before use, read and save all notices, warnings and safety instructions received with the Product;
2. Before each use, inspect the Product for damage and verify the proper functioning of its safety features; do not oper-
ate the Product if in case of actual or suspected damage or if its safety features do not function properly;
3. Select Product mounting locations that prevent exposure of persons and vulnerable components to the UVC-light,
such as by placing the on/o switch elsewhere than in direct exposure to UVC-Light. If that is not possible, minimize
the exposure to UVC-light and use adequate personal protection and protect vulnerable components with UV resistant
material;
4. Before performing any service or maintenance always unplug the Product and disconnect the power supply;
5. Manage the disposal of the Product and in particular of the oodlights with care and according to your local disposal
laws.
6. In case of actual or suspected damage to the oodlights, immediately ventilate and leave the room until it is ventilated.
7. Place warning signs near all access panels or doors to a space containing the Product.
Luxibel B Direct & B Direct II manual 3Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
8. Do not:
operate the Product without proper electrical grounding;
wash the Product with water under pressure or by immersion;
alter the construction or design of the Product and do not remove any safety labelling or devices;
use the Product for other than its intended purposes, as described in the Manual;
look directly at the Product and do not remain in the operation eld of the Product when in operation unless abso-
lutely necessary. If that is absolutely necessary wear personal protective equipment including UV safety goggles, UV
face shields, long-sleeved, tightly-woven clothing that covers the body and gloves.
2. Disclaimers
Luxibel, being AED DISTRIBUTION SA, with registered oce at Bedrijvenpark De Veert 13/4, 2830 Willebroek (Belgium), or
any of its aliates, does not accept any liability for material damage, including damage to the Product, or personal injury
caused by non-observance by the user of the safety instructions in the Manual or the applicable laws. As such Luxibel
shall among others not be liable for any damage or injury if the Product is used contrary to or for purposes other than
its intended use, is installed, used, maintained or repaired negligently or contrary to the instructions mentioned in the
Manual or on the Product, when the Product is modied and when the safety devices and features of the Product are
disregarded or overridden.
3. Safety instructions and warnings
3.1 User manual
Every person using the Product must read, familiarize themself and understand the contents of the Manual before any
use of the Product and must strictly observe the instructions set out herein. If you are an employee or are acting on be-
half of another person, your employer/that person must instruct you in accordance with the Manual and ensure that all
instructions set out herein are complied with. Please do not use the Product if that is not the case.
To ensure the safe use of the Product this Manual must always be kept with the Product in legible condition.
3.2 Intended use and installation
The Product is intended exclusively for air and surface disinfection. Using the Product for other purposes is contrary to its
intended use and is done at own risk.
To ensure safe use of the Product, its installation, including all of its safety features and devices, and its maintenance and
repair must be carried out correctly by duly skilled and authorised persons. All of the Product safety features and devices
must be mounted and may not be removed but for the purpose of maintenance and repair.
The Product is not intended to be used by minors. Any use of the Product by minors, regardless whether or not under the
supervision of an adult, is at own risk.
Luxibel B Direct & B Direct II manual 4Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
3.3 Safety features & devices of the Product
Each Product is equipped with the following safety features and devices, including devices disconnecting the power sup-
ply in certain circumstances for the purpose of avoiding accidental exposure to UVC-light:
Sound alarm: during operation a continuous sound will be emmited from the unit
Visible alarm: embedded RED led works continuous during operation o the unit
Motion sensor: if any motion is detected , the motion sensor will turn o the unit
It is strictly forbidden to override these safety devices or to use the Product if the safety features are not fully present or
disfunction.
The safety features should be regularly checked for their proper functioning, and if required, be immediately repaired or
replaced.
The pictograms, warnings and instructions attached to the Product are part of its safety features. They must not be cov-
ered or removed and must be present and legible during the entire use of the Product.
Immediately replace or repair missing, damaged or illegible pictograms, warnings and instructions.
3.4 Modication
Under no circumstances any modication of the Product may be done by any person other than Luxibel.
4. General characteristics and technical specications
The Product is designed to emit UVC radiation with a wavelength of 253,6 nm, in order to eliminate 99% of viruses, bacte-
ria, fungi and harmful microorganisms.
The UVC lamps are designed for approximately 9000 hours of ecient operation. UVC lamps used longer than this, may
no longer emit the required level of ultraviolet radiation to ensure the desired eect on bacteria or fungi.
Technical data
Type B Direct B Direct II
Voltage 230 V; 50 Hz 230 V; 50 Hz
Isolation Class I (requires electrical grounding) Class I (requires electrical grounding)
Light source 1x 55 W HO 2x 55 W HO
Radiation 253,7 nm 253,7 nm
Driver VS LN58.116 VS LN58.116
Power consumption 57 W 112 W
IP class IP20 IP20
Coverage area up to 22 m2up to 38 m2
Reco disinfection time < 15 min < 15 min
Weight 5,0 kg 5,3 kg
Dimensions (H x W x D) 1080 x135 x 165 mm 1080 x135 x 245 mm
Light source lifetime 9000 hrs 9000 hrs
Luxibel B Direct & B Direct II manual 5Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
5. Construction and operation
1. UVC lamp
2. Reector
1245
378 6 8
15 4
7 6 3
2
3. Ballast
4. Housing
5. Electronics housing
6. Mounting bracket
7. Mounting lock
8. Cover
Dimensions
165 mm
245 mm
1080 mm
1080 mm
135 mm
135 mm
6. Installation of the product
Perform the following steps for the installation of the Product.
CAUTION: Electrical installation must be carried out correctly and by authorized electricians only.
Do not enter a room without rst turning o ultraviolet lighting.
Outside every room where direct UVC light is used, there must be warning sings in clear line of sight.
Extra signals can be added that specify the hours of use or other important relevant notications
Luxibel B Direct & B Direct II manual 6Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
6.1 Choose the appropriate location
Choosing the appropriate location is important for the proper functioning and safe use of the Product.
Install the Product in a protected area where the temperature does not fall below 5° C and the humidity level is low. The
Product functions ideally in a temperature range from 15°C to 25° C.
Select Product mounting locations that prevent exposure of persons and vulnerable components to the UVC-light, such as
by placing the ON/OFF switch elsewhere than in direct exposure to UVC-Light. If that is not possible, minimize the exposure
to UVC-light and use adequate personal protection and protect vulnerable components with UV resistant material.
Luxibel obliges placing the ON/OFF switches for the Product separate from general room lighting and only accessible by
authorized and duly trained persons.
6.2 Remove the shipping assembly
Remove the tape from the box and open the box. Take the unit out of box and remove wrapping that protects the unit.
Make a visual inspection of the unit.
6.3 Before installing the Product
Read and save all notices, warnings and safety instructions received with the Product. Inspect the Product for damage
and verify the proper functioning of its the safety features. Do not operate the Product if in case of actual or suspected
damage or if its safety features do not function properly.
6.4 UVC Lamp Installation
Perform the following procedure to install the UVC lamp using gloves:
1. Insert the lamp with the dowels into the slots of the holders and rotate it about 90 degrees around the axis.
2. Clean the lamp after handling with 99% isopropyl alcohol and a lint free cloth.
CAUTION: Do not touch the lamp without gloves. Damage to the lamp may result. Oil from ngerprints
will permanently etch the glass of the lamp and weaken the structure.
6.5 UVC xture installation

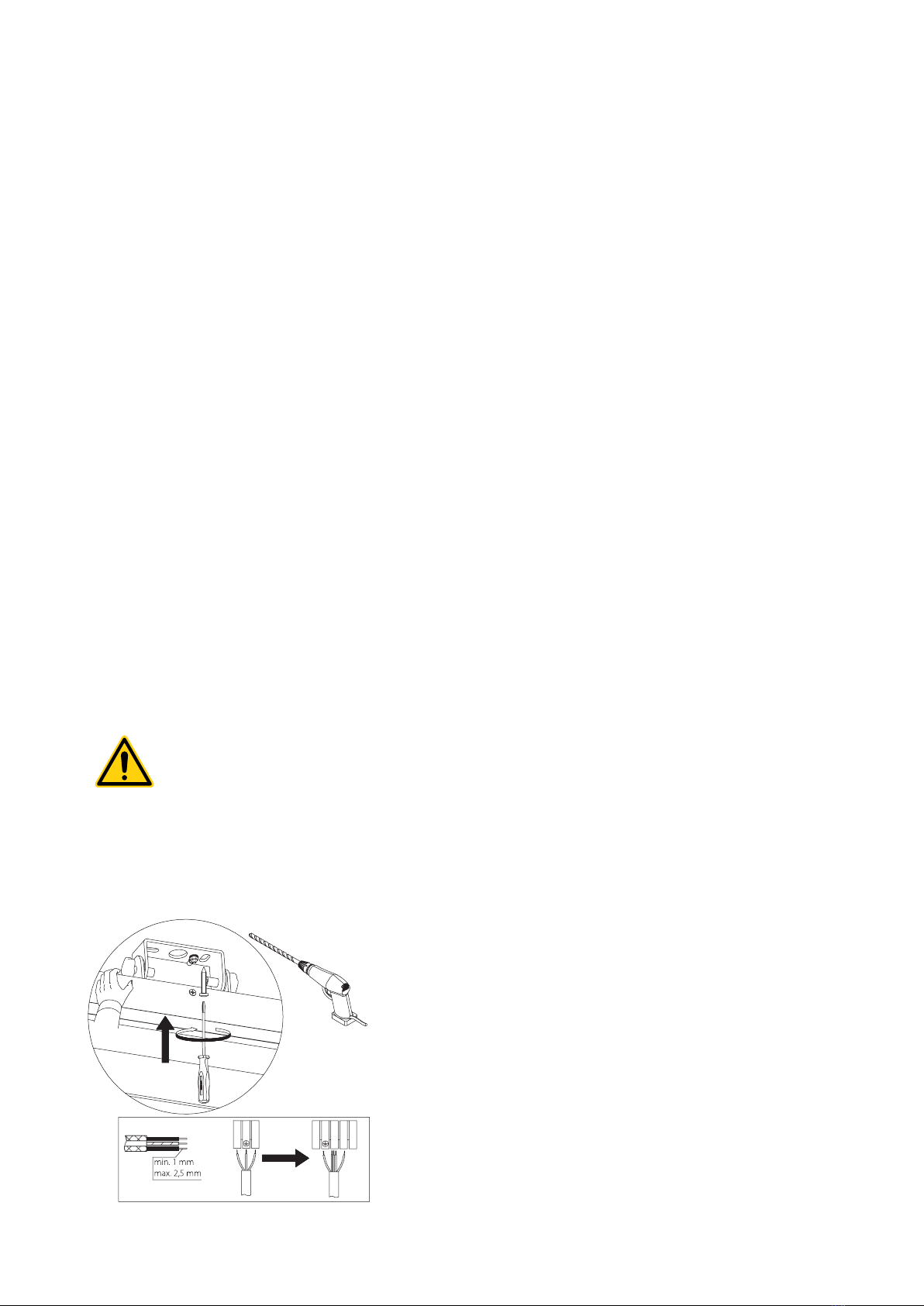

The unit must be attached to a at surface by means of at least 2 mounting pins, preferably near electrical wires with
grounding. The mounting pins and surface must be strong enough to hold 4 times the weight of the unit.
NN
LL
NN
LL
DADA
DADA
Luxibel B Direct & B Direct II manual 7Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
6.6 Wiring the Product to power source
UVC lamps must be operated continuously from a separate, dedicated, 220-240 V power source.
Ensure main power is disconnected prior to connecting the unit or making any changes to cabling con-
gurations.
Electrical installation must be carried out correctly by authorized electricians.
Standard: 230V 50Hz
Brown = Line cable
Yellow green = Earth cable
Blue = Neutral cable
This device is a class 1 electrical isolation and must be earthed.
6.7 Testing the Product
Test the Product before putting it to use. While lit, the UVC lamp should emit green/blue light. If the UVC lamp colour
changes to red or if the lamp ickers, the lamp will no longer emit the required level of ultraviolet radiation to ensure the
desired eect on bacteria or fungi.
If the UVC lamp colour changes to red or if the lamp ickers, replace the lamp.
6.8 Operation of the unit
The control method for direct UVC cannot be in the same room as the units and should be
installed in such a way that only authorized persons can control it.
All employees attending the building must be informed of the use of direct UVC light, and how it’s safety
features work.
An informational Video will soon be at your disposal to explain this easily. This can be used to explain the
employees the working of the uvc installation. See www.luxibel.com for more information.
A responsible and authorized person must be appointed for operating and maintaining the installation
correctly.
The responsible person must be trained and educated about the use and risks of UVC.
Do not radiate UV-C light on humans and animals! UVC radiation can be harmful to skin and eyes.
The installation can only be powered on when NO humans or animals are present in the room. When manual operated
,the room must be checked and locked before UVC lights can be powered on. Automation of UVC lights can only be
done in controlled environment and must be implemented in such way that no people or animals can be in this room
during operation.
Luxibel B Direct & B Direct II manual 8Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
Understanding the units operation:
Once Direct 1 and Direct 2 is powered on:
Motion sensor will be activated
Sound alarm will be activated and alarm continuously
Led will ash continuously
As long as the unit is under operation you will be hearing an alarm and you can see the led ashing. You
cannot enter the room.
If somebody does enter the room. The motion sensor (360°) will detect the movement and Within 20ms after detection,
the unit will be powered o. Once motion sensor is interrupted the unit will not power itself back on. The power to the
unit needs to be interrupted by authorized person to restart the unit.
7. Product failure
Failure To Do
unit doesn’t light up check incoming power
check cable damage
check if lamp is correctly installed
unit ickers check if lamp is correctly installed
replace lamp
alarm doesn't work reset the unit
red led doesn't work reset the unit
If the failure is unsolved or recurring, please return the unit to an ocial Luxibel dealer / service center for
repair or replacement. (see 10. repair)
8. Cleaning and maintenance
Clean and replace the lamps at the required service intervals.
Before performing any service or maintenance always unplug the Product and disconnect the power supply.
Clean the external surfaces with a soft cloth and non-aggressive cleaning agents only. Clean the UVC lamps using alcohol
wipes and a lint free cloth only.
CAUTION: Turn o and lock out ALL unit power before performing any maintenance, service or cleaning. Do
not wash the Product with water under pressure or by immersion. Do not touch the lamp without gloves.
CAUTION: Appropriate PPE equipment should be worn any time when there is a possibility of eye contact with
the light emitted by the UV-C lamps and/or of direct contact the light emitted by the UV-C lamps with the skin.
Luxibel B Direct & B Direct II manual 9Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
9. Replacement of the UVC lamp
Luxibel recommends replacing the UVC lamp once a year and each time when its output falls below 80% of initial radi-
ometer reading.
1. Carefully grasp the glass bulb (use cotton gloves), rotate it about 90° around the axis and remove from the holders.
2. Insert the new lamp with the dowels into the slots of the holders and rotate it about 90° around the axis to lock it.
CAUTION: Always disconnect power to the Product before replacing the UVC lamp.
NOTE: Use only the original specied spare parts, including Philips UVC lamps. Use of other spare parts may result in
damage to the Product.
10. Repairs
If the Product is damaged or malfunctions, contact the Luxibel Service Department or a Luxibel authorized distributor.
Repairs by parties other than Luxibel or a Luxibel authorized distributor may not involve the use of Luxibel genuine parts
and may aect the safety and functionality of the Product.
For repair options or specic inquiries, please contact the Luxibel Service Department.
Luxibel B Direct & B Direct II manual 10Bedrijvenpark De Veert 13/004, 2830 Willebroek | +32 3 860 73 50 | inf[email protected] | www.luxibel.com
Notes
All rights reserved. No part of this manual may be copied or published by means of printing, photocopying, microlm
or otherwise without the prior written consent of the manufacturer. This restriction also applies to the corresponding
drawings.
The information given in this manual has been collected for the general convenience of our customers. It has been
based on general data pertaining to construction material properties and working methods known to us at the time of
issue of the manual and is therefore subject at any time to change or amendment, and the right to change or amend is
hereby expressly reserved. The instructions in this manual only serve as a guideline for installation, use, maintenance and
repair of the product mentioned on the cover page of this document. This manual is to be used for the standard model
of the product of the type given on the cover page. Thus the manufacturer cannot be held responsible for any damage
resulting from the application of this manual to any other product.
This manual has been written with great care. However, the manufacturer cannot be held responsible, either for any
errors occurring in this manual or their consequences.
AED Distribution NV
Bedrijvenpark De Veert 13/004, 2830 Willebroek, Belgium
+32 3 860 76 50 | info@luxibel.com
www.luxibel.com
www.AEDgroup.com
This manual suits for next models
1
Table of contents
