AEG Electrolux FM 7803K-an User manual

FM 7803K-an
949 601 305325 88-8374 rev. 3-343GB
INSTRUCTION BOOK

2
Your New Appliance
Thank you for purchasing an AEG appliance.
To enable you to use your new appliance efficiently and safely, please read this
instruction book carefully before installing or using the appliance, and retain for
future reference. Should the appliance be transferred to a new owner please
ensure this instruction book is left with the appliance in order that the new owner
can get to know the functions of the appliance and the relevant warnings.
If you require further assistance or advice, please contact our Customer Care
Department either by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
SL1 1DZ
Tel: [phone]*
* calls to this number may be recorded for training purposes

3
Contents Page no.
For the User
Your New Appliance ........................................................................................ 2
Safety Information .......................................................................................... 5
Product Description ........................................................................................ 7
Ceramic Hob .......................................................................................... 8
Induction.................................................................................................. 8
Before use ........................................................................................................ 10
Protect the ceramic hob .......................................................................... 10
How to Use ...................................................................................................... 11
Ceramic Hob .......................................................................................... 11
Finger Touch .......................................................................................... 12
Cooking Zones ........................................................................................ 12
Residual Heat Indicator .......................................................................... 13
Power ...................................................................................................... 14
AUTOMAX ............................................................................................ 16
Safety Turn-off ........................................................................................ 18
Autostop .................................................................................................. 18
Activating the Child Safety Device ........................................................ 19
Minute Minder ........................................................................................ 21
Timer ...................................................................................................... 22
Suitable pans .......................................................................................... 24
Advise and Tips for Using the Cooking Zones ...................................... 25
Cleaning and Maintenance of ........................................................................ 26
Aluminium .............................................................................................. 26
Ceramic Hob .......................................................................................... 26
What to do if .................................................................................................... 37
Service and Spare Parts .................................................................................. 39
Guarantee conditions ...................................................................................... 40

4
Contents Page no.
For the Installer
Unpacking ........................................................................................................ 27
Technical Specifications .................................................................................. 28
Installation........................................................................................................ 29
Mounting .......................................................................................................... 30
1... 2... Step by step
Safety information
Hints and tips
Environmental information
How to read the operating instructions
The products are continuously being developed and it may occur that some product specifications
are changed after this instruction book was printed. We therefore have to make reservation for any
changes or printing errors.

5
Safety Information
Keep an eye on children when the
hob is in use. Pans get very hot
when used and remain warm for
some time after the hob has been
turned off. Never let children touch
or play with the controls.
Never leave the hob unattended
when deep fat frying, or heating fats
and oils. In the event of fire turn off
all controls and if you have a cooker
hood this must be turned off as well.
Never leave paper, dish cloths, alu-
minium foil or any other easily ignit-
ed materials close to the
hob. A hot hob can cause foil, plastic
or paper to melt or burn.
Put out flames with a lid, and
never use water.
Check that the hob is turned off
when not in use.
Persons with pacemakers should
keep their upper body at a minimum
distance of 30 cm from the zones
when turned on.
Never place any magnetically
charged objects (e.g. credit cards,
cassettes etc.) on the vitroceramic
The hob is intended for domestic use
only. If it is used in any other way
there is a risk of accidents.
Children
Use
For reasons of hygiene and safety
the cooking zones must be kept
clean. Grease and spilt food liberate
smoke when heated and may at
worst cause fire.
Service and repair must be per-
formed by our service organisation
or an organisation approved by us.
Only spare parts supplied by our
service organisation may be used.
Make sure the packaging is disposed
of in such a manner that children
cannot access the used packaging.
Cleaning and Maintenance
Service
Unpacking
The product may only be installed
by an authorised electrician or a per-
son authorised by the manufacturer.
Work performed by an unauthorised
person may lead to injuries or build-
ing damages and deteriorate the
functionality of the product. When
installing make sure the cord does
not get jammed.
Installation
hob while the zones are turned on.
Never place metal objects (spoons,
pan lids etc.) on an induction zone.

6
Help prevent accidents when dispos-
ing of the product. Remove the cable
from the wall plug and cut off the
cable close to the product.
Disposal

7
Product Description
1. Cooking zone Ø 180 mm, 1800 W,
2300 W power
2. Cooking zone Ø 140 mm, 1400 W.
3. Cooking zone Ø 140 mm, 1400 W
4. Cooking zone Ø 210 mm, 2200 W,
3000 W power
5. Control panel
13
24
5
221
44 22 22 44 2233
556
7
8
7787
3 3
Control Panel
1. On / off
2. Setting of steps
3. AUTOMAX/Power
4. Timer
5. Minute minder
6. Child safety
7. Display for setting cooking zones
8. Minute display

8
Ceramic glass is insensitive to tem-
perature shock and very robust:
however it is not unbreakable.
Especially sharp and hard
objects that fall on the cooking sur-
face can damage it.
Ceramic hob
Induction
When you switch on a zone, a high-
frequency magnetic field is formed
between the induction coil and the
magnetic base of the pan. This mag-
netic field contains induction cur-
rents. The base of the pan slows
down the induction currents, thus
forming heat which first heats the
pan base and then the food in the
pan.
Magnetic field
Ceran surface
Induction coil
Saucepan base
Quicker cooking
With induction, your pans become
hot immediately. This means you
save time and energy when cooking
by induction. As the necessary heat
for cooking the food is formed in the
base of the pan, the hob hardly gets
hot. However, it does absorb the sur-
plus heat from the pan base.

9
High safety levels
The individual zones will only get
hot when a pan with a magnetic base
is placed on them. It is impossible to
turn on an empty zone. When you
remove the pan from a lighted zone,
the zone will turn off even if you do
not switch it off. Remember that
there will still be residual heat in the
vitroceramic hob. The zone will
remember the last setting for about
20 seconds.
Overheating protection
When a pan is placed on a zone, the
pan will heat up. A sensor under
each zone measures the temperature
of the zone and the pan. If the tem-
perature gets too high, the zone will
automatically switch off.
Quick adjustment
When you turn on a zone, the pan
will become hot very quickly. When
you turn the heat down, the heat
quickly dissipates.
Easy cleaning
Any spills will not burn onto the vit-
roceramic hob as the area to the side
of the pan is not hot. Cleaning of
spills is therefore easy.

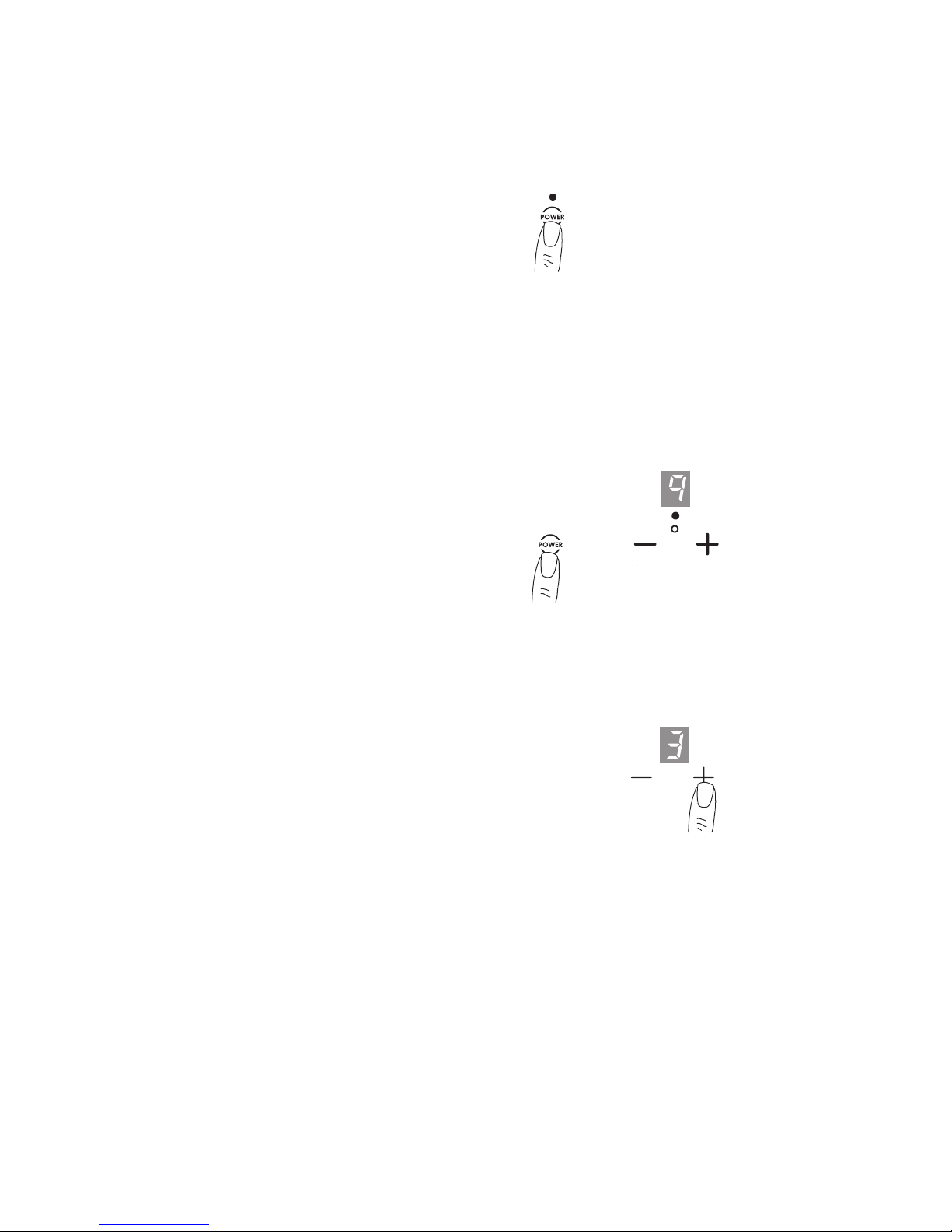

Power
The front zone has a facility for
switching in extra heat to give an
even quicker boiling time. When
using Power on the front zone the
rear zone cannot be set at the highest
setting. Information on how to use
Power is given in the Section “How
to use....Power”.
Cooling fan
A fan protects the electronics from
overheating. When you have fin-
ished using the zones, the fan will
continue to run until the electronics
have cooled down.
Electronic control system
The hob has an electronic control
system to ensure precise heat control
of the zones. The electronics have
the following functions:
- Power, extra heat
- AUTOMAX, automatic boiling
- Safety shutdown
- Autostop. Automatic turning off of
zones
- Child safety
- Minute minder and timer

10
Before Use
Protect the ceramic hob
Before using the hob for the first
time it must be cleaned for manufac-
turing residues such as dust, dirt etc.
Apply a protective coating on the
ceramic hob before you use it. This
way it becomes easier to clean the
glass and you prevent any spillage
from burning.

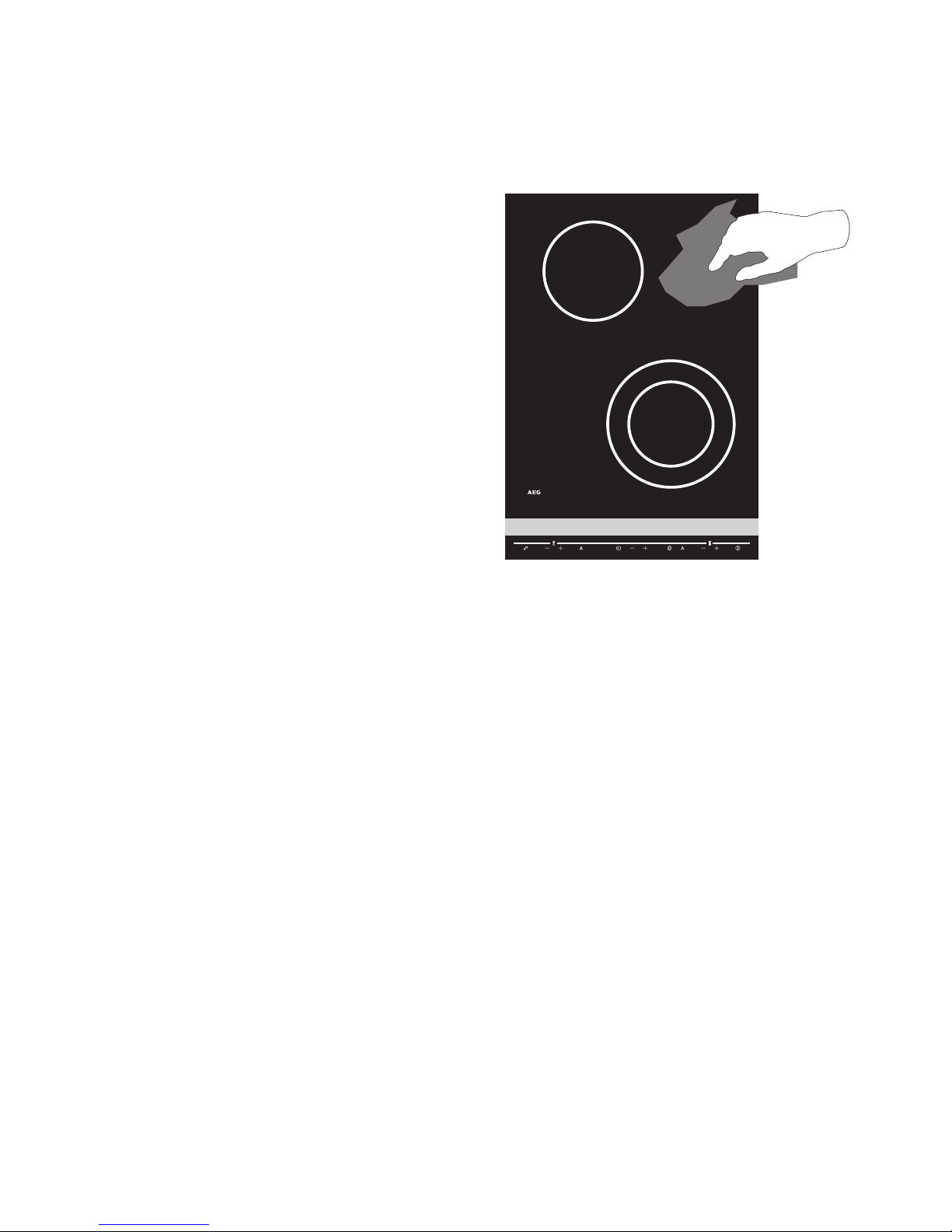

This is what you do:
1. Pour a few drops of the cleaning
agent supplied with the hob on
paper towel and rub it on to the
entire surface.
2. Polish the surface with a clean
cloth until it is dry.

11
How to use
Ceramic hob
Never use a cracked vitroce-
ramic hob.
Water could boil over and/or
cleaning agents penetrate
into the live electrical parts.
Switch off the power to the
appliance and contact
Service.
Never place aluminium foil,
paper, plastic or similar on
the hob. A hot heating zone
could cause foil, plastic or
paper to melt or burn.
Never leave the hob unat-
tended when deep frying or
melting fat, paraffin wax or
other easily ignited sub-
stances. In case of fire, turn
off all knobs and switch off
any cooker hood.
Put out the fire with a lid,
and never use water.
Scrape any spills from the
hob straight away with a
razor. Spills of sugar and
sugar-rich foods (jam, fruit
syrup etc.), melted plastic
and aluminium foil may
damage the hob. Never
place wet saucepans on the
hob.
Make sure there is no sand, sugar or
salt on the base of the pan. Sand can
cause scratches and sugar and salt
can damage the hob.
Always dry pans before placing
them on the hob. The coloured deco-
ration on the hob may wear away or
suffer scratches depending on use.
Do not use the ceramic hob without
the aluminium strip in place.
Do not use the ceramic hob as a
work surface as this could damage
the hob.

12
The keys are to be touched for mini-
mum 1 sec. before activation.
Finger Touch

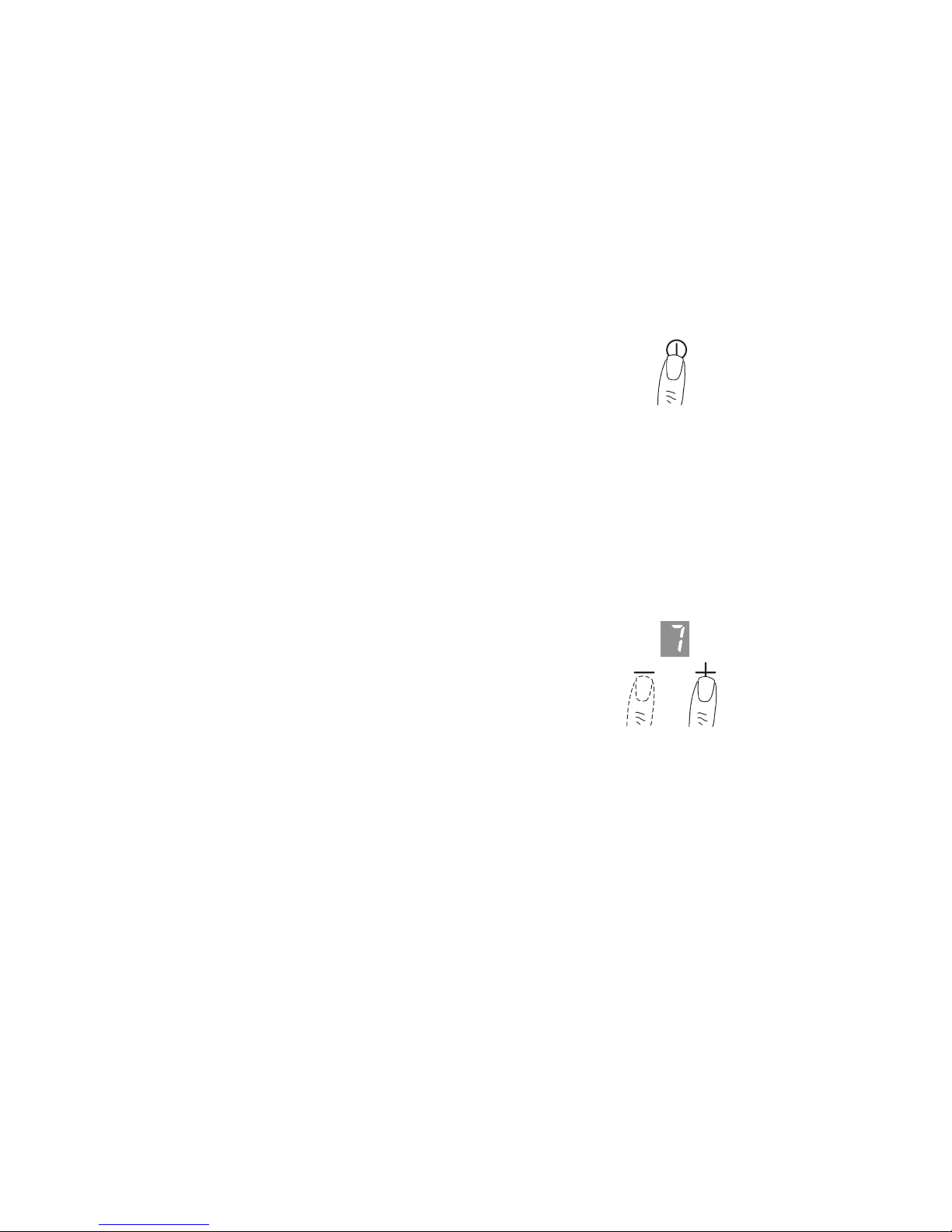

Cooking Zones
Zones can be set from 1-9, where 9
is the highest level.
1. Press the kbutton.
2. Press lor the mbutton to set
the desired zone.
Adjustment of the zones must take
less than 10 seconds, otherwise the
cooking section will turn off again.
Press the mbutton to set the zone
level by level from 0-9.
Press the lbutton to set the zone
level by level from 9-0.
If you keep pressing the lor m
button, the adjustment will be quick-
er - the hob will run through the
adjustment levels 1-9 and stop when
you reach “0”.
If there is no pan on the zone or if
the pan is not magnetic, “F” will
show on the display for max. 10
sec, after which the appliance will
turn off.

13
Turn off a single zone by pressing
the mor lbuttons until the dis-
play shows “0”. You can turn off a
zone quickly by pressing the land
mbuttons simultaneously.
Turn off all zones by pressing the
kbutton.
Residual Heat Indicator
Each cooking zone has a residual
heat indicator. When the cooking
zone is turned off the “H” is lit up in
the display until the cooking zone
has cooled. “H” is a warning that the
cooking zone is still hot.

14
Power
Switching on power
You can switch the front cooking
zone to extra heat for a maximum of
10 minutes .
1. Press the
kknob.
2. Set the cooking zone to level “9”
by pressing the lor mbutton.
3. Press the
Pbutton.
Power setting on the front right-
hand cooking zone
When Power is switched on, the
Power control lamp will light and
the cooking zone will output 3000
W. Meanwhile the rear right-hand
cooking zone will provide a maxi-
mum 600 W output, corresponding
to level 7. If you attempt to turn the
rear right-hand cooking zone to a
level higher than level 7 while the
front right-hand zone is set to Power,
Power will automatically be turned
off. The front cooking zone will then
continue operation at level 9.

15
Power setting on the rear left-hand
cooking zone
When Power is switched on, the
Power control lamp will light and
the cooking zone will output 2300
W. Meanwhile the front left-hand
cooking zone will provide a maxi-
mum 1300 W output, corresponding
to level 8. If you attempt to turn the
front left-hand cooking zone to a
level higher than level 8 while the
rear left-hand zone is set to Power,
Power will automatically be turned
off. The rear cooking zone will then
continue operation at level 9.
Deactivating Power
1. Press
P.
Changing from Power to a differ-
ent level
1. Press
P.
2. Press
lor muntil the desired
level shows on the display.

16
Automax
With AUTOMAX you do not need
to turn down the temperature. When
using AUTOMAX the zone gets full
heat for a certain amount of time
where after the cooking zone auto-
matically adjusts to the setting you
have chosen.
To adjust AUTOMAX you have to
do the following:
1. Turn on the hob, push k.
2. Adjust the desired cooking zone
at the setting you wish to use.
3. Push N.
When AUTOMAX is coded the con-
trol lamp for “A” will light up.
To turn off AUTOMAX, you have to
push N.
The “AUTOMAX” chart on the fol-
lowing page gives guidelines for
suitable heat settings for different
types of cooking.

17
Food types
Steaks
Schnitzels
Meat balls
Fried eggs
Sausages
Pancakes
Fritters
Potatoes
Vegetables
Omelette,
Scrambled eggs
Chocolate
Butter
Gelatine
Cooking process
Fierce frying
Frying
Thickening
Boiling/
steaming
Coagulation
Melting
A7-A8
A6-A7
A6-A7
A6
A6
A2
Time
to automatic
cutout
2½ mins
1½-2 mins
1½-2 mins
1½ mins
1½ mins
16 secs
Notes
Fry 3-4 min per side
depending on thickness.
Turn regularly
Use little water:
Max 2 dl water to
1 kg potatoes
Without water bath.
Stir frequently
AUTOMAX Settings

18
Autostop
If by mistake one or more cooking
zones have not been turned off
Autostop will automatically turn off
the hob after a certain amount of
time. The time depends on the set-
ting. See below table. When
Autostop has been in function the
control lamp for kflashes.
Push kto reset Autostop.
Setting Max hours before auto
turn-off
6
5
4
1,5
1-2
3-4
5
6-9
Safety Turn-off
If one of the keys are activated for
more than 10 seconds (e.g. by a
child, pot spillage etc.) the hob is
automatically turned off.

19
Activating the Child Safety
Device
With the child safety function chil-
dren can be prevented from turning
on the hob unintentionally.
When the child safety is activated
you can still use the kkey and the
minute minder.
Activating the Child Safety Device
1. Turn on the hob, push the k
key
2. Push the
jkey for 3 seconds.
The control lamp for child safety
lights up.
If you try to turn on the hob when
the child safety is activated the con-
trol lamps for kand jwill light
up.
Push again on kto turn off.
To use the hob when the child safety
is activated do the following:
1. Push the kkey.
2. Push the jkey and the key you
wish to use simultaneously.
The child safety is disengaged while
the hob is in use. When the hob is
turned off the child safety is auto-
matically activated.

20
De-activating the Child Safety
1. Push the kkey.
2. Push the
jkey for 3 seconds.
The control lamp for child safety
turns off.
