AEG ABL58JB User manual
ABL58JB
ABL58J401
2
2
Important!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the product.
Subject to technical modifications.
33
x 1
x 1
x 1
x 1
ABL58JB
4
4
x 1
x 1
x 1
x 1
x 1 x 1
ABL58J401
55
CRUISE CONTROL
TURBO BUTTON
NOZZLE
UPPER TUBING
HANDLE
TRIGGER
BATTERY
6
6
6
11
7
START
STOP
8
9
10
TURBO BOOST
77
6
11
7
START
STOP
8
9
10
TURBO BOOST
8
8
1
2
2
1
99
1
2
2
1
click
10
10
START
STOP
11 11
START
STOP
12
12
START
STOP
TURBO
BOOST
13 13
1
2
3
4
14
14
1
2
3
4
15 15
1
2
3
4
20180516v3
16
16
5
17 17
INTENDED USE
The cordless blower is only intended for use outdoors in dry and
well-illuminated conditions.
The product is not intended to be used by children or persons with
reduced physical, mental, or sensory capabilities.
The product is designed for blowing light debris, including leaves,
grass, and other garden refuse.
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric
shock, re, and/or serious injury. Save all warnings and instruction
for future reference.
WARNING! Never allow children or people unfamiliar with
these instructions to use the product. Local regulations can restrict
the age of the operator.
GENERAL SAFETY WARNINGS
TRAINING
Read the instructions carefully. Be familiar with the controls and the
correct use of the product.
Never allow children, persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge, or
people unfamiliar with these instructions to use the product. Local
regulations may restrict the age of the operator.
Keep in mind, that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
Keep bystanders, children and pets 15 m away from the area of
operation. Stop the product if anyone enters the area.
Never use the product when you are tired, ill or under the inuence
of alcohol, drugs or medicine.
PREPARATION
Some regions have regulations that restrict the use of the product to
some operations. Check with your local authority for advice.
Wear hearing protection at all times while operating the product.
The product is extremely noisy and permanent hearing injury may
result if precautions to limit your exposure, reduce noise, and wear
hearing protection are not strictly adhered to.
Wear full eye protection at all times while operating this product.
The manufacturer strongly suggests a full face mask or fully
enclosed goggles. Normal spectacles or sun glasses are not
adequate protection. Objects can be thrown at high speed by the
powerful air jet at any time and may rebound from hard surfaces
toward the operator.
While operating the product, always wear substantial footwear and
long trousers. Do not operate the product when barefoot or wearing
open sandals. Avoid wearing clothing with loose tting or that has
hanging cords or ties.
Do not wear loose clothing or jewellery that can be drawn into the
air inlet. Secure long hair so it is above shoulder level to prevent
entanglement in moving parts.
Before each use, ensure that all controls and safety devices
function correctly. Do not use the product if the off switch does not
stop the product.
Operate the product in a recommended position and only on a rm
and level surface.
Do not operate the product on a paved or gravel surface where
ejected material could cause injury.
Before each use, always inspect the housing for damage. Ensure
that guards and handles are in place and properly secured. Replace
worn or damaged components in sets to preserve balance. Replace
damaged or unreadable labels.
Never operate the product while people, especially children, or pets
are nearby.
TECHNICAL DATA CORDLESS BLOWER ABL58JB ABL58J401
Rated voltage 58 V DC 58 V DC
Rated current turbo mode 21A 21A
Turbo mode
Air velocity turbo mode 230 km/h 230 km/h
Air volume turbo mode 15.4 m3/min 15.4 m3/min
Fan loaded speed turbo mode 22000/min 22000/min
Weight with ABP58LI-401 4.0ah battery 4.4 kg 4.4 kg
Noise emission level (in accordance with EN 50636-2-100 Annex CC)
A-weighted sound pressure level at the operator’s position LPA= 89.1 dB(A) LPA= 89.1 dB(A)
Uncertainty K= 2.5 dB K= 2.5 dB
A-weighted sound power level LWA= 102.44 dB(A) LWA= 102.44 dB(A)
Uncertainty K= 2.75 dB K= 2.75 dB
Vibration level (in accordance with EN 50636-2-100 Annex BB) ah = 9.84 m/s2ah = 9.84 m/s2
Uncertainty K= 1.5 m/s2K= 1.5 m/s2
BATTERY AND CHARGER
Model ABL58JB ABL58J401
Battery pack Not included ABP58LI-401
Charger Not included ABC58S
Compatible battery packs ABP58LI-401
Compatible chargers ABC58FX, ABC58S
18
18
Keep all cooling air inlets clear of debris.
Use rakes and brooms to loosen debris before blowing.
Clear the work area before each use. Remove all objects such as
rocks, broken glass, nails, wire, or string which can be blown a
considerable distance by high velocity air.
BATTERY TOOL USE AND CARE
Recharge only with the charger specied by the manufacturer. A
charger that is suitable for one type of battery pack may create a
risk of re when used with another battery pack.
Use power tools only with specically designated battery packs.
Use of any other battery packs may create a risk of injury and re
When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns
or a re.
Under abusive conditions, liquid may be ejected from the battery
pack; avoid contact. If contact accidentally occurs, ush with water.
If liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery pack may cause irritation or burns.
Do not use a battery pack or tool that is damaged or modied.
Damaged or modied batteries may exhibit unpredictable behaviour
resulting in re, explosion, or risk of injury.
Do not expose a battery pack or tool to re or excessive
temperatures. Exposure to re or excessive temperature above
130°C may cause explosion.
Follow all charging instructions and do not charge the battery pack
or tool outside the temperature range specied in the instructions.
Charging improperly or at temperatures outside the specied range
may damage the battery pack and increase the risk of re.
OPERATION
Operate the product only at reasonable hours – not early in the
morning or late at night when people might be disturbed.
Never operate the product in an explosive atmosphere.
Avoid using the product in bad weather conditions especially when
there is a risk of lightning.
Do not operate in poor lighting. The operator requires a clear view
of the work area to identify potential hazards.
Use of hearing protection reduces the ability to hear warnings
(shouts or alarms). The operator must pay extra attention to what is
going on in the working area.
Do not get distracted and always concentrate on your task.
Operating similar tools nearby increases both the risk of hearing
injury and the potential for other persons to enter your working area.
Keep rm footing and balance. Do not overreach. Overreaching can
result in loss of balance.
Always be sure of the footing on slopes. Walk, never run.
Keep all parts of your body away from any moving part. Rotating
impeller blades can cause severe injury.
Never run the product without the proper equipment attached.
Do not operate the product without both the nozzle and lower tube
attached.
Do not modify the product in any way or use parts and accessories
that are not recommended by the manufacturer.
WARNING! If the product is dropped, suffers heavy impact,
or begins to vibrate abnormally, immediately stop the product
and inspect for damage or identify the cause of the vibration. Any
damage should be properly repaired or replaced by an authorised
service centre.
To reduce the risk of injury associated with contacting rotating parts,
always stop the product and remove the battery pack. Make sure all
moving parts have come to a complete stop:
■before leaving the product unattended
■before clearing blockages
■before checking, cleaning, or working on the product.
■to inspect the product after striking a foreign object.
Immediately switch off and remove the battery pack in the event of
accident or breakdown. Do not operate the product again until it has
been fully checked by an authorised service centre.
The product is provided with a cruise control lever near the
trigger. Cruise control sets the speed at a convenient level to
provide enough power to achieve the task. Low running speed
will help reduce noise and vibration. Cruise control helps reduce
operator fatigue.
Press the turbo boost to increase the air ow to the maximum
velocity. The turbo boost will override the cruise control feature. The
blower will return to the previously selected speed when the button
is released.
WARNING! Setting the cruise control will operate and lock
the trigger. In this case, the trigger will not release and turn off the
blower. Turn off the cruise control by pressing the lever fully forward
to stop the motor of the blower.
BLOWER SPECIFIC SAFETY WARNINGS
Wear a face lter mask in dusty conditions to reduce the risk of
injury associated with the inhalation of dust.
Slightly dampen surfaces in dusty conditions.
Do not point the blower nozzle in the direction of people or pets.
Never place objects inside the blower tubes.
Do not operate the product near open windows.
Use the full blower nozzle extension so that the air stream can work
close to the ground and perform effectively.
Do not place blower on top of or near loose debris. Debris can be
sucked into the intake vent, resulting in possible damage to the
product.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your
tool, battery pack or charger in uid or allow a uid to ow
inside them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.

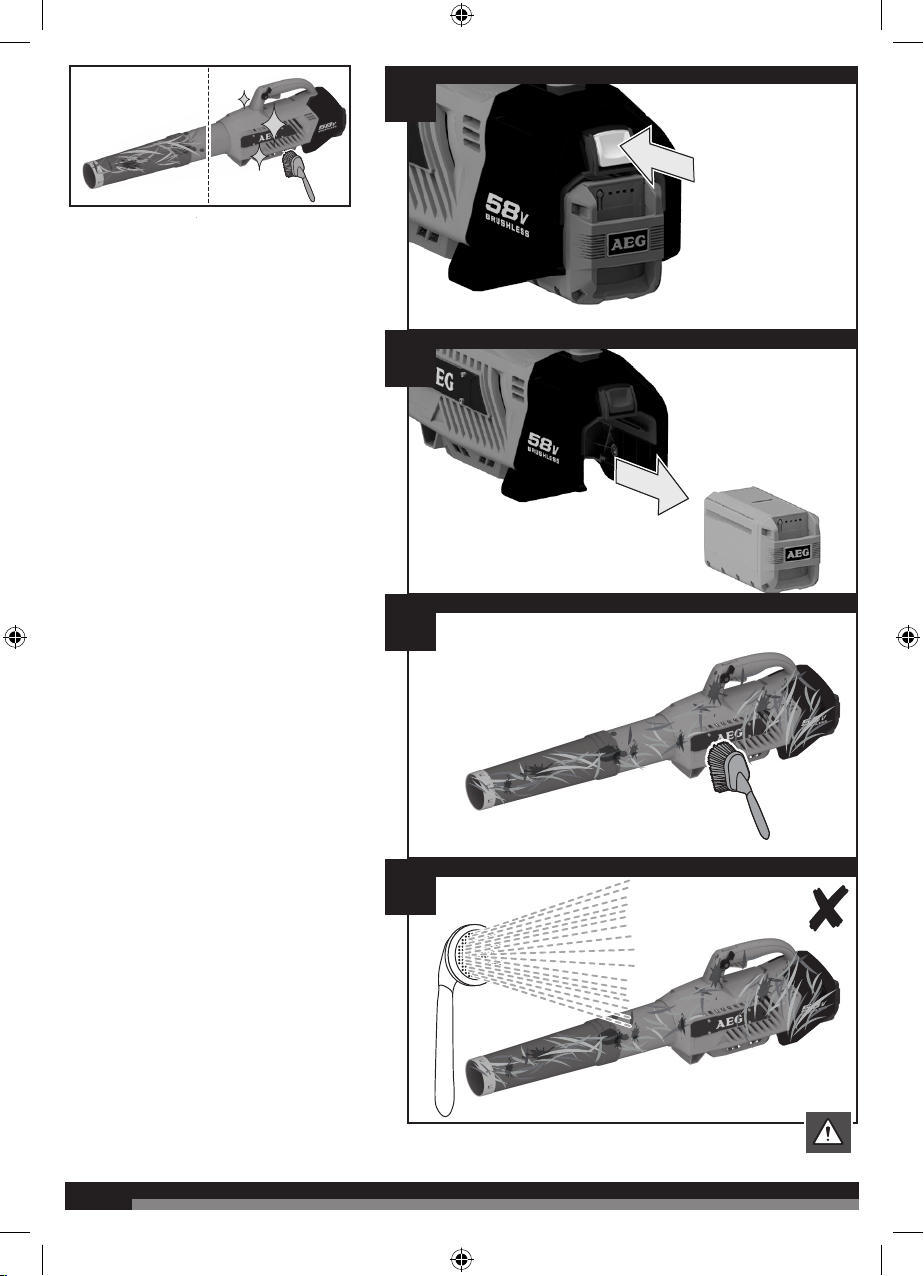

TRANSPORTATION AND STORAGE
Stop the product, remove the battery pack, and allow it to cool
before storing or transporting.
Clean all foreign materials from the product. Store the product in a
cool, dry, and well-ventilated place that is inaccessible to children.
Keep away from corrosive agents, such as garden chemicals and
de-icing salts. Do not store outdoors.
For transportation in vehicles, secure the product against movement
or falling to prevent injury to persons or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling when
transporting batteries by a third party. Ensure that no batteries can
come in contact with other batteries or conductive materials while
in transport by protecting exposed connectors with insulating, non-
conductive caps or tape. Do not transport batteries that are cracked
or leaking. Check with the forwarding company for further advice.
19 19
MAINTENANCE
WARNING! Use only original manufacturer’s replacement
parts, accessories, and attachments. Failure to do so can cause
possible injury and poor performance, and may void your warranty.
WARNING! Servicing requires extreme care and knowledge
and should be performed only by a qualied service technician. For
service, bring the product to an authorised service centre. When
servicing, use only identical replacement parts.
Do not make adjustments and repairs not described in this manual.
For other repairs, contact an authorised service agent.
After each use, clean the product with a soft, dry cloth.
Check all nuts, bolts and screws at frequent intervals for proper
tightness to ensure that the product is in safe working condition. Any
part that is damaged should be properly repaired or replaced by an
authorised service centre.
Bring the product to an authorised service centre to replace
damaged or unreadable labels.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise in use and the operator should pay special
attention to avoid the following:
■Injury caused by vibration.
– Always use the right tool for the job, use designated handles
and use the lowest speed necessary to achieve the task.
■Hearing injury caused by exposure to noise.
– Wear ear protection and limit exposure.
■Injury from flying objects from the blow tube airflow.
– Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome. Symptoms
may include tingling, numbness, and blanching of the ngers,
usually apparent upon exposure to cold. Hereditary factors,
exposure to cold and dampness, diet, smoking, and work practices
are all thought to contribute to the development of these symptoms.
There are measures that can be taken by the operator to possibly
reduce the effects of vibration:
■Keep your body warm in cold weather. When operating the
product, wear gloves to keep the hands and wrists warm.
■After each period of operation, exercise to increase blood
circulation.
■Take frequent work breaks. Limit the amount of exposure per
day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your physician.
WARNING! Injuries may be caused, or aggravated, by
prolonged use of the product. When using any tool for prolonged
periods, ensure you take regular breaks
SYMBOLS
Please read the instructions carefully before
starting the product.
Class II tool, double insulation
To reduce the risk of injury, user must read and
understand operator’s manual before using this
product
.
Wear ear protection.
Wear eye protection.
Do not expose to rain or damp condition.
Beware of thrown or flying objects. Keep all
bystanders, especially children and pets, at least
15m away from the operating area.
Rotating fans. Keep hands and feet out of openings
while the product is running.
Remove the battery pack before starting any work
on the product.
Regulatory Compliance Mark (RCM). The product
meets applicable regulatory requirements.
106
dB
92
dB
A-weighted sound pressure level at the operator
position is 92 dB.
The guaranteed sound power level shown on this
label is 106 dB.
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste electrical
and electronic equipment and its implementation
in accordance with national law, electric tools that
have reached the end of their life must be collected
separately and returned to an environmentally
compatible recycling facility.
The following signal words and meanings are intended to explain
the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
20
20
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
This manual suits for next models
1
Table of contents
Other AEG Blower manuals
