AEG A18SIW12BL User manual

A18SIW12BL
Original instructions

2
Important!
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.

3
1 2 3 A
1 2 3 A
p. 5
p. 6p. 6 p. 7
p. 5

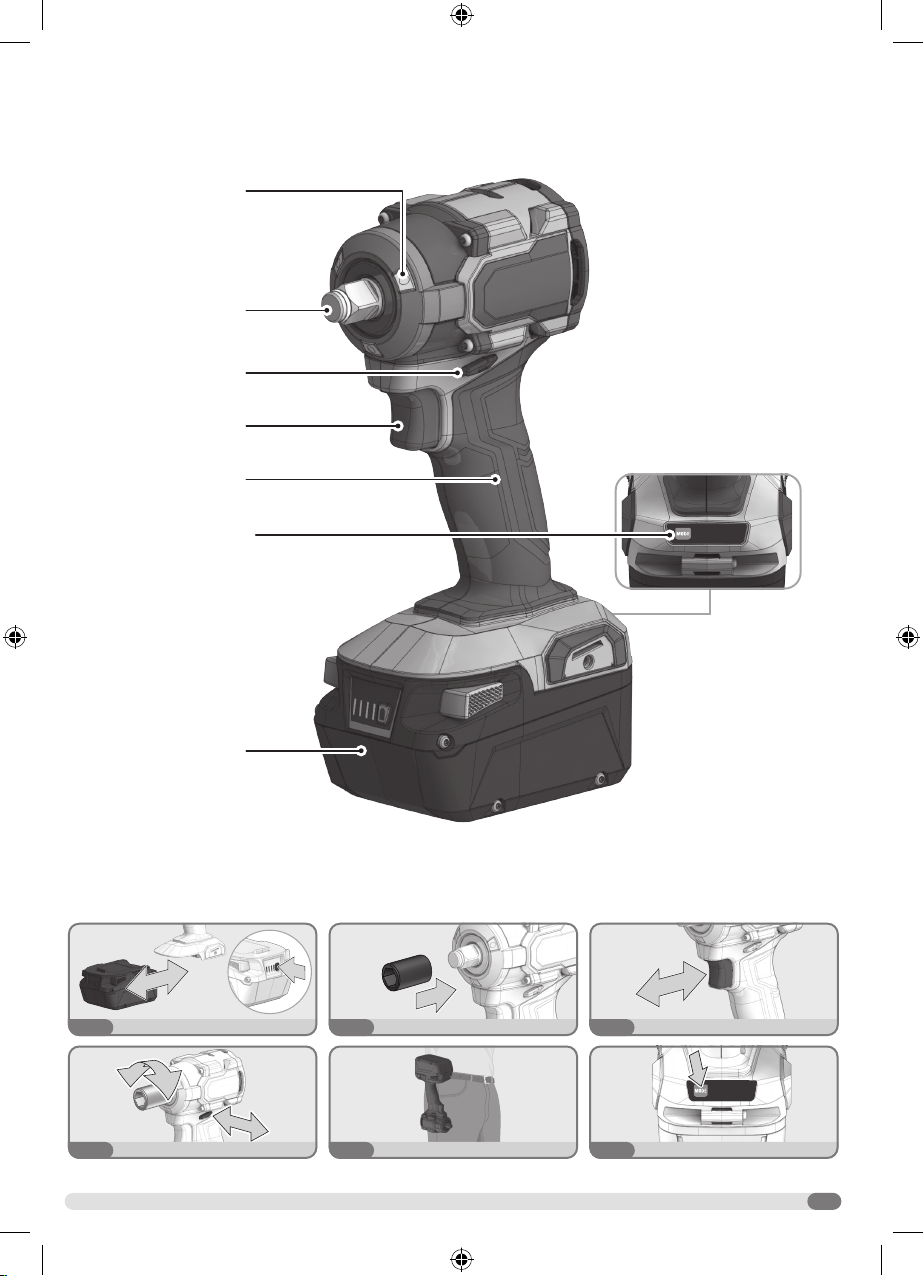

2
Anvil
LED light
Handle, insulated
gripping surface
Battery pack
Direction of
rotation selector
Variable speed
switch trigger
p. 4
Mode selection
button

4
1
2
75-100 %
50-75 %
25-50 %
0-25 %
3
Remove the battery pack before starting any
work on the product.

5
1
4
2

6
5
1
2

7
1 2 3 A
1 2 3 A

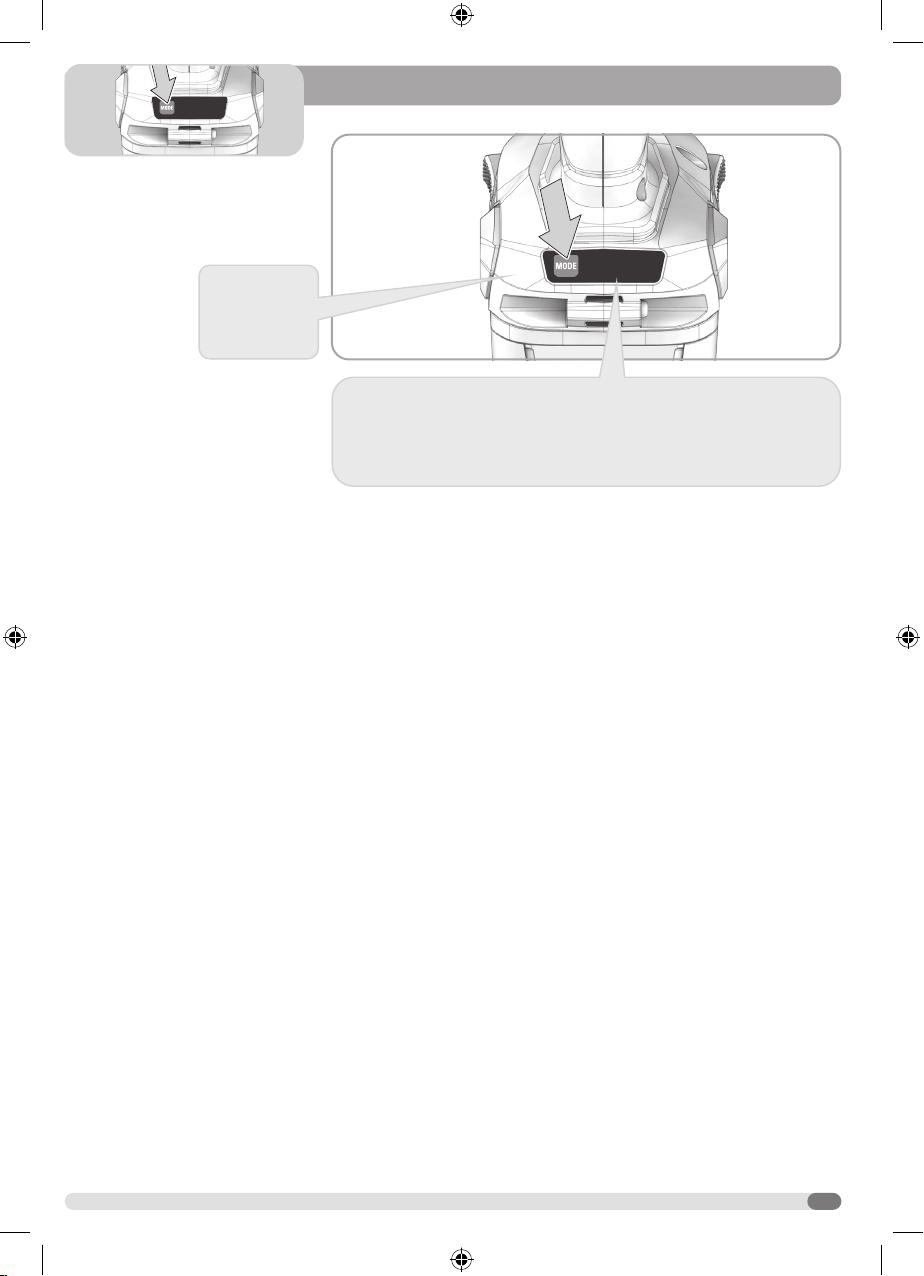

6
1 = 0-850 min-1
2 = 0-2,100 min-1
3 = 0-2,800 min-1
A = 0-2,800 min-1
The “A” function is designed to give the user greater control in application and
reduce damage to the fastener or work surface by automatically shutting the tool
o󰀨 after the tool senses the mechanism impacting for approximately one second.

8
TECHNICAL DATA A18SIW12BL
Type Cordless Impact Wrench
Tool reception 12.7 mm( ½”)
No-load speed
Speed 1 0-850 min-1
Speed 2 0-2,100 min-1
Speed 3 0-2,800 min-1
"A" mode 0-2,800 min-1
Impact rate (High speed) 3,800 min-1
Max. torque 280 Nm
Max. diameter bolt / nut M18
Max breakaway torque 339 Nm/ 250 ft.lbs
Battery voltage 18 V
Weight without battery pack 0.95 kg
Weight according to EPTA-Procedure 01/2014 (Li-ion 2.0 Ah ... 9.0 Ah) 1.4 kg …2.1 kg
Recommended ambient operating temperature -18...+50 ºC
Noise Information
Measured values determined according to EN 62841. Typically, the A-weighted noise
levels of the tool are:
Sound pressure level / Uncertainty
Sound power level / Uncertainty
Wear ear protection!
LpA= 101 dB (A) / KpA=3 dB(A)
LWA= 112 dB (A) / KWA=3 dB(A)
Vibration Information
Vibration total values (triaxial vector sum) determined according to EN 62841.
Vibration emission value / Uncertainty
Impact tightening of fasteners of the maximum capacity of the tool ah= 11.3 m/s2 / K= 1.5 m/s2
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. They may be used for a
preliminary assessment of exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for di󰀨erent
applications, used with di󰀨erent accessories, or poorly maintained, the vibration and noise emission may di󰀨er. These conditions may
signicantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o󰀨 or when it is
running idle. These conditions may signicantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the e󰀨ects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm, and organising work patterns.

9
COMPATIBLE BATTERY PACKS (NOT INCLUDED)
L1820R
L1820S
A18FB2
L1825R
L1830R-X5
A18B4
L1840R
A18FB4
L1850R
A18FB5
A18OB6
L1860R
L1860R-X5
L1890R
Use AEG 18V battery and charger only
WARNING! Read all safety warnings, instructions,
illustrations and specications provided with this power tool.
Failure to follow all instructions listed below may result in electric
shock, re, and/or serious injury.
Save all warnings and instructions for future reference.
IMPACT WRENCH SAFETY WARNINGS
Hold the power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring. Fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the
operator an electric shock.
ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
Clamp workpiece with a clamping device. Unclamped workpieces
can cause severe injury and damage.
When working in walls, ceiling, or oor, take care to avoid electric
cables and gas or waterpipes.
Dust created by operating the product can cause respiratory
injury. Wear appropriate respiratory masks with lters suitable for
protecting against particles from the material being worked on.
Ensure adequate workplace ventilation. Do not eat, drink, or smoke
in the work area.
Damage to eyes from ying dust and debris particles. Always wear
suitable eye protection.
The product will restart automatically if stalled. Switch o󰀨 the
product immediately if it stalls. Determine why the product has
stalled and rectify it, paying heed to the safety instructions. If
necessary, remove the insertion tool.
Always wear goggles when using the product. It is recommended to
wear gloves, sturdy non slipping shoes and apron.
Always use the protective shields on the product.
When working in walls, ceiling, or oor, take care to avoid electric
cables and gas or water pipes.
Remove the battery pack before starting any work on the product.
The product will restart automatically if stalled. Turn o󰀨 the product
immediately if it stalls. Do not turn on the product again while it is
Ambient temperature range for tool during operation is between
0°C and 40°C.
Ambient temperature range for tool storage is between 0°C and
40°C.
The recommended ambient temperature range for the charging
system during charging is between 10°C and 38°C.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of re, personal injury, and
product damage due to a short circuit, never immerse your tool,
battery pack or charger in uid or allow a uid to ow inside them.
Corrosive or conductive uids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can
cause a short circuit.
Remove the battery pack before starting any work on the product.
Do not dispose of used battery packs in the household refuse or
by burning them. AEG Distributors o󰀨er to retrieve old batteries to
protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
Use only System AEG chargers for charging System AEG battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
Battery acid may leak from damaged batteries under extreme load
or extreme temperatures. In case of contact with battery acid wash
it o󰀨 immediately with soap and water. In case of eye contact rinse
thoroughly for at least 10 minutes and immediately seek medical
attention.
No metal parts must be allowed to enter the battery section of the
charger (short circuit risk).
ADDITIONAL SAFETY WARNING
Switch the device o󰀨 immediately if the insertion tool stalls! Do not
switch the device on again while the insertion tool is stalled, as
doing so could trigger a sudden recoil with a high reactive force.
Determine why the insertion tool stalled and rectify this, paying
heed to the safety instructions.
The possible causes may be:
●It is tilted in the work piece to be machined
●It has pierced through the material to be machined
●The power tool is overloaded
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The operator
should pay particular and additional attention to these points in
order to reduce the risk of serious personal injury.
• Injury to hearing – Wear suitable ear protection and limit
exposure.
• Injury to sight – Wear protective eye shields or goggles when
using the product.
• Injury caused by vibration – Hold the tool by the designated
handles and limit exposure to vibration. See “RISK
REDUCTION”.
• Electric shock after contact with hidden wires – Hold the
product only by insulated surfaces.
• Respiratory injury – Dust created by operating the product,
wear suitable protection dependent on type of dust.
SPECIFIED CONDITIONS OF USE
The cordless impact wrench is intended for fastening and loosening
bolts and nuts.
Do not use the product for any other purpose.
BATTERIES
Battery packs which have not been used for some time should be
recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance
of the battery pack. Avoid extended exposure to heat or sunshine
(risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, the battery packs have to be fully
charged, after used.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:
• Store the battery pack where the temperature is below 27°C
and away from moisture.
• Store the battery packs in a 30% - 50% charged condition.
• Every six months of storage, charge the pack as normal.

10
BATTERY PACK PROTECTION
The battery pack has overload protection that protects it from being
overloaded and helps to ensure long life.
Under extreme stress, the battery electronics turn o󰀨 the product
automatically. To restart, turn the product o󰀨 and then on again.
If the product does not start up again, the battery pack may have
discharged completely. Recharge the battery pack.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods
Legislation requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
■The user can transport the batteries by road without further
requirements.
■ Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation
and transport are exclusively to be carried out by appropriately.
trained persons and the process has to be accompanied by
corresponding experts.
When transporting batteries:
■Ensure that battery contact terminals are protected and
insulated to prevent short circuit.
■Ensure that battery pack is secured against movement within
packaging.
■Do not transport batteries that are cracked or leak.
Check with forwarding company for further advice.
MAINTENANCE
The ventilation slots of the product must be kept clear at all times.
Avoid using solvents when cleaning plastic parts. Most plastics
are susceptible to various types of commercial solvents and may
be damaged by their use. Use clean cloths to remove dirt, carbon
dust, etc.
Use only AEG accessories and AEG spare parts. Should
components need to be replaced which have not been described,
please contact one of our AEG service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the Article No. as well as the product type printed on the label
and order the drawing at your local service agents or directly at:
Techtronic Industries Australia Pty Ltd
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 234 797
Australia
Techtronic Industries N.Z. Limited
PO Box 12-806
Penrose AUCKLAND 1642
Tel. no. 0800 234 797(0800 AEGPWR)
New Zealand
SYMBOLS
Read the instructions carefully before starting the
product.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on
the product.
No-load speed
V
Volts
Direct current
Regulatory Compliance Mark (RCM). Product meets
applicable regulatory requirements.
To reduce the risk of injury or damage, avoid contact
with any hot surface.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately. Waste
batteries, waste accumulators, and light sources
have to be removed from the equipment. Check with
your local authority or retailer for recycling advice
and collection point. According to local regulations,
retailers may have an obligation to take back waste
batteries and waste electrical and electronic equipment
free of charge. Your contribution to the reuse and
recycling of waste batteries and waste electrical and
electronic equipment helps to reduce the demand
of raw materials. Waste batteries, in particular
containing lithium, and waste electrical and electronic
equipment contain valuable and recyclable materials,
which can adversely impact the environment and the
human health if not disposed of in an environmentally
compatible manner. Delete personal data from waste
equipment, if any.

Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961096916-01A
