Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions

67
C ntents
Safety warnings .............................................................................. 68
For the user ...................................................................................... 68
For the installer ................................................................................. 68
Description of the Appliance ......................................................... 0
Extraction mode ............................................................................... 70
Recirculation mode ........................................................................... 70
Control Panel .................................................................................. 1
rease and charcoal filter maintenance indicator ............................. 72
Maintenance and Care ................................................................... 3
Cleaning the hood ............................................................................ 73
Metal grease filter ............................................................................. 73
Removing the front panels: ............................................................... 73
Charcoal filter ................................................................................... 75
Changing the light bulb ..................................................................... 76
Technical assistance service .........................................................
Technical Details ............................................................................ 8
Mounting accessories included......................................................... 78
What to do if ................................................................................... 9
Special accessories........................................................................ 9
Electrical connection ..................................................................... 81
Wall unit mounting ............................................................................ 84

68
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb (take the cartridge fuse out of the fuse holder or switch off the
automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

69
For the insta er
 When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
 Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
 When installing the hood, make sure you observe the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi-
mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole
of the same size as the ventilation hole, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
 If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the

70
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

71
A
Descripti n f the Appliance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
 You will need an original charcoal filter for this function (Available
from your local Service Force Centre).
Extraction mode
 In this mode fumes are extracted to the outside via a hose
connected to the coupling ring A. Fig. 1.
 In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.
Should there already be a pipe of diameter 125 or 120 mm that
ducts to the outside through the walls, it is possible to use the 150/
125-120 mm reduction flange provided.
In this case the hood will be slightly noisier.
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).
Fig. 1

72
C ntr l Panel
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or
until all the odours have disappeared.
The commands are on the side of the hood:
1. Lights ON/OFF key:
press once to turn on the lights (soft illumination).
press twice to increase the luminosity of the lights.
press again to turn off the lights
2. Motor OFF and reset filter saturation indicators key.
3. Cyclical 1-2-3 speed selection key:
4. Intensive speed selection key:
lasts 5 minutes after which the hood returns to the previously set
speed.
5. Led speed suction 1 indicator (power) and grease filter saturation
indicator (n this case the led flashes).
6. Led speed suction 2 indicator (power) and carbon filter saturation
indicator (in this case the led flashes).
. Led speed (power) 3 indicator.
8. Led intensive speed (power) indicator.
Fig. 2
1
2
4
3
5
6
8

73
Grease and charcoa fi ter maintenance
indicator
This hood is fitted with a device that indicates when it is necessary to
clean the grease filter or the charcoal filter (if the hood is used in the
recirculation version with a charcoal filter).
On delivery, the hood is not supplied with a charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Set the hood in Stand by.
Press buttons 3 and 4 simultaneously and hold them for 3 seconds. At
first only the grease filter LED 5 will light up, but when the charcoal
filter LED 6 lights up the saturation indicator will be enabled.
To disable it: Press buttons 3 and 4 again simultaneously and hold
them for 3 seconds, until the charcoal filter LED 6 goes out.
Grease fi ter LED (5)
LED 5 will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply
with the maintenance instructions for the grease filter.
Charcoa fi ter LED (6)
The charcoal filter LED 6 will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button 2 for 3 seconds until
the grease filter LED 5 or the charcoal filter LED 6 stops flashing.

74
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
 To access the grease filter, first remove the front panels which
conceal the grease filter.
Removing the front
pane s:
Extract the small panel, rotate
upwards and unhook.
Repeat the operation for all
the small panels. Fig. 3.
Fig. 3
Extract
Unhook
1
2

75
Removing the meta
grease fi ter

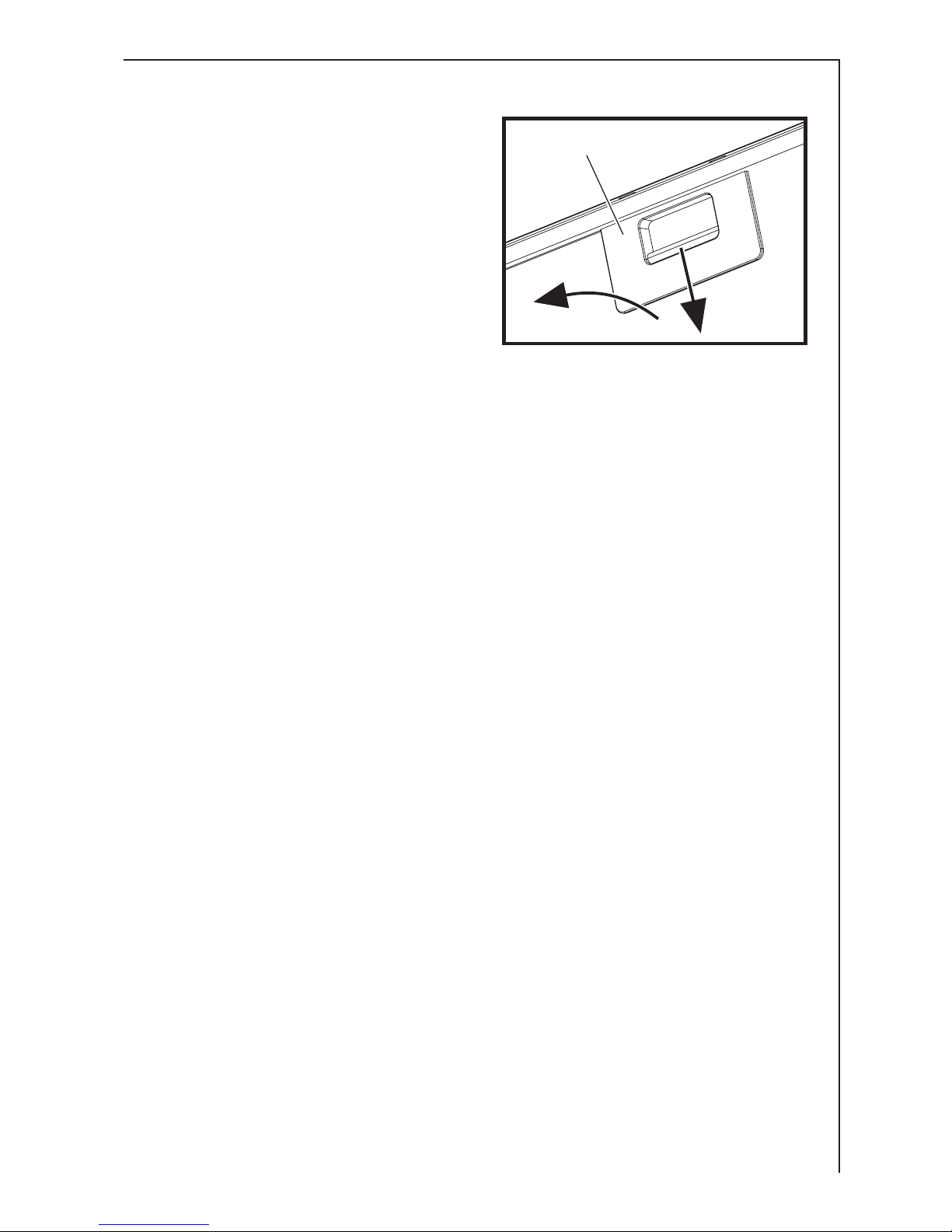

Pull the handle downards, then
extract the filter.Fig. 4.
Hand washing
Soak grease filters for about
one hour in hot water with a
grease-loosening cleaner, then
rinse off thoroughly with hot
water. Repeat the process if
necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).
Handle
Fig. 4

76
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (available from
your local Service Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LON LIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be
cleaned every second month (when using the hood 2,5 hours per
day,on avarage). The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest tempera-
ture (65º C). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
charcoal, the filter should be dried in an oven for 10 minutes with a
maximum temperature of 100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
Fitting
Remove the frame i which supports the filter h by turning 90° the
two knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 5.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
rating plate located on the inside of the unit.
 The charcoal filter can be ordered from your local Service Force
Centre.
i
h
g
g
Fig. 5

77
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight bu b
Disconnect the cooker hood from the mains supply.
 Remove the lamp cover carefully, use a screw driver as a
lever. Fig. 6.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted
in correctly before contacting your local Service Force Centre.
Connector
Fig. 6

78
Technica assistance service (not for UK)
You are elcome to telephone our technical assistance service (see list of technical
assistance centres) henever you need information or in the unlikely event of a fault.
For service in Australia call 1300 650 020.
When calling, please be ready to specify:
1. The model code number
2. The seri l number (E-Nr.)
3. The m nuf cturing number (F-Nr.)
This inform tion is shown on the registr tion pl te inside the unit behind the
gre se filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you ish to purchase spare
parts, contact your local Service Force Centre by telephoning: 08705 929 929
Your call ill be automatically routed to the Service Centre covering your post code
area. For the address of your local Service Force Centre and further information
about Service Force, please visit the ebsite at .serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer ill
make a charge if the fault is not a mechanical or electrical breakdo n even the
appliance is under arranty. Ple se note th t proof of purch se is required for in-
gu r ntee service c lls.
Help us to help you
Please determine your type of enquiry before riting or telephoning.
When you contact us e need to kno :
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, hich can be seen hen the
grease filters are removed.
If you require Customer Service in the Republic of Irel nd ple se cont ct us t
the ddress below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 353 (0) 1 4090751
Email: [email protected]

79
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on
AEG products, please contact our Customer Care Department by letter or telephone
at the address belo or visit our ebsite at .aeg.co.uk
Customer Care Department
AEG
55-77 High Street
Slough, Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training purposes.
Technical Details
Dimensions (in cm):
Height 96-124
Width 99,9
Depth 60
Maximum absorbed power: 255 W
Motor absorption: 175 W
Lighting*: 4 x 20 W (30° Ø35 12V GU4)
Length of the cable: 150 cm
Electrical connection: 220-240 V
Fuse rating: 5A 250V
* Attention! To guarantee the same quality of illumination e advise using the
same type of light: Halogen Lamp PHILIPS STANDARD LINE Code 425409, 20W 30°
Ø35 12V GU4
Mounting accessories inc uded
1 Reduction flange Ø 150-125
1 Deflector + 6 screws 3,5x13
6 screws 6 x 70 mm
6 Wall plugs Ø 10 mm
16 Nuts
8 screws 4 x 8 mm (2 for additional structure fixing + 6 to fix hood to
structure)
16 screws 4 x 7 mm (to fix chimeny sections)
14 fixing springs
1 allen spanner

80
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood Check that: The hood is connected to
will not start... the electricity supply.
Check that a fan speed has been
selected
The cooker hood Check that: The fan speed is set
is not working high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been
switched off tripped.
during operation... Turn off the hob and then wait for
the device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Special access ries
Charcoal filter TYPE 20

81
Electrical c nnecti n (n t f r UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to
any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of
at least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

82
Wa unit mounting - Fig. 7-8-9-10-11
Assembling the deflector (3 parts  only for filter
version):
The three parts should be fixed with 2 screws, the
deflector extension is adjustable and should
correspond to the width of the chimney flue support,
to which it is then fixed. Expansion plugs are
provided to secure the hood to most types of
ceilings. However, a qualified technician must verify
suitability of the materials in accordance with the type
of ceiling. The ceiling must be strong enough to take
the weight of the hood. During electrical connection
ensure the power supply is disconnected at the
domestic mains switch.
 Adjust extension of the hood support structure, as
the final height of the hood depends on this, and remember that
with installation completed the hood must be at least 50 cm above
the hob top for electric cookers and 65 cm for gas or mixed fuel
cookers.
 Fix the two sections of the structure using 8 screws (2).
 Place the ceiling hole diagram directly above the hob top (3 - the
centre of the diagram must match the centre of the hob top and the
edges must be parallel to the sides of the hob top). Prepare the
electrical connection.
 Drill as shown (6 holes for 6 wall plugs  4 plugs for fixture), screw
the outer screws leaving a space of about 1 cm. between the screw
head and the ceiling (4).
 Fit an exhaust pipe inside the support (5) and connect it to the
motor compartment connection ring (exhaust pipe and fixing
brackets are not supplied).
 Hook the frame onto the 4 screws (6 - see also step 4).
 Tighten the 4 screws (7).
 Insert and tighten another 2 screws in the remaining free holes (8)
for secure fixing.
 Carry out the electrical connection (9) to the mains power supply,
only turn on the power supply upon completion of assembly.
 Remove the front panels and the greases filter (see paragraphs
Removing the front panels and Removing the metal grease
filter).
 Hook the hood onto the support (10) , ensuring it fits properly  to
hook the hood onto the support partially tighten 4 screws (see also
step 12).
 Secure the hood to the support using 2 screws (11); this will also
help centre the two sections.
 Tighten the 4 screws securing the support to the hood (12).
Fig.

83
2a
3
4
4
4
4
44
6
6
7
7
7
7
8
8
2a
5
7
9
10a
14,5
273
273
244
214
190
6
12
2b
2b
11a
11a
11b
11b 10a
10a
10a
10a
10a
10a
10a
Fig. 8
FRONT

84
 For extractor versions (13A), connect the other end of the exhaust
pipe to the flue.
For filter versions (13F), fit deflector F to the support and secure it
to the bracket supplied using 4 screws, then connect the exhaust
pipe to the connection ring located on the deflector.
 Fit the nuts with fixing hooks (14) supplied inside the top and bottom
sections of the flues at the rectangular slots. A total of 14 nuts must
be fitted.
 Fix the two bracket supplied with one screw each (15a)
 Join the two top sections of the flue to cover the support (15b) so
that one of the slots on the sections is situated on the same side of
the control panel and the other on the opposite side. Screw the two
sections together with 8 screws and springs (4 each side- see the
plan diagram for joining the two sections - springs must be fixed
horizontally).
 Fix the top flue assembly to the support, near the ceiling, with two
screws+2 nuts (16 - one each side).

85
15
15
15
15
15
16
16
15
15
13F
F
13A
15
14
15
Fig. 9
