AEG L9WS99OKO User manual

USER
MANUAL
EN User Manual
Washer Dryer
L9WS99ÖKO

CONTENTS
1. SAFETY INFORMATION...........................................................................................3
2. SAFETY INSTRUCTIONS.......................................................................................... 5
3. INSTALLATION......................................................................................................... 7
4. PRODUCT DESCRIPTION...................................................................................... 14
5. CONTROL PANEL...................................................................................................16
6. PROGRAMMES ...................................................................................................... 20
7. CONSUMPTION VALUES.......................................................................................24
8. SETTINGS................................................................................................................ 25
9. OPTIONS................................................................................................................. 26
10. BEFORE FIRST USE...............................................................................................27
11. DAILY USE - WASHING ONLY.............................................................................28
12. DAILY USE - DRYING ONLY................................................................................ 32
13. DAILY USE - WASHING & DRYING.....................................................................33
14. HINTS AND TIPS...................................................................................................34
15. CARE AND CLEANING........................................................................................ 36
16. TROUBLESHOOTING...........................................................................................42
17. TECHNICAL DATA............................................................................................... 46
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.aeg.com
2

1. SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance shall be installed as a freestanding
product or below the kitchen worktop if space
margins permit.
ENGLISH 3

•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully opened.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•The ventilation opening in the base (if applicable)
must not be covered by a carpet, mat, or any floor
covering.
•Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
•The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
•Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
•The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
•Old hose sets must not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without filters. Clean the lint
filter before or after each use.
•Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax
removers should be washed separately with an extra
www.aeg.com
4

amount of detergent before being dried in the washer
dryer.
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Do not dry unwashed items in the wash dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and
clothes, or pillows fitted with foam rubber pads should
not be dried in the washer dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•Never stop the washer dryer before the end of the
drying cycle unless all items are quickly removed and
separated so that residual heat can dissipate.
•The final part of the washer dryer cycle takes place
without heat (cool down cycle) to ensure that items
reach a temperature that will not cause damage to
them.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35 °C.
• Always keep the appliance vertical
when being moved.
• To make sure the compressor works
properly, wait 6 hours after the
installation before using the
appliance.
• Make sure that there is air circulation
between the appliance and the floor.
• Remove all the packaging and the
transit bolts.
ENGLISH 5

• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes,
pipes not used for a long time, where
repair work has been carried out or
new devices fitted (water meters,
etc.), let the water flow until it is clean
and clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Make sure that all metal objects are
removed from the laundry.
• Only dry fabrics that are suitable to
dry in the washer dryer. Follow the
cleaning instruction on the item label.
• Plastic items are not heat resistant.
– If a detergent ball is used, remove
it before starting a drying
programme.
– Do not use a detergent ball if
setting a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
washer-dryer is filled with the special
agent which is free from fluoro-
chlorohydrocarbons. This system must
stay tight. The damage of the system
can cause a leakage.
www.aeg.com
6

2.6 Disposal
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Unpacking
WARNING!
As you will put down the appliance on the rear side, wait about 6 hours
before you use it. This time is necessary to enable the compressor to
work properly.
WARNING!
Remove all the packaging and the transit bolts before installing the
appliance.
Use the gloves.

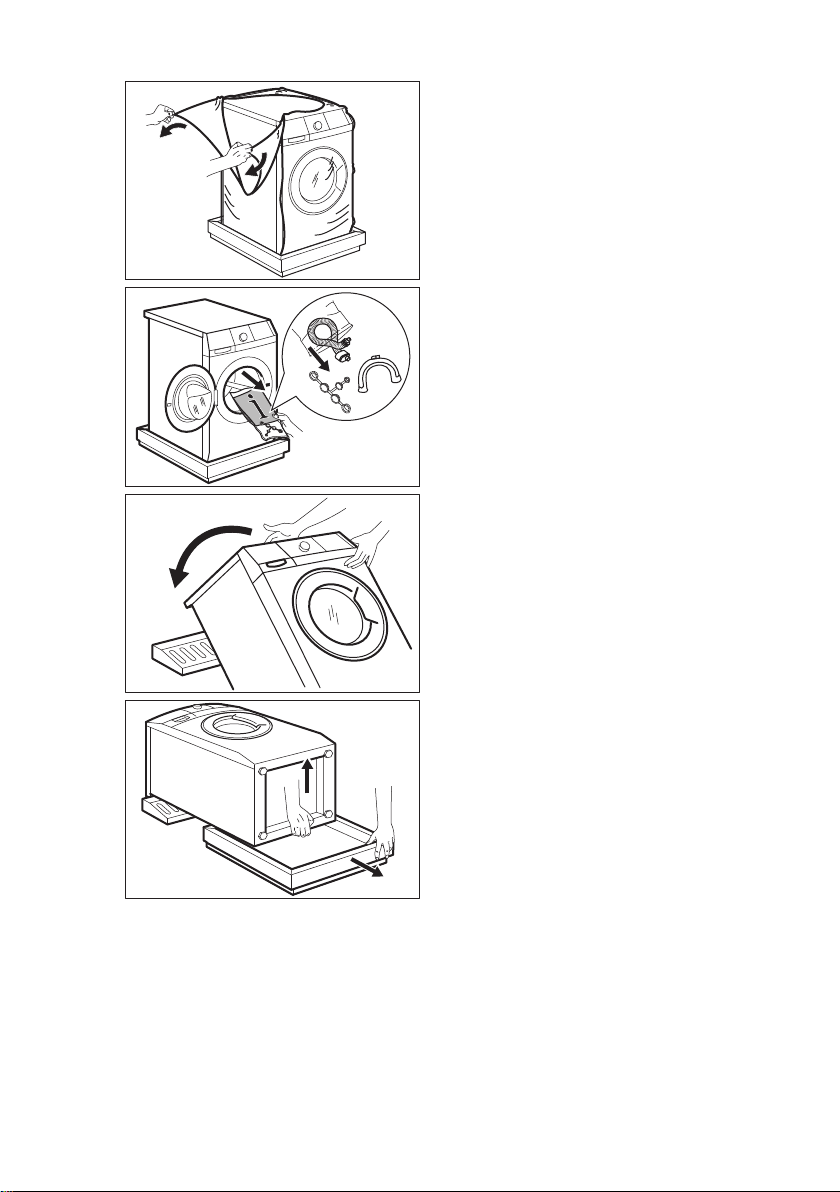

• Remove the external film. If necessary,
use a cutter
• Remove the cardboard top.
• Remove the polystyrene packaging
materials.
ENGLISH 7

• Remove the internal film.
• Open the door.
• Remove the polystyrene piece from
the door seal and all the items from
the drum.
• Put one of the polystyrene packaging
elements on the floor behind the
appliance.
• Carefully put down the appliance with
the rear side on it.
• Make sure not to damage the hoses.
1
2
• Remove the polystyrene protection
from the bottom.
www.aeg.com8

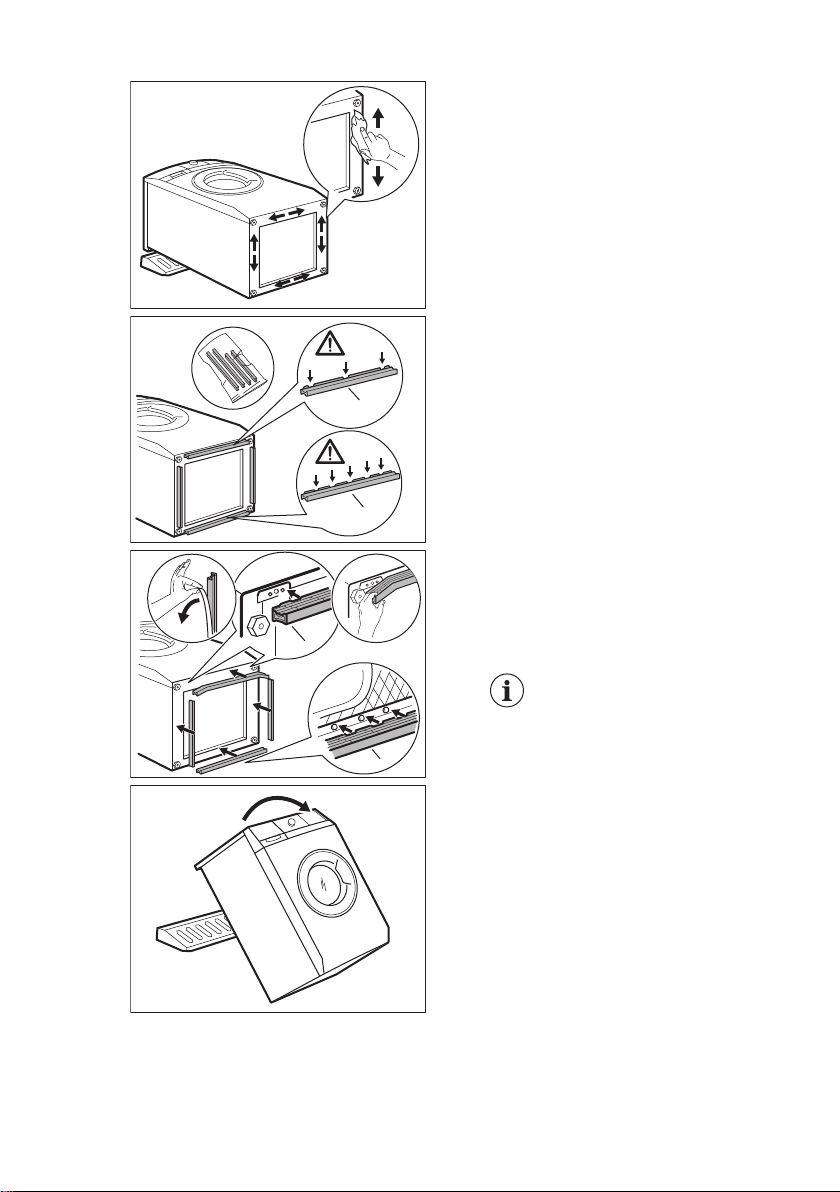

• Fully clean and dry the bottom of the
appliance.
• Do not use alcohol, solvents or
chemical products.
A
B
Make sure to identify the different sizes
and the positions of the sound barriers.
Refer to the illustration:
•A(FRONT) = Front of the appliance
•B(BACK) = Rear of the appliance
x4
A
B
• Remove the adhesive strip from the
silent barriers.
• Attach the four barriers to bottom of
the appliance.
• Refer to the illustration. Make sure
that the barriers are securely attached.
Attach the sound barriers
at a room temperature.
• Pull up the appliance in vertical
position.
ENGLISH 9

• Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliances in factory.
• Remove the three bolts.
• Use the key supplied with the
appliance.
• Pull out the plastic spacers.
• Put the plastic caps in the holes.
• You can find these caps in the user
manual bag.
We recommend that you keep the packaging and the transit bolts for any
movement of the appliance.
3.2 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
www.aeg.com10

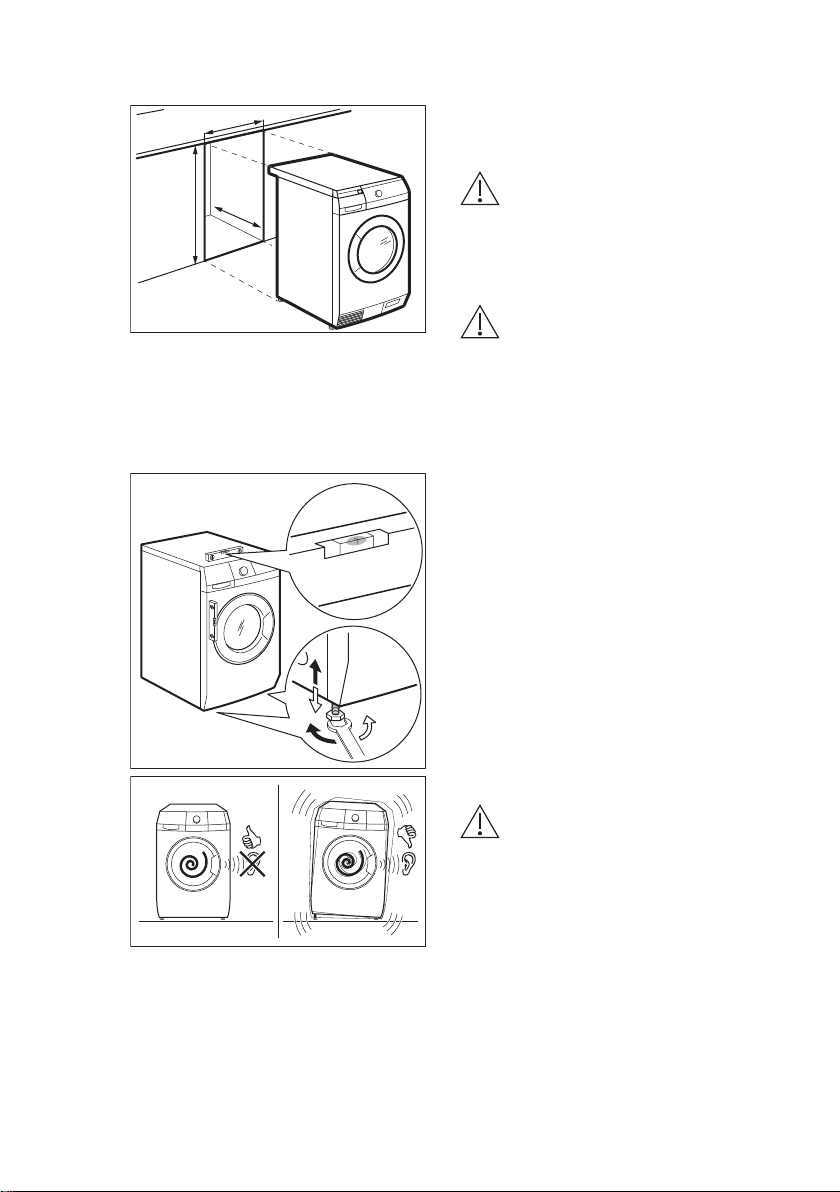

3.3 Installation under a counter
600 mm
600 mm
≥ 870 mm
The appliance can be installed as
freestanding or below the kitchen counter
with correct space (see picture).
CAUTION!
Do not install the appliance
inside a sealed hollow!
Make sure that there is air
circulation throw the bottom
of the furniture.
CAUTION!
To assure free air circulation
under the appliance, do not
attach the sound barriers (if
available).
3.4 Positioning and levelling
x4
• Install the appliance on a flat hard floor.
• Make sure that carpets do not stop the air
circulation below the appliance.
• Make sure that the appliance does not
touch the wall or other units.
• Loosen or tighten the feet to adjust the
level.
A correct adjustment of the appliance level
prevents the vibration, noise and the
movement of the appliance when in
operation.
• The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood
or equivalent materials below
the appliance feet to adjust
the level.
ENGLISH 11

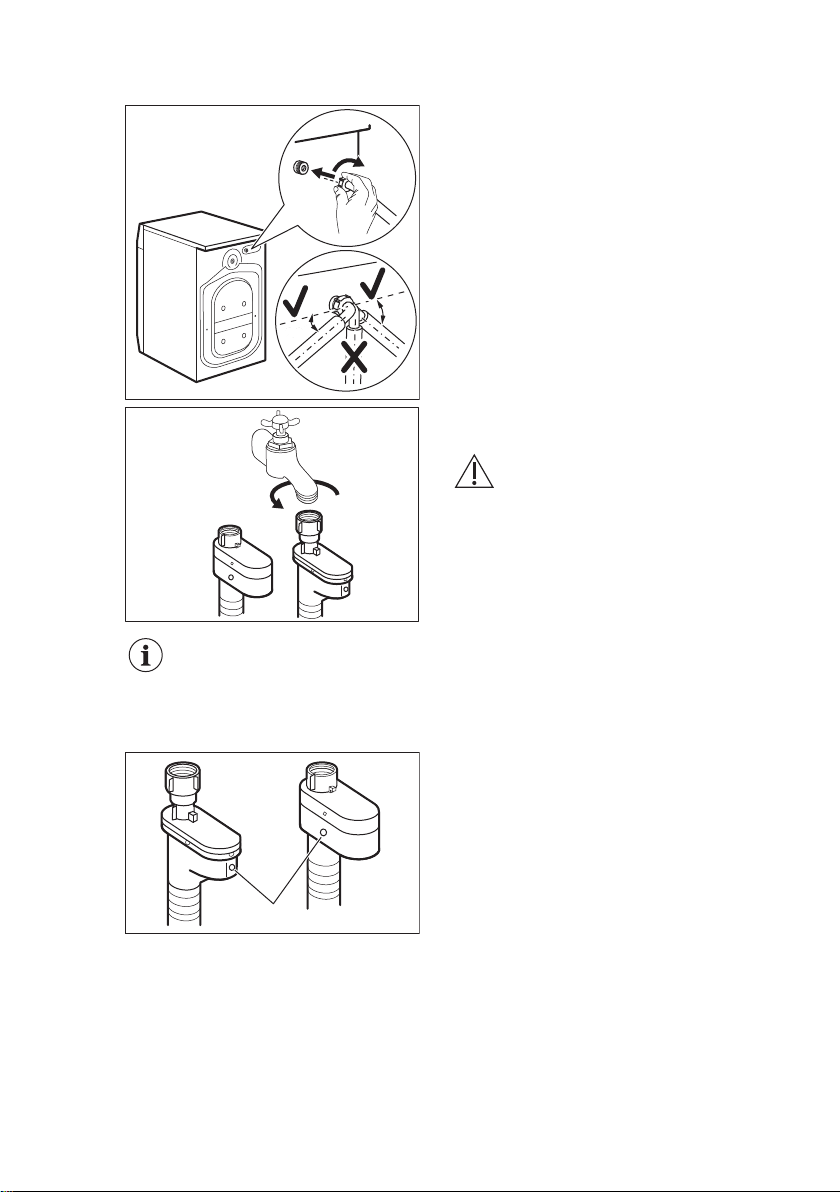

3.5 The inlet hose
20O 20O
45O 45O
• Connect the hose to the back appliance.
Turn the inlet hose only left or right.
• Loose the ring nut to set it in the correct
position.
• Connect the water inlet hose to the cold
water tap with 3/4" thread.
CAUTION!
Make sure that there are no
leaks from the couplings.
Do not use an extension hose if the inlet hose is too short. Contact the
service centre for the replacement of the inlet hose.
3.6 Water-stop device
A
The inlet hose has a water stop device. This
device prevents water leaks in the hose
because of its natural ageing.
The red sector in the window «A» shows this
fault.
If this occur, close the water tap and contact
the service centre to replace the hose.
3.7 Water drainage
There are different procedures to connect the drain hose:
With the plastic hose guide.
www.aeg.com12

• Make a U shape with the drain hose.
On the edge of a sink
• Make sure that the plastic guide cannot
move when the appliance drains. Attach
the guide to the water tap or the wall.
To a stand pipe with vent-hole
• Directly into a drain pipe at a height of not
less than 60 cm (23.6”) and not more than
100 cm (39.3”). Refer to the illustration.
• The end of the drain hose must always be
ventilated , i.e. the inner diameter of the
drain pipe (min. 38 mm - min. 1.5”) must
be larger than the external diameter of the
drain hose.
Drain hose end
• If the end of the drain hose looks like this
(see the picture), you can push it directly
into the stand pipe.
Without the plastic hose guide.
ENGLISH 13

To a sink spigot
• Refer to the illustration. Put the drain hose
in the spigot and tighten it with a clip.
• Make sure that the drain hose makes a
loop to prevent particles going into the
appliance from the sink.
To a wall-pipe
• Directly to a built-in drain pipe in the room
wall and tighten it with a clip.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
4. PRODUCT DESCRIPTION
4.1 Appliance overview
1 2 3 4 11
6
7
8
9
5
12
13
14
10
1Worktop
2Detergent dispenser
3Air filter(s)
4Control panel
5Door handle
6Rating plate
7Drain pump filter
8Feet for levelling the appliance
9Airflow slots
10 Water drain hose
11 Water inlet valve
12 Mains cable
www.aeg.com14

13 Transit bolts 14 Feet for levelling the appliance

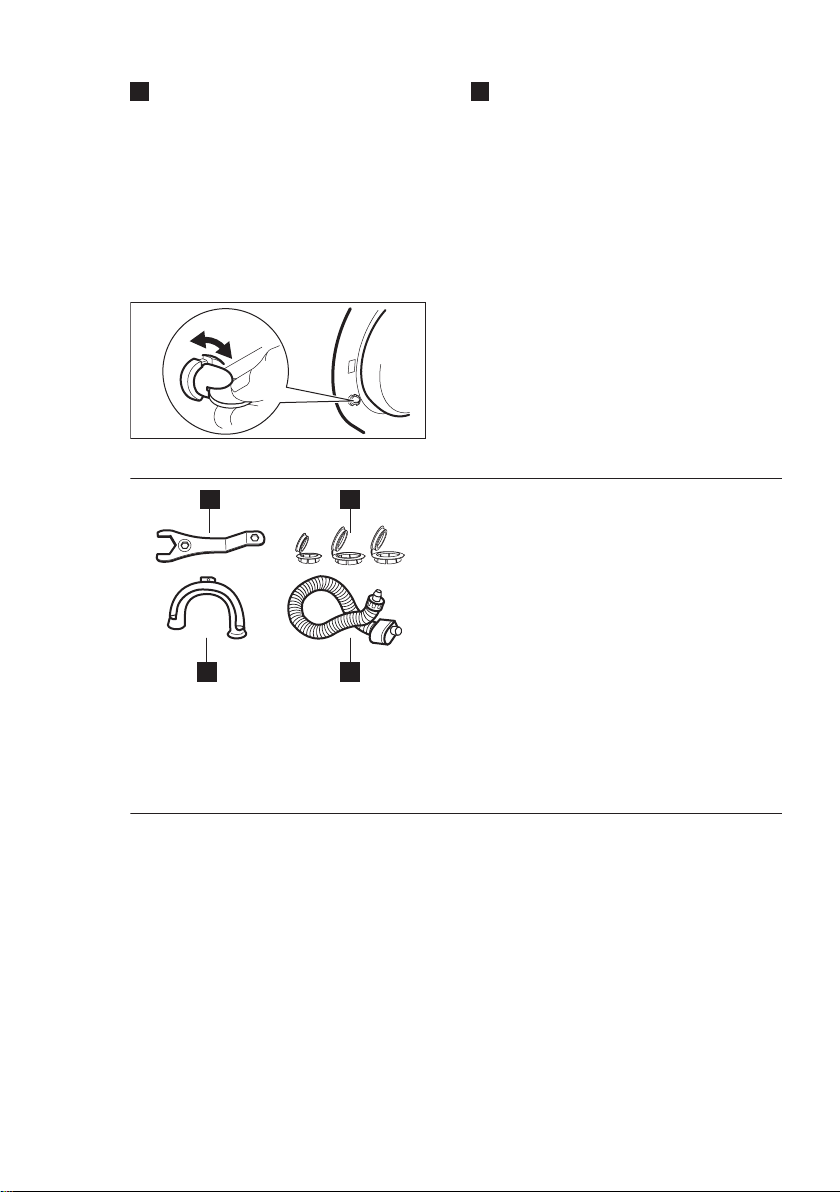

4.2 How to activate the child
safety device
This device prevents children or pets
from being closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
4.3 Accessories
1 2
34
1Spanner
To remove the transit bolts.
2Plastic caps
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3Sound barriers
To decrease the noise while the
appliance operates.
4Plastic hose guide
To connect the drain hose on the edge
of a sink.
5Anti-flood inlet hose
To prevent possible leakage.
ENGLISH 15

5. CONTROL PANEL
5.1 Control panel description
Ein/Aus
Wolle
Pflegeleicht
Leichtb geln
Feinwäsche
Schleudern/
Pumpen
Sp len
20 Min. - 3kg
Baumwolle
W A S C H E N
T R O C K N E N
Wolle/
Seide
Koch/Bunt
Pflegeleicht
Anti-Allergie
NonStop 3h/3kg
Auffrischen
Glätten
Baumwolle Eco
WAS CH EN /T RO CK NE N
D A M P F
1 2 3
5
4
6
78910111213
1On/Off button (Ein/Aus)
2Programme knob
3Display
4Automatic drying level touch button
(Automatik Trocknen)
5Drying time touch button (Zeit
Trocknen)
6Steam touch button (Dampf)
7Start Pause touch button (Start/
Pause)
8Delay start touch button (Zeitvorwahl)
9Time save touch button (Zeit Sparen)
10 Extra rinse touch button (Extra
Spülen)
11 Option touch button (Flecken/
Vorwäsche)
12 Spin reduction touch button (U./Min.)
13 Temperature touch button (Temp.)
www.aeg.com16

5.2 Display
A B C D
EFGHI
JK
The display shows:
A
The text bar:
• Guides you in the use of the appliance.
• Shows the programme status and phase.
• Shows alarm messages. Refer to 'Troubleshooting' .
The symbols appear on the display when the related phase or function is set.

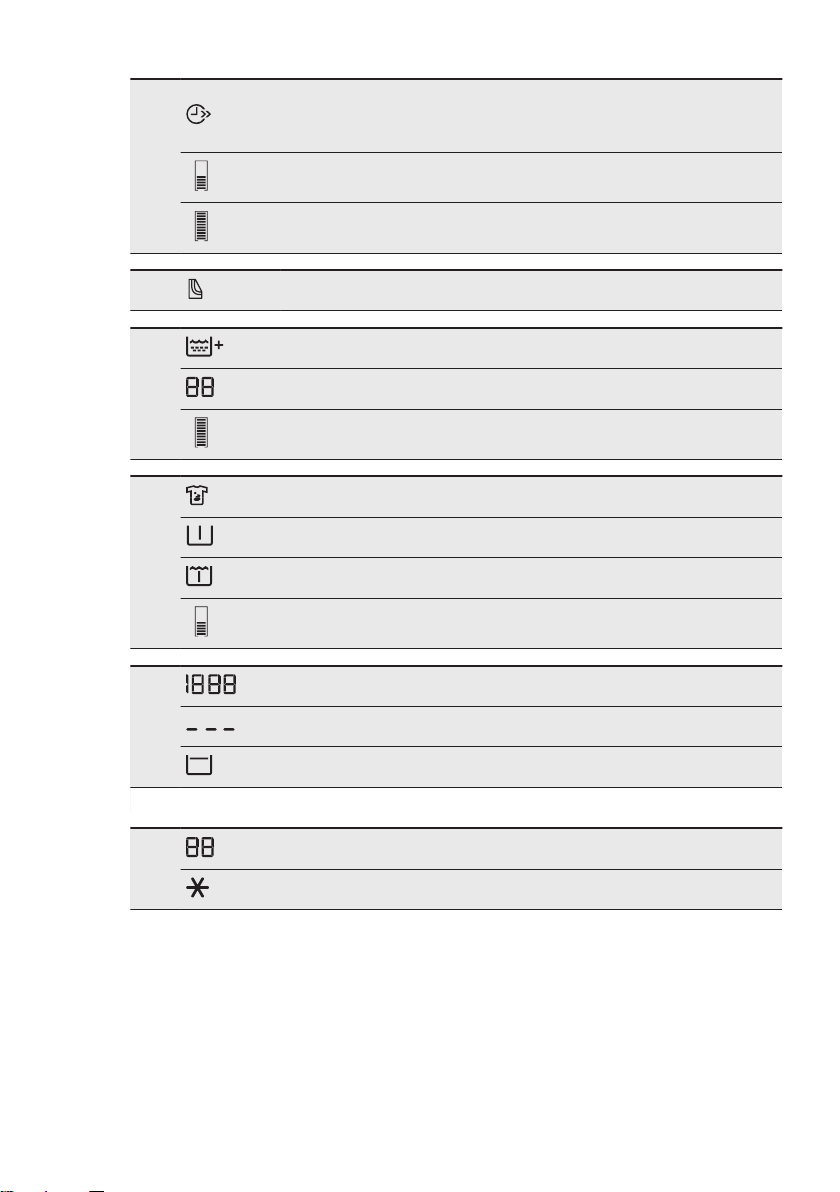

BChild safety lock
C
Door locked
You cannot open the appliance door when the symbol is on. You can
open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
ENGLISH 17

D
Digit area
Time of the day
When you activate the appliance the display shows the time of the day for some
seconds. To adjust the clock, refer to "Clock setting".
Programme duration
When you set the programme, the cycle duration is displayed for a few seconds
then, the time of the programme end appears again.
Programme duration indicator
The indicator comes on when the digits shows the programme dura-
tion.
End time of the programme
Programme end indicator
The indicator comes on when the digits shows the programme end
time.
Time of delay
When you set the delayed start the time of the programme end increases by steps
of 30 minutes till 10 hours and by steps of one hour till 20 hours.
End of the programme
The display shows a zero.
E
This part comes on only if the door is open - Refer to 'Activating the appliance and
setting a programme'.
Maximum allowed load of laundry for the set programme (in kg).
Graphic bars
To set a function:
The function indicator comes on when the related function is set.
The empty indicator bar appears only if the related function is avail-
able for the set programme.
If an indicator bar does not come on, it means that it is not available.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection, the text bar says that the selection is not
possible.
www.aeg.com18

F
Time save
The indicator comes on when you set one of the programme dura-
tion.
Shortened time
Extra Quick
GIndicator for air filters
H
Extra rinsing
The value shows the total number of the rinses.
The indicator bar fills accordingly the numbers of rinses.
I
Stain indicator
Prewash indicator
Soak indicator
The indicator bar fills accordingly to the set functions.
J
Spin speed of the set programme
No Spin indicator1)
Rinse Hold indicator
1) Only available for SPIN/DRAIN programme.
K
Default temperature of the set programme
Cold water
ENGLISH 19

6. PROGRAMMES
6.1 Programme Chart
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Washing/Drying programmes1)
Koch/Bunt
95 °C - Cold
9 kg
1600 rpm
White cotton and coloured cotton. Normal soil and
light soil.
Baumwolle Eco2)
60 °C - 40 °C
9 kg
1600 rpm
White cotton and fast-coloured cotton. Normal
soil. The energy consumption decreases and the
time of the washing programme is extended.
Pflegeleicht
60 °C - Cold
4 kg
1200 rpm
Synthetic items or mixed fabric items. Normal soil.
Wolle/Seide
40 °C - Cold
1.5 kg
1200 rpm
Machine washable wool, hand washable wool and
delicate fabrics with «hand washing» care symbol.3)
Anti-Allergie
60 °C
9 kg
1600 rpm
White cotton items. This programme removes mi-
cro-organisms thanks to the washing by 60°C and
adds one rinse. In this way the wash is more effec-
tive.
NonStop 3h/3kg
40 °C - 30 °C
3 kg
1200 rpm
Complete programme composed of a washing
phase and of a drying phase for a small load of
mixed fabrics (cotton and synthetic items).
Steam programmes4)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry softer.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• Items to be washed at a temperature lower than 40°C.
• Items where it is not specified on the care label as being suitable for tumble drying.
• All items with plastic, metal, wooden parts or alike.
www.aeg.com
20
