Aegis 4KPROIP Series User manual

User Manual
4KPROIP Series
HDMI 2.0 4K AV over IP Distribution
4KPROIP-CAT-EN ·4KPROIP-CAT-DE ·4KPROIP-FOC-EN ·4KPROIP-FOC-DE
4KPROIP-CAT-EN-U ·4KPROIP-CAT-DE-U ·4KPROIP-FOC-EN-U ·4KPROIP-FOC-DE-U
All Rights Reserved Version :4KPROIP_2019V.1.5

4KPROIP
User Manual 1
General Safety Instructions
When using electronic products, please review the following safety precautions before installing or
using the products.
i. Read these instructions.
ii. Keep these instructions.
iii. Follow all instructions.
iv. Heed all warnings.
v. Be sure all cables and equipment are connected to the unit as described in the manual.
vi. Do not use this product near water.
vii. Do not place the product on top of any easily combustible materials such as carpet or fabric.
viii. Do not stacking the product on top of a hot component such as a power amplifier.
ix. Do not use liquid or aerosol cleaners to clean the product. Clean only with a dry cloth and always
unplug the power to the device before cleaning.
x. Do not block any ventilation openings. Blocking the airflow could cause damage. Arrange
components so that air can flow freely. Ensure that there is adequate ventilation if the product is
placed in a stand or cabinet. Install or place the product in a proper ventilated area, away from
direct sunlight or any source of heat such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
xi. Power cord must be accessible to allow for the removal of the power from the product.
xii. Only use attachments/accessories specified by the manufacturer.
xiii. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit
or power cord if your hands are wet or damp.
xiv. To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the
product power cord matches the electrical outlet used to supply power to the aegis
product. Use only the power adapter and power connection cables designed for this
unit.
Power Adaptor: Be sure the power adaptor is 12V3A, please matching the rating
of the power voltage.
Lightning: For protection from lightning or when the product is left unattended
for a long period, disconnect it from the power source.
ESD: Handle the product with proper ESD care. Failure to do so can result in failure.
Trademarks All trademarks in this document are the properties of their respective owners.

4KPROIP
User Manual 2
Table of Content
General Safety Instructions..............................................................................................1
System Description...........................................................................................................3
System Elements..............................................................................................................4
Encoder Function ......................................................................................................4
Decoder Function......................................................................................................4
Control Devices .........................................................................................................5
Element Detailed Descriptions.........................................................................................6
Encoder.....................................................................................................................6
Ports Description: ...............................................................................................6
Decoder.....................................................................................................................8
Ports Description: ...............................................................................................8
Application..................................................................................................................... 10
Setting Up 4KPROIP-Hardware .......................................................................................11
One to One..............................................................................................................11
Many to Many......................................................................................................... 12
Indicator LED Light .........................................................................................................13
Technical Specifications.................................................................................................. 14
Recommend Cable .........................................................................................................15
Recommend Network Switch......................................................................................... 16
Switch Speed...........................................................................................................16
Packets Routing....................................................................................................... 16
Ethernet Switch Configuration................................................................................. 17
Declaration.....................................................................................................................18
FCC Compliance Statement .....................................................................................18
Warranty........................................................................................................................19

4KPROIP
User Manual 3
System Description
The 4KPROIP series of products from aegis provide an effective and powerful audio and video
multifunction system solution with KVM function via 10Gbit network. This system delivers visually
lossless 4K2K AV signals with zero latency over long distance Category 6 cable or fiber.
A System Consists of :
 Video Sources
 4KPROIP Encoder devices
 Cat.6 Cable up to 100M or Fiber Cables support 10KM, 20KM, or 40KM
 10Gb Ethernet Switching
 HDMI 2.0
 4KPROIP Decoder devices
 Video Sink (display devices)
 4KPROIP-CBS Control Software Device

4KPROIP
User Manual 4
System Elements
Encoder Function
The function of the 4KPROIP Encoder Device is to receive audio and video data from variety of source
interfaces and convert the data to a format suitable for transmission via 10Gbit network switch.
The video stream sent by an Encoder will only be received by designated control entity.
Common Interfaces on all Transmitters:
Optional Interfaces on Transmitters:
Power Input (12V DC)
Ethernet Bulk Media Interface:
RS232 ( in/out)
10Gb Fiber or 10Gb LAN Copper
Audio Input/output
USB
IR Receiver
None or 3X USB-B Interface
IR Blaster
HDMI 2.0
1G LAN Ethernet Port
4 different Aegis Transmitters can be ordered:
HDMI Copper
HDMI Fiber
HDMI Copper with USB-B type
HDMI Fiber with USB-B type
Decoder Function
The function of the 4KPROIP Decoder Device is to decoding the received information from 10G
Ethernet traffic to be displayed. It strips off the encryption and reformates the audio and video
information for display via HDMI video output while plays audio out from Audio output port.
Common Interfaces on all Receivers:
Optional Interfaces on Receivers:
Power Input (12V DC)
Ethernet Bulk Media Interface:
RS232 (in/out)
10Gb Fiber or 10Gb LAN Copper
Audio output
USB
IR Receiver
None or 3X USB-A Interface
IR Blaster
HDMI 2.0
1G LAN Ethernet Port
4 different aegis Receivers can be ordered:
HDMI Copper
HDMI Fiber
HDMI Copper with USB-A type
HDMI Fiber with USB-A type

4KPROIP
User Manual 5
Control Devices
The aegis’control devices, 4KPROIP-CBS, are the
simple user-friendly Web UI software that operate
and manage the connectivity between encoders
and decoders for all kind of video management,
dispatch the AV signal to the end sync device. The
4KPROIP-CBS is the control box that bounded with
the control software, aPro4kcs. These control
devices centralize control and manage of point-to-
point applications via web interface which shows
the connection status included all of the encoders and decoders. The control devices must reside on
the same logical network as the 4KPROIP encoders and decoders. The application presents an API to
potential third-party management platforms.
Feature
Simple user-friendly
Web UI shows the connection status of Encoder (TX) and Decoder (RX)
Remotely away operational KVM, USB, IR Switching to selective P/C or DVD or TV source.
Centralizes control and manage via the web interface of the aegis control software device.
The web interface shows the connection status included all the transmitter and receiver.
Matrix switching
Video Wall set up and control
Multi-view set up and control
IR (Infrared) Remote Control Routing
USB Routing

4KPROIP
User Manual 6
Element Detailed Descriptions
Encoder
The encoder supports 4K @ 60Hz (4:4:4). There are total 4 types of 4KPROIP encoders that have bulk
media (10Gb Copper or 10Gb Fiber) and with USB option.
Unit No.
Input Function
Box Size & Weight
4KPROIP-CAT-EN
Copper, HDMI, Analog Audio, Infrared, RS-232C, 1 Gb
205mm (W) x 135mm (D) x 50mm (H);
750g
4KPROIP -CAT-EN-U
Copper, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE
& USB
205mm (W) x 135mm (D) x 50mm (H);
750g
4KPROIP -FOC-EN
Fiber, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE
205mm (W) x 135mm (D) x 50mm (H);
755g
4KPROIP -FOC-EN-U
Fiber, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE &
USB
205mm (W) x 135mm (D) x 50mm (H);
755g
Ports Description:
Common ports (front panel)
ID
Port Name
Description
1
Function Indicator

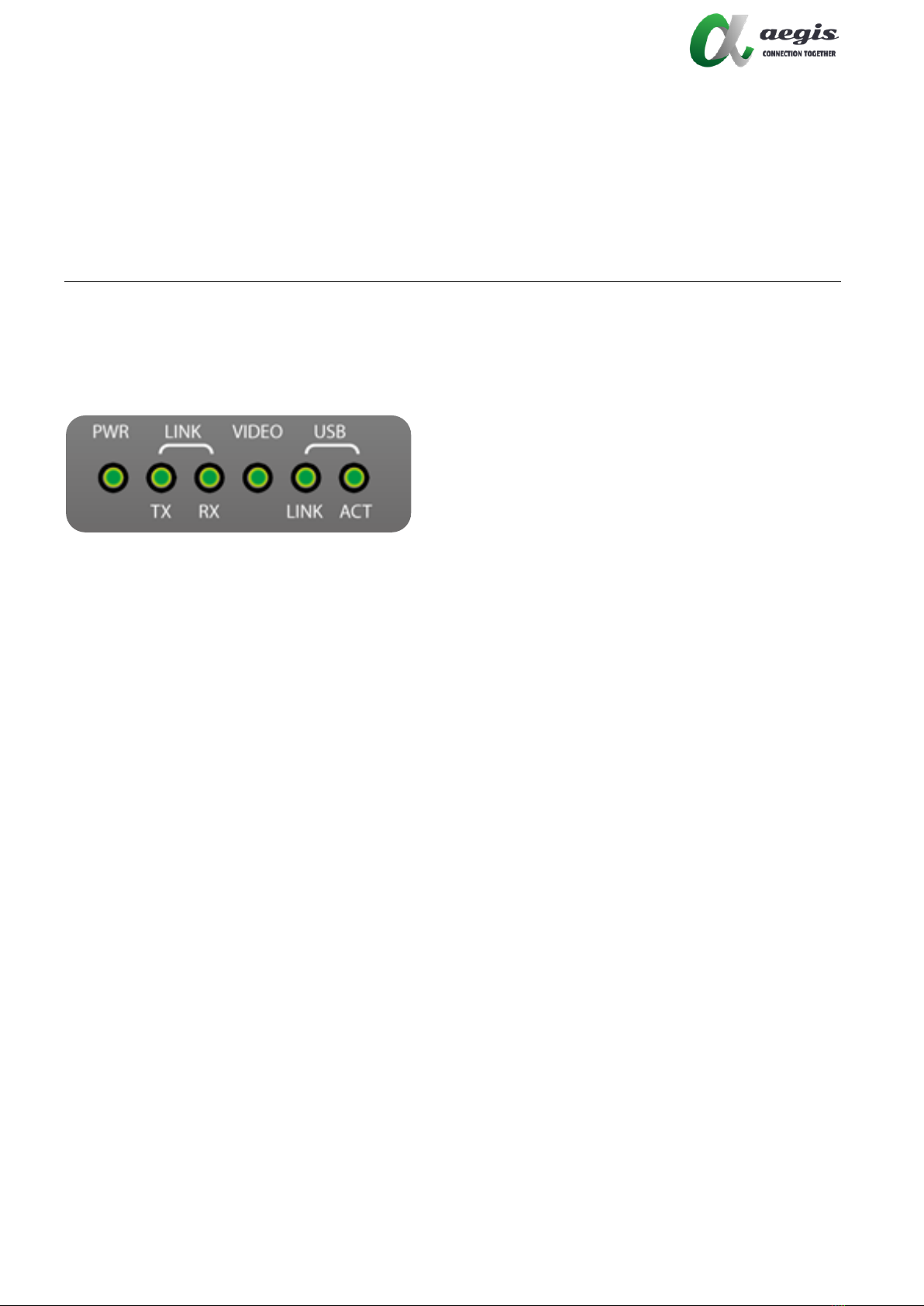

The indicators show the corresponding status of the functions: power, TX/RX link, and
video.
2
RS232
RS232 Control port for sending and receiving side-band serial traffic to/from
encoders. Communication up to 115.2K Baud rate.
3
IR Receiver
IR receives IR signals from the IR remote device and pass the commands to decoders
4
IR Emitter
IR receives commends that pass back from decoders
5
Audio In/out
Analog audio input/output for the line level stereo audio on 3.5mm
3
4
5
2
1

4KPROIP
User Manual 7
Common ports (rear panel)
ID
Port Name
Description
1
Power Jack
Connect 12 Volt DC, 24mp, 24 watts (max.)
2
HDMI Input
HDMI 2.0 input. Supports up to 4K/60 (4:4:4) with HDCP 2.2
3
10G LAN
Connect a LAN over Cat.6a (up to 100m) to 10G Network hub.
3.1
Fiber
Connect fiber optical to 10G Network hub. Support 10KM, 20KM or 40KM Distance
4
1G LAN
Connect a general purpose device to network or to the API box.
Optional ports (front panel)
ID
Port Name
Description
A
USB-B
480Mbps USB 2.0 Type B (female) are to be connected to a host (PC) as optional.
1
3
4
2
A
3.1

4KPROIP
User Manual 8
Decoder
The decoder outputs HDMI2.0 resolution sending by the encoder including full 4K @ 60Hz (4:4:4).
There are total 4 types of 4KPROIP encoders that have bulk media (10Gb Copper or 10Gb Fiber) and
with USB option.
Unit No.
Input Function
Box Size & Weight
4KPROIP -CAT-DE
Copper, HDMI, Analog Audio, Infrared, RS-232C, 1 Gb
205mm (W) x 135mm (D) x 50mm (H); 750g
4KPROIP -CAT-DE-U
Copper, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE
& USB
205mm (W) x 135mm (D) x 50mm (H); 750g
4KPROIP -FOC-DE
Fiber, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE
205mm (W) x 135mm (D) x 50mm (H); 755g
4KPROIP -FOC-DE-U
Fiber, HDMI, Analog Audio, Infrared, RS-232C, 1 GbE &
USB
205mm (W) x 135mm (D) x 50mm (H); 755g
Ports Description:
Common ports (front panel)
ID
Port Name
Description
1
Function Indicator
The indicators show the corresponding status of the functions: power, TX/RX link, and
video.
2
RS232
RS232 Control port for sending and receiving side-band serial traffic to/from
encoders. Communication up to 115.2K Baud rate.
3
IR Receiver
IR receives IR signals from the IR remote device and pass the commands to decoders
4
IR Emitter
IR receives commends that pass back from decoders
5
Audio out
Analog audio output for the line level stereo audio on 3.5mm
3
4
5
2
1

4KPROIP
User Manual 9
Common ports (rear panel)
ID
Port Name
Description
1
Power Jack
Connect 12 Volt DC, 24mp, 24 watts (max.)
2
HDMI Input
HDMI 2.0 input. Supports up to 4K/60 (4:4:4) with HDCP 2.2
3
10G LAN
Connect a LAN over Cat.6a (up to 100m) to 10G Network hub.
3.1
Fiber
Connect fiber optical to 10G Network hub. Support 10KM, 20KM or 40KM Distance
4
1G LAN
Connect a general purpose device to network or to the API box. (cat.6a, RJ 45)
Optional ports (front panel)
ID
Port Name
Description
3
4
2
1
3.1
B

4KPROIP
User Manual 10
B
USB-A
480Mbps USB 2.0 Type A are to be connected to a host (PC) or device (ie. mouse,
Keyboard, etc.) for KVM features.
Application
Here is the diagram of the Full function of the Product
One to Many
Many to One
Many to Many
TV Wall

4KPROIP
User Manual 11
Setting Up 4KPROIP-Hardware
One to One
One to one means connecting one source directly to one display. This is a simple “plug and play” set up
that does not need a 10 Gigabit Ethernet switch nor a software platform.
1. POWER: Plug power of encoder and decoder with 12V/3A adaptor
2. HDMI: Connect HDMI from active source, ie. PC or BD that supports HDMI 2.0 4K/HDR to Encoder
(HDMI port)
Connect HDMI from active display device ie. TV or screen that support HDMI2.0 4K/HDR UHD to
Decoder
**Recommend use HDIM 2.0 Premium cable for high resolution to reduce compatibility issues**
3. CAT.5e: Connect CAT.5e cable from control device (ie.PC) to Encoder (1G LAN port) for transmitting
control instructions.
4. CAT.6: Connect Ethernet cable either by Fiber or CAT.6A copper between Encoder (Fiber port or
10G LAN port) and Decoder(Fiber port or 10G LAN port) .
**Both Encoder and Decoder must be the same Fiber or Copper configuration.**
5. AUDIO: Connect Audio line from active source to Encoder (Audio In/Out port) that supports PCM
L/R. Then connect Audio line from Decoder (Audio Out port) to Audio display device for playing out
the sound source.
6. USB: In the optional port of USB for KVM feature, plug USB from control device (ie. PC or BD) to
Encoder (USB B port) act as a Host.
Then plug USB from Decoder (USB A port) to device (ie. keyboard, mouse etc.)
7. IR: Plug IR receiver and sensor kits to both Encoder and Decoder for bidirectional IR signal channel
**This needs to be equipped with control software **

4KPROIP
User Manual 12
8. RS232: Both Encoder and Decoder have RS232 ports for control channel. ( Default Baud rate:
57600 with software switch setting)
Many to Many
Many to many means connecting many sources to many displays. This system offers flexibility and
options of amount of inputs and outputs connections. For example, one input to many outputs or
many inputs to one output or many inputs to many outputs. This needs a network switch and a
software controller.
1. POWER: Plug power of encoder and decoder with 12V/3A adaptor
2. HDMI: Connect HDMI from active source, ie. PC or BD that supports HDMI 2.0 4K/HDR to Encoder
(HDMI port)
Connect HDMI from active display device ie. TV or screen that support HDMI2.0 4K/HDR UHD to
Decoder
**Recommend use HDIM 2.0 Premium cable for high resolution to reduce compatibility issues**
3. CAT.6: Connect Ethernet cable either by Fiber or CAT.6A copper from Encoder (Fiber port or 10G
LAN port) to 10GB Switch.
Connect Ethernet cable either by Fiber or CAT.6A copper from Decoder (Fiber port or 10G LAN
port) to 10GB Switch.
**Both Encoder and Decoder must be the same Fiber or Copper configuration.**
4. CAT.5e: Connect CAT.5e (1G) cable from Software Controller (ie Notebook) to 10GB Switch.
5. CAT.5e: Connect CAT.5e (1G) cable from API to 10GB Switch.
6. AUDIO: Connect Audio line from active source to Encoder (Audio In/Out port) that supports PCM
L/R. Then connect Audio line from Decoder (Audio Out port) to Audio display device for playing
out the sound source.

4KPROIP
User Manual 13
7. USB: In the optional port of USB for KVM feature, plug USB from control device (ie. PC or BD) to
Encoder (USB B port) act as a Host. Then plug USB from Decoder (USB A port) to device (ie.
keyboard, mouse etc.)
8. IR: Plug IR receiver and sensor kits to both Encoder and Decoder for bidirectional IR signal channel
**This needs to be equipped with control software **
9. RS232: Both Encoder and Decoder have RS232 ports for control channel. ( Default Baud rate:
57600 with software switch setting)
Indicator LED Light
PWR : PWR shows in greenlighting indicates power is connected.
When the green light blinks indicates it is in operating.
When it does not blink indicates it is not loaded correctly.
LINK TX: The greenlight blinks indicates data is in transmitting or receiving
The greenlight in solid light indicates data has completed transmitting or receiving.
The greenlight off indicates no connection.
LINK RX: The greenlight blinks indicates data is in transmitting or receiving
The greenlight in solid light indicates data has completed transmitting or receiving.
The greenlight off indicates no connection.
VIDEO : The greenlight blinks indicates the active video is in processing.
LINK USB : The greenlight is on indicates the USB of encoder & decoder are
paired.
ACT USB : The greenlight is on indicates the data is transmitting or receiving
after paired.

4KPROIP
User Manual 14
Technical Specifications
4KPROIP Series
Power supply
Input: 100-240VAC 50-60Hz
Output:12V / 3A
Inputs
TX: HDMI x1, IR x2, Audio x1, 1G RJ45 x1,
RS232 x1, USB B x1(female)
RX: 10G LAN Port x1
Outputs
TX: 10G LAN Port x1
RX: HDMI x1, IR x2, Audio x1, 1G RJ45 x1,
RS232 x1, USB A x3
USB A
480Mbps USB 2.0
USB B
480Mbps USB 2.0
HDMI
HDMI 2.0 with HDP
HDCP
HDCP 2.2 Compliant
RS232
pass-through (115Baud Rate)
IR
Bi-directional (30kHz-60kHz)
Compression
Uncompressed
Latency
Zero
Resolution
4K/60Hz 4:4:4
10G Copper Distance
Support up to 100M with Cat 6 or Cat.6a
Weight
Encoder:1420g
Decoder:1420g
Operation Temperature
-20°C to +55°C (-68°F to 131°F)
Storage Temperature
-30°C to +70°C (-86°F to 158°F)
Humidity
10% to 90%
Dimension
Encoder: 204X133X48mm (L x W x H)
Decoder: 204x133x48mm (Lx W x H )
Raw Material
Aluminum Enclosure

4KPROIP
User Manual 15
Recommend Cable
4KPROIP Series of AV Over IP was developed to work with the most basic HDMI and LAN infrastructure.
Although the 4KPROIP Series will work with most cables. aegis has recommended Cables are have been
tested in a Recognized Testing facility and have met the requirements set by the HDMI and TIA/EIA-
568C.2. The goal of Recommended Cables is to assist installers, integrators, and consumers in selecting
HDMI and LAN cables that meet the requirements, and as such provide optimal performance with
4KPROIP Series devices.
HDMI
Please, Kindly use of “Certified Premium High Speed HDMI Cable”, it is highly recommended.
Fiber
Please, Kindly use Multi-mode or single mode SFP+ fiber cable is highly recommended.
LAN wire Cable
Please, Kindly use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended. Here are the
PIN Wiring layout for LAN cables are shown below.
IR Cable
IR Pin Assignment
RS232
RS232 Protocol.

4KPROIP
User Manual 16
Recommend Network Switch
The aegis AV Over IP Series will work with most non-blocking, IGMP 10G network switch. Layer 3 will
allow more controllability; however, Layer 2 will work fine as well. It is highly recommended to
communicate with the representative of the desired network switch brand to confirm configuration
and capabilities. Below are some models that have been tested with the aegis 4KPROIP Series.
Switch Speed
The 4KPROIP Series requires the switch to be a 10GbE.
4KPROIP Series technology is used to transmit uncompressed video up to 4K along with other AV
signals such as audio, USB and control signals. For video alone, the raw bandwidth is about 4Gb/sec
for HD; and 8Gb/sec for 4K. Therefore it is obvious to understand why 4KPROIP series require 10GbE
network switches.
Packets Routing
To enable the transmission of a source to multiple destinations, aegis 4KPROIP series devices make
use of Multicast. The default behavior of layer 2 Ethernet switch is to broadcast those packets
which mean that every packet will be transmitted to all possible destinations. Therefore, any
network switch used with 4KPROIP Series must support IGMP Snooping. 4KPROIP-CAT series
endpoints use IGMP protocol to assign the endpoints into multicast groups and the router uses
IGMP snooping to route multicast packets efficiently to receivers that want to receive them.
Many switches have the IGMP Snooping feature disabled by default and manual configuration is
required. Often, a simple checkmark near “Enable IGMP Snooping” is the only thing needed to enable
IGMP Snooping.
However, the implementation of IGMP Snooping is vendor specific and additional configuration is
often needed.
An Ethernet switch can be informed that a device wants to leave a multicast channel by sending it an
IGMP LEAVE GROUP packet. Once received, the time it takes for the switch to apply the new
configuration may vary from one switch to another. Most switches implement and include FASTLEAVE
configuration option. When enabled, it takes much less time for a particular port to leave a multicast
group to assign the port to a different multicast group. The end results are a noticeably shorter video
switching time. aegis recommends that always enable the FASTLEAVE option when it is available.
With the FASTLEAVE option, seamless switching is possible for 4K video sources. Without FASTLEAVE
option, 'seamless' switching is limited to 1080P 60 Hz video signals.

4KPROIP
User Manual 17
Ethernet Switch Configuration
The following list includes all network switch configuration options that aegis Engineers have come
across so far. Look for these or similar options when configuring your switch.
1. Enable IGMP Snooping
a. Must be enabled
2. Enable IGMP Snooping on VLAN 1
a. Must be enabled when all ports default to VLAN1
3. Filter/Drop unregistered Multicast traffic
a. If not applied, the behavior of the switch will broadcast multicast packets if the switch
has unknown destination for that packet.
b. Must be enabled if found
4. Unregistered Multicast Flooding
a. Must be disabled if found
5. Filter Unregistered Multicast (different wording than number 4 above)
a. Must be enabled if found
6. Enable IGMP Query
7. Enable IGMP Query on VLAN1
8. Set IGMP Version to IGMP V2
a. Must be set if found
9. Enable FASTLEAVE on port X
a. This is optional. Should be enabled, if found
10. Enable FASTLEAVE for VLAN1
a. This is optional. Should be enabled if found

4KPROIP
User Manual 18
Declaration
aegis Inc. declares that its product is compliance to the EU Directives.
EU Directives 2011/65/EU.
EU Directives 2003/11/EC.
The following restricted material is Not Used and does not exceed the legal limited.
RoHS Restricted Substance
Allowable Limit
Cadmium and its compounds
100 ppm (0.01 weight %)
Mercury and its compounds
1000 ppm (0.1 weight %)
Hexavalent chromium and its compounds
1000 ppm (0.1 weight %)
Lead and its compounds
1000 ppm (0.1 weight %)
Polybrominated biphenyls (PBB)
1000 ppm (0.1 weight %)
Polybrominated diphenyl ethers (PBDE)
1000 ppm (0.1 weight %)
Bis(2-ethylhexyl) phthalate (DEHP)
1000 ppm (0.1 weight %)
Butyl benzyl phthalate (BBP)
1000 ppm (0.1 weight %)
Dibutyl phthalate (DBP)
1000 ppm (0.1 weight %)
Diisobutyl phthalate (DIBP)
1000 ppm (0.1 weight %)
For definitions and exemptions, please see the RoHS Directive 2011/65/EU
FCC Compliance Statement
The aegis Av over IP 4KPROIP series of the device has been tested and found to comply with the limits
for Class B digital Device pursuant to Part 15 of the FCC rules. The operation is to subject to the following
conditions.
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.

4KPROIP
User Manual 19
Warranty
Limited 3 Year Warranty
aegis INC. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This
Limited Warranty covers products purchased in the year 2019 and after. During the warranty period, and
upon proof of purchase, the product will be repaired or replaced (with same or similar model) at our
option without charging for parts or labor for the specified product lifetime warranty period.
This warranty shall not apply if any of the following:
A. The product has been damaged by negligence, accident, lightning, water, or mishandling.
B. The product has not been operated in accordance with procedures specified in operating
instructions.,
C. The product has been repaired and or altered by other than the manufacturer or authorized service
center.
D. The product's original serial number has been modified or removed.
E. External equipment other than supplied by the manufacturer, in the determination of a
manufacturer, shall have affected the performance, safety or reliability of the product.
F. Part(s) are no longer available for the product.
If the product needs repair or replacement during the specified warranty period, the product should be
shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be returned
to Purchaser by standard shipping methods at Manufacturer's discretion. Express shipping will be at the
expense of the Purchaser.
No other warranty, express or implied other than Manufacturers shall apply.
The manufacturer does not assume any responsibility for consequential damages, expenses or loss of
revenue or property, inconvenience or interruption in operation experienced by the customer due to a
malfunction of the purchased equipment. No warranty service performed on any product shall extend
the applicable warranty period. This warranty does not cover damage to the equipment during shipping
and Manufacturer assumes no responsibility for such damage. This product warranty extends to the
original purchaser only and will be null and avoid upon any assignment or transfer.
