Aegis 4KCHANGER-TC2 User manual

4KCHANGER-TC2
4K MULTI INPUT CONVERTER
All Rights Reserved Version :4KCHANGER-TC2_2019V.1.6
User Manual

4KCHANGER-TC2
GENERAL SAFETY INSTRUCTIONS
When using electronic products, please review the following safety precautions before installing or using
the products.
i. Read these instructions.
ii. Keep these instructions.
iii. Follow all instructions.
iv. Heed all warnings.
v. Be sure all cables and equipment are connected to the unit as described in the manual.
vi. Do not use this product near water.
vii. Do not place the product on top of any easily combustible materials such as carpet or fabric.
viii. Do not stacking the product on top of a hot component such as a power amplifier.
ix. Do not use liquid or aerosol cleaners to clean the product. Clean only with a dry cloth and always unplug
the power to the device before cleaning.
x. Do not block any ventilation openings. Blocking the airflow could cause damage. Arrange components so
that air ca flow freely. Ensure that there is adequate ventilation if the product is placed in a stand or
cabinet. Install or place the product in a properly ventilated area, away from direct sunlight or any
source of heat such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
xi. Power cord must be accessible to allow for the removal of the power from the product.
xii. Only use attachments/accessories specified by the manufacturer.
xiii. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or
power cord if your hands are wet or damp.
xiv. To avoid electric shock, never stick anything in the slots on the case or remove the cover.
Be careful with electricity:
Power outlet: To prevent electric shock, be sure the electrical plug used on the product
power cord matches the electrical outlet used to supply power to the HPC product. Use
only the power adapter and power connection cables designed for this unit.
Power Adaptor: Be sure the power adaptor is 24V/1.5A, please matching the rating
of the power voltage.
Lightning: For protection from lightning or when the product is left unattended for
a long period, disconnect it from the power source.
ESD: Handle the product with proper ESD care. Failure to do so can result in failure.
Trademarks All trademarks in this document are the properties of their respective owners.

4KCHANGER-TC2
Table of Content
GENERAL SAFETY INSTRUCTIONS...........................................................................................2
INTRODUCTION......................................................................................................................4
PACKAGE CONTENTS ..........................................................................................................4
SYSTEM REQUIREMENTS ....................................................................................................4
CONNECTION DIAGRAM ........................................................................................................5
DEVICE FUNCTION .................................................................................................................6
Transmitter Front Panel......................................................................................................6
Transmitter Rear Panel .......................................................................................................7
Receiver Front Panel...........................................................................................................8
Receiver Rear Panel ............................................................................................................8
TECHNICAL SPECIFICATION ....................................................................................................9
Transmitter Specification....................................................................................................9
Receiver Specification.......................................................................................................10
Resolution Specifications ..................................................................................................11
Cable Specifications ..........................................................................................................14
INSTALLATION......................................................................................................................15
ACRONYMS ..........................................................................................................................17
WARRANTY ..........................................................................................................................18

4KCHANGER-TC2
INTRODUCTION
4KCHANGER-TC2 with us allows one HDMI, Bi-direction IR and Bi-direction RS232 to be
connected up to 30meters via single CAT.6 cable for Computer, Laptop, BD Player, Game
Console and others HDMI source devices. Supporting 4Kx2K/60Hz UHD resolution with 12 bit
deep color and lossless compressed audio that make 4KCHANGER-TC2 a smart choice for
home entertainment, company conference, commercial advertising and other applications.
PACKAGE CONTENTS
4KCHANGER-TC2 Transmitter X 1 PCS
4KCHANGER-TC2 Receiver X 1 PCS
24VDC / 1.5 Amp Locking Power adapter X 1 PCS (US, UK, EU Power plug.)
Rack Ear & Screw X 2 PCS
Template X 1 PCS
User Manual X 1 PCS
SYSTEM REQUIREMENTS
HDMI Source device includes SetTop Box, BD Player, Computer, Laptop, Game
Console, Media Player and Camcorder.
HDMI Sink device includes LED/LCD Monitor, LED/LCD TVs, Projector and AV
Receiver.
Mini DisplayPort Source device includes Computer, Laptop and Tablet.
VGA Source device includes Computer and Laptop.
USB 3.1 Type C Source device includes Computer, Laptop, Tablet and Mobile Phone.
HDMI 2.0 Premium Certified Cable-Highly recommended
Mini DisplayPort 1.2 Certified Cable-Highly recommended.
USB 3.1C Certified Cable-Highly recommended.

4KCHANGER-TC2

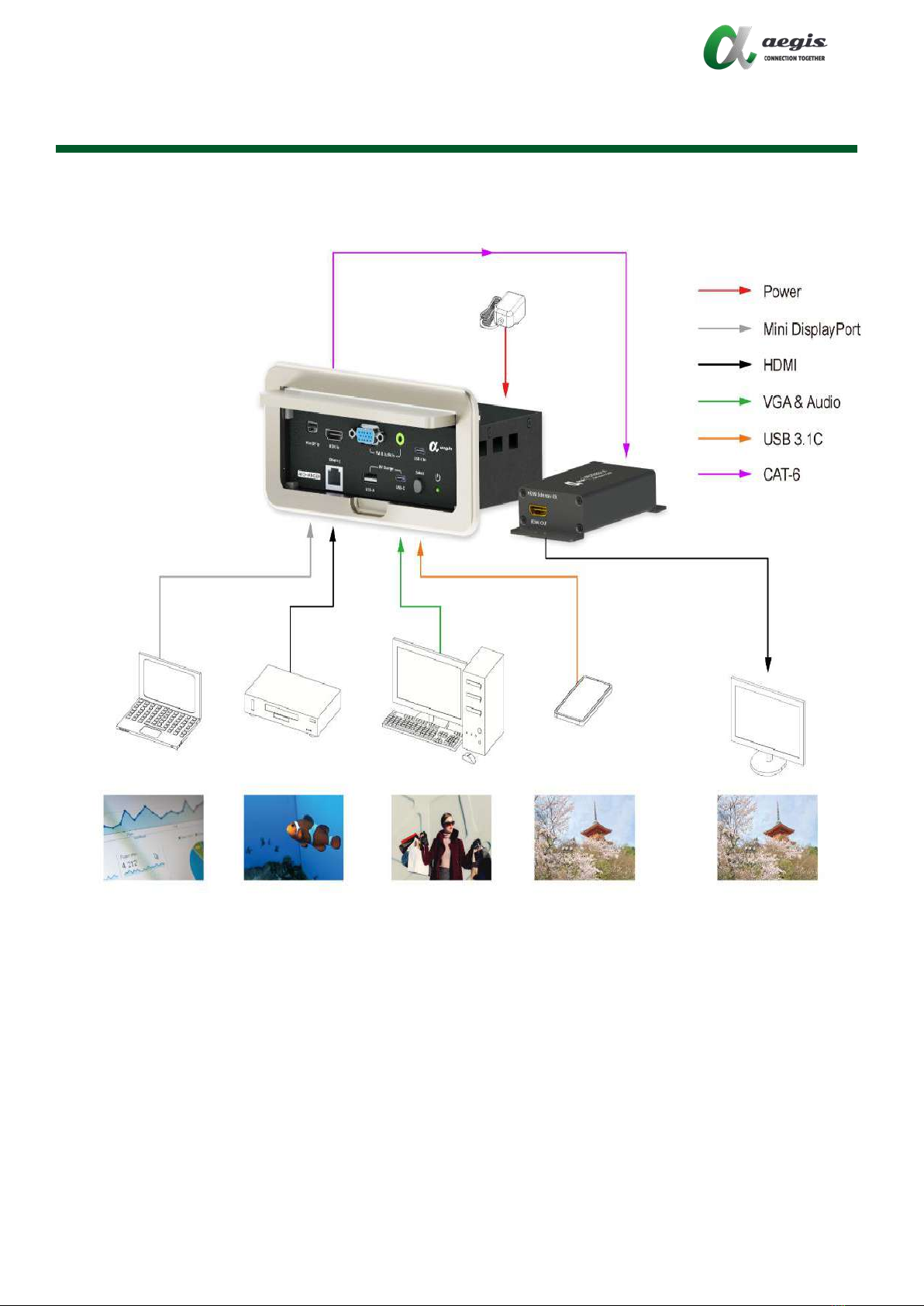

CONNECTION DIAGRAM

4KCHANGER-TC2
DEVICE FUNCTION
Transmitter Front Panel

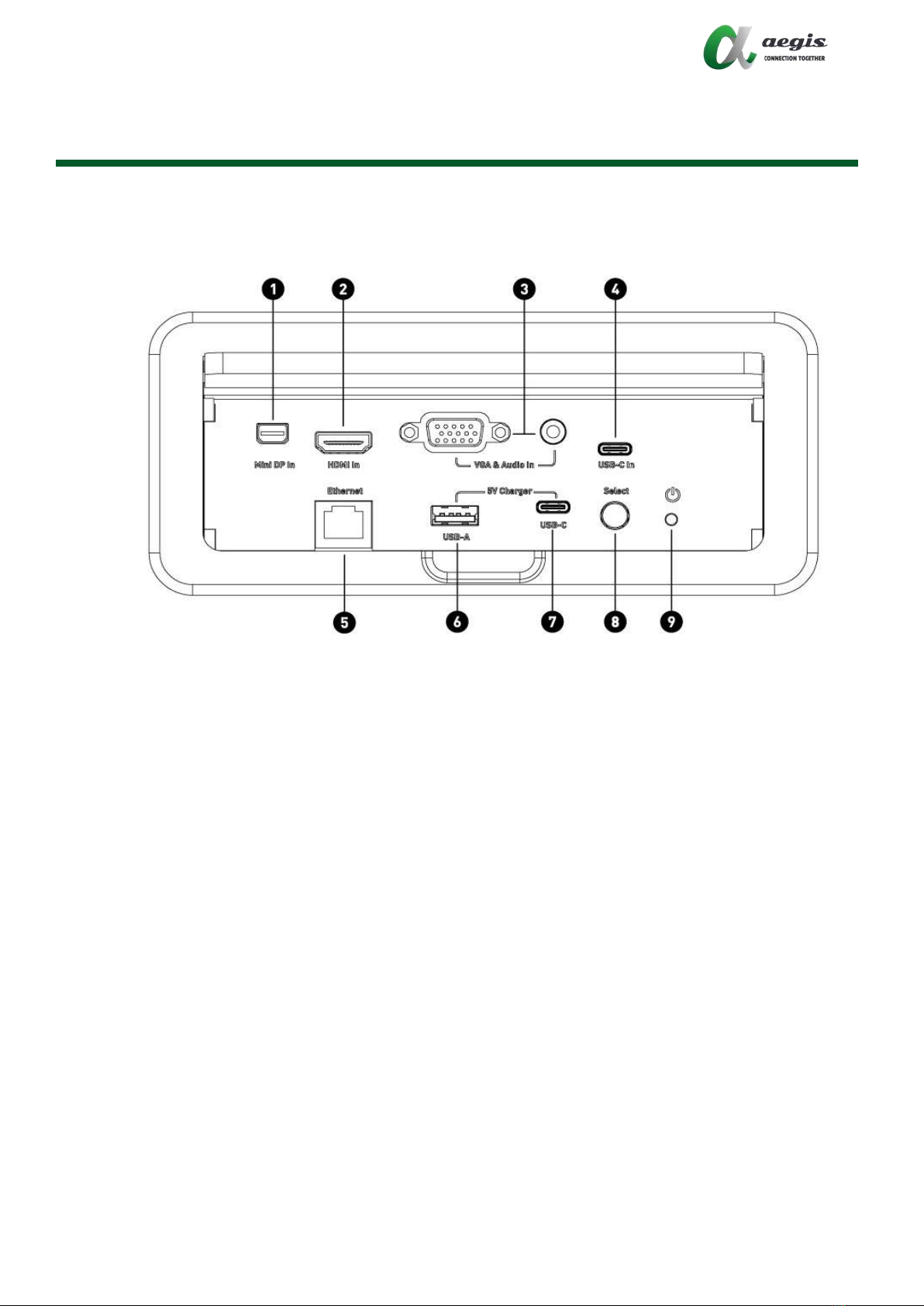

1. Mini DP In: Connect to Mini DisplayPort source device, such as Computer,
Laptop and Tablet.
2. HDMI In: Connect to HDMI sink devices, such as LED/LCD Monitor, LED/LCD
TVs, Projector and AV Receiver.
3. VGA & Audio In: Connect to VGA & Audio source device, such as Computer
and Laptop.
4. USB-C In: Connect to USB 3.1 C source device, such as Computer, Laptop,
Tablet and Mobile Phone. These devices must provide video signal output.
5. Ethernet: Connect local Internet network system. Computer and Laptop can
use Cat.5e/6 cable to connect Ethernet for internet service.
6. USB-A: Support 5V / 1.5 Amp power charging to Mobile Phone.
7. USB-C: Support 5V / 2.0 Amp power charging to Mobile Phone.
8. Select: Switching different video input sources, such as Mini DP, HDMI, VGA &
Audio and USB-C.
9. Power LED: This LED will illuminate when power adapter plug in 4KCHANGER-
TC2.

4KCHANGER-TC2

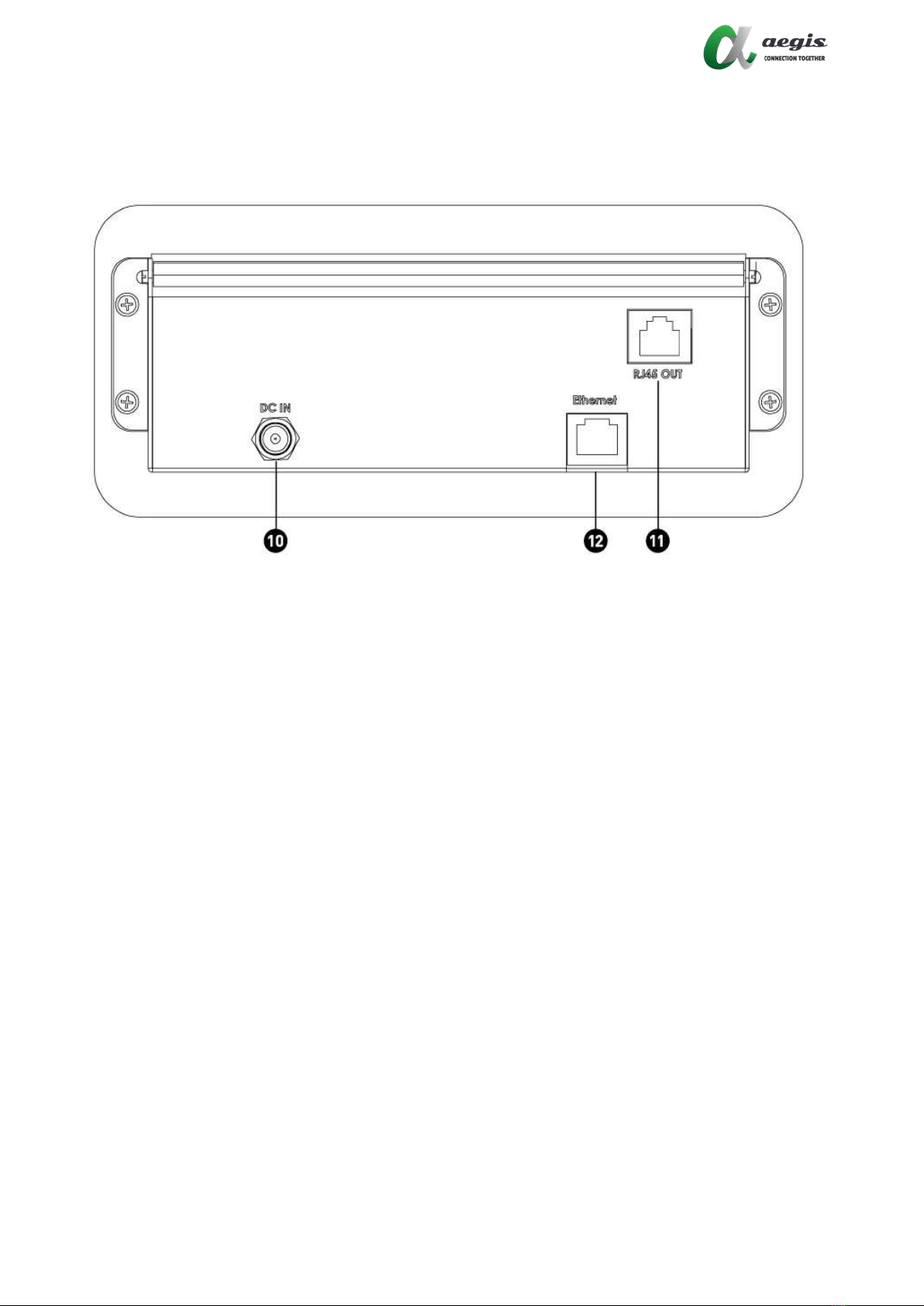

Transmitter Rear Panel
10.DC IN: 24VDC / 1.5 Amp Locking Power jack.
11.RJ45 Out: Connect to 4KCHANGER-TC2 Receiver with single Cat.6 cable.
12.Ethernet: to connect local Internet network system to provide internet
service.
Note:
4KCHANGER-TC2 supports Auto-detect for 4 different AV input sources. When
you plug in HDMI cable to 4KCHANGER-TC2 from HDMI device, 4KCHANGER-TC2
will automatically connect HDMI signal and show video on the HDMI Display.
When HDMI cable plug in 4KCHANGER-TC2 from HDMI device by first end-user,
second end-user can plug in USB 3.1C cable to 4KCHANGER-TC2 from Mobile
Phone, 4KCHANGER-TC2 will automatically connect USB 3.1C signal and show
video on the HDMI Display.
4KCHANGER-TC2 also design a select button to switch 4 different AV input
sources .You just press select button to switch one of AV input source as you
want.

4KCHANGER-TC2
Receiver Front Panel

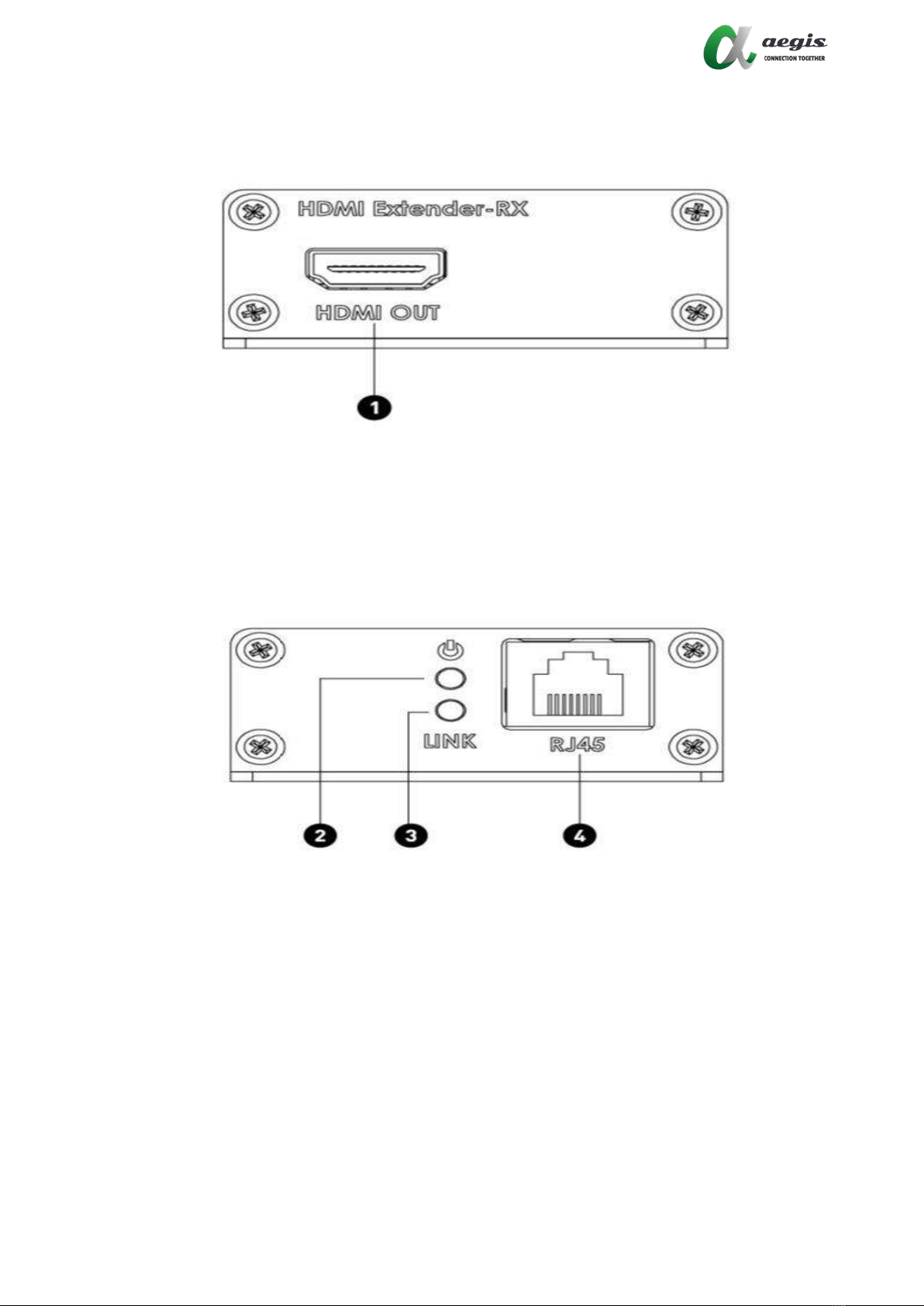

1. HDMI OUT: Connect to HDMI sink devices, such as LED/LCD Monitor, LED/LCD
TVs, Projector and AV Receiver.
Receiver Rear Panel
2. Power LED: This LED will illuminate when power delivery (POC) from
4KCHANGER-TC2.
3. LINK LED: This LED will illuminate when Receiver connect 4KCHANGER-TC2
Transmitter and all signal start to transmission.
4. RJ45: Connect to 4KCHANGER-TC2 Transmitter with single Cat.6 cable.

4KCHANGER-TC2
TECHNICAL SPECIFICATION
Transmitter Specification
HDMI Bandwidth
600MHz / 18.0Gbps
HDMI Resolution
480P,720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz.
Mini DisplayPort Resolution
800x600, 1024x768, 10280x1024,1600x900, 1600x1200,
1920x1080, 1920x1200, 2560x1440, 3840x2160, 4096x2160
VGA Resolution
1024x768, 1280x1024, 1600x900, 1600x1200, 1920x1080
USB 3.1 C Resolution
1024x768, 10280x1024,1600x900, 1600x1200, 1920x1080
1920x1200, 2560x1440, 3840x2160, 4096x2160
HDMI Output Resolution
480P,720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz.
VGA video in only supports 1920x1080p as output resolution
Audio Format
PCM 2 Channel at 48KHz
HDCP
2.2
Input Port
Mini DisplayPort X 1
HDMI X 1
VGA X 1
Audio X 1 -3.5mm Stereo Jack
USB 3.1 C X 1
Ethernet X 1 - RJ45 at Cat.5e/6 ( Pass Thru)
Output Port
RJ45 X 1
USB 2.0 A X 1 -5V/ 1.5 Amp -BC 1.2
USB 3.1 C X 1- 5V/ 2.0 Amp
Ethernet X 1 - RJ45 at Cat.5e/6 ( Pass Thru)
Control Port
Select button X 1 -
Power Supply
24VDC / 1.5 Amp (US,UK,EU Power Plug)
Power Consumption
36 W - Max.
Chassis Material
Metal
Panel Color
Silver
Operating Temperature
0℃-40℃/ 32℉-104℉
Storage Temperature
-15℃-55℃/ 5℉-131℉
Humidity
5 - 85% RH (Non-Condensing)
Dimension LXWXH
7.2 in (184 mm) X 3.1 in (80 mm) X 3.6 in (90 mm)
Weight
1,270 g

4KCHANGER-TC2
Receiver Specification
HDMI Bandwidth
225MHz / 6.75Gbps
HDMI Output Resolution
480P,720P, 1080P/24,30,50,60Hz, 4Kx2K/50,60Hz.
VGA video in only supports 1920x1080p as output resolution
Audio Format
PCM 2 Channel at 48KHz
HDCP
2.2
Input Port
RJ45 X 1
Output Port
HDMI X 1
Power Supply
POC
Chassis Material
Metal
Chassis Color
Black
Operating Temperature
0℃-40℃/ 32℉-104℉
Storage Temperature
-15℃-55℃/ 5℉-131℉
Humidity
5 - 85% RH (Non-Condensing)
Dimension LXWXH
4.3 in (110 mm) X 2.17 in (55 mm) X 0.94 in (24 mm)
Weight
125 g

4KCHANGER-TC2
Resolution Specifications
Mini DisplayPort Port Resolution
Supported Resolutions (Hz)
Mini DisplayPortInput
800x600p@60 75
V
1024x768p@60 75
V
1152x864p@75
V
1280x720p@60
V
1280x768p@60
V
1280x800p@60
V
1280x960p@60
V
1280x1024p@60 75
V
1360x768p@60
V
1366x768p@60
V
1600x900p@60
V
1600x1200p@50 60
V
1680x1050p@60
V
1920x1080p@60
V
1920x1200p@60
V
1920x1440p@60
V
2560x1440p@60
V
2560x1600p@60
V
3840x2160p@60
V

4KCHANGER-TC2
HDMI Port Resolution
Supported Resolutions (Hz)
HDMI Input
720x400p@70 85
V
640x480p@60 72 75 85
V
720x480i@60
V
720x480p@60
V
720x576i@50
V
720x576p@50
V
800x600p@56 60 72 75 85
V
848x480p@60
V
1024x768p@60 70 75 85
V
1152x864p@75
V
1280x720p@50 60
V
1280x768p@60RB/60 75 85
V
1280x800p@60RB/60 75 85
V
1280x960p@60 85
V
1280x1024p@60 75 85
V
1360x768p@60
V
1366x768p@60RB 60
V
1400x1050p@60RB 60
V
1440x900p@60RB 60 75
V
1600x900p@60RB
V
1600x1200p@60
V
1680x1050p@60RB 60
V
1920x1080i@50 60
V
1920x1080p@24 25 30
V
1920x1080p@50 60
V
1920x1200p@60RB
V
2560x1440p@60RB
V
2560x1600p@60RB
V
2048x1080p@24 25 30
V
2048x1080p@50 60
V
3840x2160p@24 25 30
V
3840x2160p@50 60 ( 4:2:0 )
V
3840x2160p@50 60
V

4KCHANGER-TC2
VGA Port Resolution
Supported Resolutions (Hz)
VGA Input
800x600p@60 75
V
1024x768p@60 75
V
1280x720p@60
V
1280x800p@60
V
1280x960p@60
V
1280x1024p@60 75
V
1360x768p@60
V
1440x900@60
V
1600x900p@60
V
1600x1200p@60
V
1680x1050p@60
V
1920x1080p@60
V

4KCHANGER-TC2
USB 3.1C Port Resolution
Supported Resolutions (Hz)
USB 3.1C Input
800x600p@60 75
V
1024x768p@60 75
V
1152x864p@75
V
1280x720p@60
V
1280x768p@60
V
1280x800p@60
V
1280x960p@60
V
1280x1024p@60 75
V
1360x768p@60
V
1366x768p@60
V
1600x900p@60
V
1600x1200p@50 60
V
1680x1050p@60
V
1920x1080p@60
V
1920x1200p@60
V
1920x1440p@60
V
2560x1440p@60
V
2560x1600p@60
V
3840x2160p@60
V
Cable Specifications
Cable Length-Input
1080p/60Hz
4K/30Hz
4K/60Hz
8 bit
8 bit 4:4:4
8 bit 4:4:4
HDMI High Speed Cable
10m
5m
2m
Mini DisplayPort Cable
5m
3m
2m
VGA Cable
7m
X
X
USB 3.1 Type C Cable
1m
1m
1m
Cable Length-Output
1080p/60Hz
4K/30Hz
4K/60Hz
8 bit
8 bit 4:4:4
8 bit 4:4:4
HDMI High Speed Cable
4m
3m
2m
Cat.6/6e/7
60m
50m
35m

4KCHANGER-TC2
INSTALLATION
Caution: Before installation, Please test the 4KCHNGER-TC2 box functionality with your
equipment to make sure compatibility.
Note: aegis Multimedia Inc. is not responsible for damage of your table surface. Be
ensure to the following instruction, when cutting your table surface.

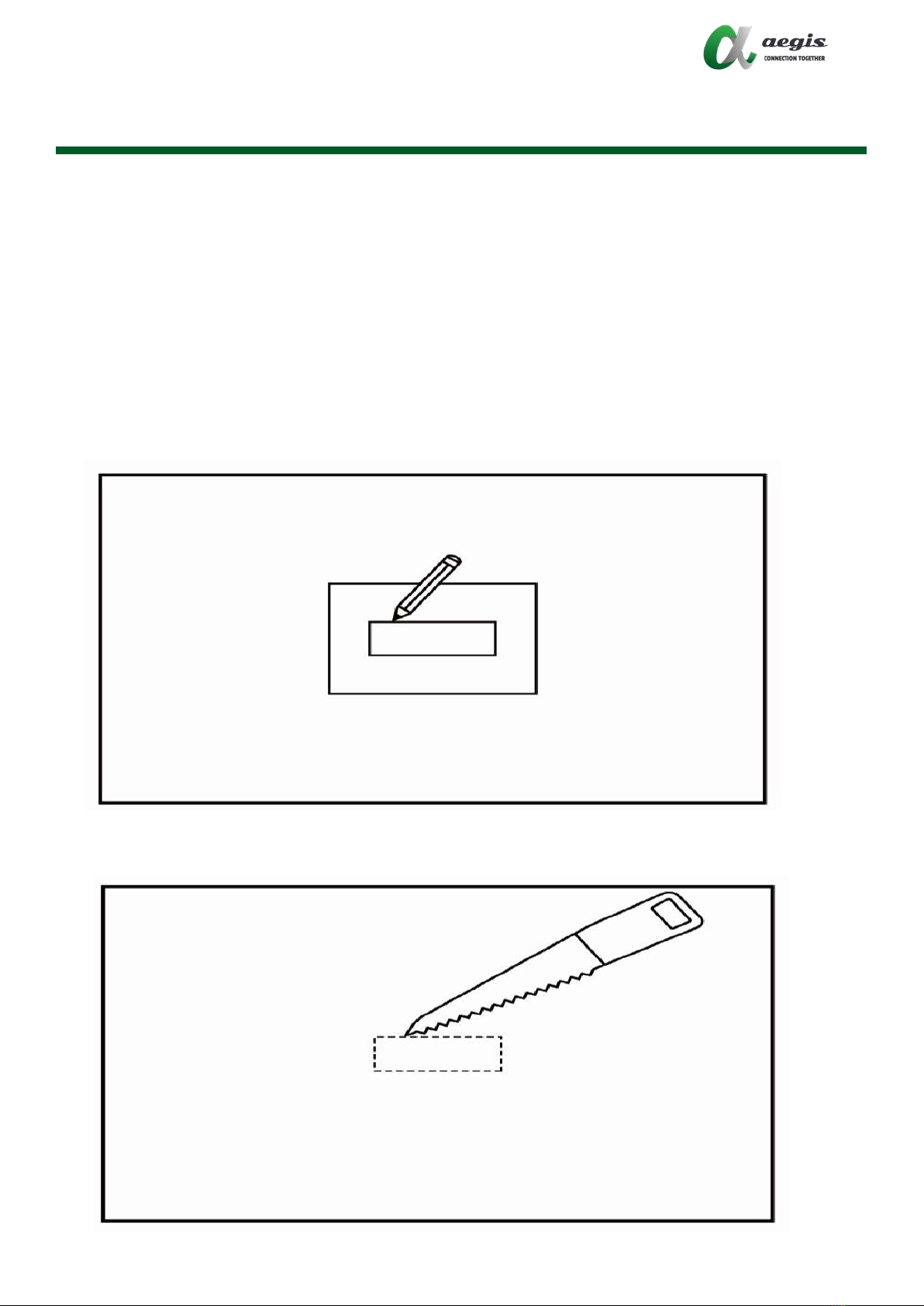

1. Using the Template card to trace the inner rectangle on the table surface in your
location.
2. Carefully cut the inner rectangle hole in your desired location.

4KCHANGER-TC2
3. Install the 4KCHANGER-TC2 Transmitter to the rectangle hole in your table.
4. Under the rectangle hole of table, using each mounting screw slot on either side of
4KCHANGER-TC2 Transmitter.
5. Twist the mounting screw in a counterclockwise direction. Be ensure the head of screw
are fixed tightly. Please do not overtighten the screw.
6. From RJ45 output port of 4KCHANGER-TC2 Transmitter to connect RJ45 port of
4KCHANGER-TC2 Receiver by single Cat.6/6e/7 cable. (Sold separately).
7. From Ethernet port of 4KCHANGER-TC2 Transmitter to connect your local Network
device by single Cat.5e/6 cable (Sold separately).
8. From locking power port of 4KCHANGER-TC2 Transmitter to connect your local power
outlet by Universal locking power adapter.
9. From HDM output port of 4KCHANGER-TC2 Receiver to connector your HDMI display
device by single HDMI cable. (Sold separately).

4KCHANGER-TC2
ACRONYMS
ACRONYM
DESCRIPTION
AV
Audio/Video
EDID
Extended Display Identification Data
HDMI
High Definition Multimedia Interface Cable
HDCP
High Bandwidth Digital Content Protection
USB
Universal Serial Bus
VGA
Video Graphics Array
mDP
Mini DisplayPort
LCD
Liquid-Crystal Display
LED
Light-Emitting Diode
RJ45
Local Area Network
UHD
Ultra High Definition

4KCHANGER-TC2
WARRANTY
Limited 3 Year Warranty
aegis Multimedia INC. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited
Warranty covers products purchased in the year 2019 and after. During the warranty period, and upon proof
of purchase, the product will be repaired or replaced (with same or similar model) at our option without
charge for parts or labor for the specified product lifetime warranty period.
This warranty shall not apply if any of the following:
A. The product has been damaged by negligence, accident, lightning, water, or mishandling.
B. The product has not been operated in accordance with procedures specified in operating instructions.,
C. The product has been repaired and or altered by other than the manufacturer or authorized service
center.
D. The product's original serial number has been modified or removed.
E. External equipment other than supplied by the manufacturer, in the determination of a manufacturer,
shall have affected the performance, safety or reliability of the product.
F. Part(s) are no longer available for the product.
If the product needs repair or replacement during the specified warranty period, the product should be
shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be returned to
Purchaser by standard shipping methods at Manufacturer's discretion. Express shipping will be at the
expense of the Purchaser.
No other warranty, express or implied other than Manufacturers shall apply.
The manufacturer does not assume any responsibility for consequential damages, expenses or loss of
revenue or property, inconvenience or interruption in operation experienced by the customer due to a
malfunction of the purchased equipment. No warranty service performed on any product shall extend the
applicable warranty period. This warranty does not cover damage to the equipment during shipping and
Manufacturer assumes no responsibility for such damage. This product warranty extends to the original
purchaser only and will be null and avoid upon any assignment or transfer.
