Aegis AVP-4K60 Series User manual

AVP-EN6K-101
AVP-DE6K-101
Version: V1.0.2
User Manual
AVP-4K60 Series
4K UHD Video over IP Encoders and Decoders

- 2 -
All rights reserved by aegis Multimedia Inc.

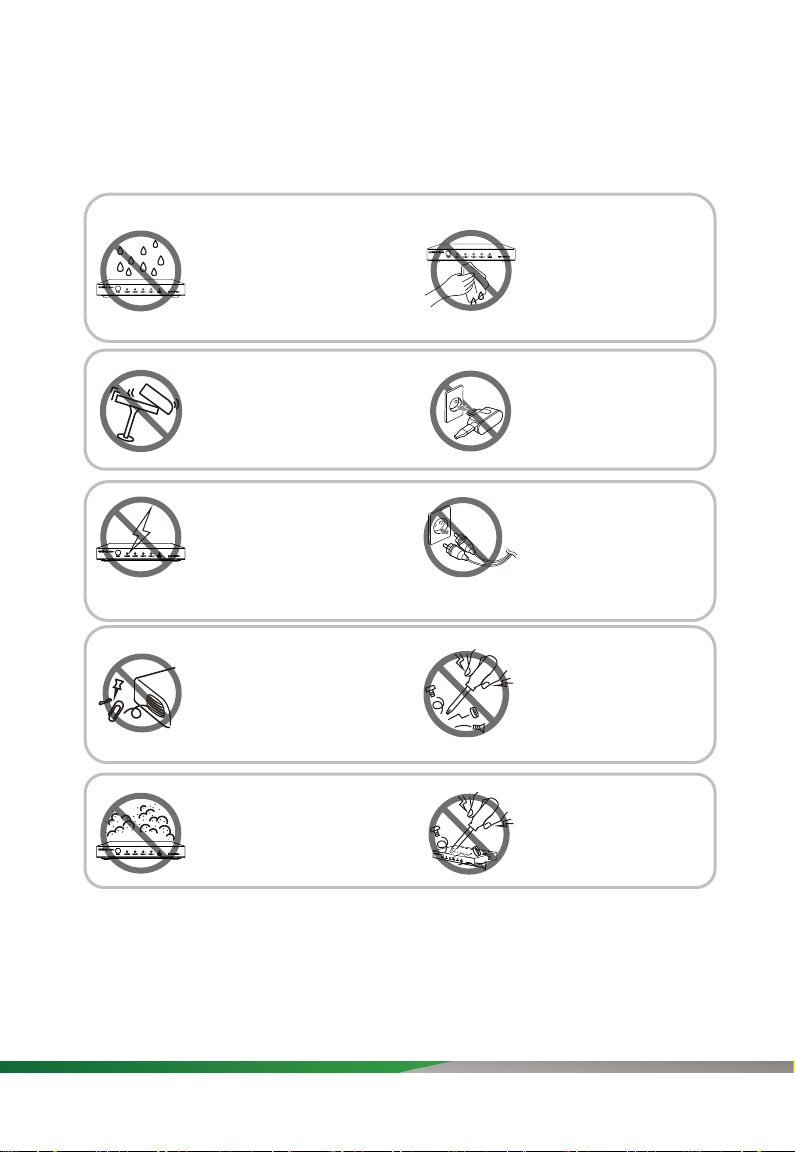

Important Safety Instructions
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments
/ accessories specified
by the manufacturer.
10. Refer all servicing to
qualified service
personnel.

- 3 -
All rights reserved by aegis Multimedia Inc.
Content
Introduction ................................................................ - 4 -
Overview..............................................................................................- 4 -
Features...............................................................................................- 5 -
Package Contents...............................................................................- 7 -
AVP-EN6K-101 (Encoder) .............................................................- 7 -
AVP-DE6K-101 (Decoder).............................................................- 7 -
Specifications .....................................................................................- 8 -
AVP-EN6K-101 (Encoder) .............................................................- 8 -
AVP-DE6K-101 (Decoder)...........................................................- 10 -

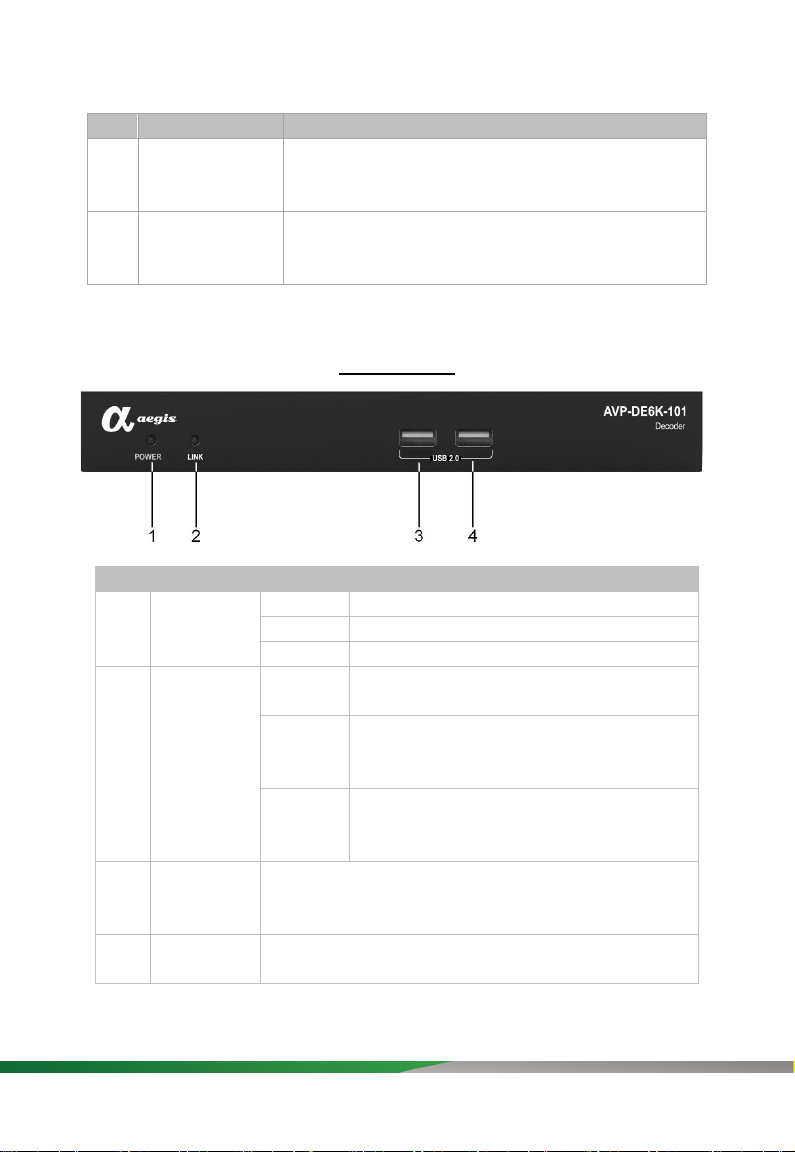

Panel Description .............................................................................- 12 -
AVP-EN6K-101 (Encoder) ...........................................................- 12 -
AVP-DE6K-101 (Decoder)...........................................................- 14 -
Warranty ....................................................................- 17 -

- 4 -
All rights reserved by aegis Multimedia Inc.
Introduction
Overview
AVP-4K60 series encoders and decoders provide the flexible,
powerful, and scalable solution at resolutions up to 3840 x
2160@60Hz 4:4:4. They allow 4K UHD media to be switched and
distributed over standard gigabit Ethernet networks, providing
complete end-to-end streaming systems. Audio, video together with
IR, and USB signals can be routed separately or as a whole
throughout the matrix system. Encoders can be used with decoders to
function video wall up to the dimensions of 16 x 16. Both of them have
the capacity to handle and output up to 7.1 channel audio, allowing
you to enjoy the finest sound.
HDCP 2.2/2.3 specifications are employed. A local area network is
covered with a range up to 100m (330ft) over a single Cat 5e cable or
above. Standard features like, bi-directional serial, bi-directional IR,
and independent analog audio input/output are included. The codecs
allow roaming/USB extension to take place to control a keyboard and
a mouse. Flexible control options are offered -- Windows PC
configurator (HDMIoverIPConsole), AGS-i TOUCH on iPad and AVP-
CBS2K-101 (AVP-CBS2K-101). They are the perfect solution for any
low latency and signal routing applications. Common applications
include homes, classrooms, conference rooms and broadcasts.

- 5 -
All rights reserved by aegis Multimedia Inc.
Features
Selects between either the 1G Optical port or 1G BASE-T port
automatically for IP stream stable transmission.
Distributes and switches 4K UHD AV signals via standard gigabit
Ethernet networks, providing complete end-to-end streaming
systems.
Supports HDMI input and output resolutions up to 3840 x
2160@60Hz 4:4:4.
Supports streaming resolutions up to 3840 x 2160@60Hz 4:4:4.
Features video wall up to the dimensions of 16 x 16.
Supports HDR10 and Dolby Vision.
Supports CEC one-touch-play and standby commands to power
on and off the display, as well as CEC Frame.
Supports multi-channel audio up to PCM 7.1, Dolby Atmos, DTS
HD Master and DTS:X.
Analog audio embedding and de-embedding.
S/PDIF audio return from decoder to encoder.
HDMI ARC audio return (FW Will be ready for Q2E).
HDCP 2.2/2.3 compliant.
Flexible routing policies, allowing audio, video, USB, IR and
RS232 signals to be routed separately or as a whole throughout
the matrix system.
Allows AV, USB, IR, RS232 and power signals to be delivered up
to 100m/328ft over a single Cat 5e cable or above.
1 frame latency.
Supports bi-directional serial communication, allowing control of
remote RS232 devices between encoders/decoders and AVP-
CBS2K-101 (AVP-CBS2K-101), or between encoders and

- 6 -
All rights reserved by aegis Multimedia Inc.
decoders.
Supports bi-directional IR pass-through, allowing control of remote
source and display devices between encoders and decoders.
Supports IR generation – send IR codes through API.
Dual USB engine, USB Device2 for high performance USB 2.0
over IP with improved support for cameras, USB Device1 for KM
over IP seamless switching and roaming.
Supports point-to-point, point-to-multipoint, multipoint-to-point,
multipoint-to-multipoint applications.
Supports PoE to be remotely powered by compatible power
source equipment such as a PoE-enabled Ethernet switch,
eliminating the need for a nearby power outlet.
Supports user-selectable output HDCP configuration via PC
configurator or AVP-CBS2K-101 (AVP-CBS2K-101).
Fit in/stretch out video wall, and rotate video management --
Decoded video can fill a video wall, maintain aspect ratio in a
video wall, or can be rotated 180°and 270°clockwise, presenting
imagery that meets customer expectations.
Supports DHCP by default, and will fall back to AutoIP if there’s no
DHCP server in the system.
Flexible control options - AGS-i TOUCH app on iPad and AVP-
CBS2K-101.
Supports communications protocols of Telnet, SSH, HTTP,
HTTPS.

- 7 -
All rights reserved by aegis Multimedia Inc.
Package Contents
AVP-EN6K-101 (Encoder)
1 x Encoder
1 x DC 12V Power Adapter with US Pins
1 x 3.5mm 3-Pin Phoenix Male Connector
1 x IR Emitter (1.2m /3.9ft)
1 x Broadband IR Receiver (1.2m /3.9ft, 30 kHz ~ 50 kHz)
2 x Wall Brackets
AVP-DE6K-101 (Decoder)
1 x Decoder
1 x DC 12V Power Adapter with US Pins
1 x 3.5mm 3-Pin Phoenix Male Connector
1 x IR Emitter (1.2m /3.9ft)
1 x Broadband IR Receiver (1.2m /3.9ft, 30 kHz ~ 50 kHz)
2 x Wall Brackets

- 8 -
All rights reserved by aegis Multimedia Inc.
Specifications
AVP-EN6K-101 (Encoder)
Video
Input Video Port
1 x female HDMI type A (19 pins)
Input Video Type
HDMI 2.0, HDCP 2.2/2.3
Input Resolutions
3840 x 2160p@24Hz 4:4:4,
3840 x 2160p@30Hz 4:4:4,
3840 x 2160p@50Hz 4:4:4,
3840 x 2160p@60Hz 4:4:4,
640 x 480p@60Hz, 720 x 480p@60Hz
1280 x 720p@60Hz, 1920 x 1080i@60Hz,
1920 x 1080p@60Hz, 720 x 576p@50Hz
1280 x 720p@50Hz, 1920 x 1080i@50Hz
1920 x 1080p@50Hz, 1920 x 1080p@24Hz
1920 x 1080p@25Hz, 640 x 480@60Hz,
800 x 600@60Hz
1024 x 768@60Hz, 1280 x 720@60Hz
1280 x 768@60Hz, 1280 x 800@60Hz
1280 x 960@60Hz, 1280 x 1024@60Hz
1360 x 768@60Hz, 1366 x 768@60Hz
1400 x 1050@60Hz, 1440 x 900@60Hz
1600 x 900@60Hz, 1600 x 1200@60Hz
1680 x 1050@60Hz, 1920 x 1080@60Hz
1920 x 1200@60Hz
Output Video Port
1 x female RJ-45, 1 x Optical
Output Video Type
IP Stream
Output Resolutions
Up to 3840 x 2160p@60Hz 4:4:4
Average Encoding Data
Rate
3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
End-to-End Time
Latency
1 frame
Input/Output Video
Signal
0.5~1.2 V p-p
Input/Output DDC Signal
5 V p-p (TTL)
Video Impendence
100 Ω
Maximum Data Rate
18 Gbps (6 Gbps per channel)
Maximum Pixel Clock
600 MHz

- 9 -
All rights reserved by aegis Multimedia Inc.
Audio
Input Audio Port
1 x HDMI; 1 x 3.5 mm stereo jack
Input Audio Signal
HDMI: Fully supports audio formats in HDMI 2.0
specification, including PCM 2.0/5.1/7.1, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio and
DTS:X;
Audio In: analog
Output Audio Port
1 x 3.5 mm stereo jack; 1 x S/PDIF Out; 1 x LAN/Optical
Output Audio Signal

Audio Out: analog
S/PDIF Out: digital audio
LAN/Optical: Fully supports audio formats in HDMI
2.0 specification, including PCM 2.0/5.1/7.1, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio and
DTS:X
Control
Control Method
1. HDMI Console (HDMIoverIPConsole)。
2. Aegis AGS i-Touch on iPad。
3. Web GUI (AVP-CBS2K-101)。
General
Operating Temperature/
Humidity
0°C ~ +45°C (+32°F ~ +113°F)
10% ~ 90%, non-condensing
Storage Temperature/
Humidity
-20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 90%, non-condensing
Power
12 VDC 2 A; PoE
Power Consumption
7W (Max)
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions
(W x H x D)
215 mm x 25 mm x 120 mm (8.46'' x 0.98'' x 4.72'')
Net Weight
0.74 kg (1.63 lbs)

- 10 -
All rights reserved by aegis Multimedia Inc.
AVP-DE6K-101 (Decoder)
Video
Input Video Port
1 x female RJ-45, 1 x Optical
Input Video Type
IP Stream
Input Resolutions
3840 x 2160p@24Hz 4:4:4,
3840 x 2160p@30Hz 4:4:4,
3840 x 2160p@50Hz 4:4:4,
3840 x 2160p@60Hz 4:4:4,
640 x 480p@60Hz, 720 x 480p@60Hz
1280 x 720p@60Hz, 1920 x 1080i@60Hz,
1920 x 1080p@60Hz, 720 x 576p@50Hz
1280 x 720p@50Hz, 1920 x 1080i@50Hz
1920 x 1080p@50Hz, 1920 x 1080p@24Hz
1920 x 1080p@25Hz, 640 x 480@60Hz,
800 x 600@60Hz
1024 x 768@60Hz, 1280 x 720@60Hz
1280 x 768@60Hz, 1280 x 800@60Hz
1280 x 960@60Hz, 1280 x 1024@60Hz
1360 x 768@60Hz, 1366 x 768@60Hz
1400 x 1050@60Hz, 1440 x 900@60Hz
1600 x 900@60Hz, 1600 x 1200@60Hz
1680 x 1050@60Hz, 1920 x 1080@60Hz
1920 x 1200@60Hz
Output Video Port
1 x female HDMI type A (19 pins)
Output Video Type
HDMI 2.0, HDCP 2.2/2.3
Output Resolutions
Up to 3840 x 2160p@60Hz 4:4:4
Average Encoding Data
Rate
3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)
End-to-End Time
Latency
1 frame
Input/Output Video
Signal
0.5~1.2 V p-p
Input/Output DDC Signal
5 V p-p (TTL)
Video Impendence
100 Ω
Maximum Data Rate
18 Gbps (6 Gbps per channel)
Maximum Pixel Clock
600 MHz
Audio
Input Audio Port
1 x S/PDIF IN; 1 x LAN/Optical
Input Audio Signal

S/PDIF In: digital audio
LAN/Optical: Fully supports audio formats in HDMI
2.0 specification, including PCM 2.0/5.1/7.1, Dolby

- 11 -
All rights reserved by aegis Multimedia Inc.
Audio
TrueHD, Dolby Atmos, DTS-HD Master Audio and
DTS:X
Output Audio Port
1 x HDMI; 1 x 3.5 mm stereo jack
Output Audio Signal
HDMI: Fully supports audio formats in HDMI 2.0
specification, including PCM 2.0/5.1/7.1, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio and
DTS:X;
Audio Out: Analog
Control
Control Method
4. HDMI Console (HDMIoverIPConsole)。
5. Aegis AGS i-Touch for iPad。
6. Web GUI (AVP-CBS2K-101)。
General
Operating Temperature/
Humidity
0°C ~ +45°C (+32°F ~ +113°F)
10% ~ 90%, non-condensing
Storage Temperature/
Humidity
-20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 90%, non-condensing
Power
12 VDC 2 A; PoE
Power Consumption
8.5W (Max)
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions
(W x H x D)
215 mm x 25 mm x 120 mm (8.46'' x 0.98'' x 4.72'')
Net Weight
0.74 kg (1.63 lbs)

- 12 -
All rights reserved by aegis Multimedia Inc.
Panel Description
AVP-EN6K-101 (Encoder)
Front Panel
No.
Name
Description
1 POWER
LED
On
The device is powered on.
Blinking
The device is booting.
Off
The device is powered off.
2 STATUS
LED
Solid On The device is connected to an active video
source.
Blinking The device is not connected to an active
video source.
Off
The device is powered off.
The device is booting.
Network is down.
Rear Panel
No.
Name
Description
1
12V
Connect this port to the 12 V 2 A power adapter.
2 RESET When the device is powered on, use a pointed
stylus to hold down the RESET button for five or

- 13 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
more seconds, and then release it, it will reboot
and restore to its factory defaults.
Note: When the settings are restored, your
custom data is lost. Therefore, exercise caution
when using the RESET button.
3
LAN (POE)
Connect either the LAN (POE) port or Optical port
to a gigabit Ethernet switch for IP stream output
and device control (the device can be powered by
a PoE-enabled switch through LAN (POE) port).
Default IP Mode: DHCP
Note:
1) Connect the Optical port to the Ethernet
switch using a single-mode or multi-mode
SFP module (not included in package). The
transmission distance may vary depending on
the specific SFP module used.
2) DO NOT connect both the LAN (POE) port
and Optical port to the Ethernet switch
simultaneously, or device exceptions may
occur.
4 OPTICAL
5 HDMI IN Connect this port to an HDMI source device.
6 AUDIO IN
Connect this 3.5 mm stereo tip-ring-sleeve port to
an audio source such as a computer for
unbalanced stereo audio input.
7 AUDIO OUT
Connect this 3.5 mm stereo tip-ring-sleeve port to
an audio receiver for unbalanced stereo audio
output.
8 S/PDIF OUT Connect this optical S/PDIF connector for digital
audio output.
9 USB Host
Connect a type A male to type B male USB cable
between this port and the USB port of a computer
for transmitting USB 2.0 data, or for KMoIP HID
seamless switching and roaming.
10 RS-232 RS232 serial port for bidirectional serial
communication.

- 14 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
11 IR IN
Connect this port to an IR receiver for IR
communication with an IR emitter at the decoder
side on the network.
12 IR OUT
Connect this port to an IR emitter for IR
communication with an IR receiver at the decoder
side on the network.
AVP-DE6K-101 (Decoder)
Front Panel
No.
Name
Description
1 POWER
LED
On
The device is powered on.
Blinking
The device is booting.
Off
The device is powered off.
2 STATUS
LED
Solid
On
The device is connected to an encoder
and the video is displayed.
Blinking
The device is
not connected to an
encoder or the connected encoder has no
active video source input.
Off

The device is powered off.
The device is booting.
Network is down.
3 USB
DEVICE 1
Connect to USB devices like a mouse and a
keyboard for KMoIP HID seamless switching and
roaming.
4
USB
DEVICE 2
Connect to a USB device for transmitting USB 2.0
data.

- 15 -
All rights reserved by aegis Multimedia Inc.
Rear Panel
No.
Name
Description
1
12V
Connect this port to the 12 V 2 A power adapter.
2 RESET
When the device is powered on, use a pointed stylus
to hold down the RESET button for five or more
seconds, and then release it, it will reboot and restore
to its factory defaults.
Note: When the settings are restored, your custom
data is lost. Therefore, exercise caution when using
the RESET button.
3
LAN (POE)
Connect either the LAN (POE) port or Optical port to
a gigabit Ethernet switch for IP stream output and
device control (the device can be powered by a PoE-
enabled switch through LAN (POE) port).
Default IP Mode: DHCP
Note:
1) Connect the Optical port to the Ethernet switch
using a single-mode or multi-mode SFP module
(not included in package). The transmission
distance may vary depending on the specific
SFP module used.
2) DO NOT connect both the LAN (POE) port and
the Optical port to the Ethernet switch
simultaneously, or device exceptions may occur.
4 Optical
5
HDMI OUT
Connect this port to an HDMI display device.
6 AUDIO OUT Connect this 3.5 mm stereo tip-ring-sleeve port to an
audio receiver for unbalanced stereo audio output.
7
S/PDIF IN
Optical S/PDIF connector for digital audio input (for

- 16 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
S/PDIF audio return from decoder to encoder).
8 RS232 RS232 serial port for bidirectional serial
communication.
9 IR IN
Connect this port to an IR receiver for IR
communication with an IR emitter at the decoder side
on the network.
10 IR OUT
Connect this port to an IR emitter for IR
communication with an IR receiver at the decoder
side on the network.

- 17 -
All rights reserved by aegis Multimedia Inc.
Warranty
For the following cases, if the product is still repairable and the warranty
becomes unenforceable or inapplicable, Aegis Inc. will charge for the service
of the defective product.
1. The original serial number (assigned by Aegis Multimedia Inc.) marked
on the product has been removed, erased, replaced, defaced or
illegible.
2. The warranty period has expired.
3. The failure is caused by any maintenance personnel who are not
authorized service partners of Aegis Multimedia Inc., dismantling or
modifying the product. Malfunctions are the result of misuse or handling
of the product, carelessly, or failure to follow the instructions in the
appropriate user guide.
4. The fault is caused by any force majeure, including but not limited to
accident, fire, earthquake, lightning, tsunami and war.
5. The services, settings and gifts promised by the salesman are not within
the scope of the normal contract.
6. Aegis Multimedia Inc. reserves the right to interpret the above cases
and has the right to modify them without prior notice.
