Aegis AVP-4K30 Series User manual

AVP-EN4K-101
AVP-DE4K-101
Version: V1.0.4
User Manaual
AVP-4K30 Series
4K UHD Video over IP Encoders and Decoders
User Manual

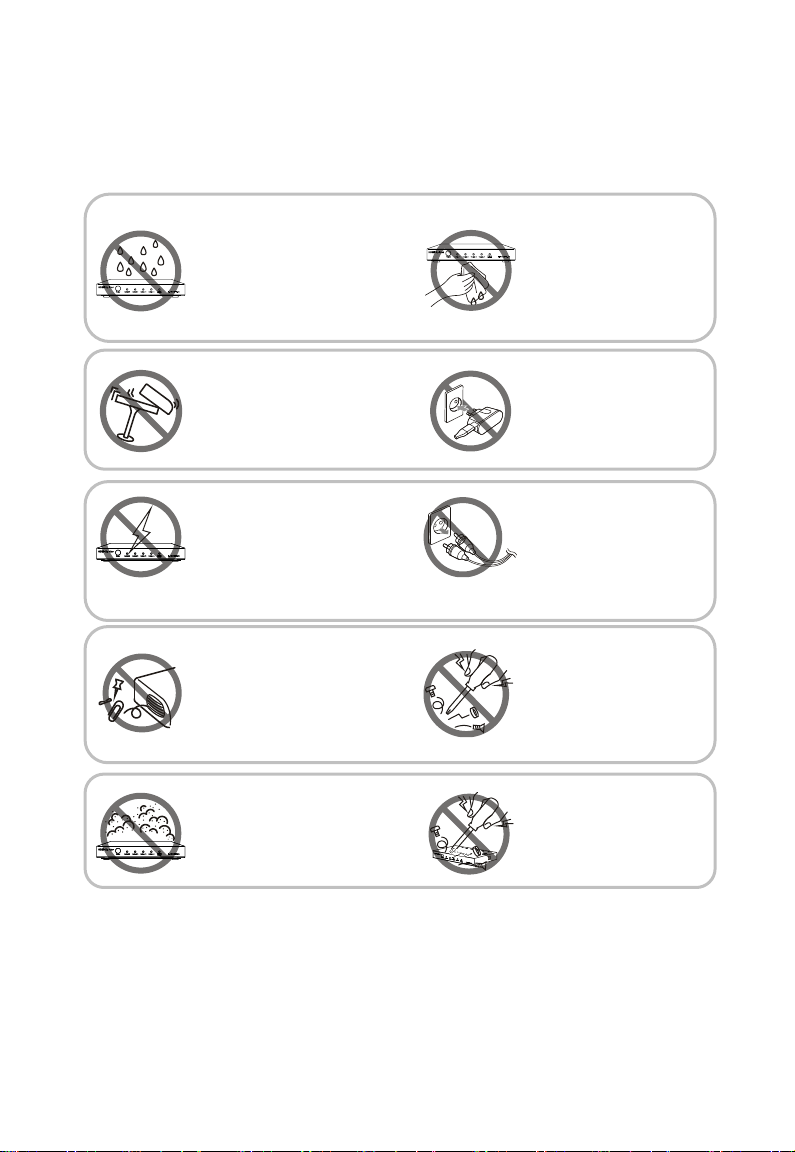

Important Safety Instructions
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments
/ accessories specified
by the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Warnings of FCC
This equipment has been tested and found to comply with the limits for a
Class B digital device, according to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used following the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

- 2 -
All rights reserved by aegis Multimedia Inc.
Contents
Introduction ...................................................- 3 -
Overview..............................................................................................- 3 -
Features...............................................................................................- 4 -
Package Contents...............................................................................- 6 -
AVP-EN4K-101..............................................................................- 6 -
AVP-DE4K-101..............................................................................- 6 -
Specifications .....................................................................................- 7 -
AVP-EN4K-101..............................................................................- 8 -
AVP-DE4K-101............................................................................- 11 -

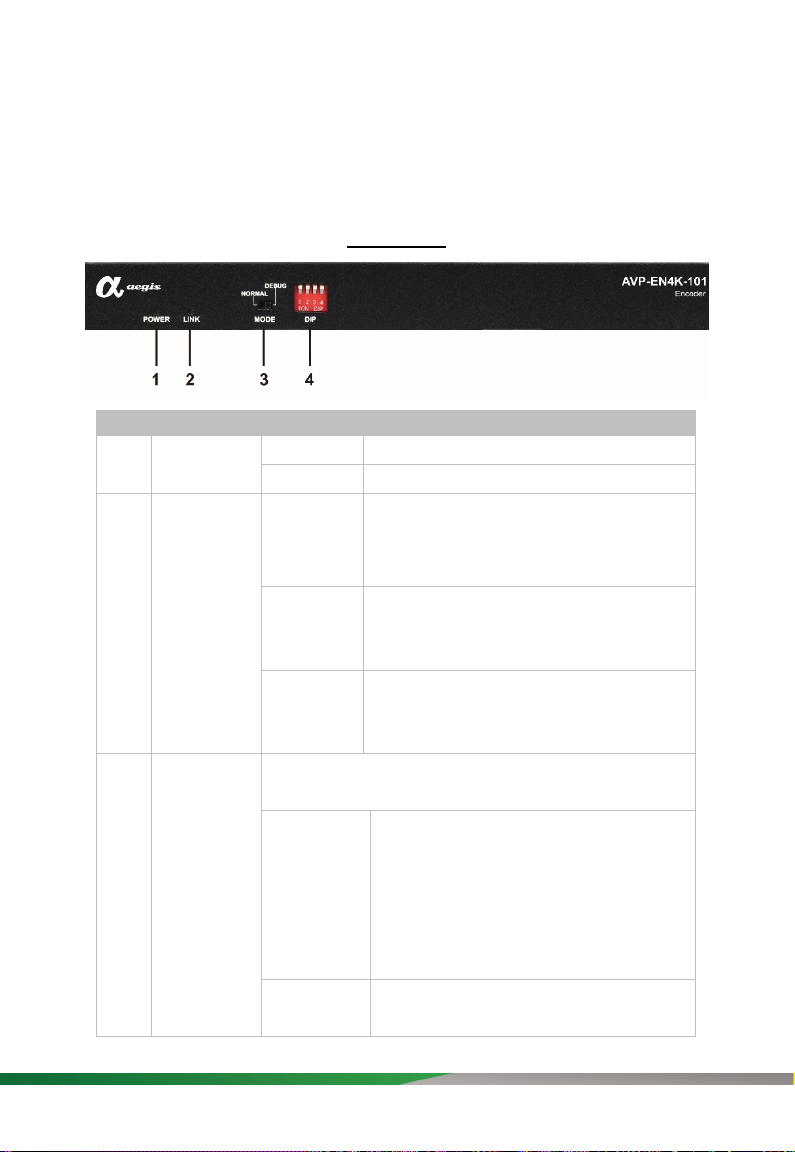

Panel Description .............................................................................- 13 -
AVP-EN4K-101............................................................................- 13 -
AVP-DE4K-101............................................................................- 18 -
Warranty Terms and Conditions.................- 23 -

- 3 -
All rights reserved by aegis Multimedia Inc.
Introduction
Overview
AVP-4K30 series encoders (AVP-EN4K-101) and decoders (AVP-DE4K-101)
provide a flexible, powerful, and scalable solution at resolutions up to 3840 x
2160@60Hz 4:2:0, 3840 x 2160@30Hz 4:4:4. Allow 4K UHD media to be
switched and distributed over standard gigabit Ethernet networks, providing
complete end-to-end streaming systems. Audio, video together with IR, and
USB signals can be routed separately or as a whole throughout the matrix
system. Encoders can be used with decoders to function video walls up to the
dimensions of 16 x 16. Both of them can handle and output up to 7.1 channel
audio, allowing you to enjoy the finest sound.
HDCP 2.2 specifications are employed. A local area network is covered with a
range of up to 100m (330ft) over a single Cat 5e cable or above. Standard
features like bi-directional serial, bi-directional IR, and independent analog
audio input/output are included. The codecs allow USB extensions to take
place to control a keyboard and a mouse. AVP-4K30 series offer integration-
friendly control features——the front panel link DIP switch, Windows PC
configurator (HDMIOverIPConsole), AGS-i TOUCH on iPad, and IP controller
(AVP-CBS2K-101) providing simple, flexible control, and management
options. They are the perfect solution for any low-latency and signal-routing
applications. Common applications include homes, classrooms, conference
rooms, and broadcasts.

- 4 -
All rights reserved by aegis Multimedia Inc.
Features
Distributes and switches 4K UHD AV signals via standard gigabit Ethernet
networks, providing complete end-to-end streaming systems.
The encoder supports HDMI input and output resolutions up to 3840 x
2160@60Hz 4:2:0.
The decoder supports HDMI output resolutions up to 3840 x 2160@30Hz
4:4:4.
Supports streaming resolutions up to 3840 x 2160@30Hz 4:4:4.
Features video wall up to the dimensions of 16 x 16.
Supports HDR10.
Supports CEC one-touch-play and standby commands to power on/off the
display, as well as CEC Frame.
Supports multi-channel audio up to PCM 7.1, Dolby Atmos, and DTS: X.
Supports independent analog audio input and output at 2 channels, 24
bits@48 kHz/channel.
HDCP 2.2 compliant.
Flexible routing policies, allow audio, video, USB, IR, and RS232 signals
to be routed separately or as a whole throughout the matrix system.
Allows AV, USB, IR, RS232, and power signals to be delivered up to
328ft/100m over a single Cat 5e cable or above.
Allows video output to follow input resolution or to convert the input
resolution to 3840 x 2160@30Hz 4:4:4 and 1080p@60Hz.
Supports HDMI input and output transmission distance up to 50ft/15m.
1 ~ 2 fps latency.
Supports bi-directional serial communication, allowing control of remote
RS232 devices between encoders/decoders and IP controller, or between
encoders and decoders.
Supports bi-directional IR pass-through, allowing control of remote source
and display devices between encoders and decoders.

- 5 -
All rights reserved by aegis Multimedia Inc.
Supports IR generation – sends IR codes through API.
Encoder offers a USB type B port to directly connect to a PC and complies
with USB 2.0 standards.
Decoder offers two USB type A ports to directly connect to a keyboard and
a mouse and complies with USB 2.0 standard, providing +5 VDC at up to
500 mA to connected USB peripherals.
Supports Mouse Roaming.
Supports point-to-point, point-to-multipoint, multipoint-to-point, multipoint-
to-multipoint applications.
Supports PoE to be remotely powered by compatible power source
equipment such as a PoE-enabled Ethernet switch, eliminating the need
for a nearby power outlet.
Supports user-selectable output HDCP configuration via PC configurator.
Fit in/stretch out video wall, and rotate video management -- Decoded
video can fill a video wall, maintain an aspect ratio in a video wall, or can
be rotated 180 °and 270 °clockwise, presenting imagery that meets
customer expectations.
Supports AutoIP, zero-configuration networking (zeroconf), a set of special
technologies that automatically assign dynamic IP addresses to the
devices on startup, and a server-less method of choosing an IP address.
Works with multiple operation tools, the front panel link DIP switch,
Windows PC configurator, AGS-i TOUCH on iPad, and IP controller for
device control, device management, and device upgrade.
Supports communications protocols used on the Ethernet such as TCP/IP,
ARP, DHCP, ICMP (ping), IGMP, and UDP.

- 6 -
All rights reserved by aegis Multimedia Inc.
Package Contents
AVP-EN4K-101
1 x AVP-EN4K-101 Unit
1 x Power Adapter (12 VDC 1A)
1 x Detachable Plug
1 x Phoenix Port (Male, 3.5 mm, 3 pins)
1 x IR Emitter (3.9ft/1.2m)
1 x Broadband IR Receiver (3.9 ft/1.2 m, 30 kHz ~ 50 kHz)
2 x Mounting Ears
AVP-DE4K-101
1 x AVP-DE4K-101 Unit
1 x Power Adapter (12 VDC 1A)
1 x Detachable Plug
1 x Phoenix Port (Male, 3.5 mm, 3 pins)
1 x IR Emitter (3.9ft/1.2m)
1 x Broadband IR Receiver (3.9 ft/1.2m, 30 kHz ~ 50 kHz)
2 x Mounting Ears

- 7 -
All rights reserved by aegis Multimedia Inc.
Specifications
4K Specifications
Max. 4K Capabilities
Resolution and Frame Rate
Chroma Sampling
Max. Bit Depth per color
3840 x 2160@30Hz
4:4:4
8 bit
3840 x 2160@60Hz
4:2:0
Frame Rate
24, 30, 50, or 60 fps.
Note:
3840 x 2160@50Hz and 60Hz can only support
4:2:0 chroma sampling.
AVP-EN4K-101 features all the capabilities
above while AVP-DE4K-101 is not compatible
with 3840 x 2160@50Hz and 60Hz.
Chroma Sampling
4:4:4: or 4:2:0
Color Bit Depth
8 bits per color
Signal Type
HDMI
Max. HDMI Video Data Rate
8.91 Gbps (2.97 Gbps per channel)

- 8 -
All rights reserved by aegis Multimedia Inc.
AVP-EN4K-101
Video
Maximum HDMI Data Rate
8.91 Gbps (2.97 Gbps per channel)
Maximum Pixel Clock
297 MHz
Color Bit Depth
8 bits per channel
Formats
RGB and YCbCr digital video
Standards
HDMI 1.4, HDCP 2.2, VESA, CEA-861F
Input Video
Input Video Port
1 x female HDMI type A (19 pins)
Input Video Type
HDMI, HDCP
Input Video Resolutions
3840 x 2160p@24Hz 4:4:4,
3840 x 2160p@30Hz 4:4:4,
3840 x 2160p@50Hz 4:2:0,
3840 x 2160p@60Hz 4:2:0,
640 x 480p@60Hz, 720 x 480p@60Hz
1280 x 720p@60Hz, 1920 x 1080i@60Hz,
1920 x 1080p@60Hz, 720 x 576p@50Hz
1280 x 720p@50Hz, 1920 x 1080i@50Hz
1920 x 1080p@50Hz, 1920 x 1080p@24Hz
1920 x 1080p@25Hz 640 x 480@60Hz,
800 x 600@60Hz
1024 x 768@60Hz, 1280 x 720@60Hz
1280 x 768@60Hz, 1280 x 800@60Hz
1280 x 960@60Hz, 1280 x 1024@60Hz
1360 x 768@60Hz, 1366 x 768@60Hz
1400 x 1050@60Hz, 1440 x 900@60Hz
1600 x 900@60Hz, 1600 x 1200@60Hz
1680 x 1050@60Hz, 1920 x 1080@60Hz
1920 x 1200@60Hz
Average Encoding Data
Rate

3840 x 2160@30Hz: about 250 Mbps
1080p@60Hz: about 150 Mbps
End-to-End Time Latency
1 ~ 2 fps
Input Video Signal
0.5~1.2 V p-p
Input DDC Signal
5 V p-p (TTL)
Video Impendence
100 Ω

- 9 -
All rights reserved by aegis Multimedia Inc.
Output Video
Output Video Port
HDMI loop-through: (local output)
1 x female HDMI type A (19 pins)
Ethernet output:
1 x female RJ-45
Output Video Type
HDMI loop-through: (local output)
HDMI, HDCP
Ethernet output:
IP stream
Output Video Resolutions
HDMI loop-through: (local output)
Up to 3840 x 2160@60Hz 4:2:0
Ethernet output:
Up to 3840 x 2160@30Hz 4:4:4
Output Video Signal
0.5~1.2 V p-p
Output DDC Signal
5 V p-p (TTL)
Video Impendence
100 Ω
Audio (Analog Audio)
Gain
Unbalanced output: 0 dB
Frequency Response
20 Hz to 20 kHz, ±1 dB
THD + Noise
-78 dBFS typical at -5.2 dBV input
SNR
> 85 dBFS at the input (A-weighted)
Stereo Channel Separation
> 80 dB
Digital Sampling Rate
48 kHz
Bit Depth
24 bits
Input Audio
Digital audio input:
Input Audio Port
1 x female HDMI type A (19 pins)
Signal Format
LPCM 2.0/2.1/5.1/ 7.1;
Dolby 5.1/7.1/Atmos;
DTS 5.1/7.1/DTS:X
Analog audio input:
Number/
Signal Type
1 PC level stereo, unbalanced
Input Audio Port
1 x 3.5 mm stereo jack, 2 channels;
tip (L), ring (R), sleeve (ground)
Signal Format
Analog
Impedance
>10k ohms, AC coupled
Nominal Level
-4.2 dBV (617 mVrms)
Output Audio
Digital audio output:
Output Audio Port
HDMI loop-through:(local output)

- 10 -
All rights reserved by aegis Multimedia Inc.
1 x female HDMI type A (19 pins)
Ethernet output:
1 x female RJ-45
Signal Format
HDMI loop-through: (local output)
LPCM 2.0/2.1/5.1/ 7.1; Dolby 5.1/7.1/Atmos;
DTS 5.1/7.1/DTS:X
Ethernet output:
Dolby 5.1/Dolby True HD/Dolby Digital Plus,
DTS 5.1/DTS HD/DTS True HD,
LPCM2.0/LPCM2.1/LPCM5.1/LPCM 7.1
Analog audio output:
Number/
Signal Type
1 PC level stereo, unbalanced
Output Audio Port
1 x 3.5 mm stereo jack, 2 channels;
tip (L), ring (R), sleeve (ground)
Signal Format
Analog
Impedance
>20 ohms, DC coupled
Nominal Level
-3.47 dBV (670 mVrms)
Control
Control Method
1. Front panel link DIP switch
2. HDMI Console (HDMIoverIPConsole)
3. Aegis AGS-i TOUCH on iPad
4. Web GUI (AVP-CBS2K-101)
General
Operating Temperature/
Humidity
0°C ~ +45°C (+32°F ~ +113°F)
10% ~ 90%, non-condensing
Storage Temperature/
Humidity
-20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 90%, non-condensing
Power
12 VDC 1 A
Power Consumption
About 6 W
(Powered via either PoE or a power adapter)
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Surge Protection
Voltage: ±1 kV
Group Pulse Protection
Voltage: ±2 kV
Case Dimensions
(W x H x D)
310 mm x 76 mm x 180 mm
(12.2'' x 3.0'' x 7.1'')
Unit Dimensions
(W x H x D)
220 mm x 25 mm x 130.2 mm
(8.7'' x 1.0'' x 5.1'')
Unit Weight
(without accessories)
0.74 Kg (1.63 lbs.)

- 11 -
All rights reserved by aegis Multimedia Inc.
AVP-DE4K-101
Video
Maximum HDMI Data Rate
8.91 Gbps (2.97 Gbps per channel)
Maximum Pixel Clock
297 MHz
Color Bit Depth
8 bits per channel
Formats
RGB and YCbCr digital video
Standards
HDMI 1.4, HDCP 2.2, VESA, CEA-861-F
Input Video
Input Video Port
1 x female RJ-45
Input Video Type
IP stream
Input Video Resolutions
Up to 3840 x 2160@30Hz 4:4:4
Output Video
Output Video Port
1 x female HDMI type A (19 pins)
Output Video Type
HDMI, HDCP
Output Video Resolutions
Up to 3840 x 2160@30Hz 4:4:4
End-to-End Time Latency
1 ~ 2 fps
Output Video Signal
0.5~1.2 V p-p
Output DDC Signal
5 V p-p (TTL)
Video Impendence
100 Ω
Audio (Analog Audio)
Gain
Unbalanced output: 0 dB
Frequency Response
20 Hz to 20 kHz, ±1 dB
THD + Noise
-78 dBFS typical at -5.2 dBV input
SNR
> 85 dBFS at the input (A-weighted)
Stereo Channel Separation
> 80 dB
Digital Sampling Rate
48 kHz
Bit Depth
24 bits
Input Audio
Digital audio input:
Input Audio Port
1 x female RJ-45
Signal Format
LPCM 2.0/2.1/5.1/ 7.1;
Dolby 5.1/7.1/Atmos;
DTS 5.1/7.1/DTS:X
Output Audio
Digital audio output:
Output Audio Port
1 x female HDMI type A (19 pins)
Signal Format
LPCM 2.0/2.1/5.1/ 7.1;
Dolby 5.1/7.1/Atmos;

- 12 -
All rights reserved by aegis Multimedia Inc.
Output Audio
DTS 5.1/7.1/DTS:X
Analog audio output:
Number/
Signal Type
1 PC level stereo, unbalanced
Output Audio Port
1 x 3.5 mm stereo jack, 2 channels;
tip (L), ring (R), sleeve (ground)
Signal Format
Analog
Note:
Only when PCM digital or analog signals are
input into the encoder, this audio output port
can output audio signals.
Impedance
>20 ohms, DC coupled
Nominal Level
-3.47 dBV (670mVrms)
Control
Control Method
1. Front panel link DIP switch
2. HDMI Console (HDMIoverIPConsole)
3. Aegis AGS-i TOUCH on iPad
4. Web GUI (AVP-CBS2K-101)
General
Operating Temperature
0°C ~ +45°C (+32°F ~ +113°F)
10% ~ 90%, non-condensing
Storage Temperature
-20°C ~ +70°C (-4°F ~ +158°F)
10% ~ 90%, non-condensing
Power
12 VDC 1 A
Power Consumption
4 W (Powered via either PoE or a power adapter)
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Surge Protection
Voltage: ±1 kV
Group Pulse Protection
Voltage: ±2 kV
Case Dimensions
(W x H x D)
310 mm x 76 mm x 180 mm
(12.2'' x 3.0'' x 7.1'')
Unit Dimensions
(W x H x D)
220 mm x 25 mm x 130.2 mm
(8.7'' x 1.0'' x 5.1'')
Unit Weight
(without accessories)
0.74 Kg (1.63 lbs.)

- 13 -
All rights reserved by aegis Multimedia Inc.
Panel Description
AVP-EN4K-101
Front Panel
No.
Name
Description
1 POWER
Indicator
On
AVP-EN4K-101 is powered on.
Off
AVP-EN4K-101 is powered off.
2 STATUS
Indicator
Solid On
AVP-EN4K-101 is connected to both
an active video source and AVP-
DE4K-101.
Blinking

AVP-EN4K-101 is disconnected
from an active video source.
AVP-EN4K-101 is disconnected
from AVP-DE4K-101.
Off

AVP-EN4K-101 is powered off.
AVP-EN4K-101 is in the boot
process.
The network is down.
3
Working
Mode
Switch
MODE: use this switch to toggle between normal
and debug modes.
NORMAL
(Default)
In this mode, you can connect the
rear panel RS232 port to a RS232
device such as a computer for bi-
directional serial communication with
a RS232 device on the IP controller
side.
DEBUG In this mode, you can connect the
rear panel RS232 port to a RS232

- 14 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
device such as a computer for
debugging AVP-EN4K-101.
4
Link DIP
Switch
DIP: this DIP switch consists of four manual
switches, which are used to route audio, video
together with IR, and USB signals between AVP-
EN4K-101 and AVP-DE4K-101 based on their
positions. By default, each switch is in the up
position. For more information, see "Using DIP
Switch to Perform Routing".
Note:
For the DIP switches in both the encoder and
decoder, changes to them take effect immediately
without rebooting the system.
Rear Panel
No.
Name
Description
1 Power Input DC 12V: connect this port to the supplied
12 V 1 A power adapter.
2 Reset Button
(Recessed)
RESET: use this button to reset the device.
When AVP-EN4K-101 is powered on, use a
pointed stylus to hold down the RESET button
for five or more seconds, and then release it, it
will reboot and restore to its factory defaults.
Note:
When the settings are restored, your custom
data is lost. Therefore, exercise caution when
using the RESET button.
432
1
ON DIP

- 15 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
3 IP Stream Output
LAN (POE): 10/100/1000 Base-T port, connect
this port to a gigabit Ethernet switch for IP
stream output, device control, and device
management.
Default protocol:
IP address:
169.254.x.x
Subnet mask:
255.255.0.0
DHCP:
Off
Auto-IP:
On (Default)
Link speed
and duplex level:
Auto-detected
RJ-45 port LEDs:
Link LED (Left): Green LED lights
indicate a good network connection.
Activity LED (Right): Yellow LED
blinks to indicate network activity.
Note:
For both the encoder and decoder,
Each device can be powered by a PoE-
enabled Ethernet switch via the RJ-45
port, eliminating the need for a nearby
power outlet.
Power supply via a power adapter has
higher priority as compared to PoE power
supply. When the device is connected to
both the supplied power adapter and the
PoE-enabled Ethernet switch, it receives
power from the power adapter instead of
the switch.
4 Audio Input
AUDIO IN: connect this 3.5 mm stereo tip-ring-
sleeve port to an audio input device such as a
computer to accept unbalanced, stereo audio
signals.

- 16 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
TRS
Connector
Note:
This connector illustration
applies to both analog audio
input and output in AVP-EN4K-
101 and AVP-DE4K-101
Note:
When this audio port is connected to an audio
input device, both the encoder and decoder will
output the audio device's audio signals instead
of that from the HDMI video source. If this
audio port is connected via an audio cable but
no audio signals are input, you can get pictures
but no sound. The situations above do not
apply to the HDMI loop-through port in the
encoder, which can still output the AV signals
from the video source.
5 Audio Output
AUDIO OUT: connect this 3.5 mm stereo tip-
ring-sleeve port to an audio output device such
as a speaker and amplifier to output
unbalanced, stereo audio signals.
6 Serial
Communication
RS232: use this port to perform bi-directional
serial communication and device debug
functions.
When the front panel "MODE" switch is
moved to the "NORMAL" position, connect
this port to a RS232 device such as a
computer to bi-directionally communicate
with a RS232 device at the IP controller
side.
When the front panel "MODE" switch is
toggled to the "DEBUG" position, connect
this port to a RS232 device such as a
computer for debugging AVP-EN4K-101.
7
USB Port for PC
USB HOST: connect a type A male to a type B
Sleeve ( )
Tip (L)

- 17 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
male USB cable between this port and the USB
port of a desktop or laptop. AVP-EN4K-101 is
USB 2.0 compliant.
8 AV Input HDMI IN: connect this port to an HDMI source
device.
9 Local AV Output HDMI OUT: connect this port to a local HDMI
display device.
10 IR Input
IR IN: connect this 3.5 mm tip-ring-sleeve port
to an IR receiver for IR communication with an
IR emitter in the AVP-DE4K-101 side of the
network.
IR receiver:
Note:
This IR cable illustration applies to the IR input
ports in AVP-EN4K-101 and AVP-DE4K-101.
11 IR Output
IR OUT: connect this 3.5 mm tip-sleeve port to
an IR emitter for IR communication with an IR
receiver in the AVP-DE4K-101 side of the
network.
IR Emitter:
Sleeve - Ground
Tip - VCC 3.3V
Ring - IR Signal
Sleeve - IR Signal
Tip - VCC 3.3V

- 18 -
All rights reserved by aegis Multimedia Inc.
No.
Name
Description
Note:
This IR cable illustration applies to the IR
output ports in AVP-EN4K-101 and AVP-DE4K-
101.
AVP-DE4K-101
Front Panel
No.
Name
Description
1 POWER
Indicator
On
AVP-DE4K-101 is powered on.
Off
AVP-DE4K-101 is powered off.
2 STATUS
Indicator
Solid On
AVP-DE4K-101 is connected to AVP-
EN4K-101 and the video is
displayed.
Blinking

AVP-DE4K-101 is disconnected
from AVP-EN4K-101.
AVP-EN4K-101 is disconnected
from an active video source.
Off

AVP-DE4K-101 is powered off.
AVP-DE4K-101 is in the boot
process.
The network is down.
3
Working
Mode
Switch
NORMAL
(Default)
In this mode, you can connect the
rear panel RS232 port to a RS232
device such as a computer for bi-
directional serial communication with
a RS232 device on the IP controller
side.
DEBUG In this mode, you can connect the
rear panel RS232 port to a RS232
