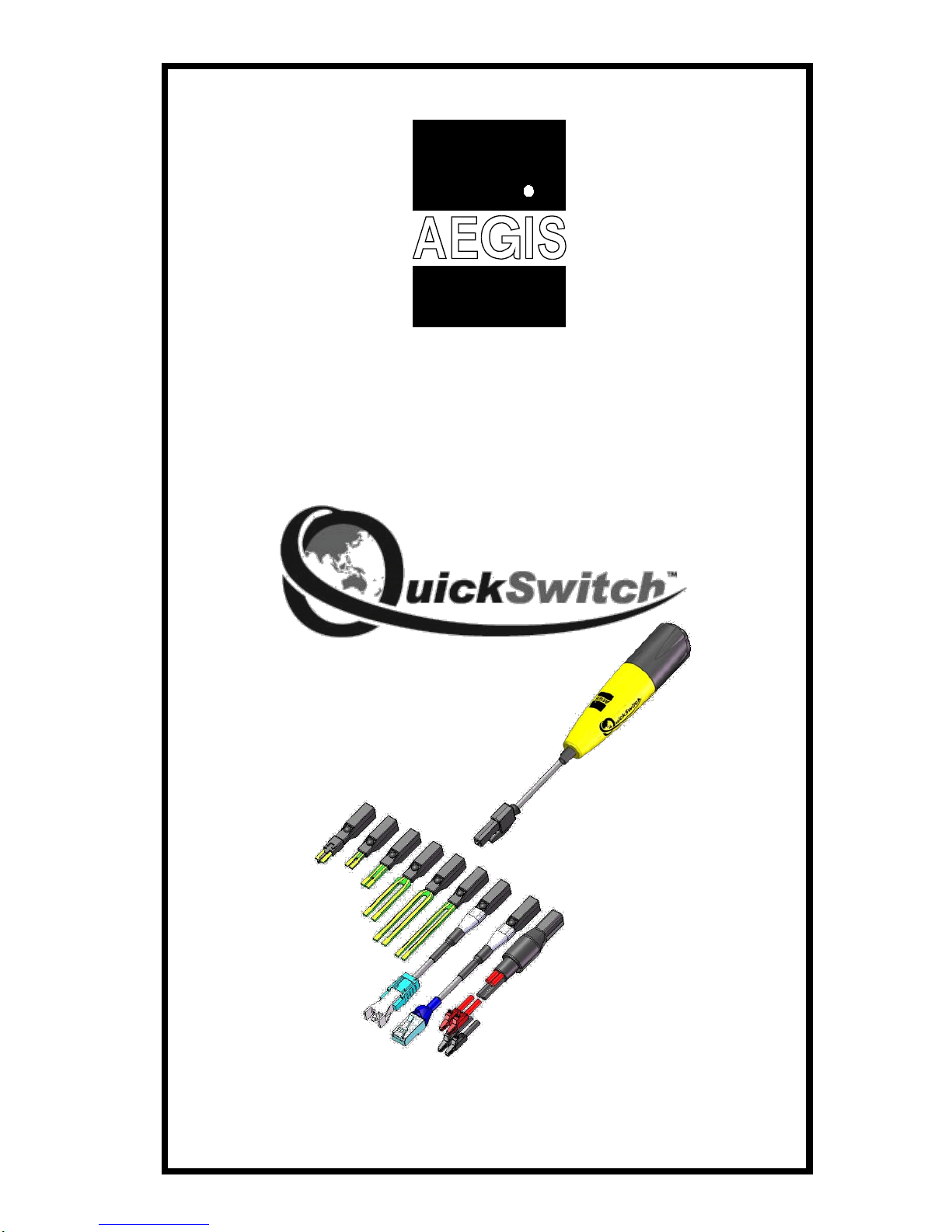

Aegis QuickSwitch CZ23000 SERIES User manual

INSTRUCTION MANUAL
CZ23000 SERIES
CZ02408-02

QuickSwitch™ – Instruction Manual
Congratulations on your purchase of an Aegis Pty Ltd
QuickSwitch™
We are sure you will be satisfied with its performance and reliability.
Please read this instruction carefully before using your
QuickSwitch™ and refer to these notes from time to time to ensure
you are always familiar with its operation.
Safety Warning
Ensure the QuickSwitch™ (with already attached accessory plug), is
plugged into the IDS Module before any other connection is made.
Care must be taken at all times to ensure personal safety.
Aegis Pty Ltd can also supply many instruments for a number of applications to support installation
and maintenance of cabling for the Telecommunications, Data and Electrical industries.
If you require further information on any of these instruments please contact us by way of phone, fax
or e-mail.
200 Rooks Road, Vermont, Victoria 3133 AUSTRALIA
TELEPHONE: [phone] FACSIMILE: [phone]
International Prefix +613
Email: [e-mail]
WEB: www.aegis.net.au
This Operators Manual covers the full CZ23000 Series of
QuickSwitch™. Refer to Section 2, for further details of each type
!
August 2009 Page 2 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Table of Contents
1. SAFETY WARNINGS ......................................................................................................... 4
1.1. Warning Note.................................................................................................................. 4
1.2. Warning High Test Voltages........................................................................................... 5
2. INTRODUCTION................................................................................................................. 5
2.1. Intended use of QuickSwitch™ ...................................................................................... 5
2.2. Tests and Functions performed....................................................................................... 6
2.3. Major features of the QuickSwitch™ ............................................................................. 6
2.4. Abbreviations and Definitions........................................................................................ 6
3. GENERAL OPERATION EXPLANATION..................................................................... 7
3.1. Features of the QuickSwitch™....................................................................................... 7
3.2. QuickSwitch™ Controls/ Layout.................................................................................... 7
4. OPERATING INSTRUCTIONS......................................................................................... 8
4.1. Components Available.................................................................................................... 8
4.2. Switch Positions.............................................................................................................. 9
4.3. Use with General Test Equipment................................................................................ 10
4.4. Use with RJ Adaptor..................................................................................................... 10
5. QUICKSWITCH™ OR ADAPTOR LEAD SETS AVAILABLE................................. 11
6. SPECIFICATIONS............................................................................................................. 13
6.1. Electrical ....................................................................................................................... 13
6.2. Environmental Conditions ............................................................................................ 13
6.3. Physical......................................................................................................................... 13
6.4. Functions (QuickSwitch™) .......................................................................................... 13
6.5. Optional Accessories..................................................................................................... 14
6.6. Applicable Standards .................................................................................................... 14
7. CARE AND MAINTENANCE.......................................................................................... 15
7.1. Warranty........................................................................................................................ 15
7.2. Maintenance and Servicing........................................................................................... 15
7.3. Cleaning........................................................................................................................ 15
7.4. Calibration..................................................................................................................... 15
August 2009 Page 3 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
1. SAFETY WARNINGS
* The QuickSwitch™ must only be used for the purpose, and in a manner, as
described in these instructions. Failing to do so may impair the protection,
function of or damage the product.
* The QuickSwitch™ must be switched to the Monitor (Bridging) position and plugged
into the IDS Module prior to any other connection being made. Ensure all Test equipment
or instruments are removed from the QuickSwitch™ before the lead is either inserted or
withdrawn from the IDS Module. Failing to do so may impair the protection provided by
the QuickSwitch™.
* The QuickSwitch™ offers the greatest protection after being plugged in and all
connections are made, therefore the operator must use caution when handling the leads,
ensuring the plug or socket contacts are not touched.
There are four warnings to be noted when using the QuickSwitch™. All relate to the connection
interfaces which are highlighted by either of the following symbols on the switch base or
connector head:
1. This symbol alerts the operator to refer to a Note in this handbook.
(Warning Note, See Section 1.1)
2. This symbol alerts the operator that High Test Voltages may be
present at this connection interface.
(Warning High Test Voltages, See Section 1.2)
1.1. Warning Note
When making any connection with QuickSwitch™, be aware that
hazardous voltages may exist on the IDS terminal unit, cable pair or test
leads of the equipment being used.
The QuickSwitch™ offers the greatest protection after being fully connected and all
connections are made, therefore the operator must use caution when handling the leads,
ensuring the plug contacts are not touched. See Figure 1.1-1
Figure 1.1-1 Warning & High Voltage warning symbols on the connection Interfaces.
Warning
High Voltage
warning
August 2009 Page 4 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
1.2. Warning High Test Voltages
It is important to recognize that any electrical/electronic system may present hazardous
voltages. When making connection with the QuickSwitch™, care must be taken not to contact
any potentially live parts. See Figure 1.1-1
2. INTRODUCTION
2.1. Intended use of QuickSwitch™
The QuickSwitch™ is intended for use by service personnel on the telecommunications
network and under normal conditions is exposed to telecommunications network voltages.
Should a fault condition occur with hazardous voltages on the network, the QuickSwitch™
offers protection to service personnel in form of basic insulation to a working voltage of 300
Vrms CAT II. The QuickSwitch™ is a connection tool for telecommunications networks. The
QuickSwitch™ incorporates a rotary action control switch, which allows the operator to access
a cable pair at an MDF, or CCU, etc., and in turn Monitor the cable pair before performing any
test.
The operator then uses the switch to select the direction to conduct a test from this test point,
either back towards the Exchange or out towards the Customer.
An additional feature of the QuickSwitch™ is that they can also be used to access the Exchange
side and Country side simultaneously.
Part Number Terminal Access:
CZ23001 QuickSwitch™.
CZ23002 QuickSwitch™ Adaptor Siemens Series 71 Plug
CZ23003 QuickSwitch™ Adaptor Siemens Series 2000 Plug
CZ23004 QuickSwitch™ Adaptor Siemens Series 5000 Plug
CZ23005 QuickSwitch™ Adaptor Crocodile Clips (4) Plug
CZ23006 QuickSwitch™ Adaptor Krone Plug
CZ23007 QuickSwitch™ Adaptor Madison Plug
CZ23008 QuickSwitch™ Adaptor Plug 3M (Quante)
CZ23009 QuickSwitch™ Adaptor Plug Marconi
CZ23011 QuickSwitch™ Adaptor Plug RJ
CZ23012 QuickSwitch™ Carry Pouch
Adaptor Leads available:
CZ2280 Banana Plug to RJ Plug (Butt Lead)
CZ2285 Banana to RJ Socket Adaptor Lead
CZ2301 Earth Plug (Complete Set)
Note 1: The Adaptor Leads provide test access to RJ sockets for both Data and Telephony
circuit testing.
Note 2: All leads are supplied individually or as a kit, as required.
August 2009 Page 5 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
2.2. Tests and Functions performed
The QuickSwitch™ does not actually perform any tests itself, it
facilitates the access required to a telecommunications network at a cross-connect point, to
allow other test instruments to perform the tests as required.
When switched to the Monitor position, with the appropriate access plug, it can be inserted into
the matching IDS module to allow the operator to monitor the line (Cable Pair) under
investigation. This test is usually conducted with a Buttinski test set.
By rotating the switch through the available positions marked on the switch body, the operator
can then connect other test instruments to conduct the usual line tests to determine the “Line
Condition”.
Depending on which way the IDS Module and Access plug is setup, (See sections 4.2, for
Accessing Exchange or Customer Side), the operator can select, with the rotary switch, the
Exchange or Customer side for testing.
By selecting the Exchange side, the line can be tested utilizing auto test facilities, or simply
utilize the normal Exchange functions.
When the Customer Side is selected, the cable section leading out towards the customer can be
checked or tested.
In general, the QuickSwitch™ with all it’s optional plugs, is normally used by any Technician
or Communication Officer, in the performance of their duties, where access to the copper line is
required at any test point along the line. This can be between and including, the Exchange and
the customer’s premises.
2.3. Major features of the QuickSwitch™
The major features allow the connection of any standard test instrument to a
Telecommunication or Data Network via:
•Line Access, non interrupting, Monitoring
•Access to the Exchange side by simple switching without changing lead connections
•Access to the Customer side by simple switching without changing lead connections
•Access to both the Exchange and Customer individually at the same time, by simple
switching without changing lead connections.
•Safety of the Operator from non-standard, dangerous voltages on the line
2.4. Abbreviations and Definitions
CAN Customer Access Network
MDF Main Distribution Frame
CCU Cross Connect Unit (Pillar or Cabinet)
Country Country Side (also called Customer Side) - Refers to the cable looking
away towards the customer, from the test point.
Exchange (Exchange Side) - Refers to the cable looking back towards the
Exchange, from the test point.
August 2009 Page 6 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
3. GENERAL OPERATION EXPLANATION
3.1. Features of the QuickSwitch™
Figure 3.1-1 Features and Application
3.2. QuickSwitch™ Controls/ Layout
Figure 3.2-1 Controls and Operation
4 x 4mm Shrouded Banana Sockets
for Test Instrument Connection.
Easy turn rotary switch
for line test selection
Applicable IDS Access Plug
Switch (Rotate)
Switch Body
Applicable IDS Access Plug
Test Lead
Connections
Four Banana Sockets
Switch Positions
* Exchange
* Monitor
* Customer
This is how IDS Access
Plug fits the
QuickSwitch™ Socket.
QuickSwitch™
August 2009 Page 7 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Figure 3.2-2 Switch Operation Diagram.
4. OPERATING INSTRUCTIONS
4.1. Components Available
The QuickSwitch™ is available with a range of interchangeable IDS access plugs, contained in
a carry bag, or purchased separately.
As each access plug can be purchased separately, refer to the list in section 2.1 for details on the
types of switch & adaptor leads available.
This instruction manual is supplied with the QuickSwitch™.
The QuickSwitch™ with the appropriate plug can be used with any test, measure or fault
location instrument that is fitted with suitably protected 4mm, male banana plugs that will not
exceed the specifications of this lead.
To Suit IDS Modules
•Krone
•Madison
•Siemens 71
•Siemens 2000
•Siemens 5000
•3M (Quante)
•Marconi
IEC61010 Protected Female
Banana Sockets
(Jumper Side & Cable Side -
Switchable)
Top Pair of Access Plug
(Cable)
A Leg
B Leg
B Leg
A Leg
Bottom Pair of Access Plug
(Jumper)
Switch (3 Position DP)
IEC61010 Protected Female
Banana Sockets
(Jumper Side, Permanent)
To Suit IDS Modules
•Krone
•Madison
•Siemens 71
•Siemens 2000
•Siemens 5000
•3M (Quante)
•Marconi
IEC61010 Protected Female
Banana Sockets
(Jumper Side & Cable Side -
Switchable)
Top Pair of Access Plug
(Cable)
A Leg
B Leg
B Leg
A Leg
Bottom Pair of Access Plug
(Jumper)
Switch (3 Position DP)
IEC61010 Protected Female
Banana Sockets
(Jumper Side, Permanent)
August 2009 Page 8 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Customer
Permanent
Customer Only
Not Switched
Non Switching Sockets
Switching Sockets
(Selected with Switch)
Exchange
Monitor
4.2. Switch Positions
Figure 4.2-1 Switch position for Standard Application of the CAN QuickSwitch™
Figure 4.2.2 Connections available at the banana sockets of the QuickSwitch™
Base of Switch Housing
Customer Side IDS Block
Exch Cable
Customer Cable
Jumper Wires
Insert lead with Exch marking
on plug up
Insert lead with Exch marking
on cable down
Equipment Side IDS Block
August 2009 Page 9 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
4.3. Use with General Test Equipment.
For connection to the Equipment side of the MDF or Mains side of a CCU
1. Select the QuickSwitch™ Plug to suit the IDS Module you wish to connect to.
2. Ensure the switch is in the Monitor (Bridging) Position.
3. Plug in the QuickSwitch™ and note the direction of the Exchange.
4. Plug test/monitor instrument into the switching sockets at the base of the switch housing.
5. Unless intentionally being used, ensure the non switching sockets are clear from any other
connection.
6. Check the line to ensure it is not in use. (Eg; Buttinski)
7. If a test is to be conducted using an Exchange feature or facility, and the customer side
(Country) is to be included in the test, then leave the switch in the Monitor position.
8. If a test is to be conducted using an Exchange feature or facility, and the customer side
(Country) is to be excluded in the test, then rotate the switch to the Exchange position.
9. If a test is to be conducted using a Country feature or facility, and the exchange side is to be
excluded in the test, then rotate the switch to the Customer position.
10. Ensure all connections are removed from the QuickSwitch™ before it is removed from the
IDS Module.
4.4. Use with RJ Adaptor.
1. When using the RJ Adaptor, make sure that the QuickSwitch™ must be set to Monitor
position.
August 2009 Page 10 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
5. QUICKSWITCH™ OR ADAPTOR LEAD SETS AVAILABLE
The CZ23000 QuickSwitch™ utilizes one QuickSwitch™ and various access plugs.
Figure 5-8 CZ23009 Plug
Marconi
Figure 5-3 CZ23007 Plug
Madison
Figure 5-2 CZ23006, Plug
KRONE
Figure 5-4 CZ23002 Plug
Series 71
Figure 5-5 CZ23003 Plug
Siemens Series 2000
Figure 5-7 CZ23008 Plug
Quante
Figure 5-6 CZ23004 Plug Siemens
Series 5000
Figure 5-1 CZ23001,
QuickSwitch™
August 2009 Page 11 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Figure 5-9 CZ2170 S/N 138/98
LTS No.2 Lead
Figure 5-10 CZ23011, Plug
RJ
Figure 5-11 CZ2301 Earth
Plug Banana Socket – GPO
Figure 5-12 CZ23005, Crocodile
Clip Adapter
Figure 5-13 CZ2285, Banana to
RJ Socket, Adaptor Lead
Figure 5-14 CZ2280 RJ Plug to two
protected male banana plugs. Butt
Lead.
This lead is suitable for Buttinskis with
replaceable RJ socketed leads.
Figure 5-15 CZ2150 DC Charge
Lead S/N 5/00121
August 2009 Page 12 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
6. SPECIFICATIONS
6.1. Electrical
Voltage: Maximum 300Vrms / D.C.
Current: Maximum 0.5A
Transient Over Voltage: Maximum 2500V (Rating CAT II)
6.2. Environmental Conditions
Location for use: Indoors or Outdoors
Altitude: Up to 2000m Elevation
Temperature: Operating 0ºC to +50ºC
Storage -20ºC to +70ºC
Humidity: 95% RH non-condensing
Pollution Degree: Degree 2, as defined in AS61010.1-2003
6.3. Physical
Dimensions: Total 1800 mm. in length
Switch 120mm x 28mm
IP Rating: 67 (Switch Housing)
Mass: 100gms
6.4. Functions (QuickSwitch™)
Three (3) positions Rotary Switch with IDS Access plugs.
Position 1 Exchange – Top pair of contacts on the IDS Access Plug.
Position 2 (Centre) Monitor – Combined Top & Lower contacts of the IDS Access Plug
Position 3 Customer - Lower pair of contacts on the IDS Access Plug
August 2009 Page 13 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
6.5. Optional Accessories
Description Qty Part No
QuickSwitch™ Carry Case 1 CZ23012
6.6. Applicable Standards
All equipment offered complies with the relevant parts of the following standards and any
further referenced standards within those standards.
1. AS 1099.2.31 – 1990: Basic environmental testing procedures for electrotechnology. Part 2:
Tests - 1099.2.31: Test Ec-Drop and topple, primarily for equipment.
2. AS 1939-1990: Degrees of protection provided by enclosures for electrical equipment (IP
Code). (Also has been reproduced from IEC 529)
3. AS 60068.2.32-2003: Basic Environmental testing procedures. Part 2. Tests - Test Ed: Free
fall.
4. AS/NZS 60950.1: 2003: (Inc. Amdts 1,2 & 3): Information Technology Equipment – Safety.
Part 1: General
5. AS 61010.1 (2003): Safety requirements for electrical equipment for measurement, control,
and laboratory use – General Requirements.
6. AS 61010.2-31(2004): Safety requirements for electrical equipment for measurement,
control, and laboratory use-Part 031: Safety requirements for handheld probe assemblies for
electrical measurement and test.
Manufactured under a Quality System complying to ISO9001 (QEC Lic.5948)
** These specifications and part numbers are subject to change without notice**
August 2009 Page 14 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
7. CARE AND MAINTENANCE
7.1. Warranty
The QuickSwitch™ & Adaptor Leads are warranted against defects in materials and
workmanship for a period of 12 months from the date of purchase. If AEGIS PTY LTD
receives notice of such defects within the warranty period, AEGIS shall, at its discretion, either
repair or replace the defective unit. For purposes of warranty repair or replacement, the user is
required to return the defective item together with proof of purchase, to AEGIS at the address
given in section 7.2 below. The warranty does not apply for defects or damage arising from
misuse by the user.
7.2. Maintenance and Servicing
The QuickSwitch™ & Adaptor Leads contain no user-serviceable parts, and damaged or
failed instruments should be returned to the manufacturer for repair. Such units should be
suitably packaged and sent by pre-paid parcel post or courier to the address below:
Aegis Pty Ltd. Phone [phone]
200 Rooks Rd, Vermont Vic. 3133
Australia
Tel : [phone] Email: [email protected]
Fax: [phone] Website: www.aegis.net.au
The sender’s name and return address must be supplied, together with a description of the fault.
If different from the return address, an invoicing address should also be given.
7.3. Cleaning
Do not immerse the QuickSwitch™ or Adaptor Lead in water.
To clean, simply wipe over with a damp cloth.
Do not use any harsh detergents or solvents on the QuickSwitch™ or Adaptor Lead.
7.4. Calibration
Not required.
August 2009 Page 15 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Notes:
August 2009 Page 16 of 17 CZ02408-02

QuickSwitch™ – Instruction Manual
Serial/Item No Aegis Part Number IDS Access Plugs Available
005/00742 CZ23001 QuickSwitch™
005/00743 CZ23002 QuickSwitch™ Adaptor Siemens Series 71
005/00744 CZ23003 QuickSwitch™ Adaptor Siemens Series 2000
005/00745 CZ23004 QuickSwitch™ Adaptor Siemens Series 5000
005/00746 CZ23005 QuickSwitch™ Adaptor Crocodile Clips (4),
005/00747 CZ23006 QuickSwitch™ Adaptor Krone
005/00748 CZ23007 QuickSwitch™ Adaptor Madison
005/00749 CZ23008 QuickSwitch™ Adaptor 3M (Quante)
005/00750 CZ23009 QuickSwitch™ Adaptor Marconi
005/00751 CZ23011 QuickSwitch™ Adaptor RJ
005/00752 CZ23012 QuickSwitch™ Carry Case
Adaptor Leads available:
5/00110 CZ2280 Banana Plug to RJ Plug (Butt Lead)
5/00111 CZ2285 Banana to RJ Socket Adaptor Lead
5/00108 CZ2301 Earth Plug (Complete Set)
200 Rooks Road, Vermont, Victoria 3133 AUSTRALIA
TELEPHONE: [phone] FACSIMILE: [phone]
International Prefix +613
Email: [e-mail]
WEB: www.aegis.net.au
August 2009 Page 17 of 17 CZ02408-02
