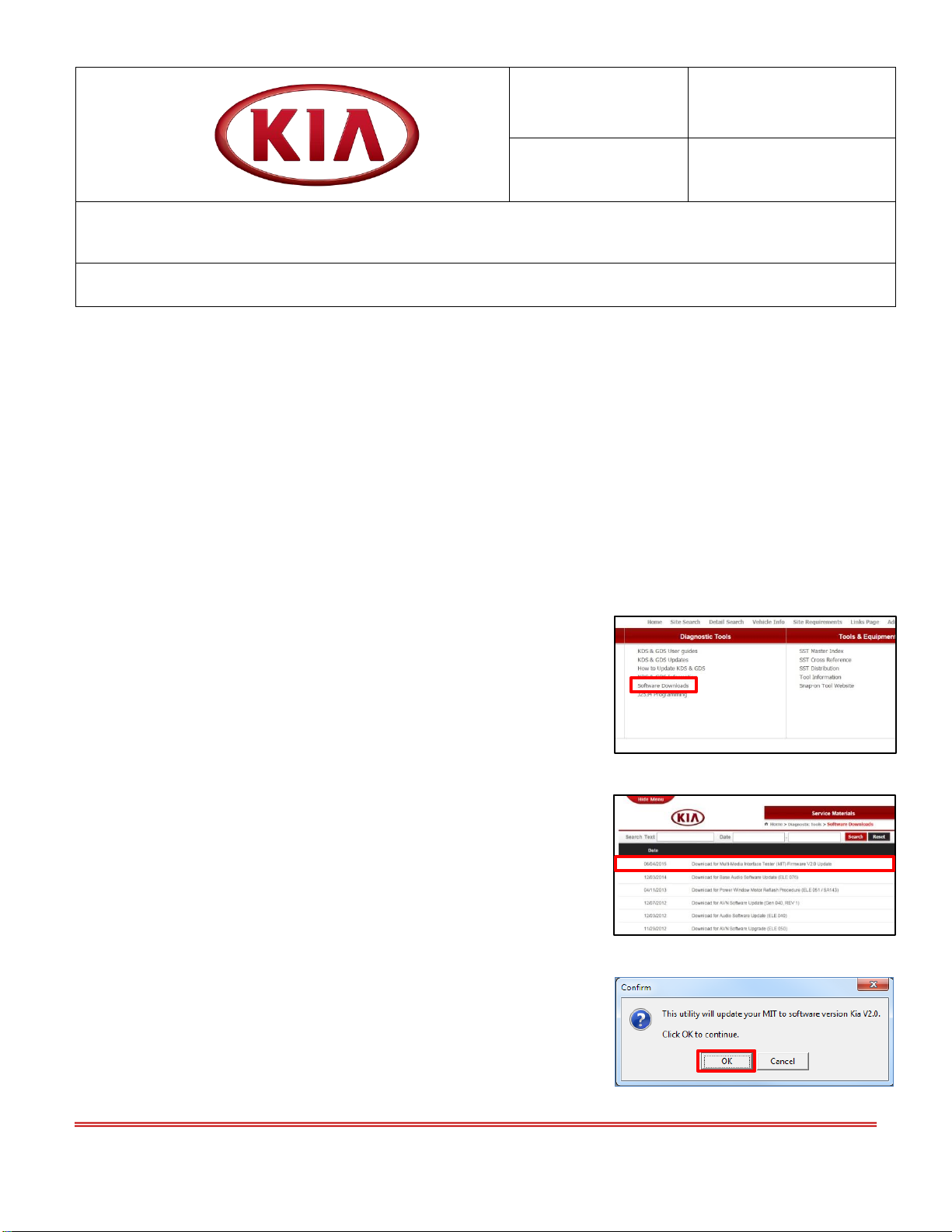

Kia 07130-10100 Reference manual

File Under: <Special Tools>
Circulate To: General Manager Service Manager Parts Manager
Service Advisors Technicians Body Shop Manager Fleet Repair
X
X
X
X
X
X
X
GROUP
MODEL
SST
All
NUMBER
DATE
038
June 2015
TECHNICAL SERVICE BULLETIN
SUBJECT: KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
This bulletin provides information relating to an update for the Kia Universal Multimedia Interface
Tester (MIT) Kit. The MIT has been updated for improved compatibility with Kia’s new audio
technology. Update your dealership’s Multi-Media Interface Tester (MIT) with the included kit.
The MIT Update Kit contains;
MIT Firmware Update via KGIS download
12V Power Adapter/Cable
Quick Reference Label
Quick Reference Guide V2.0
Follow the procedure outlined below to perform the MIT update.
Firmware Download
1. Access kdealer.com and open KGIS. Go to
the top navigation menu and click on
Diagnostic Tools > Software Downloads.
2. Click on Multi-Media Interface Tester
(MIT) Firmware update V2.0 Update.
3. Click OK to continue.

KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
Page 2 of 7
TSB: SST 038 All Models June 2015
SUBJECT:

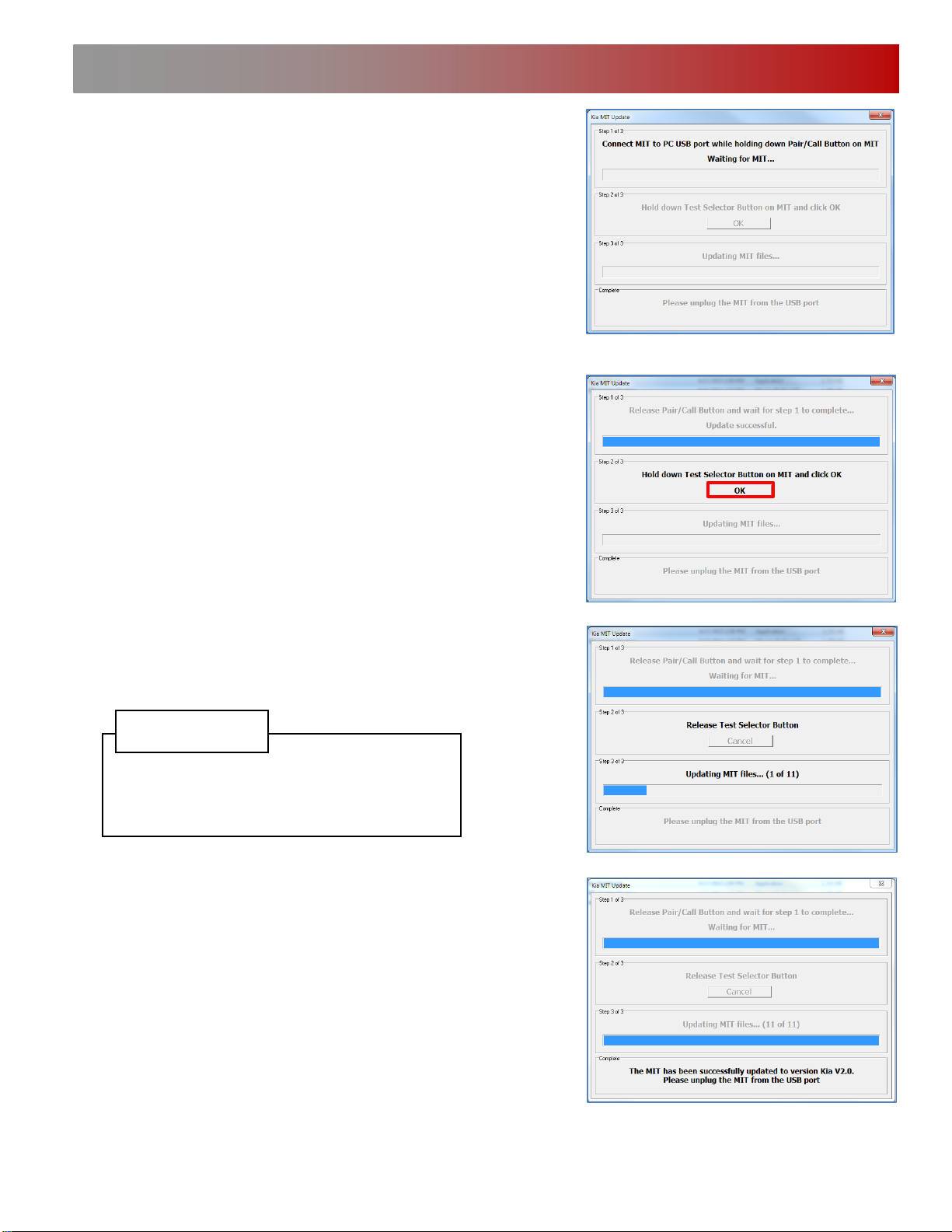

4. When prompted, place the MIT in update
mode by connecting the MIT to PC’s USB
port while holding down the PAIR/CALL
button. Release PAIR/CALL button and wait
for (Step 1 of 3) to complete.
NOTE: Continue holding PAIR/CALL
button until instructed to release.
5. While holding down TEST SELECTOR
button on MIT, click OK (Step 2 of 3).
6. The MIT files will begin updating
immediately and the USB light will flash
(Step 3 of 3).
7. When update is complete, unplug the MIT
from USB port. The reprogramming event is
complete
NOTICE
The Download will take
approximately ten (10) minutes to
complete.

Page 3 of 7
TSB: SST 038 All Models June 2015
KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
)
SUBJECT:
Updated 12 Volt Power Adapter / Cable and User Materials
1. Replace the updated 12 Volt Power Adapter
/Cable and Insert Quick Reference Guide
V2.0 in the Multi-Media Interface Tester
case (discard old 12 Volt Power Adapter
and Quick Reference Guide V1.0).
2. Replace Quick Reference Label on back of
MIT.
a. Clean the surface of the existing
reference label with Isopropyl Alcohol
and allow for appropriate drying time.
b. Apply the updated Quick Reference
Label on top of the existing Quick
Reference Label.
c. Use a plastic spreader to ensure proper
adhesion of the label.
NOTICE
Plug the MIT into the vehicle’s USB
port; the unit will run through a 12
second initiation phase which will
illuminate the AUX, Bluetooth and
USB LEDs simultaneously.
NOTICE
The adhesive on the label
contains micro-beads of
accelerator. Therefore, rub the
entire area of the label with the
spreader to ensure proper
adhesion.

KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
Page 4 of 7
TSB: SST 038 All Models June 2015
SUBJECT:
The 07130-10100 Kia Multi-Media Interface Tester (MIT) was developed to test a vehicle’s audio
input and Bluetooth®functions. The MIT outputs three distinct audio files to test the AUX/Line-In,
Bluetooth, and USB functions of the audio system. The operation of each function is confirmed by
the technician via these recordings played back through the vehicle’s audio system.
Power Cable Connection
1. Connect the updated 12 Volt Power
Adapter/Cable to the MIT USB connection.
Testing the AUX/Line-In function
1. Connect the 12-Volt Power Adapter/Cable
to the accessories power port.
2. Connect the AUX and USB cables from the
MIT to the AUX/USB/IPOD Port on the
vehicle.
3. Press and release the TEST SELECTOR
button until the MIT AUX LED illuminates.
4. Vehicle should default to AUX input. Audio
playback confirms that the audio input jack
test is working correctly.
NOTICE
Volume levels may vary depending
on vehicle’s audio system.
Multi-Media Interface Tester Instructions
Setup:

Page 5 of 7
TSB: SST 038 All Models June 2015
KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
)
SUBJECT:
Testing the USB function
1. Connect the 12 Volt Power Adapter/ Cable
to the accessories power port.
2. Connect the AUX and USB cables from the
MIT to the AUX/USB/IPOD Port on the
vehicle.
3. Press and release the TEST SELECTOR
button until the MIT’s USB LED illuminates.
4. Vehicle should default to USB input. Audio
playback confirms that the USB input test is
working correctly.
Testing the Bluetooth®System Function (Including Bluetooth® pairing and connectivity of
the audio system)
1. Connect the 12 Volt Power Adapter/ Cable
to the accessories power port.
2. Press and release the TEST SELECTOR
button until the MIT’s Bluetooth®LED
illuminates.
3. Set the Audio system to Bluetooth®pairing
mode. Refer to the vehicle owner’s manual,
if necessary.
NOTICE
Volume levels may vary depending
on vehicle’s audio system.
Setup:

KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
Page 6 of 7
TSB: SST 038 All Models June 2015
SUBJECT:
1. Press and release PAIR/CALL button.
2. When all 3 LEDs flash, press and release
PAIR/CALL button.
Performing a Test-Call
1. Confirm pairing is complete (Bluetooth®
LED will be in a quick flash mode). If
Bluetooth®LED is not in quick flash mode
(solid light), press and release PAIR/CALL
button to enable quick flash mode.
2. Press and release PAIR/CALL button to
test Bluetooth® functionality.
3. Use the vehicle controls to answer the call.
After recording confirms a “working”
Bluetooth®system, use the vehicle controls
to end the call.
NOTE:
Some audio units may need the MIT set
as “Priority 1” for the test-call to
complete.
To perform another test-call, repeat
steps 2 & 3. The MIT will remain paired
after the call is ended. Place the MIT in
Bluetooth mode and press and release
the Pair button to re-connect.
When re-testing the Bluetooth pairing
capability with the same audio head unit,
the MIT must be reset by disconnecting
the USB power cable and reconnecting.
Bluetooth®Pairing (Passkey 0000):
NOTICE
When testing is complete, delete MIT
from the audio system before
returning the vehicle to the customer.

Page 7 of 7
TSB: SST 038 All Models June 2015
KIA UNIVERSAL MULTIMEDIA INTERFACE TESTER UPDATE KIT
)
SUBJECT:
To Order Additional Kia Universal Multi-Media Interface Tester, contact Snap-on Call
Center at 888-542-1011.
TROUBLESHOOTING GUIDE
If the MIT unit is still not working properly after following the below Troubleshooting, the unit is
malfunctioning and should be repaired or replaced. Contact Snap-on Call Center 888-542-1011
Unit not working:
Verify the MIT is powered correctly, as indicated by the green Power LED.
If Power LED is not illuminated, verify the red LED found on 12 Volt Power Adapter /
Cable is lit or fuse is not blown.
Problem with Aux/Line-In Test:
Verify AUX/Line-In test cable is inserted properly into the vehicles audio input jack.
Verify the MIT is in AUX/Line-In mode as indicated by the red AUX LED.
Verify the vehicle’s audio system is in Auxiliary or Line-In mode.
Verify the vehicle’s audio system volume is turned up and not in mute mode.
Problem with USB Test:
Verify MIT is in USB mode as indicated by the red USB LED.
Verify the vehicle’s audio system is in USB mode.
Verify the vehicle’s audio system volume is turned up and not in mute mode.
Problem with Bluetooth Pairing:
Remove USB cable from power, then reconnect to reset the MIT. Carefully follow the
pairing instructions for the correct Passkey procedure.
Problem with Bluetooth Test call audio:
Verify the MIT is paired with the vehicle. This is indicated by the quick flashing Bluetooth
LED. Audio system should have indicated the MIT is paired.
