AA12S Series
Compact Audio Controller

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
Installation and Operation Manual Page ii
ENG-FORM: 820-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
COPYRIGHT STATEMENT
© 2012 Anodyne Electronics Manufacturing Corp. (AEM), All Rights Reserved
This publication is the property of AEM and is protected by Canadian copyright
laws.
No part of this document may be reproduced or transmitted in any form or by any
means including electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of AEM.

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
Installation and Operation Manual Page iii
ENG-FORM: 820-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Prepared By:
Checked By:
Approved By:
The status of this installation and operation manual is controlled by issue shown on the
title page. The status of each section is controlled by revision shown in the footer of
each page. All revisions affecting sections of this manual have been incorporated into
the latest issue.
ISSUE/REVISION RECORD
Manual Issue
Number
Section
Revision Number
Revision Description
Issue Date
4.01
Section 1 Rev: 1.00
Section
2 Rev: 1.00
Section 3 Rev: 1.00
Update to current templates. Nov
7, 2008
AEM MANUAL REVISIONS
Section
Revisions Number
Revision Description
Date
All
2.00
Updated template
April 14, 2012
Tony Pearson
Designer
A
pr 14, 2012
Loen Clement
Designer
May 24/12
Tom Betzelt
Product Support
Manager
May 28, 2012

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
Installation and Operation Manual Page iv
ENG-FORM: 820-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Table of Contents
Section Title Page
1.0 Description
1.1 Introduction 1-1
1.2 Purpose of Equipment 1-1
1.3 Design Features 1-1
1.4 Specifications 1-2
1.4.1 Electrical Specifications 1-2
1.4.2 Physical Specifications 1-5
1.4.3 Environmental Specifications 1-5
1.5 Unit Nomenclature 1-5
2.0 Installation
2.1 Introduction 2-1
2.2 Unpacking and Inspection 2-1
2.2.1 Warranty 2-1
2.3 Continued Airworthiness 2-1
2.4 Installation Procedures 2-1
2.4.1 Warnings 2-1
2.4.2 Cautions 2-2
2.4.3 Cabling and Wiring 2-2
2.4.4 Post-Installation Checks 2-3
2.5 Adjustments and Connections 2-3
2.5.1 Left Side Adjustments 2-3
2.5.2 Right Side Adjustments 2-4
2.6 Accessories Required But Not Supplied 2-4
2.7 Installation Drawings 2-4
3.0 Operation
3.1 Introduction 3-1
3.2 General Information 3-1
3.3 Controls and Indicators 3-1
3.3.1 Radio Selection 3-1
3.3.2 Intercom 3-2
3.3.3 PILOT ISO / NORM Modes 3-3
3.3.4 Entertainment Audio 3-4
3.3.5 Automatic Fail-safe 3-4

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 1-1
ENG-FORM: 800-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Section 1.0 Description
1.1 Introduction
Information in this section consists of product description, design features and specifications for the
AA12S Series Compact Audio Controller. All derivative product information shall be contained in the
applicable manual supplement, which may be obtained from AEM as required.
Review all notes, warnings and cautions.
1.2 Purpose of Equipment
The AA12S is a compact Dzus-mounted audio controller with an integral 4-place stereo voice-activated
intercom. It provides intercom capabilities for the pilot, co-pilot and two passengers (PAX). The AA12S
accepts stereo music inputs from either portable or fixed entertainment systems to produce high quality stereo
headset output.
Radio functions include selectable transmit capability for pilot and co-pilot on 3 COM radios and a PA.
Receive audio selections include COM1, COM2, COM3, MKR, NAV, ADF, and DME.
1.3 Design Features
All four mics have individual VOX gating. Each gate may also be activated with the corresponding ICS
keyline.
ICS muting is automatic during radio transmission.
The unit is supplied to suit a standard AEM bi-directional ICS audio TIE line for multi-unit interface
(configuration dependent). The crew and PAX are always connected except in the case of Pilot ISO
mode, when the pilot is disconnected from the ICS tie line.
If required, one or more receiver audio inputs may be configured at the factory prior to ordering as an
unswitched Direct Audio input. A new part number may be assigned. Contact AEM Product Support for
further information.
The following audio levels can be adjusted at the time of installation, or during service by an approved
dealer, using individual level trimpots.
-ICS Balance -Music Mute level
-ICS Bass level -RX Balance
-Music Balance -RX volume level
-Music Bass level -Sidetone level

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 1-2
ENG-FORM: 800-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
1.4 Specifications
1.4.1 Electrical Specifications
Power Supply Linear regulator with reverse and over voltage protection.
Input voltage: 11-30 Vdc operating.
30.3 Vdc (maximum)
13.8 Vdc or 27.5 Vdc @ 600 mA (nominal, one input for both)
11.0 Vdc (minimum)
Lighting Voltage
AA12S-001 27.5 Vdc @ 200 mA max.
AA12S-004 13.5 Vdc @ 400 mA max.
Note: The AA12S is not designed to operate under emergency electrical system conditions for 14 Vdc
operation.
Input Signals
Microphone
Quantity 4 (Pilot, Copilot, 2 Passengers).
Rated level 250 mVrms nominal (125 to 500 mVrms)
Impedance 150 Ohm r10 %
Circuitry type Unbalanced
TX Keyline
Quantity 2 (Pilot, Copilot).
Rated level Ground activates keyline, 20 mA source current
ICS Keyline
Quantity 4 (Pilot, Copilot, 2 Passengers).
Rated level Ground activates keyline, 1 mA source current
Receive Audio
Quantity 7 (3 COM, 4 NAV).
Rated level 2.5 Vrms nominal (1.3 to 5.0 Vrms)
Impedance 1 kOhm r10 % (1 to 3 kOhm for sidetone)
Circuitry type Unbalanced

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 1-3
ENG-FORM: 800-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Music Inputs
Quantity 2 (left channel, right channel)
Rated level 1.4 Vrms nominal (850 mVrms to 2.4 Vrms)
Impedance 11 kOhm r10 %
Circuitry type unbalanced
Bi-directional Signals
ICS TIE Channel
Quantity: 1
Rated level: 340 mVrms nominal (170 to 680 mVrms)
Impedance: 2 kOhm r10 %
Circuitry type: unbalanced
Output Signals
Phones
Quantity 4 (Pilot, Copilot, 2 Passengers)
Rated level >5.5 Vrms (>100 mW, RX and ICS and music)
>0.7 Vrms (TX sidetone, adjustable)
1.5 Vrms nominal (Pilot ISO mode)
>0.2 Vrms (Automatic failsafe mode)
Impedance 300 Ohm r10 %
Circuitry type transformer, unbalanced
Mic
Quantity 4 (COM1, COM2, COM3 and PA)
Rated level 250 mVrms r10 %
Impedance 150 Ohm nominal
Circuitry type direct throughline via relay
Keyline
Quantity 3
Rated level 1 A
Circuitry type grounded relay contact

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 1-4
ENG-FORM: 800-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Audio Performance
As per RTCA DO-170 Product Classification: 1a except where noted
*Manufacturers Specification **Exceeds DO-170 requirement
Rated Output Power 100 mW min. into 300 :
Audio frequency Response
Receive d3dB down from 350 - 6000 Hz
Intercom d3dB down from 350 - 3000 Hz
ICS Tie d3dB down from 350 - 3000 Hz
Music d3dB down from 300 - 15000 Hz (Music Bass
control at mid setting)
Distortion d10%, d3 % typical (350 to 6000 Hz)
Input
Input crosstalk -37 dB max.*
Output crosstalk -55 dB max.
Mic crosstalk <200 uVrms*
Audio noise: -60 dB max**
Output Regulation d3 dB variance (350 to 6000 Hz)
Audio Communication Loud & Clear
ICS Volume controls t35 dB*, 40 dB nominal
Music Volume controls t35 dB*, 40 dB nominal
Receive Input impedance 1 k:r10 %
Mic Input impedance 150 :r10 %
Music Input impedance 11 k:r10 %
ICS Tie Line 2 k:r10 %

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 1-5
ENG-FORM: 800-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
1.4.2 Physical Specifications
Height 1.15” (29.2 mm) max.
Depth 5.80” (147.3 mm) max., behind panel
Width 4.95” (125.7 mm) max, behind panel
Weight 1.2 lbs (0.50 kg)
Mounting Dzus rail, four fasteners, 5.366” horizontal spacing, and 0.750”
vertical spacing
Faceplate Lighted panel is laser-engraved acrylic edge lit with blue-white
backlighting.
Material/Finish Brushed aluminum with conversion coating
Connectors One 25-pin female D-min connector with jackposts
One 44-pin male high-density D-min connector with jackposts
1.4.3 Environmental Specifications
Temperature: -20qC. to +55qC
Altitude 50,000 feet
Shock 6g/11ms, 20g/11ms
Qualification of the AA12S Series Compact Audio Controller was completed in accordance with DO-160D
Env. Cat. [(A1)(D1)X]BXB[(SMB)(UF)]XXXXXXZBAXXXMXXXX
1.5 Unit Nomenclature
Variants of the AA12S series Compact Audio Controllers are identified as follows:
AA12S-002 Same as AA12S-001 with Faceplate changes
(ADF becomes ADF/MKR, DME/MKR becomes TRFC)
AA12S-004 Same as AA12S-001 with 14 Vdc lighting
AA12S-005 Same as AA12S-004 with custom faceplate
(ADF becomes ADF/MKR, DME/MKR becomes TRFC).
End of Section 1.0

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 2-1
ENG-FORM: 805-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
Section 2.0 Installation
2.1 Introduction
Information in this section consists of unpacking and inspection procedures, installation procedures, post-
installation checks and installation drawings for the AA12S Series Compact Audio Controller.
Review all notes, warnings and cautions.
2.2 Unpacking and Inspection
Unpack the equipment carefully. Inspect the unit visually for damage due to shipping and report all such
claims immediately to the carrier involved. Check that all items listed below are present before proceeding
and report any shortage immediately to your supplier:
- AA12S Series Compact Audio Controller
- Product Information Card
- Certificate of Conformity or Release Certification
2.2.1 Warranty
All Anodyne Electronics Manufacturing Corp. (AEM) products are warranted for 2 years. See the website
www.aem-corp.com/warranty for complete details.
2.3 Continued Airworthiness
Maintenance of the AA12S Series Compact Audio Controller is ‘on condition’ only. Periodic maintenance
of this product is not required.
2.4 Installation Procedures
2.4.1 Warnings
WARNING:
High volume settings can cause hearing damage.
Set the headset volume control to the minimum volume setting prior to
conducting tests, and slowly increase the headset volume to a
comfortable listening level.

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 2-2
ENG-FORM: 805-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
2.4.2 Cautions
CAUTION:
The shielding and routing of the MIC and ICS TIE LINES used in the AA12S
installation
is very critical
and poor performance of the aircraft audio system will
result if these issues are not handled properly.
The operation of the VOX intercom can be severely degraded by the quality and
type or mix of microphones used in the aircraft. If one user has a 'hot'
microphone, it will increase the electrical signal to the VOX circuit and the VOX
SQUELCH will have to be set to quiet this microphone. The other microphones
may not be able to generate enough electrical energy to overcome this VOX
SQUELCH setting, and will break up or not be heard at all.
2.4.3 Cabling and Wiring
All wire shall be selected in accordance with the original aircraft manufacturer's Maintenance Instructions
or AC43.13-1B Change 1, Paragraphs 11-76 through 11-78. Unshielded wire types shall qualify to
MIL-W-22759 as specified in AC43.13-1B Change 1, Paragraphs 11-85, 11-86, and listed in Table 11-11.
For shielded wire applications, use Tefzel MIL-C-27500 shielded wire with solder sleeves (for shield
terminations) to make the most compact and easily terminated interconnect. Follow the connector map in
Section 2.7 as required.
Coaxial cable shall be selected in accordance with MIL-C-17 unless otherwise specified. Do not use coax
cable with PVC insulation. Teflon dielectric cable is encouraged at or above VHF frequencies or where
cable runs exceed 8 feet. Note that at VHF frequencies, cables losses due to long cable runs and tight
bends may reduce the ERP (Effective Radiated Power) by greater than 50%.
Allow 3" from the end of the shielded wiring to the shield termination to allow the connector hood to be
easily installed. Reference the interconnect drawing in Section 2.7 for shield termination details. Note that
the hood is a "clamshell" hood, and is installed after the wiring is complete. Aircraft harnessing shall
permit the unit to be removed from the panel for easy access to all side adjustments. Do NOT mount the
unit until all adjustments have been performed.
Maintain wire segregation and route wiring in accordance with the original aircraft manufacturers
Maintenance Instructions. Coaxial cables shall be routed separately from existing wire bundles in the
aircraft to minimize electromagnetic coupling effects.
Unless otherwise noted, all wiring shall be a minimum of 24 AWG, except power and ground lines, which
shall be a minimum of 22 AWG. Reference the Interconnect drawing for additional specifications. Check
that the ground connection is clean and well secured, and that it shares no path with any electrically noisy
aircraft accessories such as blowers, turn and bank instruments or similar loads. Power to this unit must
be supplied from a separate circuit breaker or fuse (fast blow), and not attached to any other circuit
breaker without additional protection. Verify that the selected circuit breaker size and wire gauge are
adequate for the installation using the techniques specified in AC43.13-1B Change 1, Paragraphs 11-47
through 11-51 and 11-66 through 11-69.

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 2-3
ENG-FORM: 805-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
2.4.4 Post-Installation Checks
2.4.4.1 Voltage/Resistance Checks
Do not attach the AA12S until the following conditions are met.
Check the following:
a) Check P101, pin <1> for avionics buss voltage.
b) Check P101, pin <16> for continuity to ground (less than 0.5 ).
c) Check P101, pins <9>, <10>, <11> and <12> for continuity to ground when the relevant
switch is closed.
d) Check P301, pin <5> for avionics lighting buss voltage relative to ground (with lighting on).
e) Check P301 pin <17> for continuity to ground.
2.4.4.2 Power On Checks
Power up the aircraft’s systems and confirm normal operation of all functions of the AA12S. Refer to
Section 3 (Operation) for specific operational details.
a) Install the AA12S and power up the aircraft’s systems. Turn on the radios and accessories
required for the system.
b) Check for correct radio audio and adjust for an acceptable level.
c) Perform all installed functions, and check the ICS and TX functions for all users. Refer to
Section 3 (Operation) for specific operational details.
Note: Significantly different headsets may have different microphone characteristics.
Upon satisfactory completion of all performance checks, make all required log book entries, electrical
load, weight and balance amendments and other documentation as required by your local regulatory
agency before releasing the aircraft for service.
2.5 Adjustments and Connections
The unit is shipped from the factory with all internal adjustments set to the normal test levels. Once
installed in the aircraft, it may be desirable to change some of these settings to best suit the local
operating environment. The internal adjustments are located along the sides of the unit.
2.5.1 Left Side Adjustments
The adjustments found on the left side of the unit are:
-
ICS BAL R/L, which controls the ICS Balance
-
ICS BASS, which controls the ICS bass level
- MUSIC MUTE, which controls the Music mute level.
MUTE
MUSIC
BASS
ICSICS
BAL
RL

AA12S Series Compact Audio Controller
SM69 Installation and Operation Manual
April 14, 2012 Rev: 2.00 Page 2-4
ENG-FORM: 805-0100.DOTX
CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
2.5.2 Right Side Adjustments
The adjustments found on the left side of the unit are:
-
RX BAL R/L, which controls the RX Balance
-
RX VOL, which controls the RX volume level
-
MUSIC BASS, which controls the Music Bass level
-
MUSIC BAL R/L, which controls the Music balance.
- TX S/T, which controls the sidetone level
2.6 Accessories Required But Not Supplied
Installation kit p/n AA12S-IKC (crimp) is required to complete the installation. The kit consists of one
44-Pin D-min Female Crimp Kit (AEM Part No. D44SL-IKC) and one 25-Pin D-min Male Crimp Kit
(AEM Part No. D25PL-IKC).
D44SL-IKC consists of
Quantity Description AEM Part No.
1 D-min 44 Socket Housing 20-20-044
44 Mini D Crimp Socket 20-26-703
1* Jack Screw Set 20-27-002
1* Lock Clip Set 20-27-004
1 25 Pin Connector Hood 20-29-026
D25PL-IKC consists of
Quantity Description AEM Part No.
1 D-min 25 Socket Housing 20-11-025
25 MS Crimp Pin 20-26-891
1* Jack Screw Set 20-27-002
1* Lock Clip Set 20-27-004
1 25 Pin Connector Hood 20-29-026
* Use as required.
2.7 Installation Drawings
DOCUMENT
REV.
DESCRIPTION
TYPE
SERIAL NO.
AA12S-001
AA12S\001\403-0
1.10
Compact Stereo Audio Controller

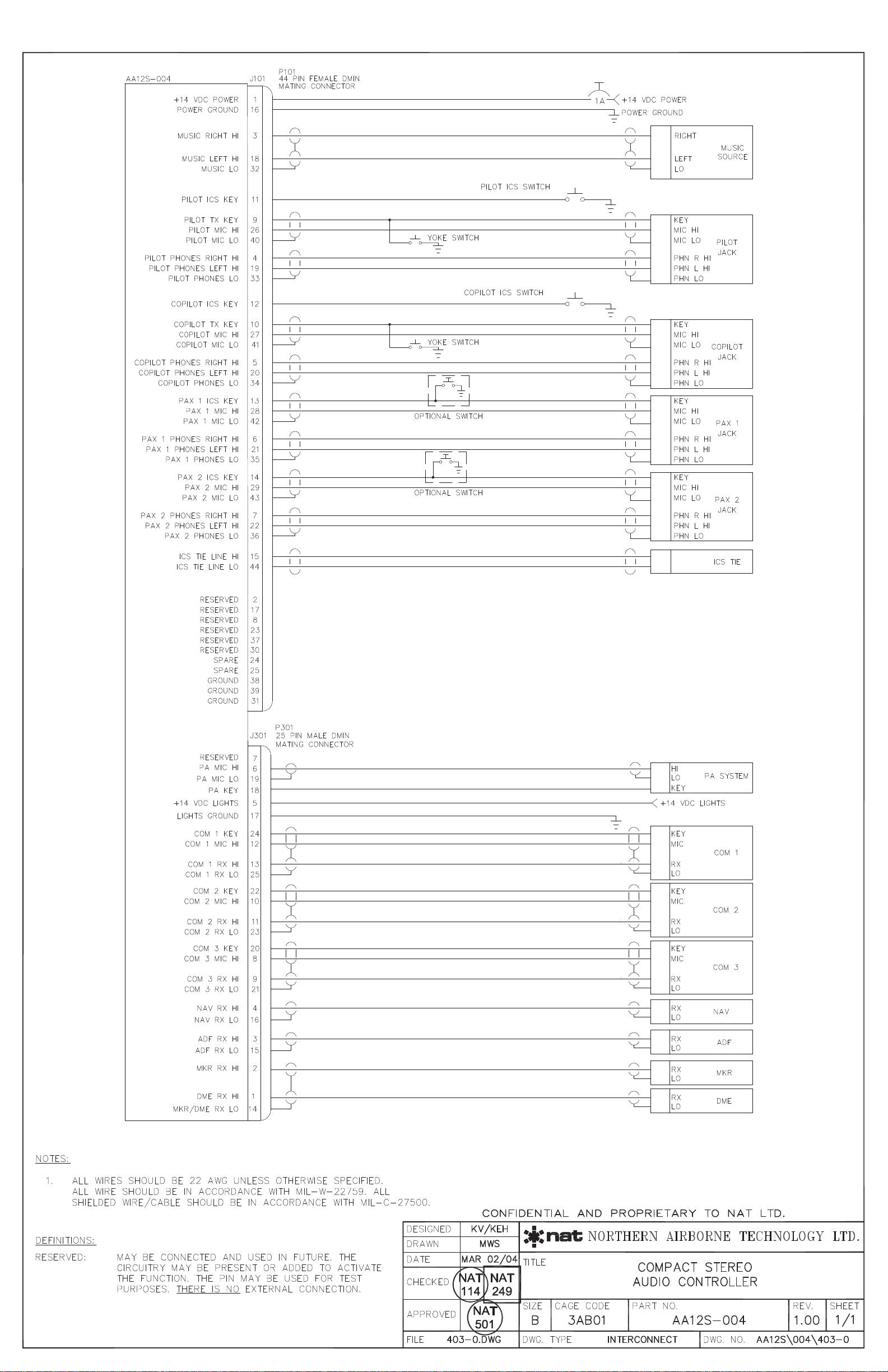

Interconnect
All
AA12S\001\405-0
1.10
Compact Stereo Audio Controller
Connector Map
All
AA12S\001\905-0
1.10
Compact Stereo Audio Controller
Faceplate
All
AA12S\001\922-0
1.10
Compact Stereo Audio Controller

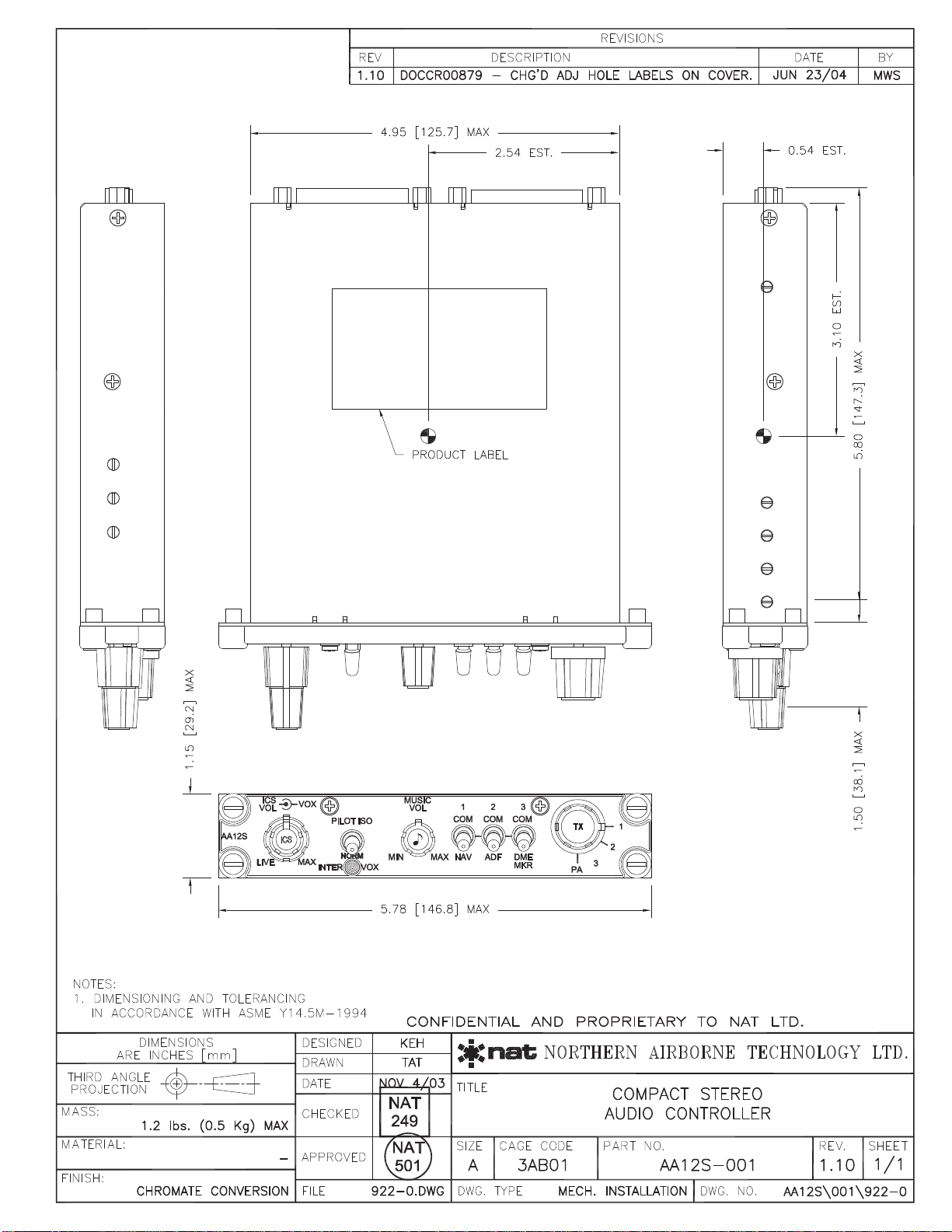

Mechanical Installation
All
AA12S-004
AA12S\004\403-0
1.00
Compact Stereo Audio Controller
Interconnect
All
AA12S\004\405-0
1.00
Compact Stereo Audio Controller
Connector Map
All
Section 2.0 ends following the above documents
RLLR
MUSIC
BAL
MUSIC
BASS
RX
VOLBAL
RX
S/T
TX

RL
RX
BAL VOL
RX BASS
MUSIC BAL
MUSIC
RL
S/T
TX
BAL
ICS ICS
BASS MUSIC
MUTE
LR
