AEMC instruments MN379T User manual

99-MAN 100478.v1 7/18
OPERATION
Please make sure that you have already read and fully understand the WARNING section on page 1.
Making Measurements with the AC Current Probe Model MN379T
•Connect the BNC connector to your voltage-measuring instrument. The AC current probe has an output
of 200mV/A and 10mV/A. This means that with the probe in the 10mV/A position, for 100A AC in a
conductor around which the probe is clamped, 1V AC will come out of the probe leads to your
instrument. Select the range which corresponds to the measured current. If the current magnitude is
unknown, start with the probe in the 10mV/A position and if the current is < 5 amps the probe can be
switched to the 200mV/A position for the higher resolution. Clamp the probe around the conductor. With
the probe in the 10mV/A position take the reading on the meter and multiply it by 100 to obtain the
measured current (e.g, 160mV reading = 160 x 100 = 16,000mA or 16A).
•The 5A range is design to measure on 5A current transformer. The output is 1V rms for 5A measured.
Enter a scale factor in the meter if possible for direct reading.
•For best accuracy, avoid if possible, the proximity of other conductors which may create noise.
Tips for Making Precise Measurements
•When using a current probe with a meter, it is important to select the range that provides the best
resolution. Failure to do this may result in measurement errors.
•Make sure that probe jaw mating surfaces are free of dust and contamination. Contaminants cause air
gaps between the jaws, increasing the phase shift between primary and secondary. It is very critical for
power measurement.
MAINTENANCE:
Warning
•For maintenance use only original factory replacement parts.
•To avoid electrical shock, do not attempt to perform any servicing unless you are qualified to do so.
•To avoid electrical shock and/or damage to the instrument, do not get water or other foreign agents
into the probe
Cleaning
To ensure optimum performance, it is important to keep the probe jaw mating surfaces clean at all times.
Failure to do so may result in error in readings. To clean the probe jaws, use very fine sand paper (fine
600) to avoid scratching the jaw, then gently clean with a soft oiled cloth.
REPAIR AND CALIBRATION
You must contact our Service Center for a Customer Service Authorization number (CSA#). This will
ensure that when your instrument arrives, it will be tracked and processed promptly. Please write the CSA#
on the outside of the shipping container.
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive •Dover, NH 03820 USA
(800) 945-2362 (Ext. 360) • (603) 749-6434 (Ext. 360) • repair@aemc.com
(Or contact your authorized distributor)
NOTE: All customers must obtain a CSA# before returning any instrument.
TECHNICAL AND SALES ASSISTANCE
If you are experiencing any technical problems, or require any assistance with the proper use or
application of this instrument, please contact our technical hotline:
(800) 945-2362 (Ext. 351) • (603) 749-6434 (Ext. 351) • techsupport@aemc.com
LIMITED WARRANTY
The current probe is warranted to the owner for a period of two years from the date of original purchase
against defects in manufacture. This limited warranty is given by AEMC®Instruments, not by the
distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused
or if the defect is related to service not performed by AEMC®Instruments.
Full warranty coverage and product registration is available on our website at:
www.aemc.com/warranty.html.
Please print the online Warranty Coverage Information for your records.
AC Current Probe
Model MN379T
User Manual
DESCRIPTION
The MN379T (Catalog #2153.02) is the latest in compact AC current probes. Designed to meet the most
stringent demands in industry and electrical contracting, it also meets the latest safety and performance
standards. The probe has a measurement range up to 120Arms, a range and resolution capable of
displaying 10mV of output per amp of measured current, a voltmeter accuracy of 0.5% or better to take
full advantage of the accuracy of the probe and an input impedance of ≥ 1MΩ.
WARNING
The safety warnings are provided to ensure the safety of personnel and proper operation of the
instrument. Read the instruction completely.
• Use caution on any circuit: potentially high voltages and currents may be present and may pose
a shock hazard.
• Do not use the probe if damaged. Always connect the current probe to the measuring device
before it is connected around the conductor
• Do not use on non-insulated conductor with a potential to ground greater than 600V CAT III
pollution 2. Use extreme caution when clamping around bare conductors or bus bars.
• Before each use, inspect the probe; look for cracks in housing or output cable insulation.
• Do not use clamp in wet environment or in locations that hazardous gases exist.
• Do not use the probe anywhere beyond the tactile barrier.
INTERNATIONAL ELECTRICAL SYMBOLS
This symbol signifies that the current probe is protected by double or reinforced insulation. Use
only factory specified replacement parts when servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to the user manual before
using the instrument.
This is a type A current sensor. This symbol signifies that application around and removal
from HAZARDOUS LIVE conductors is permitted.
DEFINITION OF MEASUREMENT CATEGORIES
CAT IV: For measurements performed at the primary electrical supply (<1000V) such as on primary
overcurrent protection devices, ripple control units, or meters.
CAT III: For measurements performed in the building installation at the distribution level such as on
hardwired equipment in fixed installation and circuit breakers.
CAT II: For measurements performed on circuits directly connected to the electrical distribution system.
Examples are measurements on household appliances or portable tools.
RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify
your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately
with the carrier and notify your distributor at once, giving a detailed description of any damage
www.calcert.com sales@calcert.com1.888.610.7664 0
5
10
15
20
25
30
ELECTRICAL SPECIFICATIONS
Nominal Range: 5A, 100A
Measurement Range: 5A: 0.005 to 6A
100A: 0.1 to 120A
Transformation Ratio: Voltage output
Output Signal: 5A: 200mV/A
100A: 10mV/A
Accuracy and Phase Shift*:
5A Range - Accuracy
Ip
0.005A
0.05A
0.5A
5A
Vs %
1.5 %
+0.02mV
1.5% 1% 1%
Phase
6.5 °
5 °
4.5 °
4 °
100A Range - Accuracy
Ip
0.1A
1A
10A
100A
Vs %
1%
+0.02mV
1% 1% 1%
Phase
3.2 °
2.2°
2.2 °
2.2 °
*Reference conditions: 18°C to 28°C, 20 to 75% RH,
external magnetic field <40 A/m, 48 to 65Hz sine wave,
distortion factor less than 1%, no DC component, no
external current carrying conductor, test sample
centered. Load impedance > 1MΩ.
Frequency Range: 40 to 10kHz
Limit Operating Conditions:
200A MAX to 1kHz; Derating above 1kHz:
200A x (1*F), F in kHz
Working Voltage: 600Vrms
Common Mode Voltage:
600Vrms
Influence of Adjacent Conductor:
< 15mA/A at 50Hz
Influence of DC on AC signal:
5A Range: DC Current < 1A, < 3%
100A Range: DC Current < 10A, < 10%
Influence of Conductor Position in Jaw:
0.5% of mV output @ 50/60Hz
Influence of Frequency:
5A Range:
40Hz to 1kHz: <0.7% of mV output
1kHz to 3kHz: <2%% of mV output
150A Range:
40Hz to 1kHz: <0.7% of mV output
1kHz to 3kHz: <0.7% of mV output
Influence of Temperature:
≤200 ppm/°K, or 0.2% of mV output
per 10°K
Influence of Humidity (10 to 90% RH):
≤0.2% of mV output per 10°K @ 18° to 28°C
MECHANICAL SPECIFICATIONS
Operating Temperature:
14° to 131°F (-10° to +55°C)
Storage Temperature:
-40° to 158°F (-40° to +70°C)
Operating Relative Humidity:
10° to 35°C 85% RH
(without roll-off above 35°C)
Maximum Cable Diameter:
One Ø 0.78"(20mm), bus bar 20 x 5 mm
Case Protection:
IP 40 (IEC 529)
Drop Test:
Test per IEC 68-2-32:
1.0 m drop on 38mm of Oak on concrete
Test per IEC 68-2-27
Vibration:
Test per IEC 68-2-6
Dimensions:
5.47 x 2.00 x 1.18"
(139 x 51 x 30mm)
Weight:
180g (6.5oz)
Polycarbonate Material:
Jaws: Polycarbonate with 10% fiberglass
charge, Red UL 94 V0
Case: Polycarbonate 920A Gray
Opening Operations - Life: > 50,000
Output:
10 ft (3m) insulated lead with BNC connector
SAFETY SPECIFICATIONS
Electrical:
Double insulation or reinforced insulation
between the primary or secondary and the
outer case of the handle conforms to IEC
1010-2-32.
Common Mode Voltage:
600V CAT III, Pollution Degree 2
Electromagnetic Compatibility:
Emissivity: EN61326-1 Class B
Electrostatic discharge IEC 1000-4-2
Radiated field IEC 1000-4-3
Fast transients IEC 1000-4-4
Magnetic field at 50/60Hz IEC 1000-4-8
ORDERING INFORMATION
AC Current Probe MN379T.....Cat #2153.02
www.calcert.com sales@calcert.com1.888.610.7664 0
5
10
15
20
25
30
ELECTRICAL SPECIFICATIONS
Nominal Range: 5A, 100A
Measurement Range: 5A: 0.005 to 6A
100A: 0.1 to 120A
Transformation Ratio: Voltage output
Output Signal: 5A: 200mV/A
100A: 10mV/A
Accuracy and Phase Shift*:
5A Range - Accuracy
Ip
0.005A
0.05A
0.5A
5A
Vs %
1.5 %
+0.02mV
1.5% 1% 1%
Phase
6.5 °
5 °
4.5 °
4 °
100A Range - Accuracy
Ip
0.1A
1A
10A
100A
Vs %
1%
+0.02mV
1% 1% 1%
Phase
3.2 °
2.2°
2.2 °
2.2 °
*Reference conditions: 18°C to 28°C, 20 to 75% RH,
external magnetic field <40 A/m, 48 to 65Hz sine wave,
distortion factor less than 1%, no DC component, no
external current carrying conductor, test sample
centered. Load impedance > 1MΩ.
Frequency Range: 40 to 10kHz
Limit Operating Conditions:
200A MAX to 1kHz; Derating above 1kHz:
200A x (1*F), F in kHz
Working Voltage: 600Vrms
Common Mode Voltage:
600Vrms
Influence of Adjacent Conductor:
< 15mA/A at 50Hz
Influence of DC on AC signal:
5A Range: DC Current < 1A, < 3%
100A Range: DC Current < 10A, < 10%
Influence of Conductor Position in Jaw:
0.5% of mV output @ 50/60Hz
Influence of Frequency:
5A Range:
40Hz to 1kHz: <0.7% of mV output
1kHz to 3kHz: <2%% of mV output
150A Range:
40Hz to 1kHz: <0.7% of mV output
1kHz to 3kHz: <0.7% of mV output
Influence of Temperature:
≤200 ppm/°K, or 0.2% of mV output
per 10°K
Influence of Humidity (10 to 90% RH):
≤0.2% of mV output per 10°K @ 18° to 28°C
MECHANICAL SPECIFICATIONS
Operating Temperature:
14° to 131°F (-10° to +55°C)
Storage Temperature:
-40° to 158°F (-40° to +70°C)
Operating Relative Humidity:
10° to 35°C 85% RH
(without roll-off above 35°C)
Maximum Cable Diameter:
One Ø 0.78"(20mm), bus bar 20 x 5 mm
Case Protection:
IP 40 (IEC 529)
Drop Test:
Test per IEC 68-2-32:
1.0 m drop on 38mm of Oak on concrete
Test per IEC 68-2-27
Vibration:
Test per IEC 68-2-6
Dimensions:
5.47 x 2.00 x 1.18"
(139 x 51 x 30mm)
Weight:
180g (6.5oz)
Polycarbonate Material:
Jaws: Polycarbonate with 10% fiberglass
charge, Red UL 94 V0
Case: Polycarbonate 920A Gray
Opening Operations - Life: > 50,000
Output:
10 ft (3m) insulated lead with BNC connector
SAFETY SPECIFICATIONS
Electrical:
Double insulation or reinforced insulation
between the primary or secondary and the
outer case of the handle conforms to IEC
1010-2-32.
Common Mode Voltage:
600V CAT III, Pollution Degree 2
Electromagnetic Compatibility:
Emissivity: EN61326-1 Class B
Electrostatic discharge IEC 1000-4-2
Radiated field IEC 1000-4-3
Fast transients IEC 1000-4-4
Magnetic field at 50/60Hz IEC 1000-4-8
ORDERING INFORMATION
AC Current Probe MN379T.....Cat #2153.02
www.calcert.com sales@calcert.com1.888.610.7664 0
5
10
15
20
25
30
99-MAN 100478.v1 7/18
OPERATION
Please make sure that you have already read and fully understand the WARNING section on page 1.
Making Measurements with the AC Current Probe Model MN379T
•Connect the BNC connector to your voltage-measuring instrument. The AC current probe has an output
of 200mV/A and 10mV/A. This means that with the probe in the 10mV/A position, for 100A AC in a
conductor around which the probe is clamped, 1V AC will come out of the probe leads to your
instrument. Select the range which corresponds to the measured current. If the current magnitude is
unknown, start with the probe in the 10mV/A position and if the current is < 5 amps the probe can be
switched to the 200mV/A position for the higher resolution. Clamp the probe around the conductor. With
the probe in the 10mV/A position take the reading on the meter and multiply it by 100 to obtain the
measured current (e.g, 160mV reading = 160 x 100 = 16,000mA or 16A).
•The 5A range is design to measure on 5A current transformer. The output is 1V rms for 5A measured.
Enter a scale factor in the meter if possible for direct reading.
•For best accuracy, avoid if possible, the proximity of other conductors which may create noise.
Tips for Making Precise Measurements
•When using a current probe with a meter, it is important to select the range that provides the best
resolution. Failure to do this may result in measurement errors.
•Make sure that probe jaw mating surfaces are free of dust and contamination. Contaminants cause air
gaps between the jaws, increasing the phase shift between primary and secondary. It is very critical for
power measurement.
MAINTENANCE:
Warning
•For maintenance use only original factory replacement parts.
•To avoid electrical shock, do not attempt to perform any servicing unless you are qualified to do so.
•To avoid electrical shock and/or damage to the instrument, do not get water or other foreign agents
into the probe
Cleaning
To ensure optimum performance, it is important to keep the probe jaw mating surfaces clean at all times.
Failure to do so may result in error in readings. To clean the probe jaws, use very fine sand paper (fine
600) to avoid scratching the jaw, then gently clean with a soft oiled cloth.
REPAIR AND CALIBRATION
You must contact our Service Center for a Customer Service Authorization number (CSA#). This will
ensure that when your instrument arrives, it will be tracked and processed promptly. Please write the CSA#
on the outside of the shipping container.
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments
15 Faraday Drive •Dover, NH 03820 USA
(800) 945-2362 (Ext. 360) • (603) 749-6434 (Ext. 360) • repair@aemc.com
(Or contact your authorized distributor)
NOTE: All customers must obtain a CSA# before returning any instrument.
TECHNICAL AND SALES ASSISTANCE
If you are experiencing any technical problems, or require any assistance with the proper use or
application of this instrument, please contact our technical hotline:
(800) 945-2362 (Ext. 351) • (603) 749-6434 (Ext. 351) • techsupport@aemc.com
LIMITED WARRANTY
The current probe is warranted to the owner for a period of two years from the date of original purchase
against defects in manufacture. This limited warranty is given by AEMC®Instruments, not by the
distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused
or if the defect is related to service not performed by AEMC®Instruments.
Full warranty coverage and product registration is available on our website at:
www.aemc.com/warranty.html.
Please print the online Warranty Coverage Information for your records.
AC Current Probe
Model MN379T
User Manual
DESCRIPTION
The MN379T (Catalog #2153.02) is the latest in compact AC current probes. Designed to meet the most
stringent demands in industry and electrical contracting, it also meets the latest safety and performance
standards. The probe has a measurement range up to 120Arms, a range and resolution capable of
displaying 10mV of output per amp of measured current, a voltmeter accuracy of 0.5% or better to take
full advantage of the accuracy of the probe and an input impedance of ≥ 1MΩ.
WARNING
The safety warnings are provided to ensure the safety of personnel and proper operation of the
instrument. Read the instruction completely.
• Use caution on any circuit: potentially high voltages and currents may be present and may pose
a shock hazard.
• Do not use the probe if damaged. Always connect the current probe to the measuring device
before it is connected around the conductor
• Do not use on non-insulated conductor with a potential to ground greater than 600V CAT III
pollution 2. Use extreme caution when clamping around bare conductors or bus bars.
• Before each use, inspect the probe; look for cracks in housing or output cable insulation.
• Do not use clamp in wet environment or in locations that hazardous gases exist.
• Do not use the probe anywhere beyond the tactile barrier.
INTERNATIONAL ELECTRICAL SYMBOLS
This symbol signifies that the current probe is protected by double or reinforced insulation. Use
only factory specified replacement parts when servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to the user manual before
using the instrument.
This is a type A current sensor. This symbol signifies that application around and removal
from HAZARDOUS LIVE conductors is permitted.
DEFINITION OF MEASUREMENT CATEGORIES
CAT IV: For measurements performed at the primary electrical supply (<1000V) such as on primary
overcurrent protection devices, ripple control units, or meters.
CAT III: For measurements performed in the building installation at the distribution level such as on
hardwired equipment in fixed installation and circuit breakers.
CAT II: For measurements performed on circuits directly connected to the electrical distribution system.
Examples are measurements on household appliances or portable tools.
RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify
your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately
with the carrier and notify your distributor at once, giving a detailed description of any damage
www.calcert.com sales@calcert.com1.888.610.7664 0
5
10
15
20
25
30

Other AEMC instruments Measuring Instrument manuals

AEMC instruments 6505 User manual

AEMC instruments

AEMC instruments 6505 User manual

AEMC instruments JM852 User manual

AEMC instruments

AEMC instruments JM852 User manual

AEMC instruments 6240 User manual

AEMC instruments

AEMC instruments 6240 User manual

AEMC instruments MR525 User manual

AEMC instruments

AEMC instruments MR525 User manual

AEMC instruments MN185 User manual

AEMC instruments

AEMC instruments MN185 User manual

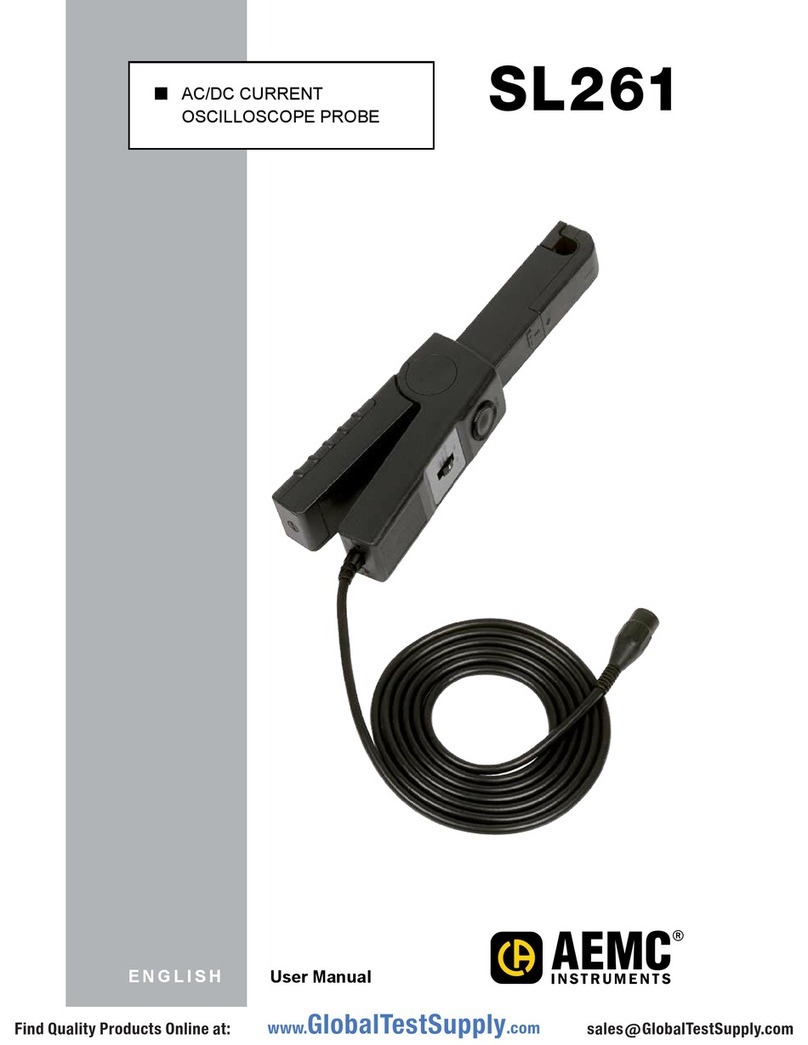

AEMC instruments SL261 User manual

AEMC instruments

AEMC instruments SL261 User manual

AEMC instruments MN103 User manual

AEMC instruments

AEMC instruments MN103 User manual

AEMC instruments MR6292 User manual

AEMC instruments

AEMC instruments MR6292 User manual

AEMC instruments MD304 User manual

AEMC instruments

AEMC instruments MD304 User manual

AEMC instruments 5050 User manual

AEMC instruments

AEMC instruments 5050 User manual

AEMC instruments DIGITAL FLEXPROBE 400D-6 User manual

AEMC instruments

AEMC instruments DIGITAL FLEXPROBE 400D-6 User manual

AEMC instruments 502 User manual

AEMC instruments

AEMC instruments 502 User manual

AEMC instruments 6536 User manual

AEMC instruments

AEMC instruments 6536 User manual

AEMC instruments MN375 User manual

AEMC instruments

AEMC instruments MN375 User manual

AEMC instruments MD303 User manual

AEMC instruments

AEMC instruments MD303 User manual

AEMC instruments MN213 User manual

AEMC instruments

AEMC instruments MN213 User manual

AEMC instruments A196-24-BK User manual

AEMC instruments

AEMC instruments A196-24-BK User manual

AEMC instruments MN125 User manual

AEMC instruments

AEMC instruments MN125 User manual

AEMC instruments SR701 User manual

AEMC instruments

AEMC instruments SR701 User manual

AEMC instruments 6526 User manual

AEMC instruments

AEMC instruments 6526 User manual

AEMC instruments 1015 User manual

AEMC instruments

AEMC instruments 1015 User manual

AEMC instruments 407 User manual

AEMC instruments

AEMC instruments 407 User manual

AEMC instruments Simple Logger AmpFlex AL24-2500 User manual

AEMC instruments

AEMC instruments Simple Logger AmpFlex AL24-2500 User manual

AEMC instruments K100 User manual

AEMC instruments

AEMC instruments K100 User manual

Popular Measuring Instrument manuals by other brands

Keysight N5227BU-420 manual

Keysight

Keysight N5227BU-420 manual

IROX PE-DRO operating instructions

IROX

IROX PE-DRO operating instructions

Hach HQd Basic user manual

Hach

Hach HQd Basic user manual

Hach Lange astroTOC Basic user manual

Hach

Hach Lange astroTOC Basic user manual

Precision Digital Corporation Loop Leader Series instruction manual

Precision Digital Corporation

Precision Digital Corporation Loop Leader Series instruction manual

Pintek DP-16K Series instruction manual

Pintek

Pintek DP-16K Series instruction manual

Fluke 165X Quick reference guide

Fluke

Fluke 165X Quick reference guide

ANDERSON-NEGELE IZMAG instruction manual

ANDERSON-NEGELE

ANDERSON-NEGELE IZMAG instruction manual

M-system M Series quick start guide

M-system

M-system M Series quick start guide

Hach ISENO3181 user manual

Hach

Hach ISENO3181 user manual

S+S Regeltechnik AERASGARD FSFTM-CO2-Modbus Series Operating Instructions, Mounting & Installation

S+S Regeltechnik

S+S Regeltechnik AERASGARD FSFTM-CO2-Modbus Series Operating Instructions, Mounting & Installation

Spectronics DM-254XA Operator's manual

Spectronics

Spectronics DM-254XA Operator's manual

Fuji Electric ZPAF instruction manual

Fuji Electric

Fuji Electric ZPAF instruction manual

Hioki 3273 instruction manual

Hioki

Hioki 3273 instruction manual

Makita SK700D manual

Makita

Makita SK700D manual

Velleman EMDIN02 manual

Velleman

Velleman EMDIN02 manual

Datum DTR80R operating instructions

Datum

Datum DTR80R operating instructions

Extech Instruments EC210 user guide

Extech Instruments

Extech Instruments EC210 user guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
