AEMC MR417 User manual

ENGLISH
User Manual
■
AC/DC CURRENT PROBE
MR417
MR
527
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2Current Probe Models MR417/MR527
Statement of Compliance
Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments certifies
that this instrument has been calibrated using standards
and instruments traceable to international standards.
We guarantee that at the time of shipping your instrument
has met its published specifications.
An N.I.S.T. traceable certificate may be requested at the
time of purchase, or obtained by returning the
instrument to our repair and calibration facility, for a
nominal charge.
The recommended calibration interval for this instrument
is 12 months and begins on the date of receipt by the
customer. For recalibration, please use our calibration
services. Refer to our repair and calibration section at
Serial #:
Catalog #: 1200.84 / 1200.85
Model #: MR417 / MR527
Please fill in the appropriate date as indicated:
Date Received:
Date Calibration Due:
Chauvin Arnoux®, Inc.
d.b.a AEMC®Instruments
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Current Probe Models MR417/MR527 3
CONTENTS
1 DESCRIPTION…….......................................................................................... 7
1.1 Interface .................................................................................................................. 8
1.1.1 MR417................................................................................................ 8
1.1.2 MR527................................................................................................ 9
2 OPERATION .................................................................................................. 10
2.1 Battery Installation................................................................................................ 10
2.2 External Power (Optional).................................................................................... 10
2.3 Turning ON the Instrument .................................................................................. 11
2.4 Auto Standby........................................................................................................ 11
2.5 DC Zero Adjustment ............................................................................................ 11
2.6 Measurements ..................................................................................................... 12
2.6.1 Making a Measurement .................................................................... 12
2.6.2 Converting to Current ....................................................................... 12
3 SPECIFICATIONS ......................................................................................... 13
3.1 Reference Conditions .......................................................................................... 13
3.2 Electrical Specifications ....................................................................................... 13
3.2.1 Electrical Specifications, 1mV/A Sensitivity ...................................... 13
3.2.2 Frequency Specifications, 1mV/A Sensitivity.................................... 17
3.2.3 Electrical Specifications, 10mV/A Sensitivity .................................... 19
3.2.4 Frequency Specifications, 10mV/A Sensitivity.................................. 23
3.3 Operating Limits ................................................................................................... 25
3.4 Variations in the Range of Use............................................................................ 26
3.5 Power Supply ....................................................................................................... 26
3.6 Environmental Conditions.................................................................................... 27
3.7 Mechanical Specifications ................................................................................... 28
3.7.1 Housing Protection ........................................................................... 30
3.8 International Standards........................................................................................ 30
3.9 Electromagnetic Compatibility ............................................................................. 30
4 MAINTENANCE............................................................................................. 31
4.1 Cleaning................................................................................................................ 31
4.2 Battery Replacement ........................................................................................... 31
REPAIR AND CALIBRATION ........................................................................... 32
TECHNICAL AND SALES ASSISTANCE ......................................................... 32
LIMITED WARRANTY ....................................................................................... 33
Warranty Repairs ....................................................................................................... 33
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4Current Probe Models MR417/MR527
Thank you for purchasing the Current Probe Model MR417 or MR527. For best
results from your instrument and for your safety, read the following operating
instructions carefully and comply with the precautions for use.
This instrument is compliant with the IEC 61010-2-032 safety standard for voltages
of 300V with respect to earth in measurement category IV, or 600V in category III.

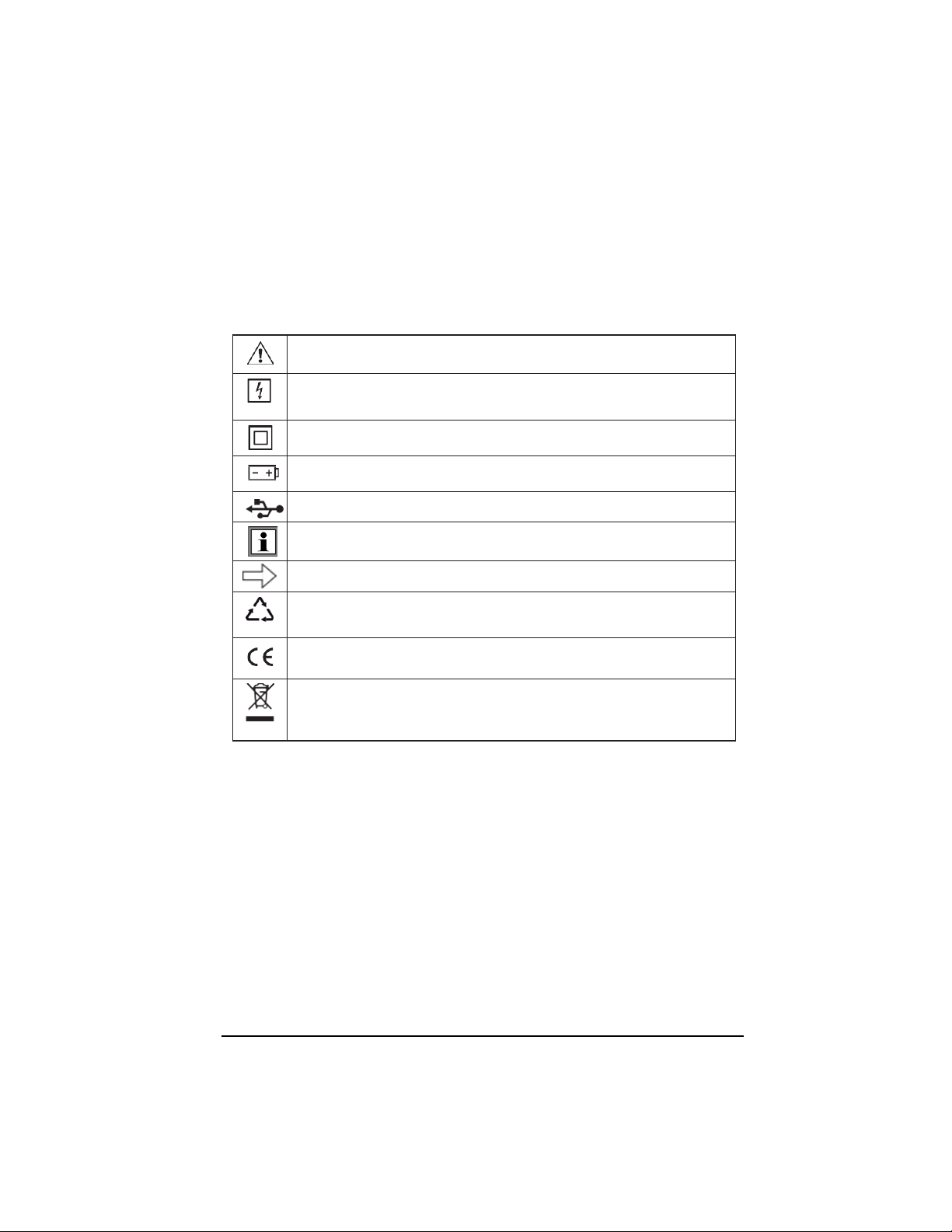

Symbols
WARNING, risk of DANGER! The operator must refer to these instructions
whenever this danger symbol appears.
Application or withdrawal authorized on conductors carrying dangerous
voltages. Type A current sensor as per IEC 61010-2-032.
Equipment is protected by double insulation.
Battery.
USB.
Useful information or tip.
Direction of the current.
The product is declared recyclable following an analysis of the life cycle in
accordance with standard ISO 14040.
The CE marking guarantees conformity with European directives and with
regulations covering EMC.
The trash can with a line through it means that in the European Union, the
product must undergo selective disposal for the recycling of electric and
electronic material, in compliance with Directive WEEE 2002/96/EC.
Definition of Measurement Categories (CAT)
CAT IV Corresponds to measurements taken at the source of low-voltage
installations.
Example: power feeders, counters and protection devices.
CAT III Corresponds to measurements on building installations.
Example: distribution panel, circuit-breakers, machines or fixed industrial devices.
CAT II Corresponds to measurements taken on circuits directly connected to low-
voltageinstallations.
Example: power supply to domestic electrical appliances and portable tools.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Current Probe Models MR417/MR527 5
PRECAUTIONS FOR USE
These instructions are intended to ensure the safety of users and proper operation
of the instrument. Failure to observe these safety instructions may result in electric
shock, fire, explosion, and destruction of the instrument and/or installations.
The operator and/or the responsible authority must carefully read and clearly
understand the various precautions to be taken in use.
Do not use the instrument on networks on which the voltage or category
exceeds instrument specifications.
Never exceed the protection limits stated in the specifications.
Observe the environmental conditions of use, including relative humidity,
altitude, degree of pollution, and place of use.
Do not use the instrument if it appears to be damaged, incomplete, or not
properly closed.
Before each use, check the condition of the insulation on the leads, housing,
and accessories. Any component on which the insulation is deteriorated (even
partially) must be set aside for repair or scrapping.
When handling the instrument, keep your fingers behind the physical guards.
Use suitable means of protection.
All troubleshooting and metrological checks must be performed by competent
and accredited personnel.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6Current Probe Models MR417/MR527
RECEIVING YOUR SHIPMENT
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
to be damaged, file a claim immediately with the carrier and notify your distributor
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
Ordering Information
AC/DC Current Probe Model MR417 ........................................... Cat. #1200.84
Includes 9V battery, multi-language safety data sheet and user manual
AC/DC Current Probe Model MR527 ........................................... Cat. #1200.85
Includes 9V battery, multi-language safety data sheet and user manual
Replacement Parts/Accessories:
Cable – 6’ USB type A to Micro type B.............................................Cat. #2138.66
Adapter – US Wall plug to USB........................................................Cat. #2153.78
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Current Probe Models MR417/MR527 7
1 DESCRIPTION
The Models MR417 and MR527 are clamp-on current probes that measure DC
currents up to 1400A, AC currents up to 1000ARMS (1400A peak), and combined
AC+DC currents without opening the circuit in which the currents flow. They
indicate the shape and amplitude of the current measured in the form of a voltage.
These instruments can be used with oscilloscopes. They can be powered by a
battery or with 5VDC via the optional micro‑USB cable.
The MR417 and MR527 include the following features:
overage indicator
power supply indicator
zero adjustment
Auto Standby feature
two ranges (sensitivity 1 and 10mV/A)
micro‑USB connector to connect an external power supply
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8Current Probe Models MR417/MR527
1.1 Interface
1.1.1 MR417
Figure 1 (MR417)
Item
Functions
1
Fixed (non-mobile) jaw
2
Arrow indicating current flow direction
3
Male BNC connector
4
DC Zero button
5
OL (overload) and ON indicators. ON is green when Auto
Standby is enabled, yellow when it disabled.
6
3-position slide switch
7
USB port
8
Trigger
9
Hand guard
10
Mobile jaw
1
2
3
4
5
7
8
9
10
6
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Current Probe Models MR417/MR527 9
1.1.2 MR527
Figure 2 (MR527)
Item
Functions
1
Fixed (non-mobile) jaw
2
Arrow indicating current flow direction
3
Male BNC connector
4
DC Zero button
5
OL (overload) and ON indicators. ON is green when Auto
Standby is enabled, yellow when it disabled.
6
3-position slide switch
7
USB port
8
Trigger
9
Hand guard
10
Mobile jaw
1
2
3
4
5
7
8
9
10
6
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10 Current Probe Models MR417/MR527
2 OPERATION
2.1 Battery Installation
Before changing batteries: set the switch to OFF and remove the clamp
from the circuit under measurement.
1. Using a screwdriver, remove the battery compartment cover (1) from the
back of the housing (see Figure 3).
2. Connect the battery to the snap-on connector (2), observing polarity.
3. Place the battery into the battery compartment (3).
4. Replace the battery compartment cover and screw it onto the housing.
Figure 3
2.2 External Power (Optional)
For long‑term measurements, you can connect the clamp to external power via any
micro‑USB adapter that delivers 100mA or more. If external power is disconnected,
the clamp automatically switches to battery operation.
The insulation between the type B micro‑USB connector and the measurement
output is 600V CAT III. This enables you to safely connect the clamp to measuring
instruments with uninsulated inputs. The type B micro‑USB connector must not be
in contact with conductors or uninsulated parts at dangerous voltage.
When operating on external power, the Auto Standby feature is disabled. The color
of the ON indicator shows whether automatic standby is enabled (green) or
disabled (yellow).
1
2
3
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
