AERMEC NRL 800 User manual

14_09. 4086991_01
INSTALLATION MANUAL
NRL 800-1800
EN
CHILLER
REVERSIBLE HEAT PUMP
• EXTERNAL UNIT
• HIGH EFFICENCY
• HOT WATER PRODUCING UP TO 131°F / 55°C
• POWER SUPPLY 60Hz
60Hz

AERMEC S.p.A. reserves the right at any moment to make any modifications considered necessary to improve our products and is not obliged to
add these modifications to machines that have already been fabricated, delivered or are under construction.
Dear Customer,
Thank you for choosing an AERMEC product. This product is the result of many years of experience
and in-depth engineering research, and it is built using top quality materials and advanced techno-
logies.
Moreover, the CE mark guarantees that our appliances fully comply with the requirements of the
European Machinery Directive in terms of safety. We constantly monitor the quality level of our
products, and as a result AERMEC products are synonymous with Safety, Quality, and Reliability.
Product data may be subject to modifications deemed necessary for improving the product without
the obligation to give prior notice.
Thank you again.
AERMEC S.p.A

KEY:
2. COMPONENTS AND CONFIGURATIONS.............................. 4
1. DESCRIPTION AND CHOCE OF UNIT.................................... 4
3. COOLING CIRQUIT ................................................................ 5
3.1. NRL ONLY COOLING ............................................................ 5
3.2. COOLING CIRQUIT NRL HEAT PUMP ................................... 6
4. OPERATION LIMIT................................................................. 7
4.1. COOLING MODE ¹.................................................................. 7
4.2. HEATING MODE ¹................................................................... 7
4.3. PROJECT DATA ....................................................................... 7
5. SELECTION AND PLACE OF INSTALLATION .........................8
6. POSITIONING ........................................................................ 8
 ............................................... 8
7. DIMENSIONS ......................................................................... 9
  .................9
 
  ........................................ 9
8. ANTIVIBRATION POSITIONING .......................................... 10
  ..................................................... 10
 ........................................................ 10
 
  ........................................................... 11
8.4. NRL 1400 P1......................................................................... 11
9. HYDRAULIC CONNECTION ................................................. 12
  ................................................................ 12
 ................................................................... 12
9.4. 1000 HA ............................................................................... 13
9.3. 1000 A ................................................................................. 13
 
  ........................................................... 14
9.5. NRL 1400 HA P1................................................................... 14
10. DISTRIBUTION OF PERCENTAGE WEIGHTS ON ...................
SUPPORTINGPOINTS .......................................................... 15
11. HYDRAULIC CIRCUIT........................................................... 23
11.1. INTERNAL AND EXTERNAL HYDRAULIC CIRCUIT "00" .........
 ......................................................................... 23
 ..............
NRL PUMP VERSION ........................................................... 24
 ...............
NRL PUMP VERSION AND STORAGE TANK ....................... 25
12. ELECTRICAL WIRINGS......................................................... 26
12.1. RECOMMENDED SECTION OF ELECTRIC CABLES............. 26
 5........................................... 27
  .................................................... 29
 ....................................................... 30
16. MENU STRUCTURE AND NAVIGATION..............................31
17. USER OPERATING PROCEDURES........................................ 32
  ............................................. 33
  ............................................. 33

4
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB
1. DESCRIPTION AND CHOCE OF UNIT
2. COMPONENTS AND CONFIGURATIONS
COMPONENTS VERSIONS
COOLING CIRCUIT ° H C D T

 yes yes no no no
 yes yes no yes yes
 no no no no yes
 no no no yes no
AIR SIDE EXCHANGE yes yes yes yes yes
COMPRESSOR yes yes yes yes yes
DEHYDRATOR FILTER yes yes yes yes yes
HIGH PRESSURE SWITCH yes yes yes yes yes
HIGH PRESSURE TRANSDUCER yes yes yes yes yes
LOW PRESSURE TRANSDUCER yes yes yes yes yes
LIQUID INDICATOR yes yes yes yes yes
LIQUID TANK no yes no no yes
 no yes no no yes
LIQUID SEPARATOR no yes no no yes
CYCLE REVERSE VALVE no yes no no yes
Chillers and heat pumps for outdoor condensed
in the air with R410A Series NRL have been de-
signed and manufactured to satisfy heating and
cooling needs and the production of domestic
hot water (DHW) in medium to small commercial
or residential buildings.
Maximum reliability
The presence of several scroll compressors allows
NRL chillers various partialisations of the cooling
capacity.
Models:
1. NRL "°" standard chiller
2. NRL "H" heat pump *
3. NRL "C" motocondensing
The versions can be in different set-ups at the
same time in order to satisfy a wide range of
plant engineering solutions:
1. "A" HIGH EFFICIENCY
2. "E" SILENCED HIGH EFFICIENCY
3. "D" WITH DESUPERHEATER
4. "T" WITH TOTAL RECOVERY
Configurations not allowed:



* Possibility of production of D.H.W.
(DCPX_UL | VMF-ACS | AER485).
Standards and Directives
respected on designing and
constructing the unit:
PROTECTION RATING
1. IP 24
ACOUSTIC PART:
1. ISO DIS 9614/2
(INTENSIMETRIC METHOD))
2. SOUND POWER (EN ISO
9614-2)
3. SOUND PRESSURE (EN ISO
3744)
REFRIGERANT GAS:
This unit contains fluoride
gases with greenhouse effect
covered by the Kyoto Proto-
col. Maintenance and dispo-
sal must only be performed by
qualified staff.
STANDARD:
UL 1995
Heating and cooling equip-
ment.
ANSI/NFPA
Standard 70 National Electri-
cal code (N.E.C.).
CSA C.22.1.- C.22.2
Safety Standard Electrical
Installation.

5
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB
3. COOLING CIRQUIT
CN
TEV
IDL IDL
HPT HPS
LPT
CP CP
LPT
BHE
HPT HPS
TEV
F F
CN
KEY
BHE: SCAMBIATORE A PIASTRE
CN: BATTERIA ALETTATA
CP: COMPRESSORE
F: FILTRO DEIDRATATORE
HPS: PRESSOSTATO DI ALTA PRESSIONE
HPT: TRASDUTTORE ALTA PRESSIONE
IDL: INDICATORE DI LIQUIDO
LPT: TRASDUTTORE BASSA PRESSIONE
KEY:
BHE PLATE HEAT EXCHANGER
CN AIR SIDE EXSCHANGE
CP COMPRESSOR
FFILTER DRIER
HPS HIGH PRESSURE SWITCH
HPT HIGH PRESSURE TRANSDUCERS
IDL LIQUID INDICATOR
LPT LOW PRESSURE TRANSDUCER

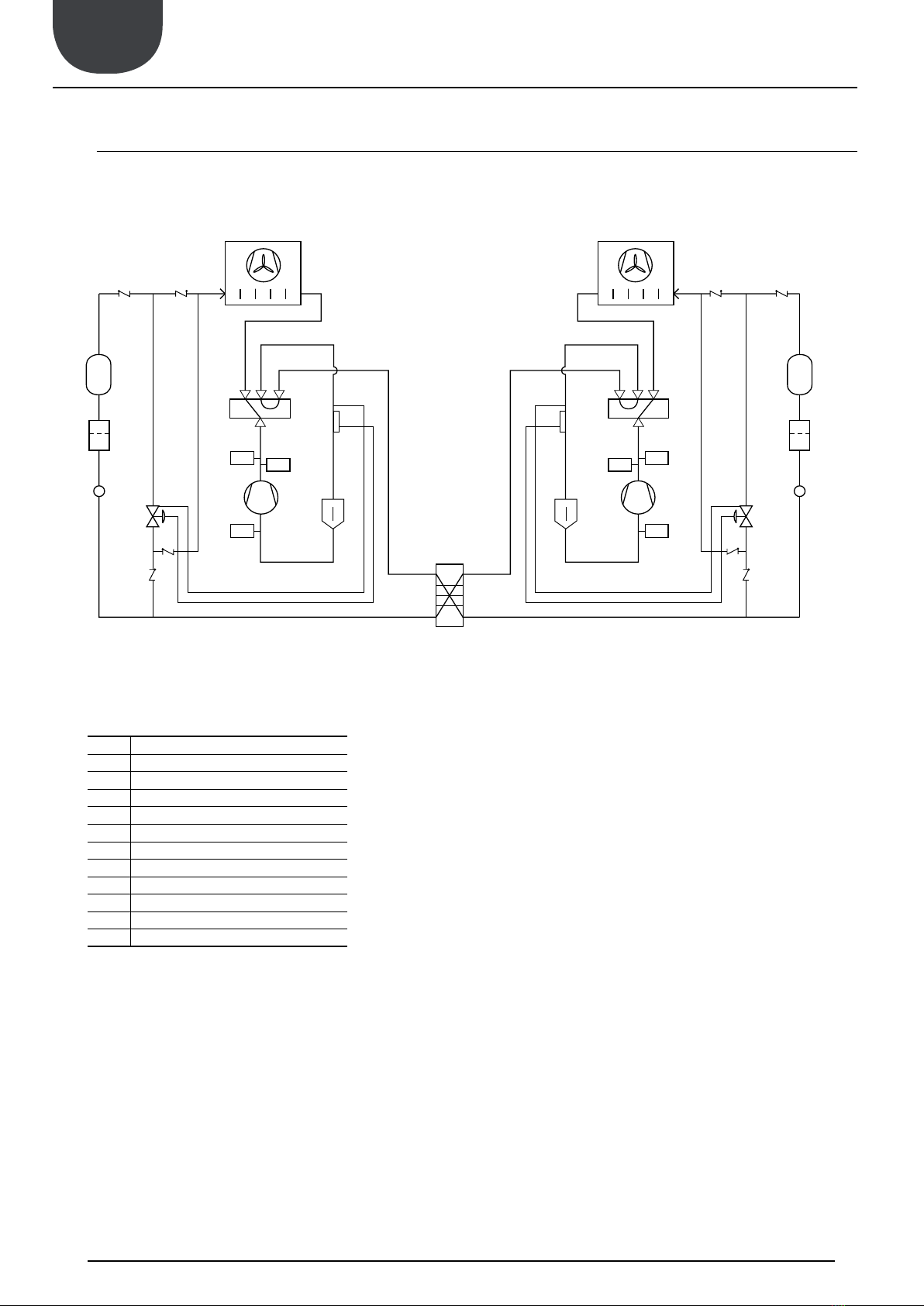

3.1. NRL ONLY COOLING

6
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB
KEY
AL: ACCUMULO DEL LIQUIDO
BHE: SCAMBIATORE A PIASTRE
CN: BATTERIA ALETTATA
CP: COMPRESSORE
CV: VALVOLA DI NON RITORNO
F: FILTRO DEIDRATATORE
HPS: PRESSOSTATO DI ALTA PRESSIONE
HPT: TRASDUTTORE ALTA PRESSIONE
IDL: INDICATORE DI LIQUIDO
LPT: TRASDUTTORE BASSA PRESSIONE
LS: SEPARATORE DI LIQUIDO
VIC: VALVOLA INVERSIONE CICLO
HPT HPS
LS
VIC VIC
LS
HPS
LPT LPT
HPT
BHE
IDL IDL
CP
CN
CV CV
CV
CV
CV
CN
TEV TEV
F
AL
F
CV
CV
AL
CP
CV
KEY:
AL FLUID STORAGE TANK
BHE PLATE HEAT EXCHANGER
CN AIR SIDE EXCHANGE
CP COMPRESSOR
CV 
FFILTER DRIER
HPS HIGH PRESSURE SWITCH
HPT HIGH PRESSURE TRANSDUCERS
IDL LIQUID INDICATOR
LPT LOW PRESSURE TRANSDUCERS
LS LIQUID SEPARATOR
VIC REVERSE CYCLE VALVE
3.2. COOLING CIRQUIT NRL HEAT PUMP

7
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB
4. SELECTION AND PLACE OF
INSTALLATION
Before beginning installation consent with
client and pay attention to the following
recommendations:
The support surface must be capable of
supporting the unit weight.
The safety differences between the
unit and other appliances or structures
must be scrupulously respected so that
the inlet and outlet air from the fans is
free to circulate.
The unit must be installed by an
enabled technician in compliance with
the national legislation in force in the
country of destination, respecting the
minimum technical spaces in order to
allow maintenance.
5. POSITIONING
The machine is delivered from the factory
wrapped in estincoil.
Before handling the unit, verify the lifting
capacity of the machines used.
After removal of packaging, movement of
apparatus must be carried
out by qualified and adequately equipped
personnel. To handle the machine: see
figure
 

ATTENTION: ALWAYS USE THE RELEVANT
EYE-BOLTS
To ensure that the structure of the unit is


prohibited to stand below the unit.
 




on the base according to the assembly
layout.
It is mandatory to foresee to the neces-
sary technical space in order to allow
ROUTINE AND EXTRAORDINARY MAINTE-

Fix the unit checking that it is level. Make
sure that the hydraulic and electric part
can be easily reached.
5.1. MINIMUM TECHNICAL (mm)
3000mm / 118.11in
HEIGHT
ATTENTION:
ALWAYS USE
THE RELEVANT
EYE-BOLTS
800 mm
31 in
1100 mm
43 in
800 mm
31 in
800 mm
31 in
The unit must be installed by a qualified and suitably trained technician, in compliance with the

AERMEC will not assume any responsibility for damage due to failure to follow these instructions.
Before beginning any operation, READ THESE INSTRUCTIONS CAREFULLY AND CARRY OUT THE SA-
FETY CHECKS TO REDUCE ALL RISK OF DANGER TO A MINIMUM. All the staff involved must have
thorough knowledge of the operations and any dangers that may arise at the moment in which
the installation operations are carried out.

8
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB

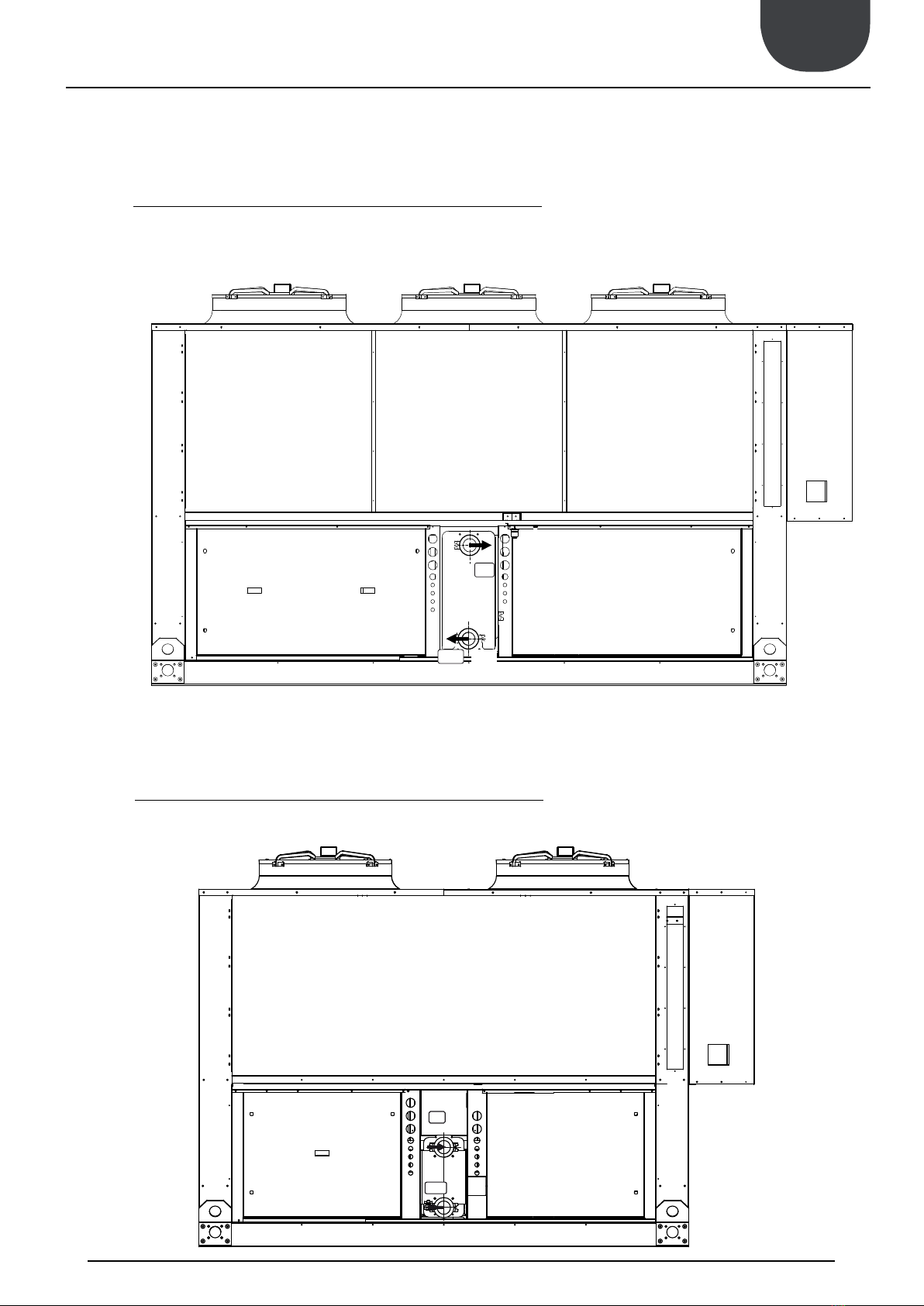

6. DIMENSIONS
6.1. 
6.2. 
2450 mm
96 in
2200 mm
87 in
4250 mm
167 in
3400 mm
134 in
2200 mm
87 in
2450 mm
96 in
5750 mm
226 in
2200 mm
87 in
2450 mm
96 in


Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB

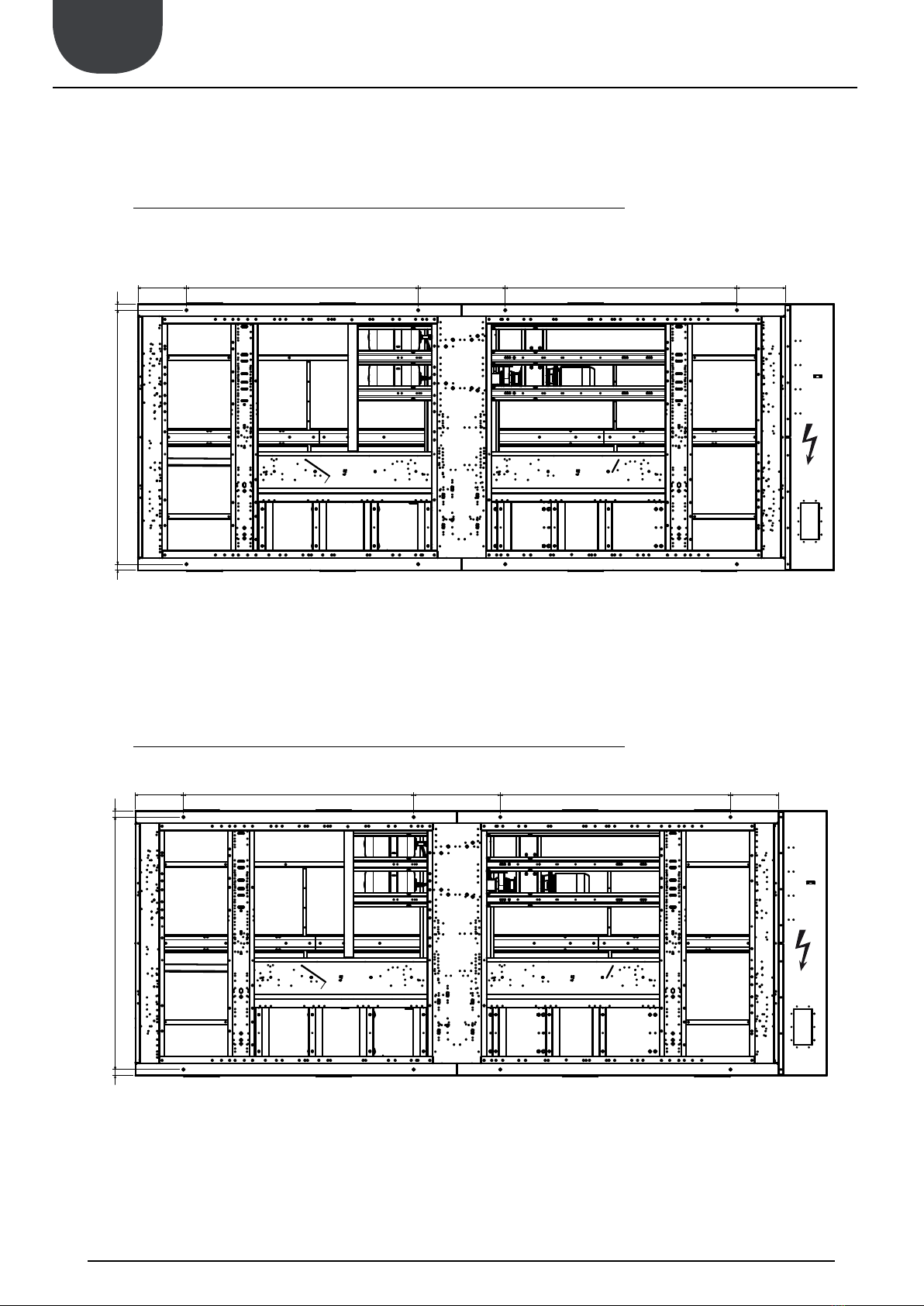

7. ANTIVIBRATION POSITIONING
7.1. 
7.2. 
100 mm
4 in
2800 mm
110 in
100 mm
4 in
100 mm 4 in
100 mm 4 in
2000 mm 79 in
2100 mm 83 in
1825 mm
72 in
2000 mm 79 in
2100 mm 83 in
1825 mm
72 in
100 mm
4 in
100 mm
4 in
100 mm 4 in
100 mm 4 in

10
Aermec cod. INRLLSIY 13_01. 4086991_00
NRL 800 - 1800
GB
400 mm
16 in
400 mm
16 in
720 mm
28 in
1915mm
75 in
1915mm
75 in
2100 mm 83 in
50 mm 2 in
50 mm 2 in

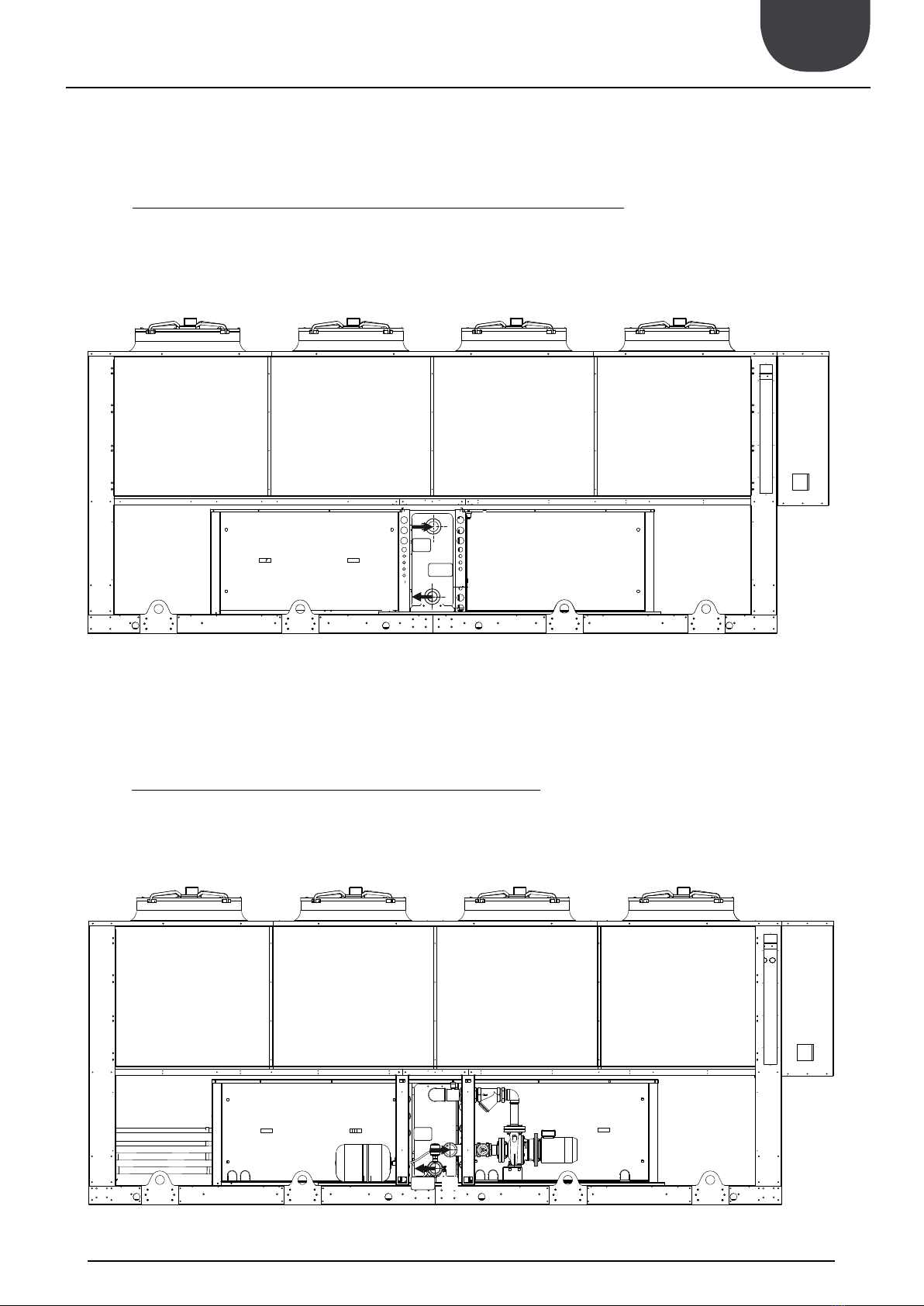

7.3. 
2675
115 5350
5750
W OUT 4”
W IN 4”
400
2200 91
400 mm
16 in
50 mm
2 in
50 mm
2 in
142280
2452
1915mm
75 in
1915mm
75 in
720 mm
28 in
400 mm
16 in
2100 mm
83 in
7.4. NRL 1400 P1
