AeroPure WHFS User manual

Installaon & Operaon Manual
Automac Whole Home Filtraon System
Patented: 6,632,269; 6,491,735; 6,402,822; 6,743,282
For Residenal Forced Air Furnace Only
Website: www.AeroPure.us
US Toll Free: 1 (800) 281 - 6242

WELCOME
Congratulations! You are now the proud owner of the most user
friendly, effective Furnace Filter System, the “AEROPURE
WHFS”. Your AEROPURE continuous filtration system helps
reduce the many problem-causing pollutants and allergies that
can linger in your home. The patented continuous filtration
system not only keeps your indoor air clean, but more so
optimizes your air flow which would result in reaching your
preferable temperature faster hence reducing your energy cost.
AEROPURE is dedicated to our customers and we pride
ourselves on the quality and performance of our products. If you
have any questions, comments, need service, or parts, please
call your local authorized dealer or call one of the TOLL- FREE
numbers on the back of this manual for the Distributor nearest
you. Please, take a few moments to read all of the sections in
this manual and familiarize yourself with your new AEROPURE.
We hope you will enjoy all the benefits of clean and efficient air
filtration.
TABLE OF CONTENTS
Section A –IMPORTANT SAFETY INSTRUCTIONS .........3
Section B –TECHNICAL SPECIFICATIONS......................3
Section C –PARTS DESCRIPTIONS.................................4
Section D –INSTALLATION INSTRUCTIONS ...................5
Section E –OPERATION INSTRUCTIONS.................14,15
Section F –FILTER REPLACEMENT..........................16,17
Section G –TROUBLE SHOOTING GUIDE.....................18
Section H –WARRANTY ..................................................19
SECTION A – IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR AeroPure WHFS
WARNING: To reduce the risk of fire, electric shock or injury:
• Do not use outdoors or on wet surfaces
• Do not use with damaged cord or transformer
• If the supply cord is damaged, it must be replaced by the
manufacturer
• Do not unplug the transformer by pulling on cord. To
unplug,
grasp the transformer, not the cord
• Do not handle transformer with wet hands
SECTION B – TECHNICAL SPECIFICATIONS
Motor: 24 VDC
Transformer: Class 2
Input: 120V AC 60Hz 33.5W
Output: 24V AC 833mA
UL No. 38H3
Filter: Electrostatic Charged Media - UL No. R18143.
Several filters available at your dealer. Refer to
filter packaging for product specification.
Construcon: Anodized Aluminum frame, ABS control
box, Polystyrene cover
Warranty: See warranty for details - Page 19

SECTION C – PARTS DESCRIPTIONS
ITEM QTY PART NO. DESCRIPTION
1 1 202502 CONTROL BOX
2 2 162011 16" MEDIA ROLL ASSEMBLY
202511 20" MEDIA ROLL ASSEMBLY
3 1 162001 16 X 20 FRAME ASSEMBLY
162501 16 X 25 FRAME ASSEMBLY
202001 20 X 20 FRAME ASSEMBLY
202501 20 X 25 FRAME ASSEMBLY
4 1 202520 IDLER BUSHING
5 1 162015 FILTER MEDIA
202515 FILTER MEDIA
(FOR 20" UNIT)
6 1 162024 FRONT COVER
202524 FRONT COVER
(FITS 20" UNIT)
ITEM QTY PART NO. DESCRIPTION
7 1 162032 GASKET
202532 GASKET (20" UNIT)
8 3 202519 SPRING PLATE
9 1 #10-32 X 3/4 KNURLED
KNOB
10 2 .187 x 1 QUICK RELEASE
PIN
11 2 #10-32 X 3 LEVELING LEGS
12 2 #10-32 HEX NUT
13 1 Air SAMPLING TUBE
14 1 162038 RETAINING SPRING
15 CONTROL BOX AND
CARTRIDGE SUPPORT
FRAME ASSEMBLY
SECTION D – INSTALLATION INSTRUCTIONS
STEP 1 : Cold Air Return:
Determine the air duct cold air return in relation to the furnace before
assembling and installing the AeroPure Filter.
STEP 2 : Modifying Cartridge Frame Assembly:
Make sure the RH or LH label is upward depending on your system.
The filter frame assembly extensions are marked in 2-1/2” intervals designed
to be cut if necessary to fit your system when drain pipe or furnace offset
exist. Measure the distance the furnace extends from the side of the
ductwork. Note: Possibly pre-assemble the control box frame assembly to
verify clearance from the furnace before cutting. Then cut the length of

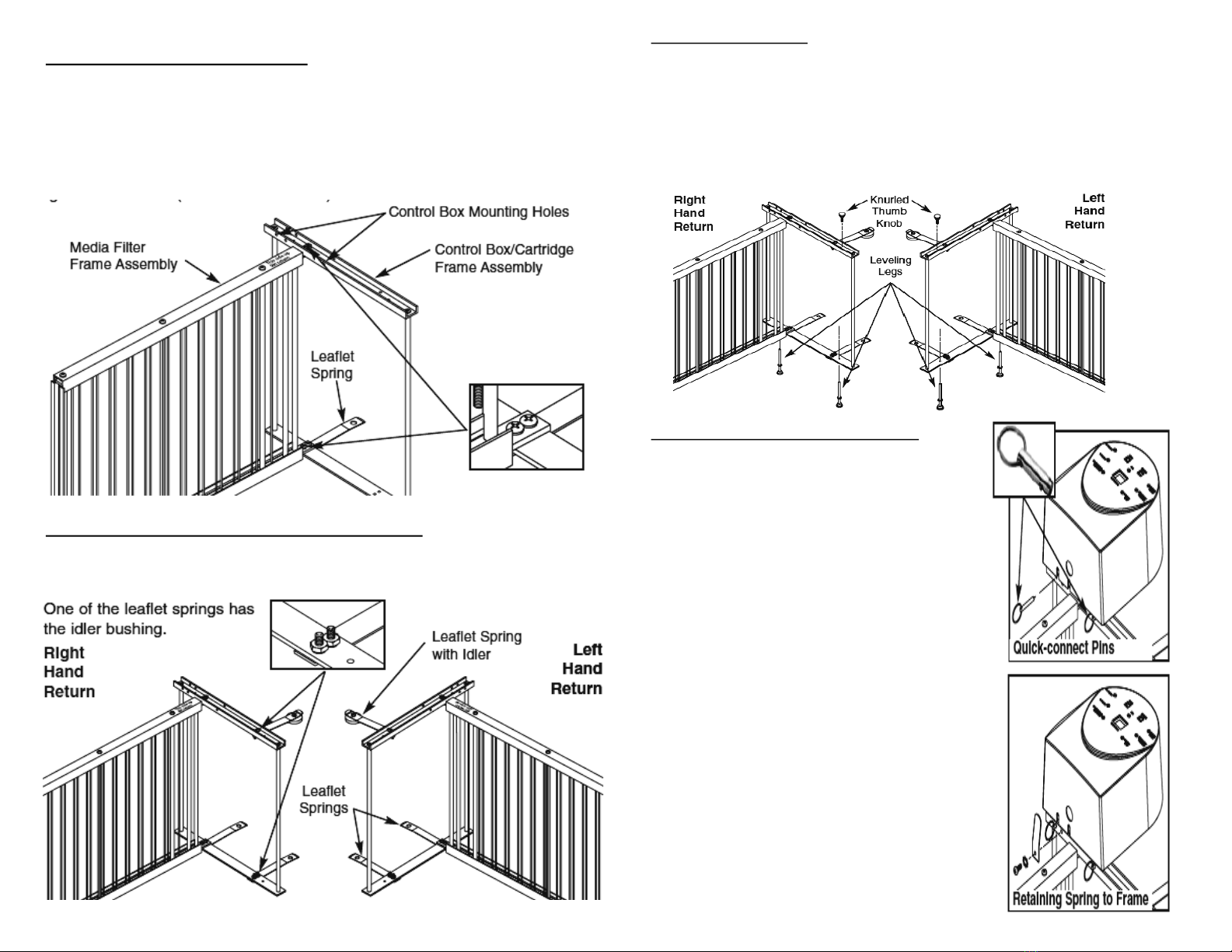

STEP 3 : Frame Assembly:
Make sure the media filter frame assembly end is centered be-
tween the two control box mounting holes. Assemble the two
frames and one of the leaflet springs using #10-32 x 1/2” round
head machine screw with #10 lock washer and #10-32 hex nut.
Firmly tighten the frame. (Total 4 fastener sets)
STEP 4 : Spring and Idler Installaon:
Attach the other 2 leaflet springs using #10-32 x 1/2” round head
screws, #10 lock washer, #10-32 hex nut. (Total of 4 fastener sets)
STEP 5 : Leveling Legs:
Install the 2 leveling legs, engaging only 3-4 turns, do not tighten yet. These
will serve later to support and level the assembly. The jam nut must be
resting against the frame for proper support.
At this time, thread the knurled thumb knob in to the top of the frame. This
will secure the top of the cartridge cover.
STEP 6 : Control Box Frame Assembly:
Place the control box on the frame so that
the 2 positioning legs rest in the U-channel.
Make sure the holes are lined up for the
quick-connect pins (provided) to go through.
The ring should be against the U-channel.
Now assemble the retaining spring using one
screw and star washer.
For the right hand return, the control box
motor is set at the factory to rotate the
cartridge counter clockwise. For the left
hand return, the motor should rotate the
cartridge clockwise. To do so: before you
connect the power, remove the 5 screws
holding the bottom plate of the control box,
reverse the motor leads connection on the
motor, and reassemble the bottom plate
making sure not pinching the clear tube.

STEP 7 : Install Take-up Reel & Cartridge:
Snap in the take-up real (Empty) between the control box and the bottom
spring. The end caps come unassembled for R.H. or L.H. filter assembly.
The end cap must be pressed on both ends of the tube making sure the
end cap idler seat is on top, and the paper lter lead is closest to the control
box - Refer to illustration in Fig.7A. Snap in the new filter cartridge between
the springs. (Top spring has the idler that fits inside the roll end cap)
Fig. 7A shows the filter media installed for both R.H. and L.H. applications.
The white arrows show the direction the take-up reel will turn for each.
STEP 8 : Feeding The Filter Media:
Using the filter paper with white taped end as a lead, feed
the paper as shown in figure FIG. 8A (for right hand) or 8B
(for left hand). See pages 10 and 11 for a pictorial guide
of feeding the filter media through the filter media frame
assembly.
FILTER MEDIA FEED PATH

STEP 8 : Feeding The Filter Media – connued:
Hold the white taped lead of the filter paper,
feed the paper as shown in figure FIG. 8C-L.

AeroPure
AeroPure

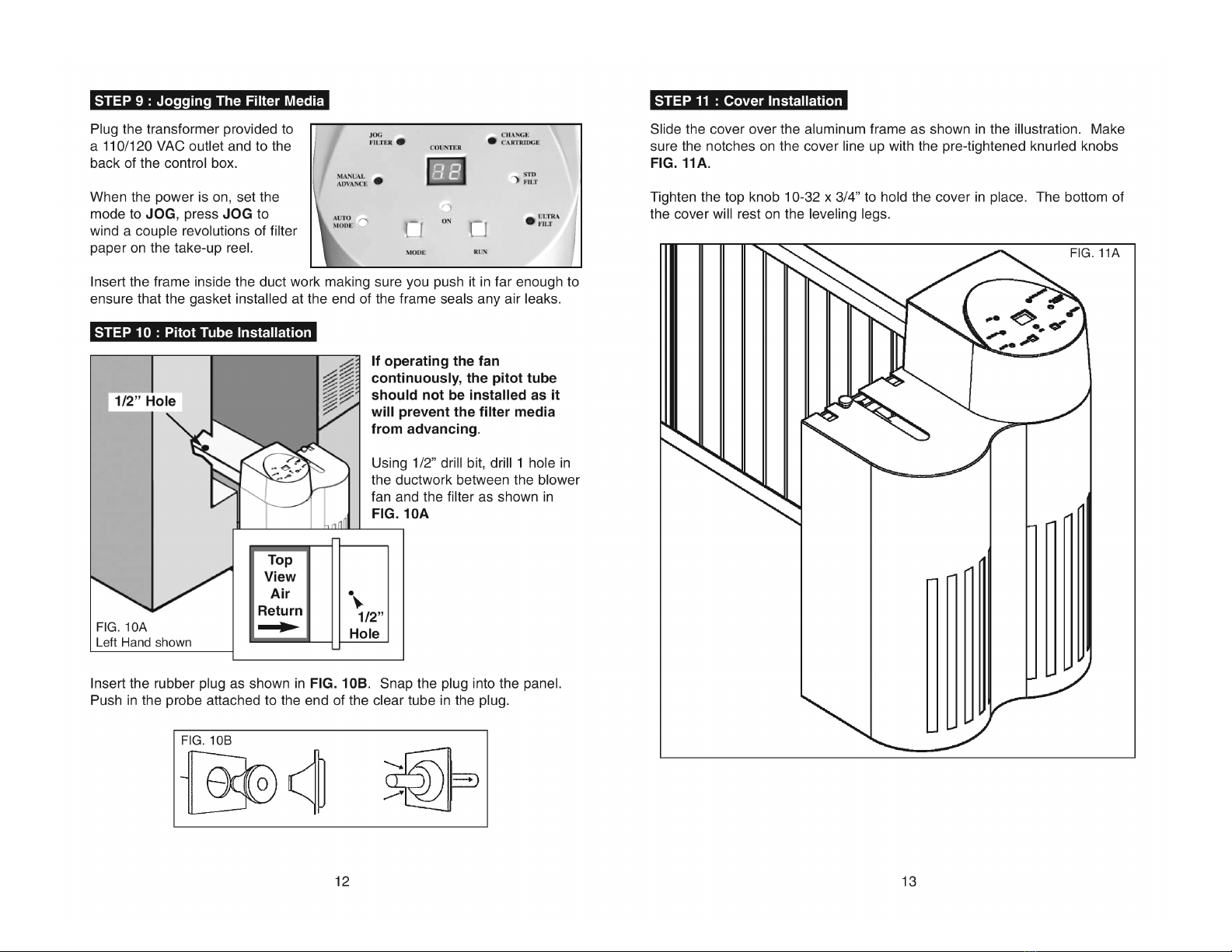

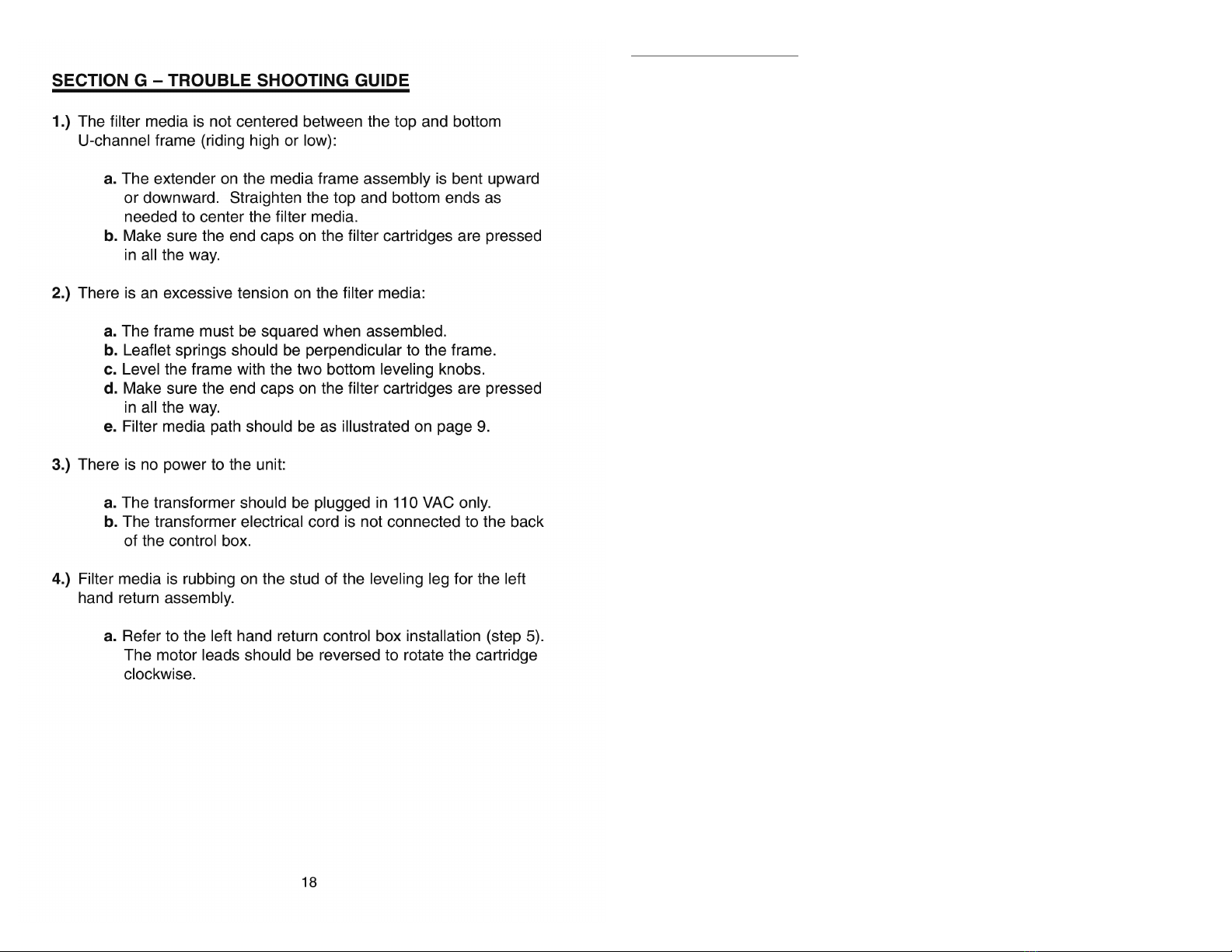

SECTION H – WARRANTY
Renewable Lifetime Warranty
AeroPure warrants the AeroPure Automatic Furnace Filtration System to one year
from the date of purchase. The original purchaser must register their new unit using
one of the following choices listed below. The original purchaser of the AeroPure may
extend this warranty for successive additional year(s) by purchasing and using,
during each year, genuine AeroPure filter cartridges (6 cycles extends 1 year, 12
cycles extends 2 years). In order to extend the AeroPure warranty for an additional
year(s), the purchaser can use one of the choices below.
Warranty and Extended Warranty Registration Options
1.) Return the warranty extension card enclosed in the cartridge package
2.) Call our toll free number: 1- 800-281-6242
To repair or replace any defect or defective part under this warranty, notify us at our
toll-free number then mail in your proof of purchase. If the AeroPure or part is found
on inspection to be defective in material or workmanship, it will be repaired or
replaced at the option of AeroPure and returned to the sender, freight paid. No
reimbursement will be made for replacement of defective parts or service performed
during the warranty period if done by anyone other than the authorized dealers or
AeroPure without having obtained written authorization from AeroPure.
Warranty Considerations and Exemptions
This warranty does not cover:
• Use of the AeroPure for commercial, industrial, or other non-household purposes.
• Damage occurring through misuse or negligence.
• Damage caused by the use of a current or voltage other than 24 volts, .833Amp,
transformer provided.
• Damage resulting from service work performed by parties other than AeroPure or
the authorized dealers.
• Cost of transportation to our offices, or service calls.
• Cost of filters.
This warranty is null and void, and of no effect unless the AeroPure was purchased
from an authorized dealer; and the manufacturer serial number for the AeroPure has
not been changed, defaced, or removed. Any repair or replacement of a defect or
defective part under this warranty will be warranted for one year or until such time
where the warranty have been extended with the filter purchase. There is no other
express warranty applicable to the AeroPure. Implied warranties, including
warranties of merchantability and fitness for a particular purpose, are limited in
duration to the period of time during which the express warranty given herein is in
effect. All consequential or other damages resulting from a breach of this warranty
are excluded from coverage under this warranty.
Some states do not allow limitations on how long an implied warranty lasts, or do not
allow the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. AeroPure does not assume any
additional liability. This warranty gives you specific legal rights, and you may have
other rights which vary from state to state.
