Introduction
The AeroScout T2u Tag is a key component of the AeroScout Visibility System. It is part
of the AeroScout Wi-Fi Ultrasound solution designed specifically for asset, patient and
staff tracking in healthcare environments, where knowing the location and status of
patients, staff and medical devices is critical to ensure the highest level of patient care, the
optimal use of resources and the most efficient workflows.
T2u works with Ultrasound Exciters. The Exciters transmit ultrasound signals, which do
not pass through walls, thus helping deliver location reports with room-level accuracy.
The T2u Tags, with embedded ultrasound receivers, capture the signals and report their
exact location over the Wi-Fi network.
When tags are not in proximity of ultrasound Exciters, they continue to transmit Wi-Fi
signals, which allow the system to determine their location within the hospital or facility.

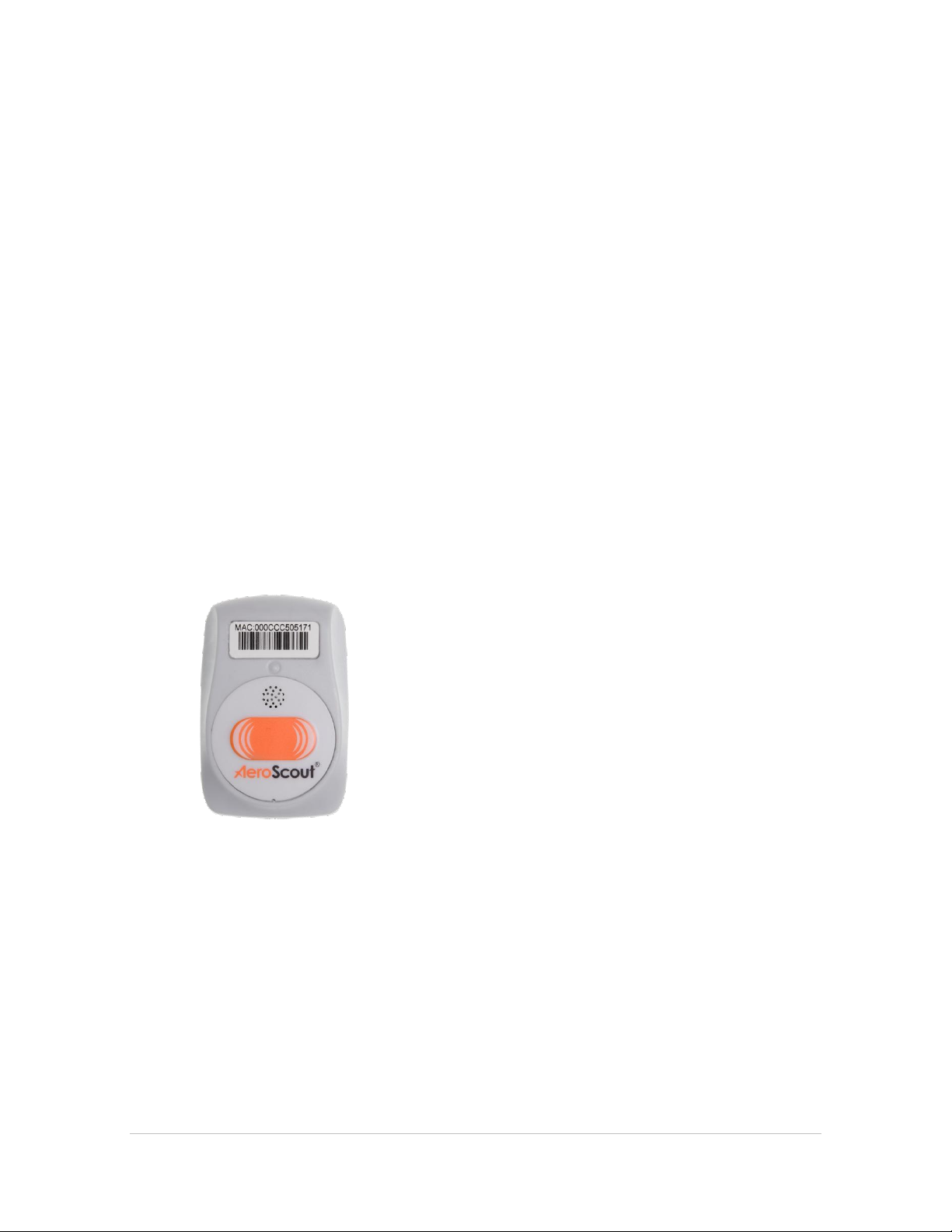

T2u Tag Features
Ultrasound Receiver
The T2u Tag is equipped with an ultrasound receiver, which picks up the ultrasound
transmissions of EX4100 and EX4200 Ultrasound Exciters. The tag transmits the Exciter ID
over the Wi-Fi network. The tag is equipped with a proprietary dilution algorithm that
extends battery life.

AeroScout T2u Wi-Fi Ultrasound Tag
T2u Tag Features 6
Motion Sensing
AeroScout T2u Tags contain on-board motion sensors. The motion sensor can be
configured to trigger alerts. It also enables different transmission intervals for tags when
they are stationary or in motion –which reduces unnecessary network traffic and
conserves battery life.
Call Button Functionality
An optional call button provides the capability to define events according to button
pushes –such as for emergency alerting or parts replenishment. The tag can be configured
to send different data depending on how the button is pressed: different messages can be
associated with a long push of the button and with short, successive pushes.
Flexible Mounting and Usage Options
A wide variety of mounting options are available for AeroScout T2u Tags –screw mounts,
adhesives, Velcro and tie-wraps, and wrist straps. An optional cradle allows mounting the
tag on a wide array of assets and in various environments.
Long Battery Life
A powerful, replaceable battery provides power for a period of up to 4 years. The Tag
periodically provides a report on the battery level so that when the battery level runs low,
it can be replaced efficiently with minimum down time. The AeroScout T2u Tag can also
be easily deactivated in order to conserve battery power.
Tag Management
The T2u Tag can be programmed via a wireless interface using the AeroScout Tag
Activator. Together with the AeroScout Tag Manager software it allows for easy and
efficient Tag configuration, activation or deactivation and programming.
Tag Programmability and Storage
The T2u Tag can store up to 15 messages of 10 bytes each. These messages can either be
pre-programmed via the Tag Manager or programmed on the fly by an AeroScout Exciter
when a tag is in proximity to it. These messages can also be transmitted in addition to the
standard location messages (the tags can be either configured to transmit one of the
messages or triggered by an AeroScout Exciter to transmit a specific message).
Active RFID Functionality
Using the AeroScout Exciter, the tag sends out specific location reports upon arrival at
chokepoints or gateways. The tag behavior can also be automatically modified while
passing through a chokepoint such as a doorway or gate. This includes
activating/deactivating tags or changing the tags’ transmission rate to accommodate
different usage patterns.

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 7
Compatibility and Non-interference
AeroScout Tags are 802.11b compatible. The tag’s clear channel sensing techniques avoid
interference with Wi-Fi networks. The use of the unlicensed 2.4GHz frequency band at low
power levels ensures no interference with other wireless equipment, making AeroScout
tags safe for use with such sensitive equipment as medical devices in a hospital.
Rugged Performance
AeroScout Tags are designed to function in harsh work environments and weather
conditions. The T2u tag enclosure is water-resistant (IP-65) and designed to withstand
significant physical shocks.
Tag Mounting
The AeroScout T2u Tag is enclosed in a compact case. It offers a variety of mounting
options described in this section.
Note
Make sure that the microphone on the front cover of the tag is uncovered.
Wrist Strap
Optional accessory - Can be used to strap the tag around the wrist.

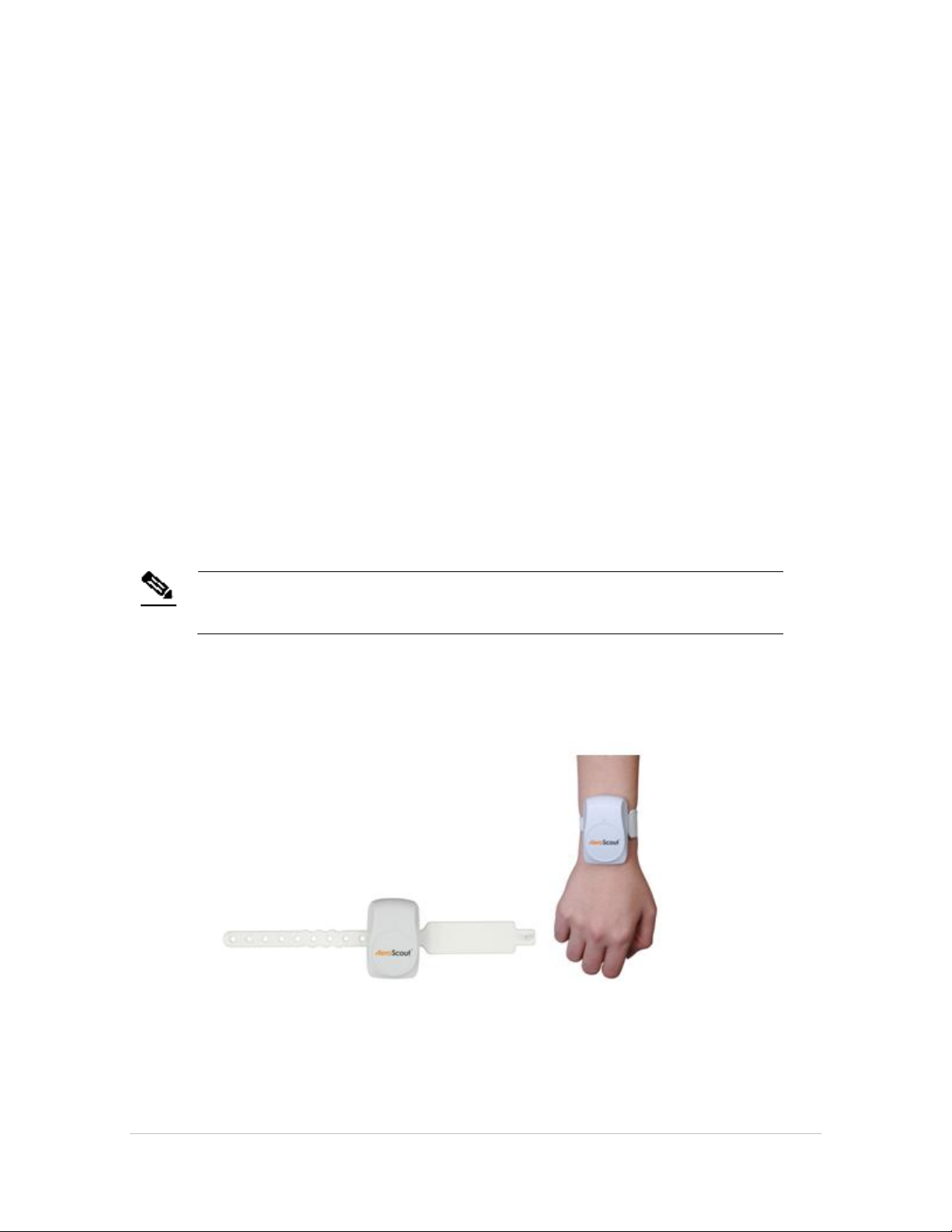

Figure 1. AeroScout T2u Tag with Wrist Strap

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 8
Velcro or Double-Sided Tape
Apply the adhesive material at the back of the tag and fix the tag on the asset.
Belt Clip
The optional belt clip comes with a cradle designed to attach T2u Tags to a belt. Snap the
tag into the cradle and attach it to the belt.
Figure 2. AeroScout T2u Tag with Belt Clip
Figure 3. AeroScout T2u Tag mounted using a belt clip
Badge Clip Mount
This optional accessory allows mounting T2u Tags using a badge clip

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 9
Figure 4. AeroScout badge clip mount
Follow these steps:
1. Snap the badge clip mount to the back of the tag.
2. Strap a badge clip to the flange

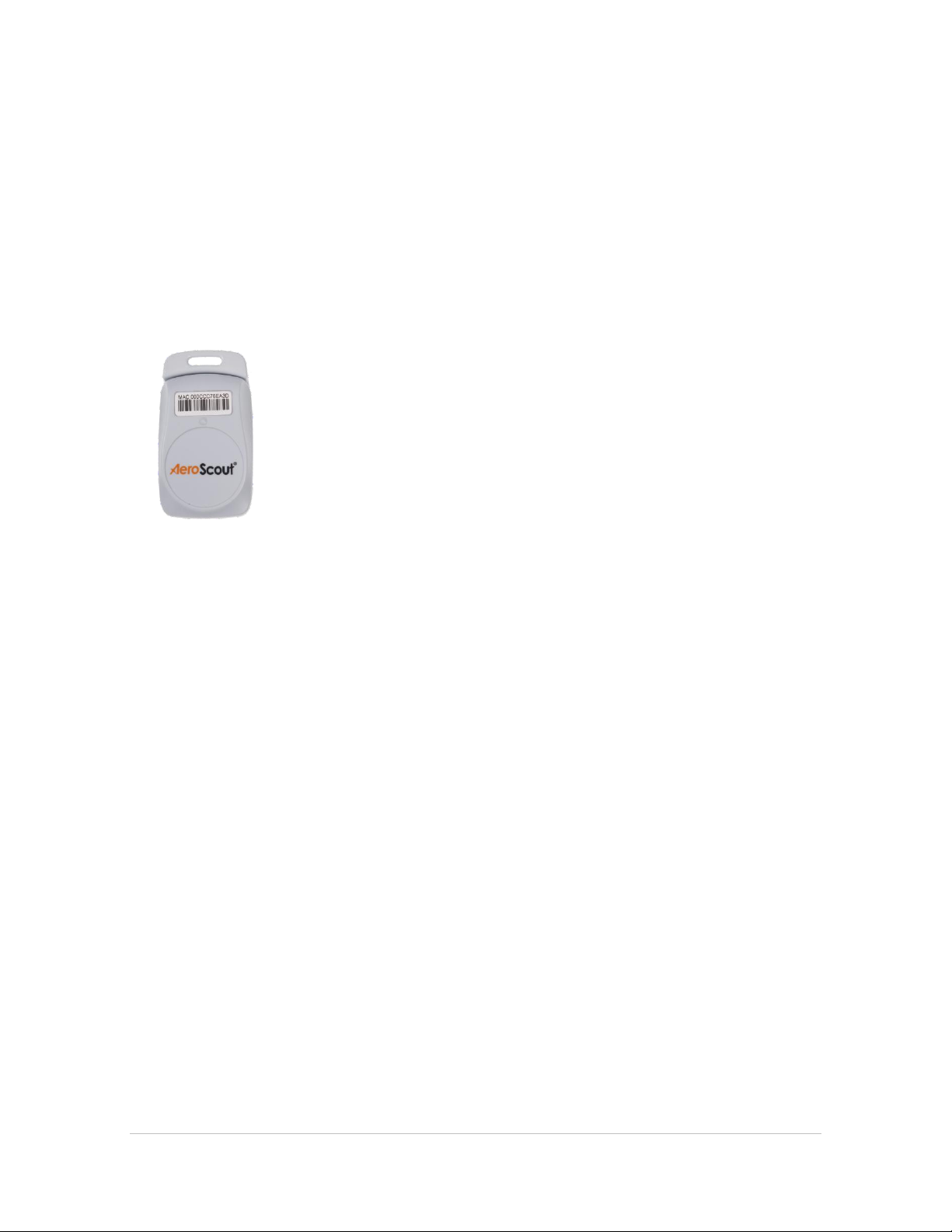

Figure 5. AeroScout T2u Tag with badge clip mount
Velcro or Double-Sided Tape
Apply the adhesive material at the back of the tag and fix the tag on the asset.
Using the Mounting Cradle
The mounting cradle allows you to fix the tag on surfaces where it cannot be attached
using the adhesive material or the strap. Using the cradle, tags can be easily removed and
replaced without the need to handle adhesives.
Fixing the Cradle to a Surface Using Screws
Follow these steps:
1. Screw the cradle on the asset, using four screws.

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 10
Figure 6.
2. Snap the tag into the cradle.
Securing the Tag to the Cradle
After snapping the tag into the cradle, it is possible to secure the tag to the cradle using a
strap.
Figure 7.
1. Thread the cradle strap through the middle strapping holes and through the tag's
back rail.

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 11
Figure 8.
2. Tie the strap around the front of the tag.
Attaching the Cradle to a Pole
You can attach the cradle to a pole using two narrow straps. Follow these steps:
1. Thread the cradle strap through the two pairs of strapping holes.
Figure 9.

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Mounting 12
2. Tie the straps to the pole.
3. Snap the tag into the cradle (or first tie the tag to the cradle and then attach it to the
pole).
Figure 10.

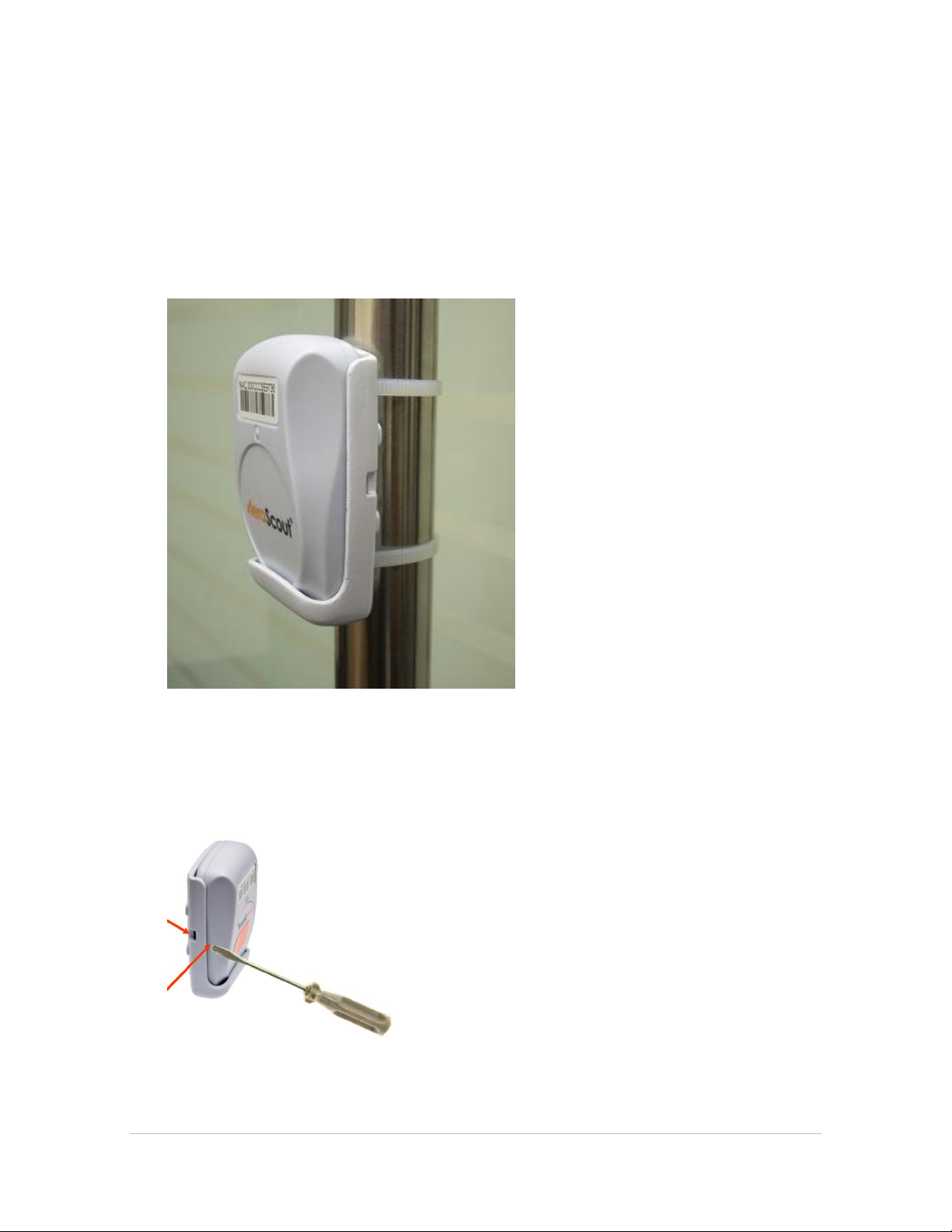

Removing the Tag from Cradle
The cradle holds the tag tightly. Gently separate the tag from the cradle using a small
screwdriver and then pull the tag out.
Figure 11.

AeroScout T2u Wi-Fi Ultrasound Tag
T2u Tag Management 13
T2u Tag Management
The AeroScout T2u Tag can be configured, programmed and activated via a wireless
interface. This is done with the help of the AeroScout Tag Manager application and the
AeroScout Tag Activator.
In addition, Tag Manager is used to activate and deactivate tags and to program stored
messages on the tags.
The Tag Manager functions can also be activated via APIs that enable easy integration
with third-party applications.
Please refer to AeroScout Tag Manager User Guide and AeroScout Tag Manager API User
Guide.
Tag Maintenance
Replacing the Internal Battery
The AeroScout Tag uses one 3.6V Lithium Thionyl Chloride (LTC) ½ AA size cell. This
internal battery can last up to 4 years depending on the configured tag parameters (e.g. the
transmission interval rate).
Figure 12. T2u Tag Battery
To replace a battery:
1. Deactivate the tag with Tag Activator and Tag Manager (recommended).
2. Remove the rear panel by unscrewing the case screws.

AeroScout T2u Wi-Fi Ultrasound Tag
Tag Maintenance 14
3. Carefully remove the old battery from the battery holder.
Note
Do not use a metal object to remove the battery.
4. Install a new 3.6V lithium Thionyl Chloride ½ 'AA' size battery in the battery holder.
WARNING: Use only batteries listed in Table 1 or batteries that have been
approved by AeroScout. There is a danger of fatal tag damage if the battery
is replaced incorrectly or by an incorrect type. Dispose used batteries
according to the instructions.
5. Close the rear panel.
6. Activate the tag.
7. Dispose of the old lithium Thionyl Chloride battery properly.
WARNING: Local regulations vary. Federal regulations allow up to 100
kg./month of lithium thionyl chloride batteries to be disposed in common
landfill. All leads (the terminals) should be taped to prevent short circuit.
The user is responsible for safe disposal.
Table 1 presents the approved battery types for the T2u tag:
Manufacturer
Battery Part Number
Tadiran
TL-5902
Xeno Energy
XL-050F
Sonnenschein
SL-350
Saft
LS-14250C
Table 1 –T2U Tag Approved Battery Types
Tag Battery Life
T2u Tag battery can last up to 3 years depending on the extent of motion and on how
frequent the tag stays within the ranged of an ultrasound Exciter.

AeroScout T2u Wi-Fi Ultrasound Tag
T2u Tag Models 15
Cleaning the Tag
Cleaning the external surface of the Tag’s housings can be done using Alcohol or Chloride
based wipers only
T2u Tag Models
AeroScout T2u Tag
Comments
Model
AeroScout T2u Tag
Includes 1/2AA Lithium
battery and motion sensor
TAG-2200
AeroScout T2u Tag
with Call Button
Includes 1/2AA Lithium
battery, call button and
TAG-2200-C
Table 2 –Regular T2U Tag Models
T2u Tag Accessory Models
Mounting Accessories
Comments
Model
Tag cradle
For attaching the tag to a
pole or similar surface.
TAC-250
T2u Tag Wrist Straps 50-
pack
Sutitable for T2u Tags
attachment to the wrist
TAC-220
Velcro Attachment Kit
50-pack
Velcro Patches
TAC-030
Double-sided Tape
Attachment Kit 50-pack
Adhesive Tape patches
TAC-031
Screw Kit
TAC-065
Tie Wraps 2”
TAC-060
T2u Badge Clip
TAC-210
T2u Badge Clip Mount
TAC-270
T2u Belt Clip
TAC-082
Velcro straps
300mm/110mm
TAC-035/036
White Neck Straps
Without / With AeroScout
logo
TAC-070/071
Magnetic Tie Wrap
TAC-052/053/054

AeroScout T2u Wi-Fi Ultrasound Tag
Specifications 16
Tag Management
Tag Management Suite
Includes Tag Activator,
Tag Manager Software
and 110/220V to 5V
adaptor
US Suite
Includes 110/220v to 5v
adapter (US)
BWH-1000-02-TA-
U
Europe Suite
Includes 110/220v to 5v
adapter (Europe)
BWH-1000-02-TA-E
Japan Suite
Includes 110/220v to 5v
adapter (Japan)
BWH-1000-02-TA-J
UK Suite
Includes 110/220v to 5v
adapter (UK)
BWH-1000-02-TA-
UK
Other
Tag Battery 25-Pack
TAC-230
Tag Battery 50-Pack
TAC-231
Table 3 –Tag Accessory Models
Specifications
Tag Specifications
Performance
Outdoor range: Up to 200m (600 feet)
Indoor range: Up to 80m (180 feet)
Physical and Mechanical
Dimensions: 2.44” x 1.57” x 0.67”(62mm x 40mm x 17mm)
Weight: 1.2oz (35g)
Radio
802.11b radio (2.4GHz)
Low frequency receiver (125kHz)
Transmission power: up to +19dBm, ~81mW

AeroScout T2u Wi-Fi Ultrasound Tag
Specifications 17
Clear channel sensing avoids interference with wireless networks
Ultrasound Receiver
Frequency 40KHz
Environmental Specifications
Temperature: -30°C to +75°C (-22°F to 167°F)
Humidity: 0 to 100%, condensing
The housing is water and dust resistant and includes a rubber lining.
IP-65
Electrical
3.6V Lithium ½ AA battery (replaceable)
Battery life: up to 4 years
Certification
Radio:
FCC Part 15, sub-part C class B, sub-part B
EN 300-328, EN 300-330, EN 301-489
RSS 210 (Canada)
ARIB STD-T66 (Japan), ARIB STD-33 (Japan)
MIC (Korea)
Safety:
CE
cTUVus (EN60950)
US Patents
6,963,289
7,295,115
7,552,049 B2
7,403,108 B2

AeroScout T2u Wi-Fi Ultrasound Tag
Specifications 18

AeroScout T2u Wi-Fi Ultrasound Tag
Safety and Warnings 19
Safety and Warnings
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV technician.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
a) This device may not cause harmful interference
b) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority to operate
the equipment under FCC Rules.
Warranty
Hardware. AeroScout Inc. ("AeroScout"), warrants that commencing from the date of delivery to
Customer, and continuing for a period of ninety (90) days the Hardware will be free from defects in
material and workmanship under normal use. The date of shipment of a Product by AeroScout is set
forth on the packaging material in which the Product is shipped. This limited warranty extends only to
the original user of the Product. Customer's sole and exclusive remedy and the entire liability of
AeroScout and its suppliers under this limited warranty will be, at AeroScout’s or its service center's
option, shipment of a replacement within the period or a refund of the purchase price if the Hardware
is returned to the party supplying it to Customer, if different than AeroScout, freight and insurance
prepaid. AeroScout replacement parts used in Hardware repair may be new or equivalent to new.
AeroScout’s obligations hereunder are conditioned upon the return of affected articles in accordance
with AeroScout’s then-current Return Material Authorization (RMA) procedures.
Restrictions. This warranty does not apply if the Product (a) has been altered, except by AeroScout,
(b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied
by AeroScout, (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or
accident; or (d) is sold for beta, evaluation, testing, or demonstration purposes for which AeroScout
does not receive a payment of purchase price or license fee.
DISCLAIMER OF WARRANTY. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR
IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION,
ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, NONINFRINGEMENT, SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING,
LAW, USAGE, OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY
APPLICABLE LAW. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY
IS LIMITED IN DURATION TO THE WARRANTY PERIOD. BECAUSE SOME STATES OR JURISDICTIONS
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION.
This disclaimer and exclusion shall apply even if the express warranty set forth above fails of its
essential purpose.

About AeroScout
AeroScout is the market leader in Unified Asset Visibility solutions. Clients improve operational
efficiency and quality using AeroScout products that leverage standard Wi-Fi networks to track and
manage the location, condition and status of mobile assets and people. AeroScout’s global customer
base consists of leading hospital, manufacturing and logistics organizations, including many of the
Fortune 500. The company originally invented the first Wi-Fi-based Active RFID tag, and today is
widely recognized as leading the market in number of deployments and tags shipped. Headquartered
in Redwood City, Calif., AeroScout has offices in Europe, Asia, the Middle East, Latin America and
Australia. For more information, please visit www.aeroscout.com.
AeroScout (Headquarters)
1300 Island Drive
Suite 202
Redwood City, CA 94054
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Europe, Middle East, Africa Office
Tel : [phone]
Fax : [phone]
E-mail: [email protected]m
Japan Office
Tel: [phone]
Fax: + 81 3 5875 3723
E-mail: [email protected]
Latin America Office
Tel : [phone]
E-mail: [email protected]
Asia-Pacific Sales
Tel : [phone]
E-mail: [email protected]
Australia and New Zealand Sales
Tel : [phone]
E-mail: [email protected]
