Aesculap FAV5 CL User manual

Aesculap Suhl GmbH
Instructions for use/Technical description
Battery-powered clipping machine FAV5 CL
Gebrauchsanweisung/Technische Beschreibung
Akku-Schermaschine FAV5 CL
Mode d’emploi/Description technique
Tondeuse à accu FAV5 CL
Instrucciones de manejo/Descripción técnica
Esquiladora a batería FAV5 CL
Istruzioni per l’uso/Descrizione tecnica
Tosatrice ad accumulatore FAV5 CL
Gebruiksaanwijzing/Technische beschrijving
Accu-scheermachine FAV5 CL
Инструкция по примению/Техническое
описание
Машинка для стрижки, с аккумулятором, FAV5 CL
FAV5 CL

2
3
1
2
4
5
678
9
10
11

12

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
2

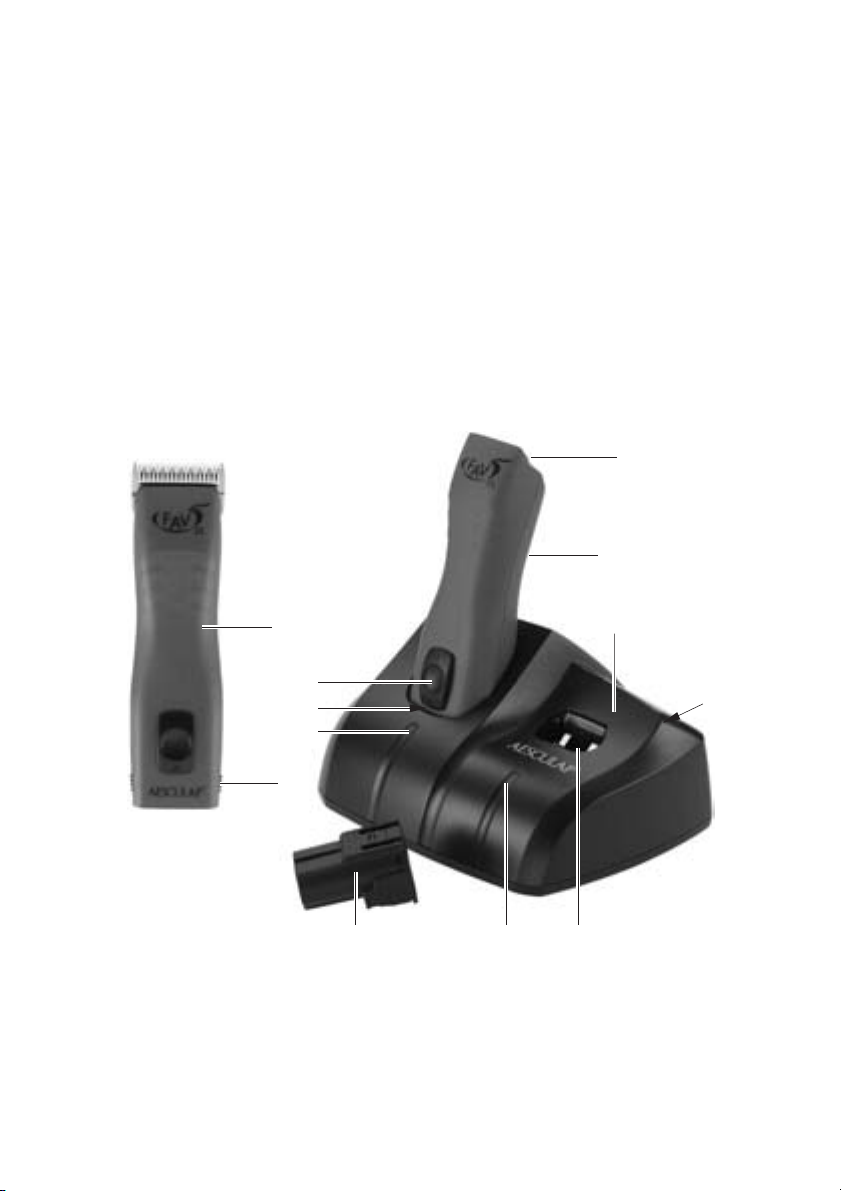

Legend
1Blade adapter
2Battery-powered clipping machine FAV5 CL
3Battery release lock
4Charger
5Mains power cord (with device plug)
6Charging bay (for Li-ion battery)
7Charge state indicator (for Li-ion battery)
8Li-ion battery
9Charge state indicator (for battery-powered clip-
ping machine FAV5 CL)
10 Charging bay (for battery-powered clipping
machine FAV5 CL)
11 On/Off switch
12 Blade
Symbols on product
Contents
1. Safe handling ........................................................... 3
2. Product description ................................................ 3
2.1 Scope of delivery ..................................................... 3
2.2 Components required for operation .................. 4
2.3 Intended use of battery-powered clipping
machine FAV5 CL .................................................... 4
2.4 Intended use of charger GT203/Li-ion battery
GT201 ......................................................................... 4
2.5 Operating principle of the battery-
powered clipping machine FAV5 CL .................. 4
2.6 Operating principle of charger GT203/
Li-ion battery GT201 .............................................. 4
2.6.1 Charging principle .................................................. 4
2.6.2 Charging time .......................................................... 4
3. Preparation and setup ........................................... 5
4. Working with the battery-powered clipping
machine FAV5 CL, and the charger GT203/
Li-ion battery GT201 .............................................. 5
4.1 System set-up .......................................................... 5
4.1.1 Connecting the accessories.................................. 5
4.1.2 Attaching the blade................................................ 6
4.1.3 Connecting the charger/Charging the Li-ion
battery........................................................................ 6
4.2 Functional check of the battery-powered
clipping machine FAV5 CL .................................... 7
4.3 Function checks of the charger .......................... 8
4.4 Safe handling blade................................................. 8

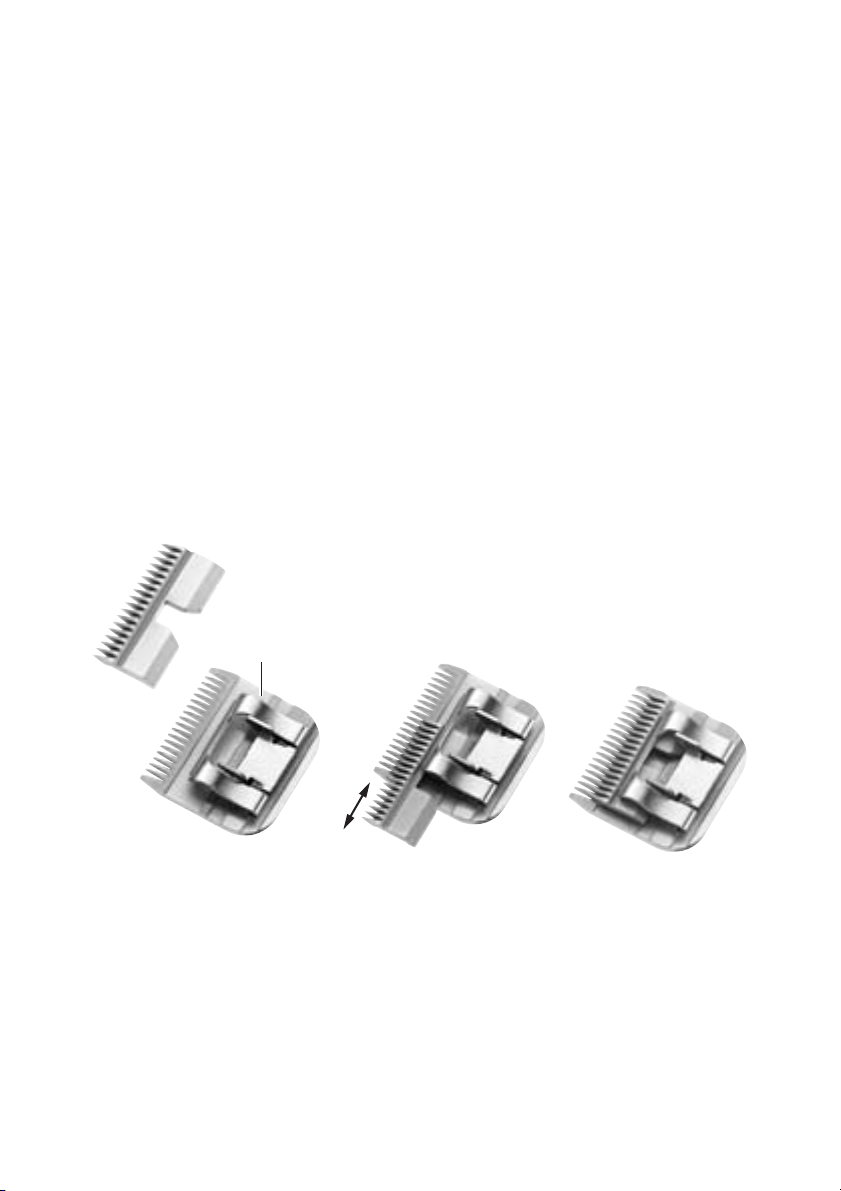

4.4.1 Sharpening the cutting plate .............................. 8
4.4.2 Changing the blade ................................................ 8
4.4.3 Lubricating the blade............................................. 9
4.4.4 Changing the Li-ion battery ................................ 9
5. Processing ...............................................................10
5.1 Cleaning/disinfection ...........................................10
5.2 Control, care and inspection .............................10
6. Maintenance ..........................................................11
7. Troubleshooting list .............................................12
7.1 Battery-powered clipping machine FAV5 CL ..12
7.2 Charger and Li-ion battery ................................12
8. Technical Service ..................................................14
9. Accessories/Spare parts ......................................15
10. Technical data ........................................................15
10.1 Battery-powered clipping machine FAV5 CL ..15
Adhere to instructions for use
Marking of electric and elec-
tronic devices according to
directive 2002/96/EC (WEEE),
see Chapter Disposal

3
10.2 Charger ....................................................................15
10.3 Li-ion battery .........................................................16
10.4 Declaration of conformity ..................................16
11. Disposal ....................................................................16
11.1 For EU countries only ...........................................16
11.2 Li-ion batteries ......................................................16
12. Two year guarantee ..............................................17
13. Distributor in the US/Contact in Canada for
product information and complaints ..............17
1. Safe handling
CAUTION
Federal law restricts this device to sale by or on
order of a physician!
¾Prior to use, check that the product is in good
working order.
¾Store the charger and Li-ion batteries at room tem-
perature.
¾Keep dry the charger and Li-ion batteries.
¾Charge the Li-ion batteries prior to first use.
¾Observe our “Notes on Electromagnetic Compati-
bility (EMC)“.
¾To prevent damage caused by improper setup or
operation, and in order not to compromise war-
ranty and manufacturer liability:
– Use the product only according to these instruc-
tions for use.
– Follow the safety and maintenance instructions.
– Ensure the manufacturer's approval before using
accessories that are not mentioned in the instruc-
tions for use.
¾Ensure that the product and its accessories are
operated and used only by persons with the requi-
site training, knowledge, or experience.
¾Keep the instructions for use accessible for the
user.
¾Always adhere to applicable standards.
¾Ensure that the electrical facilities in the room in
which the device is being used conform to IEC
norms.
¾Unplug the device by pulling the plug, but never by
pulling the power cord.
¾Do not operate the product in explosion-hazard
areas.
¾Do not use the product if it is damaged or defec-
tive. Set aside the product if it is damaged.
2. Product description
2.1 Scope of delivery
Note
The blade GT330 #10 (USA+UK) for battery-powered
clipping machine FAV5 CL is included in the scope of
delivery. Various blades are available for different
applications!
DANGER
Risk of fatal injury from electric
shock!
¾Do not open the product (except
for changing a charging bay).
¾Connect the product only to a
grounded power supply. Designation Art. no.
Battery-powered clipping
machine FAV5 CL
GT300
Li-ion battery GT201
Charger GT203
Mains power cord (with device
plug)
see Chapter
Accessories/
Spare parts
Instructions for Use TA013440

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
4
2.2 Components required for operation
• Battery-powered clipping machine FAV5 CL
•Blade
•Charger
• Mains power cord (with device plug)
• Li-ion battery
2.3 Intended use of battery-powered
clipping machine FAV5 CL
The battery-powered clipping machine FAV5 CL is used
for shearing small animals.
The battery powered clipping machine FAV5 CL is used
with a blade to be selected according to the respective
application.
2.4 Intended use of charger GT203/Li-
ion battery GT201
The charger GT203 is used for charging the battery-
powered clipping machine FAV5 CL and the Li-ion bat-
tery. There is one charging bay each for the two com-
ponents.
2.5 Operating principle of the battery-
powered clipping machine FAV5 CL
The battery-powered clipping machine FAV5 CL is
switched on (off) by pushing the ON/OFF switch up
(down).
2.6 Operating principle of charger
GT203/Li-ion battery GT201
The charger GT203 is designed for the mains voltage/
frequency range 100 V to 240 V / 50 Hz to 60 Hz.
To make the charger GT203 ready for operation, con-
nect it to mains power by plugging in the mains plug.
The charger GT203 is equipped with to charging bays.
The first charging bay is for charging the battery-pow-
ered clipping machine FAV5 CL, while in the second
charging bay the Li-ion battery is charged.
Each charging bay has an indicator field on the charger
front panel assigned to it.
Charging starts automatically, as soon as a Li-ion bat-
tery is inserted in the charging station.
The charging time in the charging bays depends on the
charge state and capacity of the Li-ion batteries.
2.6.1 Charging principle
The Li-ion batteries are charged by constant current
pulses.
The charge state of the Li-ion battery is monitored
during charging. Monitoring of the charging curve
ensures that the battery is fully charged without over-
charging.
Additionally, the battery temperature and charging
time are monitored as well.
The charger monitors the battery status and indicates
the charge state via two LED indicators.
LED indicators:
• green = Battery fully charged
• red = Battery completely discharged
2.6.2 Charging time
Charging is stopped as soon as the maximum charging
time is reached.
The charging time is approx. 50 min.

5
3. Preparation and setup
Non-compliance with the following instructions will
preclude all responsibility and liability in this respect
on the part of Aesculap.
¾When setting up and operating the product, adhere
to
– national regulations for installation and opera-
tion,
– national regulations on fire and explosion protec-
tion.
– operating advisories according to IEC-/VDE regu-
lations.
4. Working with the battery-
powered clipping machine
FAV5 CL, and the charger
GT203/Li-ion battery GT201
4.1 System set-up
4.1.1 Connecting the accessories
Combinations of accessories that are not mentioned in
the present instructions for use may only be employed
if they are specifically intended for the respective
application, and if they do not compromise the perfor-
mance and safety characteristics of the products.
¾Please contact your B. Braun/Aesculap Partner or
Aesculap Technical Service with any inquiries in
this respect, see Chapter Technical Service.
DANGER
Fire and explosion hazard!
¾Do not operate the product in
explosion-hazard areas.
CAUTION
Malfunction of, or damage to the
product caused by improper setup!
¾Do not expose the product to
direct sunlight or moisture.
¾Do not cover the ventilation
slots of the product.
¾Connect the product to the
specified voltage of 100 V to
240 V/50 Hz to 60 Hz.
¾Ensure that the mains power
socket used for supplying the
product is freely accessible.

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
6
4.1.2 Attaching the blade
Note
The blade GT330 #10 (USA+UK) for battery-powered
clipping machine FAV5 CL is included in the scope of
delivery. Various blades are available for different
applications!

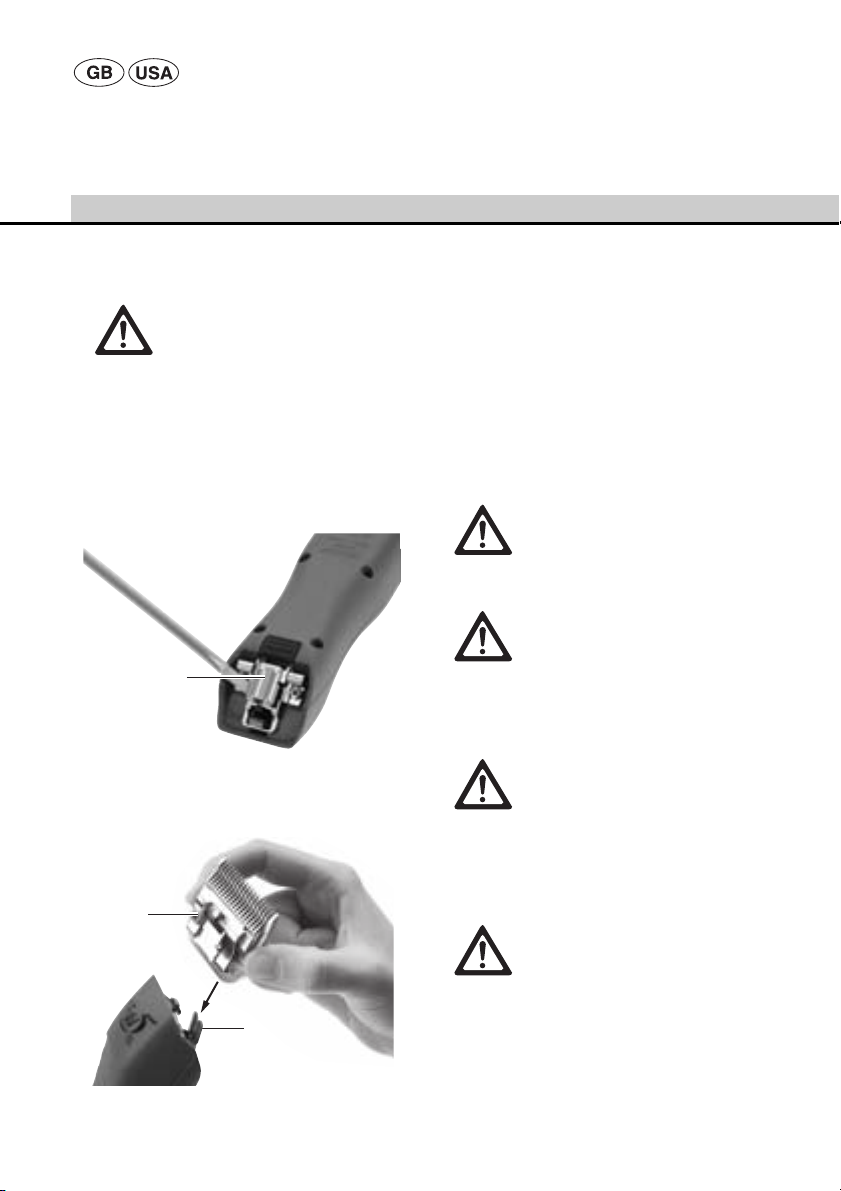

Fig. 1
¾If the knife hinge is closed: Open knife hinge 13
with a screwdriver, see Fig. 1.

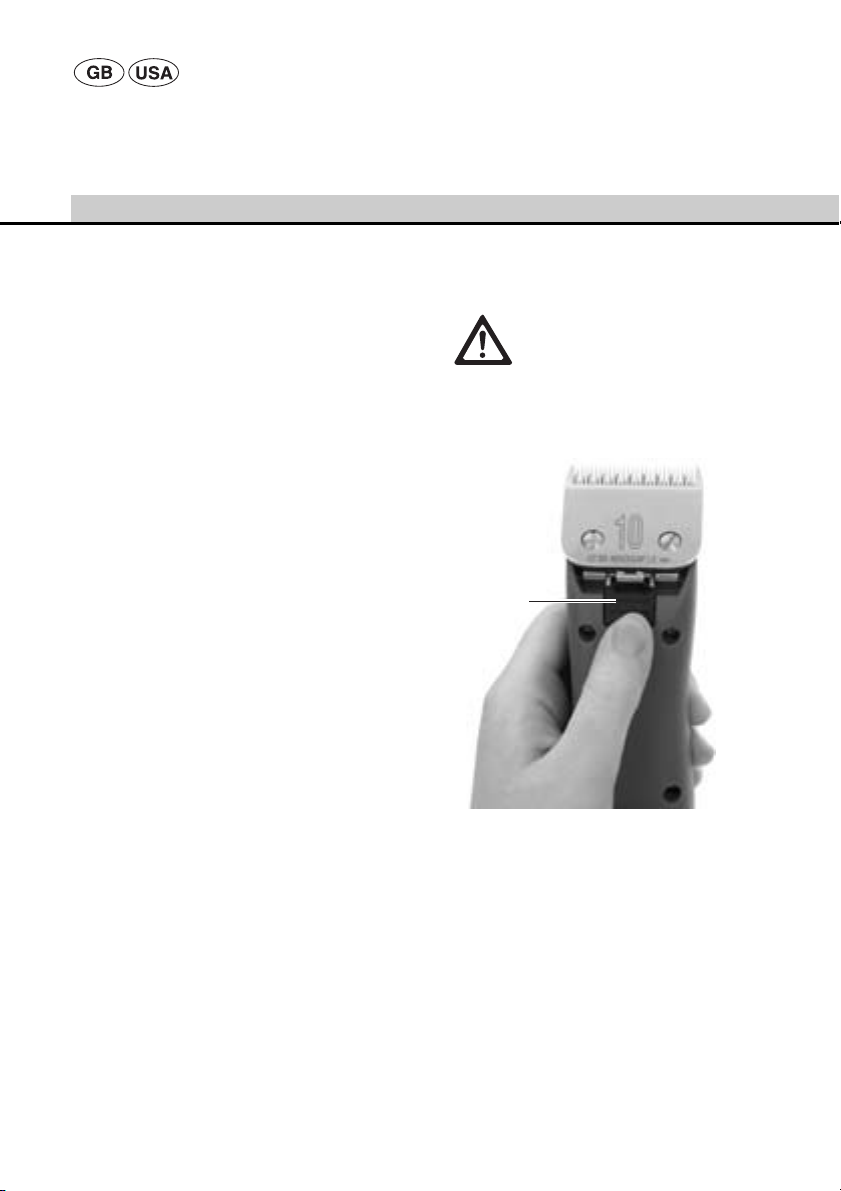

Fig. 2
¾Install blade 12 on open knife hinge 13, see Fig. 2.
¾Press ON/OFF switch 11.
¾Press blade 12 gently in the direction of the clip-
ping machine FAV5, see Fig. 2.
The blade 12 engages with an audible click.
¾Ensure that the blade 12 is fitted correctly on the
clipping machine FAV5 CL.
4.1.3 Connecting the charger/Charging the
Li-ion battery
WARNING
Risk of injury caused by sharp cut-
ting plates!
¾Handle the blade of clipping
machine FAV5 with appropriate
caution.
13
12
13
WARNING
Fire hazard due to battery poles
shorted by fluids or metal compo-
nents!
¾Do not short the Li-ion battery.
WARNING
Risk of injury and material damage
due to damaged Li-ion batteries!
¾Prior to charging, check the Li-
ion batteries for any damage.
¾Do not use or charge damaged
Li-ion batteries.
CAUTION
Loss of capacity/performance due
to prolonged storage of discharged
Li-ion batteries!
¾Store Li-ion batteries only in
fully charged condition and
recharge stored batteries once
every month.
CAUTION
Destruction of the product, charg-
ing bay or Li-ion battery when
inserting the wrong type of battery
in the charging bay!
¾Insert Li-ion batteries only in
the appropriate charging bay.
¾Insert the Li-ion battery in the
correct position.

7
Note
Switch off the battery-powered clipping machine
FAV5 CL before charging!
Note
Li-ion batteries heat up slightly during charging.
Note
Unplug the mains power cord at the mains socket when
the charger is not going to be used!
¾To connect charger 4: Plug in the device plug of
mains power cord 5in charger 4.
¾Plug in the mains plug of mains power cord 5at
the mains power socket.
¾Place Li-ion battery 8in charging bay 6of the
charger 4and charge.
- or -
¾Place battery-powered clipping machine FAV5
CL 2in charging bay 10 of the charger 4 and
charge.
Charge state indicator 7or 9lights up red.
After charging, the charge state indicator 7/9
shines green and the battery-powered clipping
machine FAV5 CL 2/Li-ion battery 8is ready for
operation.
4.2 Functional check of the battery-
powered clipping machine FAV5 CL
¾Carry out a visual inspection.
¾Check the switch position.
¾Install the battery, see Chapter Changing the Li-ion
battery.
¾Mount the blade correctly and lubricate it if neces-
sary, see Chapter Safe handling blade head.
¾Keep a charged Li-ion battery on hand, as reserve.
¾Clean battery-powered clipping machine FAV5 CL
prior to use, see Chapter Cleaning/disinfection.

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
8
4.3 Function checks of the charger
¾Carry out a visual inspection.
¾Prior to connecting the product to mains power:
– Check mains power cord 5for possible damage.
– Check the product for any damage (e.g. bent con-
tacts of the charging bays).
¾Plug in mains power cord 5at the device socket of
the charging station.
¾Plug in the mains plug at the mains power socket.
¾Place Li-ion battery 8in charging bay 6of the
charger 4and charge.
- or -
¾Place battery-powered clipping machine FAV5
CL 2in charging bay 10 of the charger 4 and
charge.
Charge state indicator 7or 9lights up red.
After charging, the charge state indicator 7/9
shines green and the battery-powered clipping
machine FAV5 CL 2/Li-ion battery 8is ready for
operation.
The product is ready for operation.
4.4 Safe handling blade
4.4.1 Sharpening the cutting plate
Note
For sharpening the cutting plate, please contact Tech-
nical Service, see Chapter Technical Service.
4.4.2 Changing the blade
Fig. 3
¾Press ON/OFF switch 11 to switch off battery-pow-
ered clipping machine FAV5 CL.
¾Press blade lock 14, see Fig. 3.
WARNING
Risk of injury caused by sharp cut-
ting plates!
¾Handle the blade of clipping
machine FAV5 CL with appro-
priate caution.
14

9

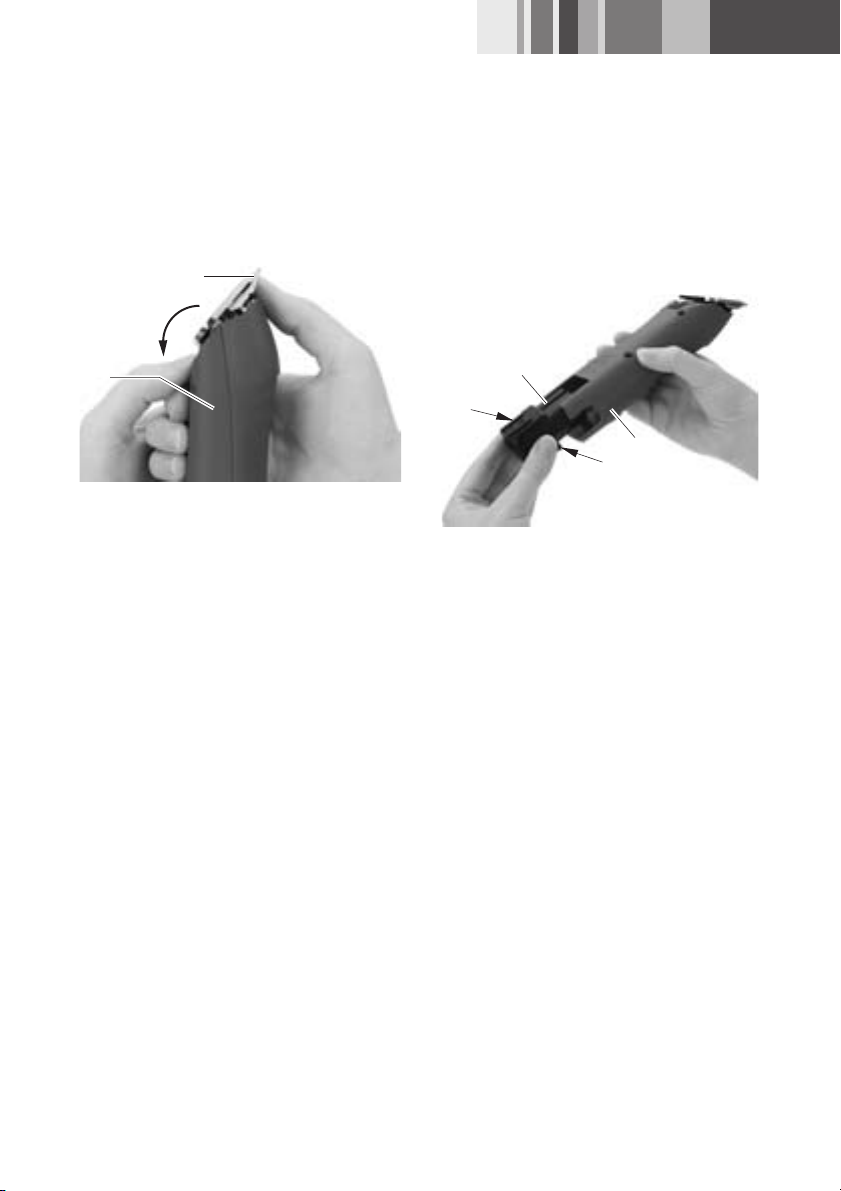

Fig. 4
¾Fold forward blade 12, see Fig. 4.
¾Detach blade 12.
¾Clean open knife hinge with a brush.
¾Install blade 12 on knife hinge.
¾Plug in the power cord of battery-powered clipping
machine FAV5 CL.
¾Press ON/OFF switch 11.
¾Slightly push blade 12 towards battery-powered
clipping machine FAV5 CL.
Blade 12 will click into position.
¾Check that blade 12 is correctly seated on battery-
powered clipping machine FAV5 CL.
4.4.3 Lubricating the blade
¾Clean the upper and lower cutting plates with a
soft cloth or brush. Make certain that the gaps
between the cutting teeth are cleaned properly.
¾Slightly lubricate the upper and lower cutting
plates with special lubricant for blades GT604.
4.4.4 Changing the Li-ion battery
Fig. 5
¾Hold battery-powered clipping machine FAV5 CL 2
and press battery release lock 3.
¾Pull out Li-ion battery 8from battery-powered
clipping machine FAV5 CL 2.
¾Insert the charged Li-ion battery 8in battery-pow-
ered clipping machine FAV5 CL 2as far as it will go.
The battery-powered clipping machine FAV5 CL 2
is ready for operation.
2
12
8
32
3

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
10
5. Processing
5.1 Cleaning/disinfection
Note
Always follow disposal and hygiene instructions and
regulations!
Manual cleaning/disinfection
¾Wipe the shell of the product with a lint-free cloth
moistened with a commercial disinfectant for wipe
disinfection.
¾If necessary, after the appropriate exposure time,
wipe off any residues of the cleaning/disinfecting
agent with a lint-free cloth moistened with clean
water.
¾Dry the product with a clean, lint-free cloth.
¾Clean the contacts in the charging bay with isopro-
panol or ethyl alcohol and a cotton swab. Do not
use corrosive chemicals.
¾If necessary, repeat the cleaning/disinfecting pro-
cess.
5.2 Control, care and inspection
¾Allow the product to cool down to room tempera-
ture.
¾Inspect the product after each cleaning and disin-
fecting cycle to be sure it is: clean, functional, and
undamaged.
¾Lubricate blade if required, see Chapter Lubricating
the blade head.
¾Check the product for any damage, abnormal run-
ning noise, overheating or excessive vibration.
¾Inspect the blade for broken, damaged or blunt
cutting edges.
¾Set aside the product if it is damaged.
CAUTION
Damage to, or destruction of the
product caused by mechanical
cleaning/disinfecting or steriliza-
tion!
¾Only clean and disinfect the
product manually.
¾Do not sterilize the product
under any circumstances.
DANGER
Risk of electric shock and fire haz-
ard!
¾Unplug the device before clean-
ing.
¾Ensure that no fluids will pene-
trate the product.
¾Leave the product exposed to
air for at least 1 minute after
cleaning/disinfecting.
CAUTION
Damage to the product due to
incorrect cleaning or inappropriate
cleaning/disinfecting agents!
¾Use any commercial detergent
for surface cleaning.
¾Never immerse the product in
water or detergent.
¾Do not introduce any fluid into
the charging bays.
¾Clean the contacts in the charg-
ing bays, applying extreme care.

11
6. Maintenance
To ensure reliable operation, Aesculap recommends
servicing the product at least once a year.
For the respective services, please contact your
national B. Braun/Aesculap agency, see Chapter Tech-
nical Service.
Service addresses
In the UK
KG PRODUCTS
243-251 City Road, Fenton
Stoke-on-Trent, Staffs
ST4 2PX
United Kingdom,
Phone (44) - 01782 844 866
DIAMOND EDGE
126 Gloucester Rd.
Brighton, BN1 4BU.
United Kingdom
Phone (44) - 01273 605 922
Or in the US
A & J Sales and Service
42 - A Frame Drive
West Burke, VT 05871
USA
Phone: [phone]
Or in Germany
Aesculap Suhl GmbH
Fröhliche-Mann-Straße 15
98528 Suhl / Germany
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Other service addresses can be obtained from the
address indicated above.

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
12
7. Troubleshooting list
7.1 Battery-powered clipping machine FAV5 CL
7.2 Charger and Li-ion battery
Malfunction Detection Cause Remedy
Battery-powered clipping
machine FAV5 CL does not
start
Check switch position Li-ion battery not loaded Load Li-ion battery
– Li-ion battery defect Insert new Li-ion battery
– Li-ion battery not
inserted
Insert new Li-ion battery
Battery-powered clipping
machine FAV5 CL has
come to a stop
– Li-ion battery deactivated
through protective circuit
Deactivate and reacti-
vate the control unit
– Li-ion battery is empty Insert new Li-ion battery
Battery-powered clipping
machine FAV5 CL does not
load into the charging sta-
tion
LED indicators do not
light up
– see Chapter Charger and
Li-ion battery
Malfunction Detection Cause Remedy
Charger not working LED indicators do not
light up
Mains power cord not
plugged in
Plug mains power cord
into the device socket on
the charger and into the
socket of the mains
power supply.
Li-ion battery not
loaded
Mains power cord defect Replace mains power
cord
Charger defect Send product to manu-
facturer for repair

13
Li-ion battery cannot be
loaded
Li-ion battery in place,
charge state indicator
does not light up
Charger contacts dirty or
damaged
Clean contacts in the
charging bay, see Chap-
ter Cleaning/disinfection
or send to manufacturer
for repair
Li-ion battery defect Send Li-ion battery to
manufacturer for repair
Charger defect Send charger to manu-
facturer for repair
Excess temperature is
detected in the Li-ion
battery during charging
Remove Li-ion battery
from charging bay, leave
to cool and start the
charging process again.
If the problem occurs
again, send battery to
manufacturer for repair
Charging fault or
Li-ion battery defect
Remove Li-ion battery
from charging bay and
repeat charging process,
if necessary in another
charging bay.
If the problem occurs
again send Li-ion bat-
tery to manufacturer for
repair
Malfunction Detection Cause Remedy

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
14
8. Technical Service
¾For service, maintenance and repairs, please con-
tact your national B. Braun/Aesculap agency.
Modifications carried out on medical technical equip-
ment may result in loss of guarantee/warranty rights
and forfeiture of applicable licenses.
Service addresses
In the UK
KG PRODUCTS
243-251 City Road, Fenton
Stoke-on-Trent, Staffs
ST4 2PX
United Kingdom,
Phone (44) - 01782 844 866
DIAMOND EDGE
126 Gloucester Rd.
Brighton, BN1 4BU.
United Kingdom
Phone (44) - 01273 605 922
Or in the US
A & J Sales and Service
42 - A Frame Drive
West Burke, VT 05871
USA
Phone: [phone]
Or in Germany
Aesculap Suhl GmbH
Fröhliche-Mann-Straße 15
98528 Suhl / Germany
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Other service addresses can be obtained from the
address indicated above.

15
9. Accessories/Spare parts
10. Technical data
10.1 Battery-powered clipping machine
FAV5 CL
10.2 Charger
Art. no. Design Power cord Li-ion bat-
tery
Charging
station
Battery-
powered
clipping
machine
Accessories
GT306 Europe
outside of
Great Britain
TA012170
Europe-flat
plug, black,
L=1.8 m
GT201 GT200880 GT300
unpacked
GT604800
Hand oiler
GT306G Great Britain TA012169
GB plug, black,
L=1.8 m
GT201 GT200880 GT300
unpacked
GT604800
Hand oiler
GT306J Japan, Mexico
110-125 V
TA012168
2-pin connector
plug, black,
L=1.8 m
GT201 GT200880 GT300
unpacked
GT604800
Hand oiler
GT306K USA TA012168
2-pin connector
plug, black,
L=1.8 m
GT201 GT200880 GT300
unpacked
GT604800
Hand oiler
Model GT300
Stroke frequency 2 300/min
Charging voltage/Output voltage max. 8.4 V
Charging current/Output current max. 1.2 A
Weight
(without blade and battery)
385 g
Weight
(with blade and battery)
450 g
EN 60335-1, EN 60335-2-29
Model GT203
Mains voltage ranges
(Current intake)
100-240 V
Frequency 50-60 Hz
Charging voltage/Output voltage max. 8.4 V
Charging current/Output current max. 1.2 A
Weight 495 g
Quality marks CE, UL

Aesculap Suhl GmbH
Battery-powered clipping machine FAV5 CL
16
10.3 Li-ion battery
10.4 Declaration of conformity
11. Disposal
Electrical tools, accessories and packaging should be
sent for environmentally responsible recycling.
11.1 For EU countries only
11.2 Li-ion batteries
Do not dispose of batteries in domestic waste, fire or
water. Defective or used batteries must be collected,
recycled or disposed of in an environmentally-friendly
way according to Directive 2006/66/EG.
Model GT201
Cell type Li
DC voltage 7.4 V
Capacity approx.1.2 Ah
Charging time 50 min ±5 min
We declare under our sole responsibil-
ity that this product complies with the
following standards and regulatory
documents:
2006/95/EC EC Low Voltage Directive
DIN EN 60335-1
DIN EN 60335-2-8
DIN EN 60335-2-29
Safety of household and similar elec-
trical appliances
- general requirements
- for clipping machines
- for battery chargers
Aesculap Suhl GmbH
Do not dispose of electrical tools in
domestic waste!
According to European Directive
2002/96/EG on old electrical and
electronic appliances and its imple-
mentation in national law, electrical
tools that are no longer suitable for
use must be separately collected and
sent for environmentally responsible
recycling.

17
12. Two year guarantee
Dear Customer,
Many thanks for choosing one of our products. The
name Aesculap has a long-standing reputation for
tried and tested quality and first-class service. Aescu-
lap Suhl GmbH is certified according to DIN EN
ISO 9001. We offer our customers innovative and
high-performance products.
Aesculap manufactures high-quality devices and can
assure you that it uses high-quality materials and
careful manufacturing processes. If there is a quality
defect in a product, we guarantee that product for two
years after its purchase (starting from the invoice
date).
In addition to your contractual and legal guarantee
rights, Aesculap offers you a manufacturer's guarantee
with the following conditions:
This manufacturer's guarantee is valid for two years
starting from the date of purchase. It is valid for
defects arising from material or manufacturing errors.
The following are excluded from our manufacturer's
guarantee:
defects caused by improper use, normal wear and tear,
the erroneous action of unauthorized persons inter-
vening with the product or unsuitable or unacceptable
foreign products being used during the product's
assembly. Defects that do not affect or only minimally
affect the value or usability of the product are also
excluded.
If a defect that falls under our manufacturer's guaran-
tee occurs during our guarantee period of two years
after the purchase date, we will choose either to repair
the defective product or to replace it.
A prerequisite for our manufacturer's guarantee is that
you send or hand in the product and purchase receipt
(invoice) to one of our national Aesculap agencies or
national responsible customer service centers within
the applicable guarantee period.
The addresses of our customer service centers, see
Technical Service.
Irrespective of our manufacturer's guarantee, you are
also entitled to make a guarantee claim against the
seller for a supplementary performance (rework, repair
or exchange), cancellation or price reduction, insofar
as this is within your legal or contractual rights. These
rights are not affected by our additional manufac-
turer's guarantee.
13. Distributor in the US/Contact
in Canada for product infor-
mation and complaints
Aesculap Inc.
3773 Corporate Parkway
Center Valley, PA 18034
USA
Service addresses
A & J Sales and Service
42 - A Frame Drive
West Burke, VT 05871
USA
Phone: [phone]
Or in Germany
Aesculap Suhl GmbH
Fröhliche-Mann-Straße 15
98528 Suhl / Germany
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]

Aesculap Suhl GmbH
Akku-Schermaschine FAV5 CL
18
Legende
1Scherkopfhalter
2Akku-Schermaschine FAV5 CL
3Akku-Entriegelung
4Ladegerät
5Netzanschlussleitung (mit Gerätestecker)
6Ladeschacht (für Li-Ionen-Akku)
7Ladezustandsanzeige (für Li-Ionen-Akku)
8Li-Ionen-Akku
9Ladezustandsanzeige (für Akku-Schermaschine
FAV5 CL)
10 Ladeschacht (für Akku-Schermaschine FAV5 CL)
11 Ein-/Ausschalter
12 Scherkopf
Symbole am Produkt
Inhaltsverzeichnis
1. Sichere Handhabung ............................................19
2. Gerätebeschreibung .............................................19
2.1 Lieferumfang ..........................................................19
2.2 Zum Betrieb erforderliche Komponenten ......20
2.3 Verwendungszweck Akku-Schermaschine
FAV5 CL ...................................................................20
2.4 Verwendungszweck Ladegerät GT203/
Li-Ionen-Akku GT201 ..........................................20
2.5 Funktionsweise Akku-Schermaschine
FAV5 CL ...................................................................20
2.6 Funktionsweise Ladegerät GT203/Li-Ionen-
Akku GT201 ............................................................20
2.6.1 Ladeprinzip.............................................................. 20
2.6.2 Ladezeit.................................................................... 20
3. Vorbereiten und Aufstellen ................................21
4. Arbeiten mit der Akku-Schermaschine
FAV5 CL, dem Ladegerät GT203/
Li-Ionen-Akku GT201 21
4.1 Bereitstellen ...........................................................21
4.1.1 Zubehör anschließen............................................ 21
4.1.2 Scherkopf aufstecken........................................... 22
4.1.3 Ladegerät anschließen/Li-Ionen-Akku laden... 22
4.2 Funktionsprüfung Akku-Schermaschine
FAV5 CL ...................................................................23
4.3 Funktionsprüfung Ladegerät .............................24
4.4 Handhabung Scherkopf .......................................24
4.4.1 Schneidplatte schleifen....................................... 24
4.4.2 Scherkopf austauschen ....................................... 24
4.4.3 Scherkopf ölen....................................................... 25
4.4.4 Li-Ionen-Akku austauschen............................... 25
5. Aufbereitung ..........................................................26
5.1 Reinigung/Desinfektion .......................................26
5.2 Kontrolle, Pflege und Prüfung ...........................27
6. Wartung ..................................................................27
7. Fehler erkennen und beheben ...........................28
7.1 Akku-Schermaschine FAV5 CL ..........................28
7.2 Ladegerät und Li-Ionen-Akku ...........................28
8. Technischer Service ..............................................30
9. Zubehör/Ersatzteile ..............................................31
10. Technische Daten ..................................................32
10.1 Akku-Schermaschine FAV5 CL ..........................32
10.2 Ladegerät ................................................................32
Gebrauchsanweisung einhalten
Kennzeichnung von Elektro-
und Elektronikgeräten entspre-
chend Richtlinie 2002/96/EG
(WEEE), siehe Kapitel Entsor-
gung
