AG-NAV Guia Platinum User manual

Platinum – Main Menu 1 AG-NAV Inc.
Guia Platinum - Main Menu
Version 2.15.4
User's Manual
Copyright © 2021 AG-NAV Inc.

Platinum – Main Menu 2 AG-NAV Inc.
Table of Contents
About............................................................................................................................................................. 5
Support ......................................................................................................................................................... 6
Notes............................................................................................................................................................. 7
4. Main Menu............................................................................................................................................ 9
4.1 Navigate/Training........................................................................................................................10
4.2 File Manager ............................................................................................................................... 11
4.3 Tools............................................................................................................................................ 12
4.4 Settings........................................................................................................................................13
4.5 Tests ............................................................................................................................................ 14
4.6 Main Help....................................................................................................................................15
4.7 Turn System Off .......................................................................................................................... 16
5. File Manager ....................................................................................................................................... 17
5.1 Up/Down.....................................................................................................................................18
5.2 Tag...............................................................................................................................................19
5.3 Copy ............................................................................................................................................ 20
5.4 Delete Area .................................................................................................................................21
5.5 Delete Spray Data ....................................................................................................................... 22
5.6 Rename .......................................................................................................................................23
5.7 Duplicate ..................................................................................................................................... 25
5.8 View ............................................................................................................................................ 27
5.9 Format.........................................................................................................................................29
5.10 BackUp ........................................................................................................................................30
5.11 Clean ...........................................................................................................................................31
5.12 Change Directory ........................................................................................................................32
5.13 Export..........................................................................................................................................34
5.14 New Mission................................................................................................................................ 38
5.15 Report ......................................................................................................................................... 42
5.16 Recycle Basket.............................................................................................................................44
5.17 Exit...............................................................................................................................................48
6. Tools.................................................................................................................................................... 49
6.1 Remote File Transfer................................................................................................................... 50

Platinum – Main Menu 3 AG-NAV Inc.
6.2 Mail Box ...................................................................................................................................... 54
6.3 Calculator .................................................................................................................................... 57
6.4 Weather ......................................................................................................................................58
6.5 System Diagnosis ........................................................................................................................ 61
6.6 Web Browser............................................................................................................................... 62
6.7 AgMission....................................................................................................................................63
6.8 Home...........................................................................................................................................64
7. Settings................................................................................................................................................65
7.1 System Type ................................................................................................................................66
7.2 Languages....................................................................................................................................67
7.3 Date & Time ................................................................................................................................68
7.4 Screen..........................................................................................................................................69
7.5 GPS .............................................................................................................................................. 70
7.6 WiFi ............................................................................................................................................. 72
7.7 Control Hub................................................................................................................................. 75
7.8 AgNav Link................................................................................................................................... 76
7.9 Weather API................................................................................................................................ 79
7.10 TrackerNav ..................................................................................................................................81
7.11 SOS ..............................................................................................................................................83
7.12 AgMission.................................................................................................................................... 87

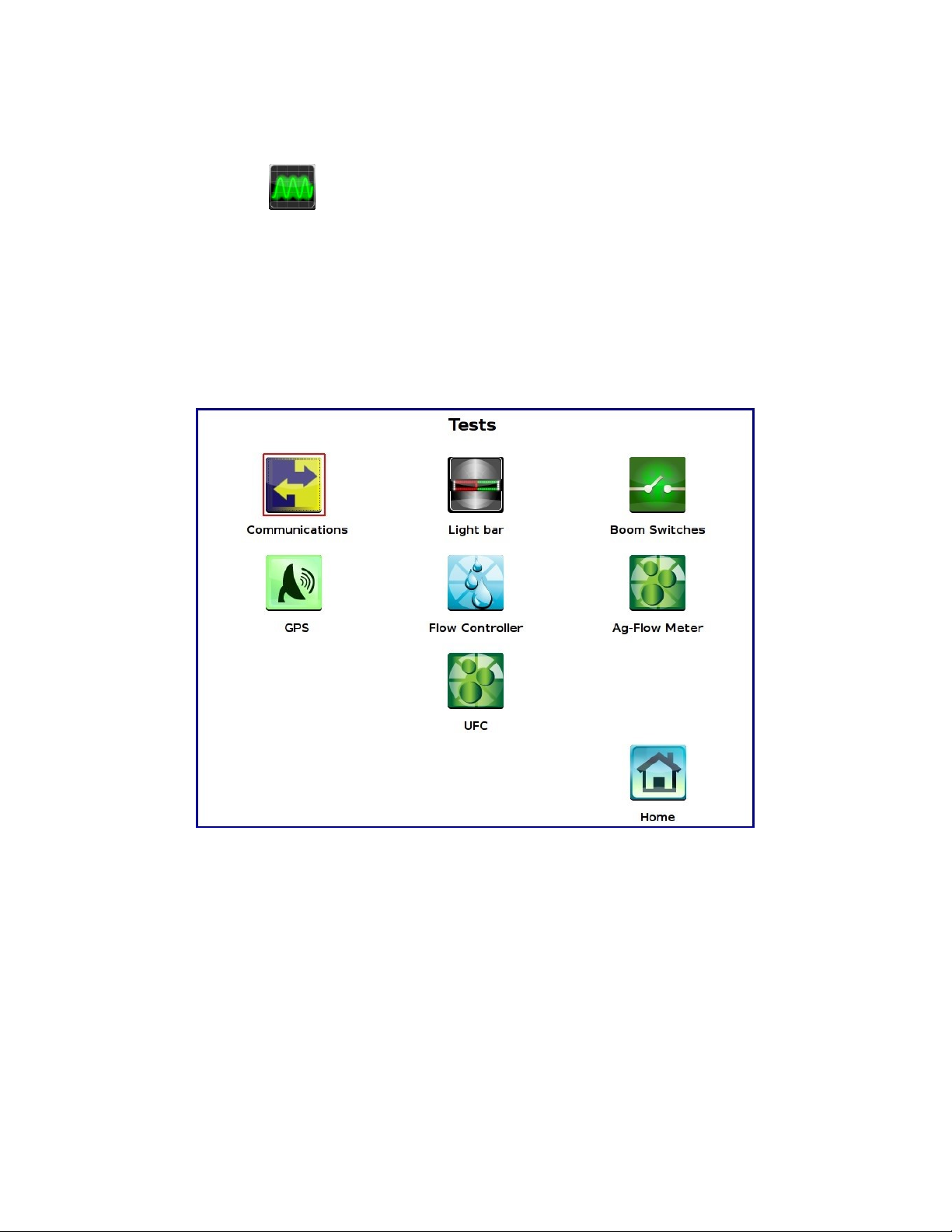

8. Tests ....................................................................................................................................................91
8.1 Communications ......................................................................................................................... 92
8.2 Light Bar ...................................................................................................................................... 94
8.3 Boom Switches............................................................................................................................ 96
8.4 GPS .............................................................................................................................................. 98
8.5 Flow Controller............................................................................................................................99
8.6 Ag-Flow Meter .......................................................................................................................... 101
8.7 UFC ............................................................................................................................................ 103
8.8 Granular FC ............................................................................................................................... 105
8.9 E-Motor FC ................................................................................................................................ 114
8.10 ULV FC ....................................................................................................................................... 117
8.11 AgFlow UFC ............................................................................................................................... 121
8.12 Dual Valve FC ............................................................................................................................125

Platinum – Main Menu 4 AG-NAV Inc.
8.13 Hatfield RGate...........................................................................................................................127
8.14 Bucket FC...................................................................................................................................128

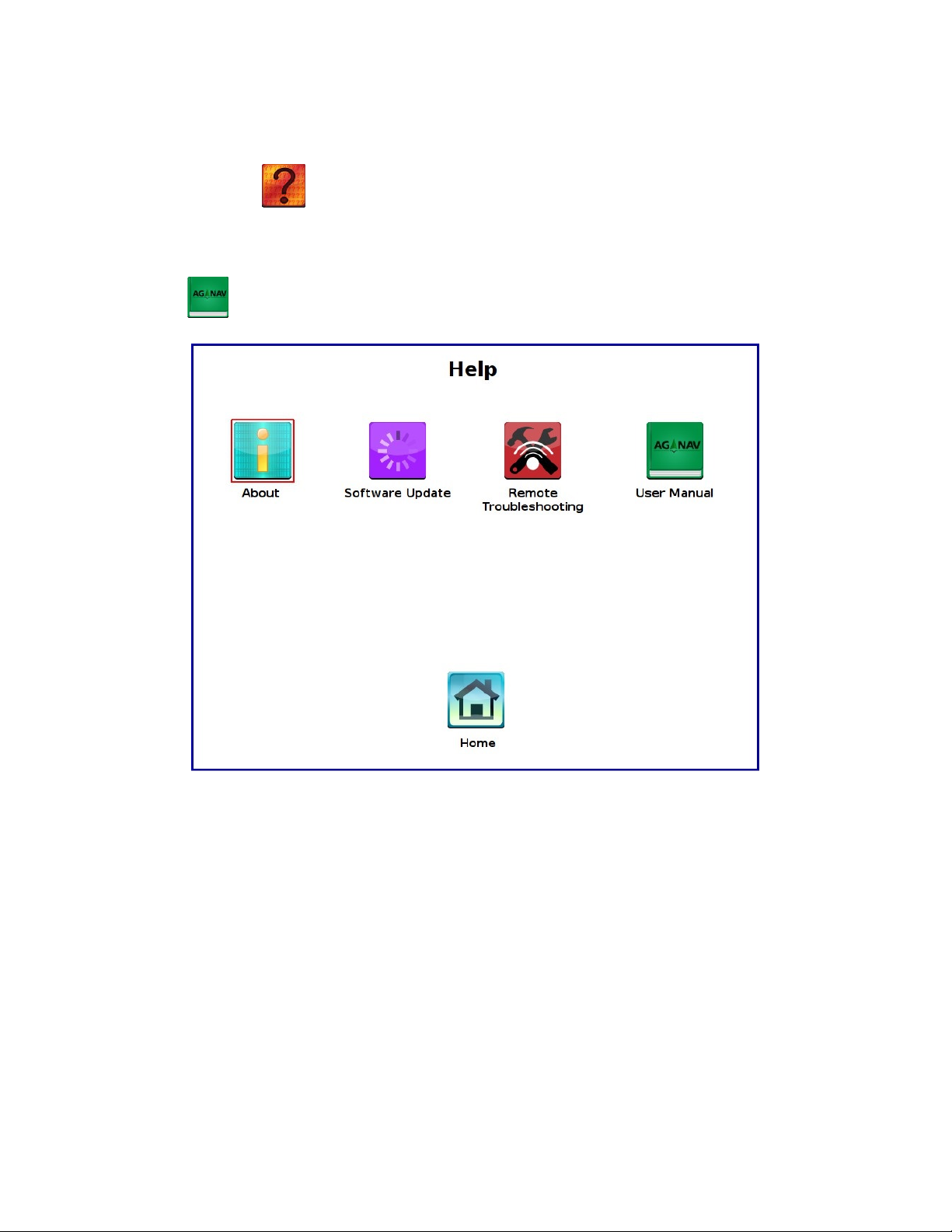

9. Main Help..........................................................................................................................................130
9.1 About.........................................................................................................................................131
9.2 Software Update .......................................................................................................................132
9.3 Remote Troubleshooting ..........................................................................................................134
9.4 User Manual..............................................................................................................................135

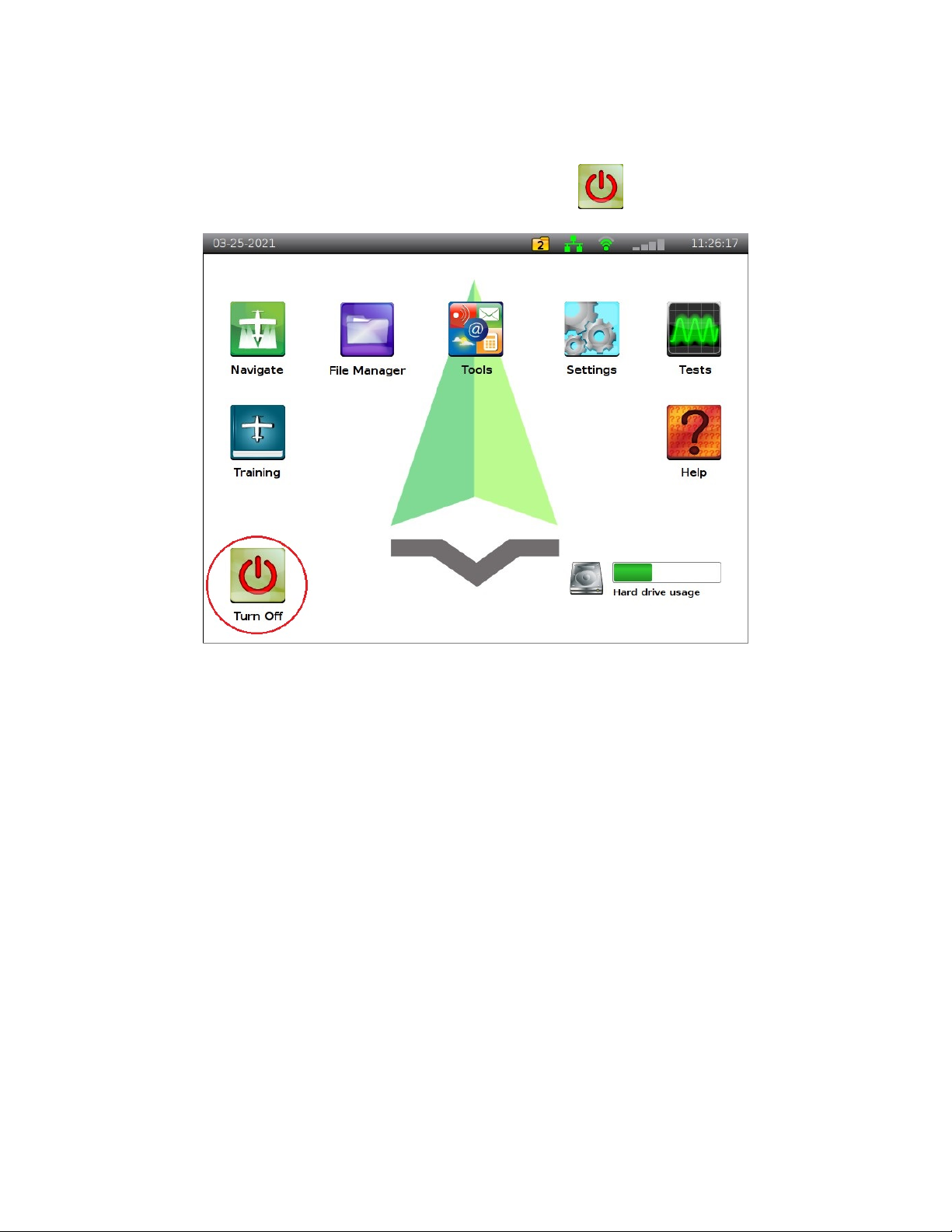

10. Turn System Off ............................................................................................................................136

Platinum – Main Menu 5 AG-NAV Inc.
About
The Guia Platinum is a GPS navigation system designed by AG-NAV Inc. for aerial
agricultural application.
It is a state-of-the-art system developed with the combination of latest technologies in
GPS, computers, wired and wireless data communications, and aerial applications.
The Platinum is a highly accurate, real-time navigation guidance system. It uses GPS
and Glonass signals received directly from a constellation of 24 satellites in orbit around
the Earth. This system can operate in conjunction with differential correction signals.
This Help is for the Guia Platinum Main Menu software version 2.15.4, released in
March 2021.
Note that the Guia Platinum is also called "Platinum" for short.

Platinum – Main Menu 6 AG-NAV Inc.
Support
For technical help, please contact AG-NAV:
Phone:
(800) 99 AGNAV (North America)
[phone]
[phone] (International)
Email:
[email protected]
Web:
https://www.agnav.com

Platinum – Main Menu 7 AG-NAV Inc.
Notes
The software and hardware described in this manual is furnished under the license and may only be
used or copied in accordance with the terms of the license.
Copyright © Ag-NAV Inc. 2021
Revision: 2.15.4
Release Date: March 2021
All rights reserved. No part of this publication or the components it describes may be reproduced,
stored in a retrieval system or transmitted, in any form, or by any means, electronic, mechanical,
photo-copying, recording, or otherwise, without prior written consent from AG-NAV Inc.
AG-NAV Inc. provides this manual “as is”, without warranty of any kind and reserves the right to make
improvements an/or changes to the product described in this manual at any time and without notice.
AG-NAV Inc. equipment should not be used as a primary navigation device.
CLASS A COMPUTING DEVICE. This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. The equipment generates, used, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his/her own expense.
SOFTWARE IS PROVIDED AS IS. To the maximum extent permitted by law, the manufacturer, (AG-NAV
Inc.) and its suppliers disclaim all warranties, either express or implied, including, but not limited to
implied warranties of merchantability and fitness for a particular purpose, with regard to the
SOFTWARE, the accompanying written materials, and any accompanying hardware. You may have other
rights which vary from state/jurisdiction to state/jurisdiction.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES. To the maximum extent permitted by applicable law, in
no event shall the company or its suppliers be liable for any damages whatsoever (including without
limitation, direct or indirect damages for personal injury, loss of business profits, business interruption,
loss of business information, or any other pecuniary loss) arising out of the use of this product, even if
the company has been advised of the possibility of such damages. In any case, the company’s and its
suppliers’ entire liability shall be limited to the amount actually paid by the owner of the product for the
product. Because some states/jurisdictions do not allow the exclusion or limitation of liability for
consequential or incidental damages, the above limitation may not apply to the user.

Platinum – Main Menu 8 AG-NAV Inc.
TRADEMARKS
•AG-NAV®or AG-NAV is a registered trademark of AG-NAV Inc.
•Guia or Guia™ is a registered trademark of Ag-NAV Inc.
•All other brand names are trademarks of their respective holders
In the event of a problem that cannot be resolved using the information supplied, please contact
AG-NAV. You can also gain assistance on our web page at www.agnav.com.
For further assistance, contact the AG-NAV Technical Support Line by telephone or email. AG-NAV
Customer Support personnel will discuss your situation, determine the cause of problem and provide
the appropriate technical assistance.

Platinum – Main Menu 9 AG-NAV Inc.

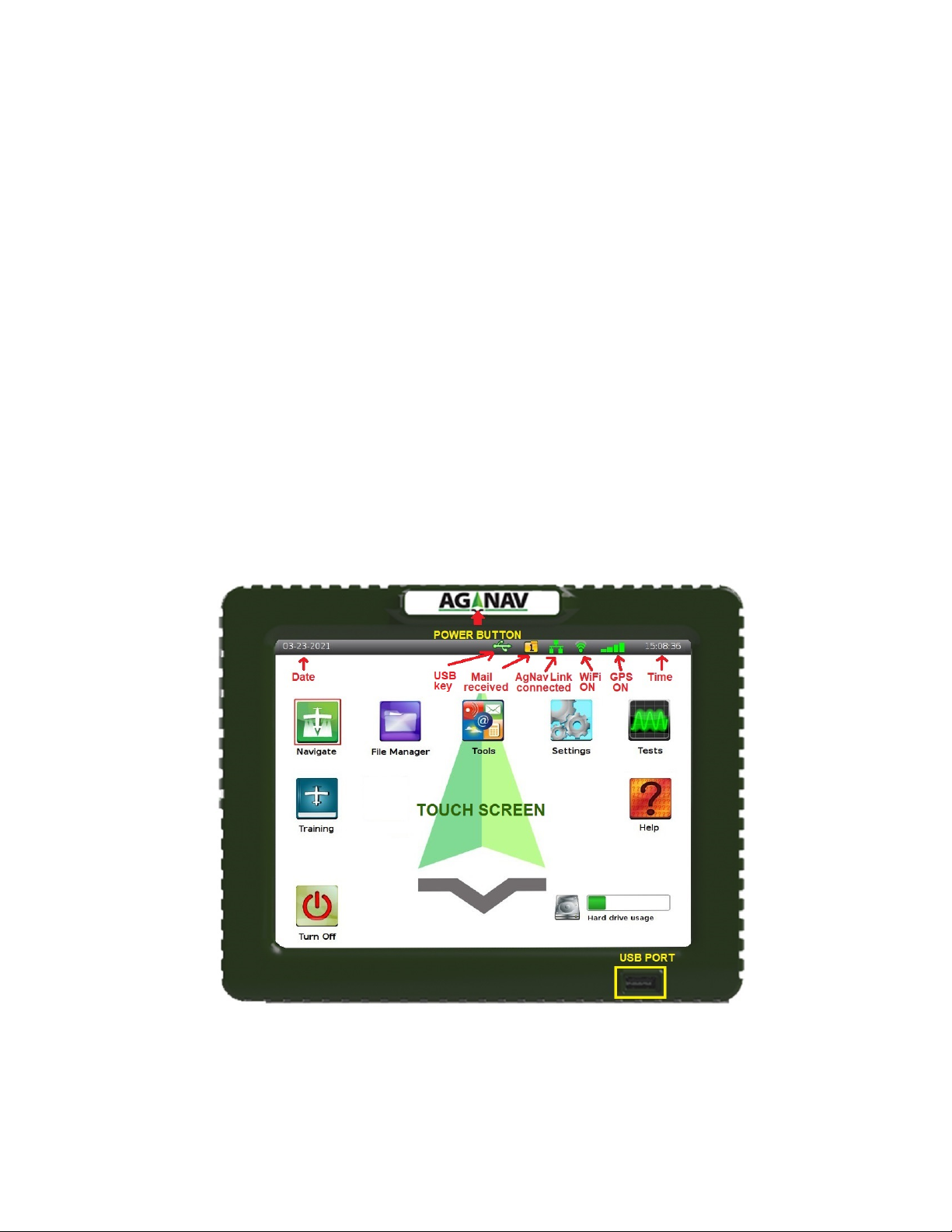

4. Main Menu
The Platinum Main Menu offers many items for
•Aerial Application
•File Management
•Multi-purpose Tools
•System Settings
•Device Tests, and
•Help
The Navigate, Training, File Manager and Tests are stand-alone modules. To execute
a module or item on the Main Menu, the user taps on the icon of the desired item.

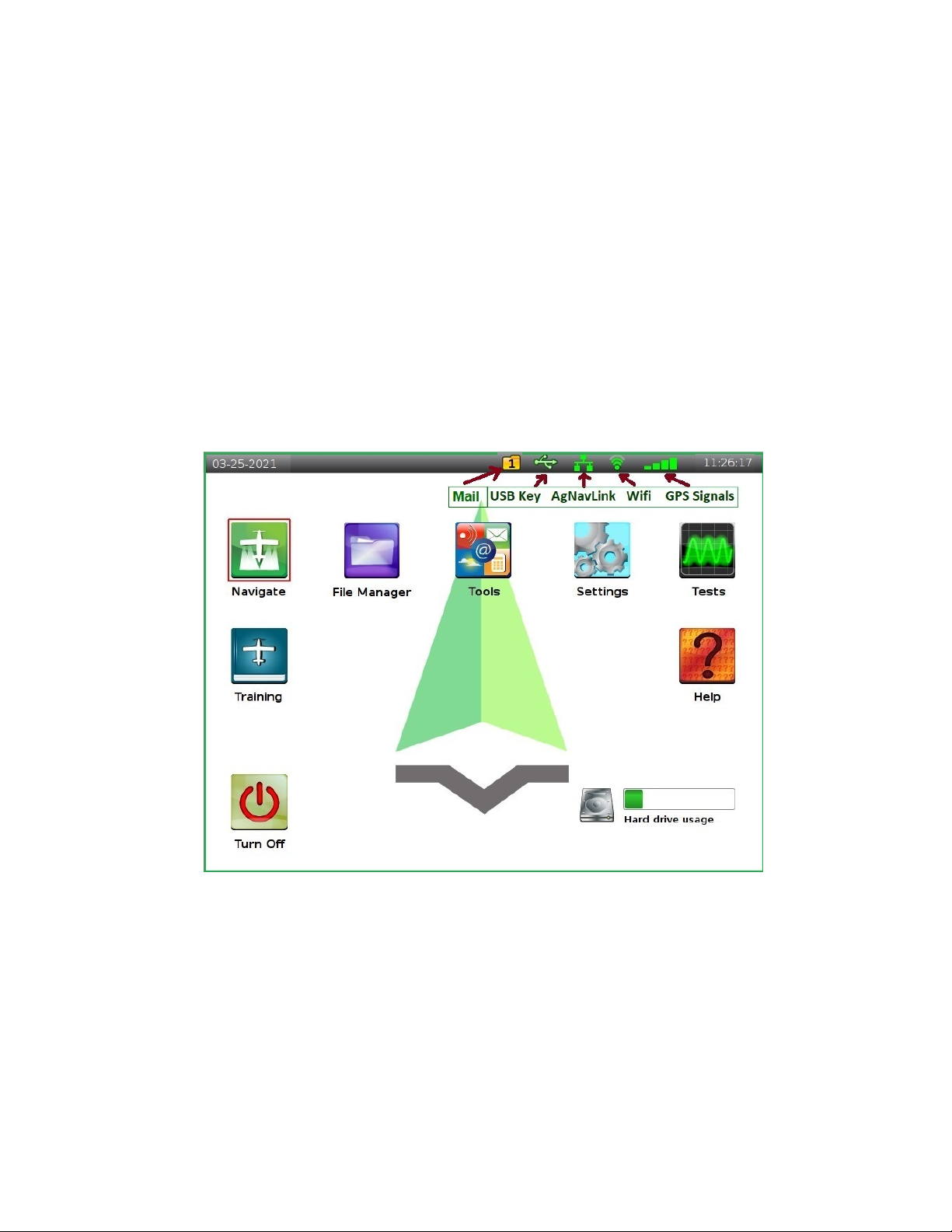

Other icons shown at the top right corner of screen serve as indicators when USB key is
plugged in, system gets access to internet, or GPS signals received. Pilot should
always check the GPS signals before flying.

Platinum – Main Menu 10 AG-NAV Inc.

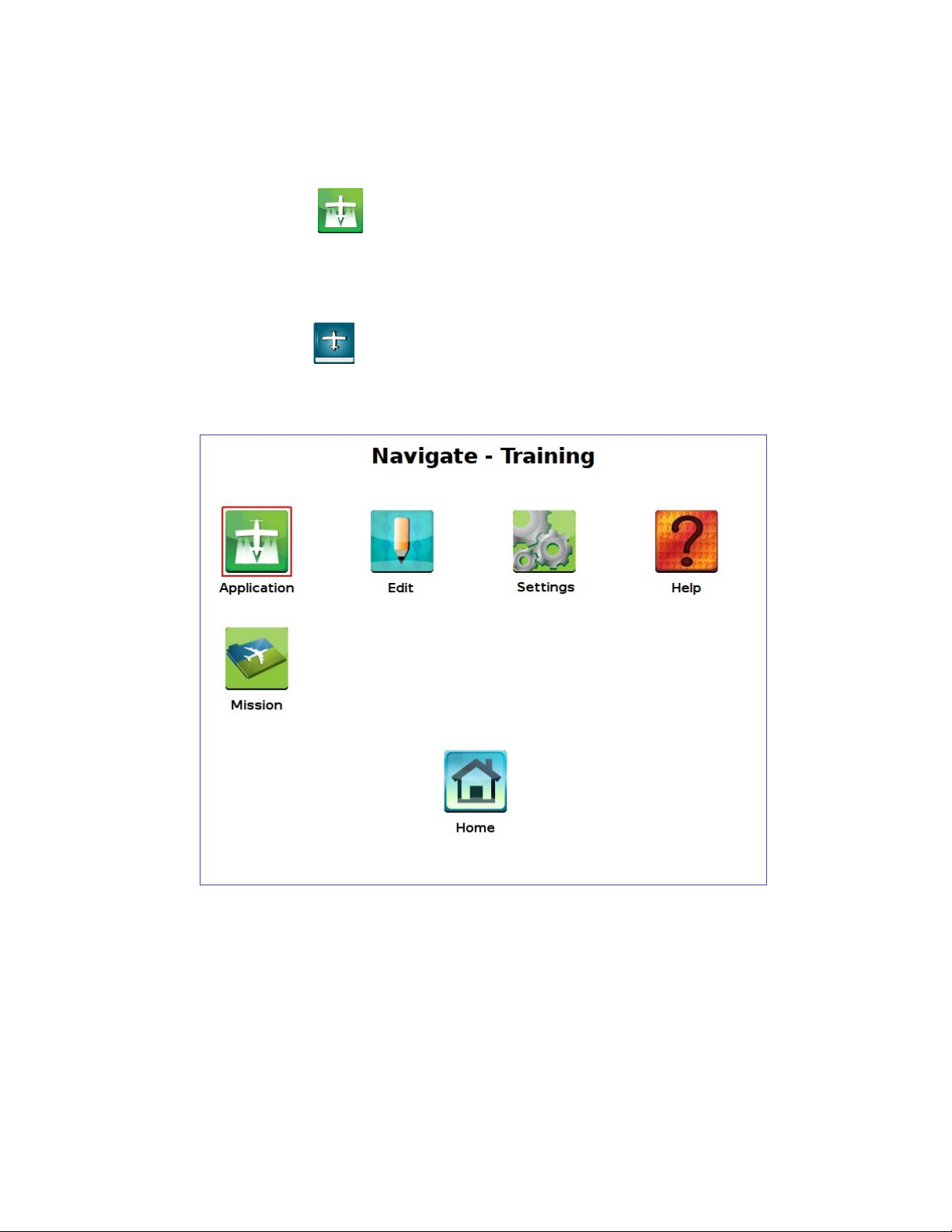

4.1 Navigate/Training
The Navigate module is a real-time program used to set up a spray area, enter
application settings, and start an application. The pilot will get guidance to fly the
predefined lines called grid lines, and spray the selected area. Navigate uses real time
GPS data for position and navigation.
The Training module simulates GPS data by using the Up, Down, Left, Right
keys on the keyboard. You can use the Training to learn all functions in the Navigate
module and to get yourself familiar with the Platinum operation before you fly.
The guide for Navigate and Training can be found in the Guia Platinum – Navigate
manual.

Platinum – Main Menu 11 AG-NAV Inc.

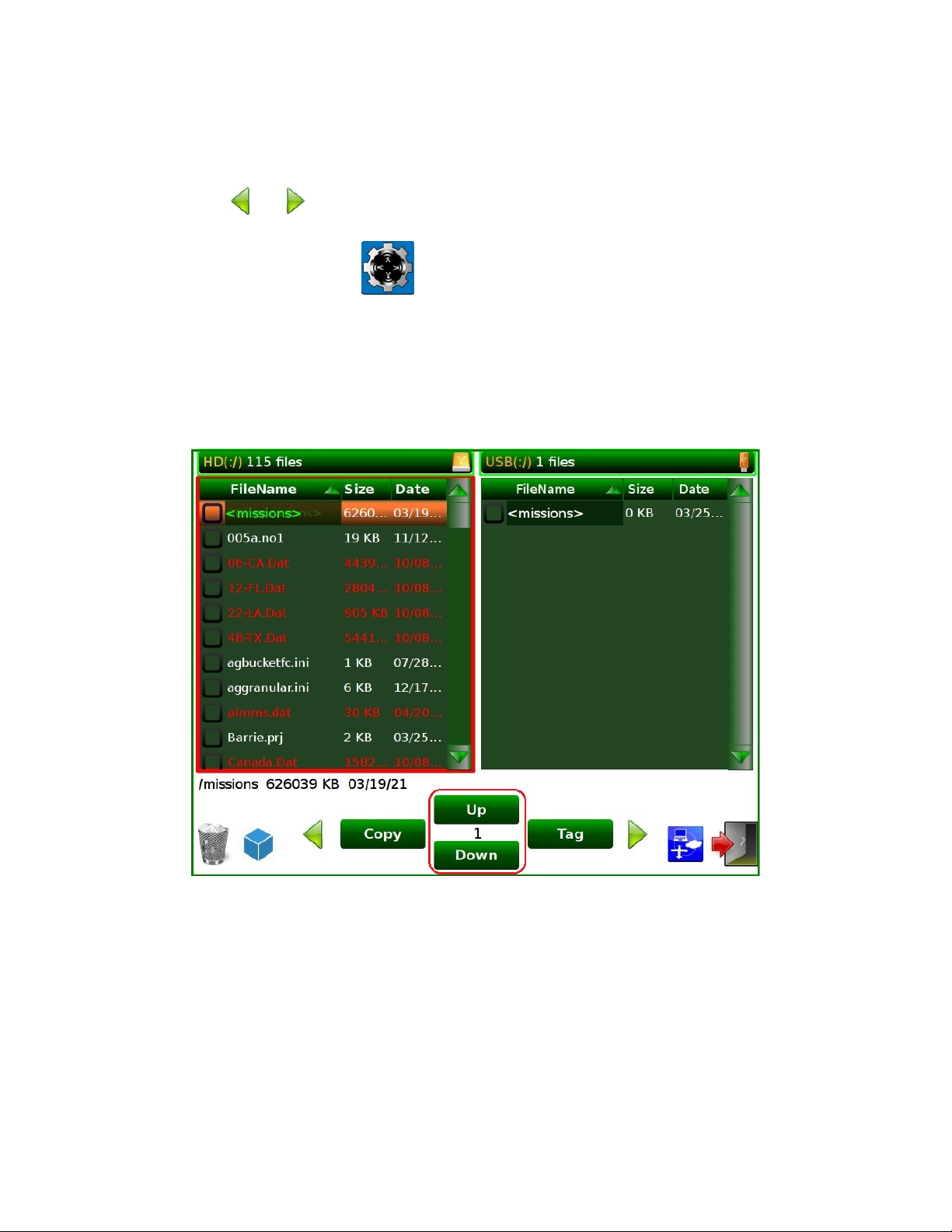

4.2 File Manager
The File Manager provides functions for file operations.
For terminology, USB key, USB memory stick, USB stick, USB storage media mean the
same thing and are used interchangeably. Local hard drive and hard disk are the same
thing which is the physical data storage inside the Platinum.
The functions in File Manager are:
a) Copy spray areas and data from local hard drive to USB stick, and vice versa.
b) Back up all data files from local hard drive to USB stick.
c) Clean the local hard drive.
d) Delete spray areas and data on hard drive and USB stick.
e) Rename a spray area.
f) Duplicate a spray area.
g) View spray area information.
h) Format USB memory stick.
i) Make a flight report for viewing on Google Earth.
j) Export spray data in Shapefile format to a USB key for use in third-party software.
k) Import a mission or job created by AgMission webapp.
l) Make a new mission to store area files and data for your new mission.

Platinum – Main Menu 12 AG-NAV Inc.
4.3 Tools
The Tools module has the special functions for wireless data and file transfer.
oRemote File Transfer
oMail Box
oCalculator
oWeather
oSystem Diagnosis
oWeb Browser
oAgMission

Platinum – Main Menu 13 AG-NAV Inc.
4.4 Settings
The System Settings module is used to set up the Platinum for your preference and
internet access.
The System Settings must be done properly once after Platinum installation.
Manufacturer’s defaults will not work for wireless data communications such as AgNav
Link, Weather, aircraft tracking, SOS and AgMission. More instructions can be found in
Chapter 7.

Platinum – Main Menu 14 AG-NAV Inc.
4.5 Tests
The Tests module is used to test:
oCommunications with external devices
oLightbars used for guidance
oBoom Switches used for spray on/off
oGPS Receiver for GPS data
oFlow Controller (old AgFlow)
oFlow Meter
oUniversal Flow Controllers (UFC) for both liquid and granular materials

Platinum – Main Menu 15 AG-NAV Inc.
4.6 Main Help
The Help module provides information about the system and software. It also
provides tools for software update, remote troubleshooting and instructions to operate the
Guia Platinum Main Menu.
Use this manual to learn the functions in the Guia Platinum system.
Note: The Navigate and Training modules have their own help for more details and
instructions in navigation and application on an area.

Platinum – Main Menu 16 AG-NAV Inc.
4.7 Turn System Off
Whenever you want to turn off the Platinum system, tap on the Main Menu.
The system will perform the closing procedure and turn off the power by itself.
To avoid system file corruption, please wait until the system is off completely
before switching the power supply or breaker off.

Platinum – Main Menu 17 AG-NAV Inc.
5. File Manager
Tap on the Main Menu to run the File Manager.
Note that while running File Manager, do not unplug the USB key to avoid file
corruption or damage to the USB key.

Platinum – Main Menu 18 AG-NAV Inc.
5.1 Up/Down
The Control Menu is displayed at the bottom of screen. To change the Control Menu or
functions, tap or button.
You can use the remote keys to operate the functions. As shown in the picture
below, the left key can run <Copy>, the right key runs <Tag>, the up key runs <Up>, and
the down key runs <Down>. To change the Control Menu, push straight down on the
remote keys.
The Up and Down functions are used to move the cursor up and down respectively. Use
the Up and Down buttons on the remote keys when you can not reach the display.

Platinum – Main Menu 19 AG-NAV Inc.
5.2 Tag
The Tag function is used to tag or untag a selected item.
To select an item, tap on the item or filename. A check mark will be shown to
indicate the item is tagged. To deselect it, just tap the item again.
You can use the Right remote key to <Tag> the desired items when you can not reach the
display.

Platinum – Main Menu 20 AG-NAV Inc.
5.3 Copy
To copy areas or projects from hard drive to USB key; or vice versa, first tag the files to be
copied. Then tap <Copy>.
Note that even though you select only .no1, .prj or .shp files, all files (grid lines, exclusion
zones, spray data files, dbf, shx, etc…) associate with the selected areas and projects will
be copied as well.
